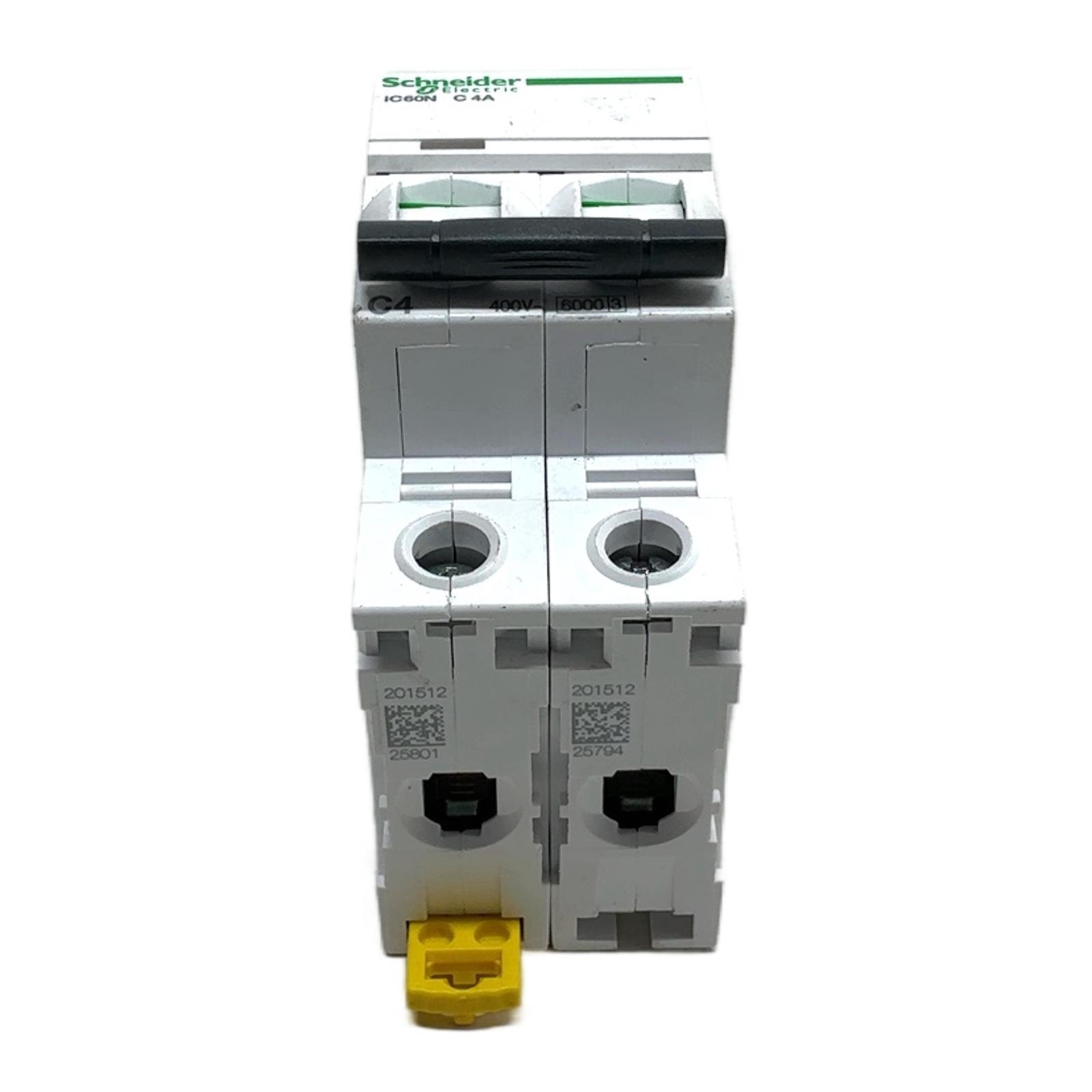

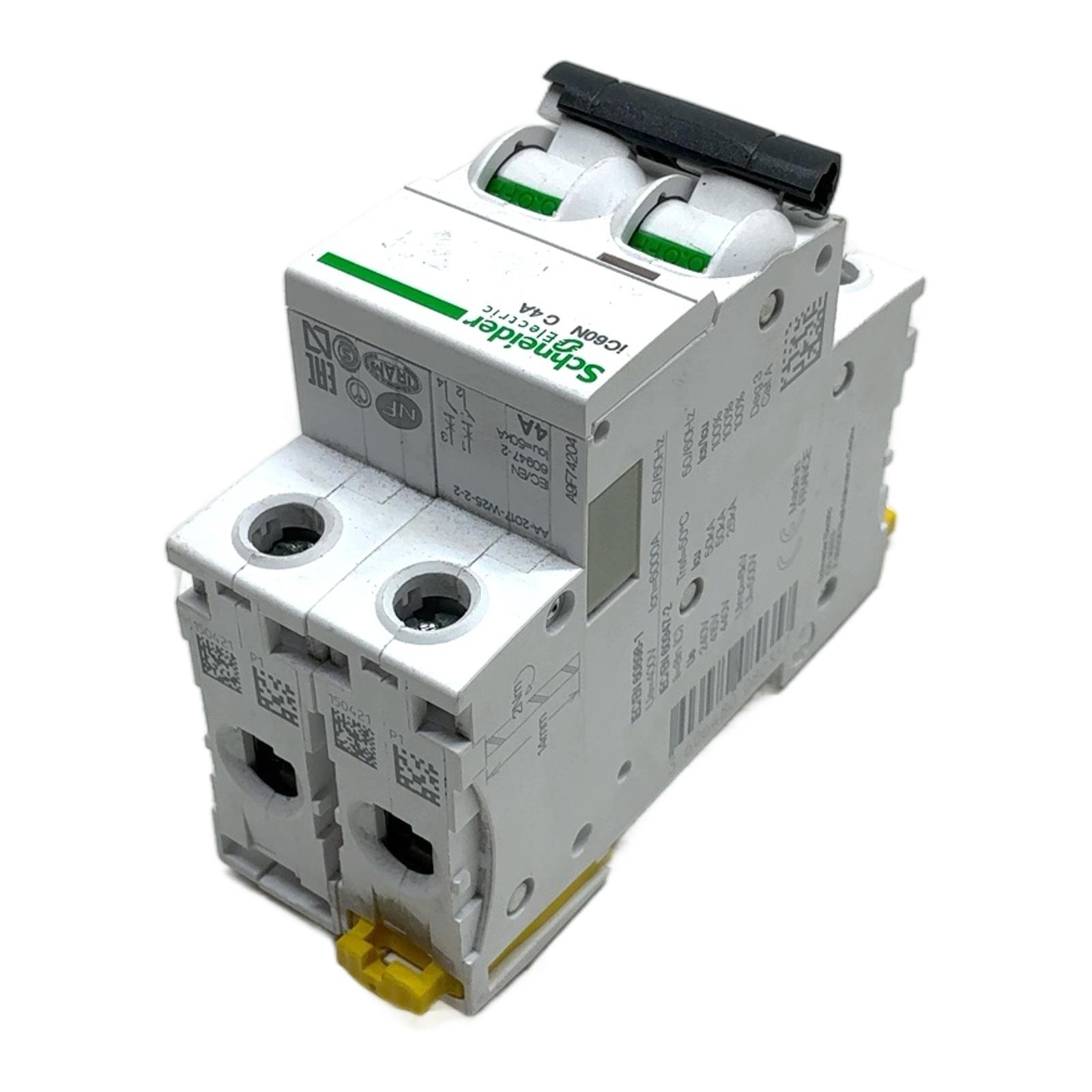

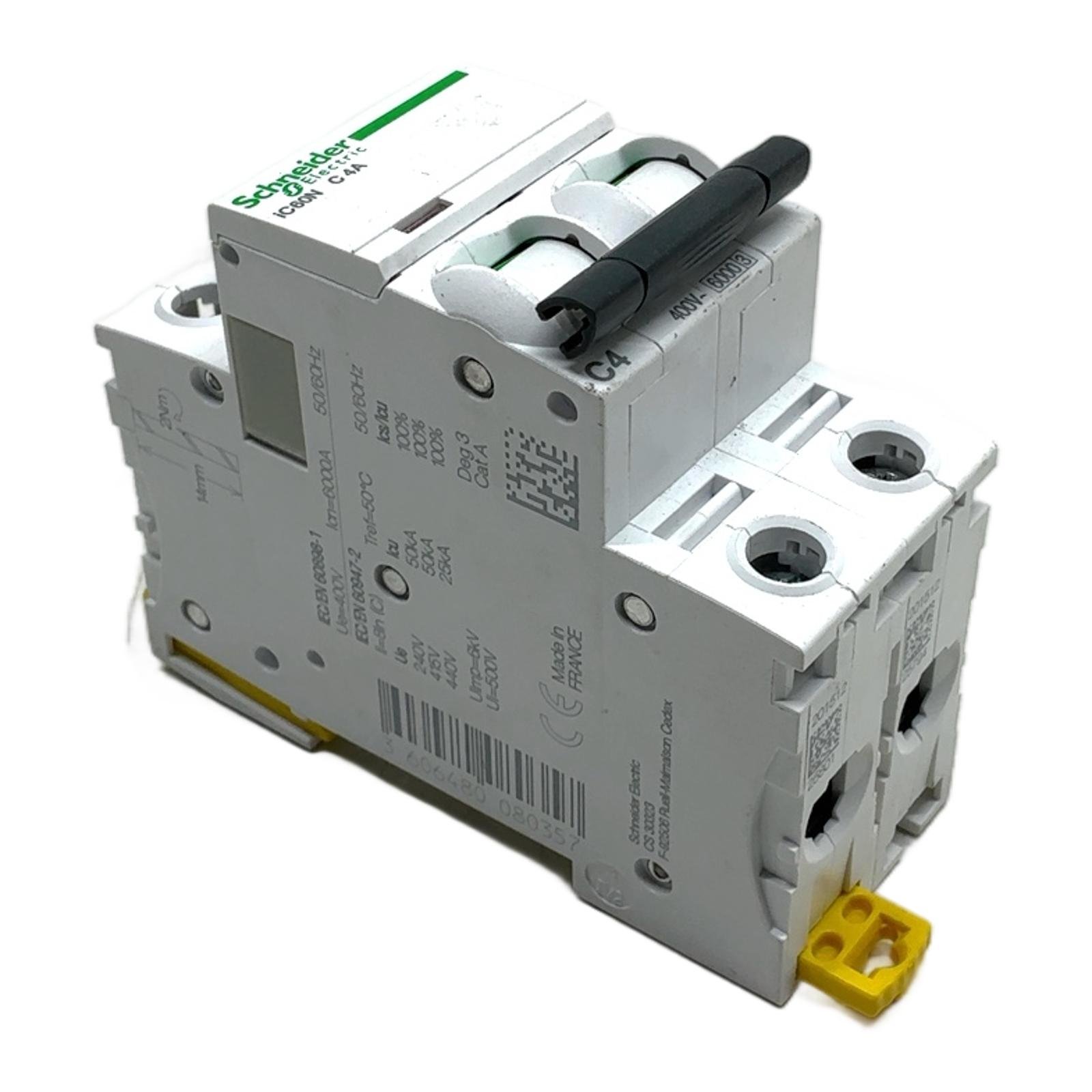

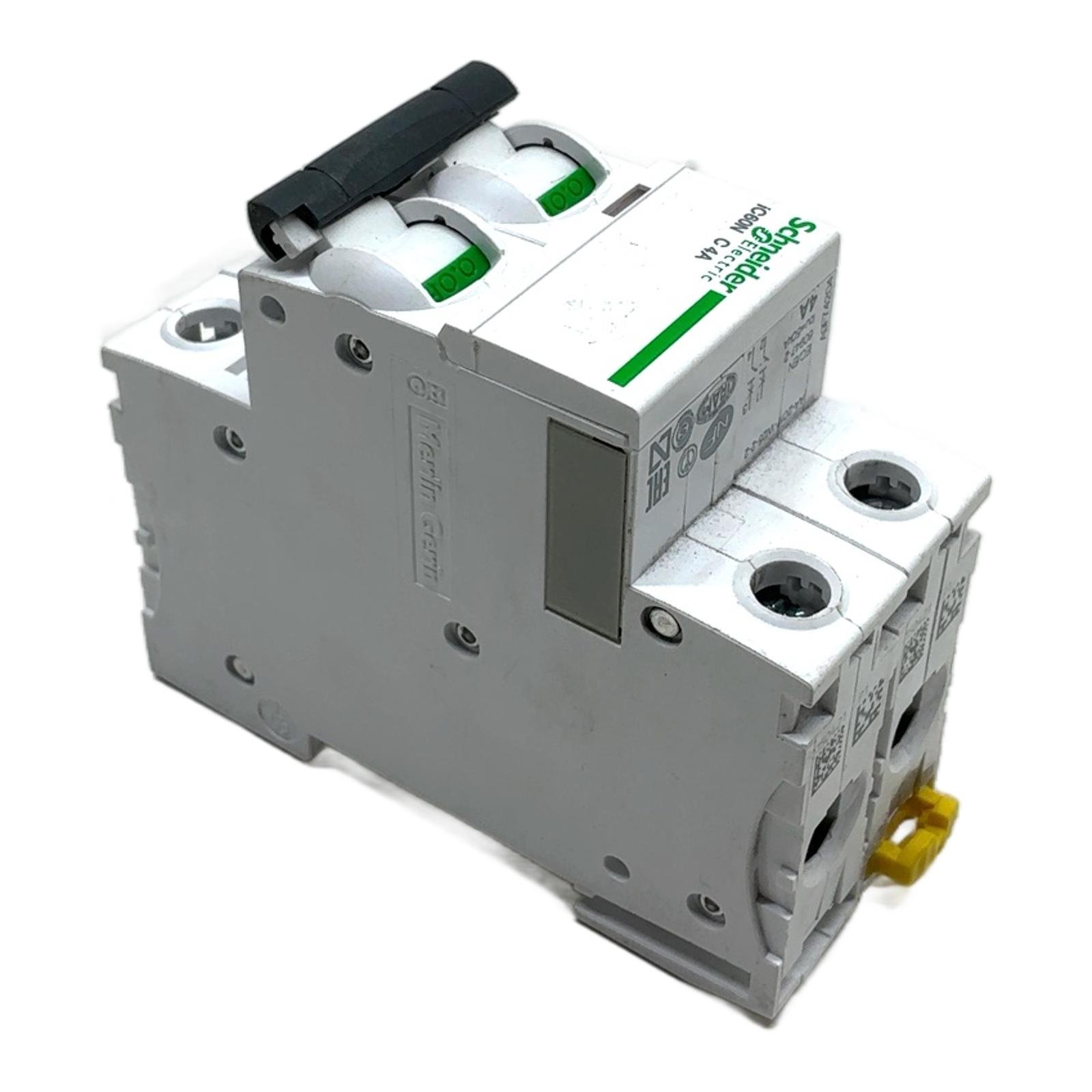

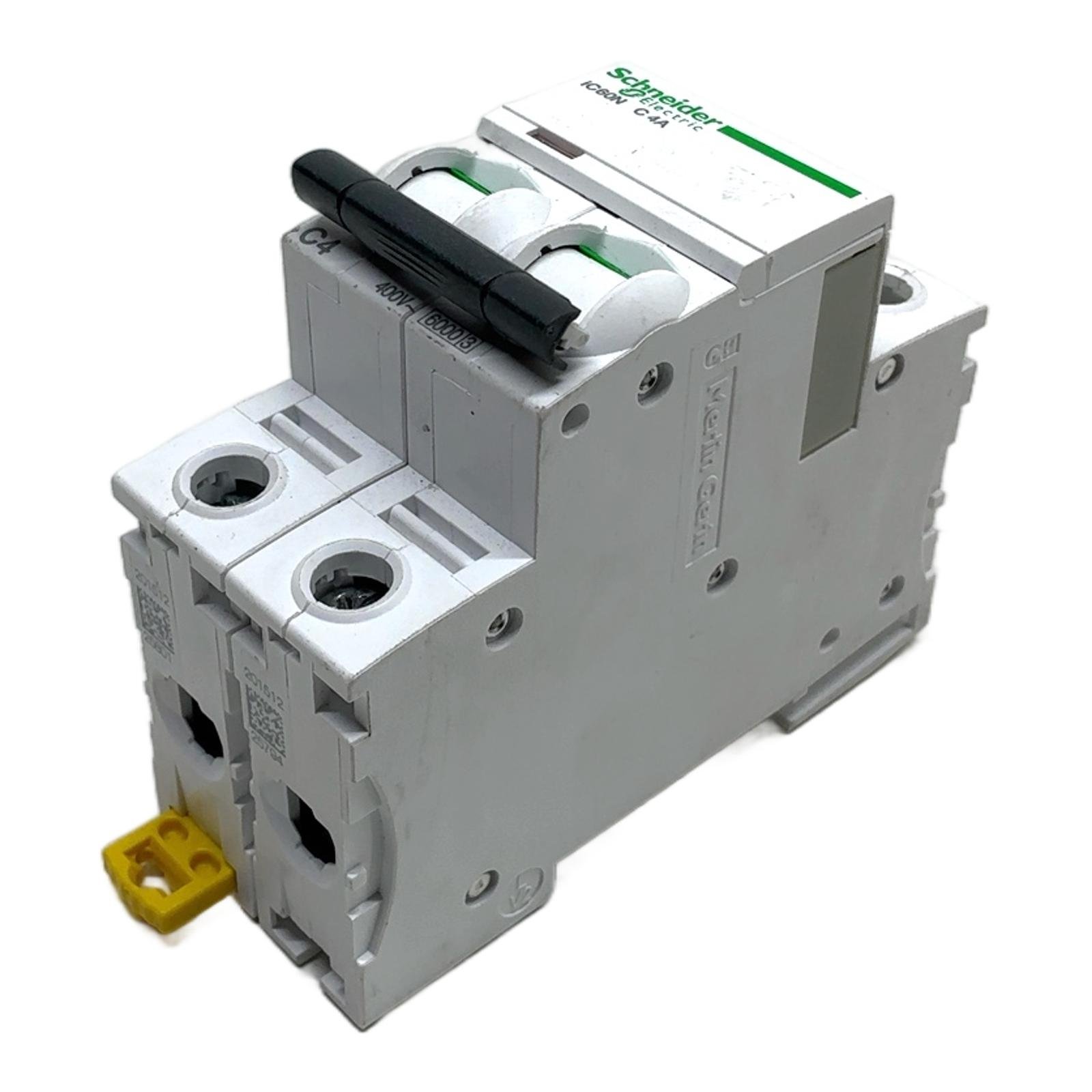

SCHNEIDER ELECTRIC iC60N C4A A9F77204

Schneider Electric iC60N 4A 2-Pole Miniature Circuit Breaker Description The Schneider Electric A9F77204 is a high-performance miniature circuit breaker (MCB) from the renowned Acti9 iC60N series. This 2-pole device provides robust protection for electrical circuits against both short-circuits and overload currents. With a 4A rating and a C-type tripping curve, it is ideally suited for a wide range of commercial and industrial applications, ensuring operational safety and system reliability. Its DIN rail mounting design allows for quick and easy installation in standard distribution boards. Specifications Manufacturer: Schneider Electric Product Series: Acti9 iC60N Model: iC60N C4A Part Number: A9F77204 Number of Poles: 2P Rated Current: 4 A Tripping Curve: C Rated Voltage (Ue): 400V AC 50/60Hz (IEC 60898-1) Breaking Capacity (Icn): 6000 A at 400V AC Breaking Capacity (Icu): 50 kA at 240/415V AC (IEC 60947-2) Rated Insulation Voltage (Ui): 500V AC Rated Impulse Withstand Voltage (Uimp): 6 kV Label Info Standards: IEC/EN 60898-1, IEC/EN 60947-2 EAN: 3606480080357 Application This circuit breaker is designed for final distribution circuits in industrial buildings, commercial facilities, and data centers. It is suitable for protecting lighting circuits, socket outlets, and control circuits with moderate inrush currents. Country of Origin Made in France. CO2 Impact By purchasing this pre-owned circuit breaker, you are contributing to a circular economy and preventing approximately 10.0 kg of CO2 emissions that would be generated from manufacturing a new one. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question?What is the significance of the ‘C’ curve in the ‘C4A’ designation?The ‘C’ curve is a tripping characteristic. It means the circuit breaker will trip magnetically between 5 and 10 times the rated current (4A). This makes it suitable for general purpose applications like lighting, sockets, and small motors with moderate inrush currents. Question?Can this iC60N breaker be used in a DC circuit?While the iC60N series is primarily designed for AC circuits as indicated by the 50/60Hz rating, some models have specific DC ratings. However, based on the markings shown, this A9F77204 model is specified for AC use only. Using it on DC circuits without manufacturer confirmation can be unsafe and may not provide adequate protection. Question?What is the difference between the breaking capacity Icn (6000A) and Icu (50kA)?Icn (rated short-circuit capacity) is defined by the IEC/EN 60898-1 standard, typically for residential/commercial installations. Icu (ultimate short-circuit breaking capacity) is from the IEC/EN 60947-2 standard for industrial applications. Icu is generally a more demanding test, and this breaker has a very high Icu rating of 50kA at 240/415V, making it suitable for robust industrial environments where high fault currents can occur. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
