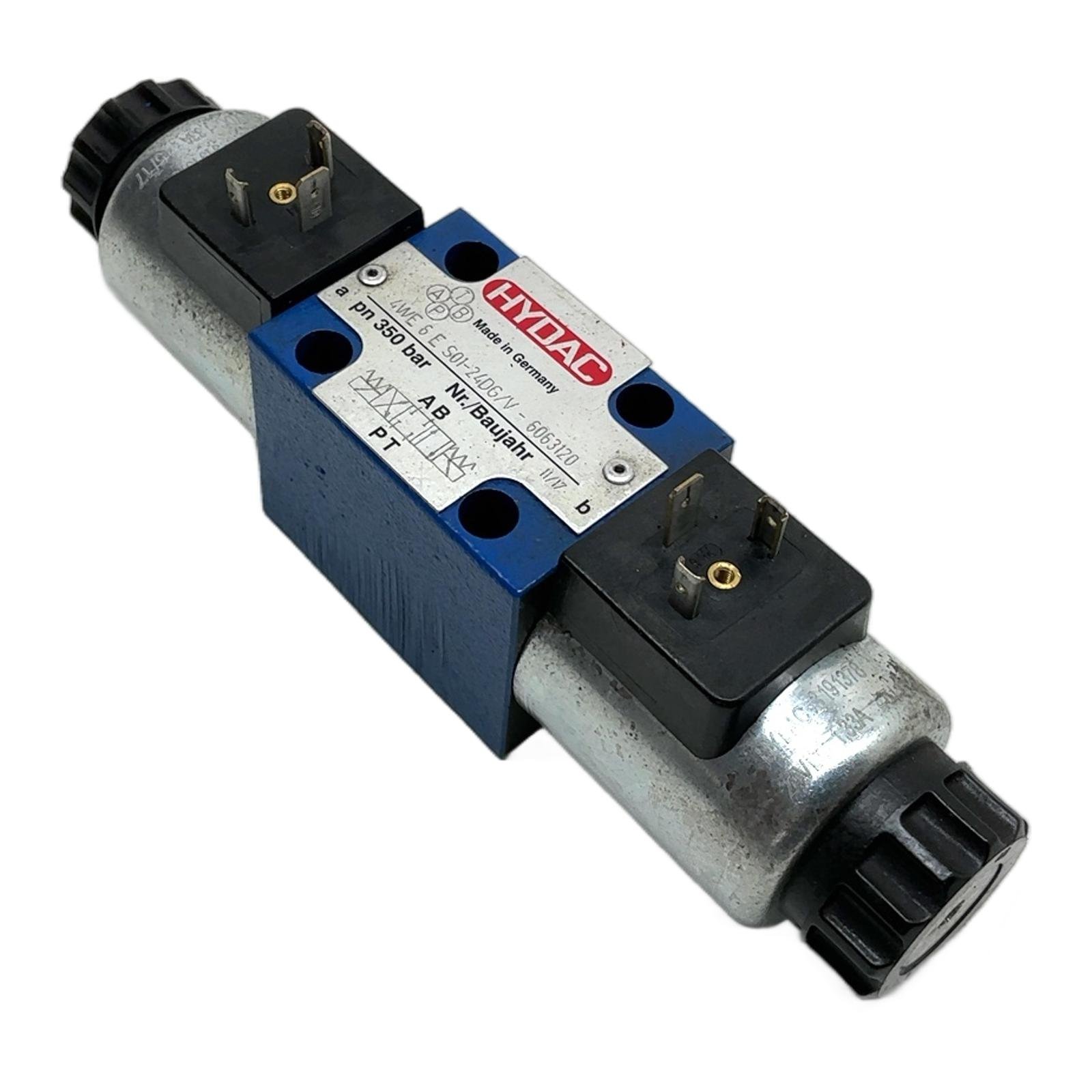

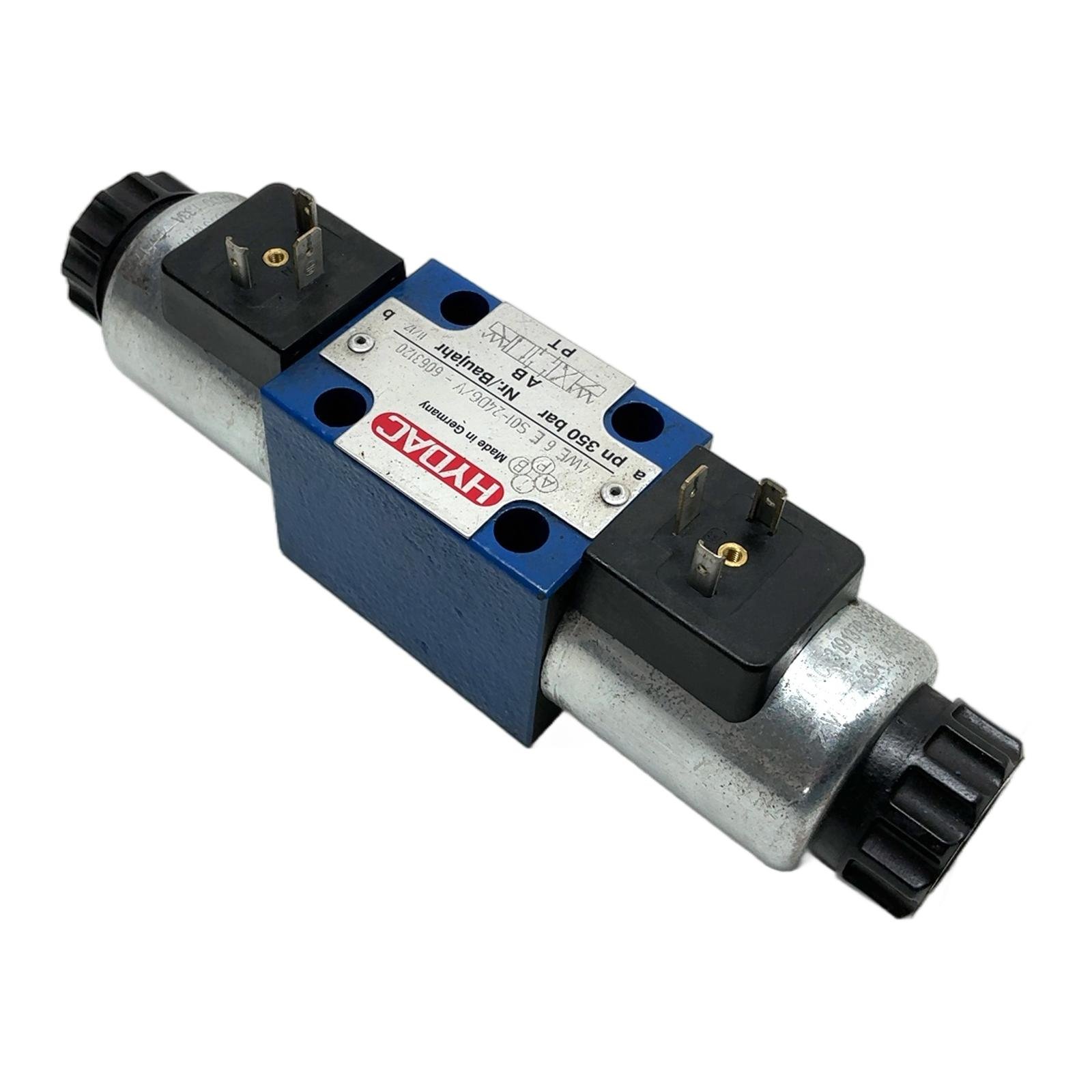

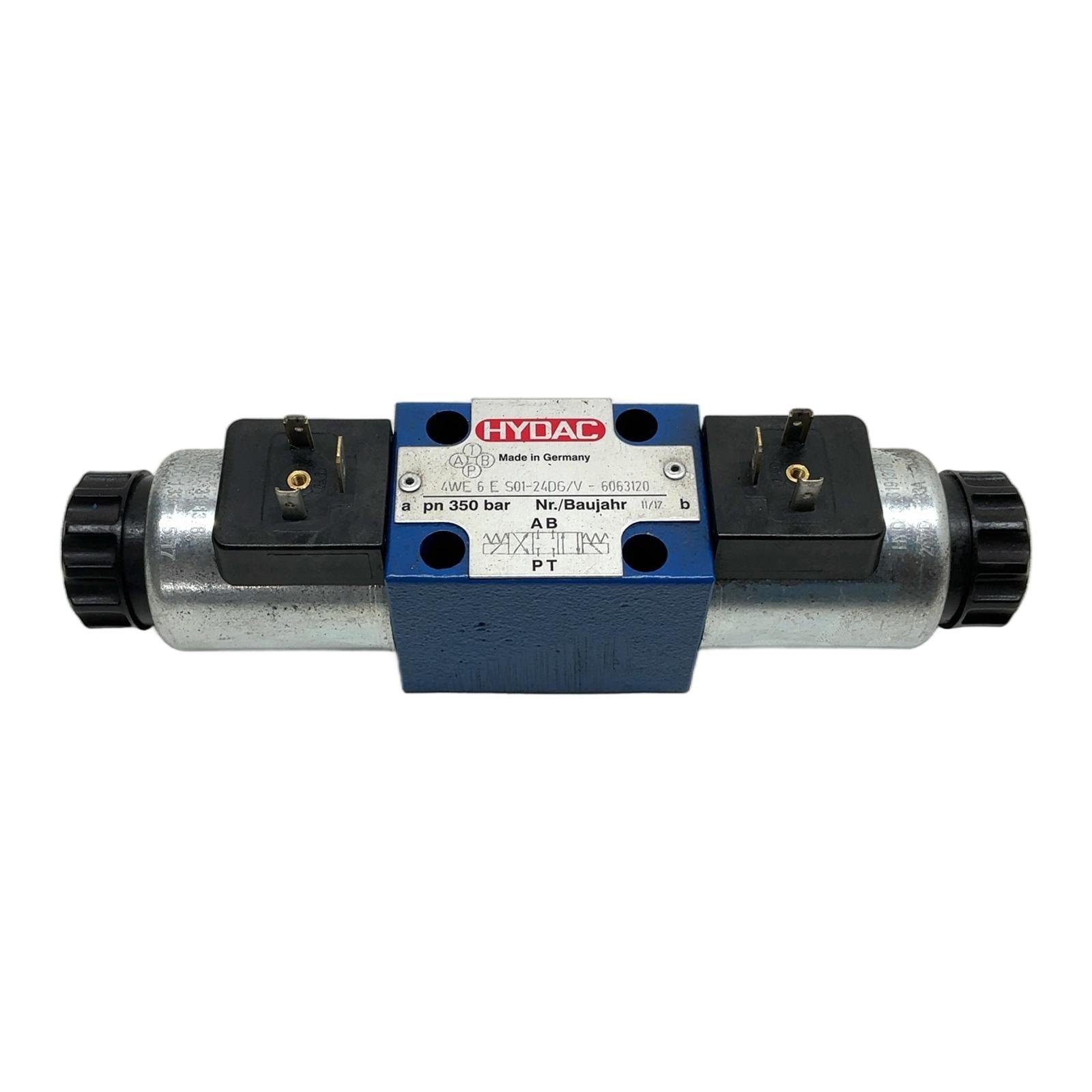

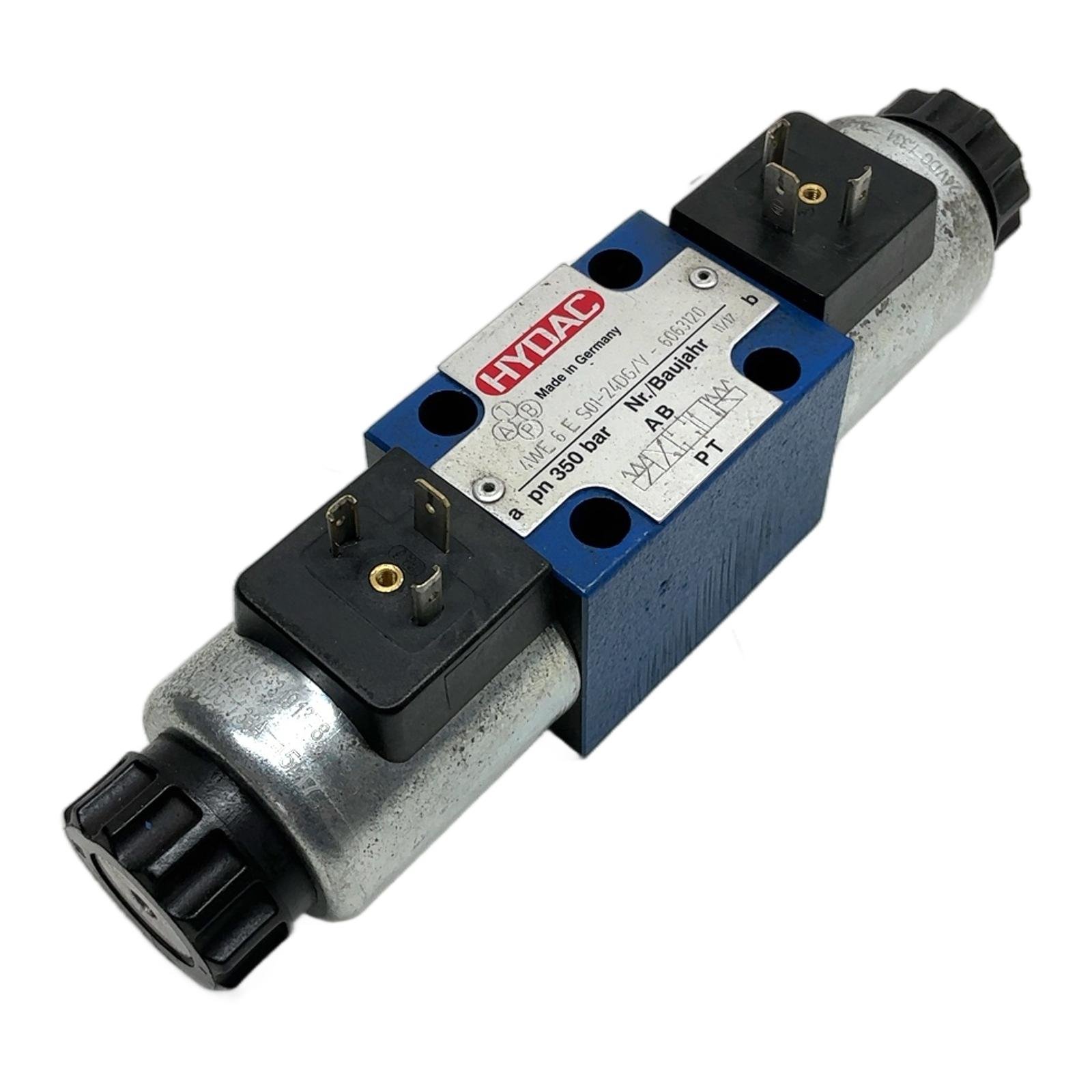

HYDAC 4WE 6 E S01-24DG/V 6063120

HYDAC Hydraulic Directional Control Valve 350 bar 24VDC Description The HYDAC 4WE 6 E S01-24DG/V is a high-performance, direct-operated directional spool valve. It features solenoid actuation and conforms to the industry-standard NG6 (CETOP 3) mounting pattern. This 4/3-way valve is designed for reliability in demanding hydraulic applications, with a maximum operating pressure of 350 bar. The ‘E’ spool configuration provides a tandem center position, which unloads the pump to the tank when idle, improving system efficiency. This unit is equipped with two 24VDC solenoids for actuation. Specifications Manufacturer: HYDAC Type: Solenoid-operated directional spool valve Size: NG6 / CETOP 3 Mounting Standard: ISO 4401-03-02-0-05 Actuation: Electrical (Solenoid) Spool Type: E (Tandem center, P to T, A & B blocked) Operating Pressure (max): 350 bar Control Voltage: 24V DC Solenoid Current: 1.33A Label Info Model: 4WE 6 E S01-24DG/V Part Number: 6063120 Date of Manufacture: November 2017 Solenoid Coil P/N: 3191376 Application Ideal for use in industrial hydraulics, mobile machinery, machine tools, and manufacturing systems where precise directional control of hydraulic fluid is required. The tandem center design is particularly suitable for systems with frequent idle periods. Country of Origin Made in Germany. CO2 Impact Opting for this pre-owned valve saves an estimated 26 kg of CO2 compared to manufacturing a new one. This is equivalent to the emissions of driving a car for 130 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What does the ‘E’ spool in the model number 4WE 6 E signify?The ‘E’ designates a tandem center spool. In the neutral, non-actuated position, this spool configuration connects the pump port (P) directly to the tank port (T), effectively unloading the pump and reducing energy consumption while the actuators are idle. The work ports (A and B) are blocked. Can the 24VDC coils (HYDAC P/N 3191376) be replaced individually?Yes, the solenoid coils are modular and can be replaced without opening the hydraulic system. They are typically held in place by a retaining nut, allowing for easy field replacement if a coil fails. Ensure the system is de-energized before performing any maintenance. What mounting standard does this NG6 valve use, and what are the torque specifications for the mounting bolts?This valve conforms to the NG6 (CETOP 3 / D03) mounting pattern as per ISO 4401-03-02-0-05. For standard applications with class 8.8 bolts, the recommended tightening torque is typically around 5.5 to 6.0 Nm. Always consult your system’s documentation for specific requirements. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
