HAVER & BOECKER 4056.100.83.7 039017

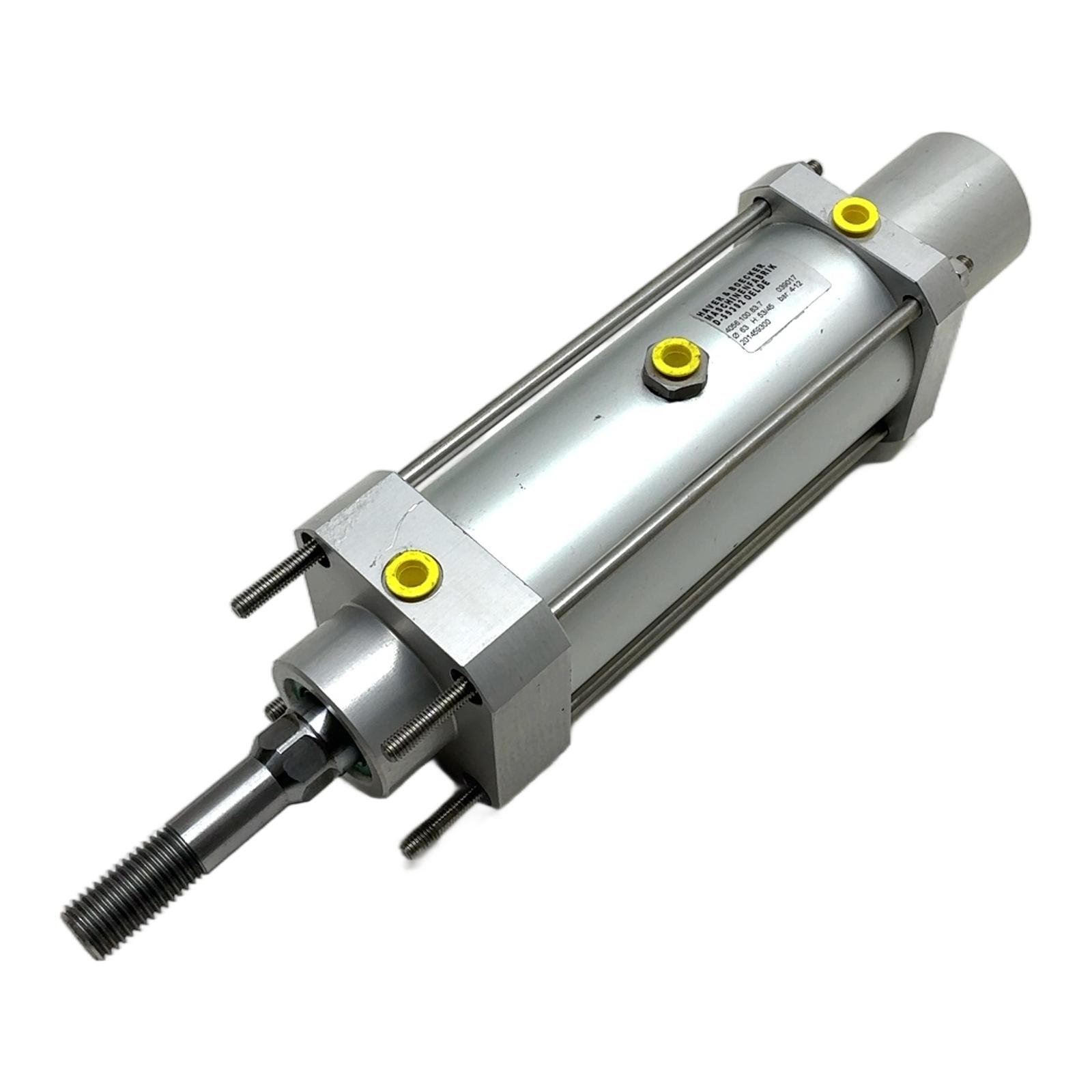

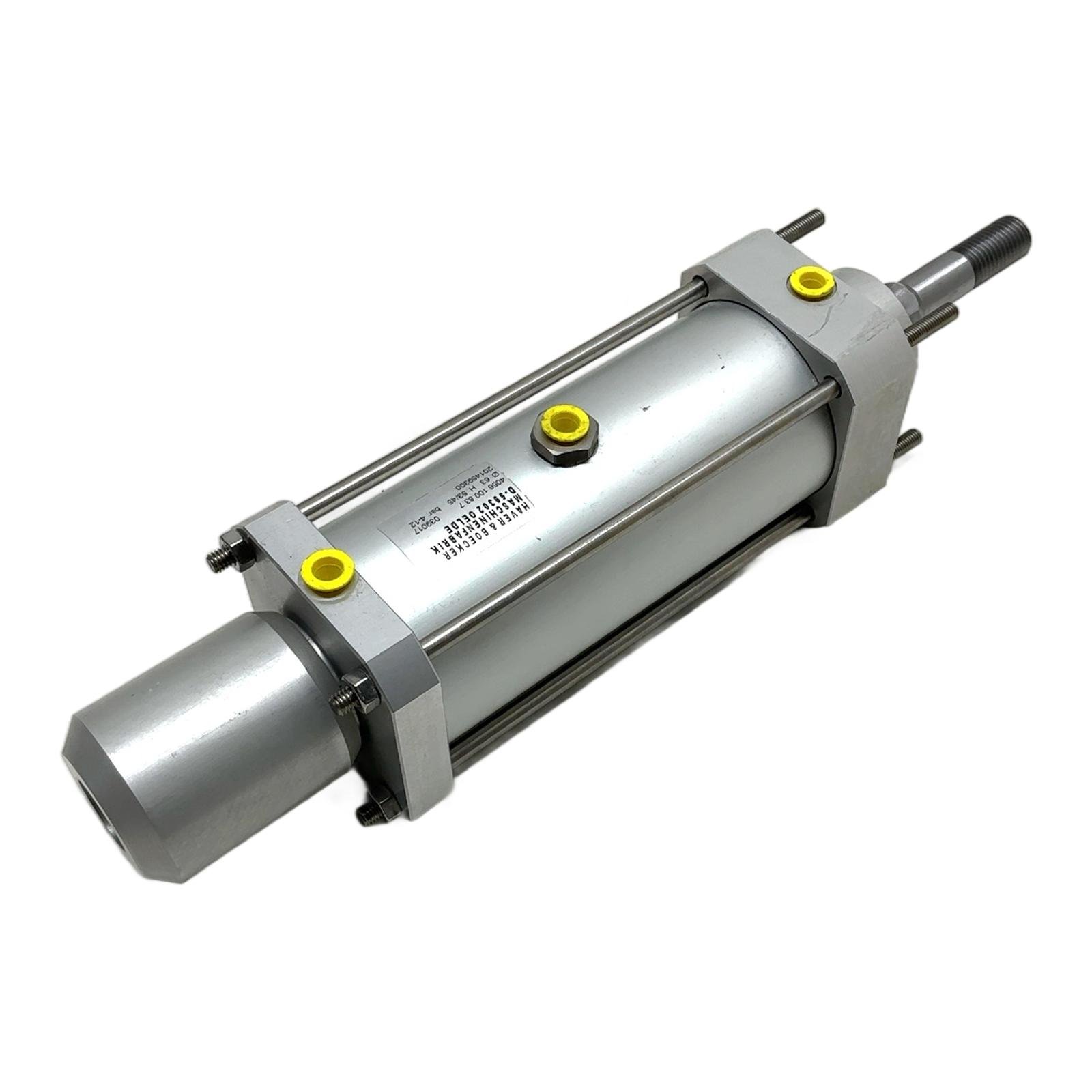

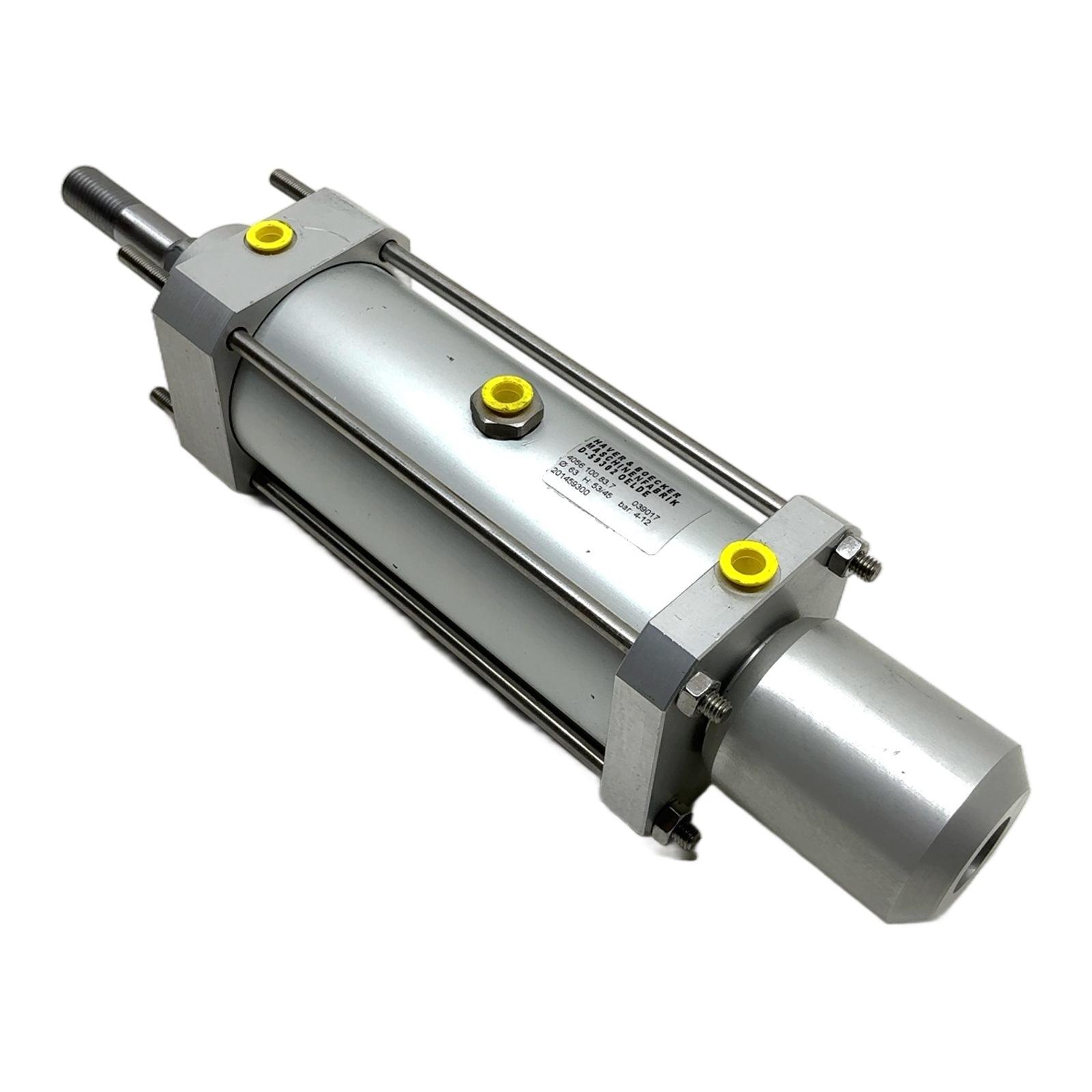

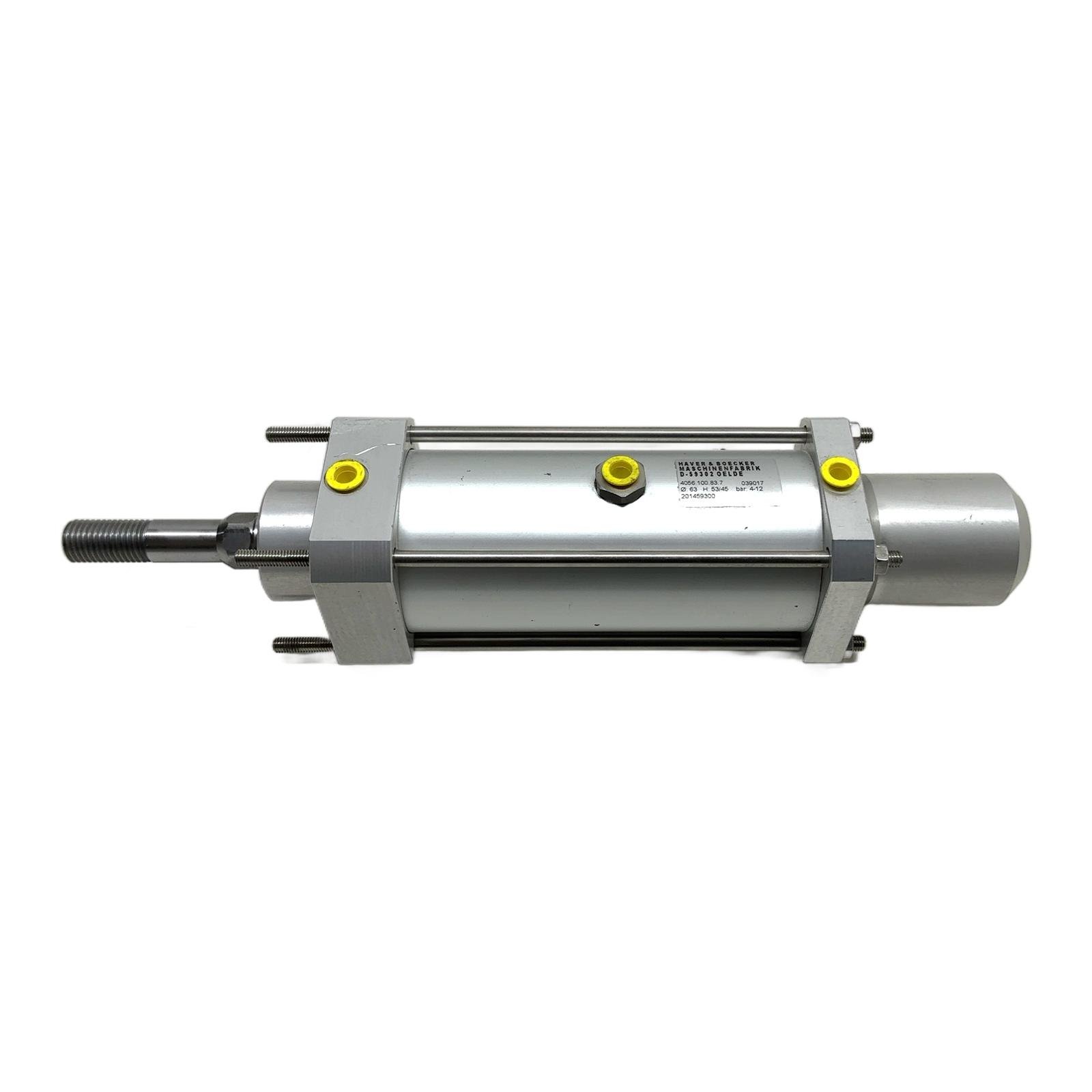

Haver & Boecker 63mm Bore Pneumatic Cylinder Description This is a high-quality pneumatic cylinder from Haver & Boecker Maschinenfabrik, engineered in Germany. Designed for reliability in industrial automation, this double-acting cylinder features a standard profile design, making it a versatile component for various machine-building applications. It is likely an original equipment manufacturer (OEM) part for Haver & Boecker machinery, guaranteeing precise performance. Specifications Manufacturer: Haver & Boecker Part Number: 4056.100.83.7 Category: Pneumatic Cylinder Bore Diameter: 63 mm Stroke (Hub): 53/45 mm Operating Pressure: 4 to 12 bar Construction: Tie-rod cylinder, ISO 15552 profile Label Info 4056.100.83.7 039017 Dia 63 H: 53/45 bar: 4-12 201459300 Application This cylinder is ideal for linear motion tasks in automated systems, such as clamping, positioning, and material handling, particularly within the packing and processing industries where Haver & Boecker equipment is prevalent. Country of Origin Made in Germany. CO2 Impact Choosing this surplus cylinder over a new one saves approximately 23.0 kg of CO2, which is comparable to the emissions from a 115 km car journey. Your purchase supports a more sustainable industrial sector. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the significance of the “H: 53/45” stroke specification?This notation is specific to the manufacturer. It likely indicates a total stroke length with specific cushioning or functional zones within the stroke, or perhaps different effective strokes for extension and retraction. For precise application, it is best to measure the physical stroke or consult the machine’s documentation. Is this cylinder compatible with standard ISO 15552 mounting accessories?Yes, its profile design with T-slots and tie-rod construction is consistent with the ISO 15552 standard. This means it should be compatible with standard mounting accessories like clevises, flanges, and feet designed for 63mm bore ISO cylinders. What type of sensors can be used with this cylinder for position feedback?The aluminum body with T-slots is designed for use with magnetic proximity sensors. You can mount C-slot or T-slot sensors directly onto the cylinder barrel to detect the piston’s position, assuming the piston is fitted with a magnet, which is standard for this type of cylinder. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
