HAVER & BOECKER 4056.100.83.7 028017

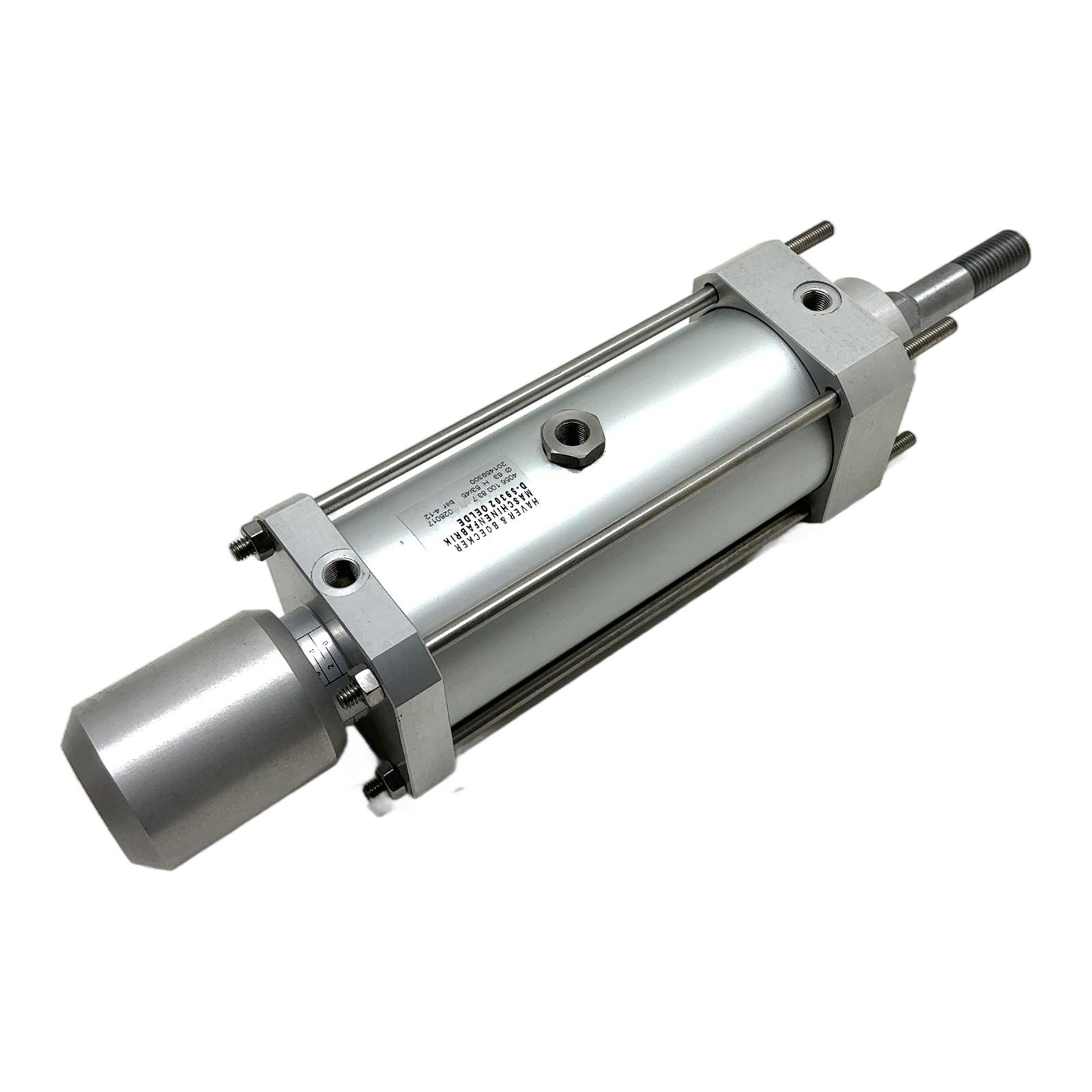

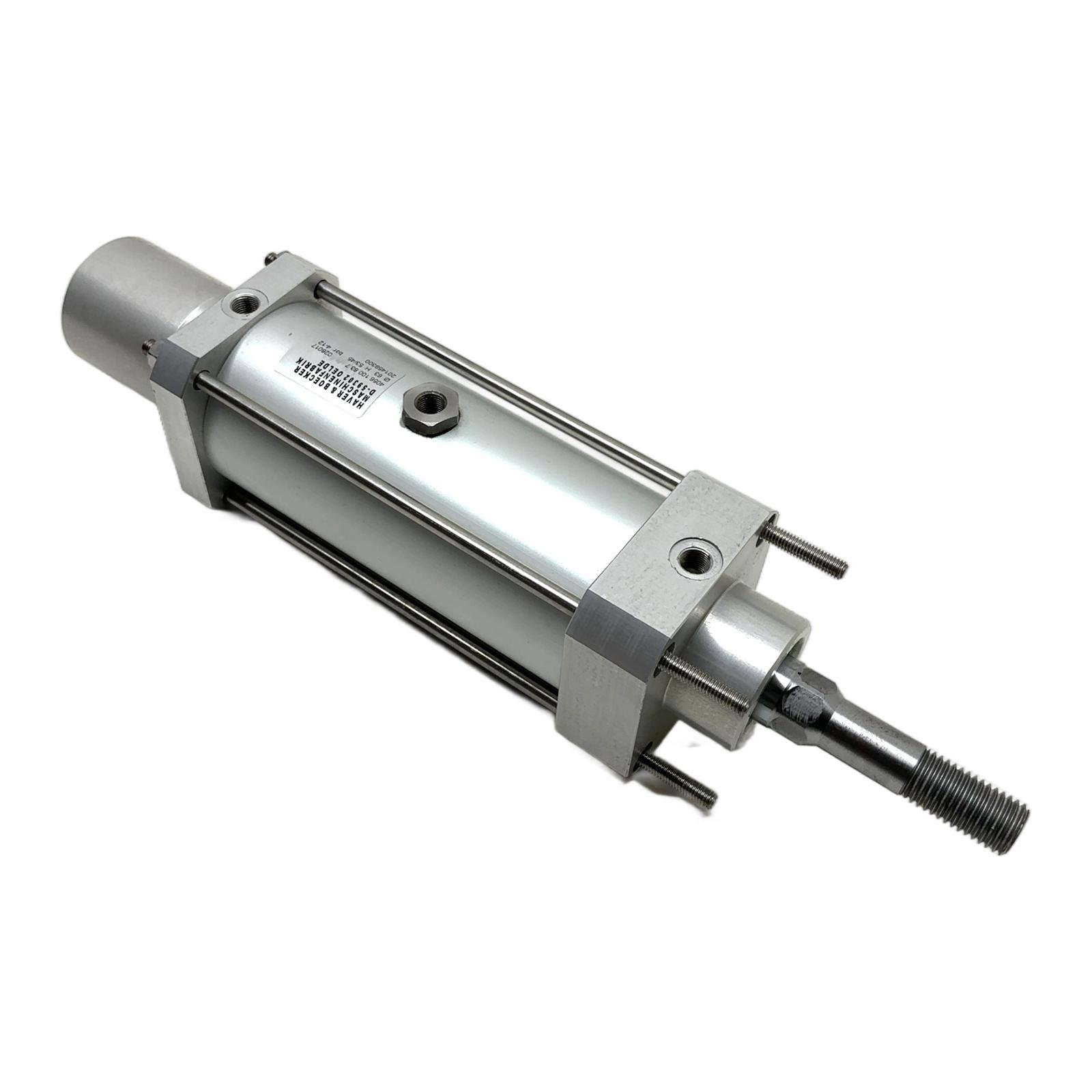

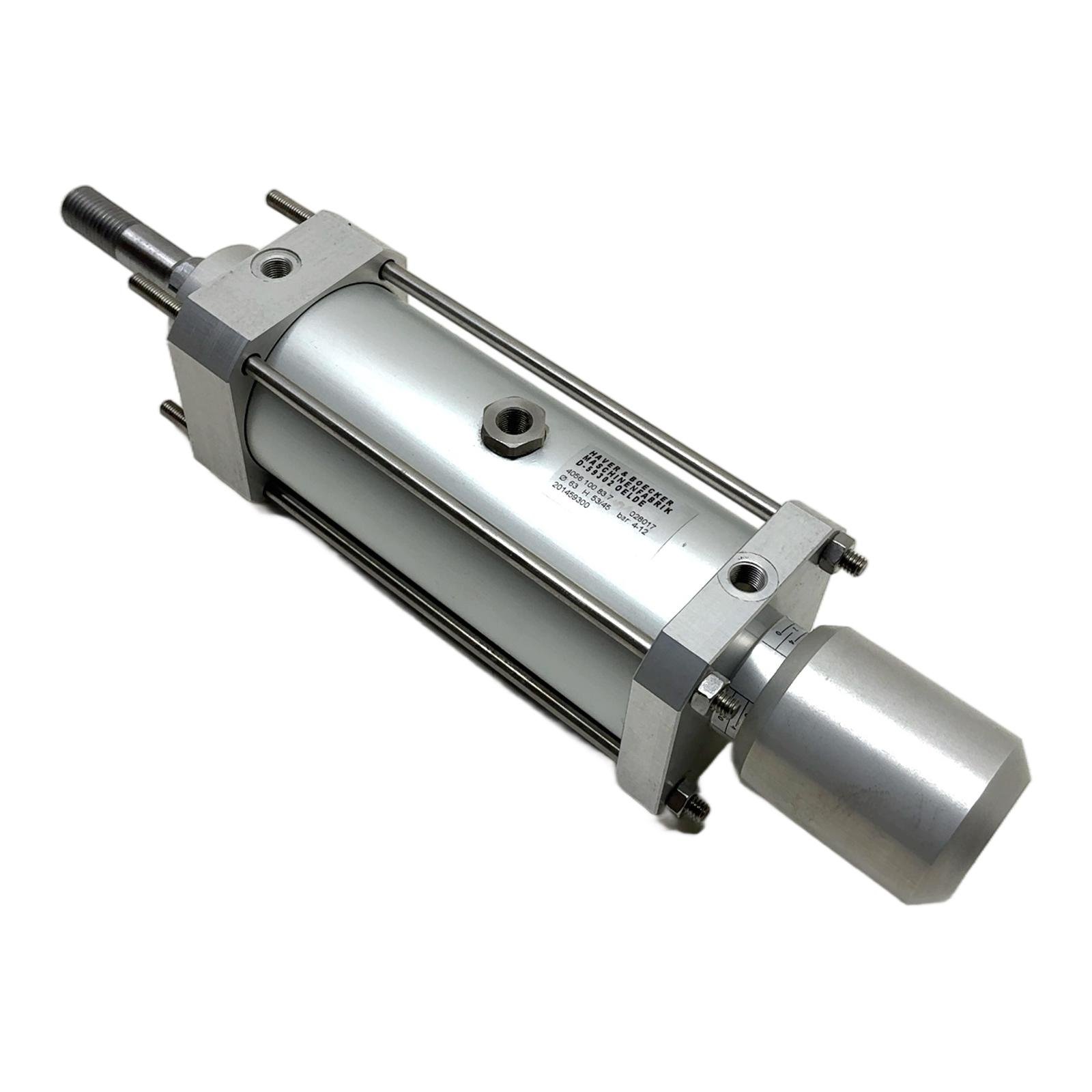

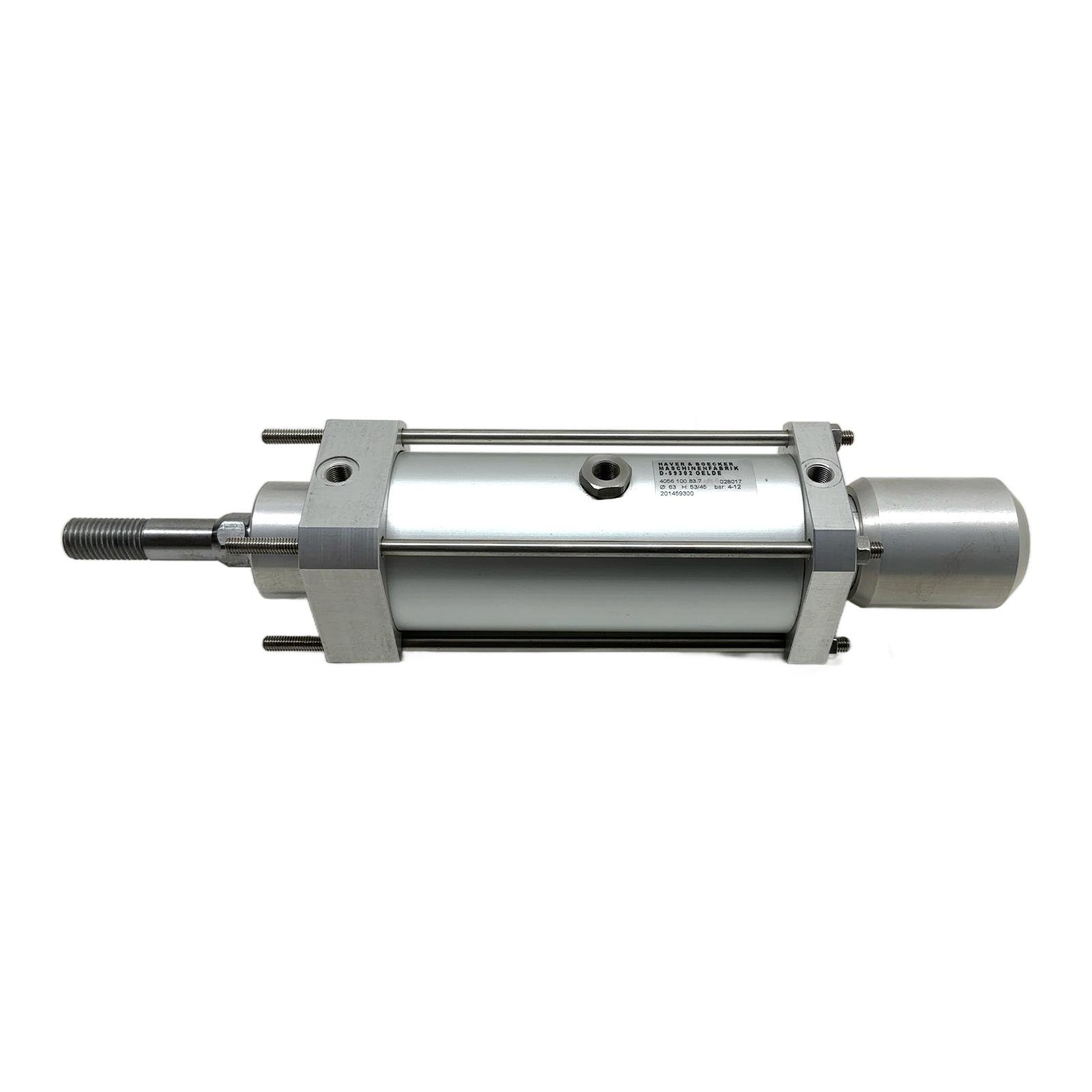

Haver & Boecker 63mm Bore Pneumatic Cylinder Description This is a pneumatic tie-rod cylinder from Haver & Boecker, part number 4056.100.83.7. It is designed for reliable linear actuation in industrial environments. As an original equipment manufacturer (OEM) part, it is intended for use in specific Haver & Boecker machinery, providing precise performance and durability. This cylinder features a 63 mm bore and is rated for a pressure range of 4 to 12 bar. Specifications Manufacturer: Haver & Boecker Type: Pneumatic Tie-Rod Cylinder Bore Diameter: 63 mm Stroke: 53/45 mm Operating Pressure: 4-12 bar Label Info Part Number: 4056.100.83.7 Serial Number: 201459300 Additional ID: 028017 Application This cylinder is ideally suited as a direct replacement part for Haver & Boecker packaging machines or other automated systems where this specific component is integrated. Its robust construction makes it suitable for demanding industrial applications requiring precise pneumatic control. Country of Origin Made in Germany. CO2 Impact By purchasing this pre-owned part, you are contributing to a circular economy and helping to reduce industrial waste. Opting for this component saves an estimated 26 kg of CO2 compared to manufacturing a new one. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question? What does the “H: 53/45” specification on the label mean? This notation typically refers to the stroke length of the cylinder. While uncommon, it could indicate a special dual-stroke function or specific extend and retract lengths required for the Haver & Boecker machine it was designed for. It should be interpreted as having a primary stroke of around 50 mm. Question? Is this cylinder a standard ISO 15552 model? While it shares visual characteristics with ISO 15552 standard cylinders, such as the tie-rod construction and profile barrel, as an OEM part (4056.100.83.7) it may have non-standard dimensions for mounting, rod threading, or stroke length to fit a specific Haver & Boecker machine. Always verify dimensions against your existing part. Question? What kind of sensors can be used with this cylinder? This cylinder does not appear to have integrated grooves for standard C-slot or T-slot sensors. To monitor piston position, you would likely need to use external sensors or mechanical switches actuated by the cylinder’s movement, or potentially clamp-on style sensors if the cylinder body is non-magnetic (aluminum). profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
