SKF BS2-2217-2CS/C3VT143

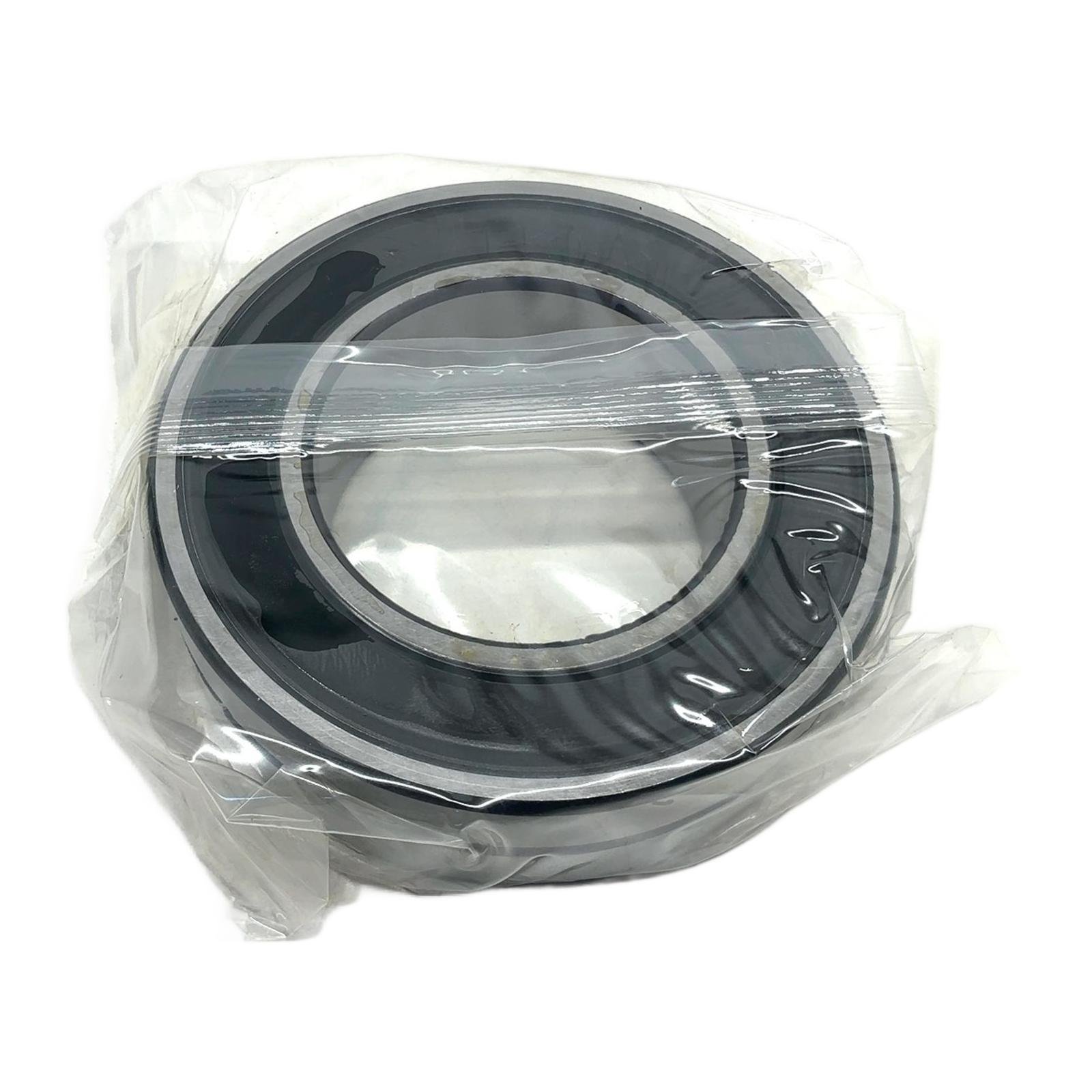

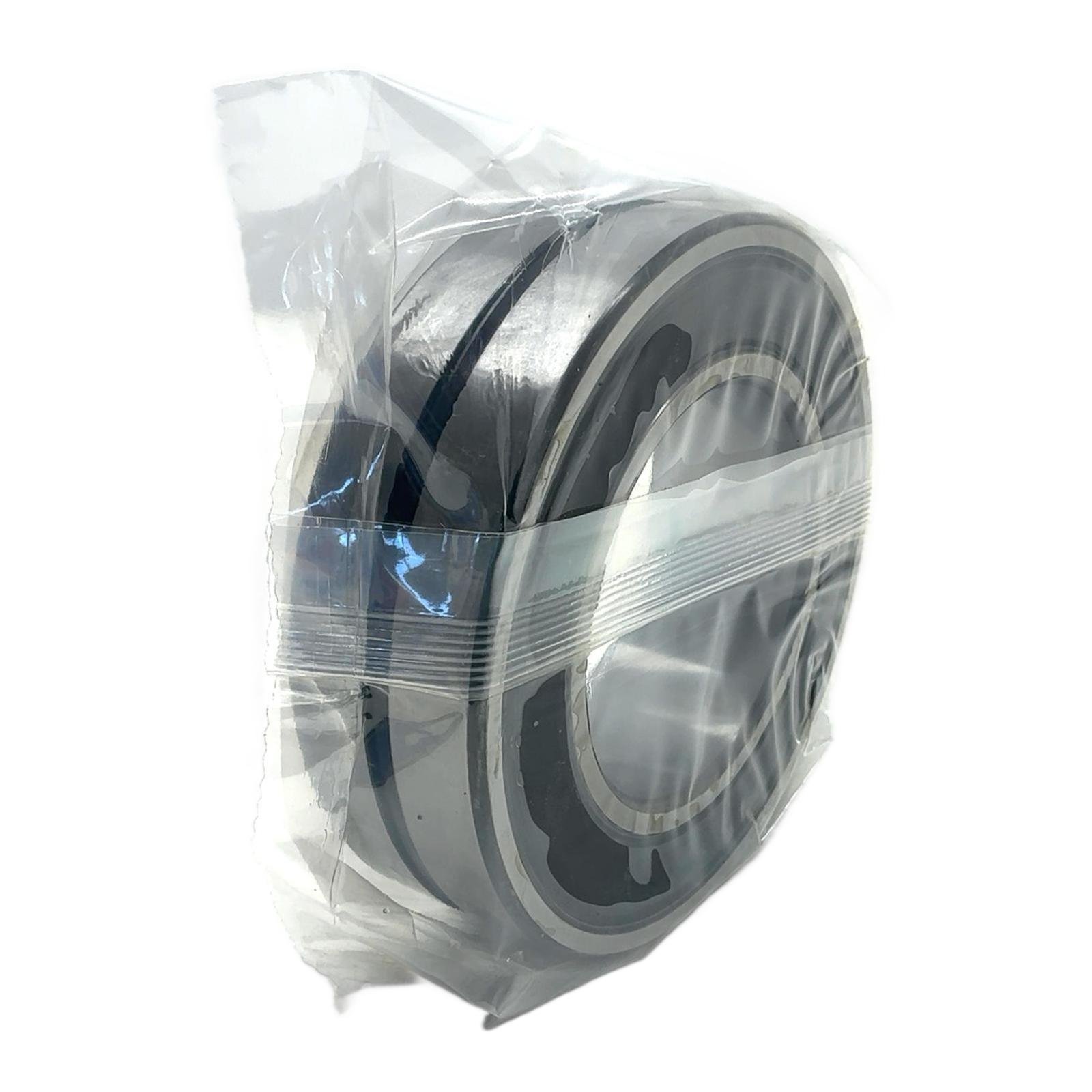

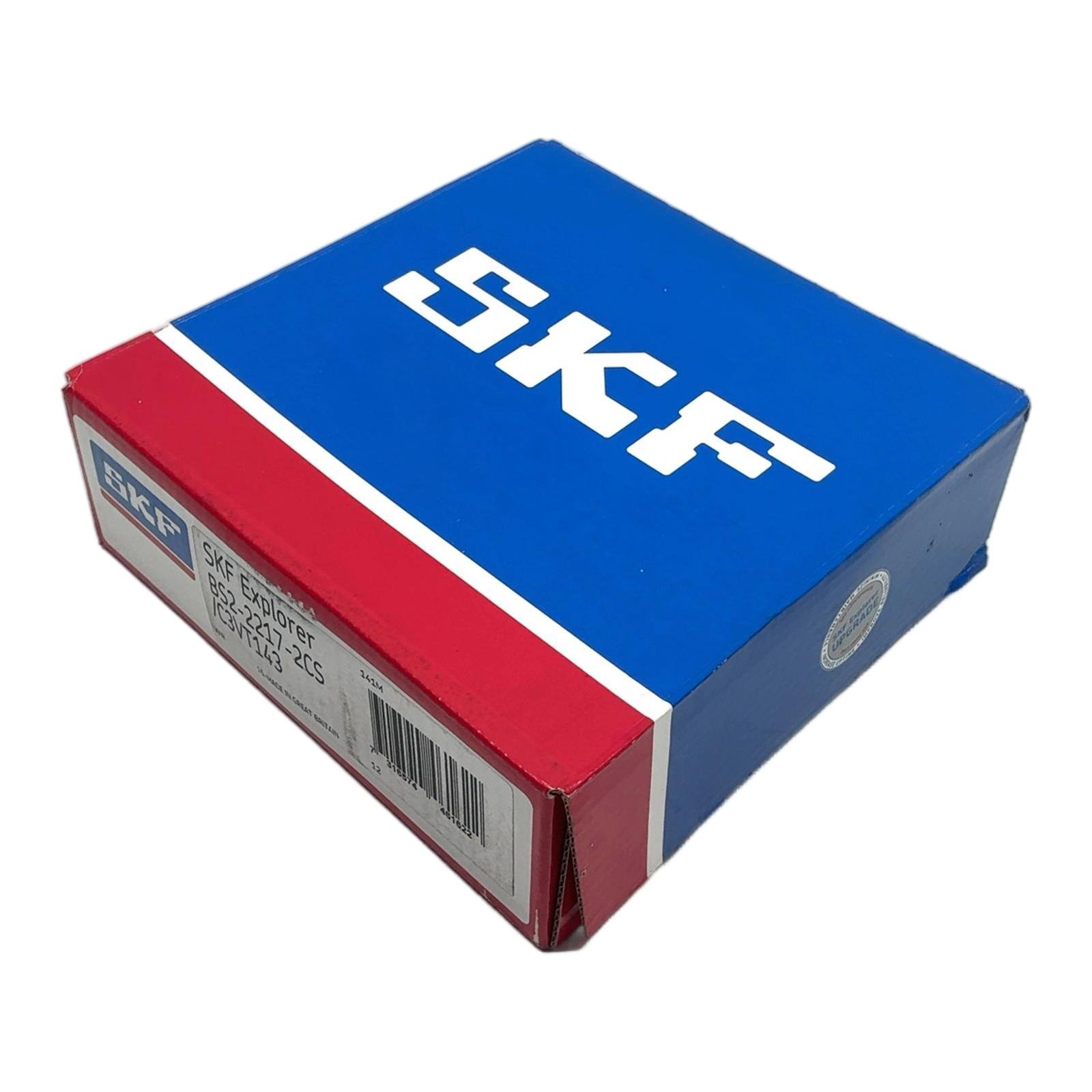

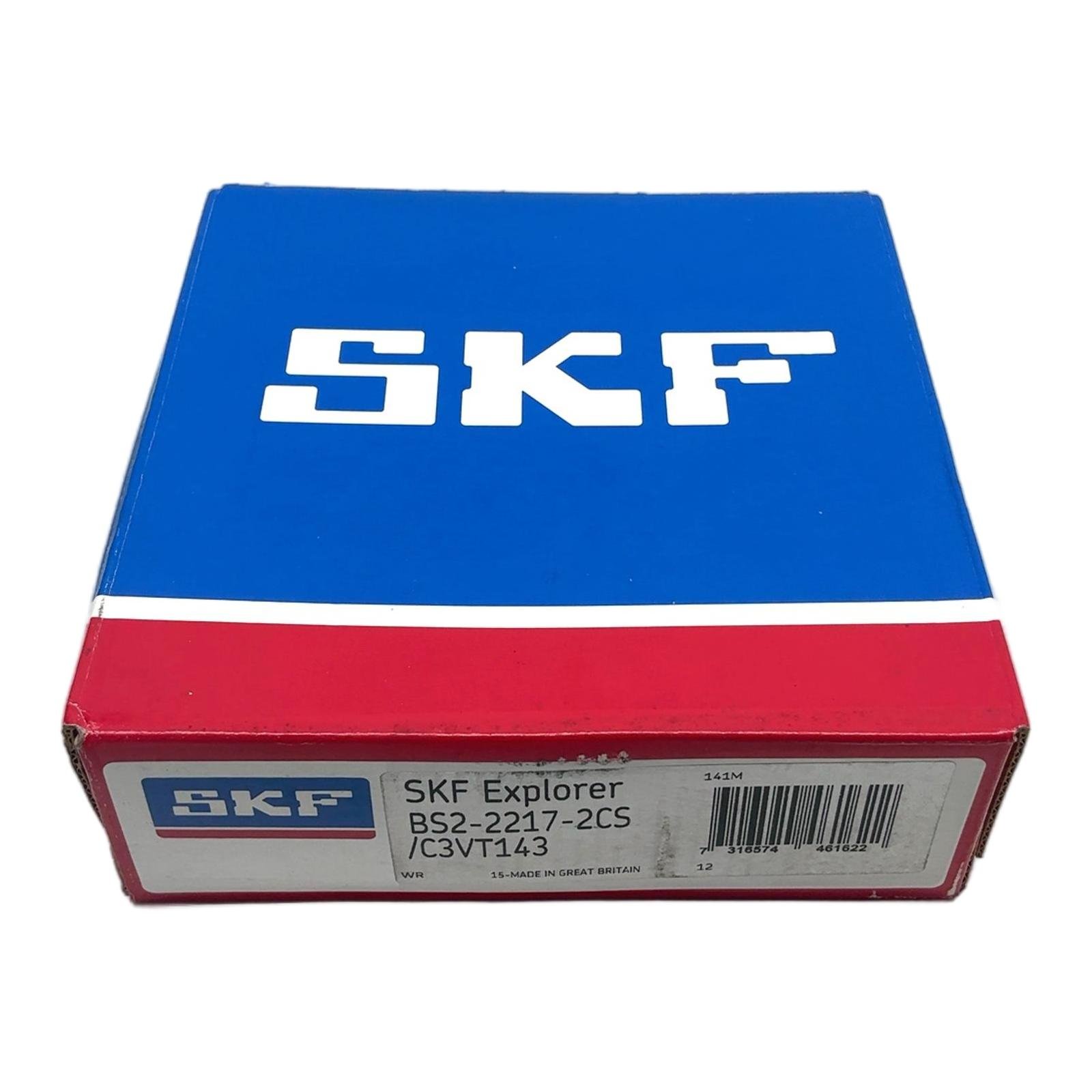

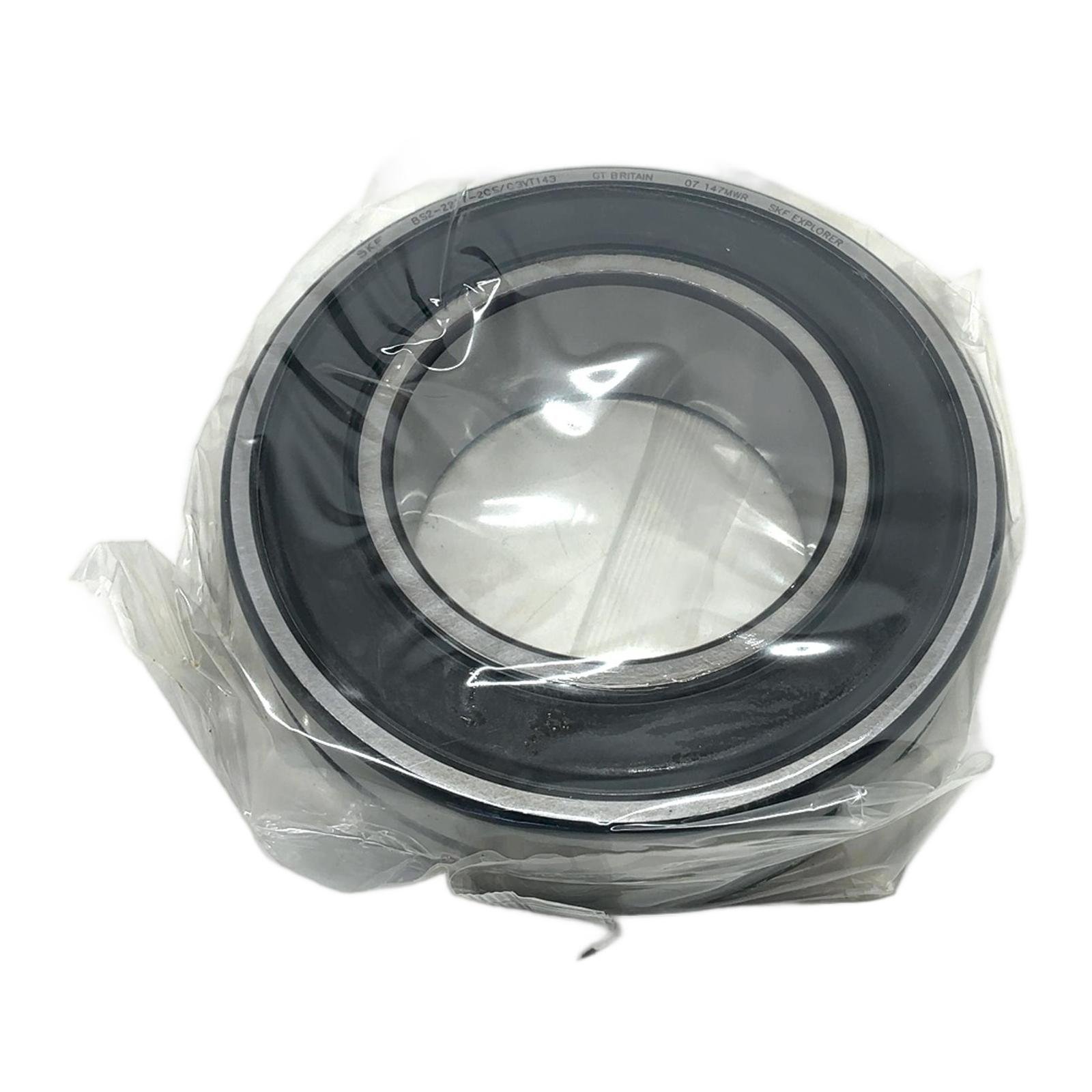

SKF Explorer Self-Aligning Ball Bearing BS2-2217-2CS/C3VT143 Description The SKF BS2-2217-2CS/C3VT143 is a high-quality, self-aligning ball bearing from the Explorer performance class. It is designed to accommodate misalignment between the shaft and housing, making it ideal for applications where shaft deflection or mounting errors may occur. This particular model is equipped with contact seals on both sides and a special grease fill, making it a robust solution for challenging industrial environments like fans and conveyors. Specifications Manufacturer: SKF Type: Self-Aligning Ball Bearing Model: BS2-2217-2CS/C3VT143 Dimensions (d x D x B): 85 x 150 x 36 mm Sealing: 2CS – Contact seals made of NBR on both sides Internal Clearance: C3 – Radial internal clearance greater than normal Grease: VT143 – Filled with Polyrex EM grease for high temperatures Weight: Approx. 3.15 kg Label Info Designation: SKF Explorer BS2-2217-2CS/C3VT143 EAN: 7316574461622 Application This bearing is commonly used in applications requiring accommodation of misalignment and robust sealing, such as industrial fans, ventilation systems, conveyor systems, and agricultural machinery. Country of Origin Made in Great Britain. CO2 Impact Choosing this surplus component over a new one avoids approximately 6.3 kg of CO2 emissions, contributing to a more sustainable industrial process. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What does the /C3VT143 suffix signify?The ‘C3’ indicates that the bearing has a radial internal clearance that is greater than the standard ‘Normal’ clearance, which allows for thermal expansion at higher speeds or temperatures. The ‘VT143’ denotes that the bearing is factory-filled with a specific high-performance grease (ExxonMobil Polyrex EM), which is suitable for a wide temperature range. Is this bearing suitable for high-temperature applications?Yes, the combination of C3 clearance and VT143 grease makes this bearing well-suited for applications with elevated operating temperatures, typically found in industrial fan systems. What is the main advantage of a self-aligning ball bearing?The primary advantage is its ability to tolerate static and dynamic misalignment. The spherical outer ring raceway allows the inner ring and ball set to pivot, compensating for shaft deflection or errors in housing alignment without inducing excessive stress on the bearing. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder. Last Update: Friday, March 13, 2026
