FAG H3030

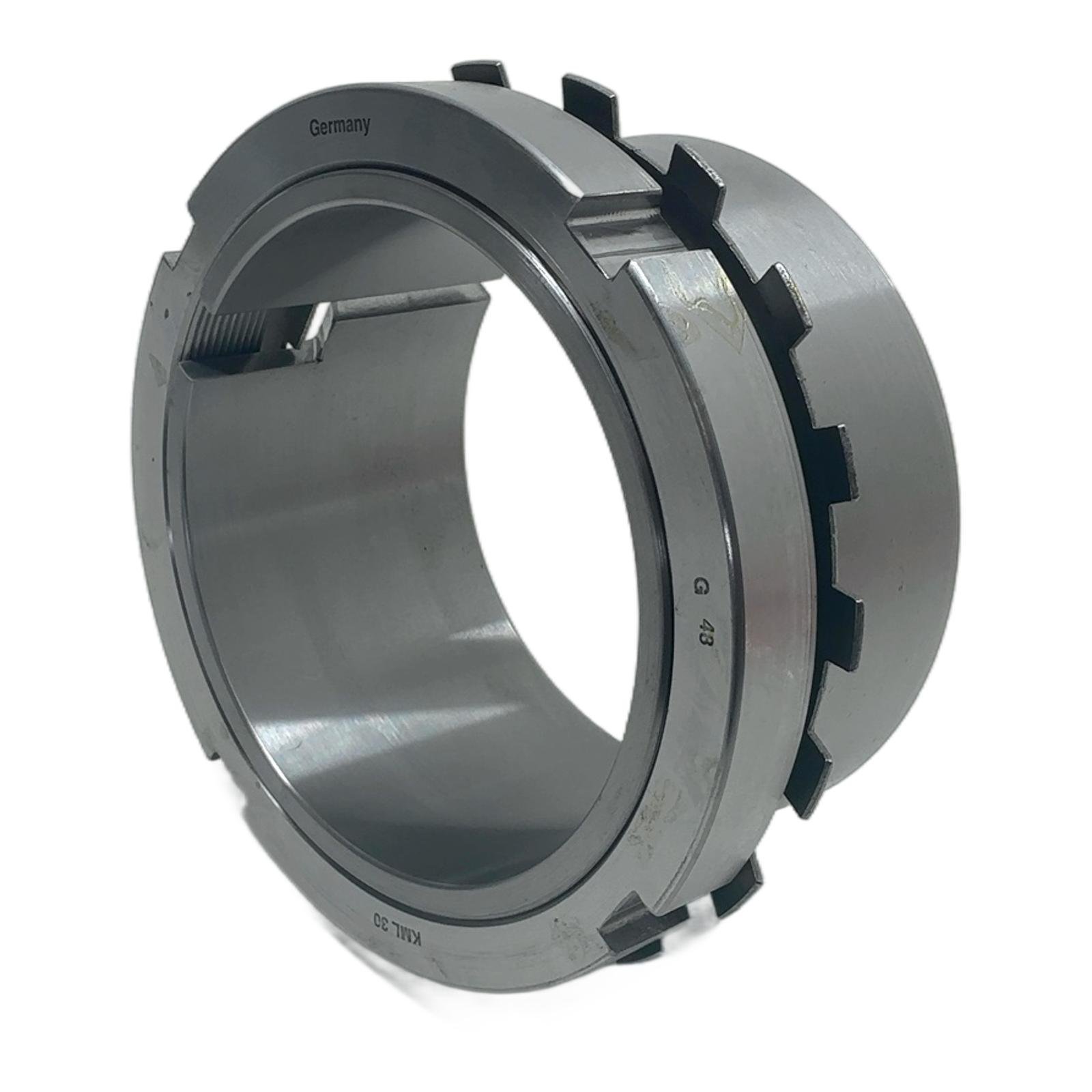

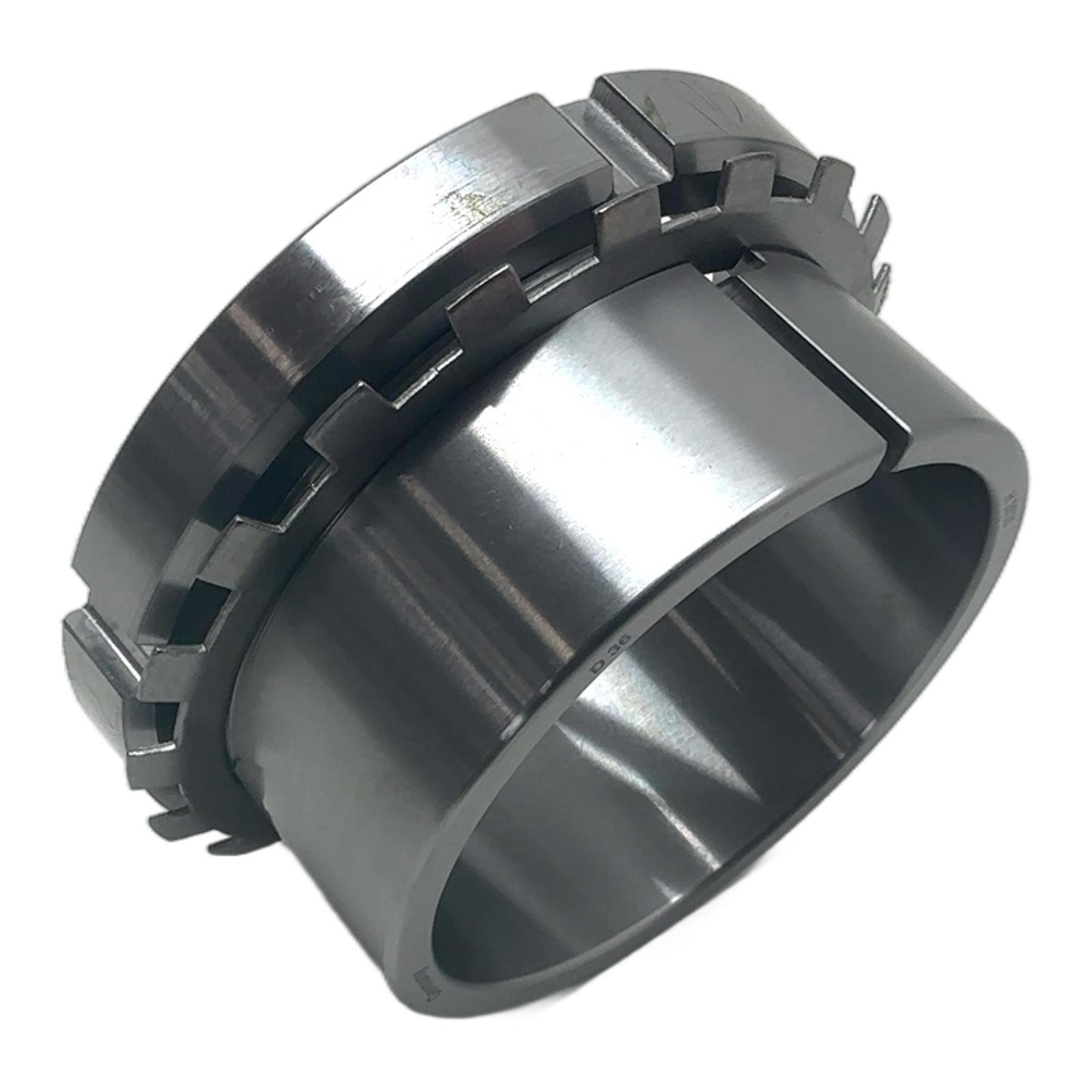

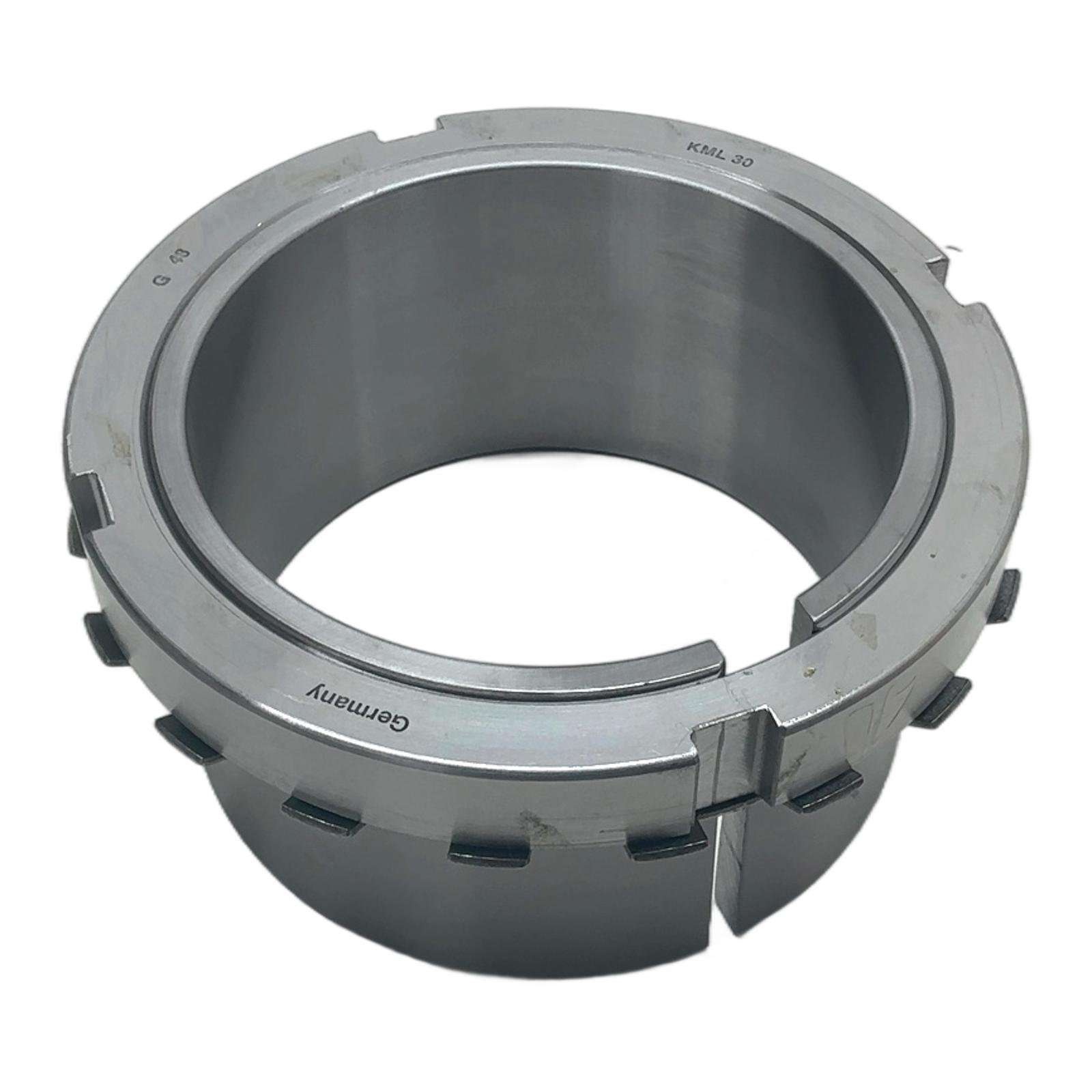

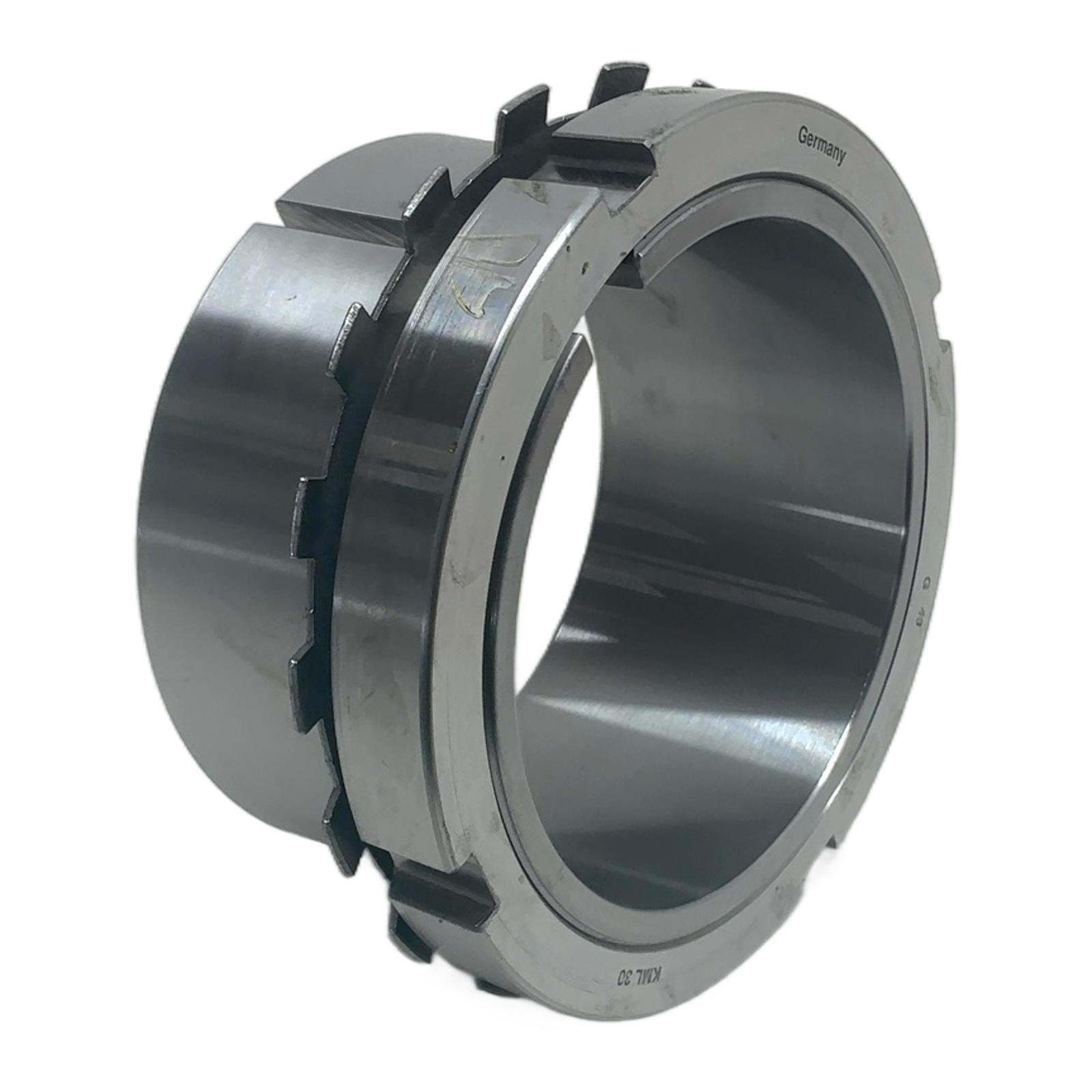

FAG H3030 Adapter Sleeve for 140mm Shafts Description The FAG H3030 is a premium-quality adapter sleeve designed for the simple and reliable mounting of bearings with a tapered bore onto cylindrical shafts. As a product of the Schaeffler Group, it guarantees exceptional precision, durability, and performance, making it suitable for a wide range of industrial applications, including conveyors, industrial fans, and power transmission systems. Specifications Manufacturer: FAG Model: H3030 Shaft Diameter (d1): 140 mm Outer Diameter (d): 175 mm Overall Width (B1): 102 mm Associated Lock Nut: KM 30 Associated Lock Washer: MB 30 Material: High-grade steel Label Info Part Number: H3030 Order Code: 29061200 EAN: 4012801216869 Application Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical shaft seating. They can be used on plain shafts, allowing for a less precise shaft tolerance and simplifying the mounting and dismounting process. Country of Origin This product is proudly manufactured in Germany. CO2 Impact Opting for this component helps save 8.8 kg of CO2 compared to new production. This is equivalent to driving a car for 44 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question? What are the required lock nut and lock washer for the FAG H3030 adapter sleeve? The H3030 adapter sleeve is designed to be used with a KM 30 lock nut and an MB 30 lock washer. These components are necessary to securely fasten the bearing onto the sleeve and the sleeve onto the shaft. Question? What is the correct procedure for mounting a bearing onto an H3030 sleeve? Mounting should be done by either measuring the clearance reduction or by measuring the locknut tightening angle. The most reliable method is measuring the reduction in radial internal clearance using a feeler gauge. This ensures the correct interference fit is achieved without overloading the bearing. Refer to the FAG mounting instructions for detailed values. Question? Is this adapter sleeve suitable for high-speed applications? Yes, the H3030 is a standard precision component suitable for a wide range of applications, including those with high rotational speeds. However, proper balancing of the entire shaft assembly, correct lubrication, and achieving the right operational clearance are critical for optimal performance and longevity at high speeds. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Friday, March 13, 2026
