SCHNEIDER ELECTRIC GV2ME06

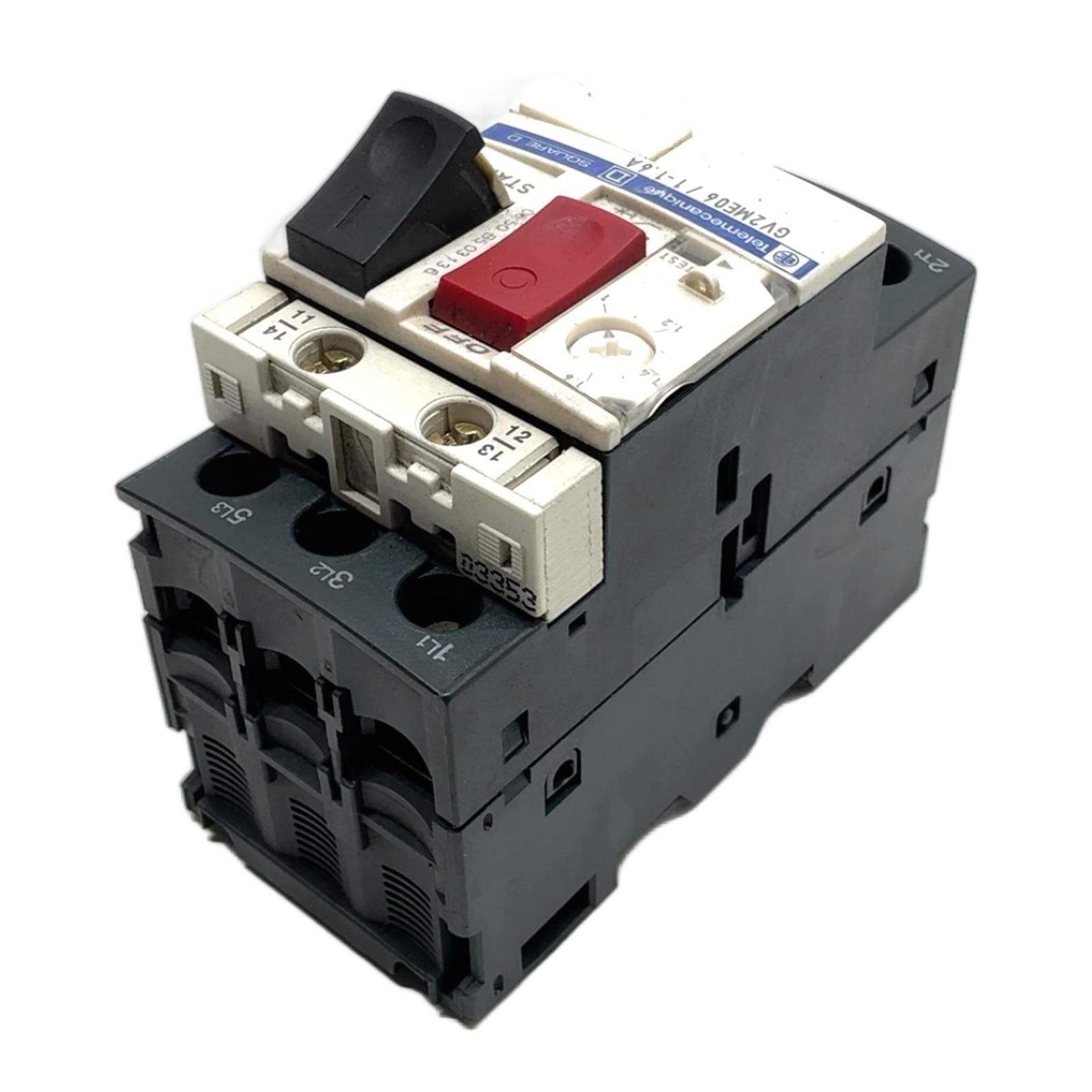

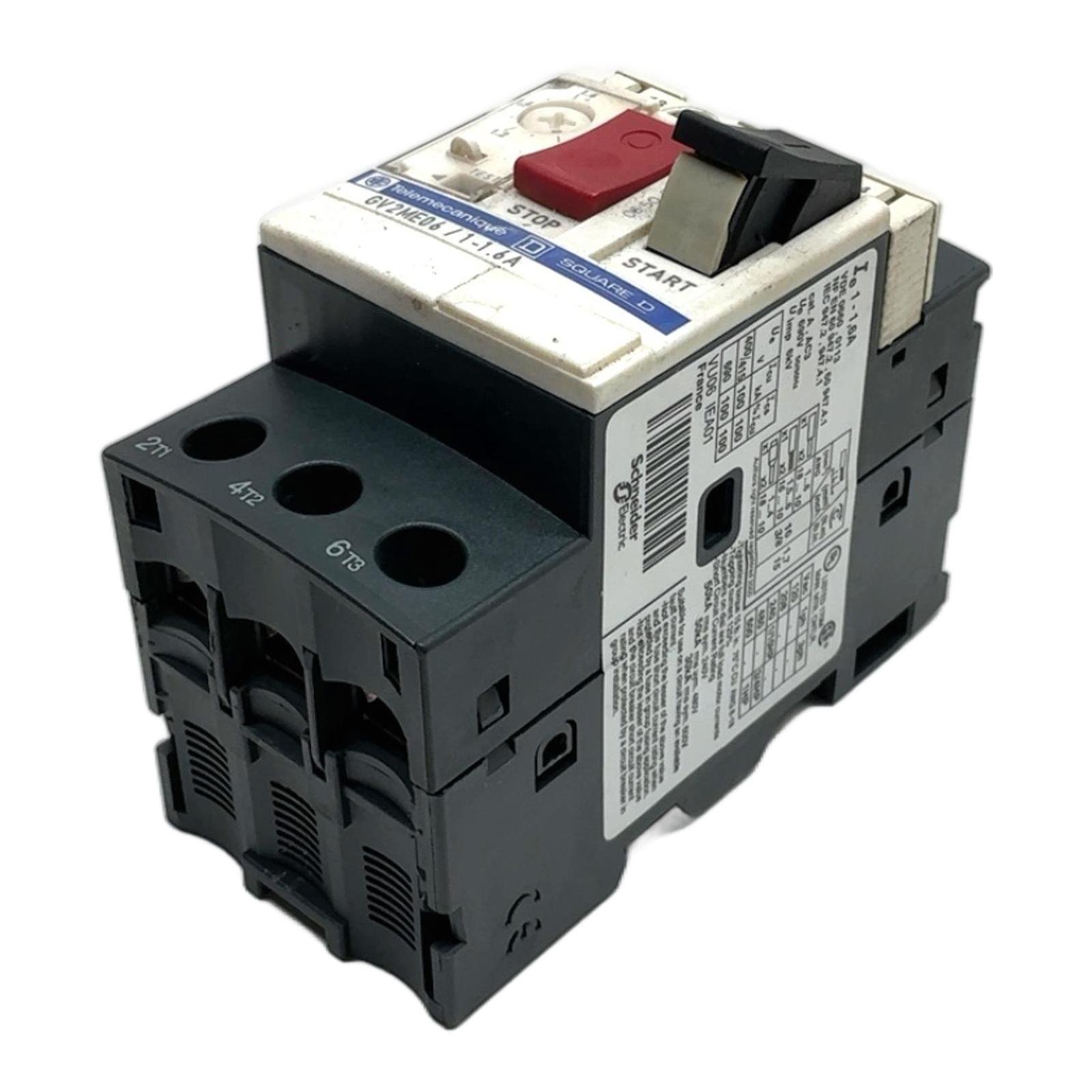

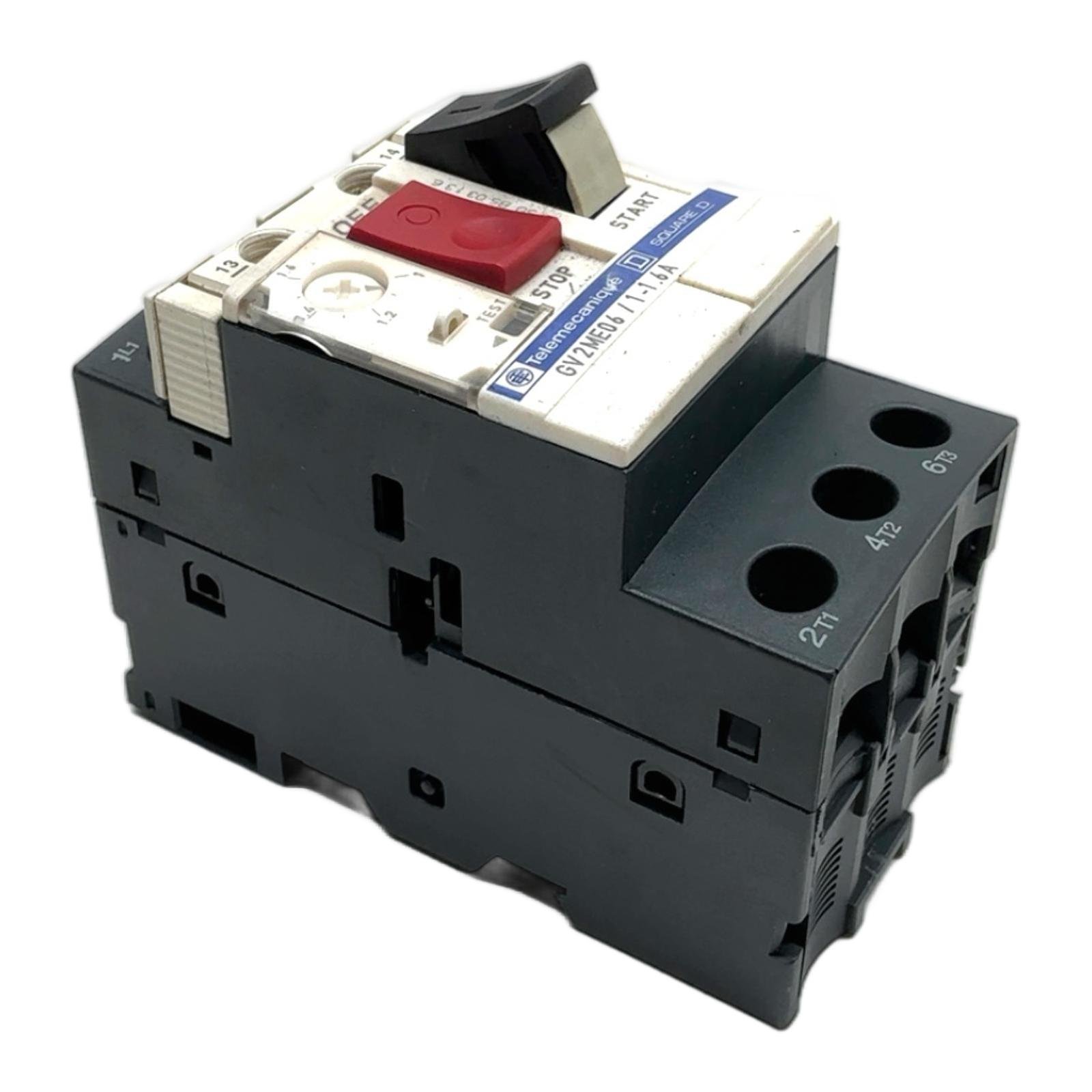

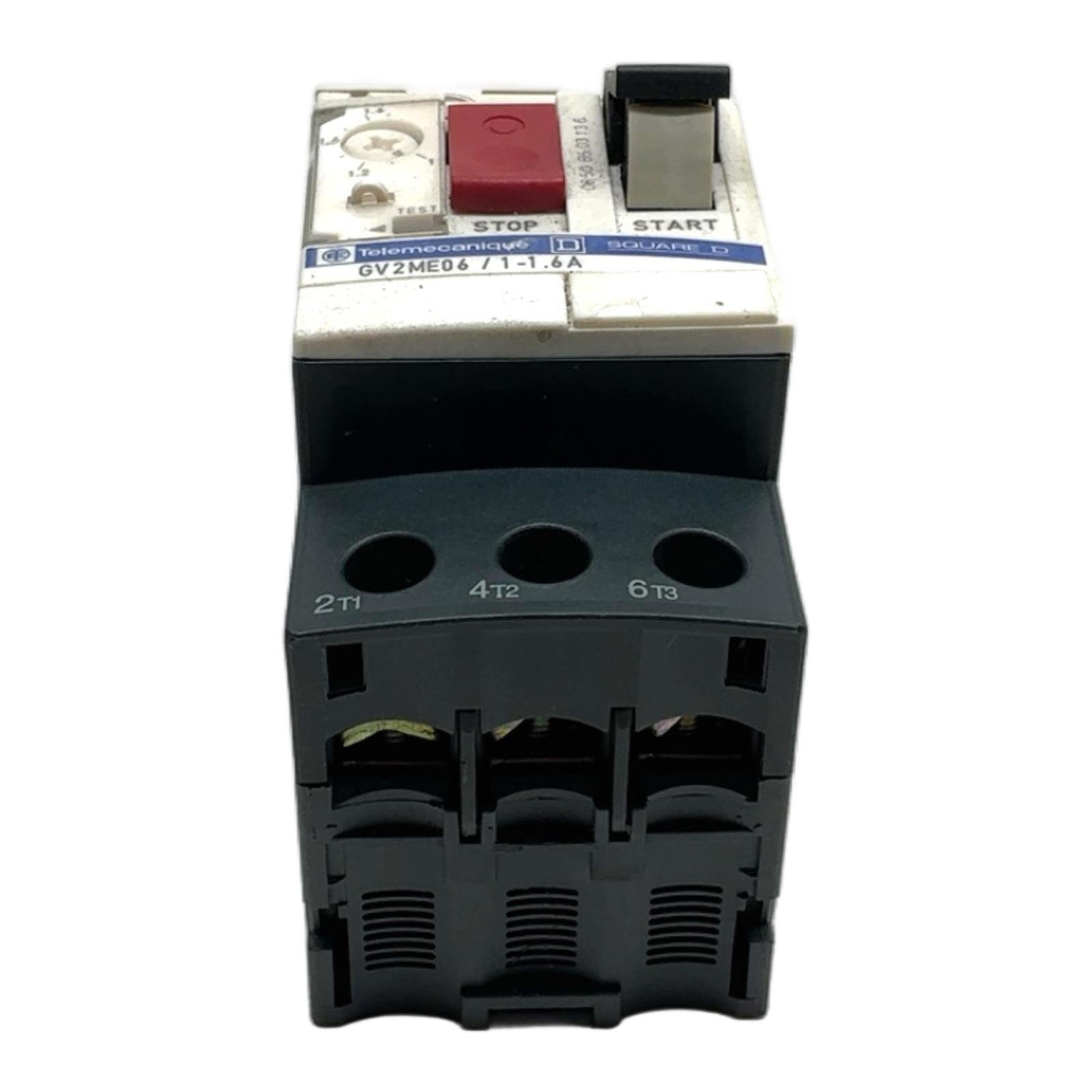

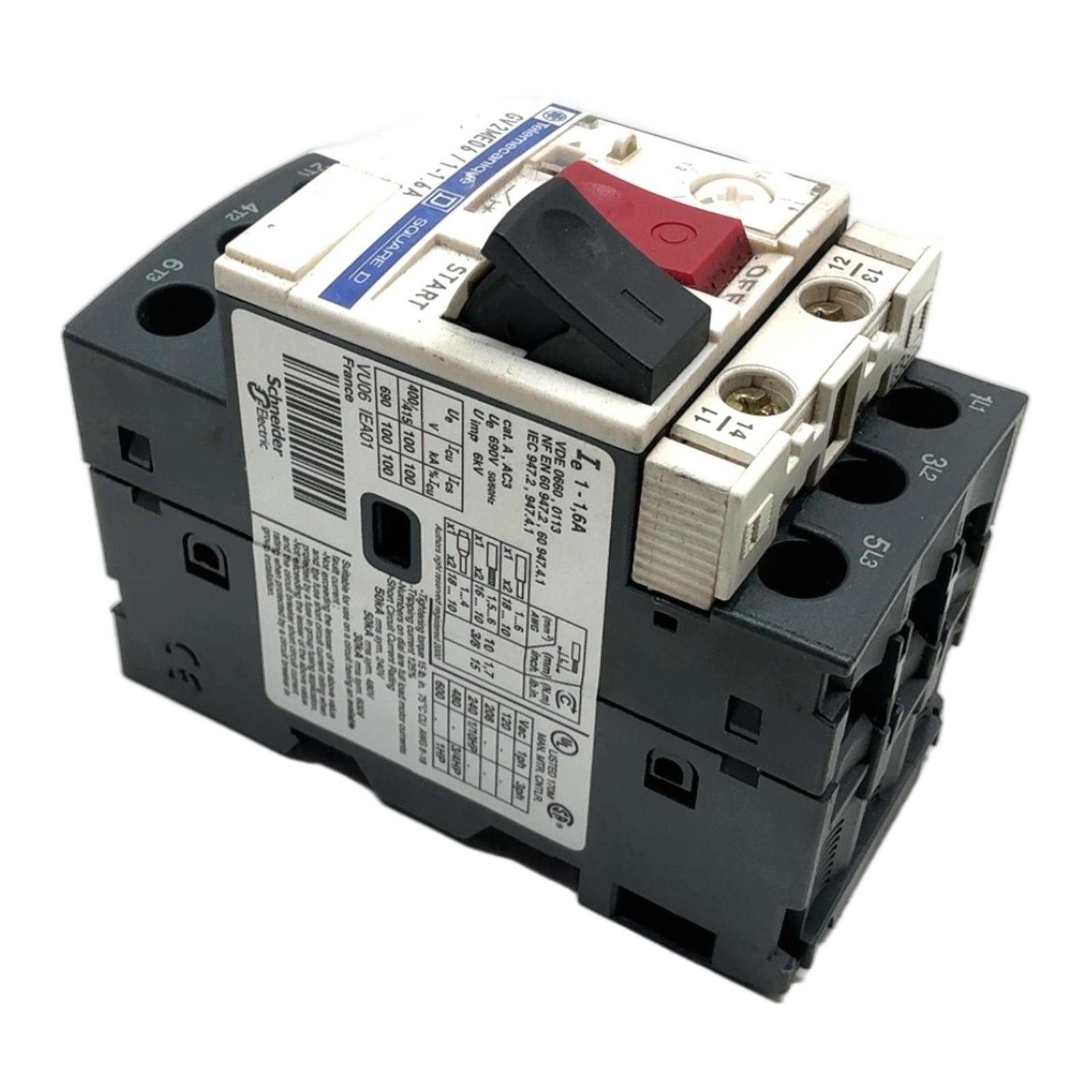

Schneider Electric GV2ME06 Motor Protector Description The Schneider Electric GV2ME06 is a robust thermal-magnetic motor circuit breaker from the TeSys GV2 series. It provides comprehensive protection for three-phase motors with a full load current between 1.0 and 1.6 Amperes. This device combines motor protection and manual control in a single compact unit, featuring push-buttons for start and stop operations, and a rotary dial for precise thermal overload setting. It is engineered to protect against short-circuits, overloads, and phase failures. Specifications Manufacturer: Schneider Electric Part Number: GV2ME06 Product Range: TeSys GV2 Thermal Protection Range: 1.0 to 1.6 A Poles: 3-Pole Rated Operational Voltage (Ue): 690V AC, 50/60 Hz Rated Impulse Withstand Voltage (Uimp): 6 kV Control Type: Push-button Mounting: DIN Rail Label Info Model: GV2ME06 / 1-1.6A Standards: IEC/EN 60947-2, IEC/EN 60947-4-1, UL 508, CSA C22.2 No 14 Breaking Capacity (Icu): 100 kA at 400/415V Application This motor protection circuit breaker is ideal for direct manual control and protection of small motors in various industrial applications such as conveyor systems, pumps, fans, and mixers. Country of Origin Made in France. CO2 Impact By choosing this pre-owned component, you are helping to prevent the emission of approximately 10 kg of CO2. This saving is comparable to the emissions from driving a standard passenger car for 50 kilometers. Your choice supports a circular economy and reduces industrial waste. Availability This is a tested, pre-owned item in excellent working condition. Available for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question? What is the purpose of the ‘TEST’ button on the GV2ME06? The ‘TEST’ button allows for a mechanical trip simulation to verify that the trip mechanism of the circuit breaker is functioning correctly without needing an actual overcurrent event. Question? Can I add auxiliary contacts or other accessories to this GV2ME06? Yes, the TeSys GV2 series is designed to be modular. You can add front-mounted or side-mounted auxiliary contact blocks (GVAE, GVAN) and undervoltage or shunt trip releases. Question? How do I correctly set the thermal overload protection on this device? The rotary dial should be set to the motor’s full load ampere (FLA) rating, which is found on the motor’s nameplate. For this model, the range is between 1.0 and 1.6 Amperes. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
