AKN GEH140 ES-2RS

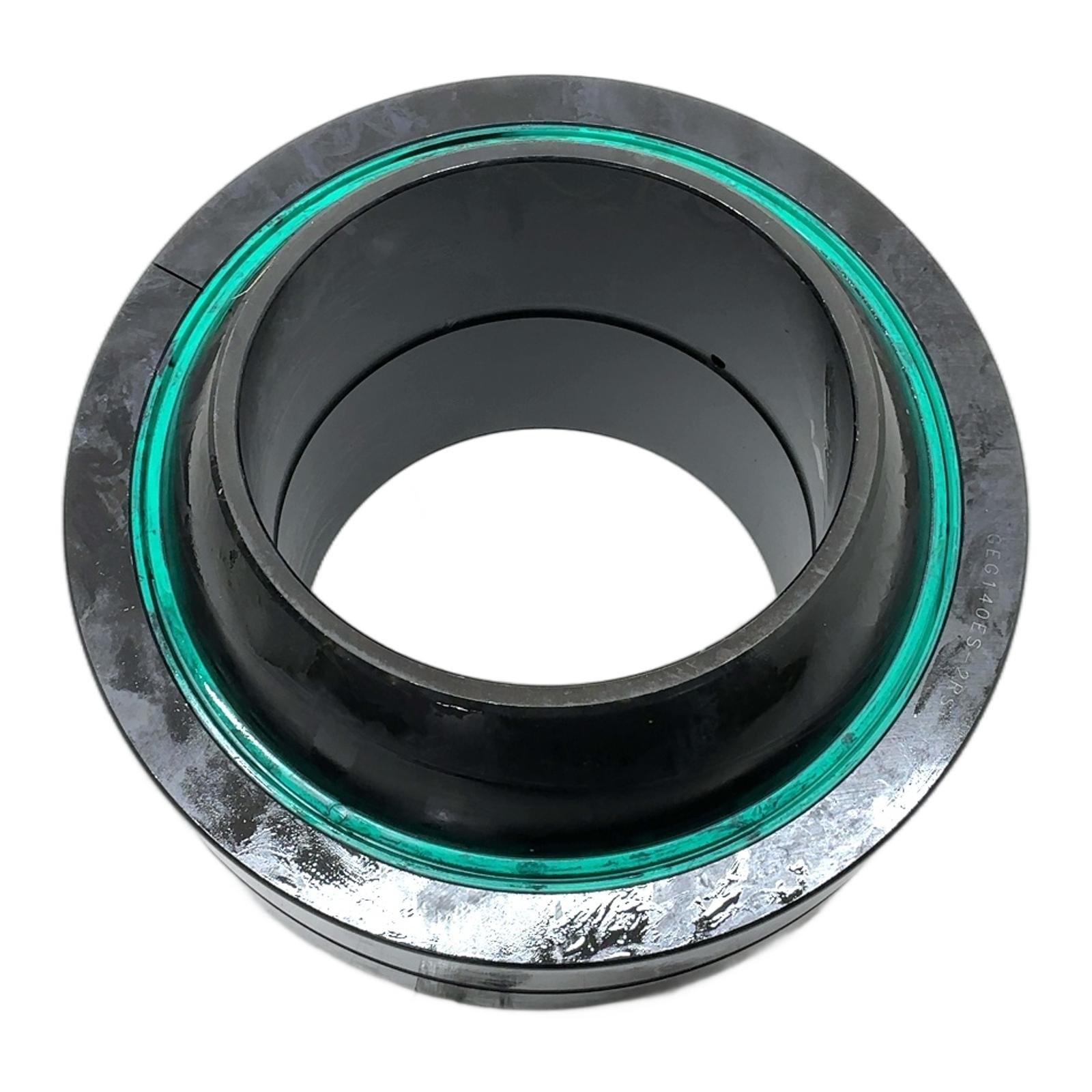

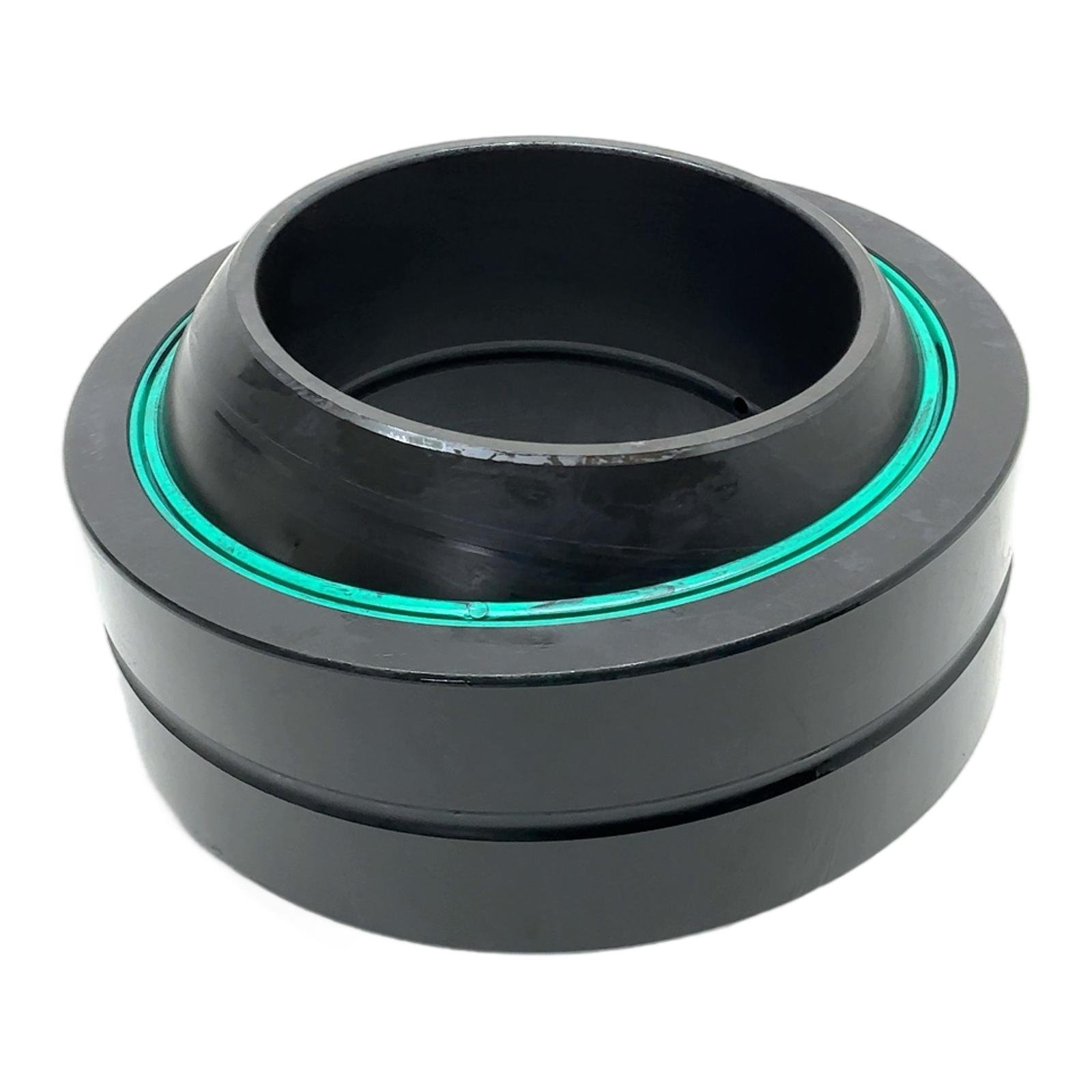

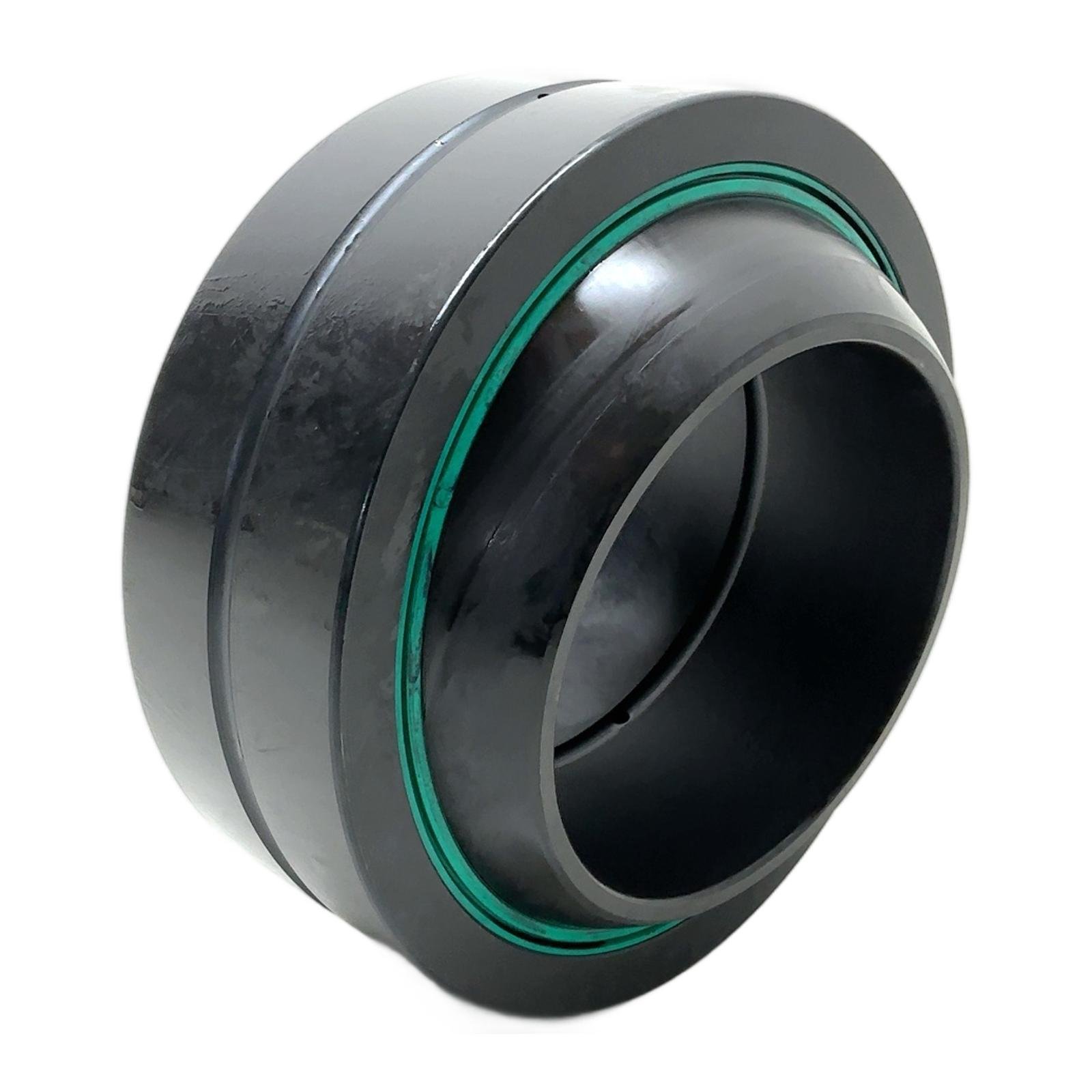

akn GEH 140 ES-2RS Spherical Plain Bearing Description This is a new-in-box (surplus) akn GEH 140 ES-2RS radial spherical plain bearing. It is a high-capacity, maintenance-free bearing designed for demanding applications. The steel-on-steel construction ensures excellent performance under heavy radial and combined loads, while the integrated 2RS seals provide superior protection against contaminants, extending the bearing’s service life. Specifications Inner Diameter (d): 140 mm Outer Diameter (D): 210 mm Width (Inner Ring): 90 mm Width (Outer Ring): 70 mm Seals: 2RS – Contact seals on both sides Sliding Contact Surface: Steel/Steel Label Info Manufacturer: akn Type Number: GEH 140 ES-2RS Batch Code: L568 Application This bearing is ideal for use in heavy-duty industrial machinery such as construction equipment, mining vehicles, agricultural machinery, and other applications where robust, reliable joints that accommodate misalignment are required. Country of Origin The product comes from Germany. CO2 Impact By choosing this surplus product over a new one, you are saving approximately 21.8 kg of CO2. This is equivalent to the emissions from driving a standard car for 109 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question?What does the “ES-2RS” suffix signify for the akn GEH 140 ES-2RS?The “ES” indicates that the bearing has a steel-on-steel sliding contact surface and the outer ring is split once. The “2RS” denotes that the bearing is equipped with contact seals on both sides to protect against contaminants and retain lubricant, making it a maintenance-free unit under normal operating conditions. Question?Can this bearing be relubricated?While the GEH … ES-2RS series is designed for maintenance-free operation, this specific model is pre-lubricated for its service life. Attempting to relubricate it is not standard practice and could damage the seals, as it lacks specific lubrication grooves or holes. Question?What is the maximum static and dynamic load rating for this bearing?The akn GEH 140 ES-2RS is a high-performance bearing. According to standard specifications for this size, it typically has a dynamic load rating (C) of around 2450 kN and a static load rating (C0) of approximately 4900 kN. Always consult the manufacturer’s datasheet for the most accurate and up-to-date values for your specific application. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder. Last Update: Friday, March 13, 2026
