BETA W3-P706H-S2N-T5-K1

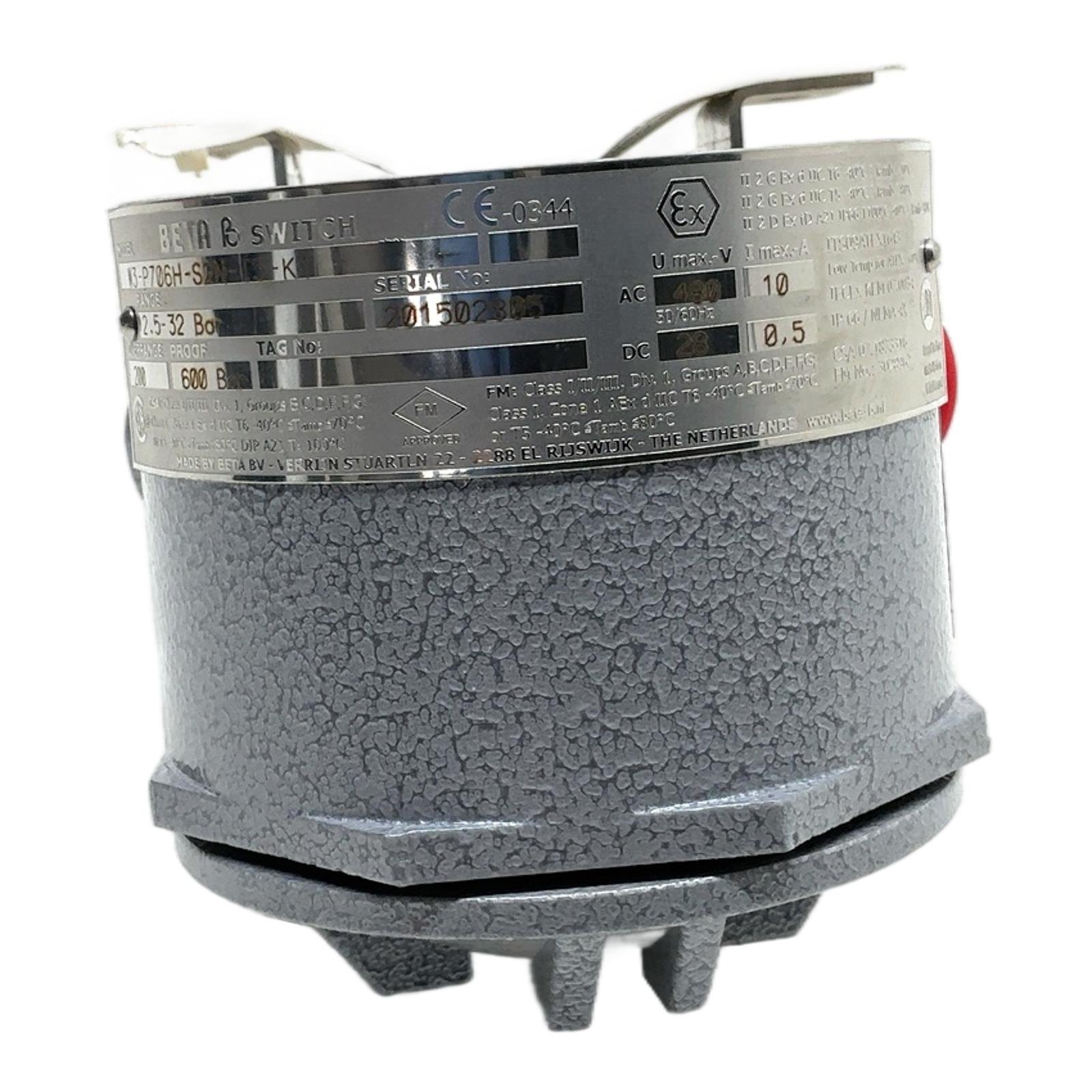

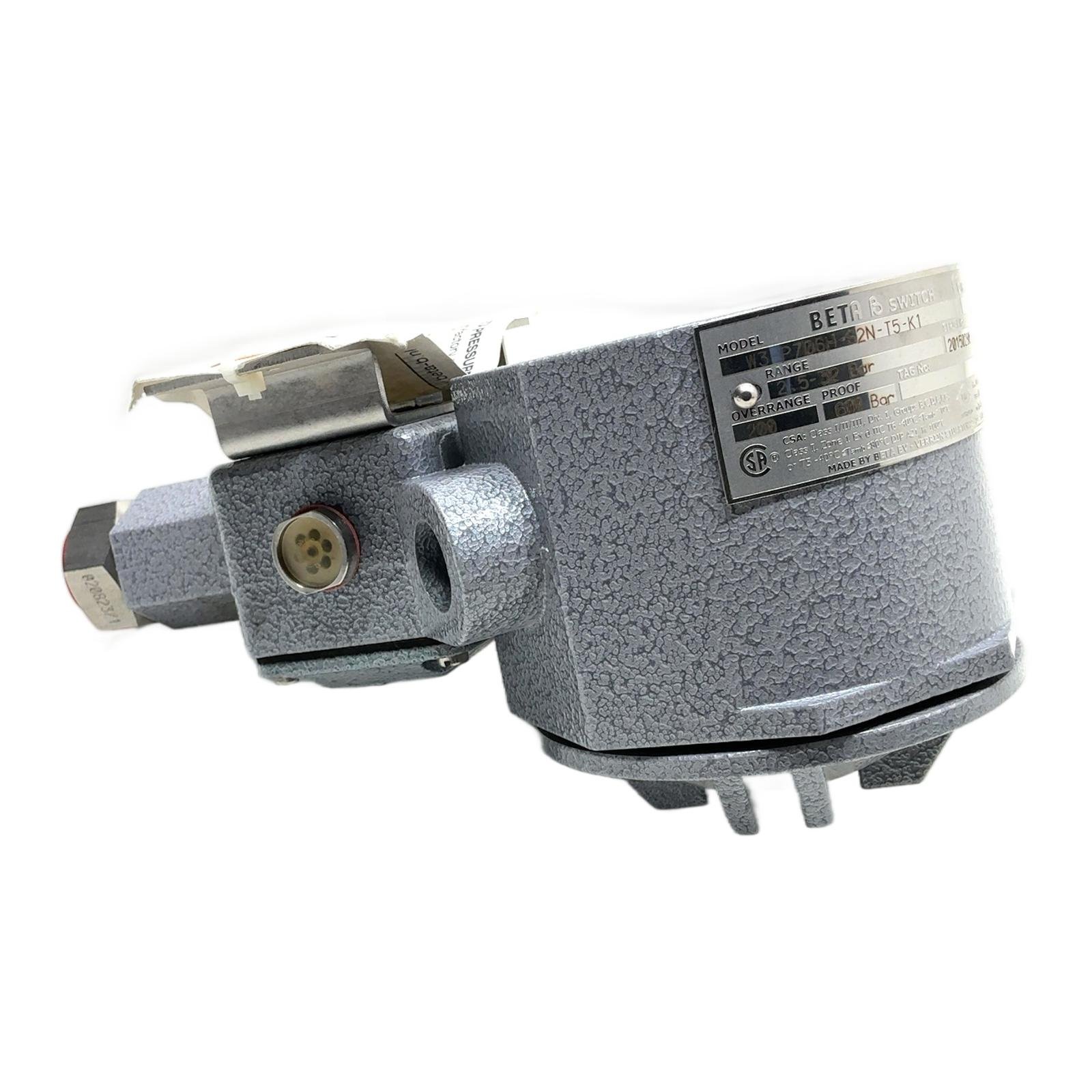

BETA W3 Series Explosion-Proof Pressure Switch Description The BETA W3-P706H-S2N-T5-K1 is a high-performance, explosion-proof pressure switch designed for safety and reliability in the most demanding industrial environments. With a wide adjustable range and robust construction, this switch is ideal for process control and safety systems in hazardous locations. Its comprehensive certifications (ATEX, CSA, FM) ensure compliance with international safety standards. Specifications Manufacturer: BETA B.V. Series: W3 Adjustable Range: 1.5 to 32 Bar Overrange Proof Pressure: 600 Bar Switch Type: SPDT (Single Pole Double Throw) AC Rating: 480V max, 10A max DC Rating: 28V max, 0.5A max Process Connection: 1/2 inch NPT Female (Stainless Steel 316) Enclosure Rating: IP66, NEMA 4, 4X Ambient Temperature: -40 deg C to +70 deg C Label Info Model: W3-P706H-S2N-T5-K1 Serial No.: 201502805 Certifications: Ex II 2 G EEx d IIC T6, CSA Class I/II/III Div 1, FM Approved Application This pressure switch is suitable for monitoring and controlling pressure in applications within the oil and gas, chemical, petrochemical, and power generation industries, particularly where explosive atmospheres may be present. Country of Origin Made in The Netherlands. CO2 Impact Choosing this component saves an estimated 80.0 kg of CO2 compared to a new production. This is a significant contribution to reducing industrial emissions and promoting a circular economy. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the function of the ‘K1’ designator in the model number W3-P706H-S2N-T5-K1?The ‘K1′ code in BETA’s model numbering system typically specifies the process connection. For this model, it indicates a 1/2 inch NPT female connection made from 316 Stainless Steel, offering excellent corrosion resistance. Is this pressure switch suitable for use with corrosive media?Yes, the wetted parts, including the 316 Stainless Steel process connection, are designed to be compatible with a wide range of corrosive media. However, always verify chemical compatibility with your specific process fluid against the manufacturer’s material specifications. How do I adjust the setpoint and deadband on this W3 series switch?The setpoint is typically adjusted via an internal screw located under the main cover. The deadband (the difference between the trip and reset points) may be fixed or adjustable depending on the specific microswitch option. Always de-energize the circuit before opening the enclosure for adjustments, as stated on the cover. Last Update: March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
