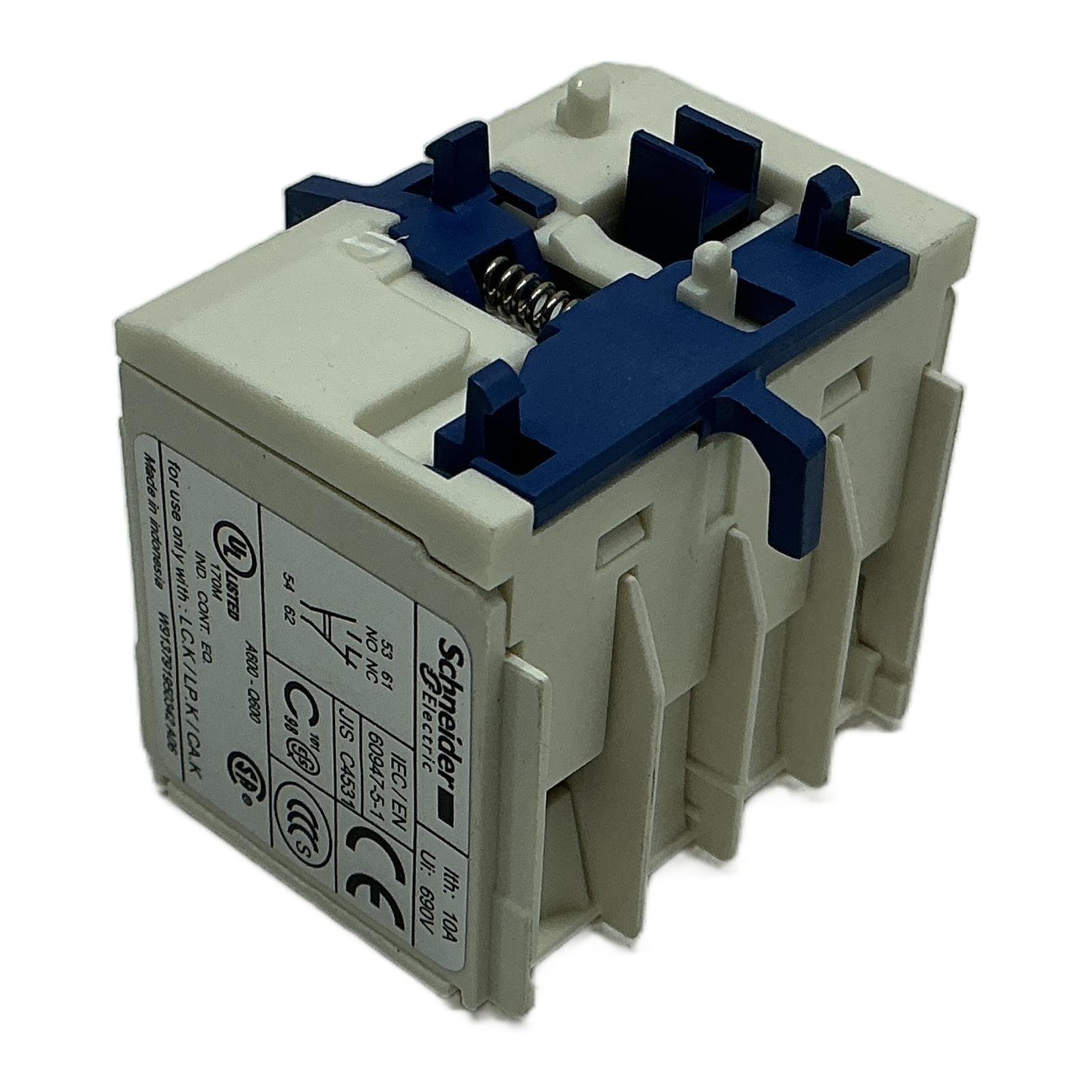

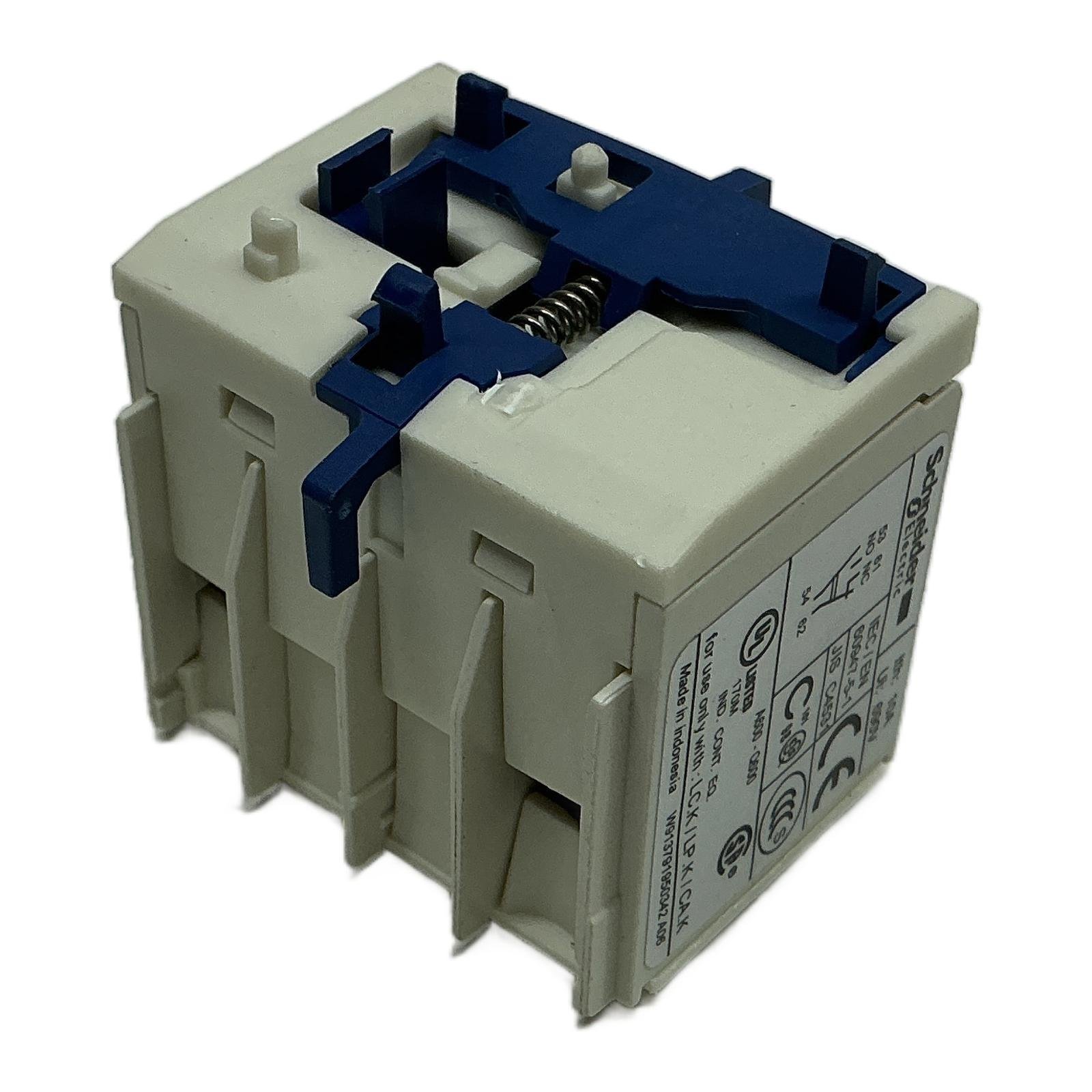

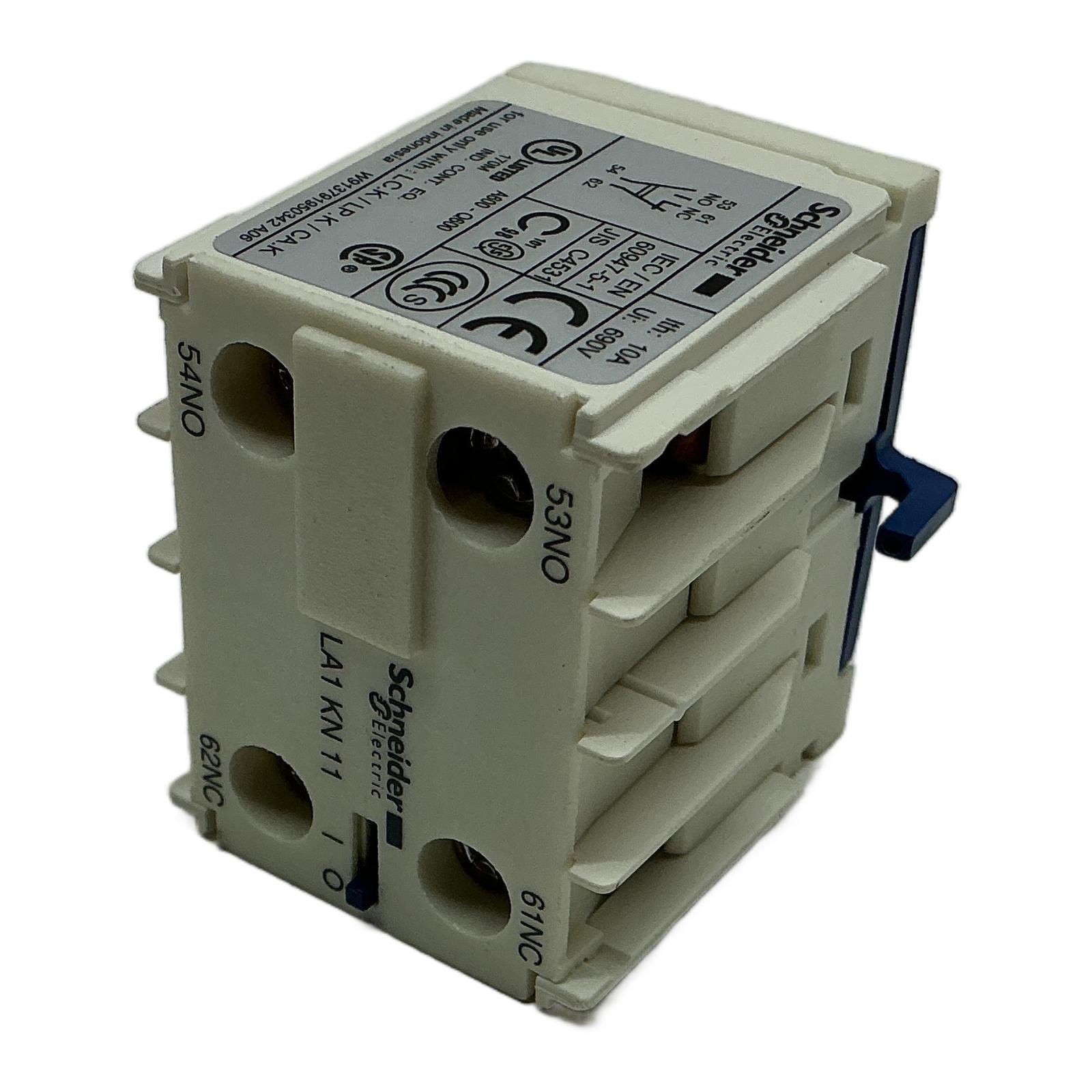

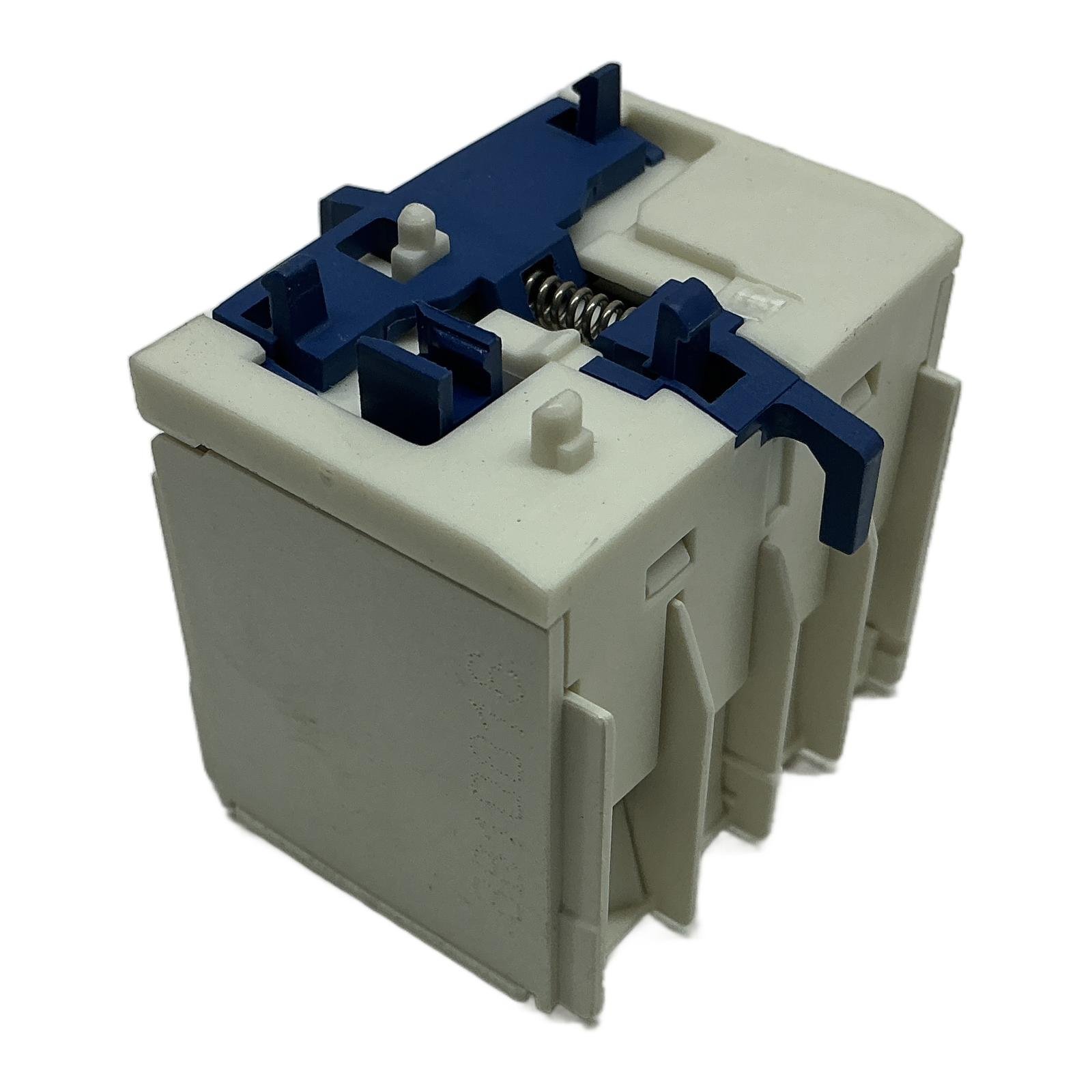

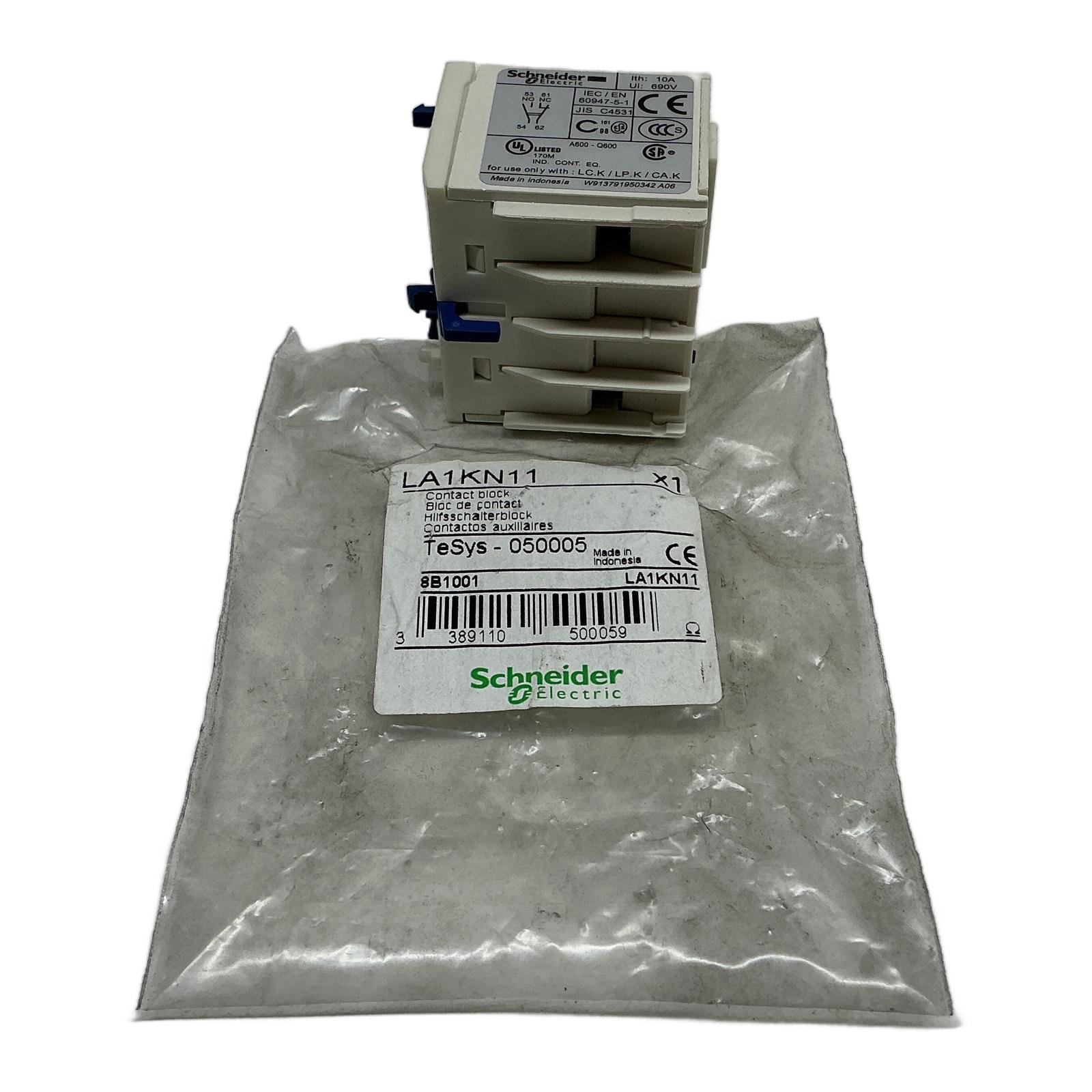

SCHNEIDER ELECTRIC LA1KN11

Schneider Electric LA1KN11 Auxiliary Contact Block Description The LA1KN11 is a high-quality auxiliary contact block manufactured by Schneider Electric, designed for the TeSys K range of contactors and control relays. It provides additional switching capacity for control circuits, enabling interlocking, signaling, and feedback functions. This unit features a 1 NO (Normally Open) and 1 NC (Normally Closed) contact configuration, offering flexibility for various automation tasks. Specifications Manufacturer: Schneider Electric Type: LA1KN11 Product Range: TeSys K Contact Configuration: 1 NO + 1 NC Rated Insulation Voltage (Ui): 690 V Conventional Free Air Thermal Current (Ith): 10 A Mounting Type: Front clip-on Connections: Screw clamp terminals Label Info Model: LA1KN11 EAN: 3389110500059 Application This auxiliary contact block is typically used in industrial control panels, motor control centers (MCCs), and automation systems to expand the functionality of TeSys K contactors. It is essential for creating safety interlocks, status indication lights, and interfacing with PLC inputs. Country of Origin This product is made in Indonesia. CO2 Impact Choosing this reused Schneider Electric LA1KN11 auxiliary contact block saves approximately 2.0 kg of CO2 compared to a new one. This reduction is primarily due to avoiding the energy-intensive manufacturing process for new electronic components. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What contactors is the LA1KN11 compatible with?This auxiliary contact block is specifically designed for use with Schneider Electric TeSys K range contactors and relay contactors (e.g., LC1K, CA2K, CA3K, CA4K). What is the mounting type for this block?The LA1KN11 features a front clip-on mounting mechanism, allowing for quick and tool-free installation onto the front face of a compatible TeSys K contactor. What do the numbers ’11’ in LA1KN11 signify?In Schneider Electric’s nomenclature for this series, the ’11’ indicates the contact configuration. The first ‘1’ stands for one Normally Open (NO) contact, and the second ‘1’ stands for one Normally Closed (NC) contact. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
