NORGREN VP5006BJ411H00

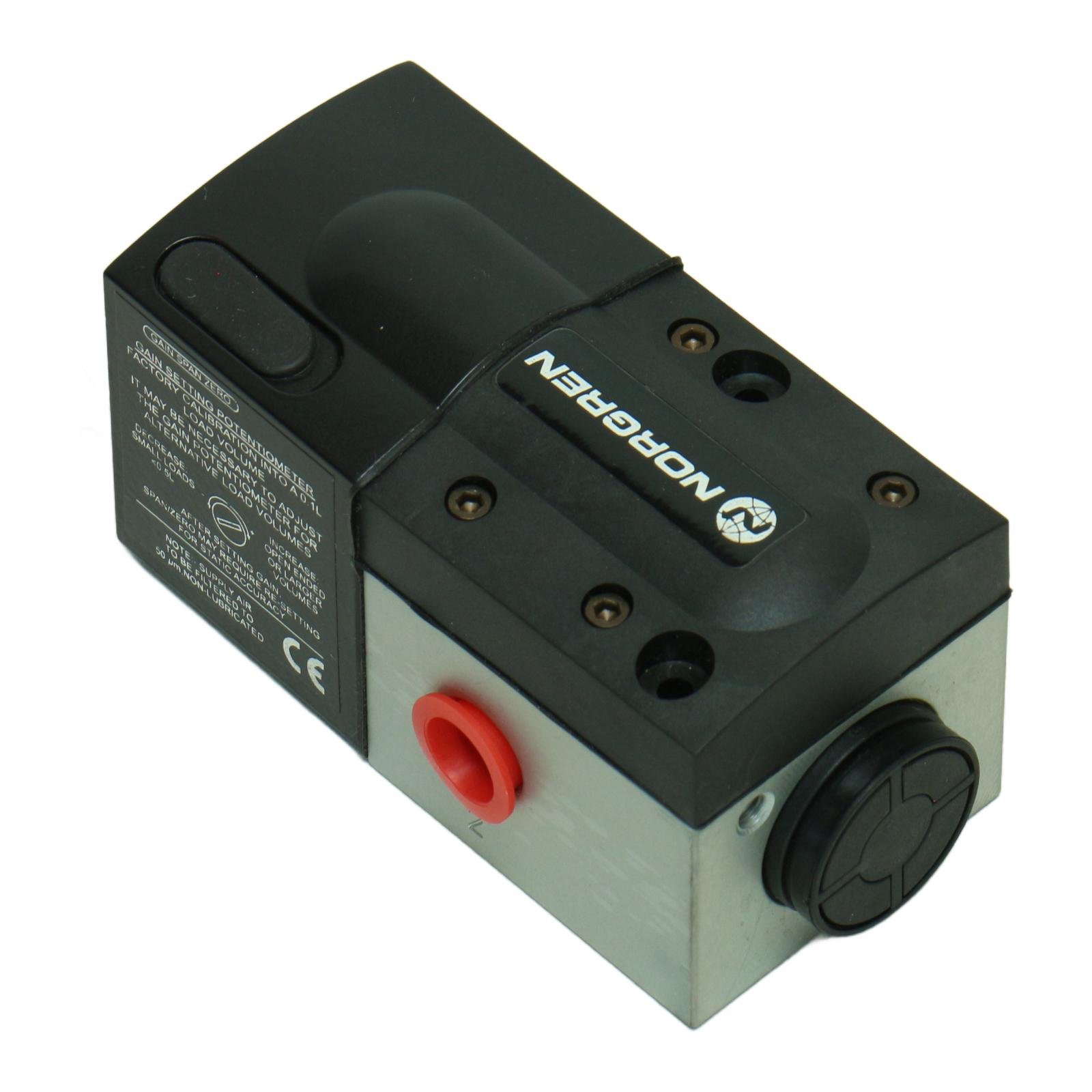

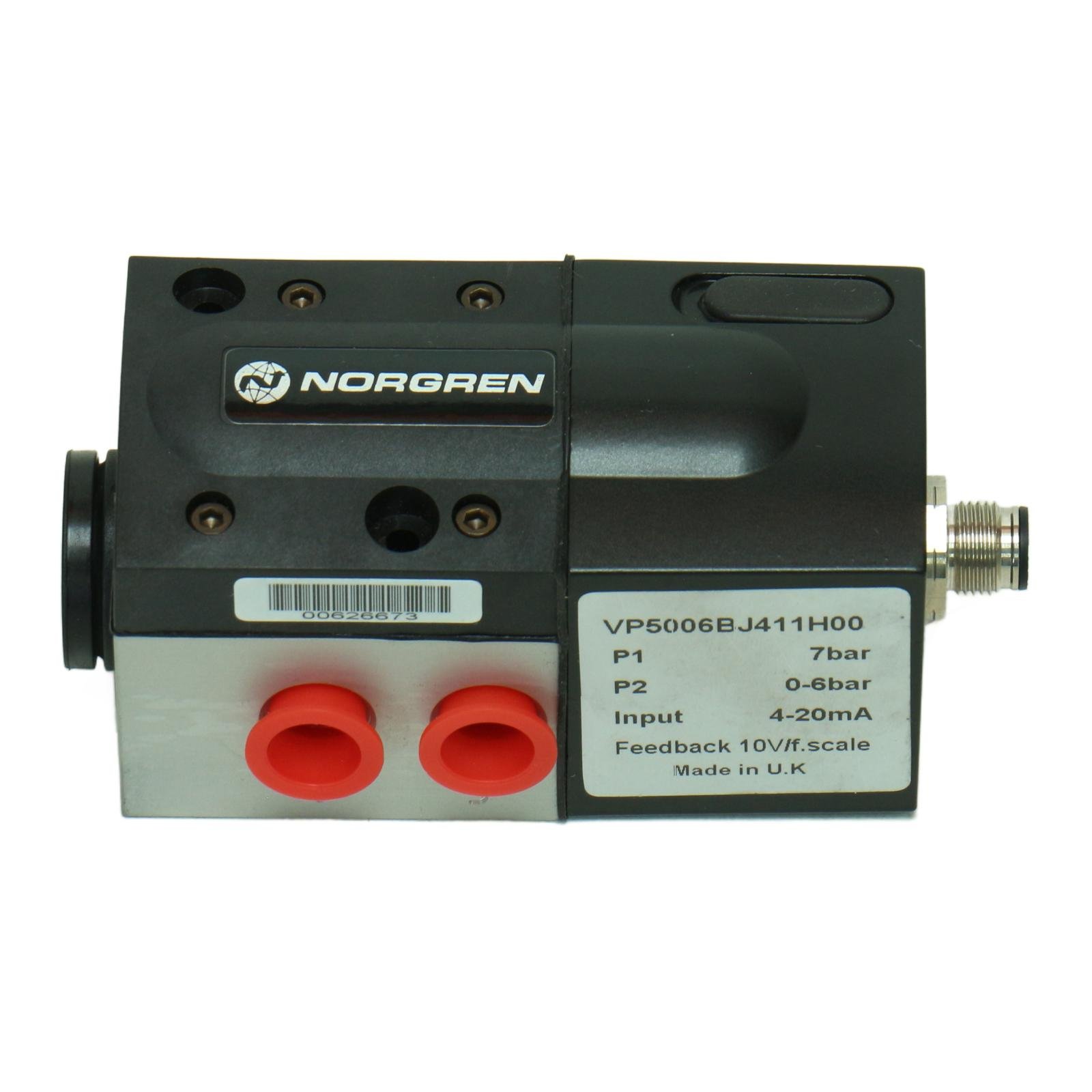

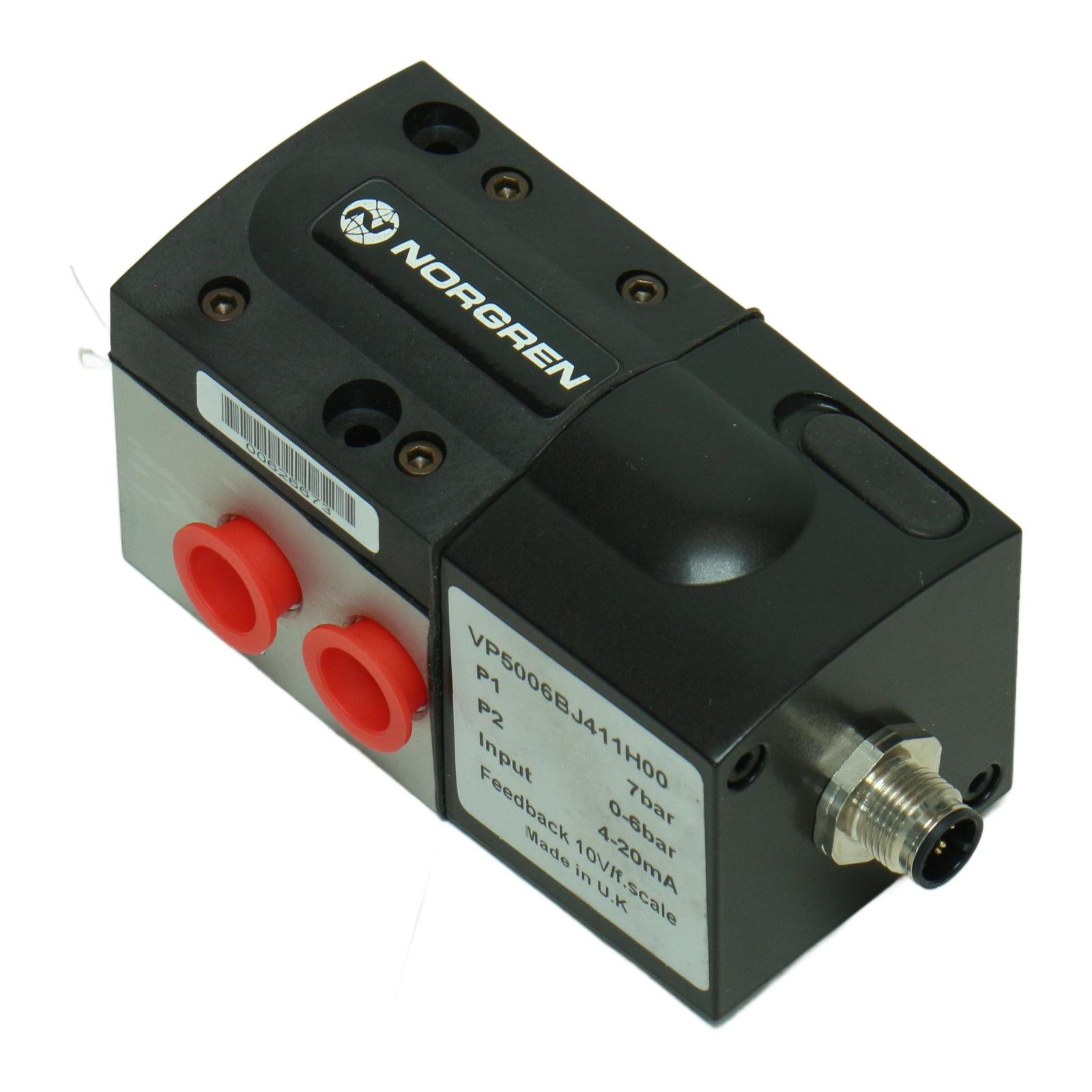

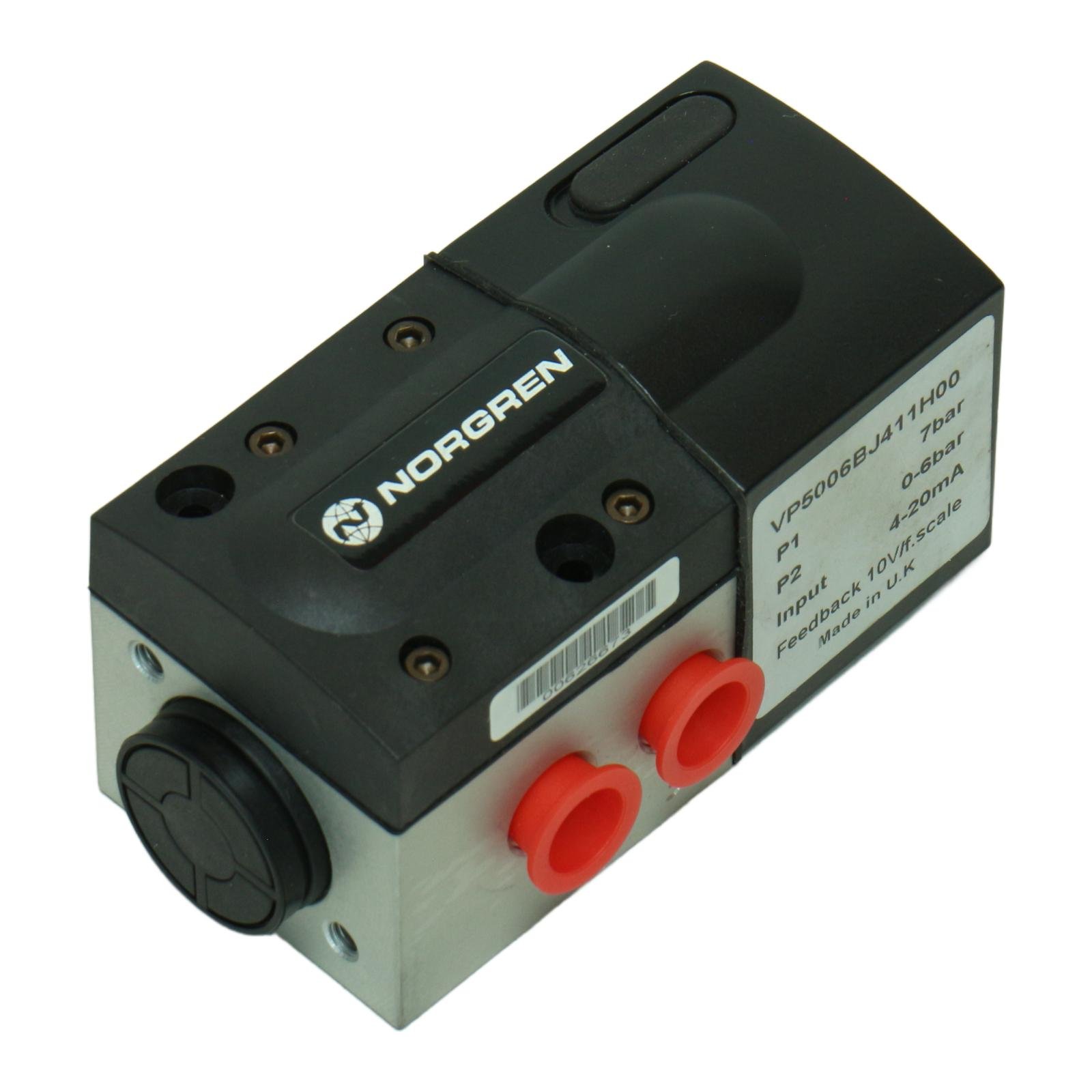

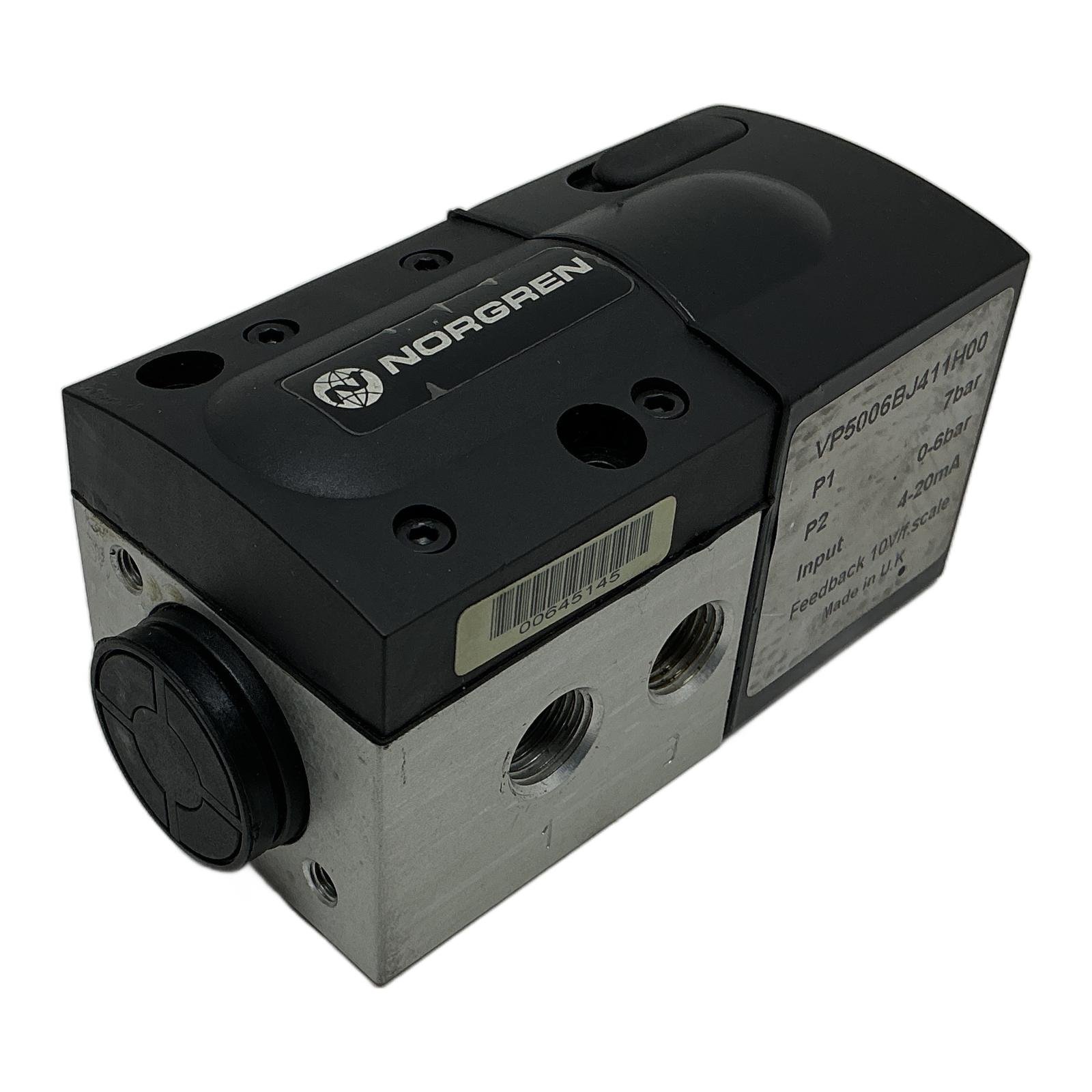

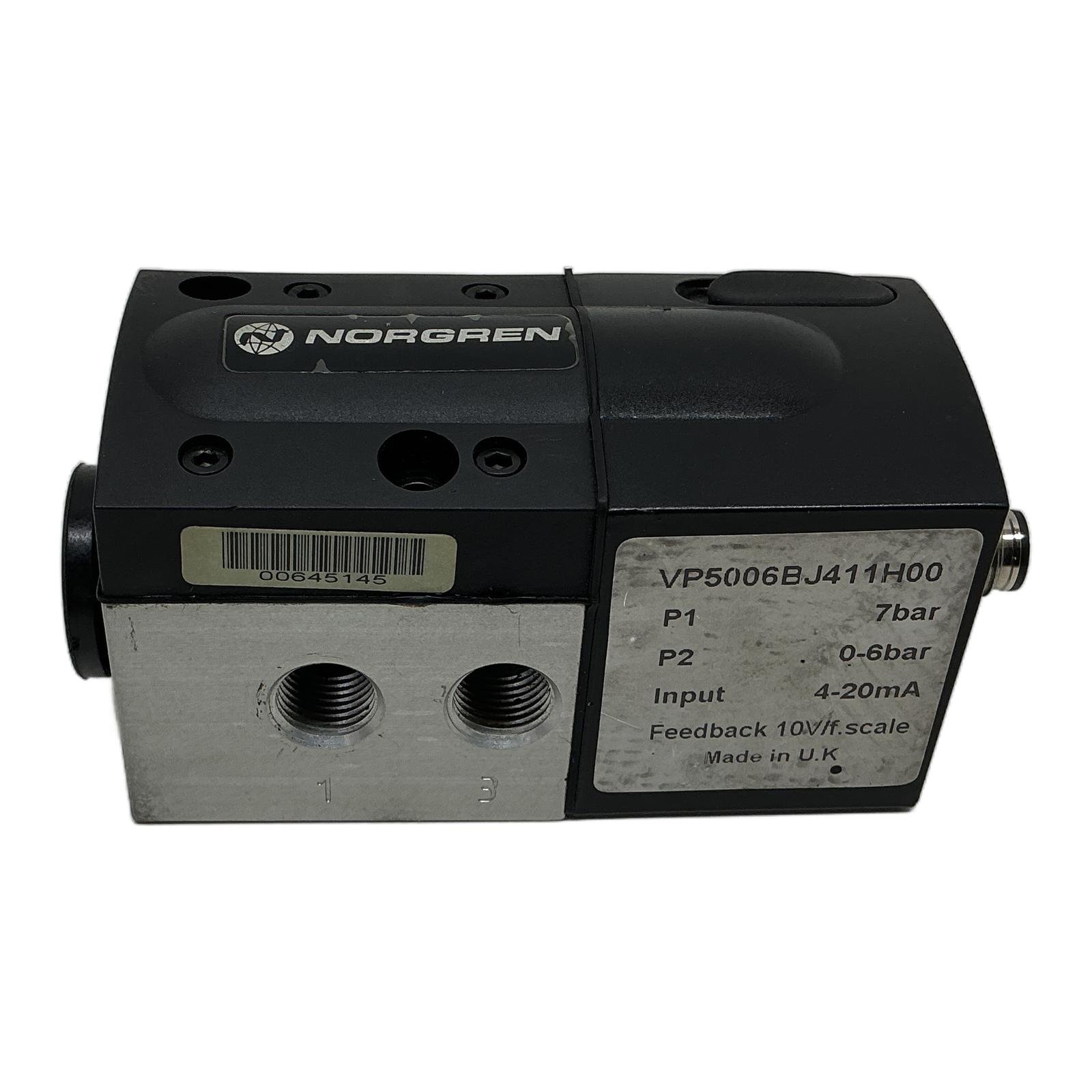

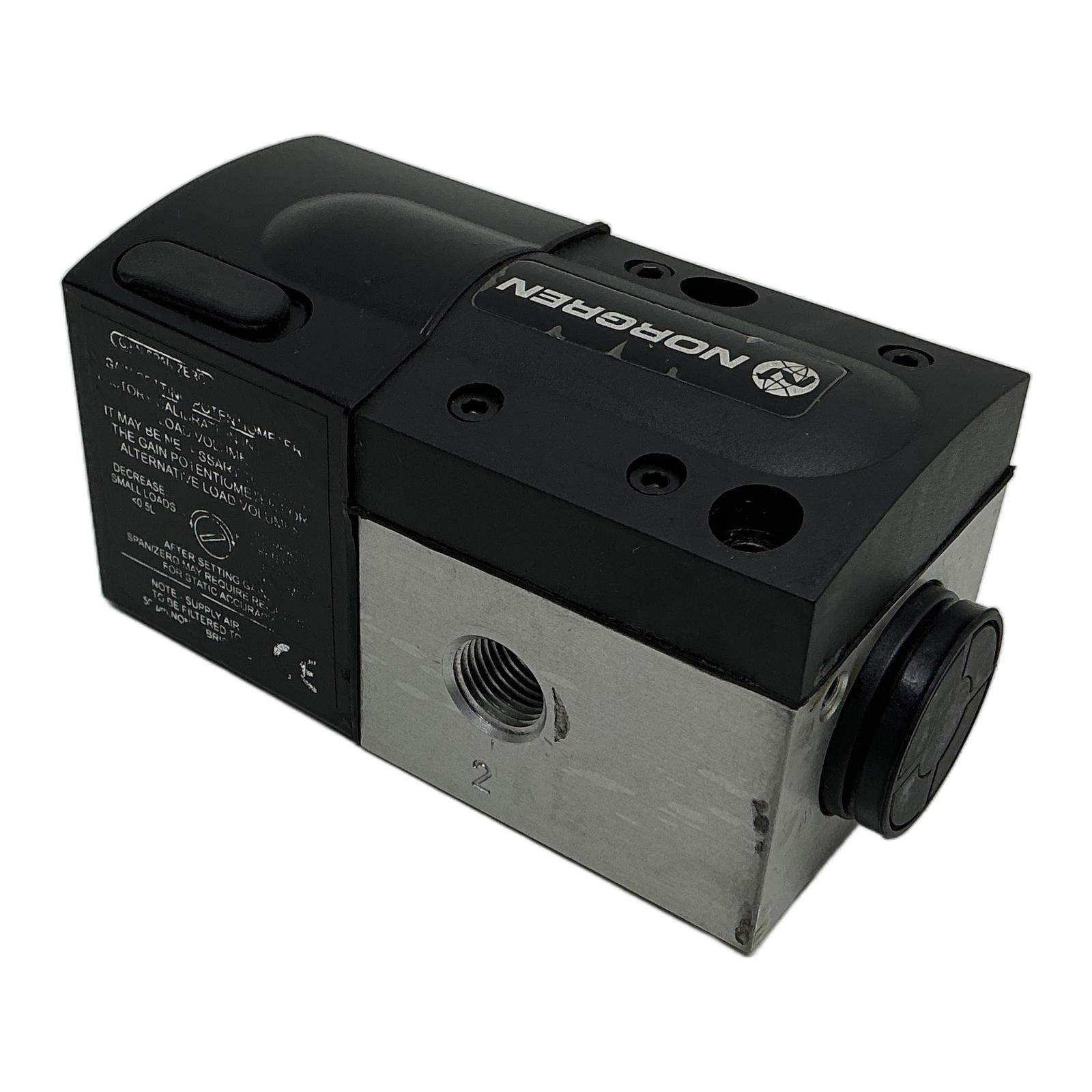

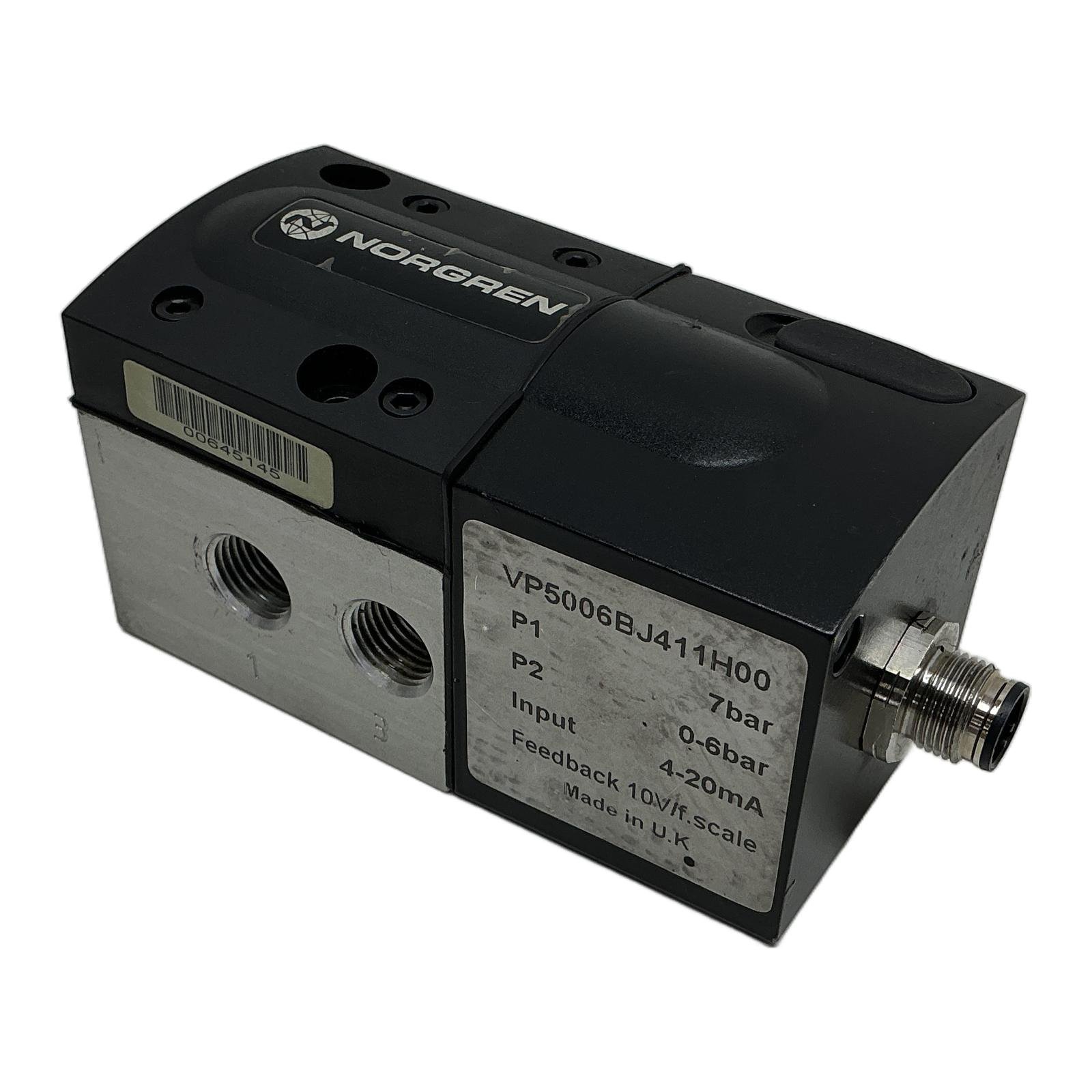

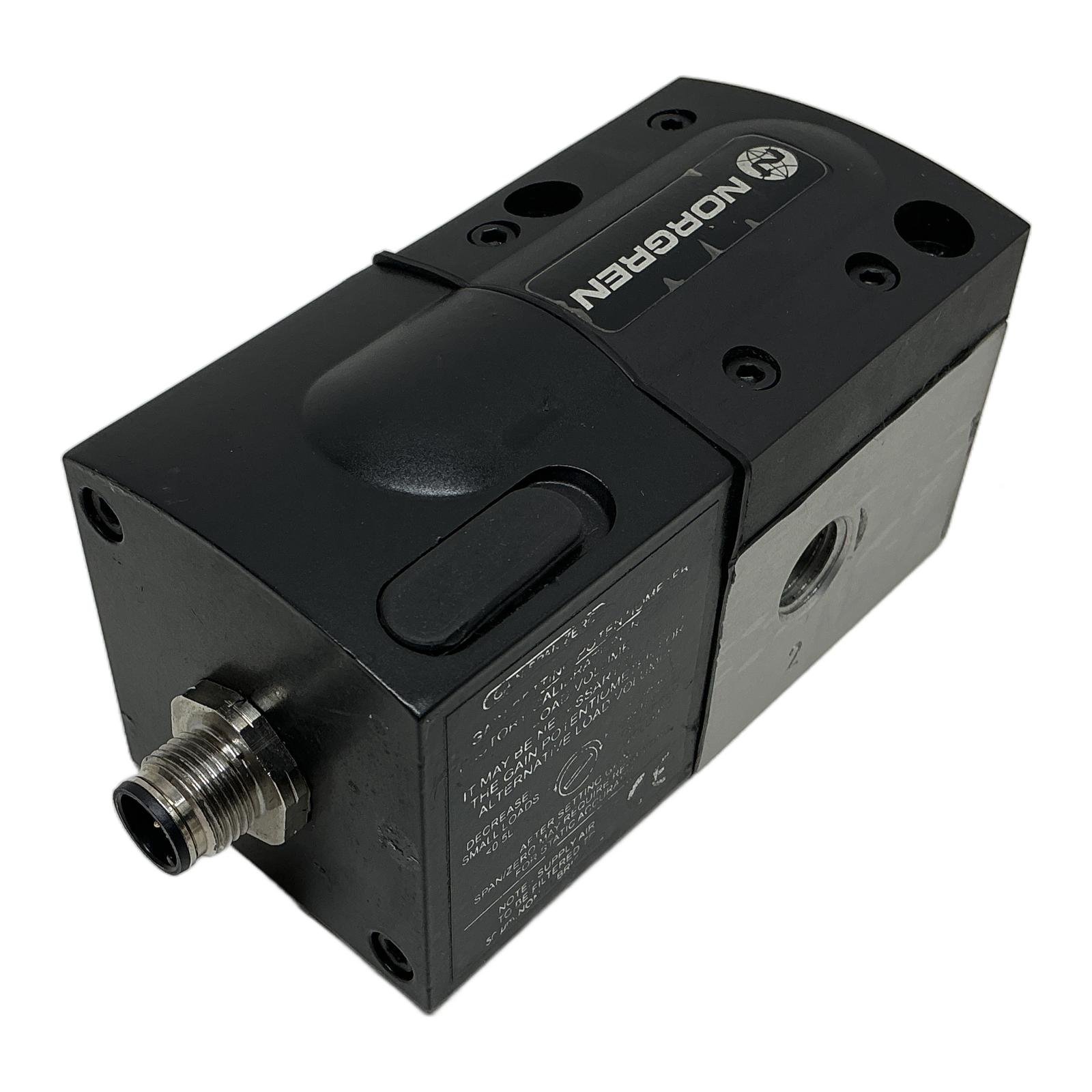

Norgren Proportional Pressure Control Valve VP5006BJ411H00 Description The Norgren VP5006BJ411H00 is an electronic proportional pressure control valve designed for high precision and reliability in industrial pneumatic systems. It accurately regulates output pressure from 0 to 6 bar based on a standard 4-20mA analog input signal. This unit features a 0-10V feedback signal, allowing for closed-loop control and system monitoring. Its robust construction ensures long service life in demanding environments. Specifications Manufacturer: Norgren (IMI Precision Engineering) Series: VP50 Type: VP5006BJ411H00 Input Signal: 4-20 mA Output Pressure (P2): 0 to 6 bar Feedback Signal: 0 to 10 VDC (full scale) Maximum Supply Pressure (P1): 7 bar Port Connections: G1/4 Electrical Connection: M12 4-pin connector Protection Class: IP65 Label Info Part Number: VP5006BJ411H00 P1: 7bar P2: 0-6bar Input: 4-20mA Feedback: 10V f.f.scale Application This proportional valve is ideal for applications requiring precise and repeatable pressure control, such as tensioning control, robotic grippers, material coating, and flow control systems in manufacturing and process automation. Country of Origin Made in the United Kingdom. CO2 Impact By purchasing this reused component, you are helping to avoid the emission of 28.0 kg of CO2, which is equivalent to driving a car for 140 kilometers. This choice supports a circular economy and reduces industrial waste. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the required supply pressure (P1) for this VP5006BJ411H00 valve to achieve the full 0-6 bar output range?The supply pressure (P1) should always be slightly higher than the maximum required output pressure. For a 0-6 bar output (P2), a stable supply pressure of at least 6.5 to 7 bar is recommended for optimal performance and responsiveness. The maximum supply pressure is rated at 7 bar on the label. Can the 4-20mA input signal be changed to a 0-10V input on this specific model?No, the model number VP5006BJ411H00 specifically indicates a 4-20mA current input. For a voltage input, you would need a different model from the VP50 series. This unit is factory-configured for current control only. What is the function of the 0-10V feedback signal and how can it be used?The 0-10V feedback signal provides a real-time analog voltage that is proportional to the actual measured output pressure (0V corresponds to 0 bar, 10V corresponds to 6 bar). This is crucial for closed-loop control systems, allowing a PLC or controller to verify pressure accuracy and detect system faults. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Friday, March 13, 2026
