SCHNEIDER ELECTRIC RXM4AB1BD RXZE2S114M

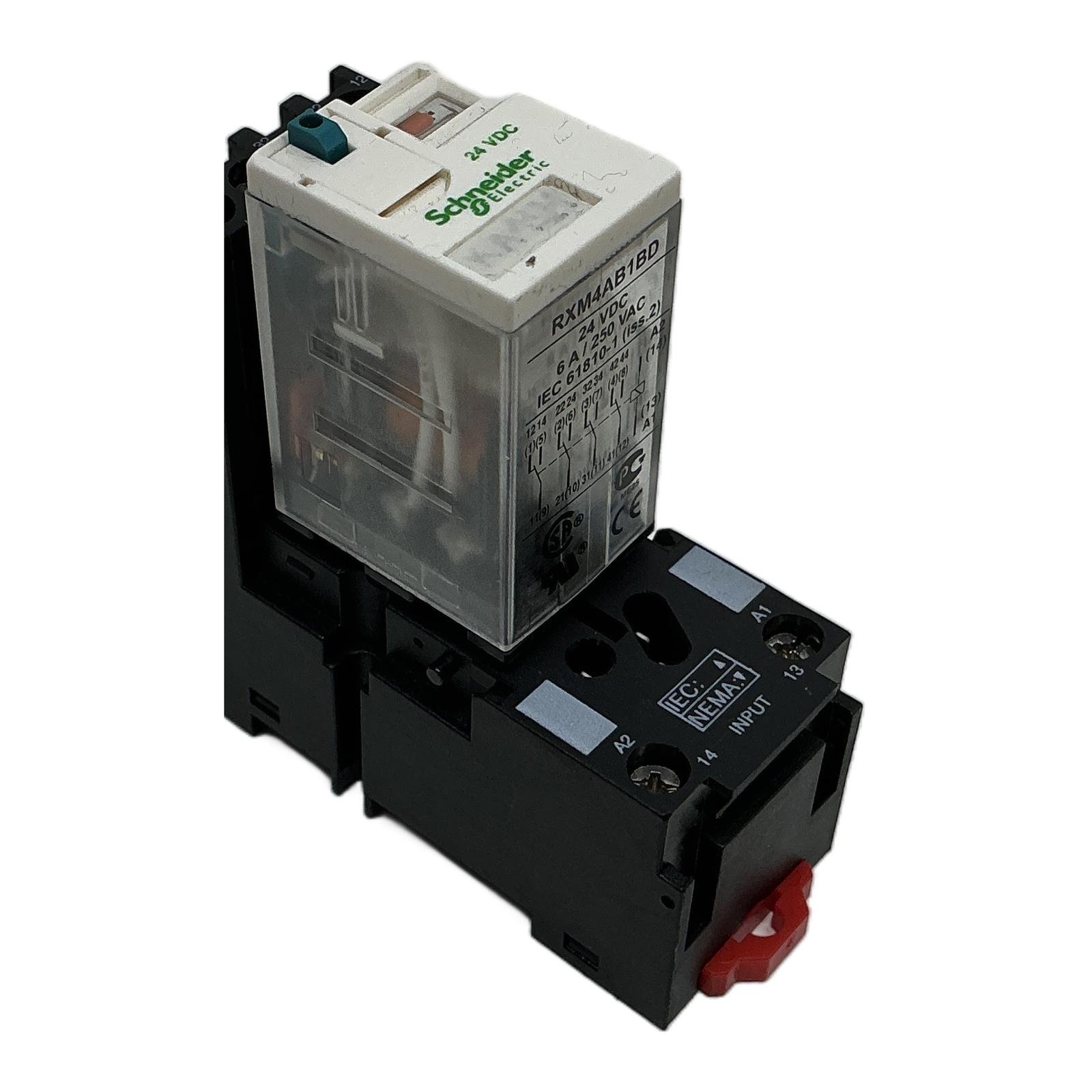

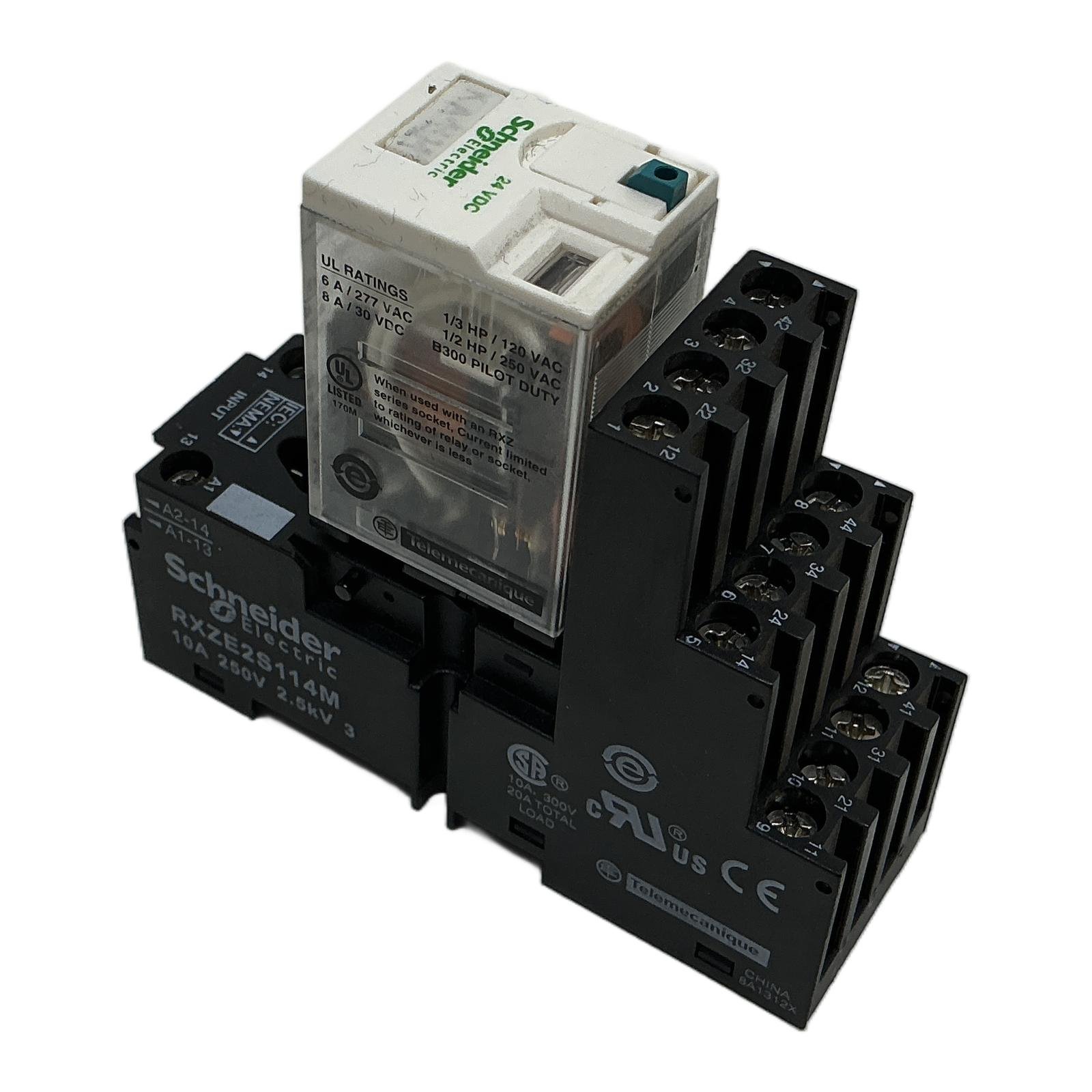

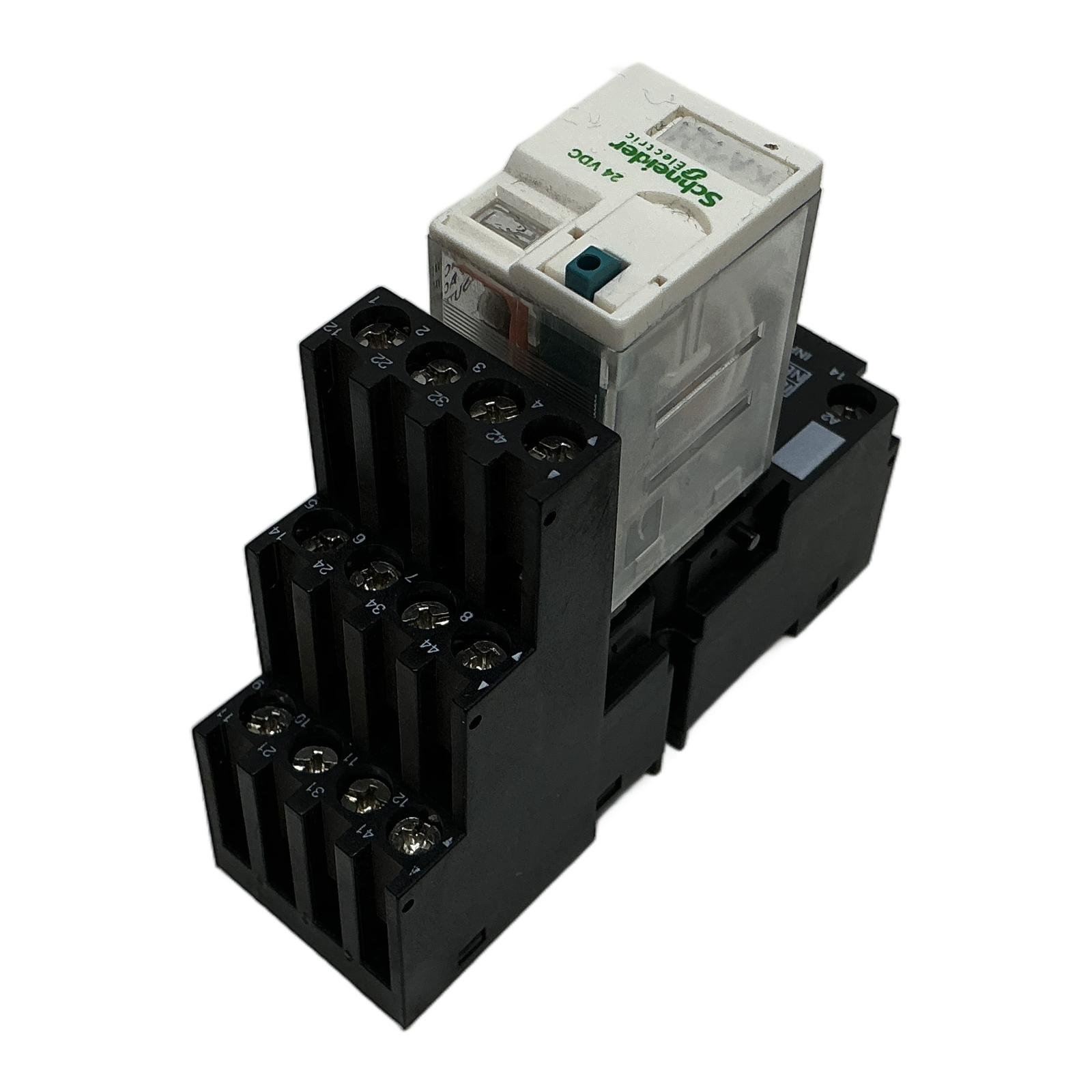

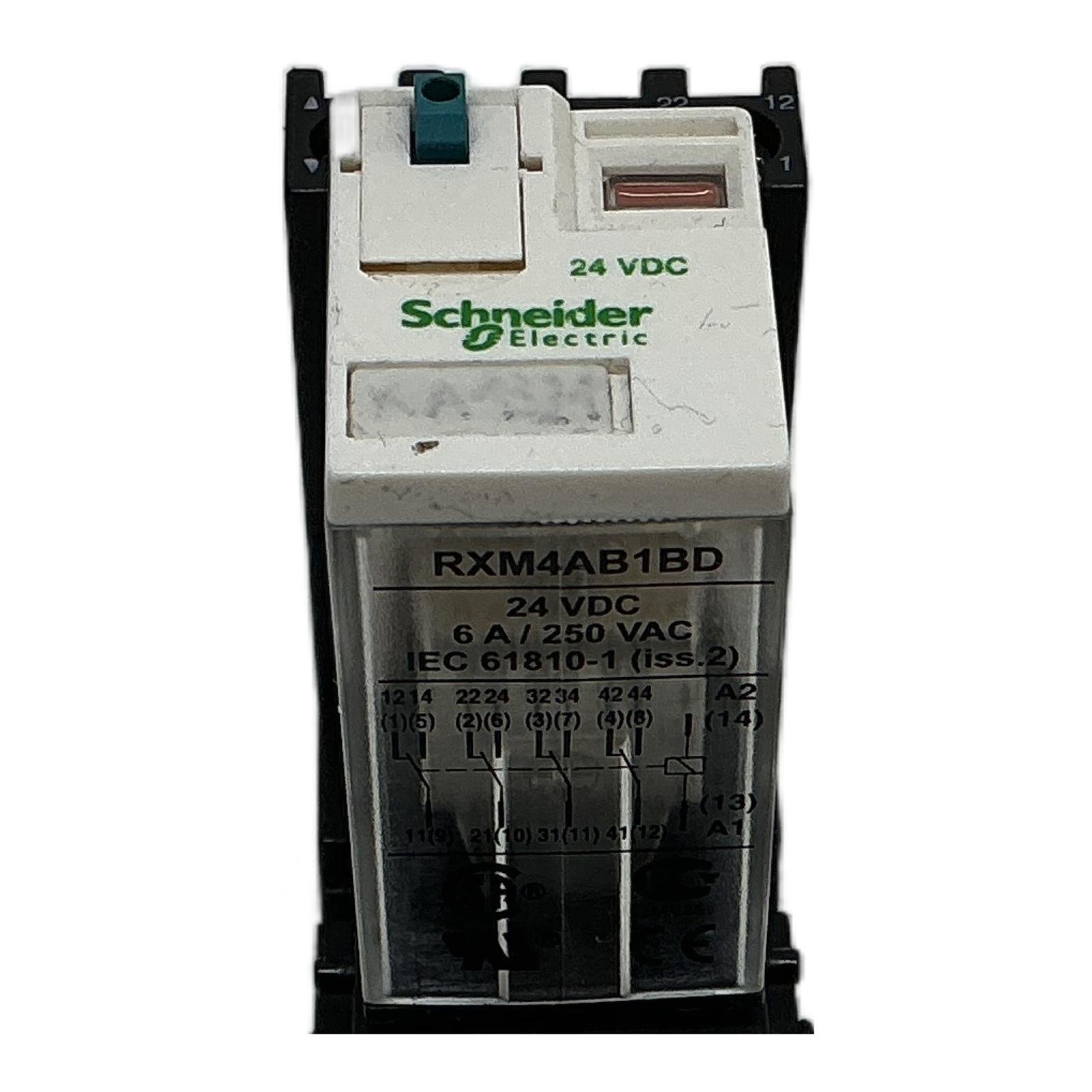

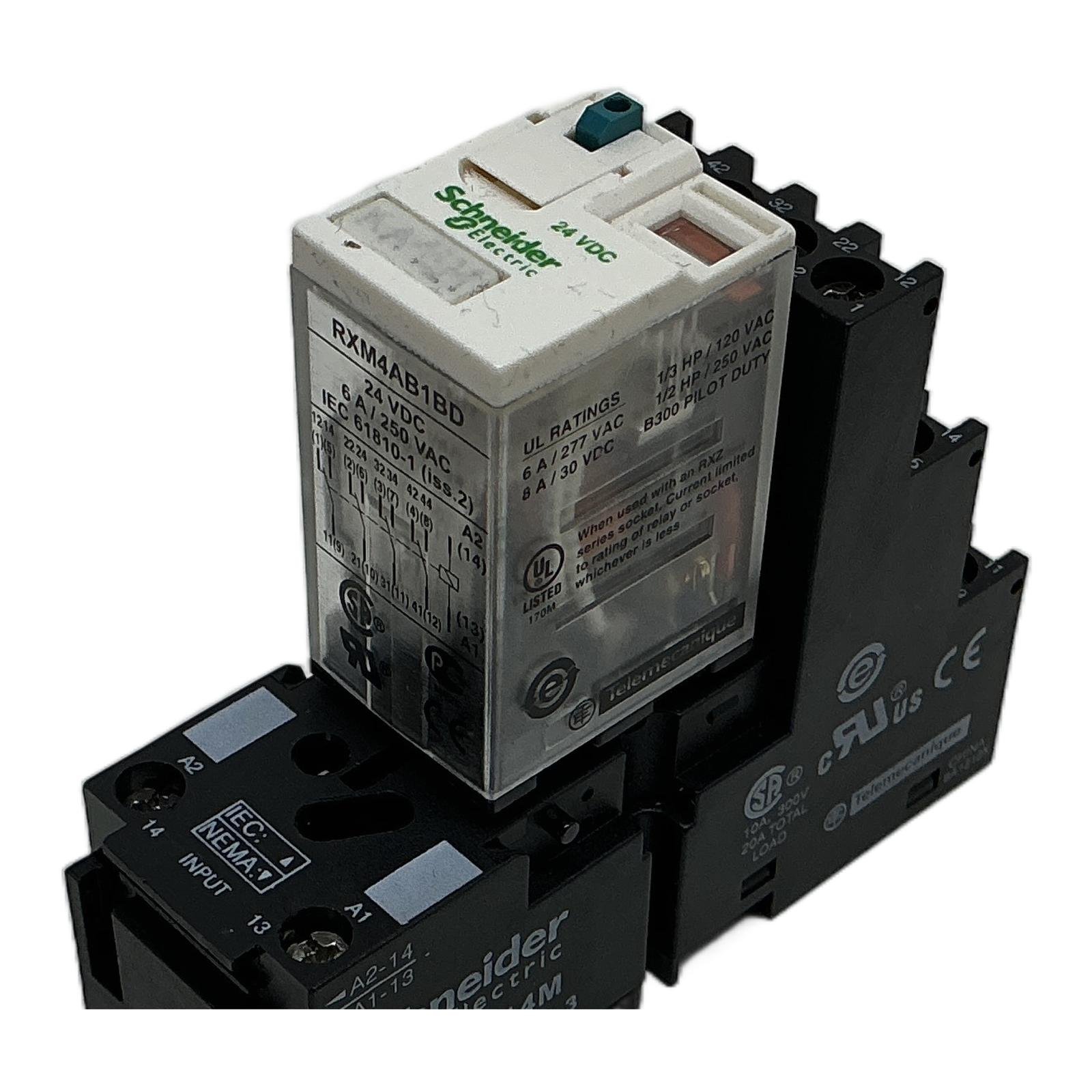

Schneider Electric Zelio Miniature Relay and Socket Assembly Description This is a complete assembly featuring the Schneider Electric RXM4AB1BD miniature plug-in relay and the corresponding RXZE2S114M socket. This relay is part of the Zelio RXM series, designed for high-performance switching in industrial control circuits. It features a 24V DC coil and four changeover contacts, making it versatile for a wide range of automation tasks. The socket allows for easy DIN-rail mounting and secure screw-clamp wiring. Specifications Brand: Schneider Electric Relay Model: RXM4AB1BD Socket Model: RXZE2S114M Coil Voltage: 24V DC Contact Configuration: 4 C/O (Changeover) Contact Current Rating: 6 A at 250V AC Series: Zelio Relay RXM Mounting: DIN Rail via socket Terminals: Screw Clamp Label Info Relay IEC Standard: IEC 61810-1 Socket Rating: 10A 250V UL Ratings: 6A/277VAC, 8A/30VDC, B300 Pilot Duty Certifications: CE, UL, CSA (SP) Application Ideal for use in industrial automation panels, HVAC control systems, packaging machinery, and other applications requiring reliable, high-density switching of control signals and low-power loads. Country of Origin The socket is manufactured in China. CO2 Impact By choosing this pre-owned component, you are helping to avoid 2.8 kg of CO2 emissions. This saving is comparable to the amount of CO2 produced by driving a car for 14 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the function of the green mechanical indicator and the test button?The green flag is a mechanical indicator that visually shows the status of the relay’s contacts (energized or de-energized). The blue push-to-test button allows you to manually latch the relay for testing or commissioning purposes without applying coil voltage. Is this socket compatible with other relays from the Zelio RXM series?Yes, the RXZE2S114M socket is designed for Schneider’s Zelio RXM relays with 4 C/O contacts (like the RXM4 series) and 2 C/O contacts (RXM2 series). Always verify the pin configuration and voltage compatibility. What is the recommended wire size for the screw clamp terminals on the RXZE2S114M socket?The screw clamp terminals on this socket typically accept a wire size range from 0.5 to 2.5 mm squared (AWG 20 to AWG 14) for solid or stranded wire, with or without ferrules. It’s best to consult the official datasheet for precise specifications. Current Date: March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
