SEW-EURODRIVE DFY90M/B/TH/SM30 01.1118454901.0001.05

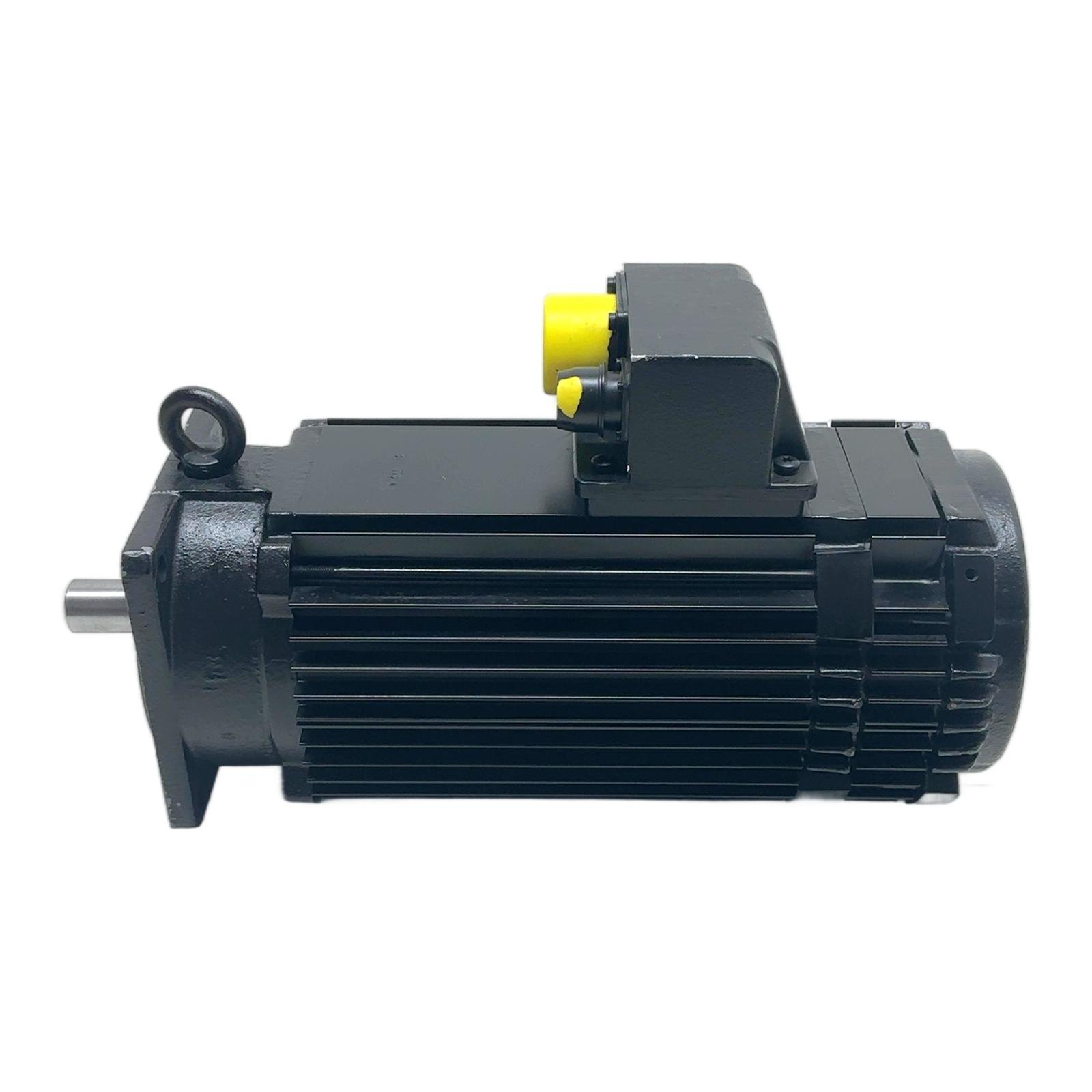

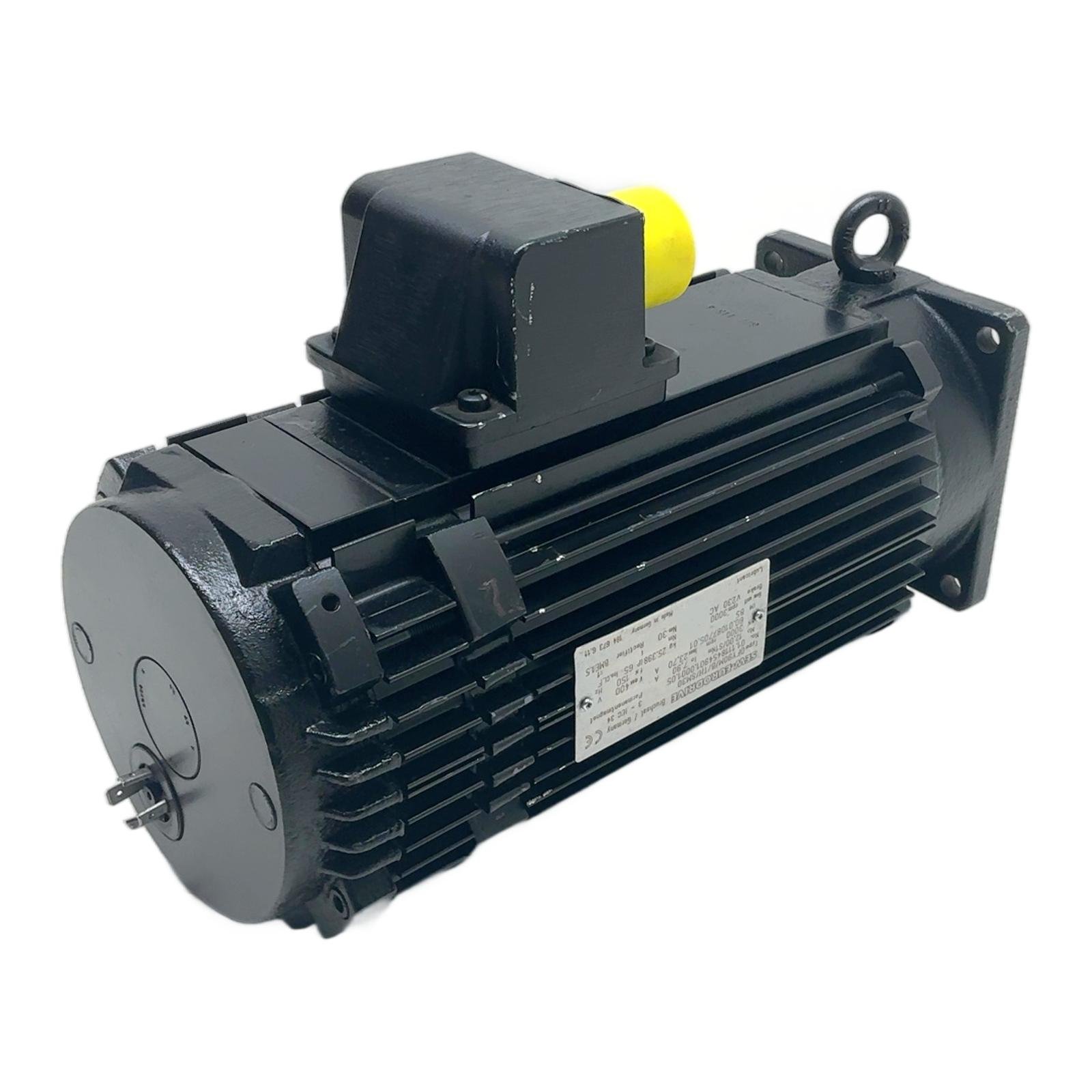

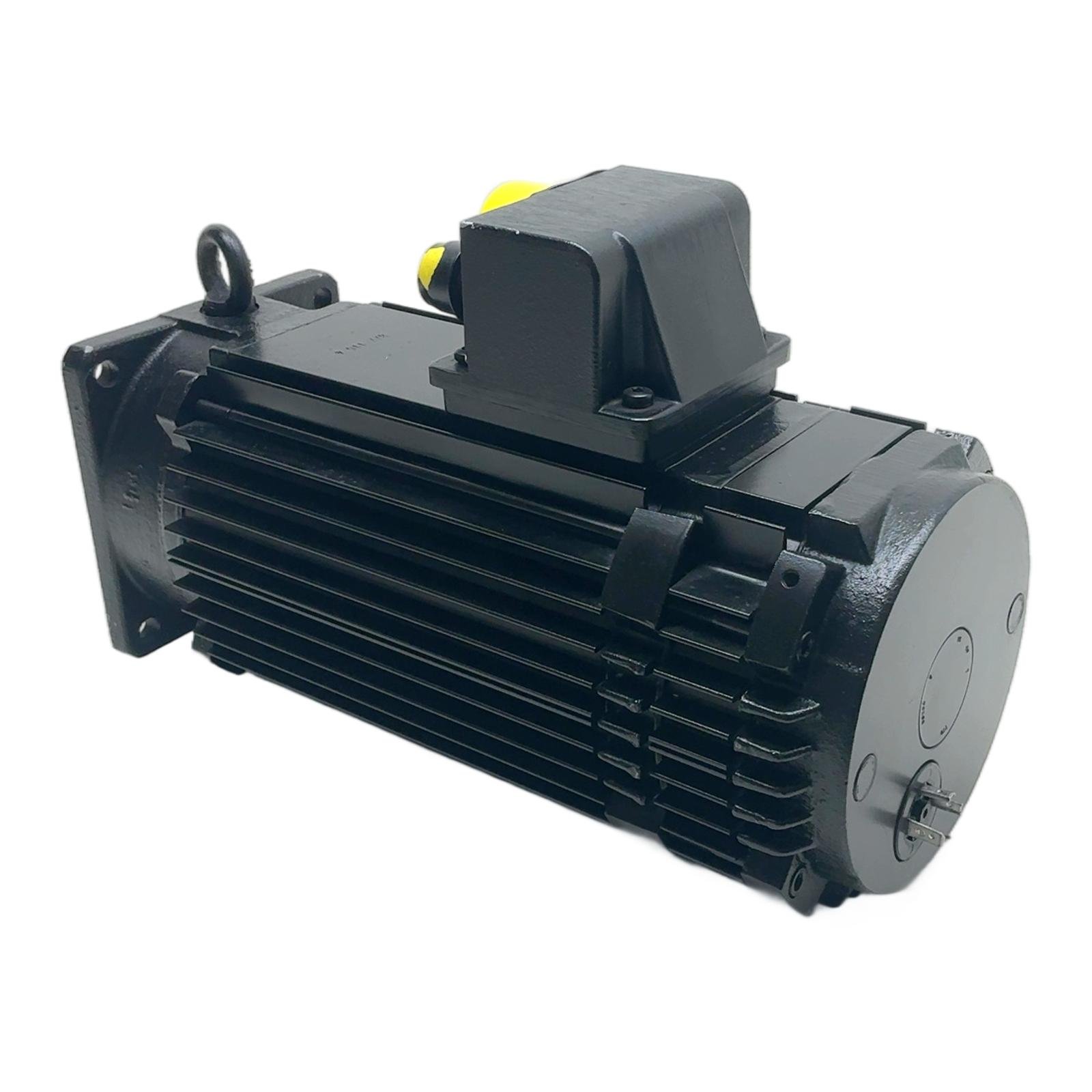

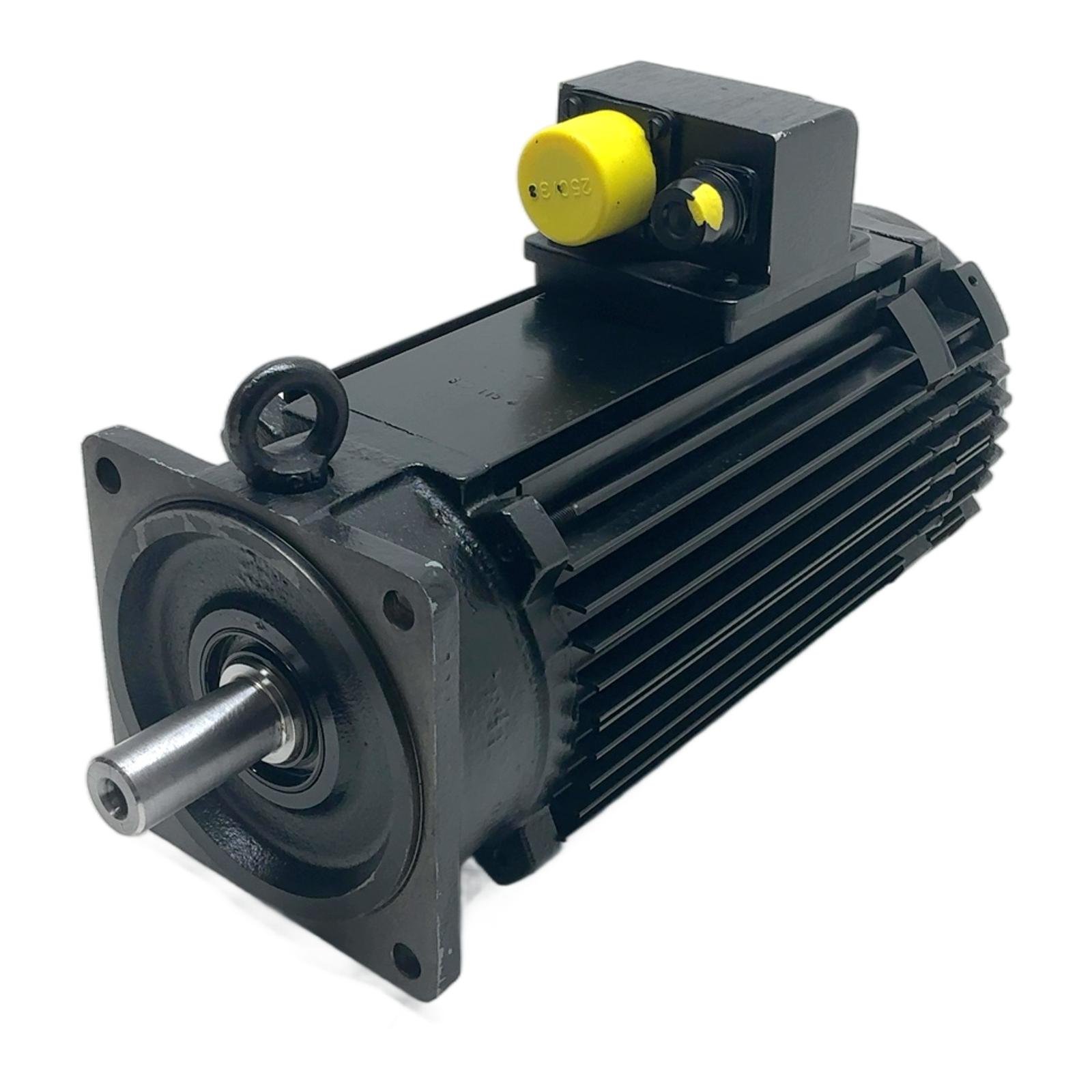

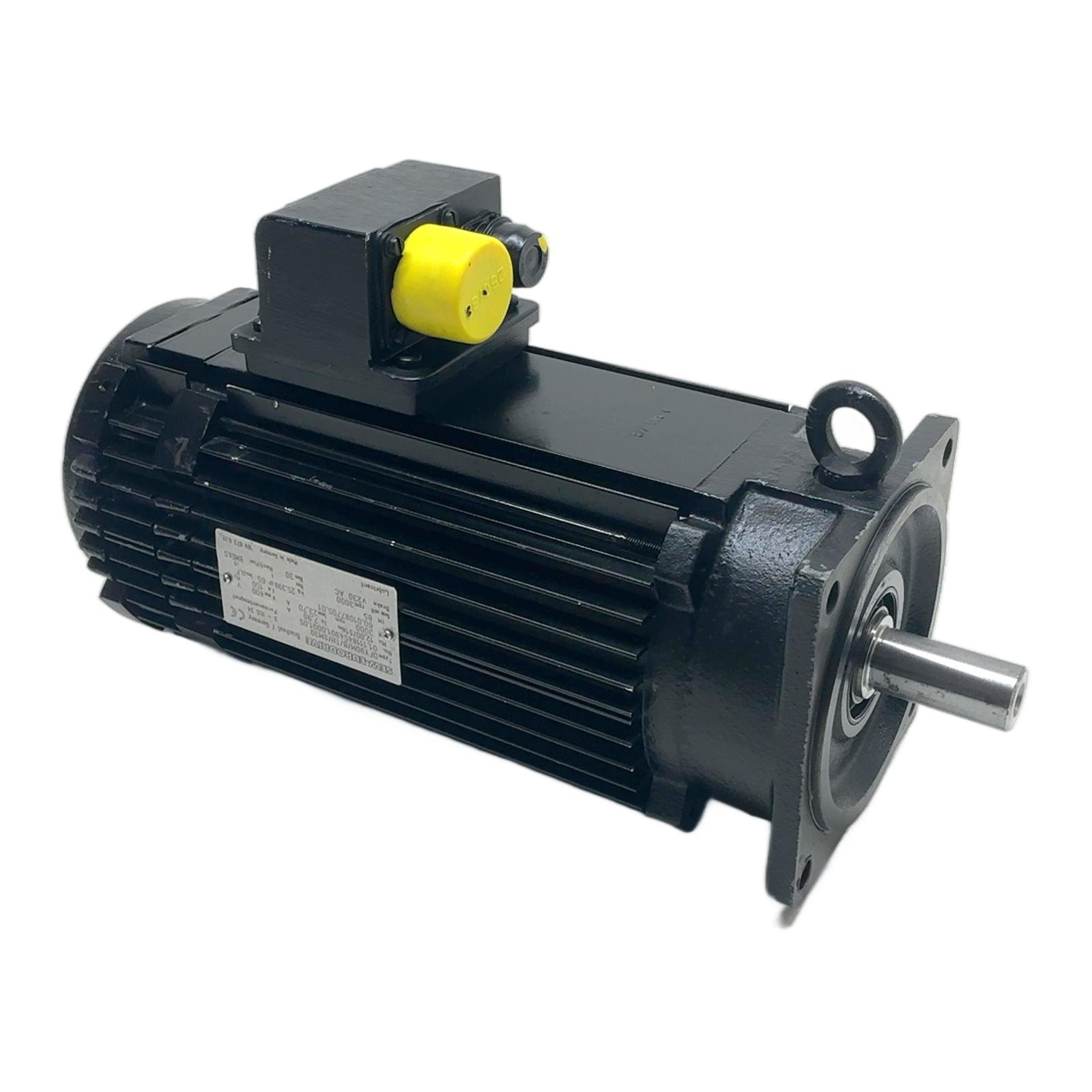

SEW-Eurodrive DFY90M Synchronous Servo Motor Description This is a DFY90M/B/TH/SM30 permanent magnet synchronous servo motor from SEW-Eurodrive. It is designed for high-precision motion control applications, offering a nominal torque of 12.00 Nm at a speed of 3000 rpm. This model includes an integrated 230V AC, 30 Nm holding brake for secure load holding and safety. The robust IP65-rated housing and B5 flange mount ensure reliable operation in demanding industrial environments. Specifications Manufacturer: SEW-Eurodrive Type: DFY90M/B/TH/SM30 Serial Number: 01.1118454901.0001.05 Nominal Torque (Mo): 12.00 Nm Nominal Speed (nN): 3000 rpm Maximum Voltage (Vmax): 400V Nominal Current (Io): 7.90 A Maximum Current (Imax): 23.70 A Nominal Frequency (fN): 150 Hz Brake Voltage: 230V AC Brake Torque: 30 Nm Brake Rectifier: BME1.5 Mounting: IM B5 Flange Protection Class: IP65 Insulation Class: F Weight: 25.4 kg Label Info Type: DFY90M/B/TH/SM30 No.: 01.1118454901.0001.05 Mo: 12,00/S1Nm Io: 7,90 A Imax: 23,70 A nN: 3000 rpm Vmax: 400 V fN: 150 Hz Brake: V230 AC, 30 Nm Rectifier: BME1.5 Application Ideal for robotics, packaging machinery, automated assembly lines, material handling, and any application requiring precise speed and position control. Country of Origin Made in Germany. CO2 Impact By choosing this reused SEW-Eurodrive servo motor, you are making a sustainable choice. Reusing this component avoids the emission of approximately 254.0 kg of CO2, which would have been generated during the production of a new one. This saving is equivalent to the CO2 captured by over 12 trees in a year. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What type of servo drive is compatible with the DFY90M/B/TH/SM30 motor?This motor is designed to work with SEW-Eurodrive’s legacy servo drives, such as the MOVIDRIVE A or MOVIAXIS series. For full compatibility, it is essential to match the drive’s firmware and parameter settings to the motor’s electrical data and feedback system. What does the ‘SM30’ designation in the type code signify?The ‘SM’ designation in SEW motors typically refers to the type of encoder or feedback system installed. ‘SM30’ is a specific SEW code for a particular resolver or encoder type. You would need to consult the SEW documentation for this specific motor serial number to get the exact details of the feedback system. How do I correctly wire the 230V AC brake and what is the function of the BME1.5 rectifier?The 230V AC brake should be powered via the BME1.5 brake rectifier. The rectifier converts the AC supply to the DC voltage required to disengage the brake. It is crucial to wire the brake control circuit so that the brake is engaged (power off) when the motor is not enabled by the drive and disengaged (power on) only when the motor is actively controlled. This ensures fail-safe operation. profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners. Current Date: March 13, 2026
