DANFOSS VLT5006PT5B20STR3DLF00A00 175Z0064

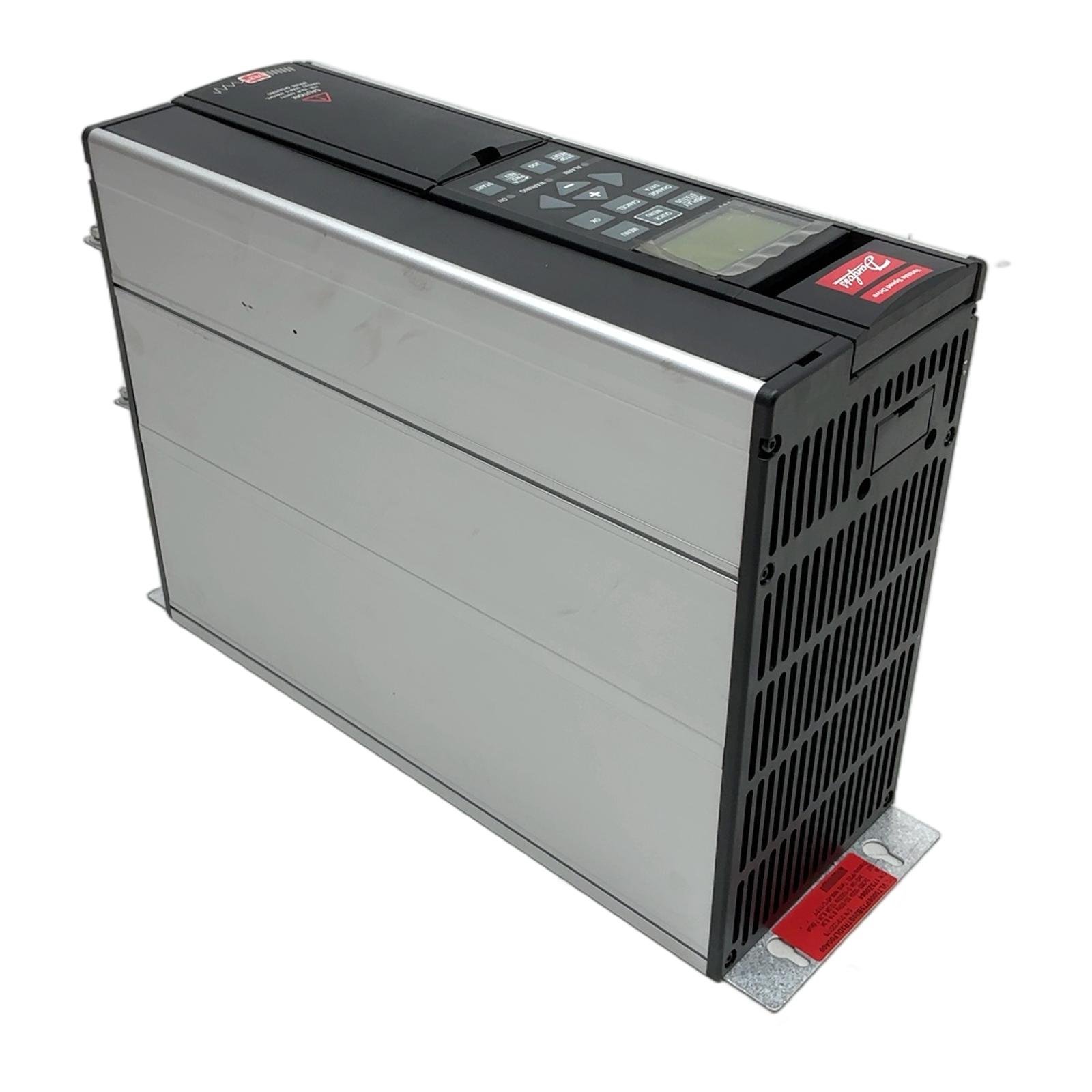

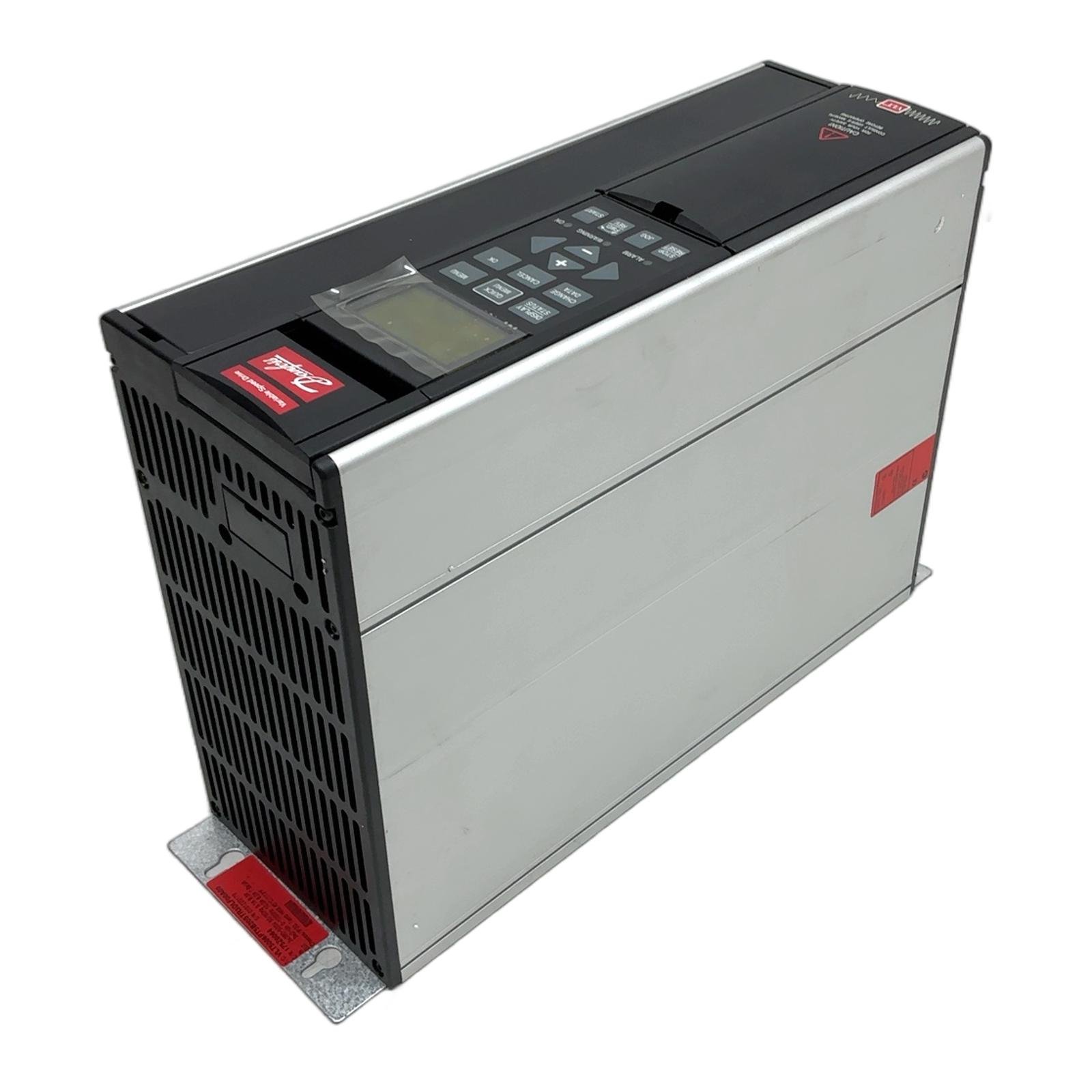

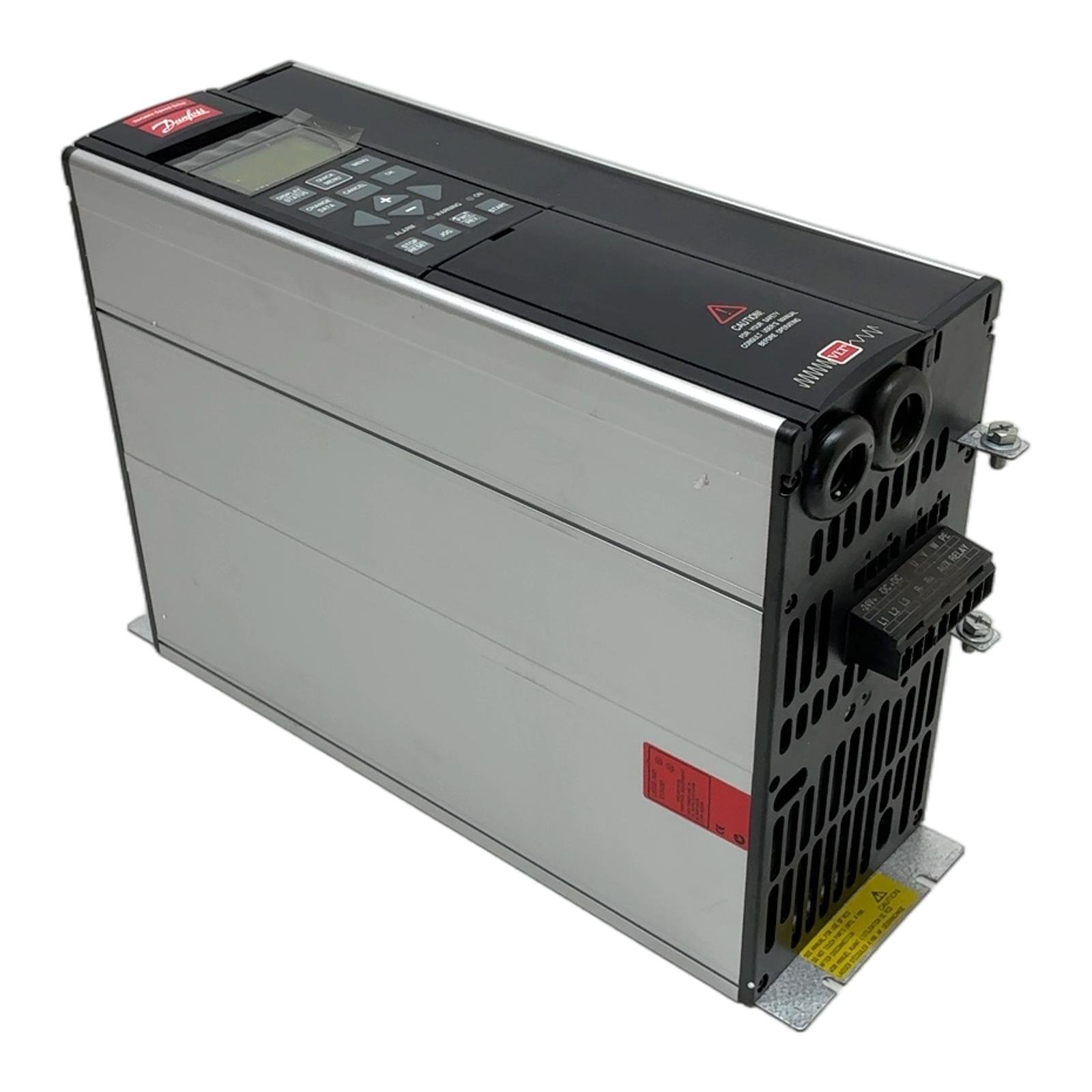

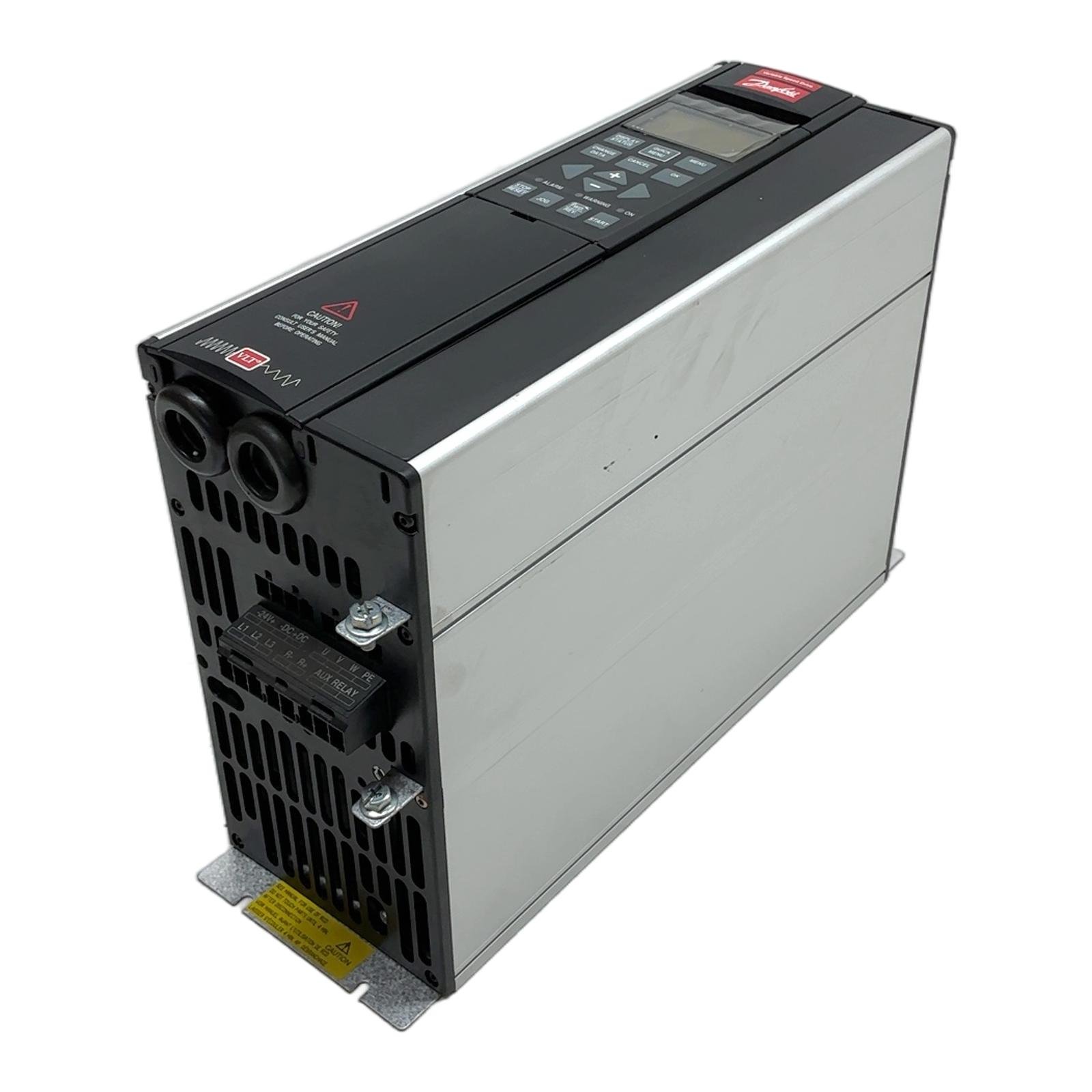

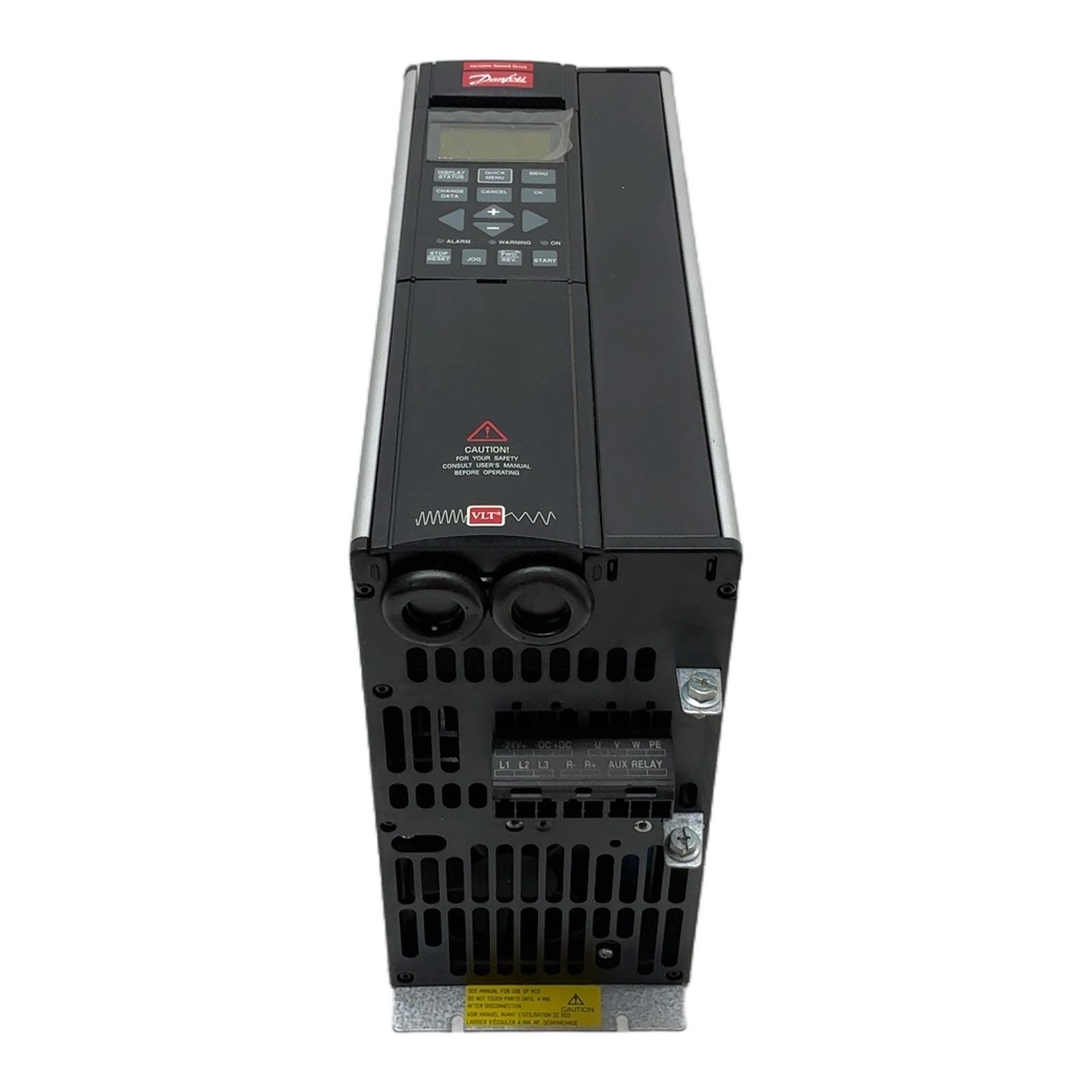

Danfoss VLT 5000 Series Frequency Drive Description The Danfoss VLT5006 (175Z0064) is a high-performance frequency converter from the renowned VLT 5000 series. Designed for precise and efficient control of AC motors, this 5.5 kW drive is a reliable choice for a vast range of industrial applications. Even as an obsolete model, it remains a sought-after spare part due to its robustness and proven track record in demanding environments. This unit is ideal for replacing a faulty drive or for keeping critical spares on hand to minimize downtime. Order now from profideals for expert support and fast delivery. Specifications Manufacturer: Danfoss Series: VLT 5000 Model: VLT5006 Part Number: 175Z0064 Power Rating: 5.5 kW (7.5 HP) Input Voltage: 3 x 380-500V AC, 50/60 Hz Input Current: 9.1A / 8.3A Output Voltage: 3 x 0-Uin Output Current: 10.0A / 8.2A Output Power: 7.6 kVA Output Frequency: 0-1000 Hz Enclosure Rating: IP20 / Chassis Control Panel: Included (LCP) Label Info T/C: VLT5006PT5B20STR3DLF00A00 C/N: 175Z0064 S/N: 019122G179 SW VER: 3.20 Application This frequency drive is suitable for applications such as pumps, fans, conveyors, mixers, and machine tools where variable speed motor control is required. Country of Origin Made in Denmark. CO2 Impact By purchasing this reused component, you are helping to avoid the emission of approximately 360 kg of CO2, which would have been generated during the production of a new unit. This is a significant contribution to environmental sustainability. Availability This product is an obsolete but available spare part. Stock is limited. Please contact us for current availability. FAQ Can this VLT 5000 drive be directly replaced by a modern FC 302 without any parameter changes?No, a direct swap is not possible without reprogramming. While the FC 302 is the functional successor, the parameter structure is different. It is crucial to read out the parameters from the old VLT 5000 and manually reprogram them into the new FC 302, adapting them to the new menu structure. What is the maximum output frequency of this VLT5006 model, and what does it mean?This drive has a maximum output frequency of 1000 Hz, as stated on the label. This is significantly higher than the standard 50/60 Hz and makes it suitable for high-speed motor applications, such as spindles in machine tools or high-speed compressors. The drive has an IP20 rating. What kind of installation environment is required?An IP20 rating means the drive is protected against solid objects larger than 12.5mm (like fingers) but has no protection against water. It must be installed in a clean, dry environment, typically inside a control cabinet or electrical enclosure, to protect it from dust, moisture, and conductive particles. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
