VEGA VEGABAR 82 B82.AXDASAGCHHXAIMXX

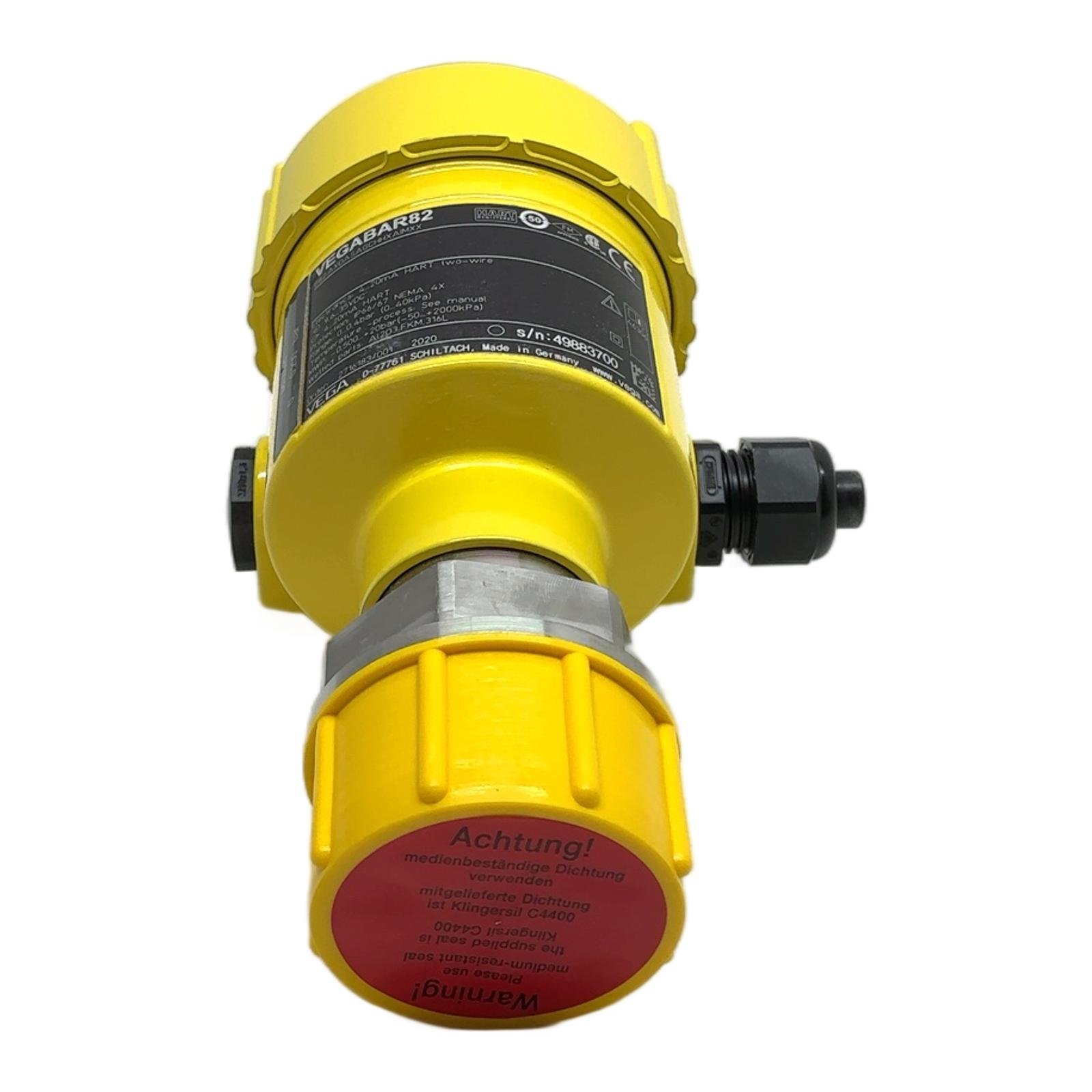

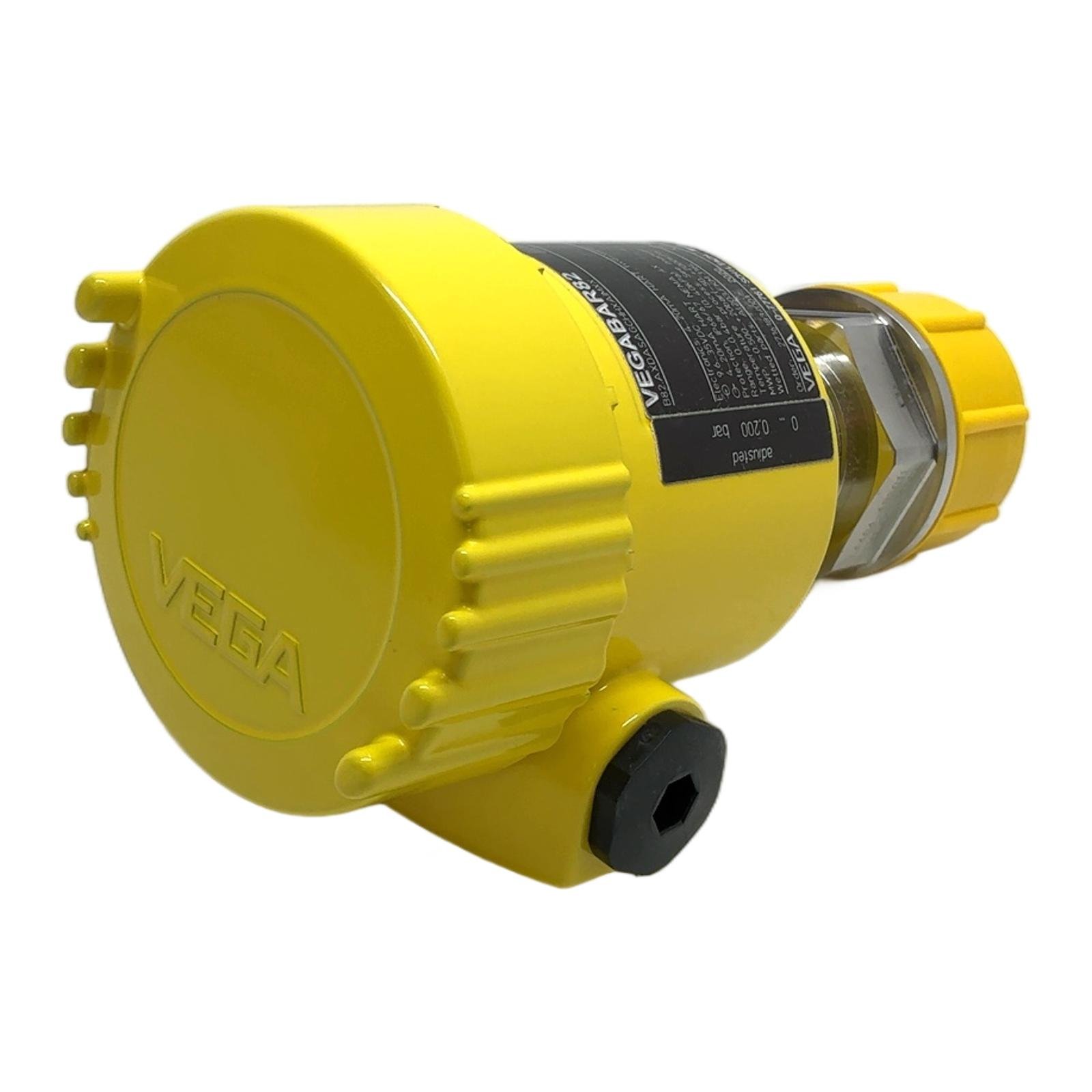

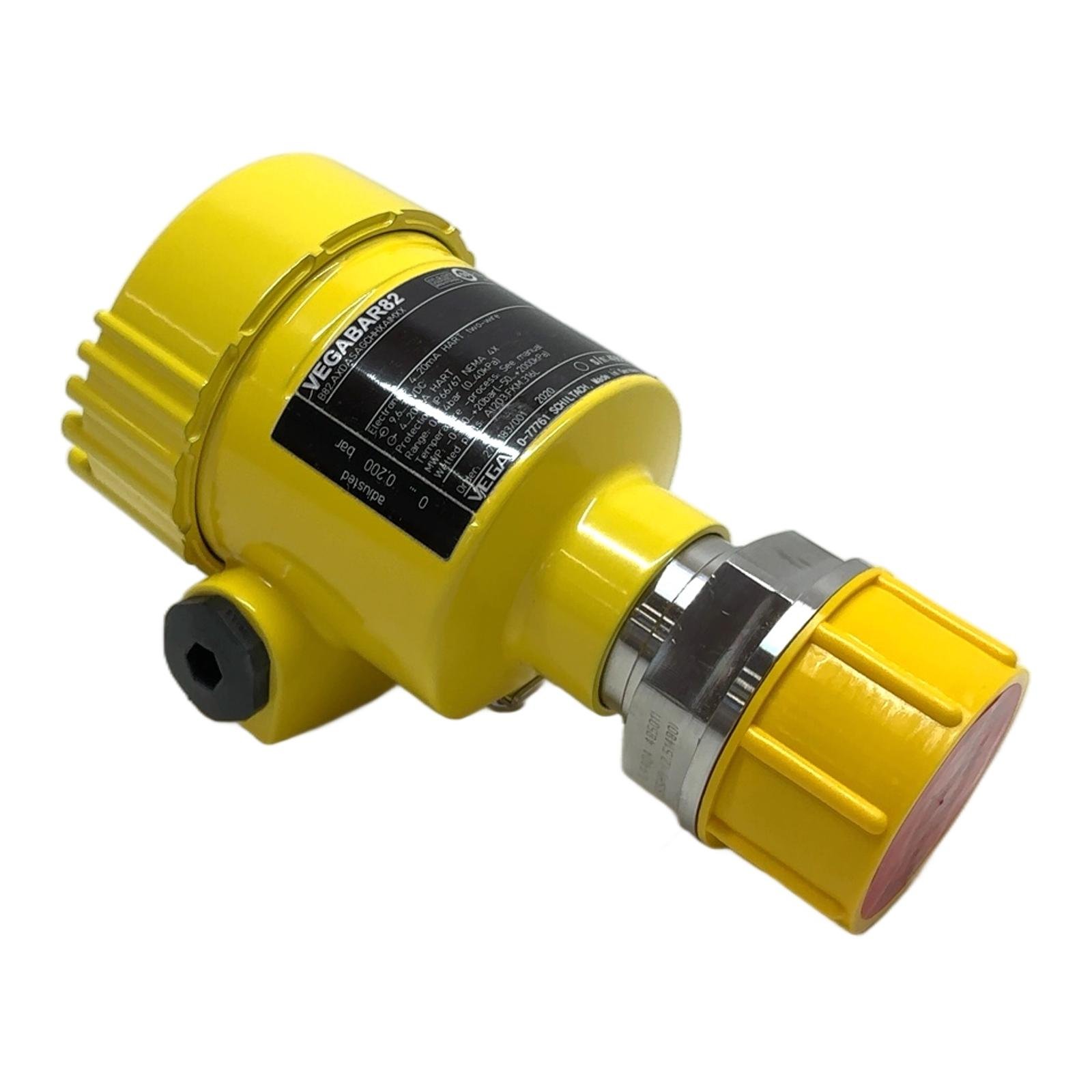

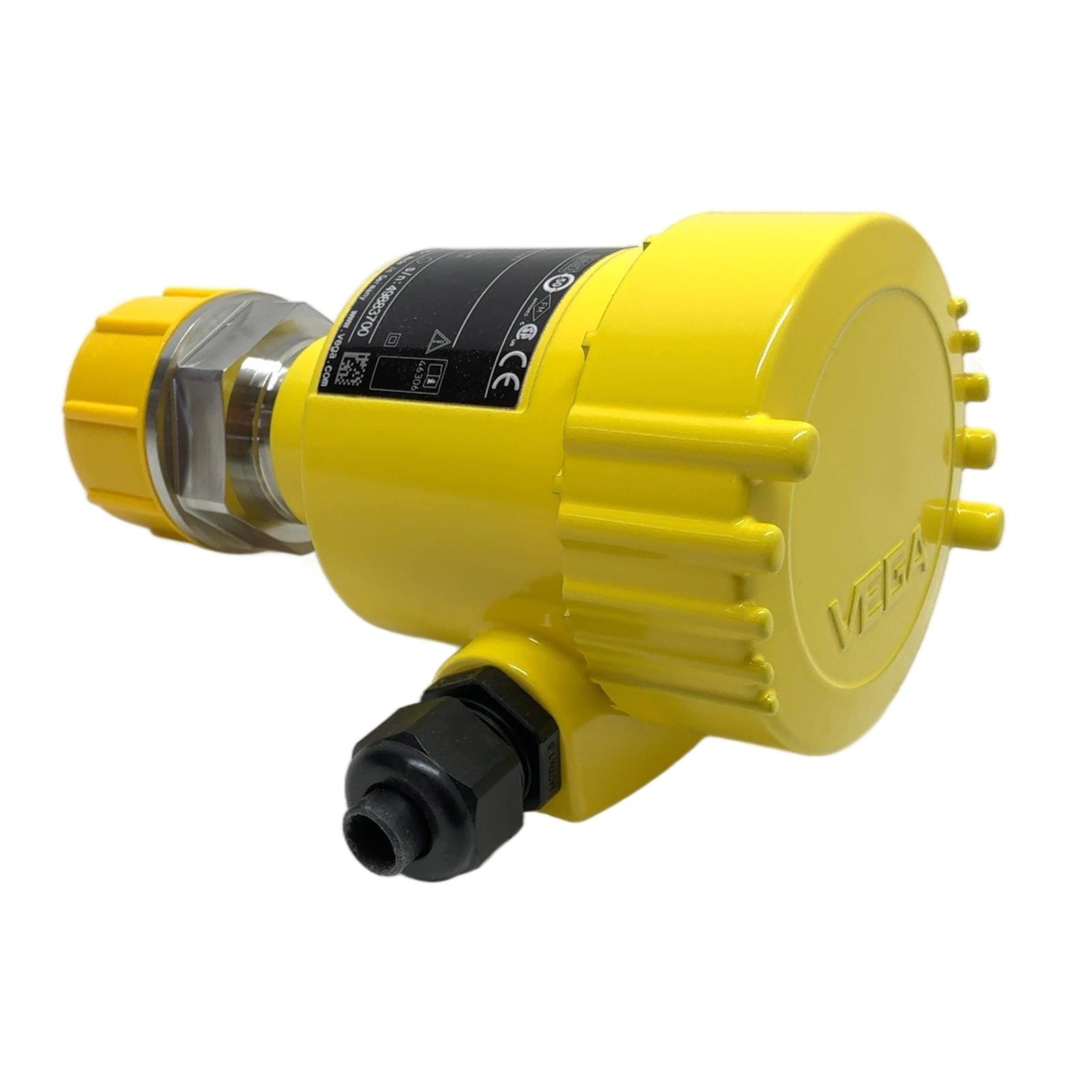

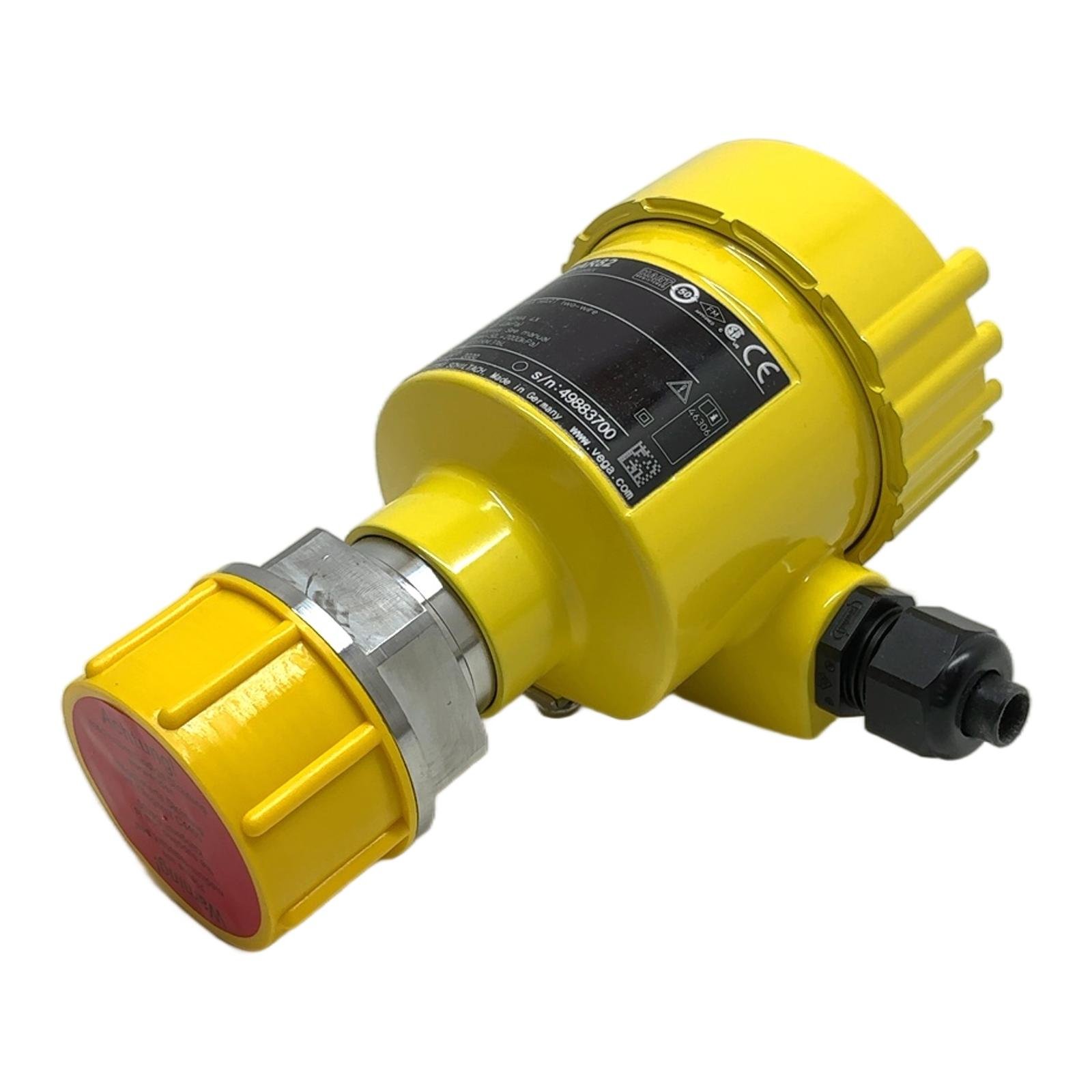

VEGA VEGABAR 82 Pressure Transmitter Description The VEGA VEGABAR 82 is a high-quality pressure transmitter designed for universal use in measuring gases, vapors, and liquids. This model features a robust ceramic measuring cell (CERTEC), offering excellent resistance to thermal shock and overpressure. Its durable aluminum housing and reliable 4-20 mA HART output make it a perfect choice for various process control applications in industries such as chemical, energy, and environmental engineering. Specifications Manufacturer: VEGA Model: VEGABAR 82 Part Number: B82.AXDASAGCHHXAIMXX Signal Output: Two-wire 4-20 mA with HART protocol Power Supply: 9.6 to 35VDC Measuring Range: 0 to +0.4 bar (0 to +40 kPa) Process Fitting: Thread G1 1/2, DIN3852-A Wetted Parts Material: 316L, FKM, Al2O3 (Ceramic) Housing Material: Aluminium Protection Rating: IP66/67, NEMA 4X Label Info Order No.: 2716183/001 Serial No.: 49883700 Year of Manufacture: 2020 Application Ideal for pressure monitoring in tanks, pipelines, and process vessels. Suitable for use with non-abrasive liquids and gases where precise and reliable measurement is critical. Country of Origin Made in Germany. CO2 Impact Choosing this surplus item saves an estimated 19 kg of CO2 compared to manufacturing a new one, contributing to a more sustainable industrial environment. Availability This unit is new surplus stock in its original, opened box and is available for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question? What is the benefit of the CERTEC measuring cell used in this VEGABAR 82? The CERTEC ceramic measuring cell is highly resistant to abrasion and corrosion, making it ideal for applications with aggressive or abrasive media. It offers excellent long-term stability and overload resistance. Question? Can this transmitter be configured without a display or special software? Yes, this model can be configured using any standard HART communicator or a PC with FDT/DTM software. While it does not have an integrated display (PLICSCOM), its parameters like range and damping can be fully adjusted via the HART protocol. Question? Is the G1 1/2 process connection suitable for hygienic applications? While the G1 1/2 thread is a common industrial standard, this specific model with a DIN3852-A fitting and FKM seal is generally intended for general process applications, not specifically for hygienic or sanitary processes which often require Tri-Clamp or other flush-mounted connections. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
