PILZ PNOZ X2.8P 777301

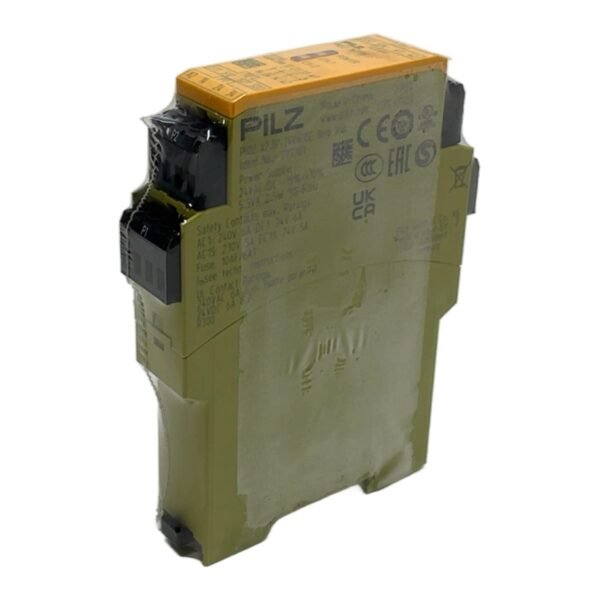

Pilz PNOZ X2.8P 777301 Safety Relay Description The Pilz PNOZ X2.8P is a high-reliability safety relay designed for monitoring critical safety functions in industrial environments. This unit is part of the proven PNOZ X series, known for its robustness and ease of use. It is ideal for applications such as emergency stop pushbuttons, safety gates, and light barriers. With its flexible 24V AC/DC power supply and compact DIN rail mountable design, it integrates seamlessly into new and existing control cabinets. Specifications Manufacturer: Pilz Type: PNOZ X2.8P Part Number: 777301 Supply Voltage: 24V AC/DC (-15%/+10%) Power Consumption: approx. 2.5W / 5.5VA Safety Contacts: 3 N/O (Normally Open) Auxiliary Contacts: 1 N/C (Normally Closed) Terminal Type: Pluggable Screw Terminals Mounting: DIN Rail Label Info Year of Manufacture (YOM): 2023 Made in: China Application This safety relay is typically used to monitor safety components like E-STOP buttons, safety gates, and light curtains. It ensures a safe stop of machine operations when a hazard is detected, protecting both personnel and equipment. Country of Origin This product is marked “Made in China”. The manufacturer, Pilz GmbH & Co. KG, is headquartered in Germany, ensuring high standards of design and quality control. CO2 Impact By purchasing this reconditioned component, you are actively contributing to the circular economy. This choice avoids the production of a new unit, saving an estimated 8 kg of CO2. This is comparable to the emissions from driving a standard car for 40 kilometers. Availability This is an active product from Pilz and is still in production. This unit is available as new surplus stock, offering current technology with significant cost savings. Order now from profideals for expert support and fast delivery. FAQ Can the PNOZ X2.8P be used for two-hand control applications?No, the PNOZ X2.8P is not suitable for two-hand control (Type IIIC to EN 574). For this application, you would need a dedicated two-hand control relay from Pilz, such as the P2HZ X1. What is the significance of the “P” in PNOZ X2.8P?The “P” in the model name indicates that this version has pluggable/removable screw terminals, which facilitates easier wiring and faster replacement of the unit without having to disconnect individual wires from fixed terminals. What fuse rating is required for the safety contacts?The label specifies a fuse rating of 10AF (slow blow) or 6AT (quick blow) to protect the safety output contacts. It is crucial to use the correct fuse type and rating to ensure the safety integrity of the circuit. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
