FESTO DFM-50-125-B-PPV-A-GF 534769

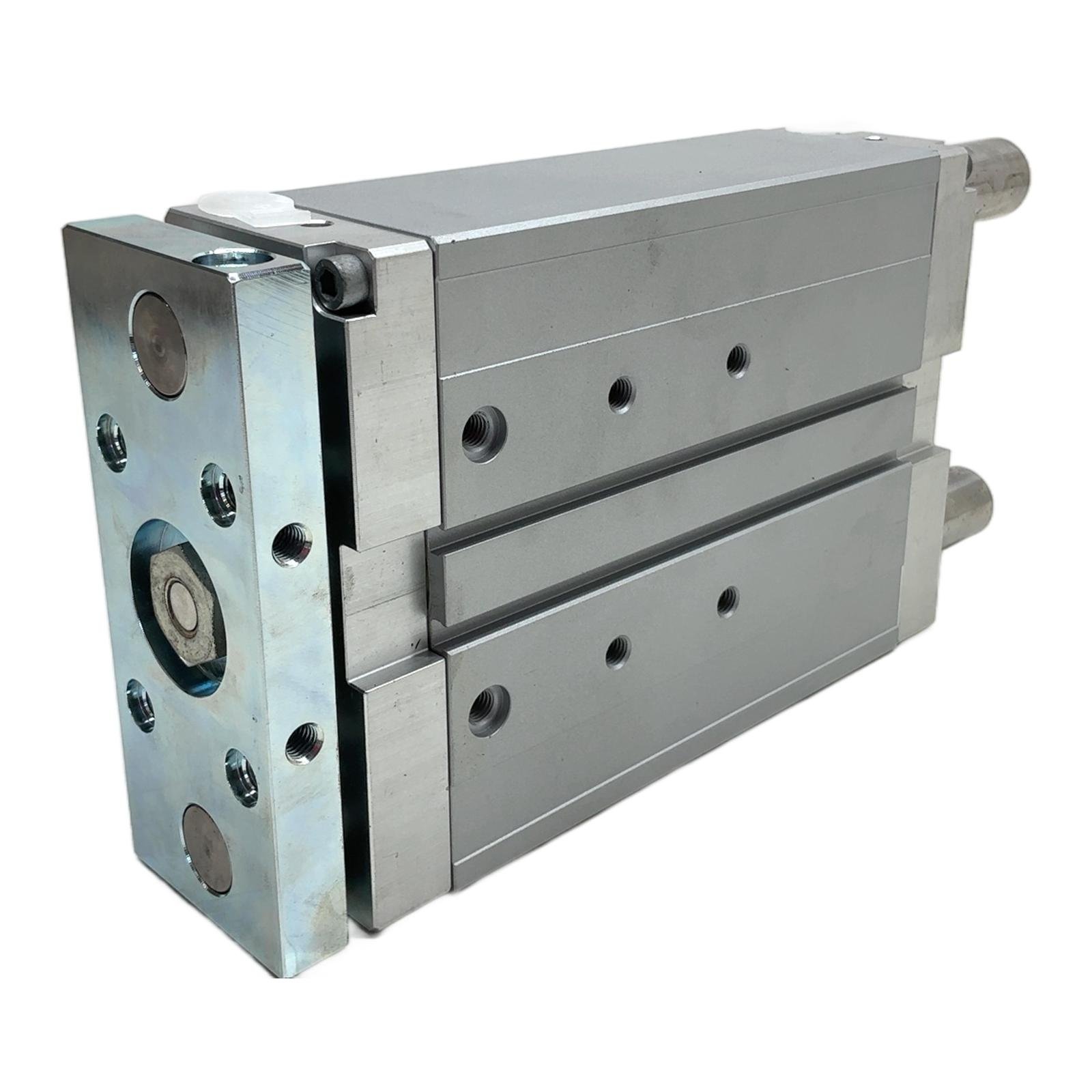

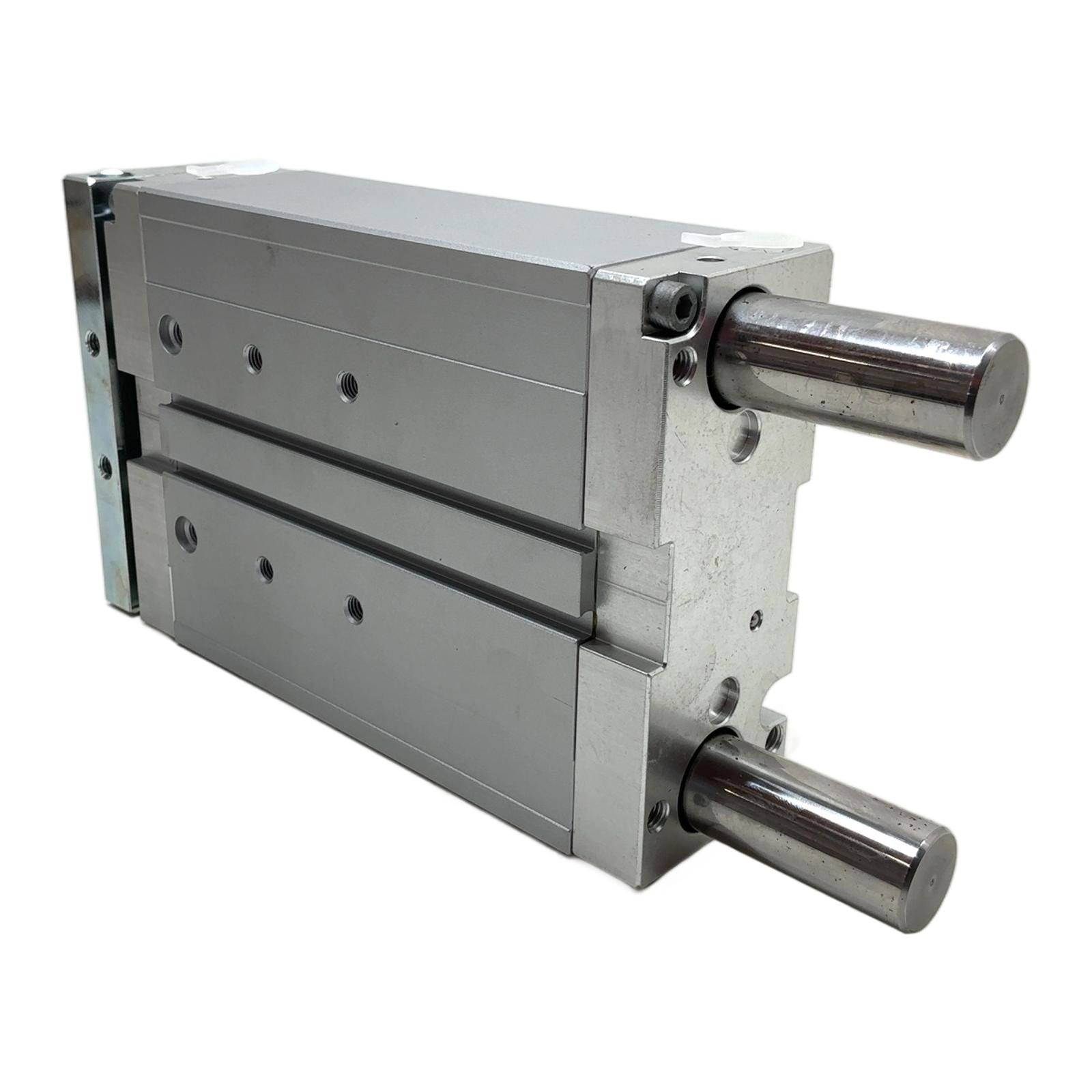

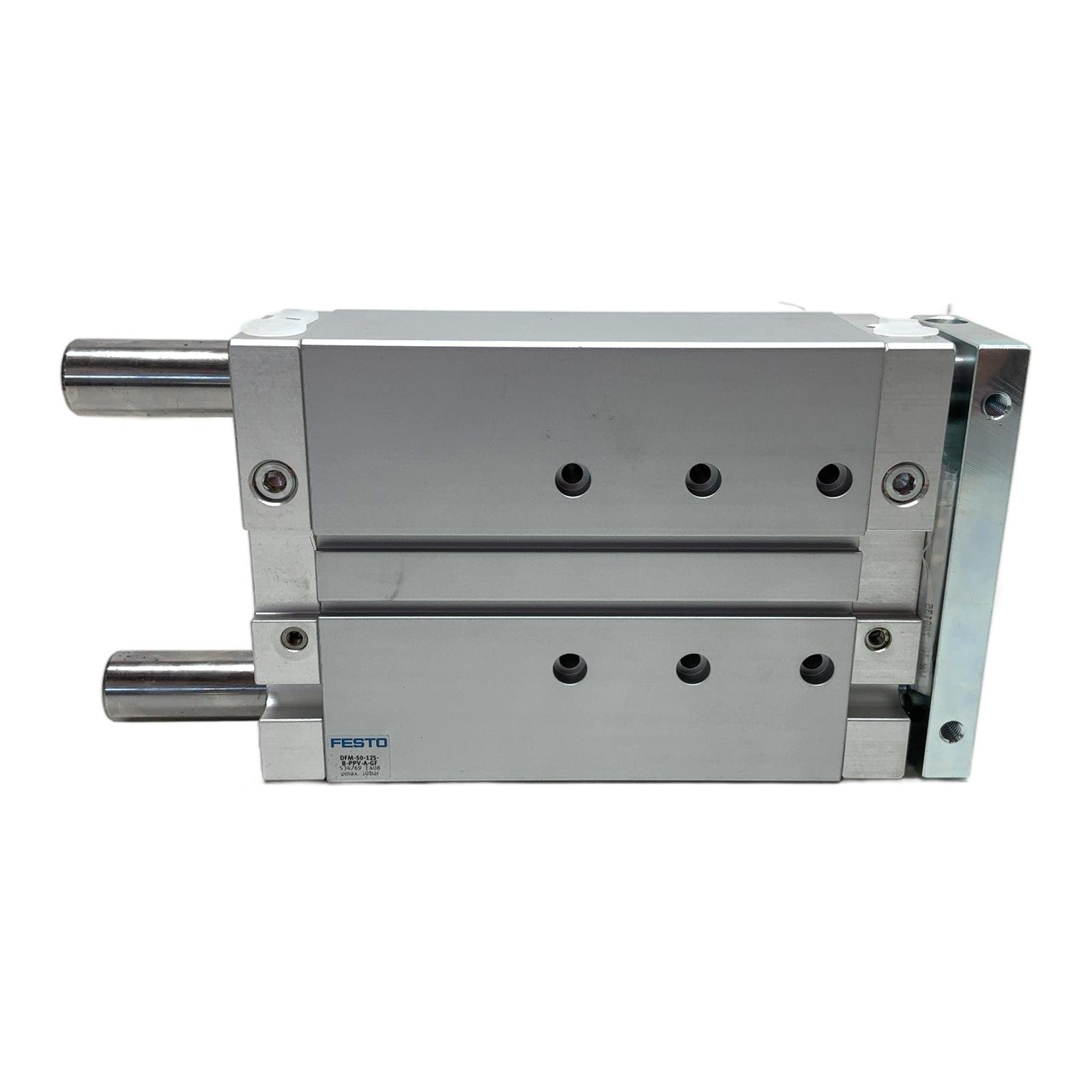

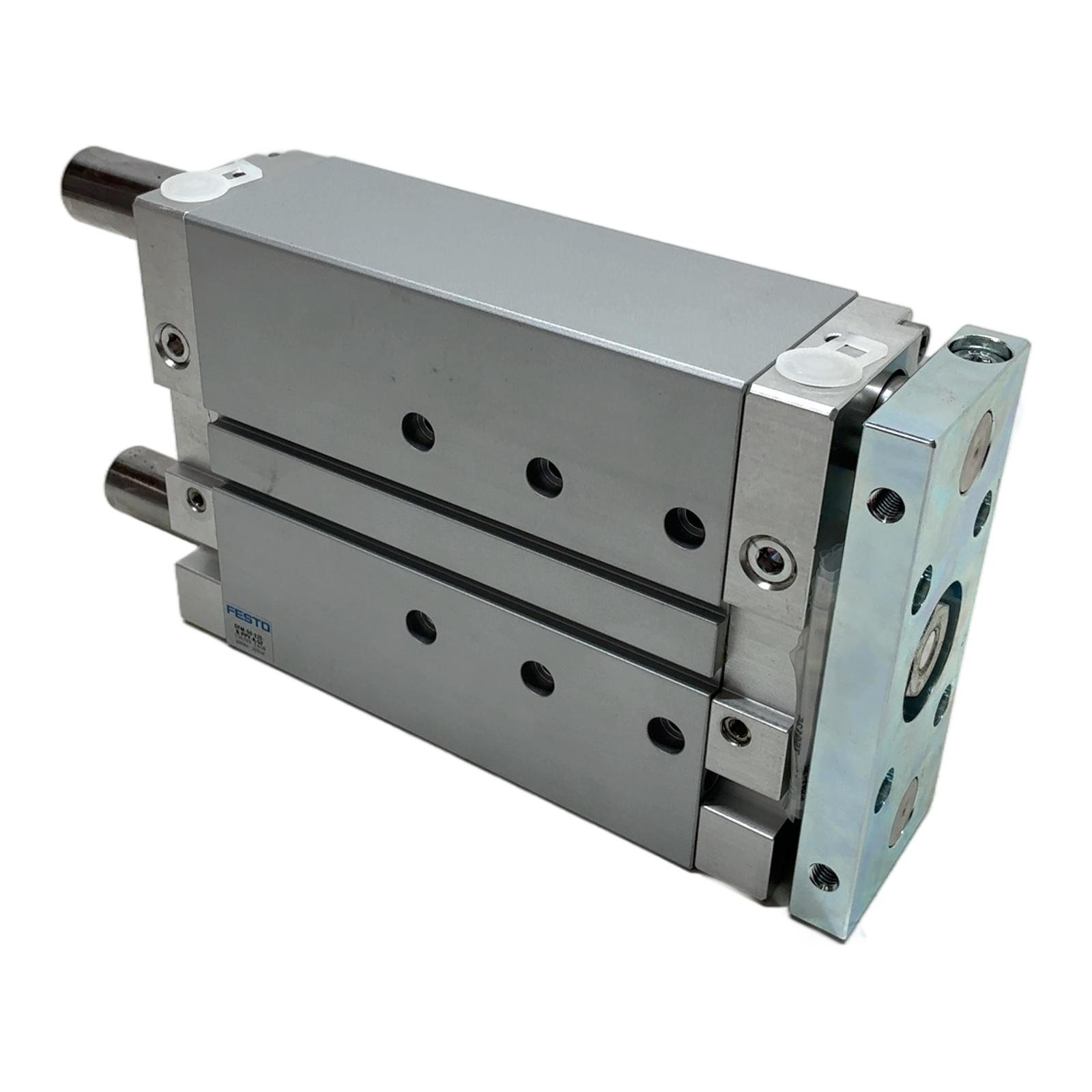

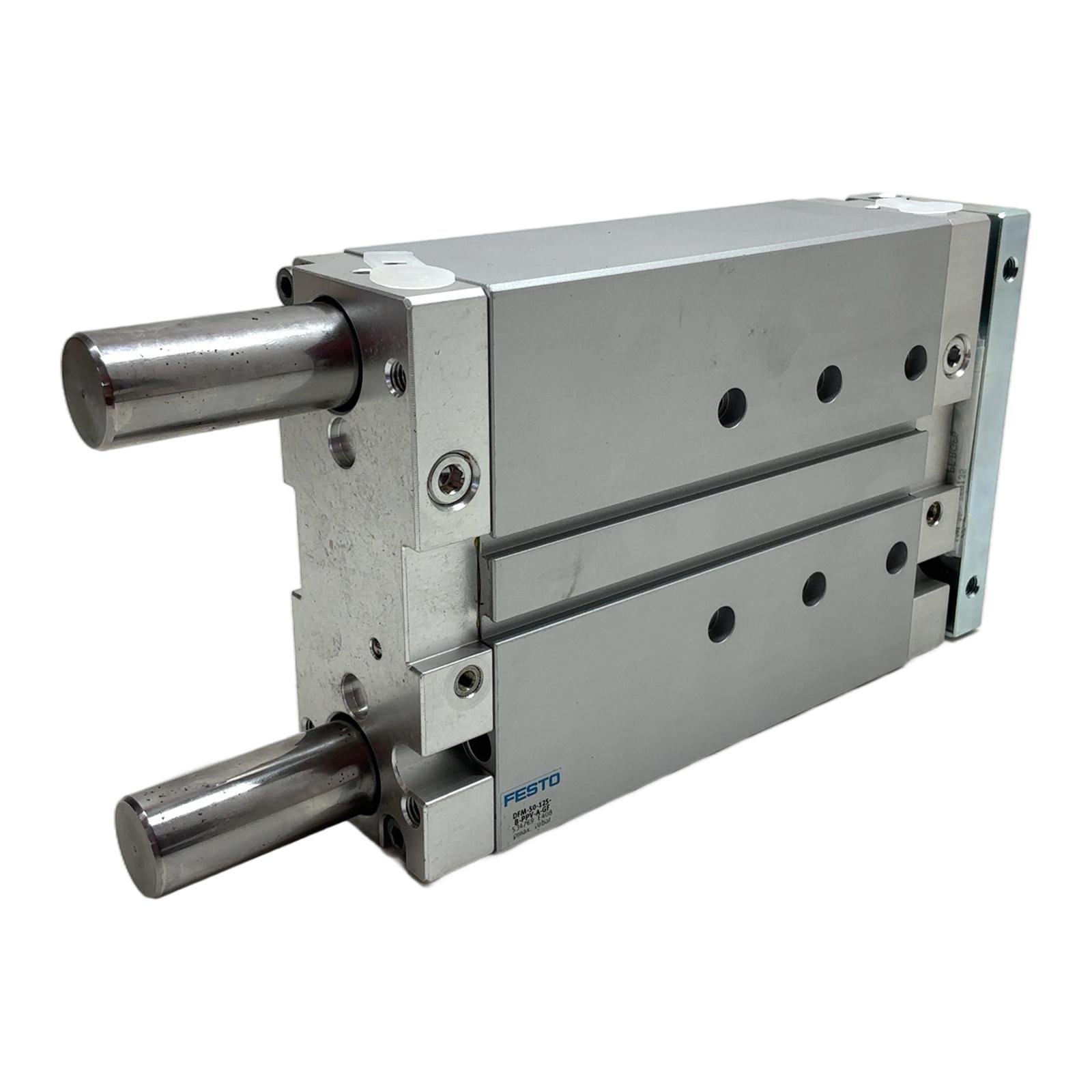

Festo DFM-50-125-B-PPV-A-GF Pneumatic Guided Drive Description This is a Festo DFM series pneumatic guided drive, part number 534769. It is designed for high-precision applications requiring stability and resistance to torque. This unit is new old stock, in excellent condition, and comes in its original, opened packaging. The DFM series is known for its robust construction, integrating the drive and guide unit into a single compact component. Specifications Manufacturer: Festo Type: DFM-50-125-B-PPV-A-GF Part Number: 534769 Piston Diameter: 50 mm Stroke Length: 125 mm Guiding: Recirculating ball bearing guide Cushioning: Pneumatic cushioning, adjustable at both ends (PPV) Position Sensing: Prepared for proximity sensors Maximum Operating Pressure: 10 bar Label Info Brand: FESTO Model: DFM-50-125-B-PPV-A-GF Part No: 534769 Series Code: E408 pmax: 10 bar Application Ideal for demanding automation tasks such as lifting, pressing, clamping, stopping, and pick-and-place operations where high forces and precision are required. Country of Origin Made in Germany. CO2 Impact By purchasing this reused component, you avoid the emission of approximately 44 kg of CO2, which is comparable to the emissions from driving a car for 220 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question?What is the main advantage of the recirculating ball bearing guide (B-type) on this model?The recirculating ball bearing guide provides very high precision, rigidity, and the ability to handle significant torques and transverse loads, making it superior to a plain-bearing guide for demanding applications. Question?How do I adjust the pneumatic cushioning (PPV) on this cylinder?The PPV cushioning is adjusted via two screws located on the end caps of the cylinder. Turning these screws controls the rate at which air escapes at the end of the stroke, allowing you to fine-tune the deceleration to prevent shock and vibration. Question?What type of proximity sensors are compatible with this guided drive?This drive is designed for T-slot proximity sensors. You can use Festo’s SMT-8M-A or SME-8M series sensors, which fit directly into the sensor slots on the cylinder body. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
