BONFIGLIOLI SYN10 S 220 01 AF IP65S

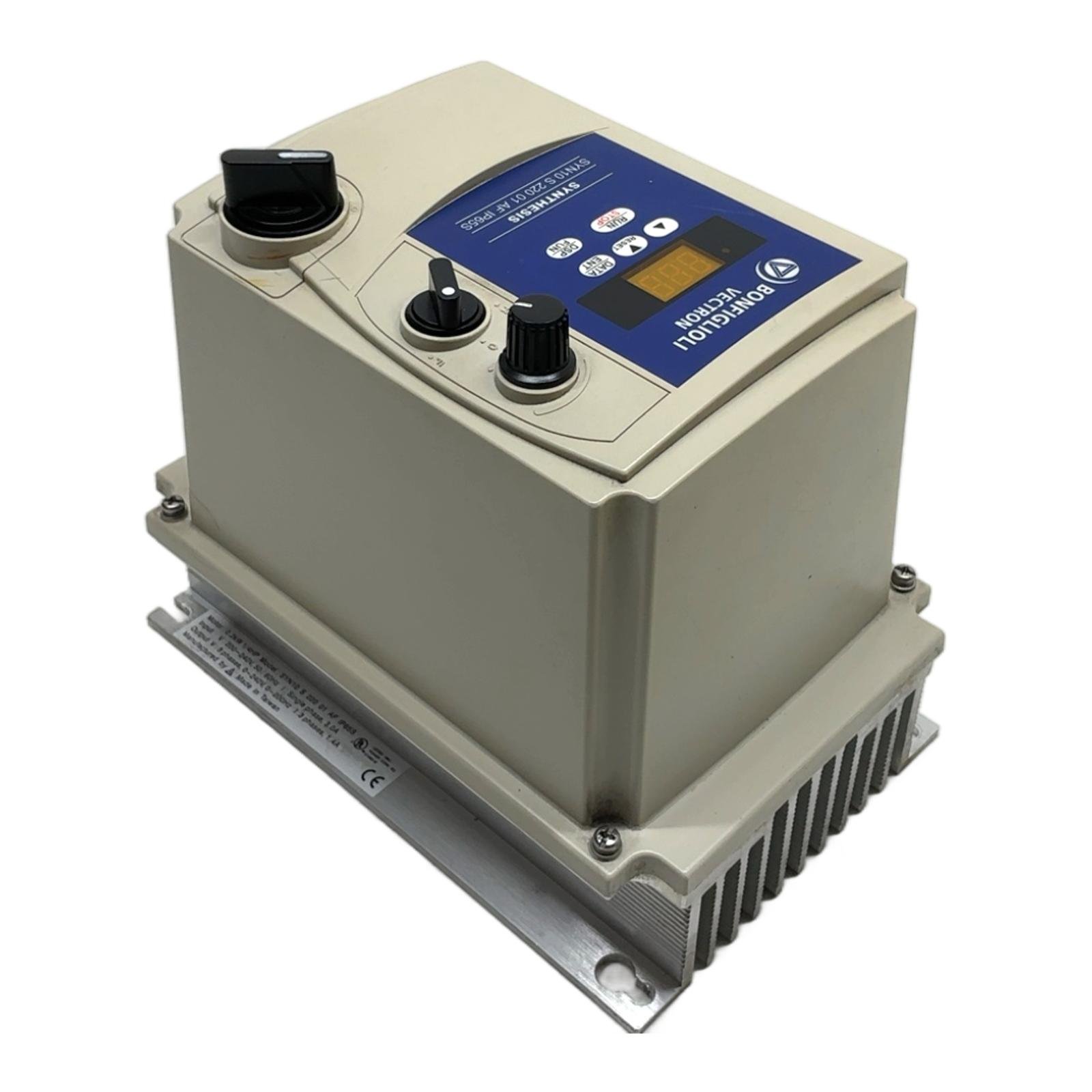

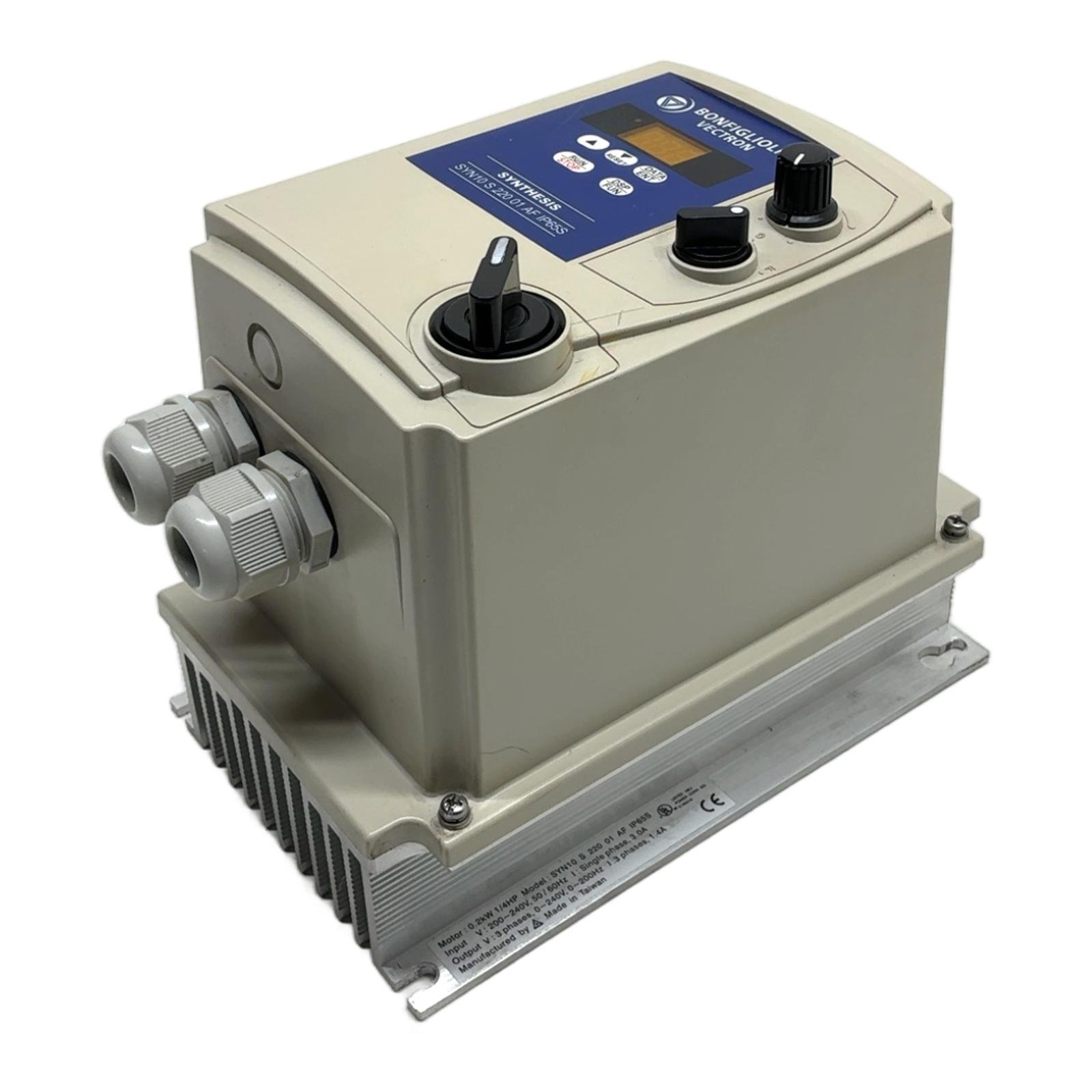

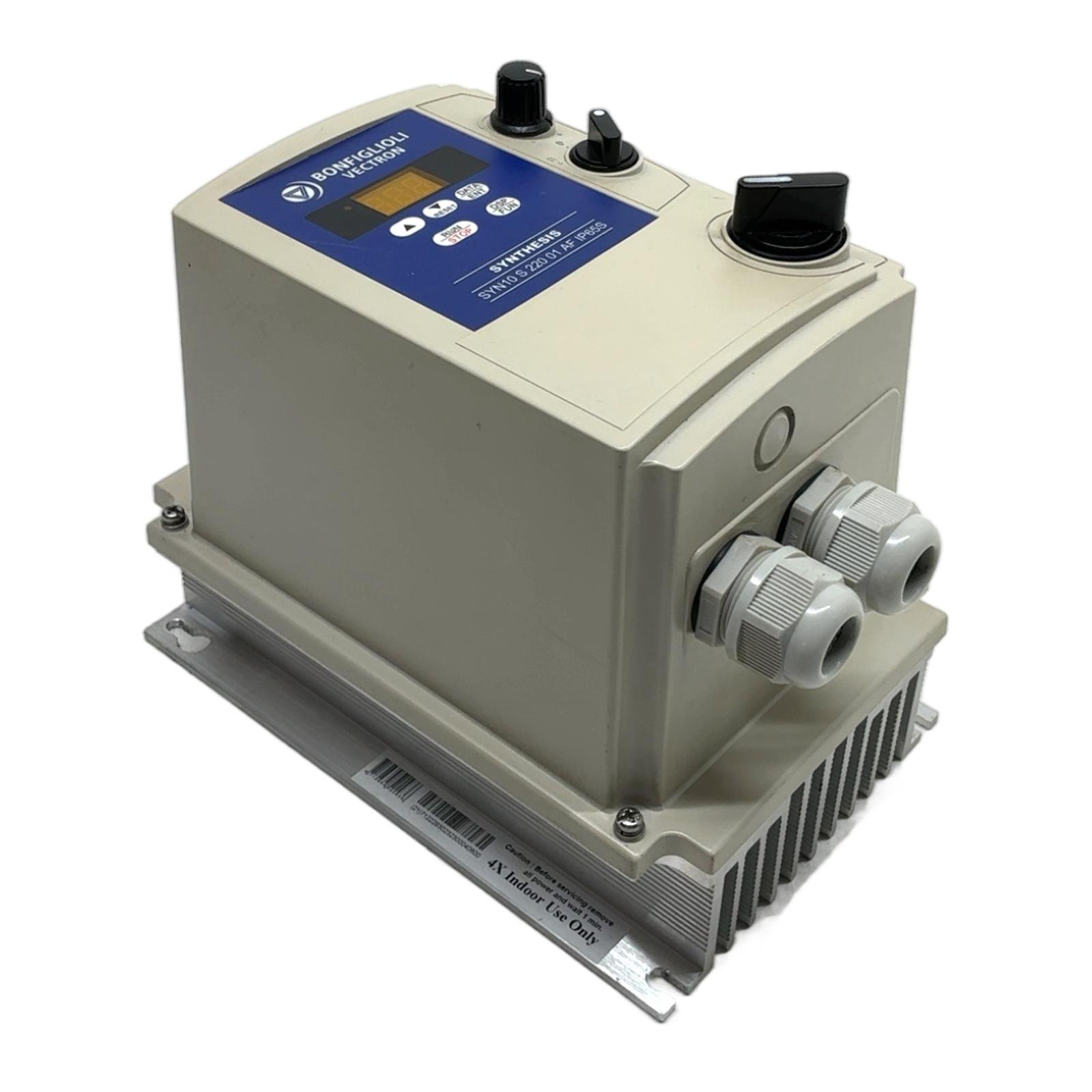

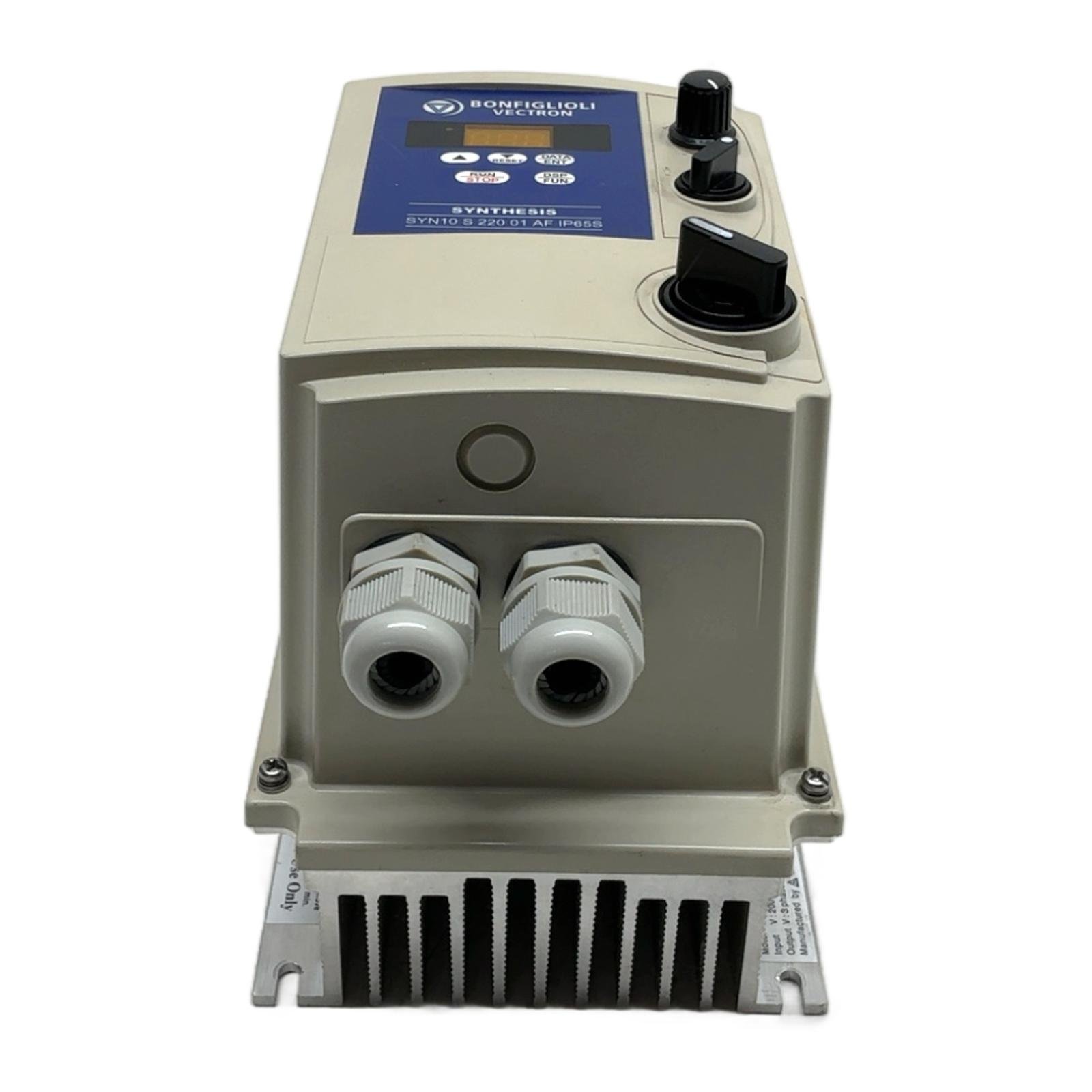

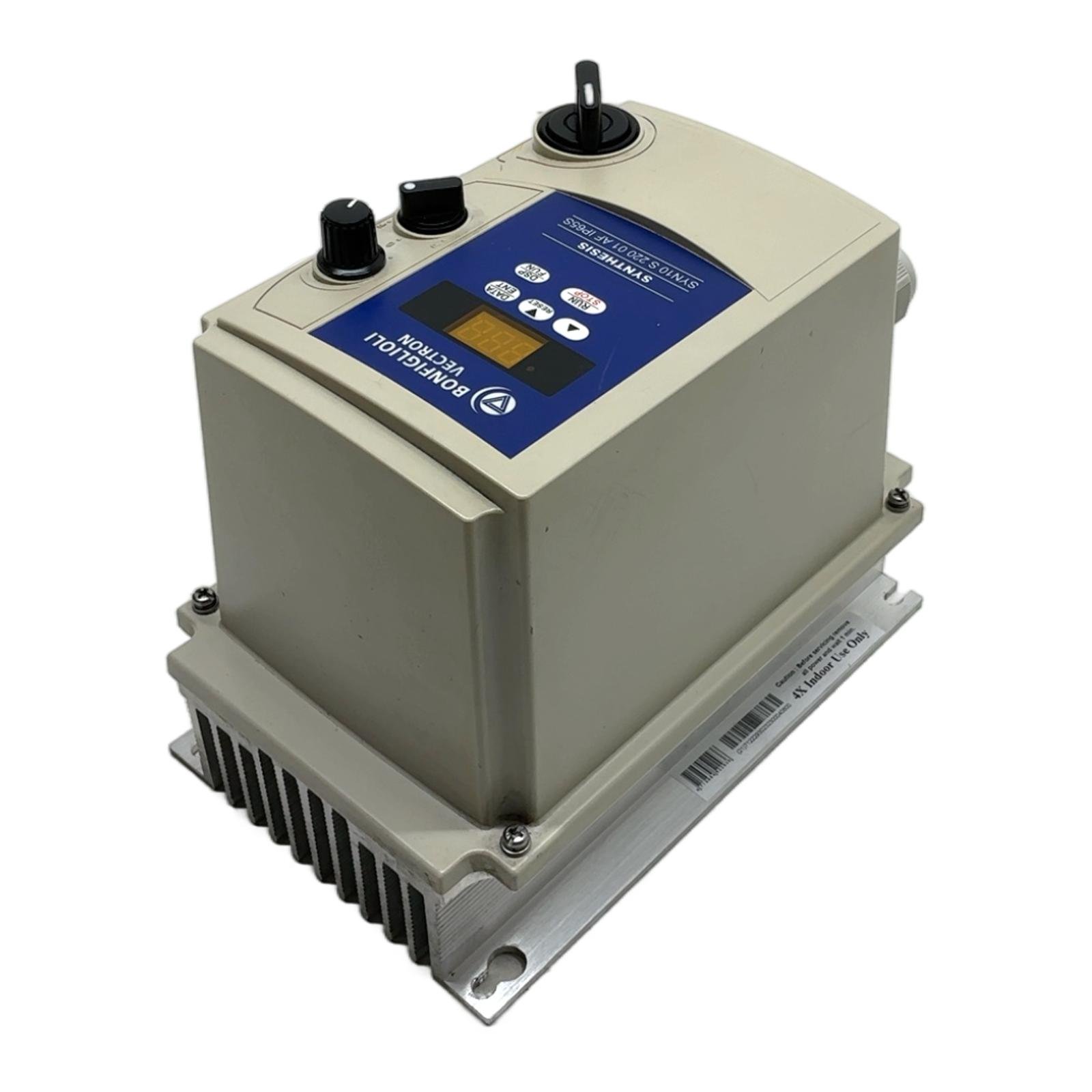

Bonfiglioli SYNTHESIS Frequency Inverter Description The Bonfiglioli SYNTHESIS SYN10 S 220 01 AF IP65S is a compact and robust decentralized frequency inverter designed for precise motor speed control. With its high IP65S protection rating, it is perfectly suited for installation in harsh industrial environments, directly on machines or walls, eliminating the need for a control cabinet. This unit is ideal for applications requiring simple, local control of 0.2kW motors. Although this series is obsolete, it serves as a reliable spare part to maintain existing installations. Specifications Power Rating: 0.2 kW / 1/4 HP Input Voltage: 200-240V AC, 50/60Hz, Single-phase Input Current: 3.0A Output Voltage: 0-240V AC, Three-phase Output Current: 1.4A Output Frequency: 0-200 Hz Protection Rating: IP65S Control Interface: Integrated keypad, display, potentiometer, and selector switch Label Info Manufacturer: Bonfiglioli Vectron Model: SYN10 S 220 01 AF IP65S EAN: 4719864522936 Application This frequency inverter is suitable for a wide range of applications, including conveyor belts, pumps, fans, and other machinery where decentralized motor control is beneficial. Country of Origin Made in Taiwan. CO2 Impact Choosing this pre-owned frequency inverter over a new one prevents the emission of approximately 40 kg of CO2, contributing to a more sustainable industrial environment. This is comparable to the emissions saved from driving 200 kilometers in a standard car. Availability This is an obsolete item, available as a spare part. Stock is limited. Order now from profideals for expert support and fast delivery. FAQ Question?What does the IP65S rating signify for this inverter’s application?The IP65S rating indicates that the enclosure is dust-tight (IP6x) and protected against low-pressure water jets from any direction (IPx5). The ‘S’ indicates it was tested while stationary. This makes it suitable for wash-down areas and dusty environments without needing a protective cabinet. Question?Can this inverter be used with a 3-phase input supply?No, the label explicitly states the input is for a single-phase (1: Single phase) 200-240V supply. It converts this single-phase input to a three-phase output to run a standard 3-phase motor. Question?Since this model is obsolete, is it possible to retrieve parameters for a modern replacement?Parameter retrieval is typically not a direct process between obsolete and new generations from different series. You would need to manually record the settings from the SYN10’s display and reprogram the modern equivalent, like a Bonfiglioli Agile series drive, according to the new unit’s manual and parameter structure. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
