FYH UCF202J

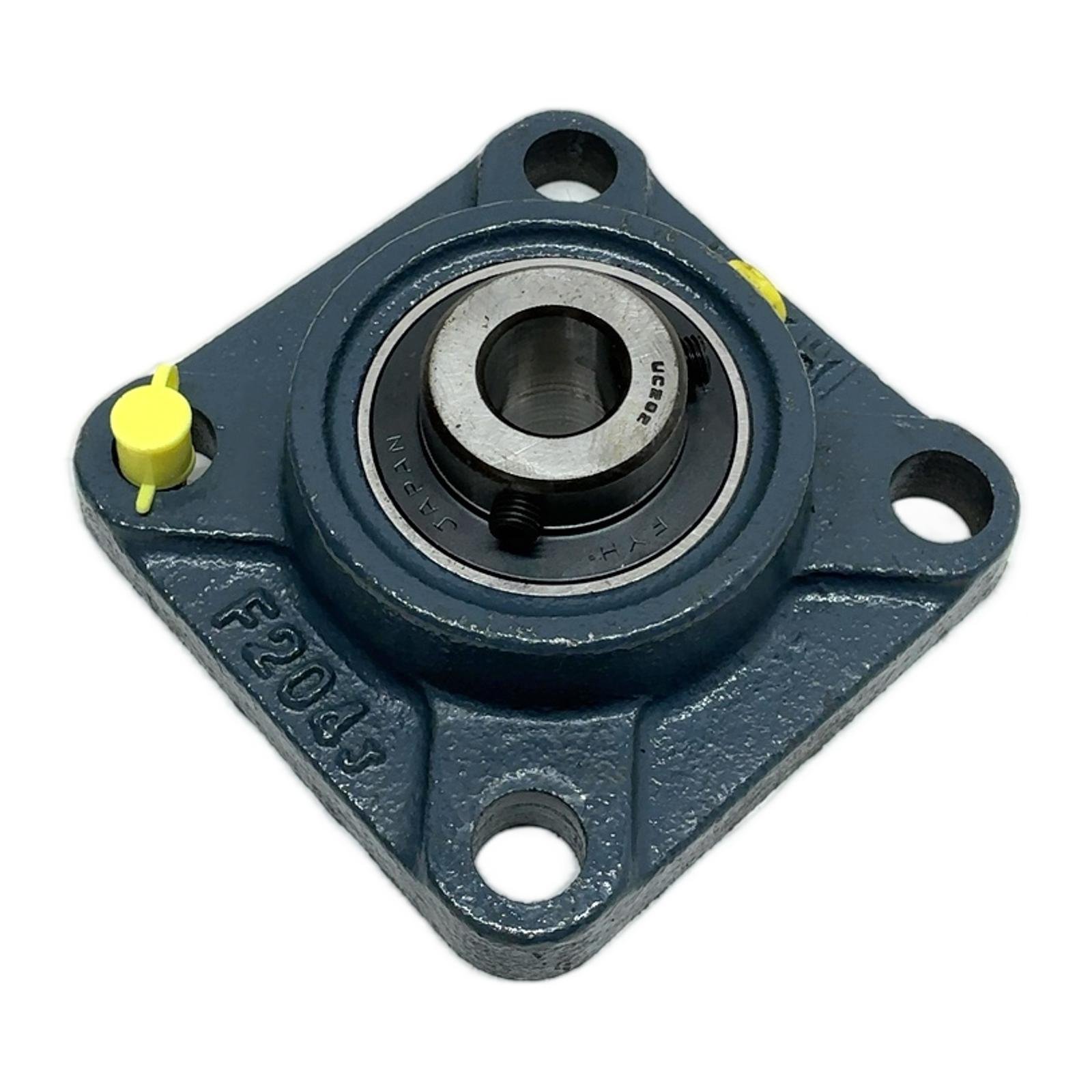

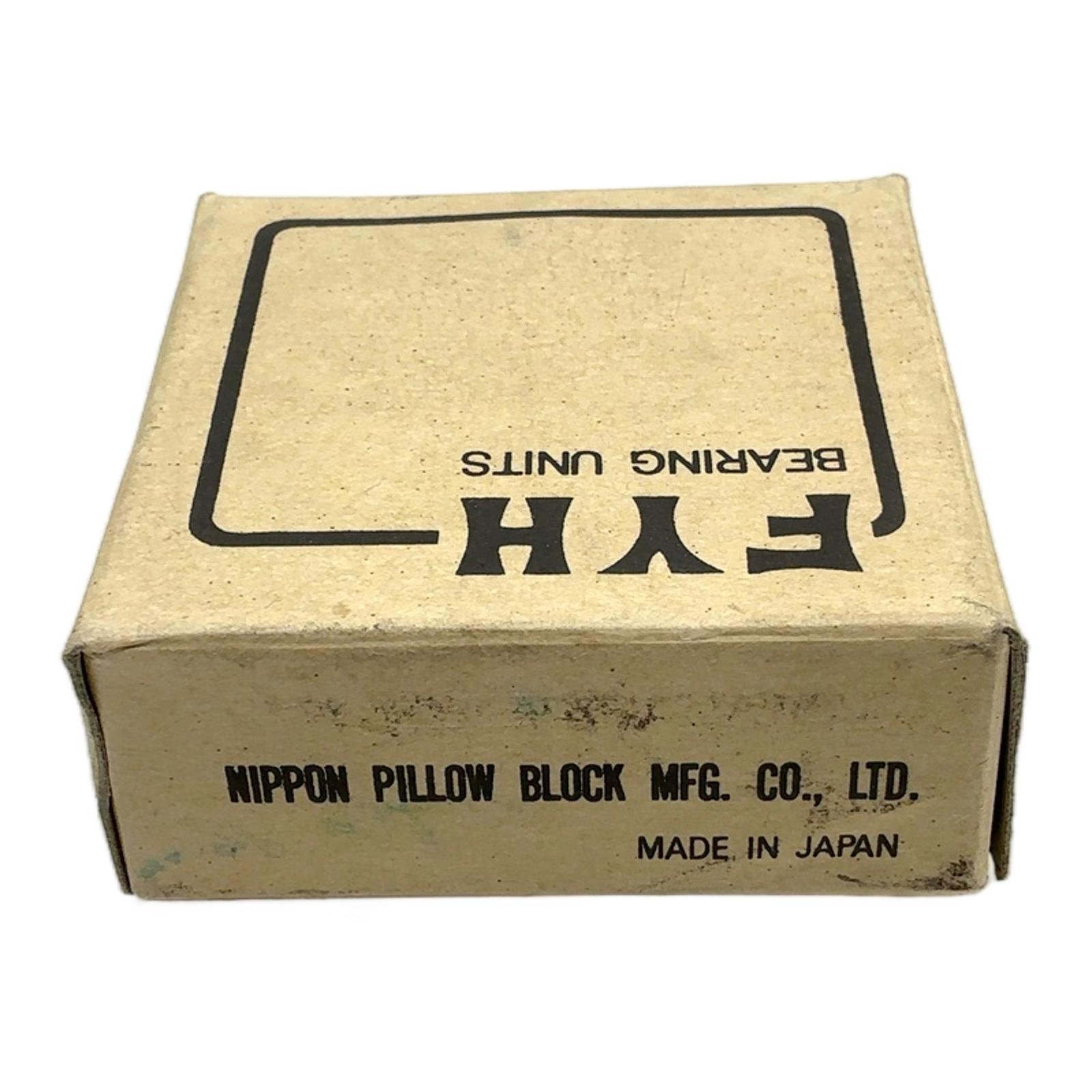

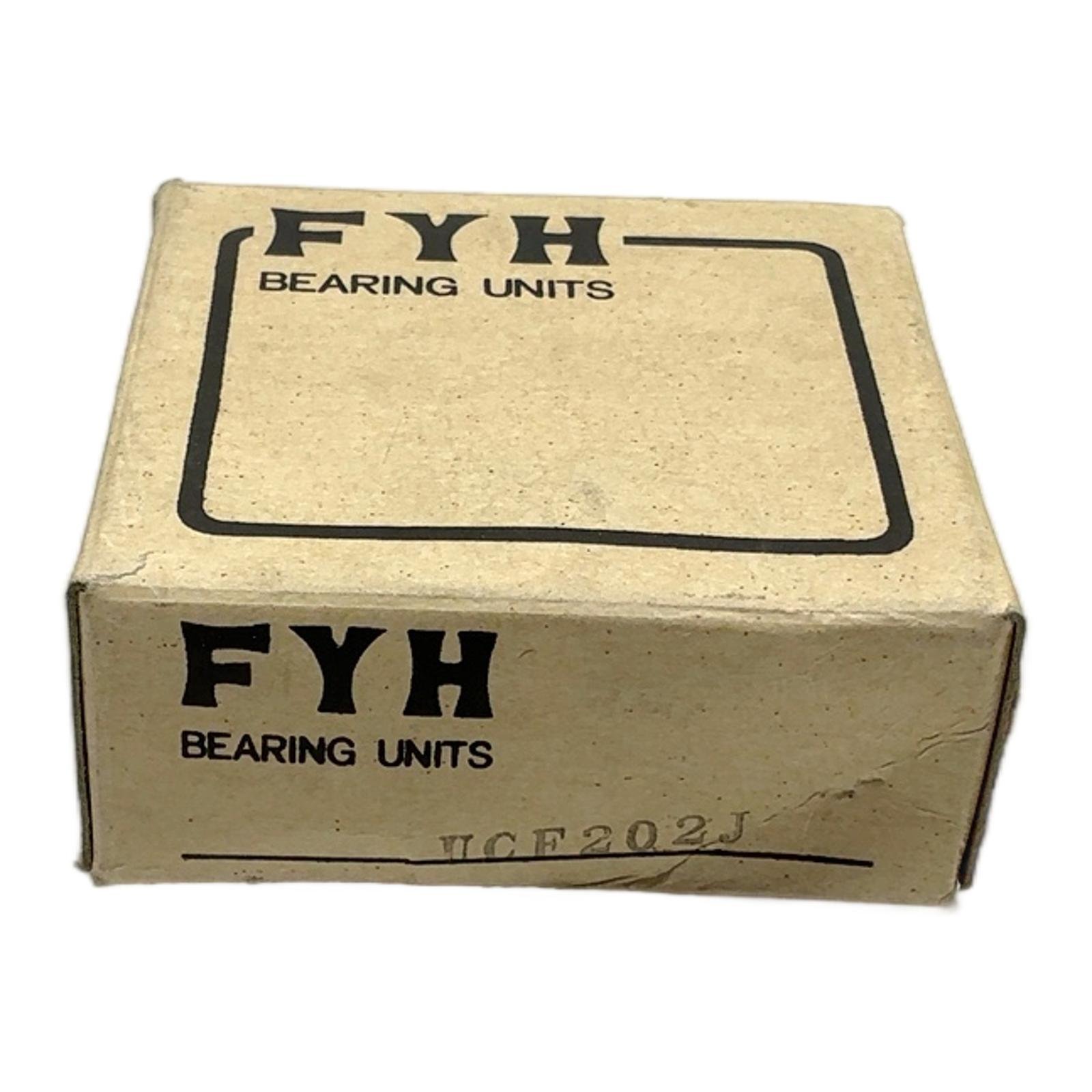

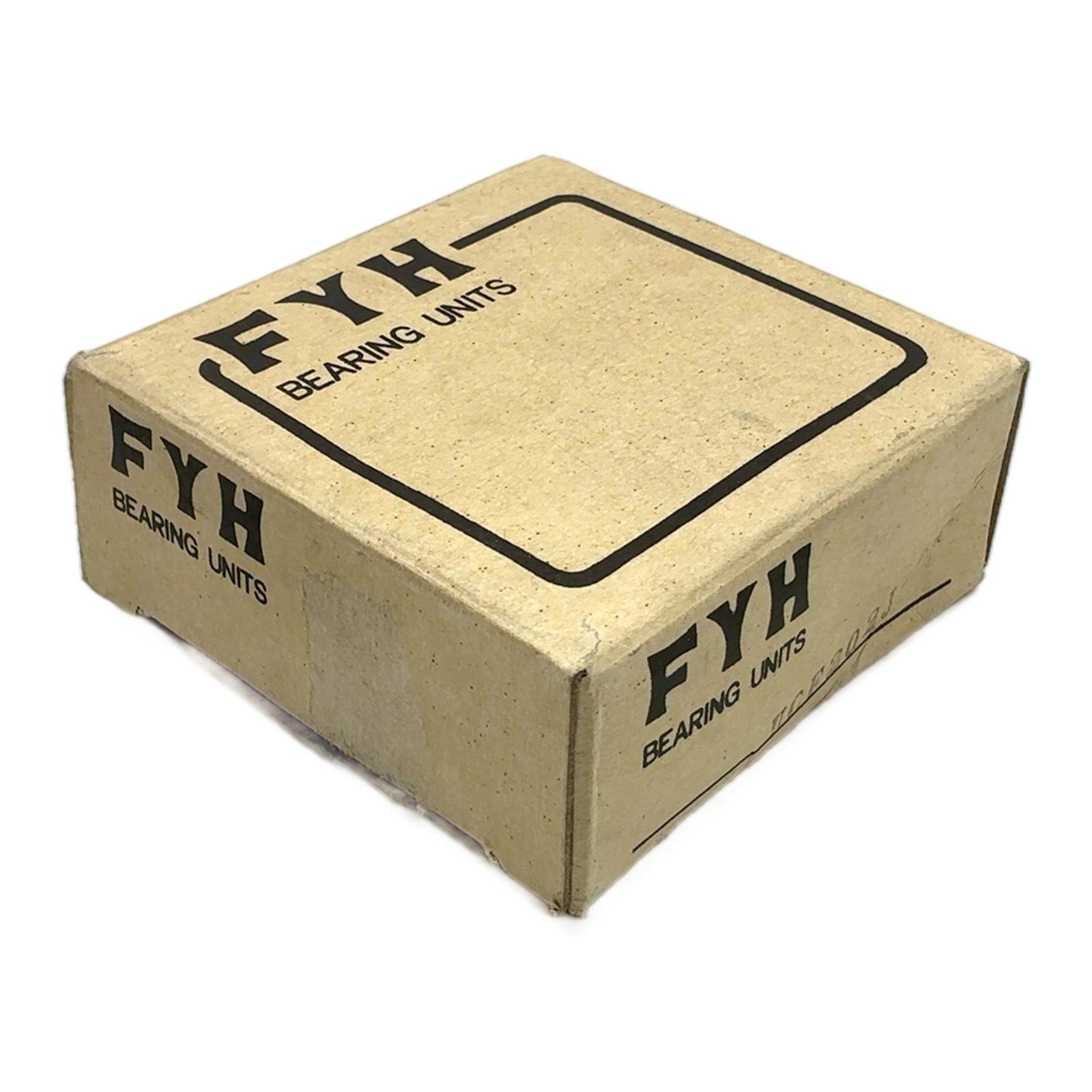

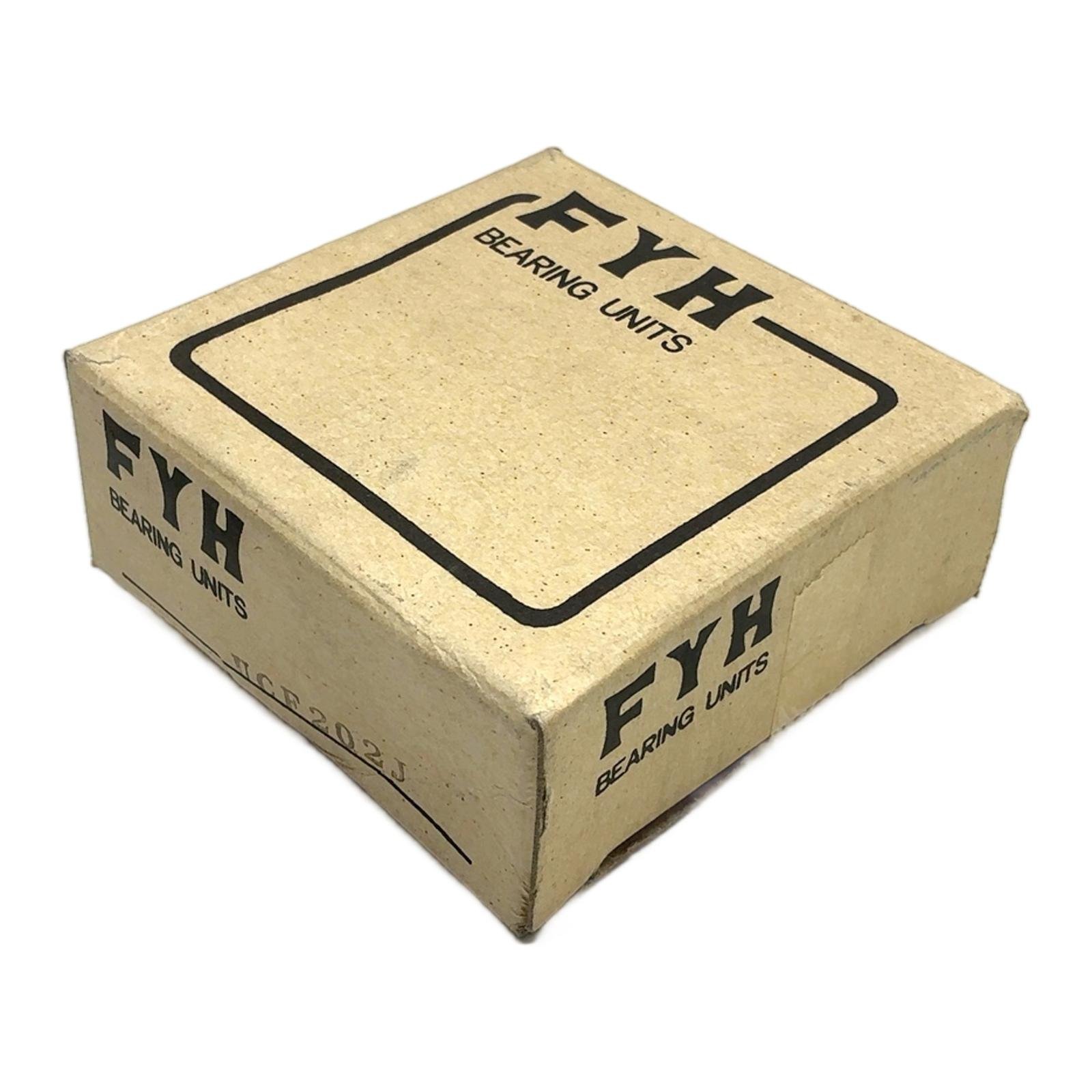

FYH UCF202J 4-Bolt Flange Bearing Unit Description The FYH UCF202J is a high-quality, standard-duty 4-bolt flange bearing unit designed for reliable performance in various industrial applications. It features a solid cast iron housing and a chrome steel insert bearing with a set-screw lock for secure shaft mounting. This unit is pre-lubricated and includes a grease fitting for easy maintenance. Specifications Manufacturer: FYH (Nippon Pillow Block Mfg. Co., Ltd.) Part Number: UCF202J Bore Diameter: 15 mm Housing Type: 4-Bolt Square Flange Housing Material: Cast Iron Insert Bearing: UC202 Locking Mechanism: Set Screw Dynamic Load Rating: 12.8 kN Static Load Rating: 6.65 kN Label Info Box Label: FYH BEARING UNITS, UCF202J Housing Casting: F204J Insert Bearing Marking: FYH UC202 JAPAN Application Ideal for use in conveyor systems, agricultural machinery, food processing equipment, and general industrial automation where a robust and reliable mounted bearing is required. Country of Origin Made in Japan. CO2 Impact Opting for this pre-owned bearing unit saves approximately 1.0 kg of CO2 compared to manufacturing a new one, contributing to a more sustainable operation. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ The housing is marked F204J, but the insert is UC202 and the box says UCF202J. Is this the correct part?This is a valid observation. The unit is sold as a UCF202J, which correctly corresponds to the UC202 insert bearing with a 15mm bore. While the housing has a casting mark of F204J (typically for a 20mm bore insert), the internal bore of the housing is machined to correctly fit the supplied UC202 insert. This is an authentic FYH unit, and the functional specifications are those of a UCF202J. What is the proper procedure for mounting and lubricating this bearing?First, ensure the shaft is clean and within tolerance for a 15mm bore. Slide the unit onto the shaft and bolt the flange housing securely to a flat, rigid surface. Then, tighten the two set screws on the inner ring of the bearing to 3.5 – 5.5 Nm to lock it onto the shaft. The bearing comes pre-lubricated but should be re-lubricated periodically via the grease nipple using a standard lithium-based grease. Is this bearing unit suitable for high-speed applications?The UCF202J is a standard-duty bearing unit designed for low to moderate speed applications. The limiting speed depends on lubrication and load conditions but is generally around 5000 RPM. For applications approaching or exceeding this speed, or for those with high loads, a different bearing series or lubrication method may be required. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
