INDRAMAT TVD 1.2-08-03 246503

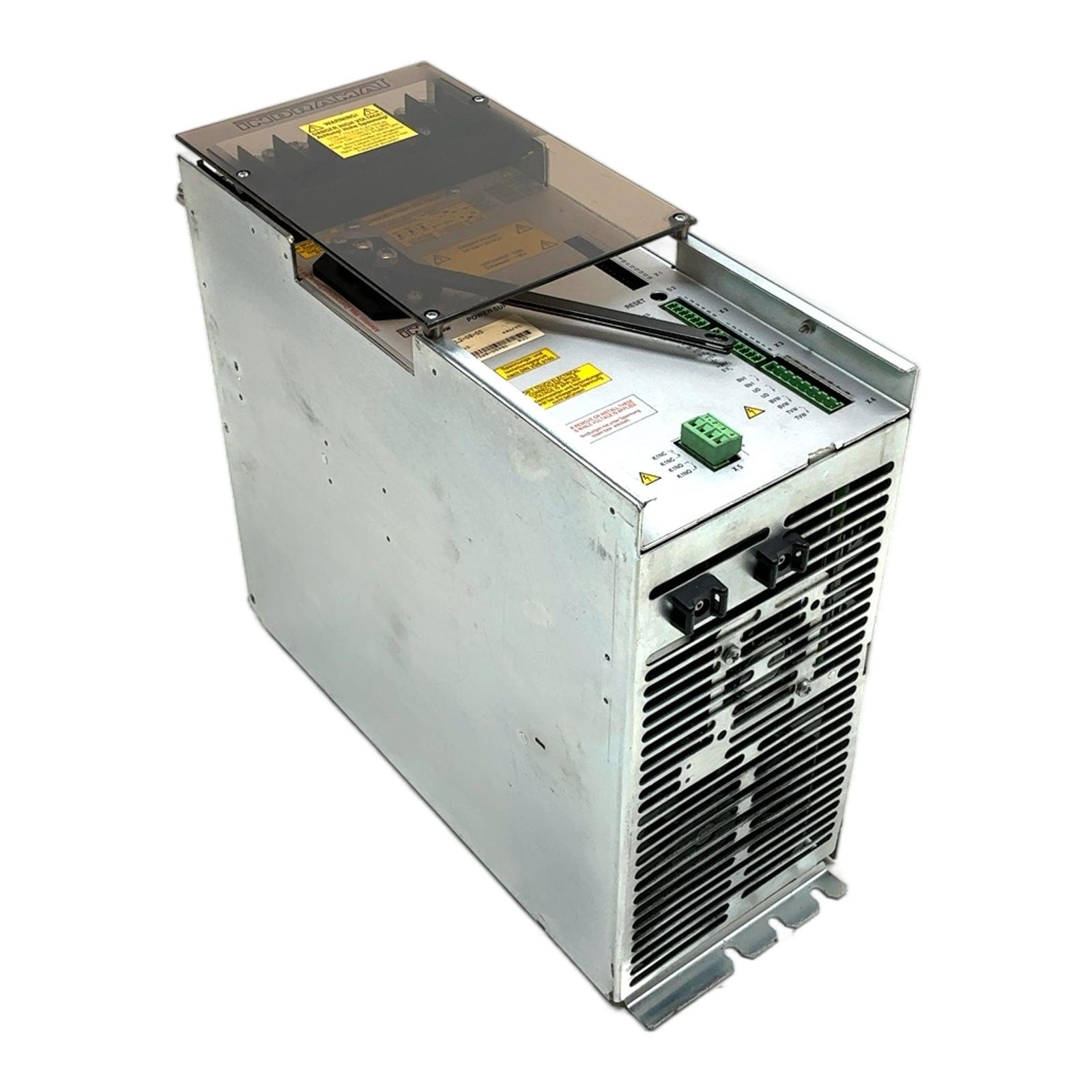

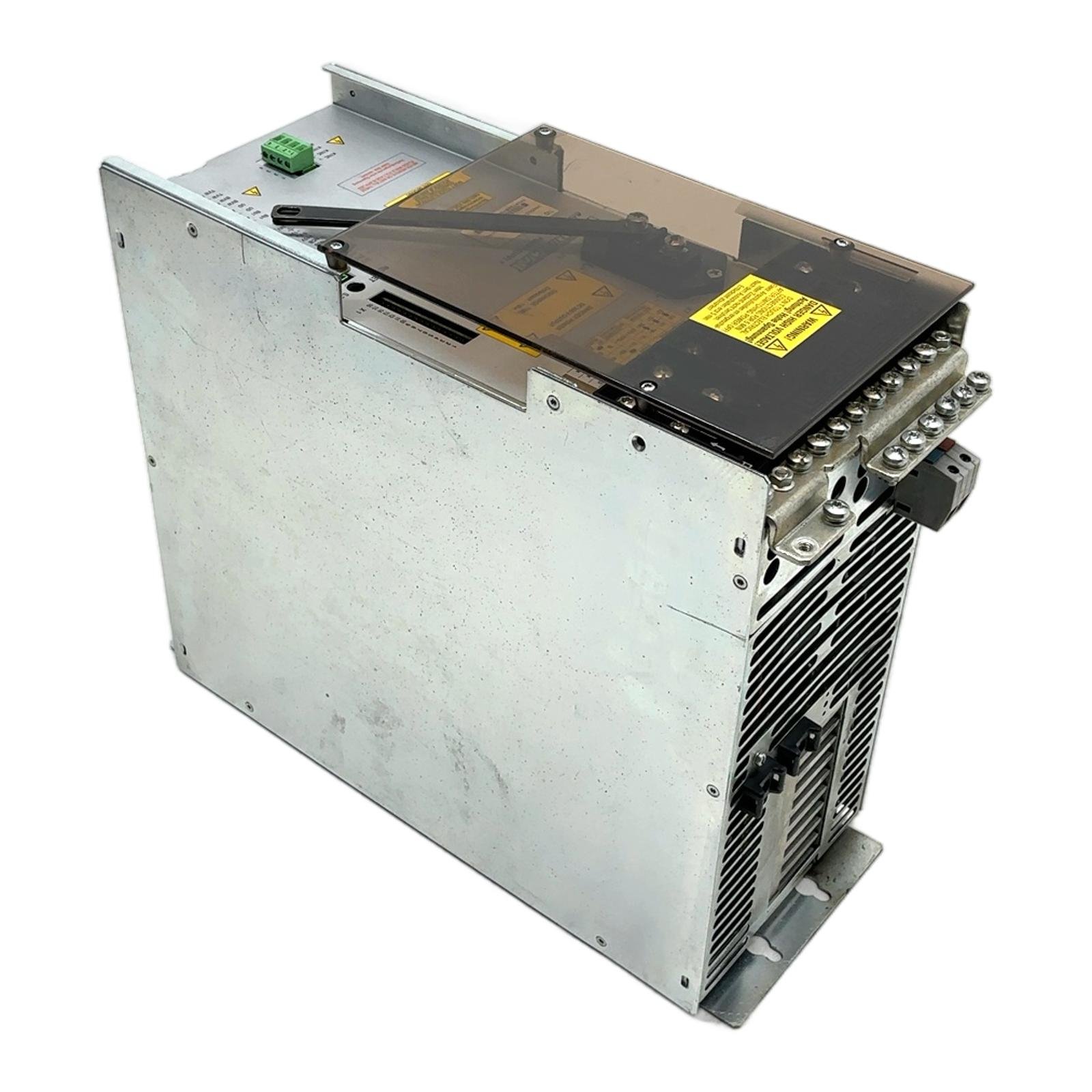

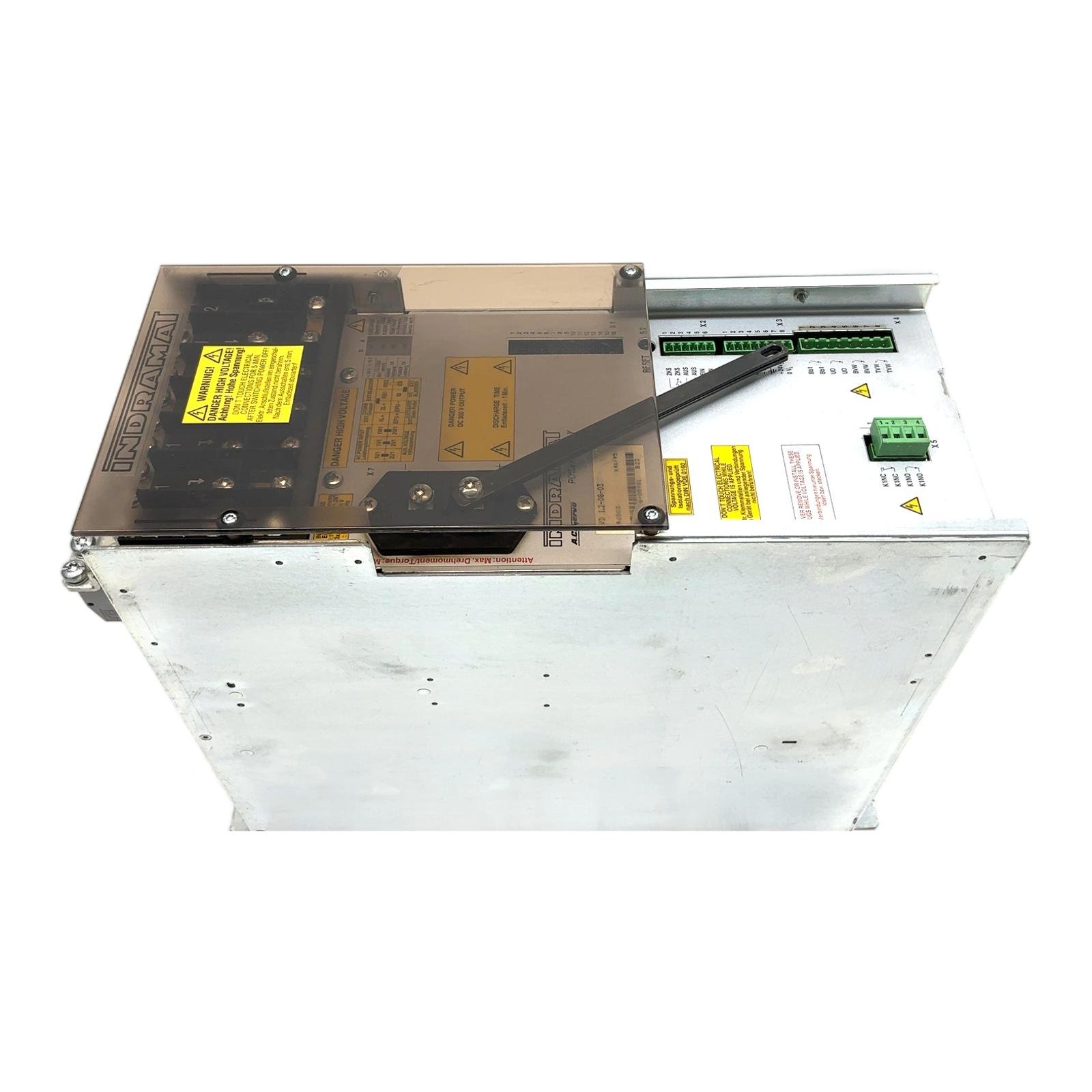

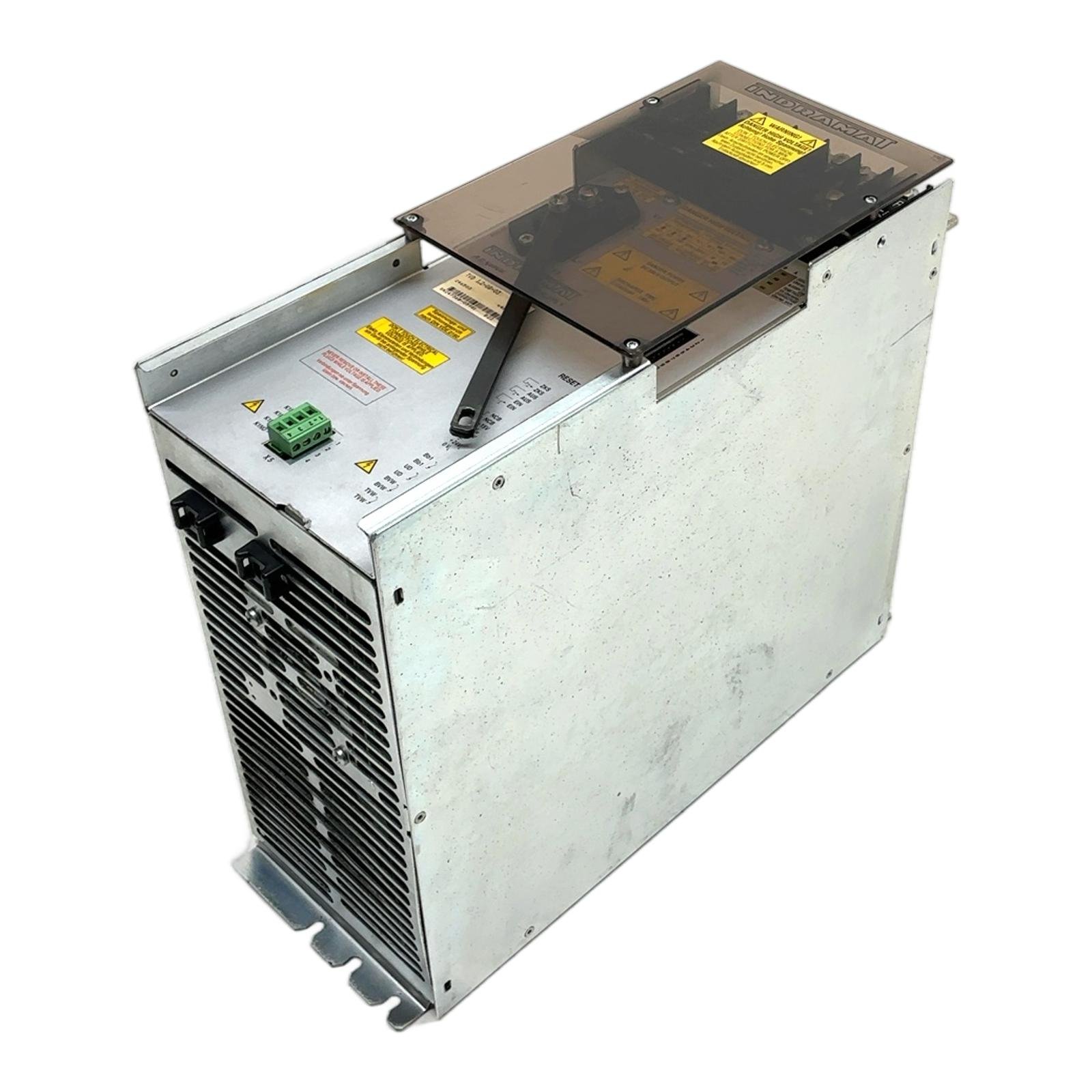

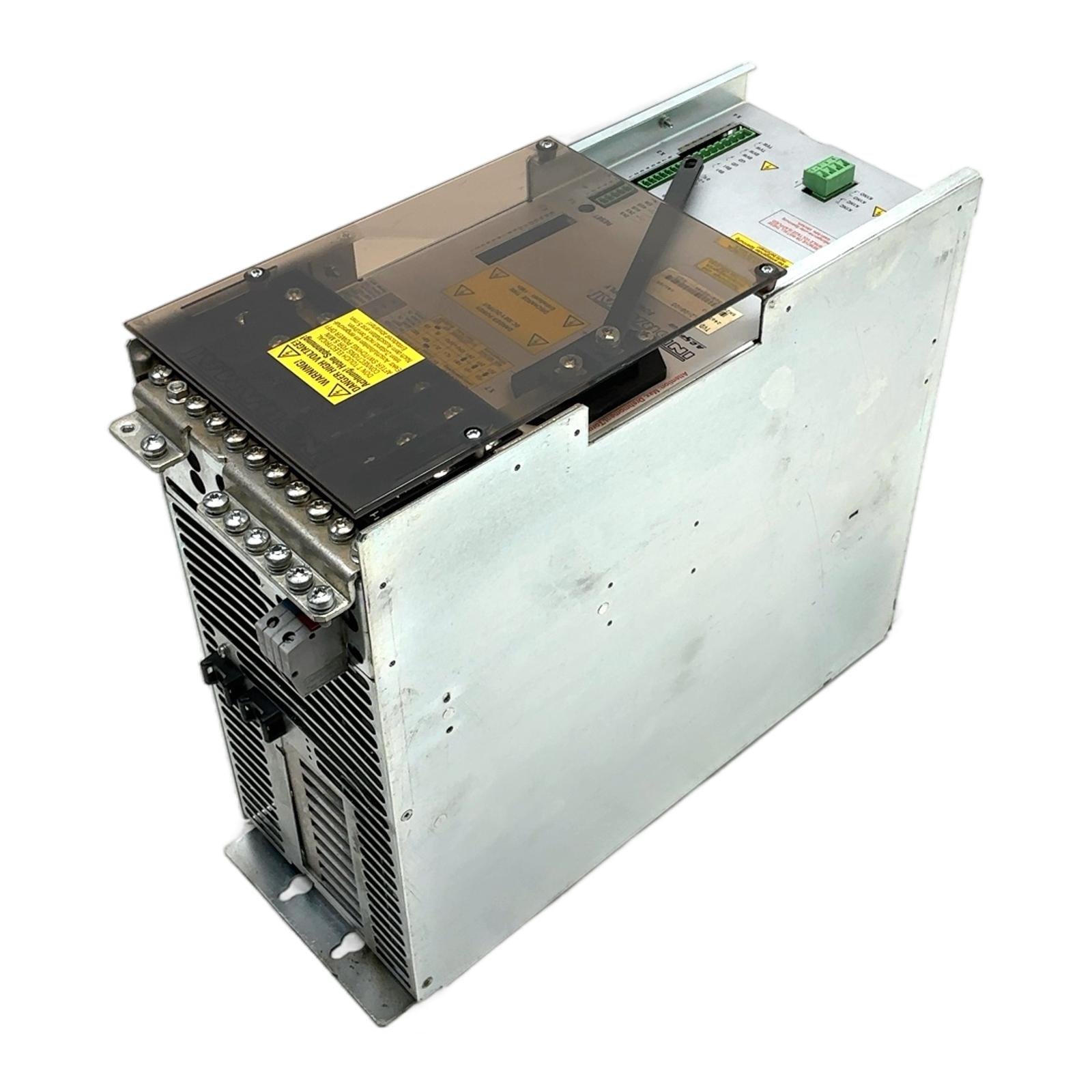

Indramat TVD 1.2-08-03 Servo Power Supply Description The Indramat TVD 1.2-08-03 is a highly reliable AC servo power supply module from the DIAX02 series. It is engineered to convert 3-phase AC input voltage into a stable DC bus voltage, providing power for multiple Indramat TDM or MDD servo drives. This unit is an essential component for legacy motion control systems, known for its durability and performance in demanding industrial environments. This listing includes the main power supply unit and an accompanying bus connection cable (P/N 244830). Specifications Manufacturer: Indramat Model: TVD 1.2-08-03 Part Number: 246503 Series: DIAX02 Input Voltage: 3 x 380-460 VAC (+/- 10%), 50-60 Hz Rated Current: 8 A DC Bus Output Voltage: 300 VDC Condition: Used, tested Included Accessories: Bus connection cable (P/N: 244830) Label Info Type: TVD 1.2-08-03 Part No: 246503 Serial No: SN247368-05981 Application This power supply is commonly used in CNC machinery, packaging lines, robotics, and automated manufacturing systems that utilize the Indramat DIAX02 drive family. Country of Origin Made in Germany. CO2 Impact By purchasing this refurbished item, you are saving an estimated 150.0 kg of CO2, which is comparable to the emissions of driving a car for 750 km. Availability Available from stock for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the difference between the TVD 1.2 and TVD 1.3 series?The TVD 1.2 series, like this unit, is the earlier version within the DIAX02 family. The TVD 1.3 series introduced some internal hardware and firmware updates for improved performance and diagnostics, but they are generally not interchangeable without system adjustments. Always verify compatibility with your specific drive controllers. What do the LED status indicators (H1-H4) on the front panel mean?These LEDs provide basic diagnostics. H1 (Power OK) indicates the internal control voltages are present. H2 (Overcurrent) signals a short circuit or excessive current draw. H3 (Bleeder Overload) indicates the internal braking resistor is overloaded. H4 (Temp Fault) shows an over-temperature condition in the power supply or connected drives. Does this power supply require an external braking resistor?The TVD 1.2-08-03 has a built-in braking resistor (bleeder) to dissipate regenerative energy. For applications with high inertia or frequent, rapid decelerations, an external braking resistor (connected to RB1/RB2 terminals) may be necessary to handle the excess energy and prevent overvoltage faults. profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
