BALLUFF BCC02M8 BCC M313-0000-10-001-PX0334-020

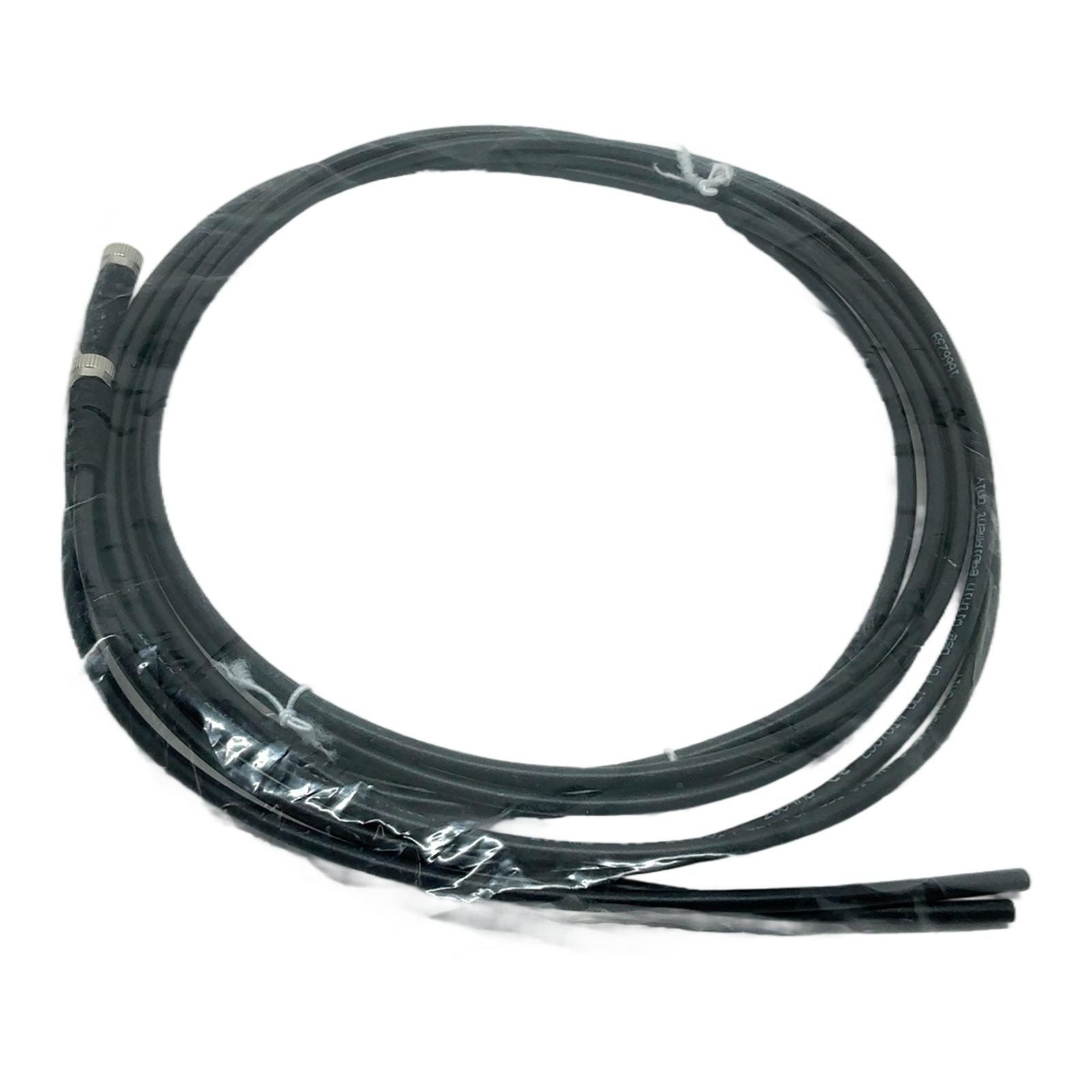

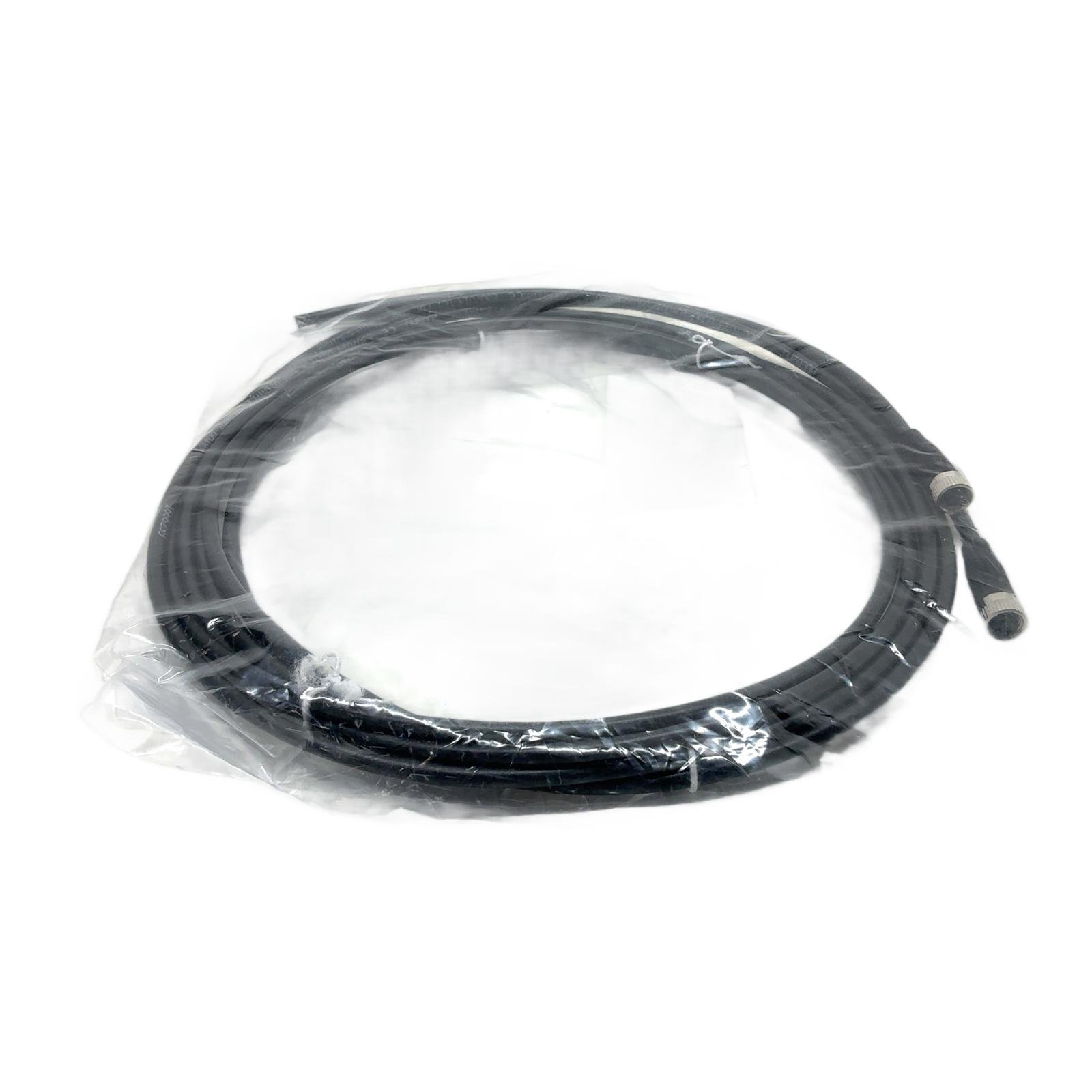

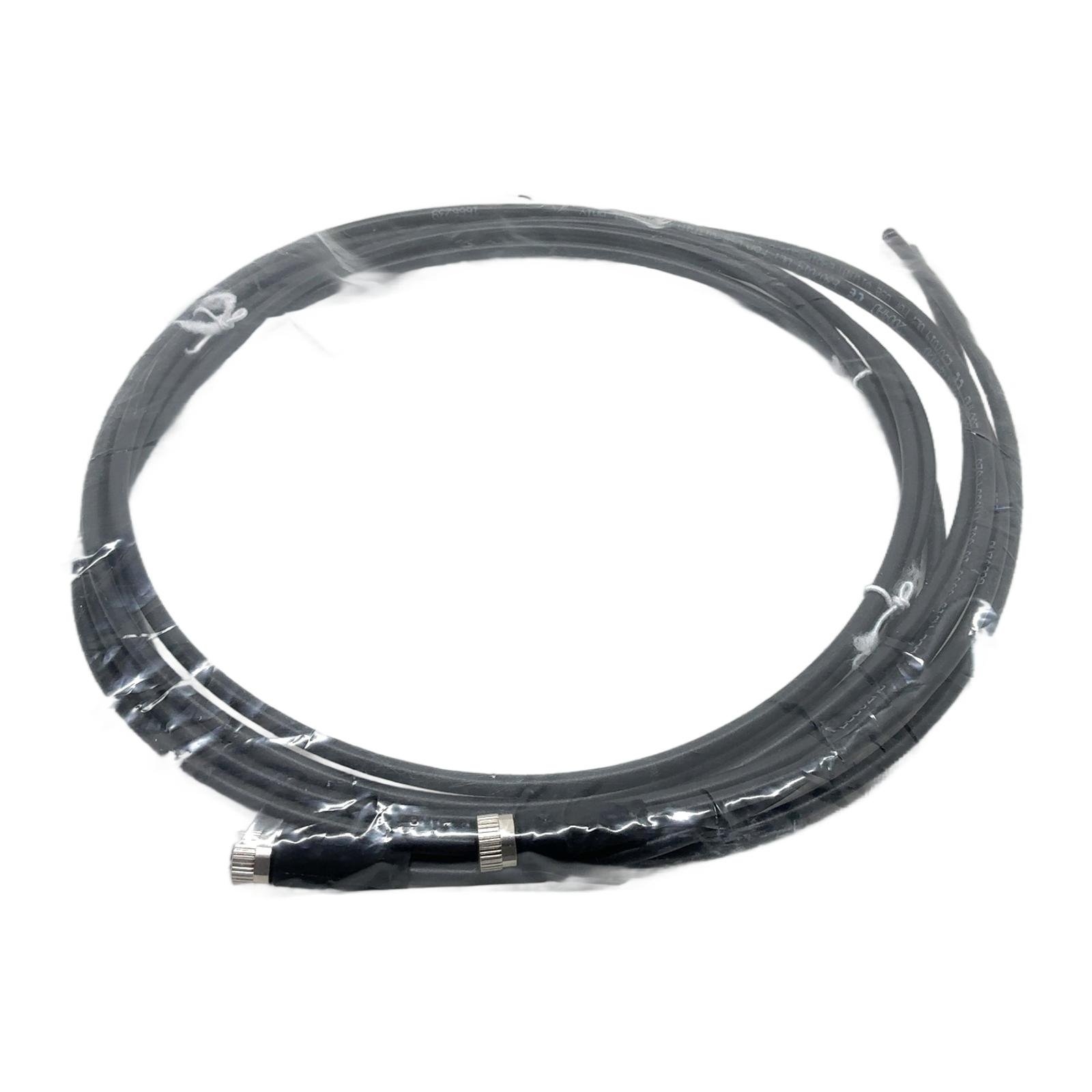

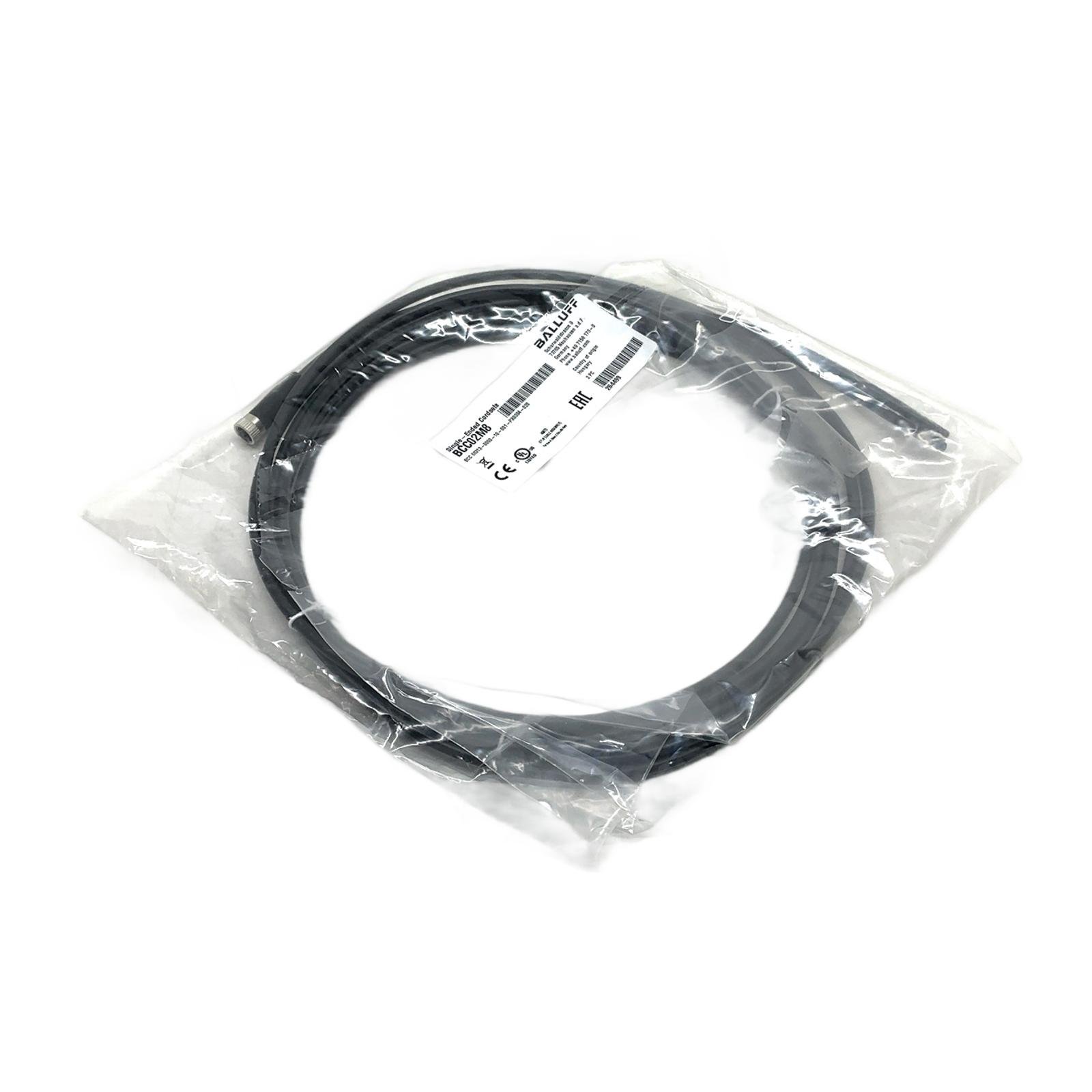

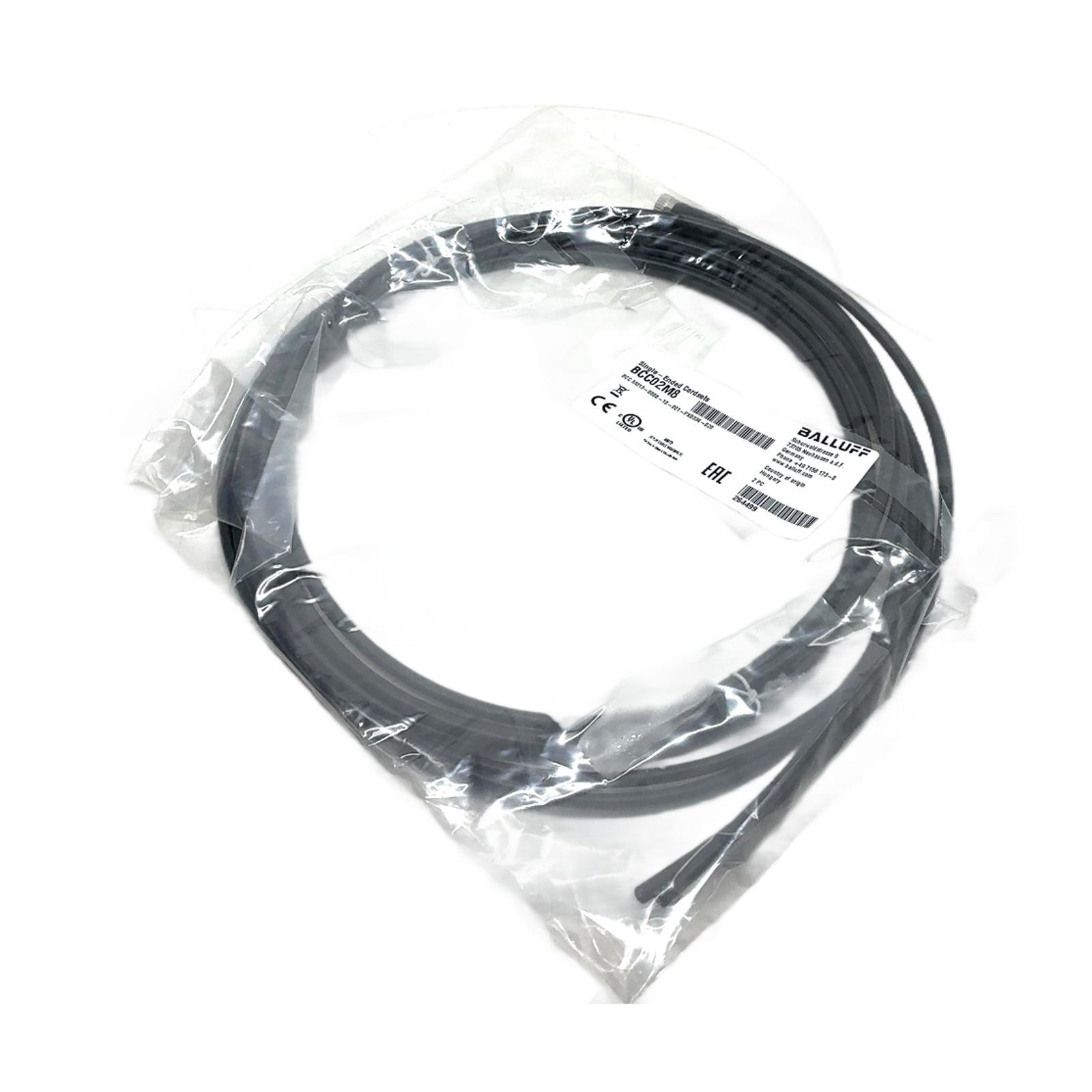

Balluff BCC02M8 Single-Ended M8 Sensor Cable, 2m Description The Balluff BCC02M8 is a high-quality, single-ended cordset designed for reliable connections in industrial automation environments. It features a standard M8 female connector and a 2-meter PUR cable with flying leads, providing flexibility for various sensor and actuator applications. Specifications Manufacturer: Balluff Part Number: BCC M313-0000-10-001-PX0334-020 Order Code: BCC02M8 Connector Type: M8x1 Female, Straight Number of Pins: 3 Coding: A-coded Cable Length: 2.0 meters Cable Jacket Material: PUR (Polyurethane), Black IP Rating: IP67 (when properly connected) Operating Voltage: up to 60V AC / 75V DC Label Info Single-Ended Cordsets CE, cULus LISTED, EAC markings (CYJV CABLE ASSEMBLY) Application This cable is ideal for connecting sensors, actuators, and other components in machinery, robotics, and factory automation systems where a robust and reliable connection is essential. Country of Origin This product is made in Hungary. CO2 Impact By choosing this reused component, you are helping to avoid the production of a new one, saving an estimated 1.7 kg of CO2. This saving is comparable to the emissions from driving a standard car for over 8 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What does ‘A-coding’ on the M8 connector signify?A-coding is a standardized keying system for circular connectors that prevents mismating. It is primarily used for sensors, actuators, and DC power applications, ensuring that only compatible plugs and receptacles can be connected. Is the PUR jacket on this cable suitable for environments with oil or chemicals?Yes, Polyurethane (PUR) jackets are known for their excellent resistance to abrasion, oils, and many industrial chemicals, making this cable well-suited for harsh factory environments where such exposures are common. What is the standard wire color coding for the 3 conductors in this Balluff cable?According to the standard for 3-pin A-coded M8/M12 connectors, the colors are typically: Pin 1 (Brown) for +V, Pin 3 (Blue) for -V/GND, and Pin 4 (Black) for the signal wire. Always verify with the device’s documentation before installation. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
