NADELLA GC47 SW

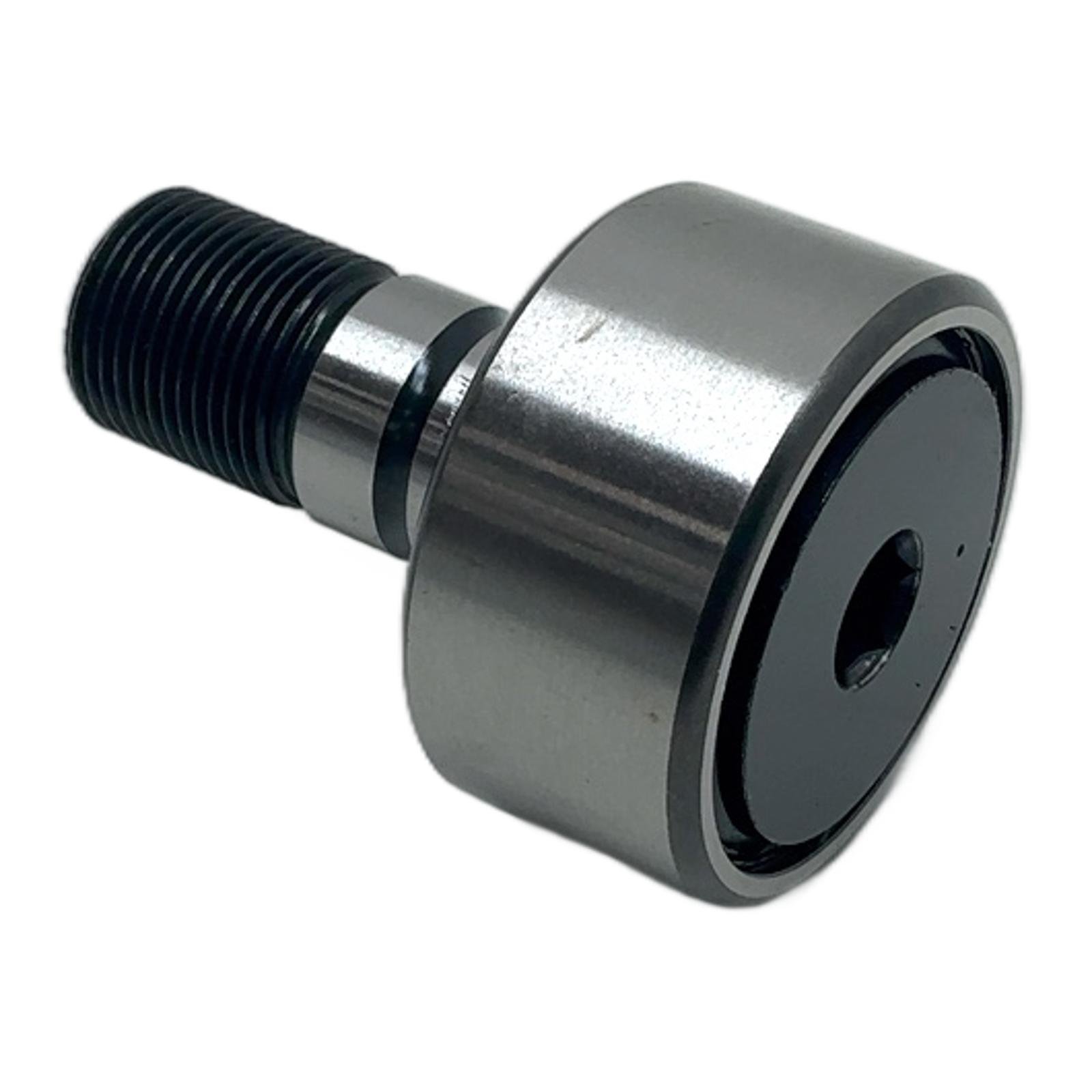

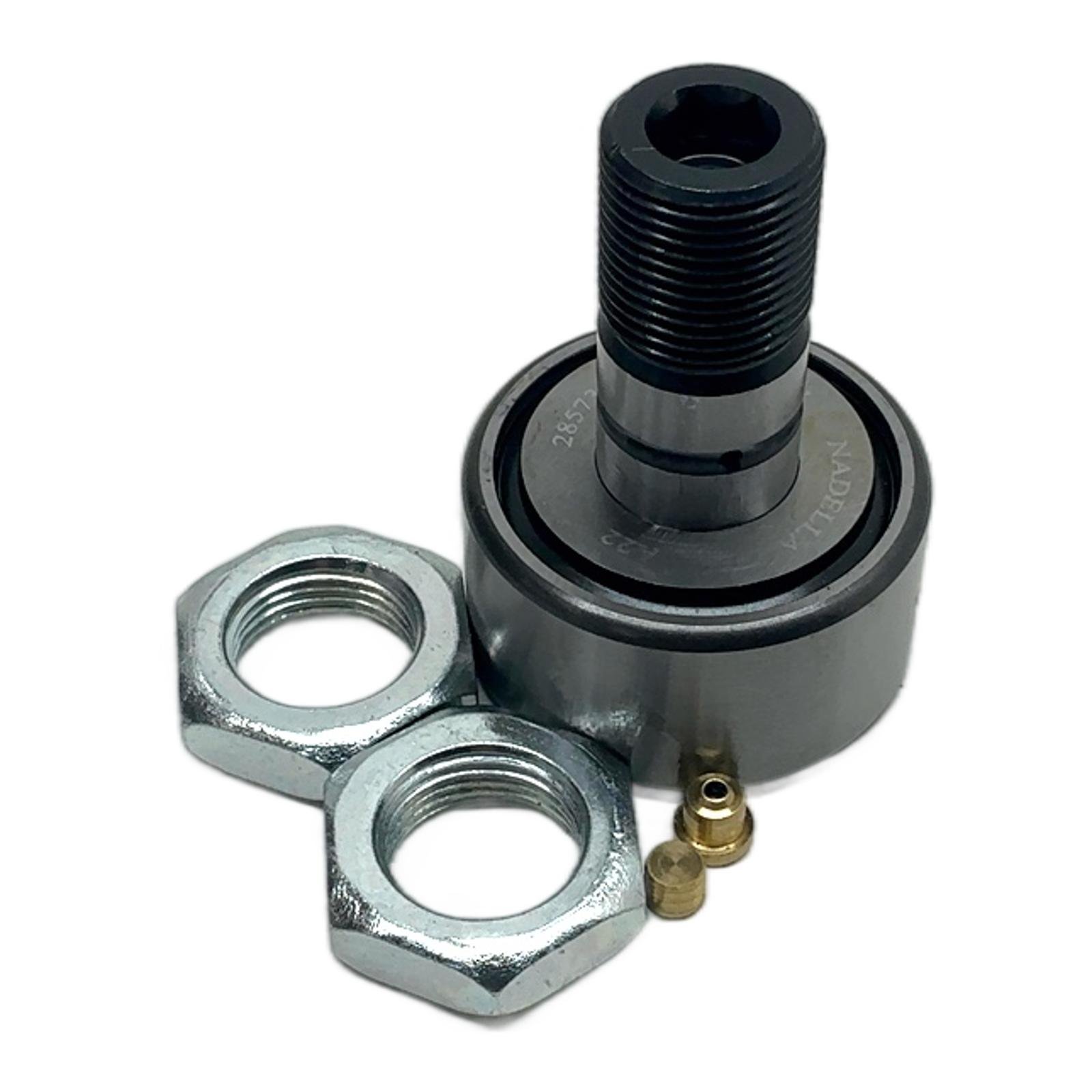

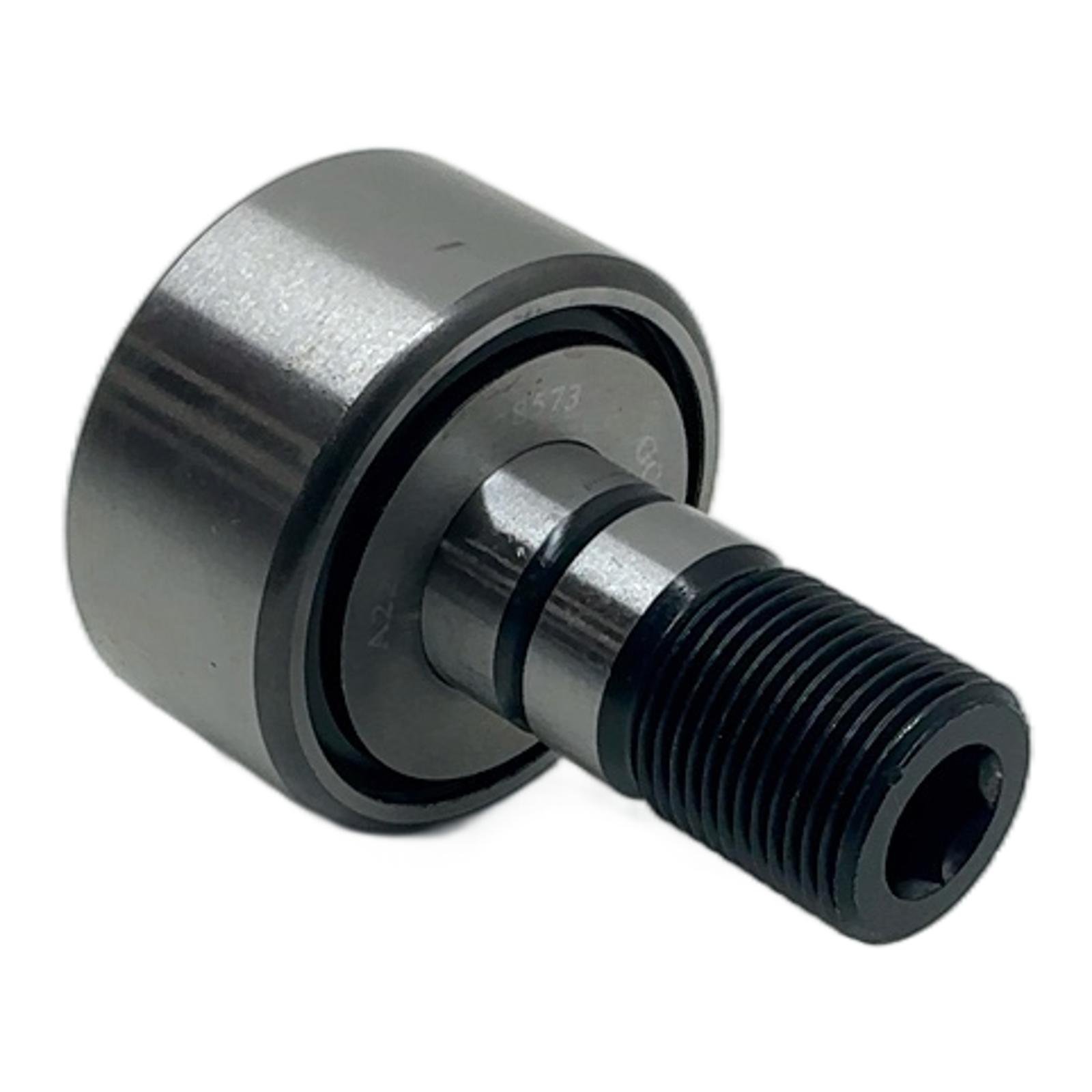

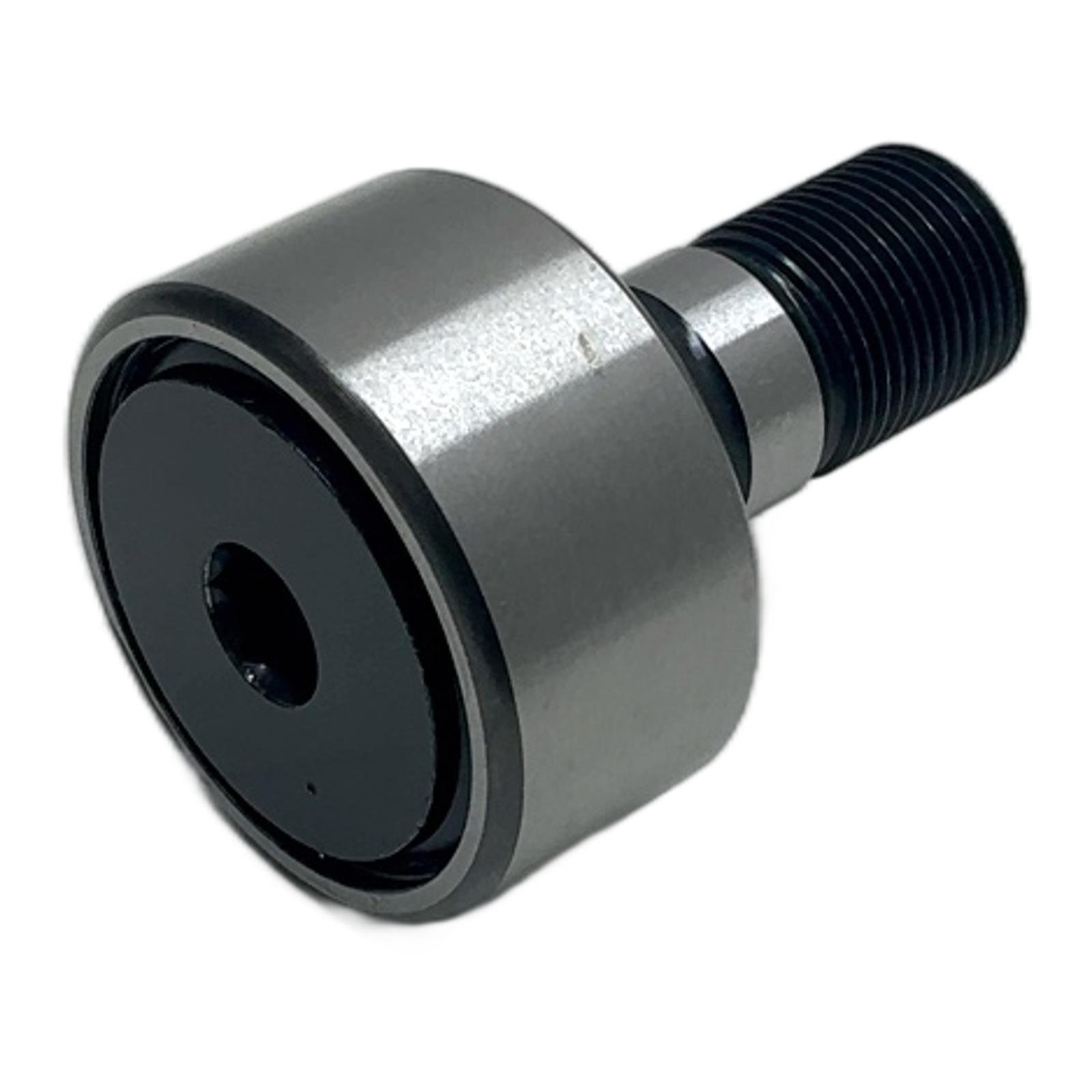

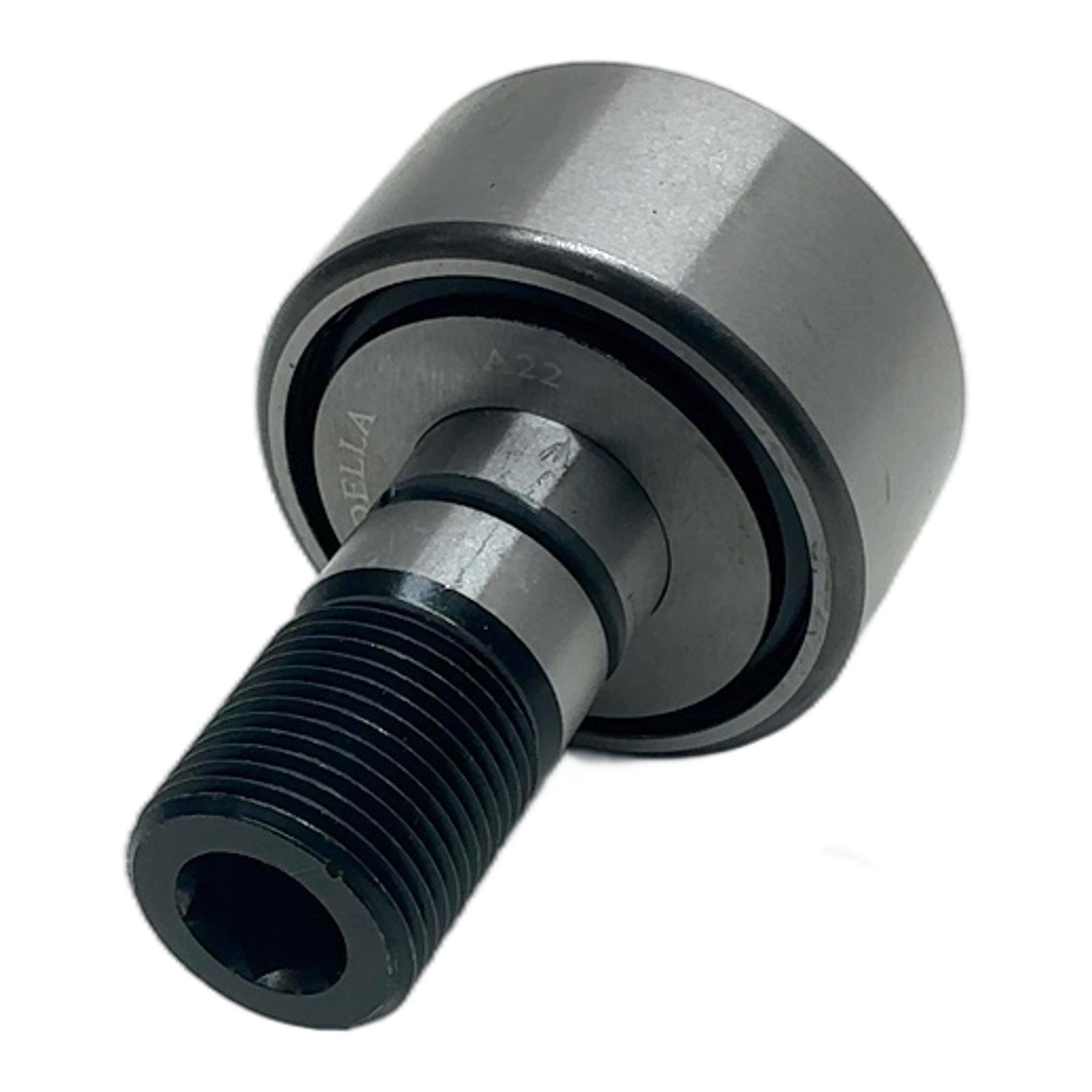

Nadella GC 47 SW Stud Type Cam Follower Description The Nadella GC 47 SW is a high-performance stud type cam follower designed for demanding industrial applications. It features a full complement of needle rollers, providing high radial load capacity and shock resistance. The SW suffix indicates that it is sealed on both sides, offering excellent protection against dust, dirt, and moisture, which extends its service life. This component is ideal for use in conveyor systems, automation equipment, and various linear motion guides. Specifications Manufacturer: Nadella Type: GC 47 SW Category: Stud Type Cam Follower Outer Diameter: 47 mm Stud Diameter: 20 mm Overall Length: 66 mm Thread: M20x1.5 Sealing: Double Sealed (SW) Label Info Brand: NADELLA Part Number: GC 47 SW Lotto: N321125263 Data lotto: 23/12/21 Application This cam follower is suitable for a wide range of applications, including but not limited to packaging machinery, automated assembly lines, material handling equipment, and machine tools where precise and reliable linear motion is required. Country of Origin This product is manufactured in Italy. CO2 Impact By choosing this reused industrial part, you are contributing to a more sustainable future. This single item saves approximately 0.88 kg of CO2 emissions compared to producing a new one. That’s equivalent to the CO2 absorbed by a tree in over two weeks. Availability This item is new in its original, opened box and is ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What does the ‘SW’ suffix signify in the GC 47 SW model? The ‘SW’ designation indicates that the bearing is equipped with protective seals on both sides. These seals provide excellent protection against contaminants like dust and moisture, and help retain lubricant, extending the operational life of the cam follower. What is the recommended lubrication for this cam follower? Nadella typically recommends a lithium-based grease with EP (Extreme Pressure) additives. However, it is crucial to consult the official manufacturer’s datasheet for the specific grease type and relubrication intervals based on your application’s speed, load, and operating environment. Can this cam follower handle axial loads? Stud type cam followers like the GC 47 SW are primarily designed to handle high radial loads. While they can accommodate some incidental axial loads from misalignment or light thrust, they are not intended for pure thrust applications. For significant axial loads, a different type of bearing, such as a thrust bearing, should be considered. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Friday, March 13, 2026
