TEXAS INSTRUMENTS TI164 164-1114

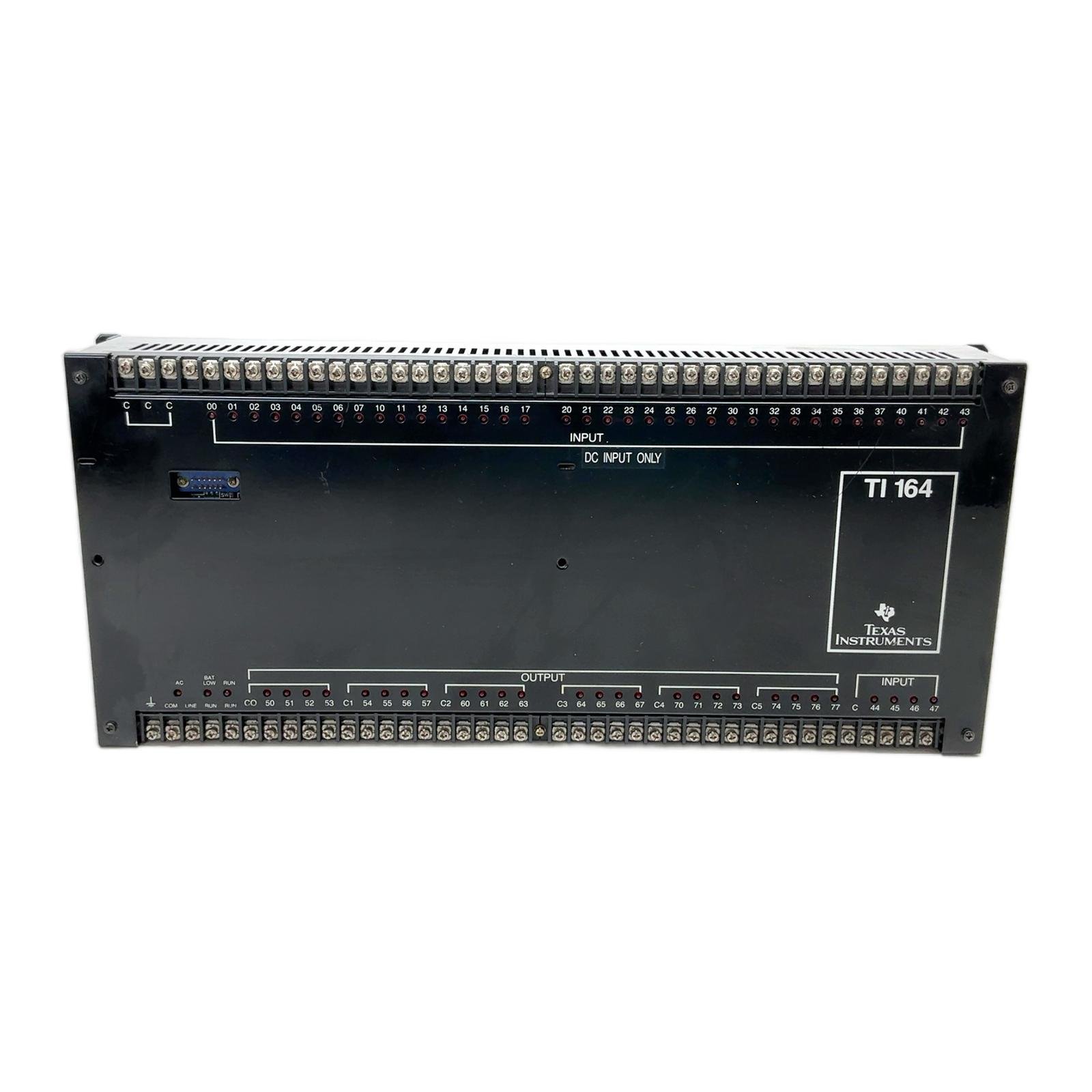

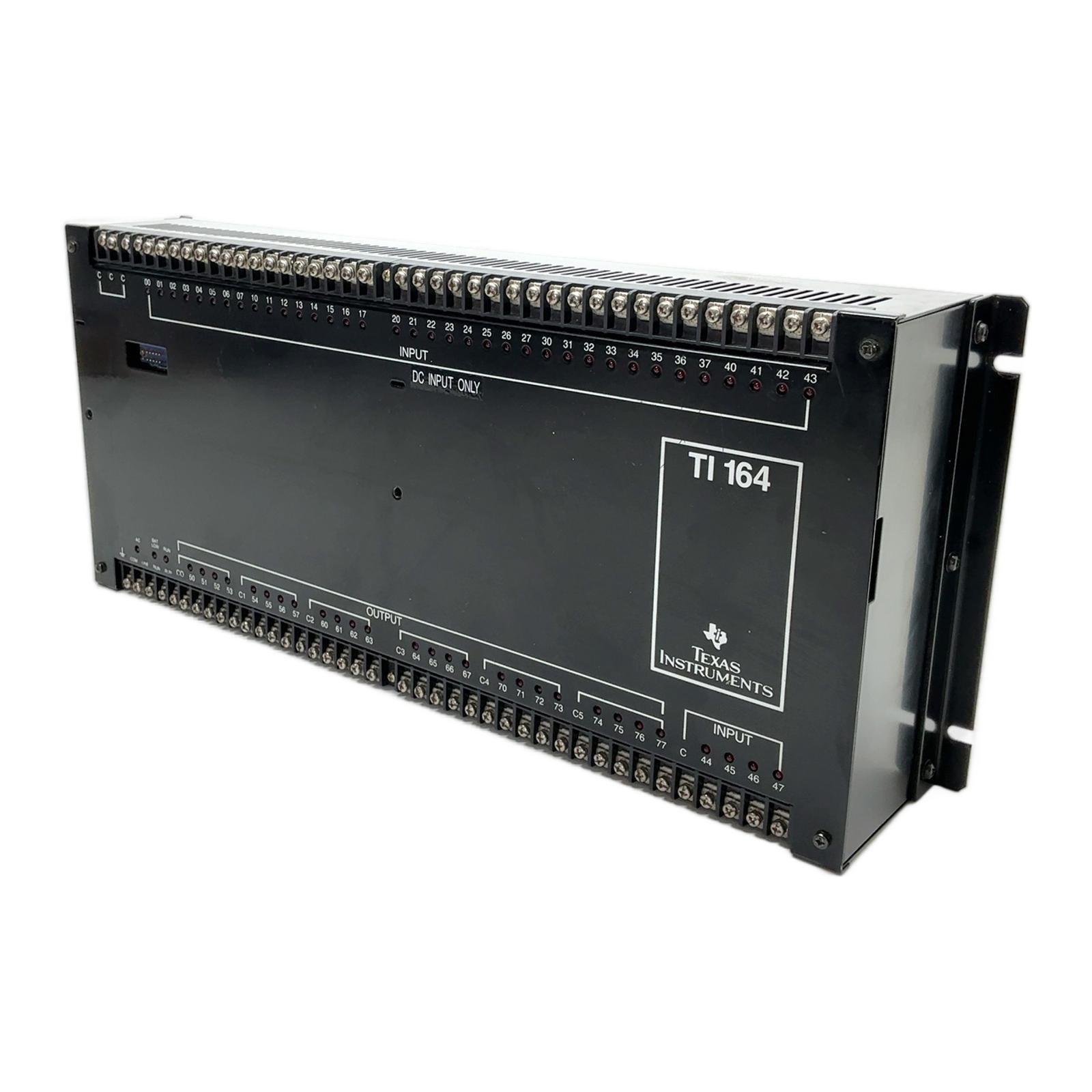

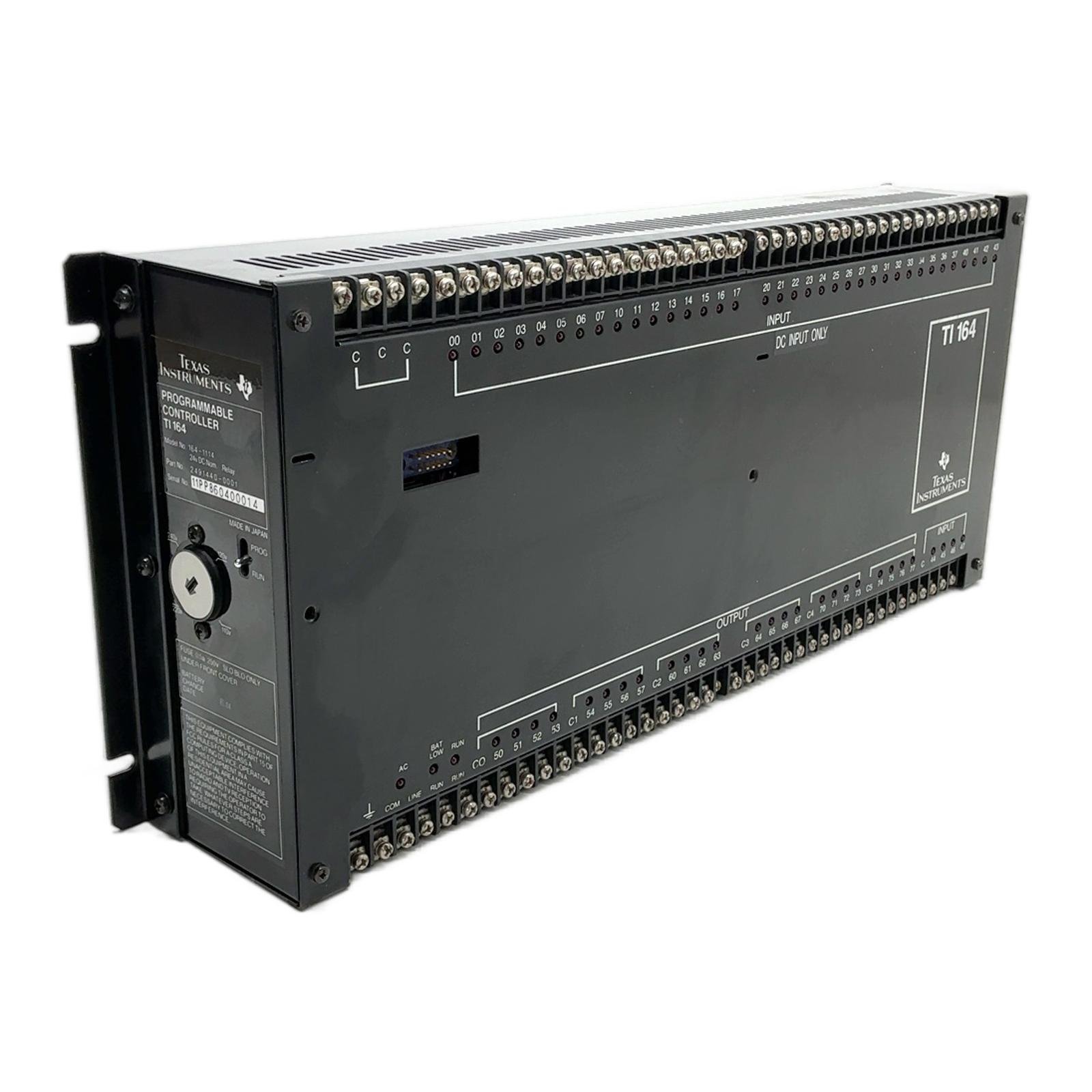

Texas Instruments TI 164 PLC – A Reliable Legacy Controller Description This is a Texas Instruments TI 164 Programmable Logic Controller, model 164-1114. As a vintage piece of industrial automation hardware, this PLC is ideal for maintaining or repairing legacy systems that rely on this specific platform. It features a high I/O count in a single block unit, with 44 DC inputs and 26 relay outputs. The integrated, selectable power supply (110V to 240V AC) adds to its versatility. This unit is a testament to the robust engineering of its time. Specifications Manufacturer: Texas Instruments Model: TI 164 Input Voltage: Selectable 110V, 120V, 220V, 240V AC Digital Inputs: 44 points (24V DC Nominal) Digital Outputs: 26 points (Relay) Programming Interface: DB-style port (cable/software not included) Label Info Model No: 164-1114 Part No: 2491440-0001 Serial No: 11PP860400014 Application This controller is designed for various industrial automation tasks, including machine control, process monitoring, and sequential operations. It is particularly valuable for facilities with existing machinery controlled by the Texas Instruments TI series PLCs. Country of Origin Made in Japan. CO2 Impact By purchasing this pre-owned PLC, you are helping to avoid the production of a new unit, saving an estimated 140 kg of CO2 emissions. This choice supports a circular economy and reduces industrial waste. Availability This item is in stock and ready for immediate dispatch. All our legacy components are carefully handled to ensure they reach you in good working condition. Order now from profideals for expert support and fast delivery. FAQ Question?What programming software and cable are required for the TI 164? Answer: This PLC series predates modern software and typically requires specialized, DOS-based programming software and a proprietary serial communication cable. These are not included and would need to be sourced separately from legacy automation suppliers. Question?The battery change date is from 1988. Does the internal battery still hold a charge for program retention? Answer: It is highly unlikely that the original battery is still functional. For reliable program retention during power loss, the internal battery should be replaced with a new, compatible type before being put into service. Question?Can this PLC’s I/O be expanded, or is it a fixed-I/O unit? Answer: The TI 164 is a fixed, block-style PLC. It does not support external I/O expansion modules. The 44 inputs and 26 outputs are the total capacity of this specific controller. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
