RITTAL SV9343.050
RITTAL SV9343.050
€ 91,95
2 op voorraad
2 op voorraad
Betaalmethode:
Specificatie
| Gewicht | 7,00 kg |
|---|---|
| Packing Quantity |
1 Unit(s) |
| Unit of Measure |
Unit(s) |
| Brand |
RITTAL |
| Category |
Control and Switch Gear |
| Description |
Switch Disconnector |
| MPN |
SV9343.050 |
| Other Notations |
SV9343.050 |
| Fabr. Art. Nr. |
SV9343050 |
- Ophalen in ons magazijn
Roosendaal
Vandaag
- Standaard levering
Nederland
België
1-2 dagen
1-2 dagen
Omschrijving

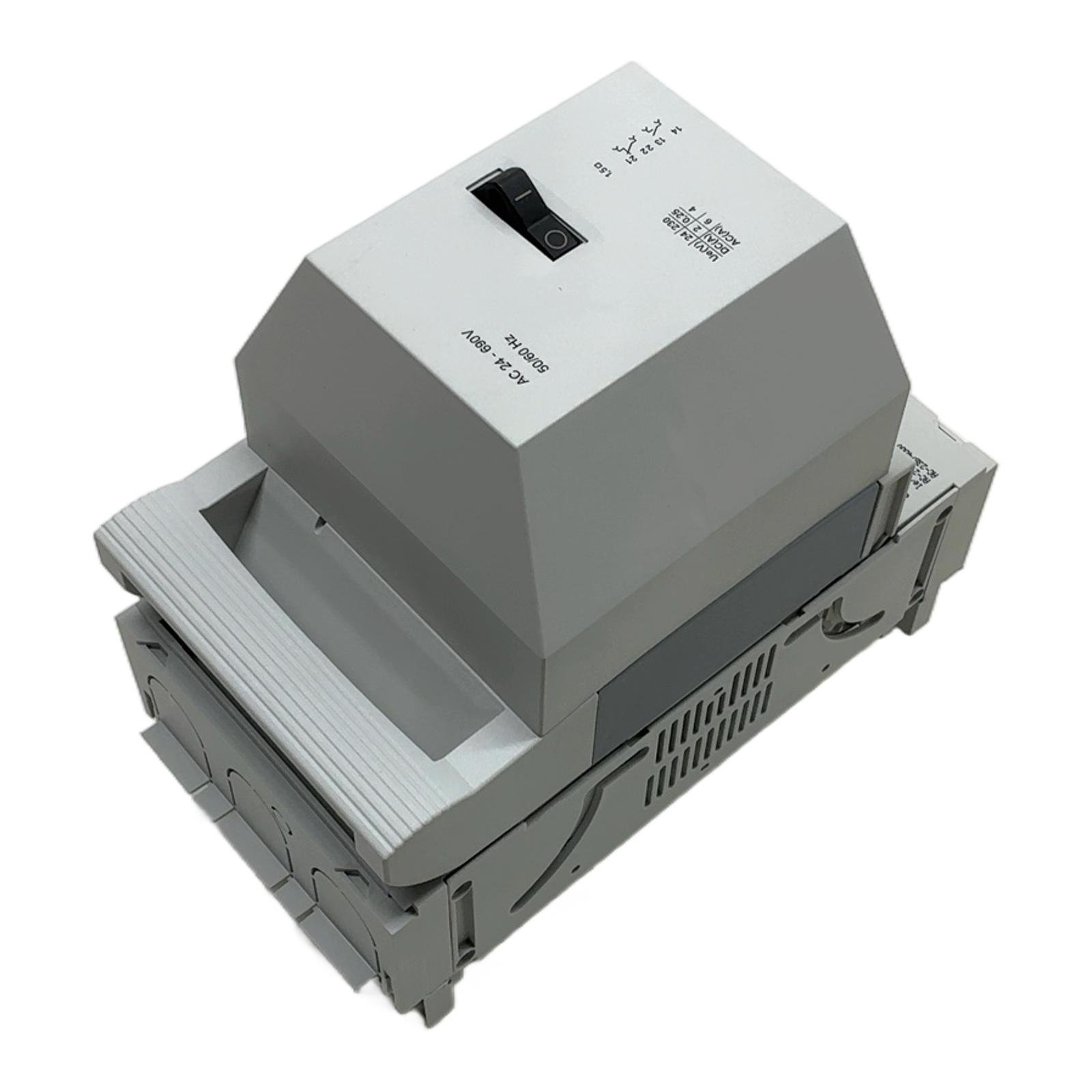

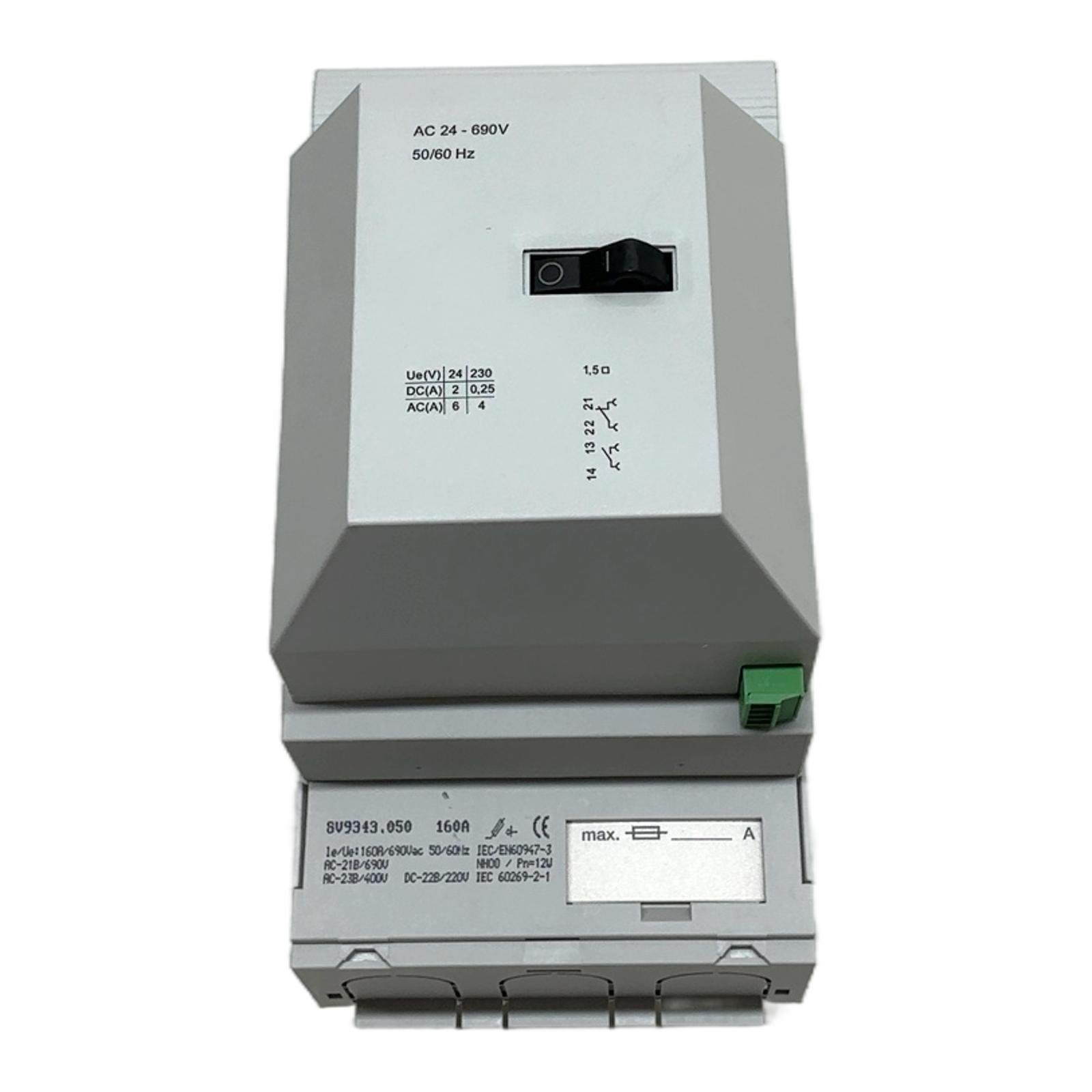

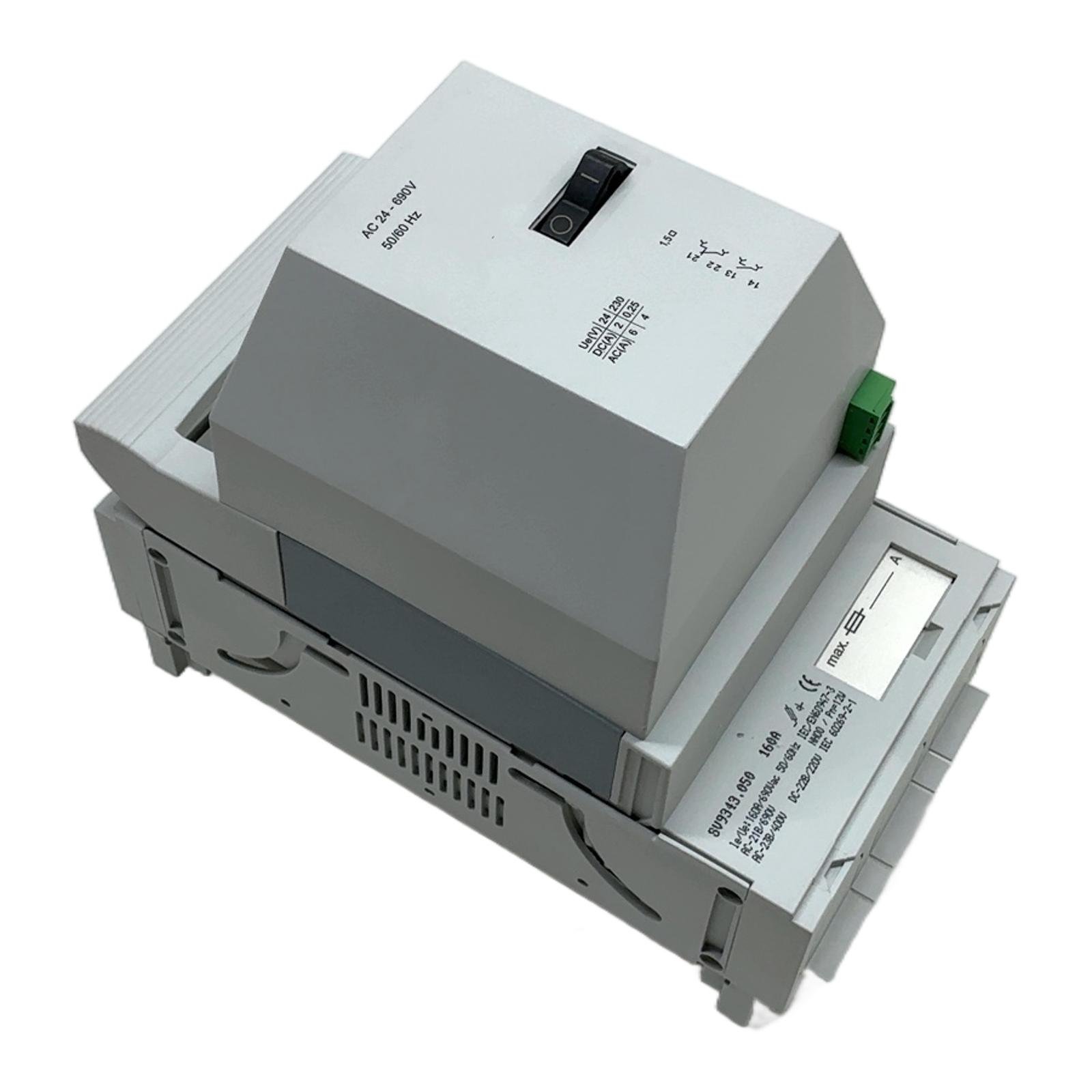

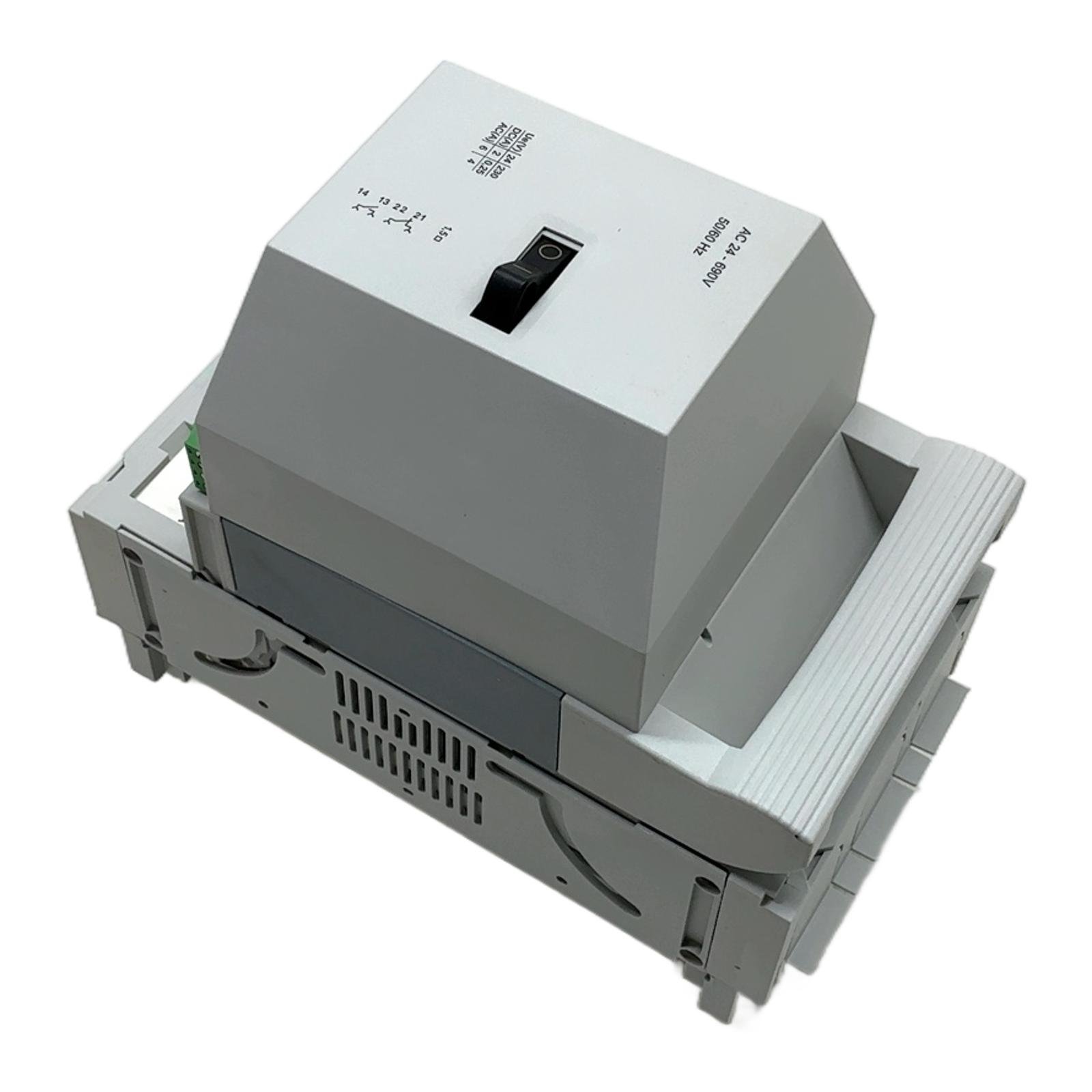

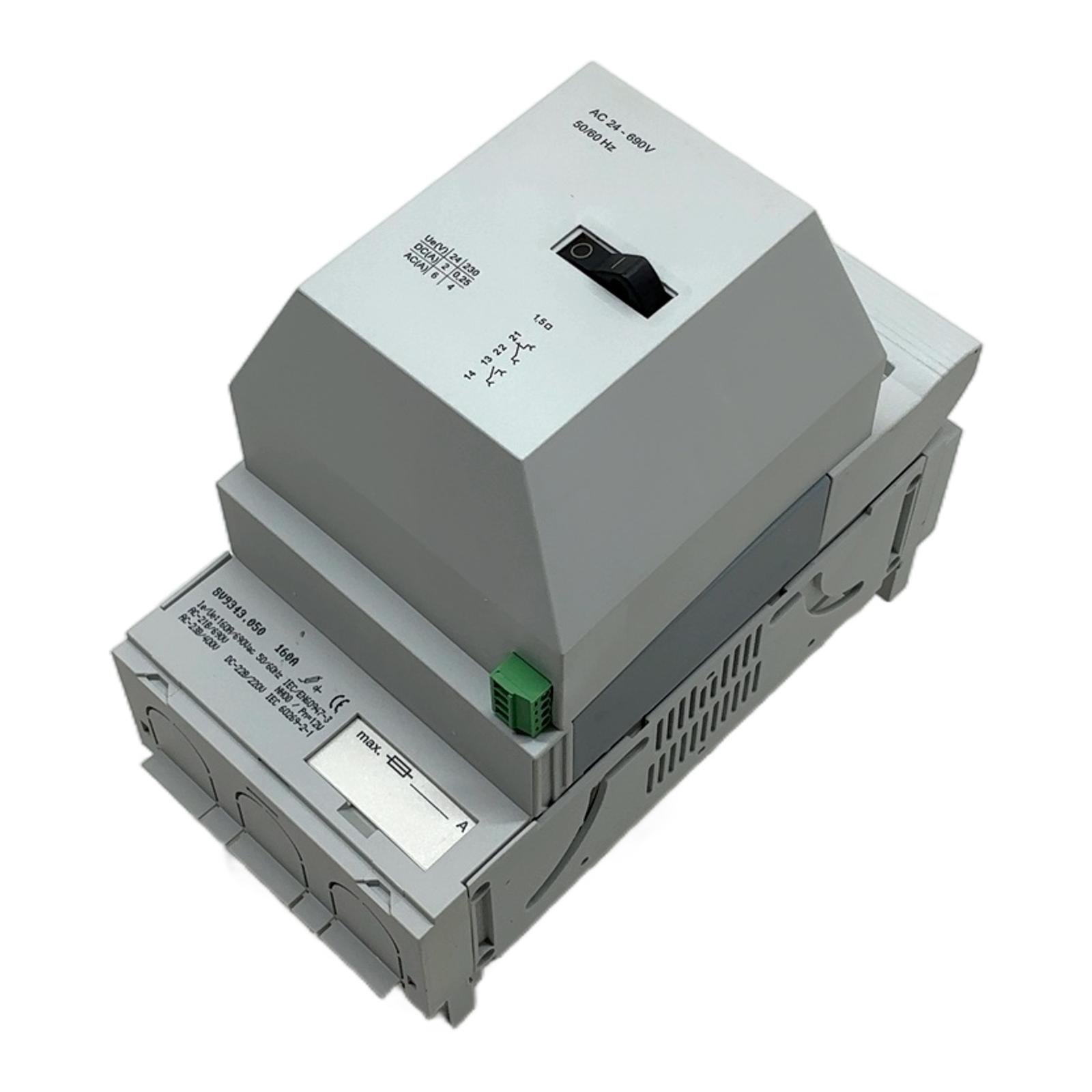

Rittal SV 9343.050 NH Fuse Switch Disconnector Description The Rittal SV 9343.050 is a high-quality NH fuse-switch-disconnector designed for the RiLine60 busbar system. This 3-pole unit is rated for 160 A and accommodates NH fuse links of size 00. It provides robust circuit protection and a safe means of isolation for industrial applications. A key feature is its integrated electromechanical fuse monitoring, which signals the status of the fuses for improved system uptime and maintenance planning. Specifications Manufacturer: Rittal Part Number: SV 9343.050 Product Family: RiLine60 Rated Operational Voltage: 690V AC Rated Current (Ith): 160 A Number of Poles: 3 Compatible Fuse Size: NH 00 Busbar Spacing: 60 mm Features: Electromechanical fuse monitoring (MSU) Connection Type: Box terminal Label Info Model: SV 9343.050 Voltage: AC 24 – 690V, 50/60 Hz Standard: IEC/EN 60947-3 Application This component is ideal for use in industrial power distribution boards, control cabinets, and machinery for protecting motors, transformers, and other electrical loads. Its direct mounting on the RiLine60 busbar system saves installation time and space. Country of Origin Made in Germany. CO2 Impact By choosing this reused component, you are helping to avoid approximately 30.8 kg of CO2 emissions compared to purchasing a new one. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What size NH fuse is compatible with the SV 9343.050?This disconnector is designed specifically for NH fuse-links of size 00, with a maximum rated current of 160 A. How does the electromechanical fuse monitoring (MSU) feature work?The MSU feature uses a plunger system within the fuse to activate a microswitch when a fuse blows. This provides a potential-free contact that can be wired to a PLC or indicator light to signal a fault condition immediately. Can this disconnector be mounted on a standard DIN rail?No, the SV 9343.050 is designed for direct mounting onto a Rittal RiLine60 busbar system with a 60 mm centre-to-centre spacing. It is not compatible with standard DIN rail mounting. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
