SKF NU206 ECP

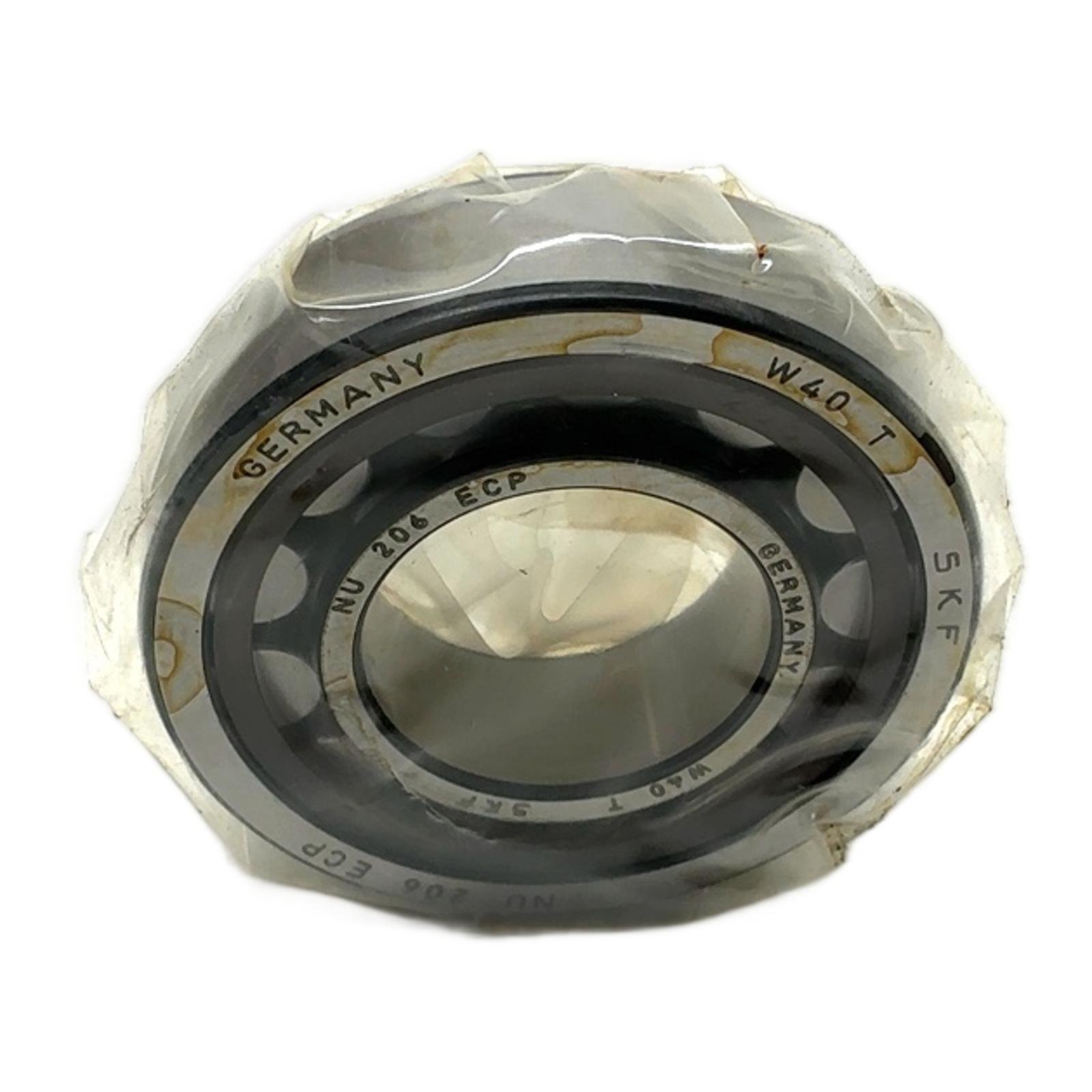

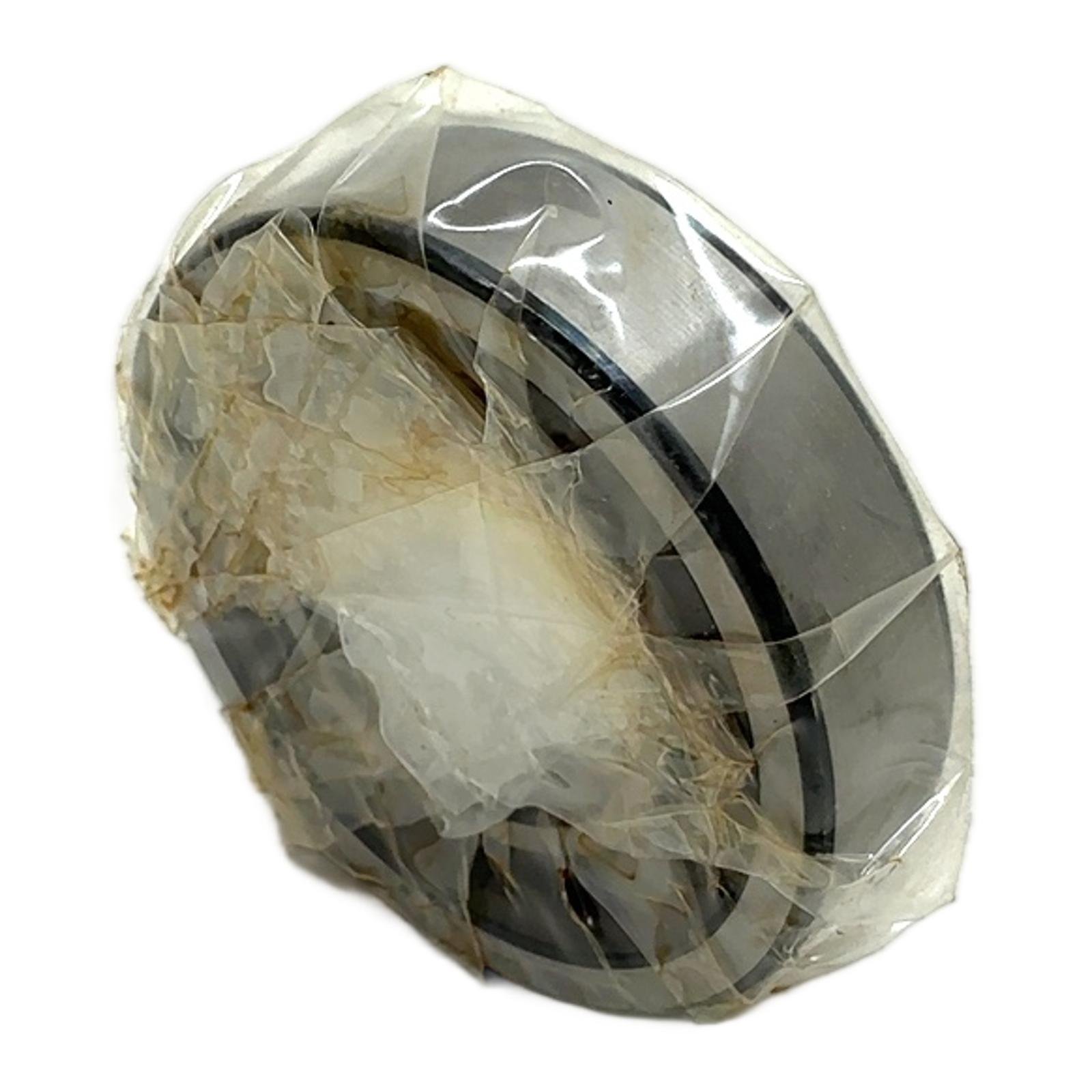

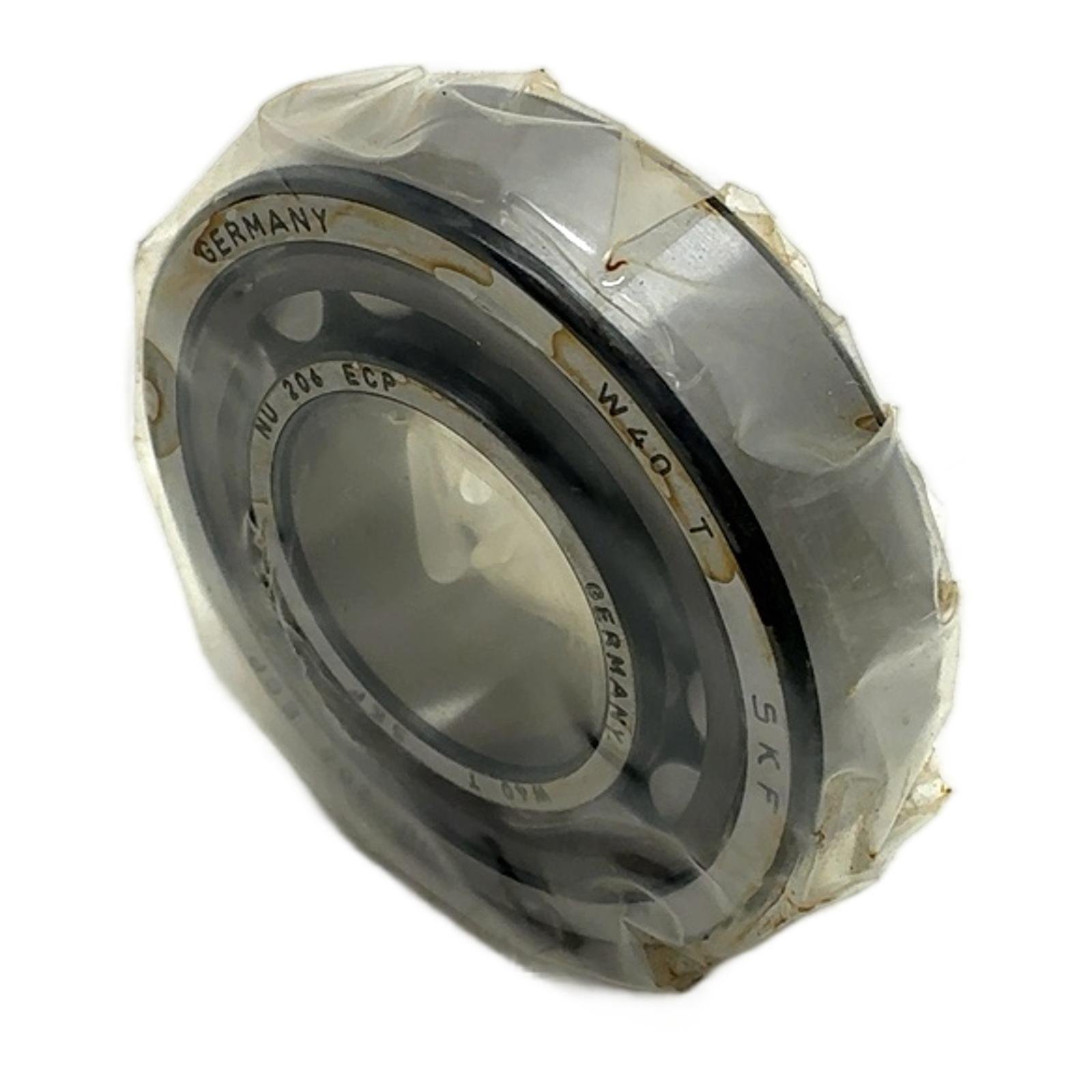

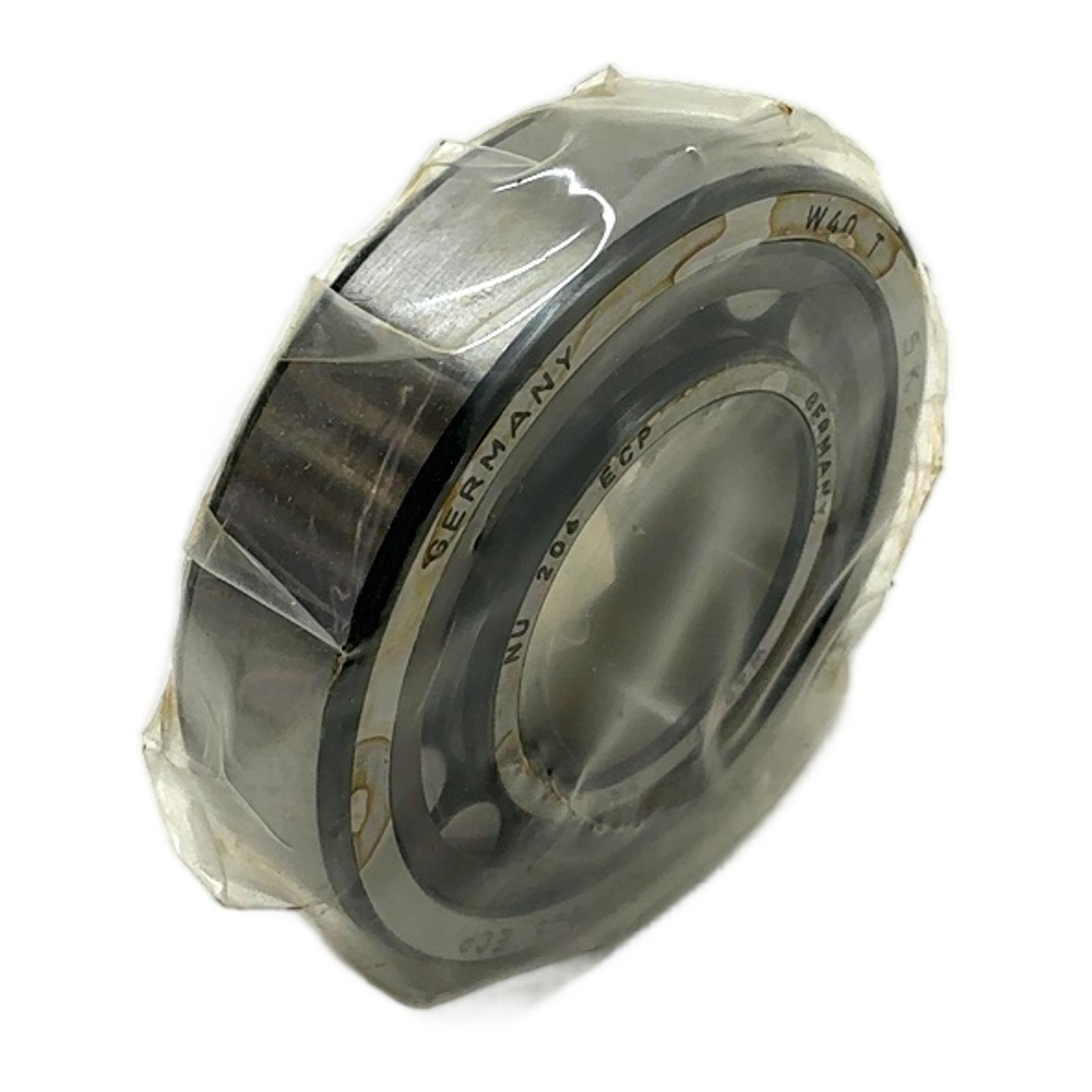

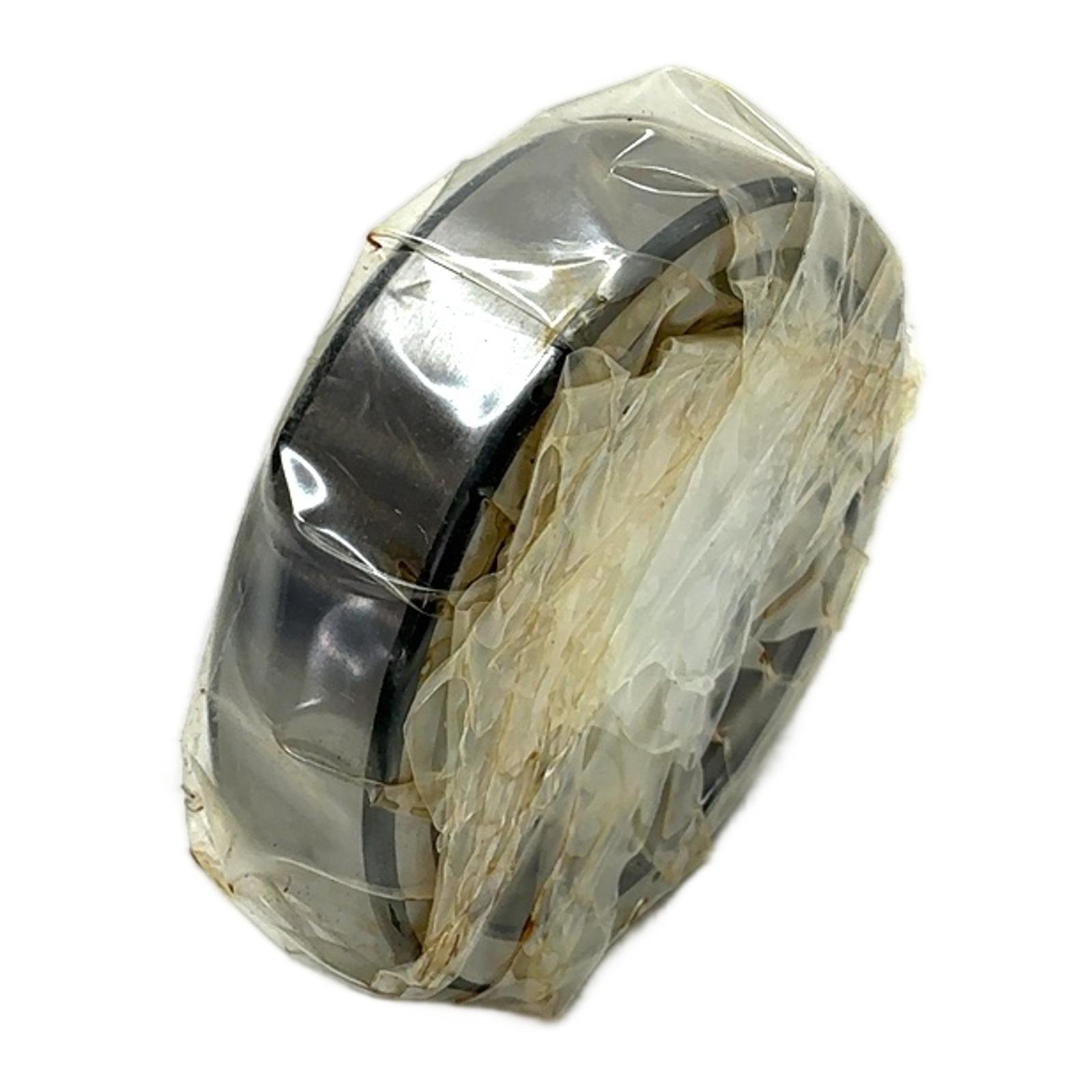

SKF NU 206 ECP Cylindrical Roller Bearing Description This SKF NU 206 ECP is a single-row cylindrical roller bearing, engineered for high performance in industrial applications. It is designed to accommodate heavy radial loads and high speeds. The ‘NU’ design means it has two integral flanges on the outer ring and a flangeless inner ring, allowing for axial displacement of the shaft relative to the housing in both directions. This is a new-old-stock (NOS) item, sealed in its original protective wrap, though the outer cardboard box may show signs of wear. Specifications Manufacturer: SKF Type: NU 206 ECP Category: Single Row Cylindrical Roller Bearing Inner Diameter (d): 30 mm Outer Diameter (D): 62 mm Width (B): 16 mm Cage: ECP – Glass fibre reinforced PA66 cage, roller-centred Design: NU, separable inner ring Load Capacity: High radial load, no axial load Label Info Brand: SKF Model: NU 206 ECP Made in: Germany Application Ideal for use in a variety of applications including industrial gearboxes, pumps, compressors, electric motors, and general machine building where high radial loads and speeds are present. Country of Origin Manufactured in Germany. CO2 Impact Reusing this product saves approximately 0.44 kg of CO2, which is produced when manufacturing a new steel bearing of this size. This is a sustainable choice for your operations. Availability This item is in stock and ready for immediate dispatch. The product is new and unused, sealed in its factory wrap. Order now from profideals for expert support and fast delivery. FAQ What does the ‘ECP’ suffix mean on this SKF NU 206 ECP bearing?The ‘ECP’ suffix indicates an optimized internal design with a glass fibre reinforced PA66 (polyamide) cage. This type of cage is lightweight, allows for higher speeds, and has good resistance to many chemicals. Can this NU design bearing accommodate axial loads?No, the NU design with two flanges on the outer ring and no flanges on the inner ring is designed to accommodate heavy radial loads and high speeds. It can accommodate axial displacement of the shaft relative to the housing but cannot support axial loads. What type of lubrication is suitable for the NU 206 ECP?This bearing is suitable for both grease and oil lubrication. The choice depends on the operating speed, temperature, and load conditions of the specific application. For high-speed applications, oil lubrication is typically preferred. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
