SCHNEIDER ELECTRIC RXM4AB2P7 RXZE2M114

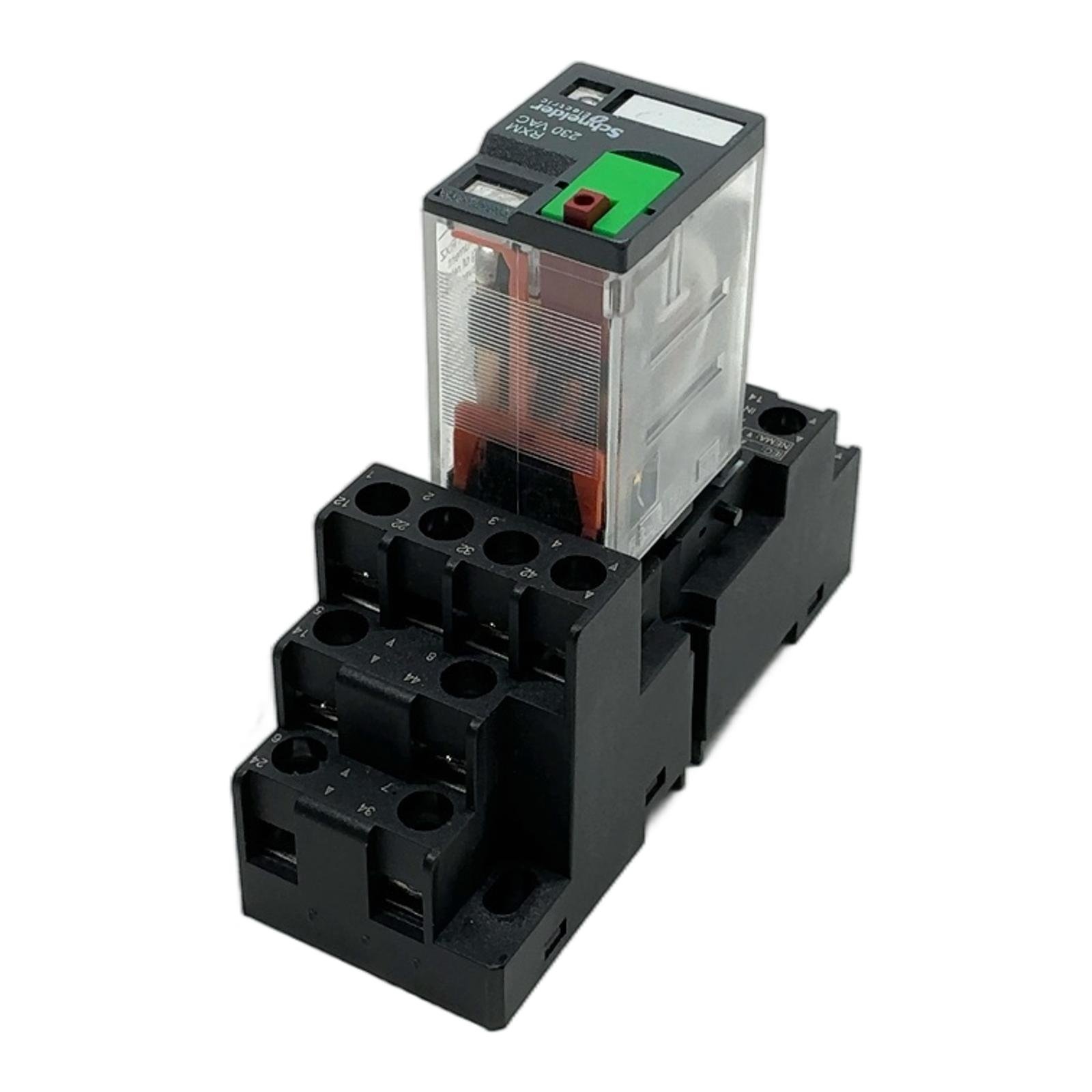

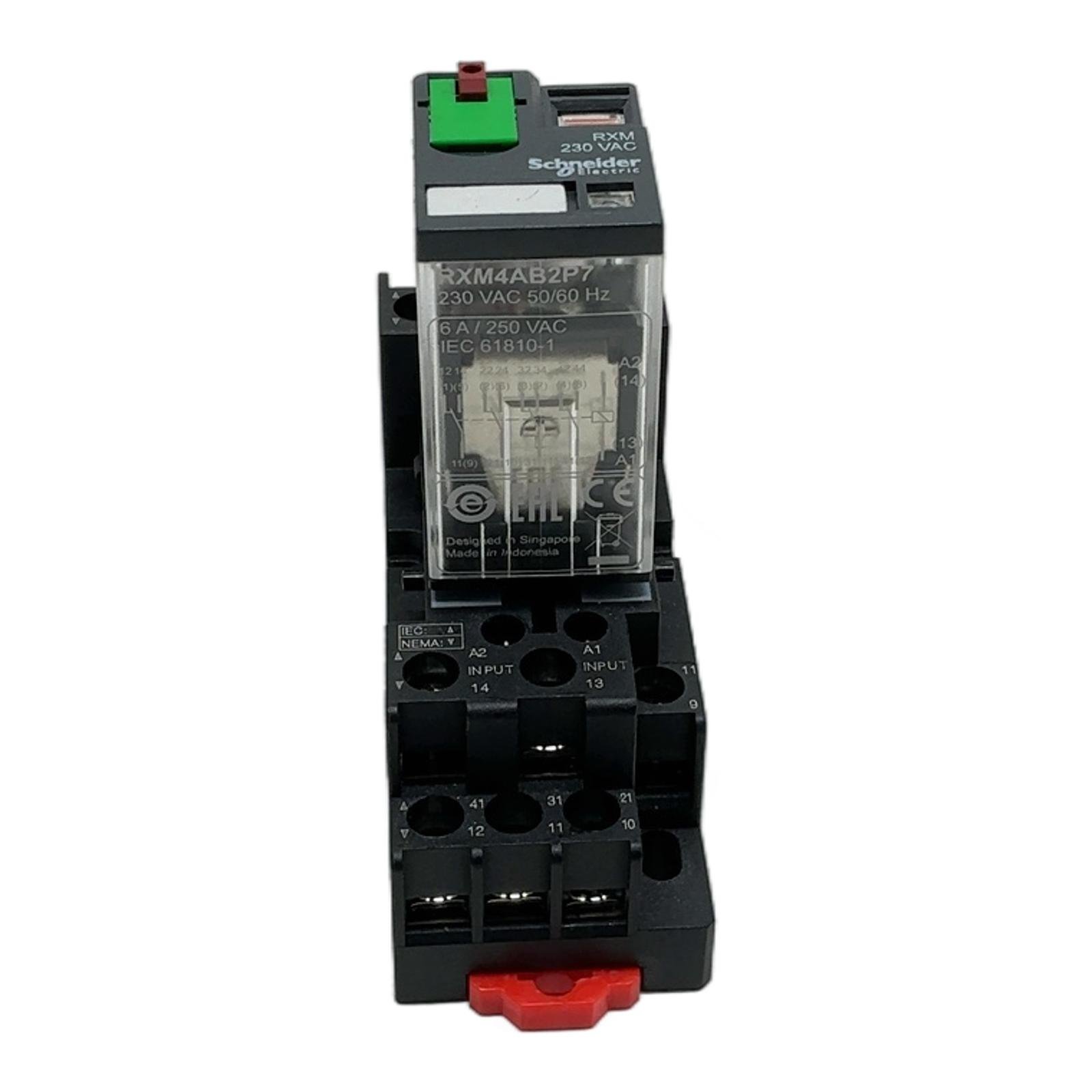

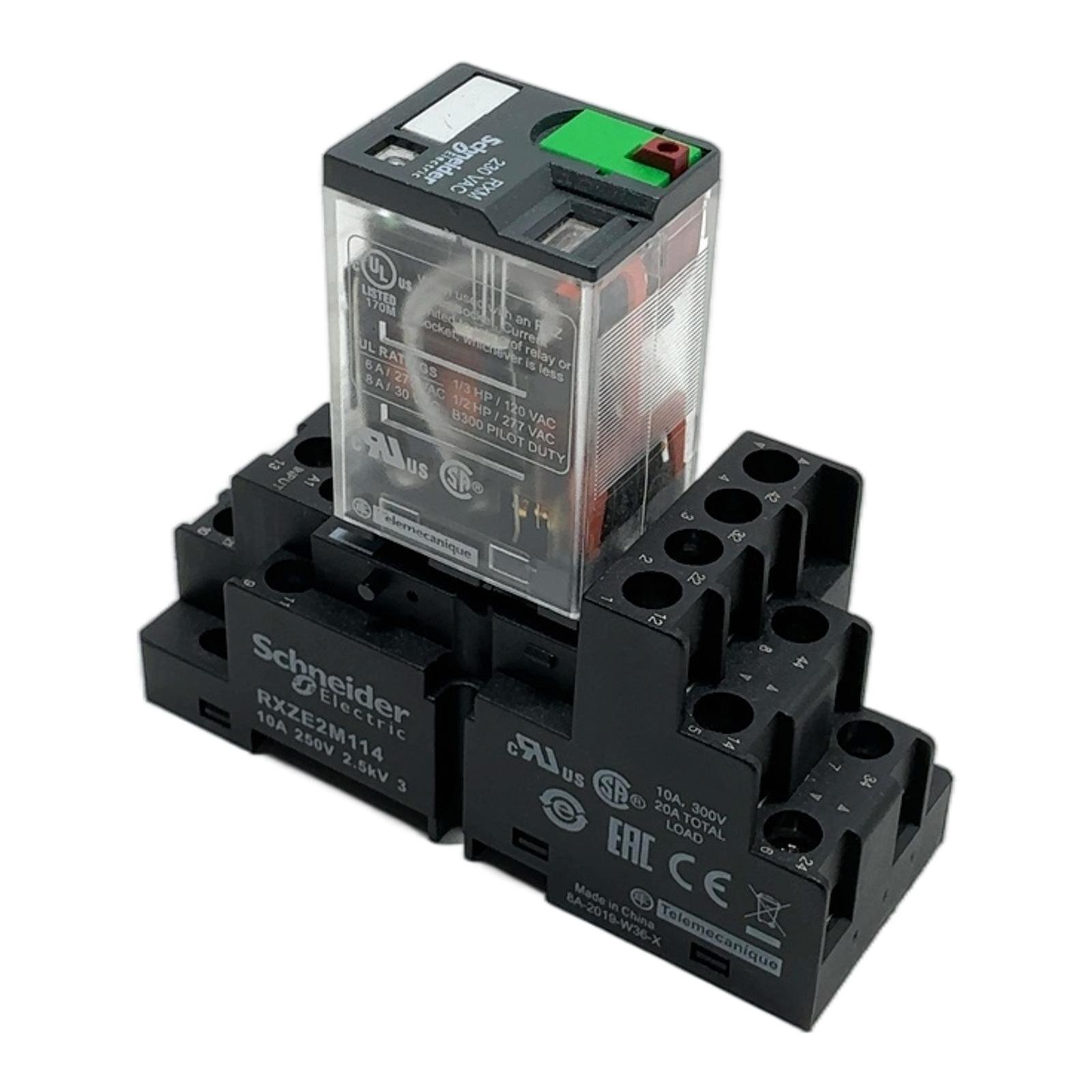

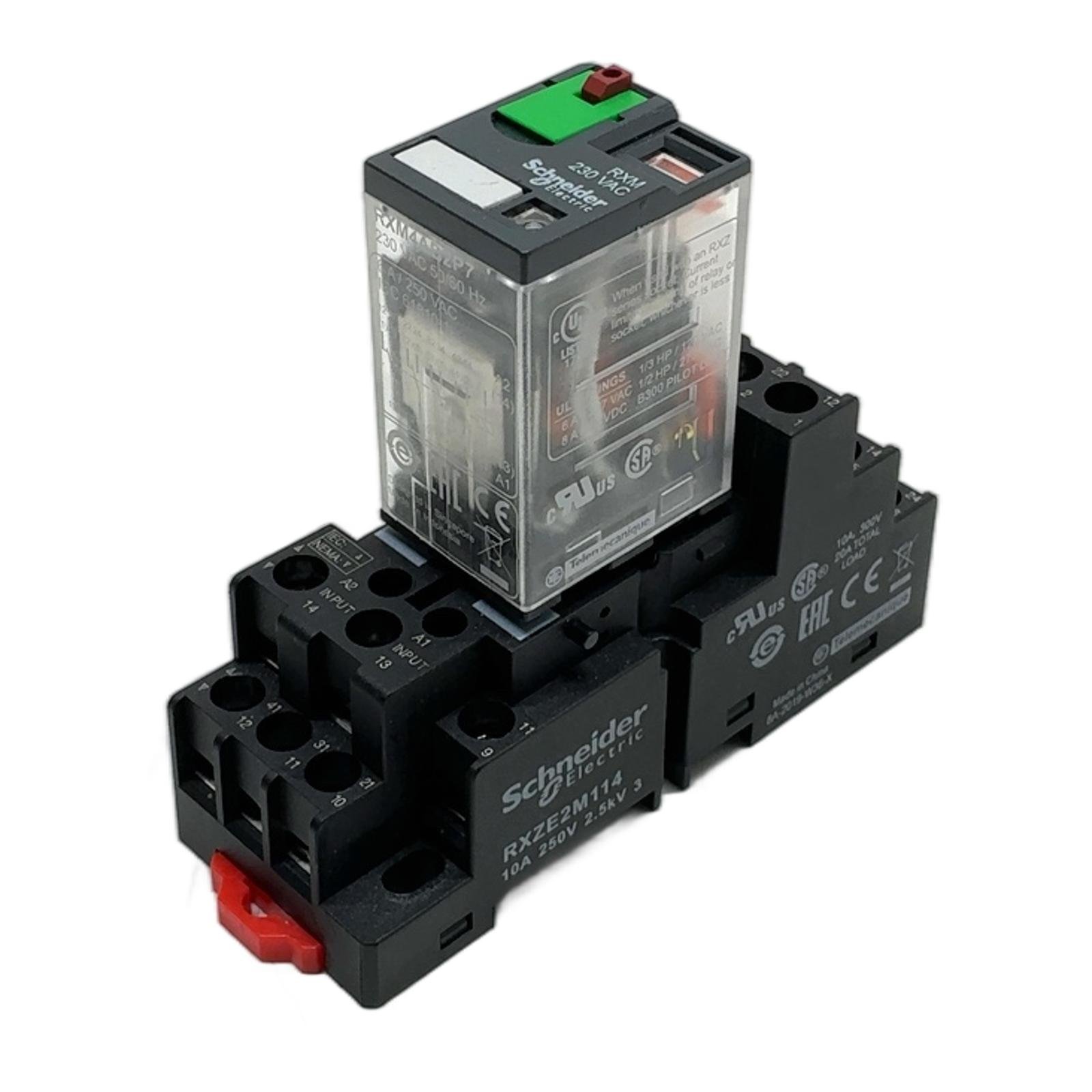

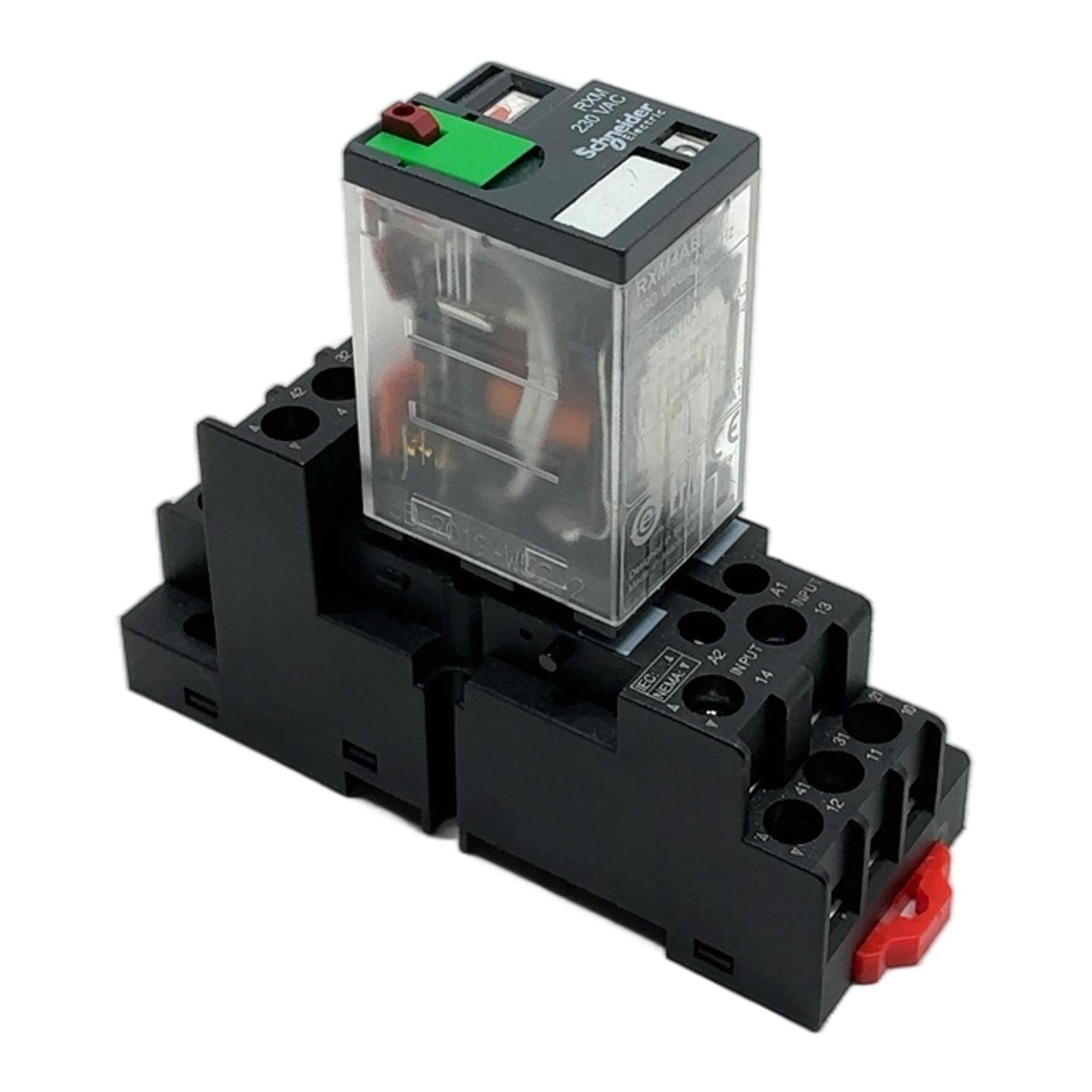

Schneider Electric Zelio RXM Industrial Relay Assembly Description This is a complete industrial relay assembly from Schneider Electric’s Zelio RXM range, featuring the RXM4AB2P7 miniature plug-in relay and the compatible RXZE2M114 socket. It’s a versatile solution for control panel and automation tasks, offering reliable performance and easy installation. Specifications Relay Model: RXM4AB2P7 Socket Model: RXZE2M114 Coil Voltage: 230V AC, 50/60 Hz Contact Configuration: 4 C/O (4 changeover contacts) Contact Current Rating: 6 A at 250V AC Socket Current Rating: 10 A Mounting: DIN Rail or Panel Mount Label Info Manufacturer: Schneider Electric, Telemecanique Part Numbers: RXM4AB2P7, RXZE2M114 Application Ideal for use in industrial automation panels, HVAC systems, packaging machinery, and other applications requiring reliable electrical switching of control signals and small loads. Country of Origin The relay is manufactured in Indonesia and the socket in China. CO2 Impact By purchasing this pre-owned component, you are contributing to a circular economy and avoiding approximately 2.5 kg of CO2 emissions associated with the production of a new unit. This saving is equivalent to the emissions from driving a car for over 12 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Can the LED indicator on the RXM4AB2P7 be replaced if it fails?No, the LED indicator is an integrated part of the relay’s internal circuit and is not designed to be user-replaceable. If the LED fails but the relay still functions mechanically and electrically, it can still be used, but you lose the visual indication of the coil status. What is the difference between the RXZE2M114 (mixed contact) socket and an RXZE2S114M (separate contact) socket?The RXZE2M114 socket has commoned terminals for the coil and some contact poles, which simplifies wiring for certain applications. The RXZE2S114M socket keeps all terminals separate, providing maximum wiring flexibility, which is necessary for connecting different voltages to the coil and contacts. What is the purpose of the lockable test button on this relay?The green, lockable test button allows for manual actuation of the contacts without energizing the coil. This is useful for testing the controlled circuit during commissioning or troubleshooting. The ‘lockable’ feature allows you to force the contacts into a specific state for extended testing periods. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
