SKF FY30TF

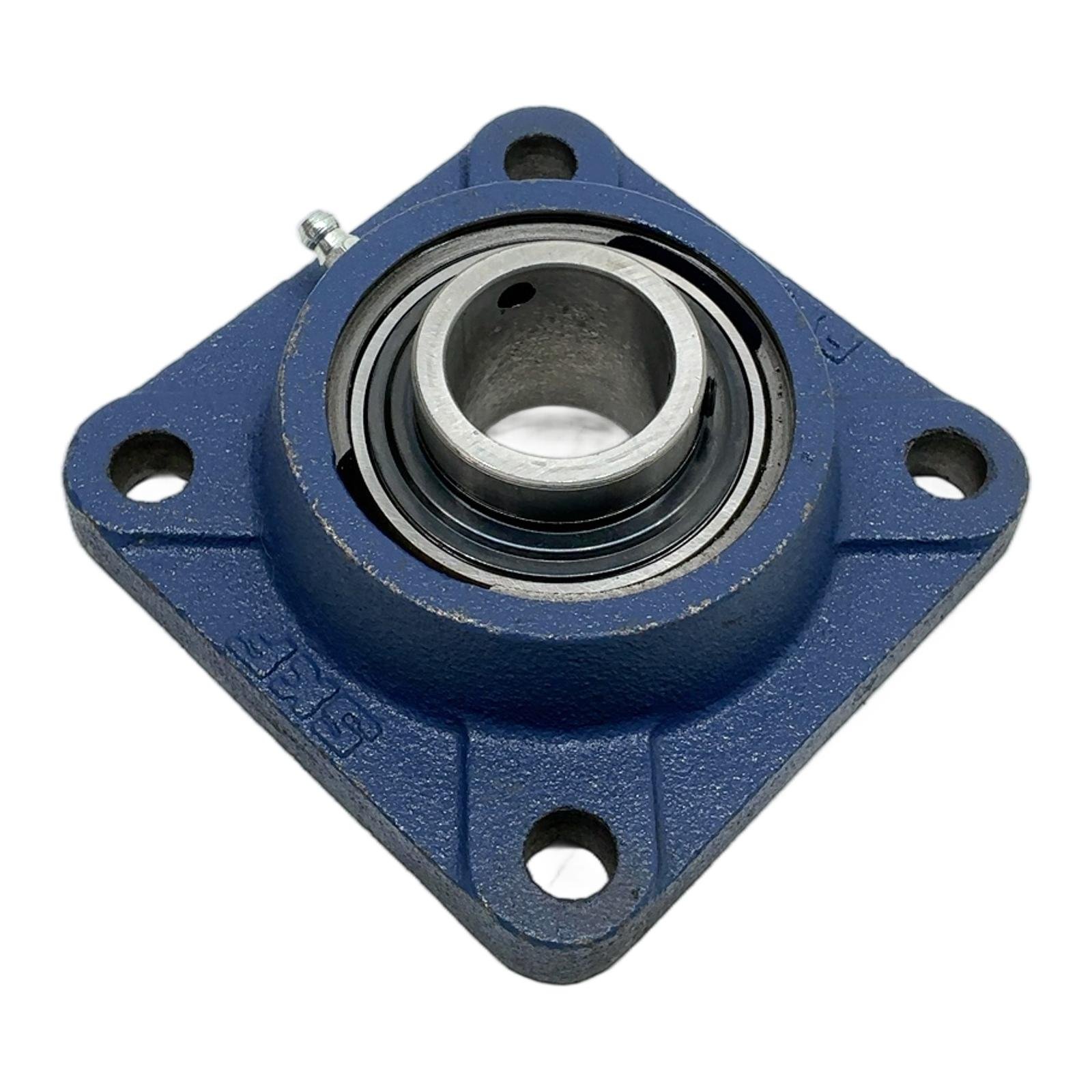

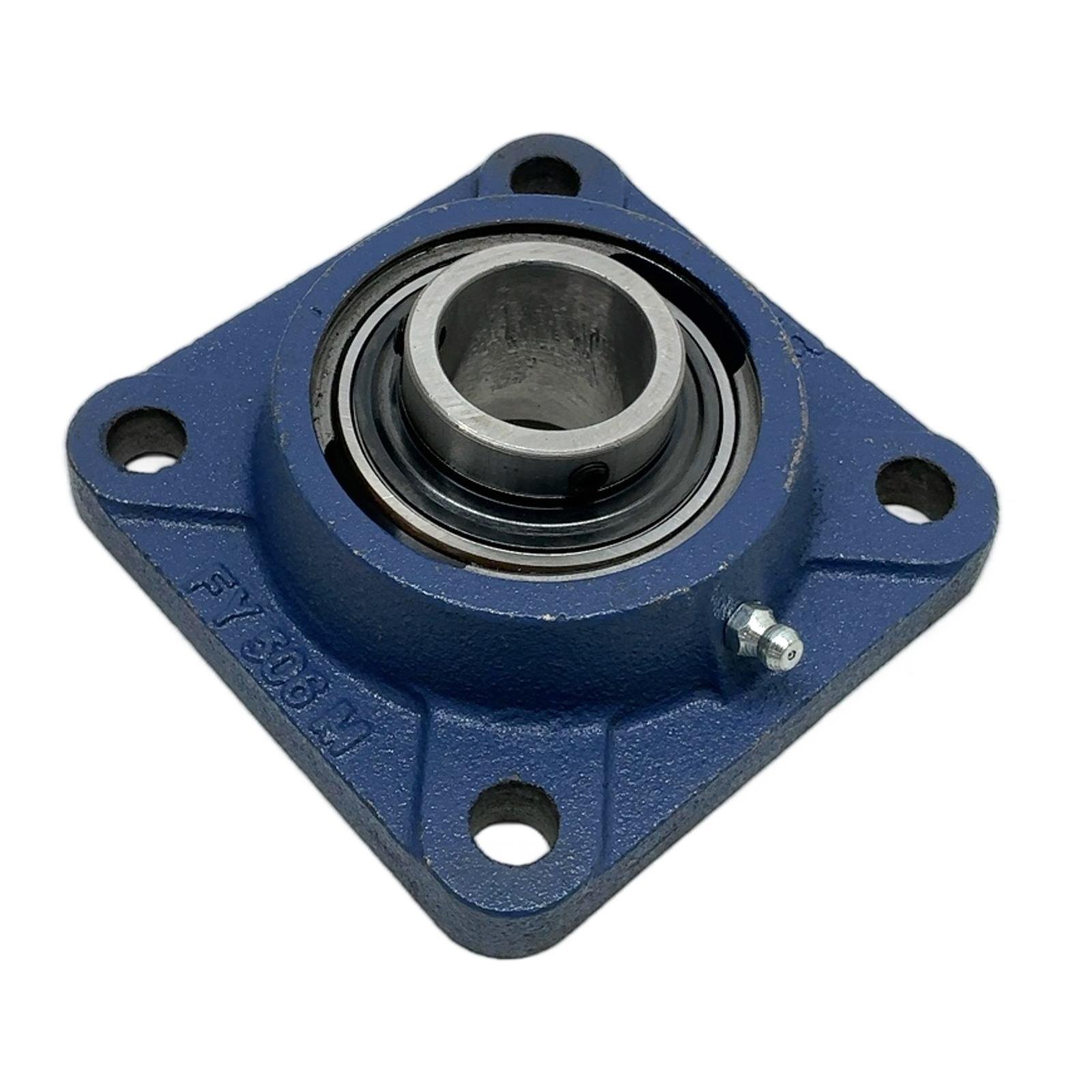

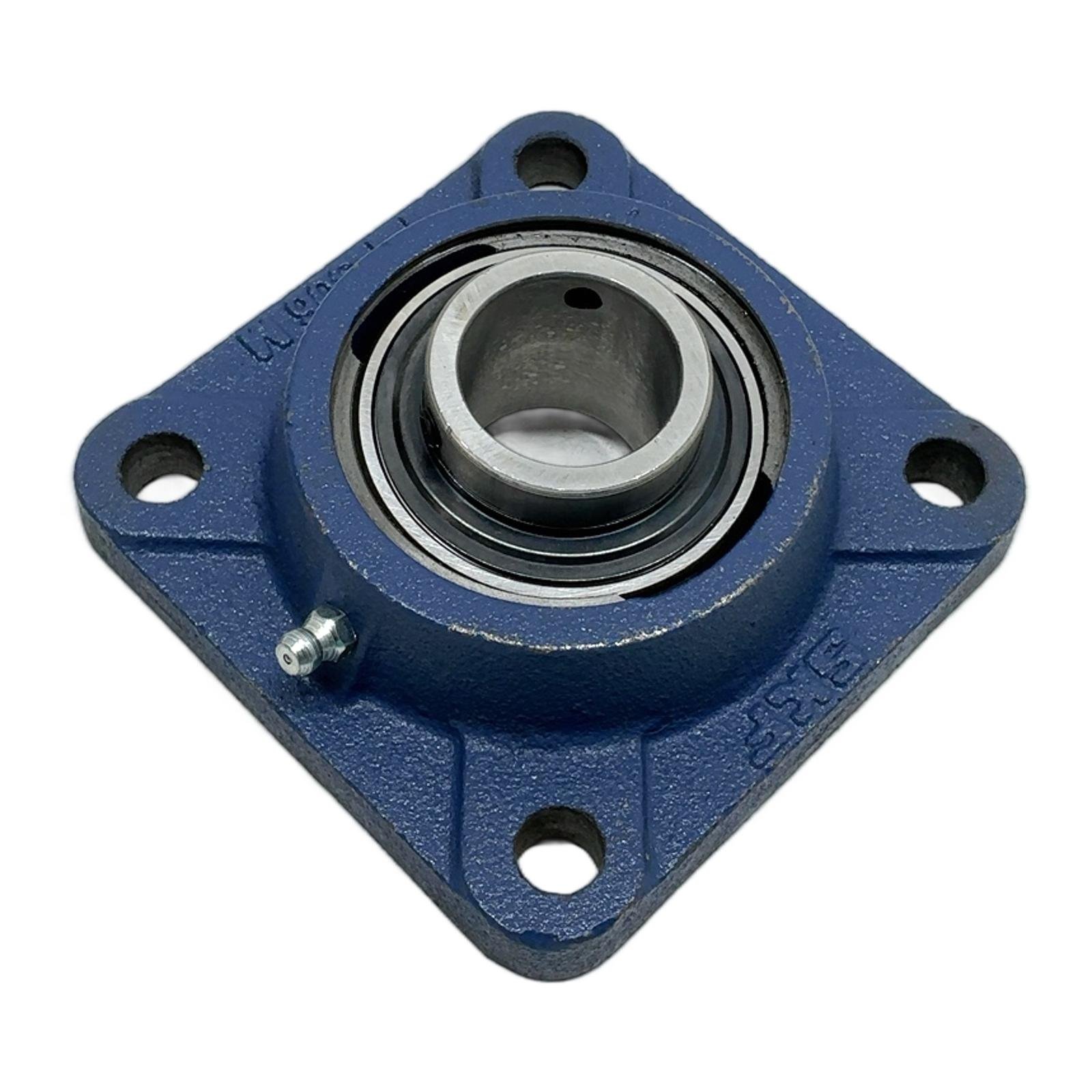

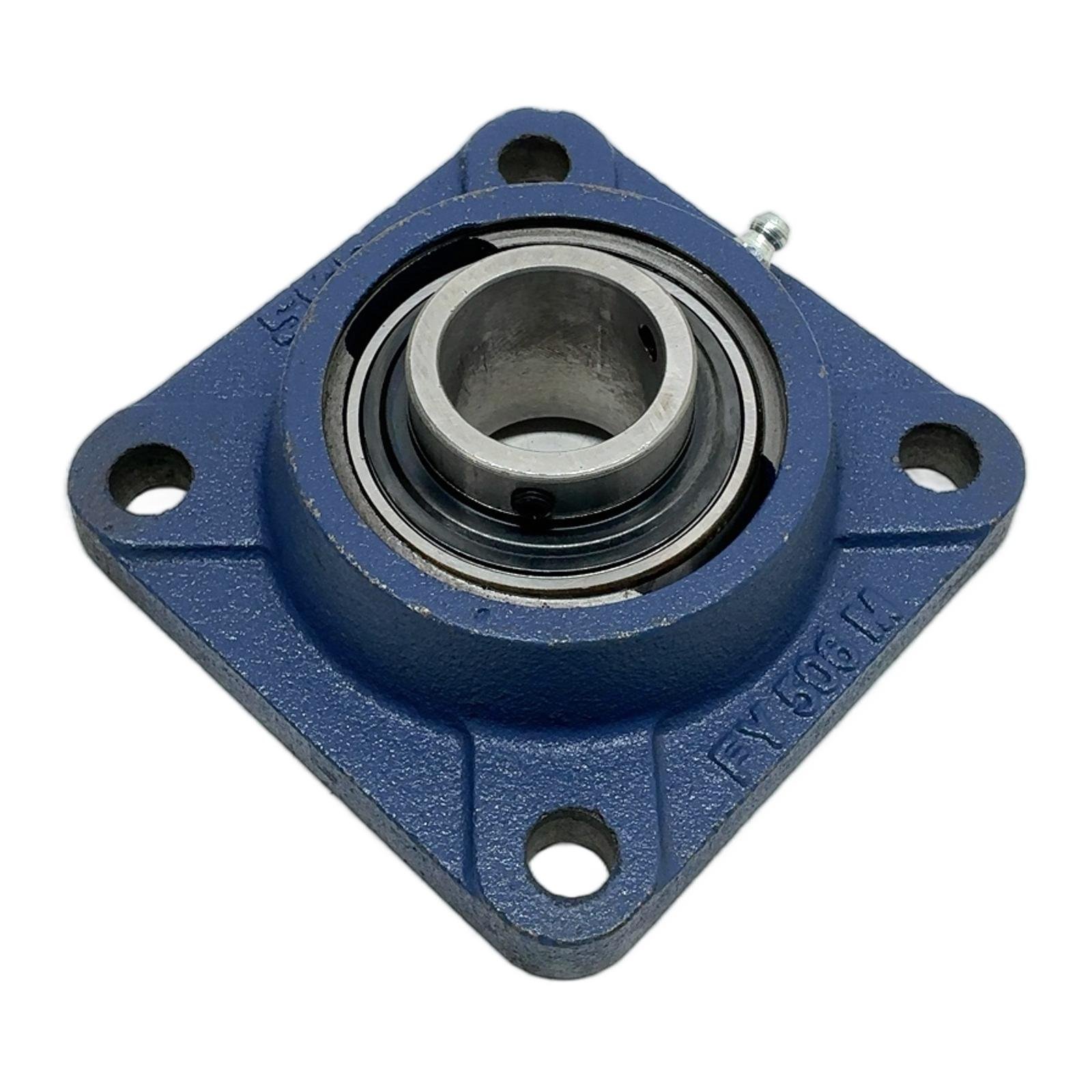

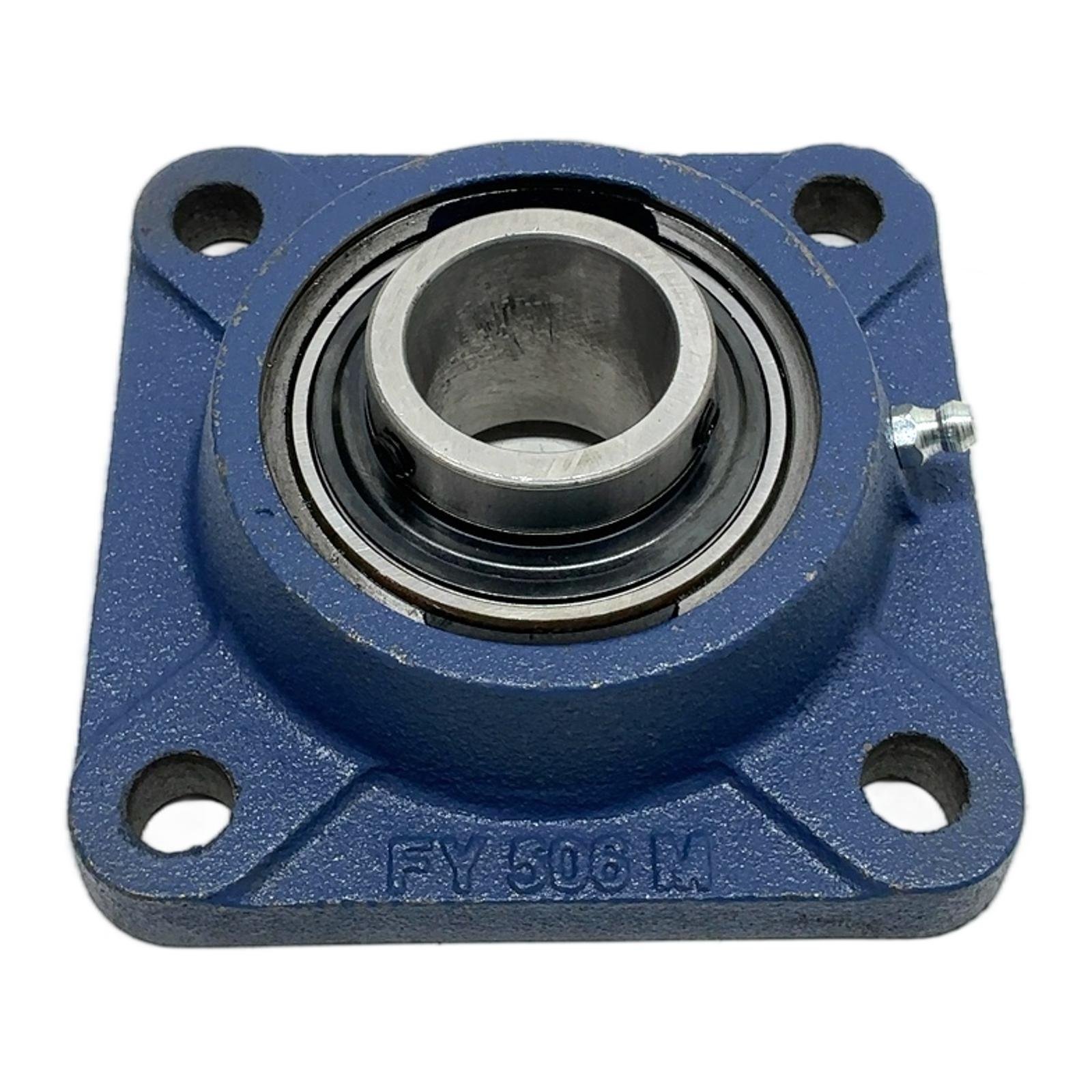

SKF FY30TF Flanged Bearing Unit Description The SKF FY30TF is a high-quality Y-bearing square flanged unit, designed for reliable operation in a wide variety of industrial applications. This unit consists of a robust cast iron housing and a YAR 206-2F insert bearing. It is designed for mounting on a 30mm shaft and is easily secured using two set screws. The integrated sealing system provides excellent protection against contaminants, extending the service life of the bearing. A grease nipple is included for convenient relubrication. Specifications Manufacturer: SKF Model: FY30TF Shaft Diameter: 30 mm Housing Type: 4-Bolt Square Flange Housing Material: Cast Iron Bearing Insert: YAR 206-2F Locking Method: Set screw Sealing: Double lip seal with flinger Label Info Brand: SKF Housing Marking: FY 506 M Bearing Marking: YAR 206-2F Complete Unit Designation: FY30TF Application This flanged bearing unit is ideal for use in agricultural machinery, material handling equipment, food and beverage processing, packaging lines, and general industrial machinery where a simple and effective bearing arrangement is required. Country of Origin The bearing insert is manufactured in Italy. CO2 Impact Choosing this pre-owned bearing unit saves approximately 2.2 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the emissions from driving a car for 11 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the correct tightening torque for the set screws on the FY30TF?For the M6x0.75 set screws used in the YAR 206-2F bearing, SKF recommends a tightening torque of 4 N-m. Can this bearing unit be used in high-temperature applications?The standard YAR 206-2F bearing with its NBR seals is suitable for continuous operating temperatures up to 100 deg C (210 deg F). For higher temperatures, a different bearing insert and grease would be required. What type of grease is recommended for relubricating the YAR 206-2F bearing?SKF recommends using a high-quality lithium complex grease, such as SKF LGWA 2, for general purpose applications. Always ensure the grease is compatible with the existing factory fill. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
