FAGET RM130-E8/2

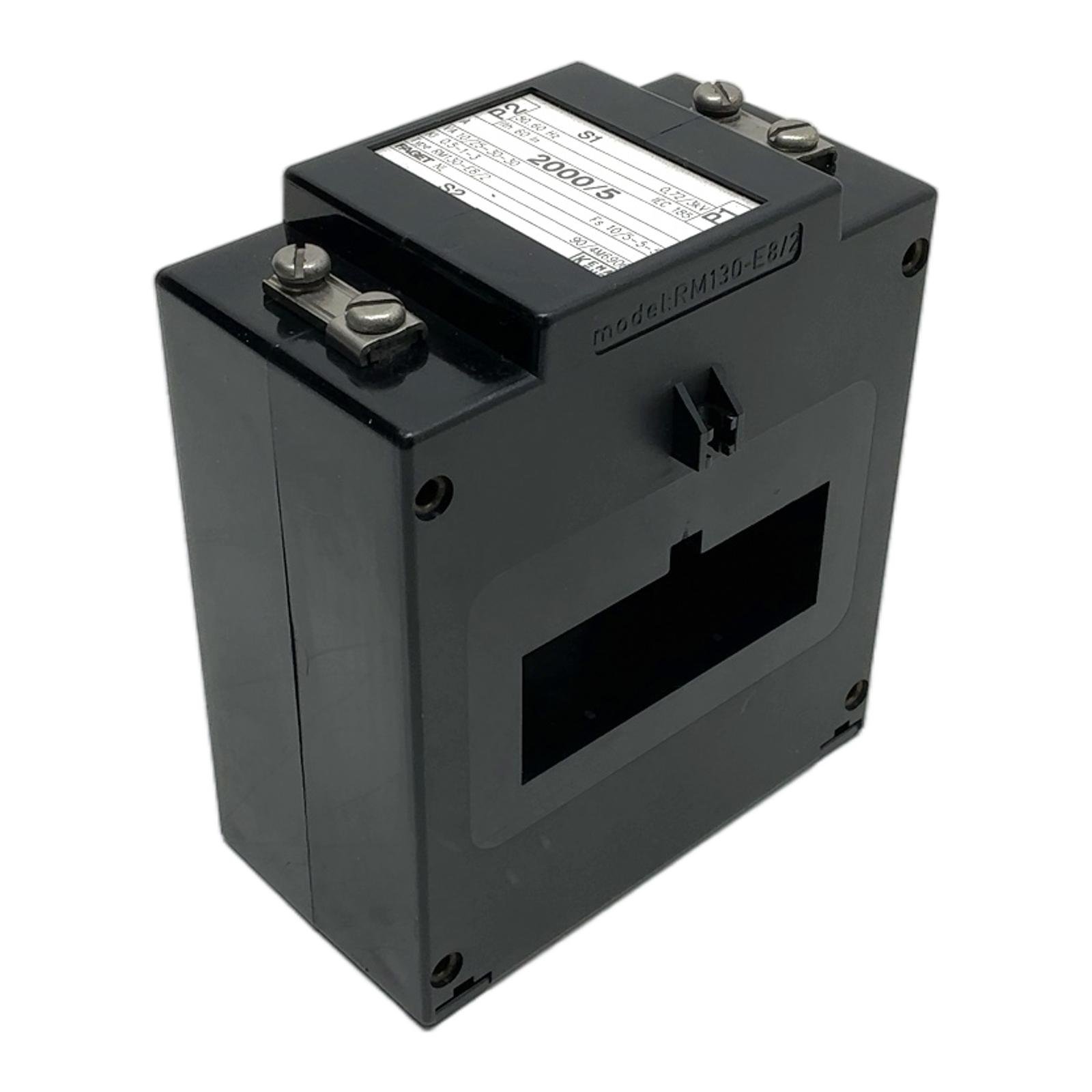

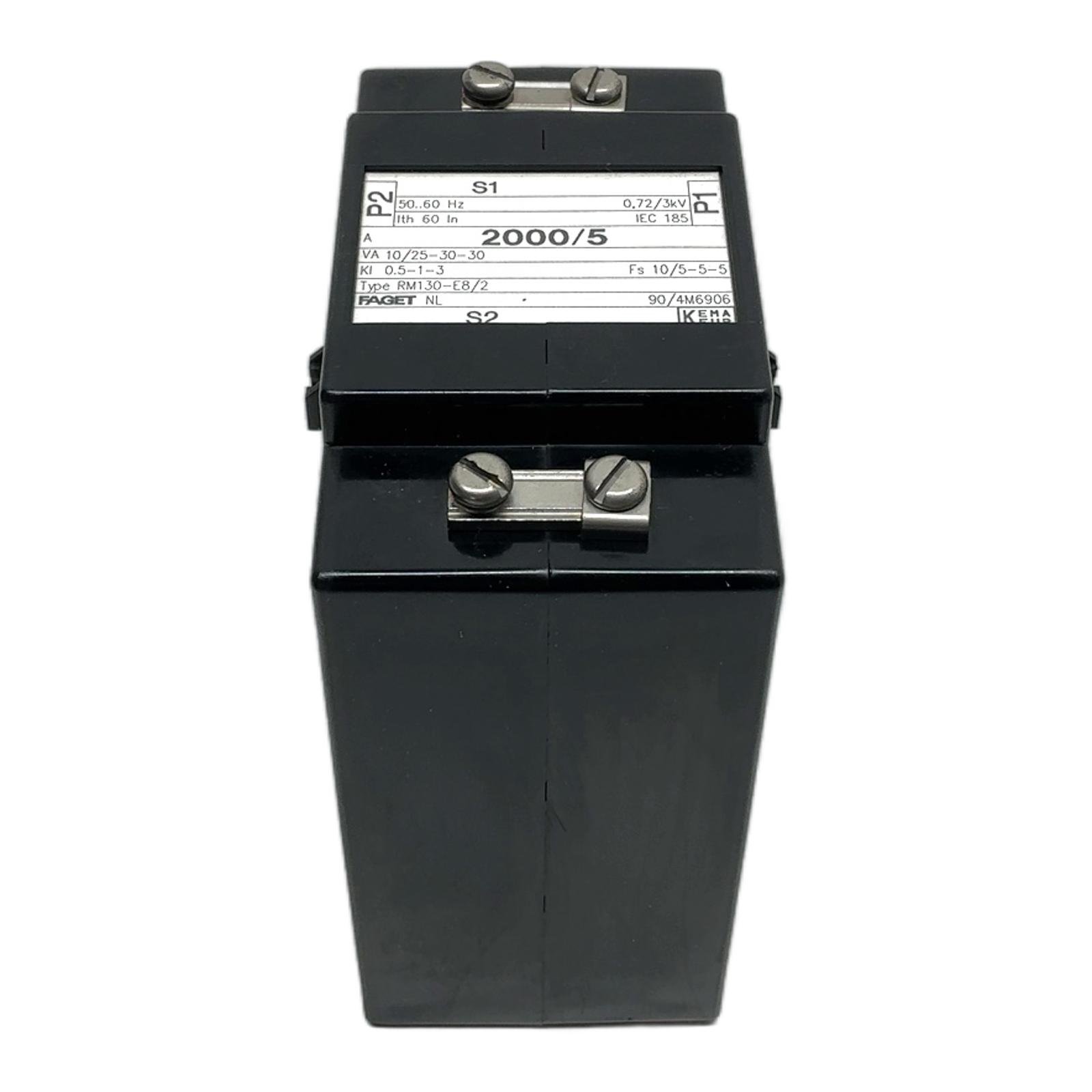

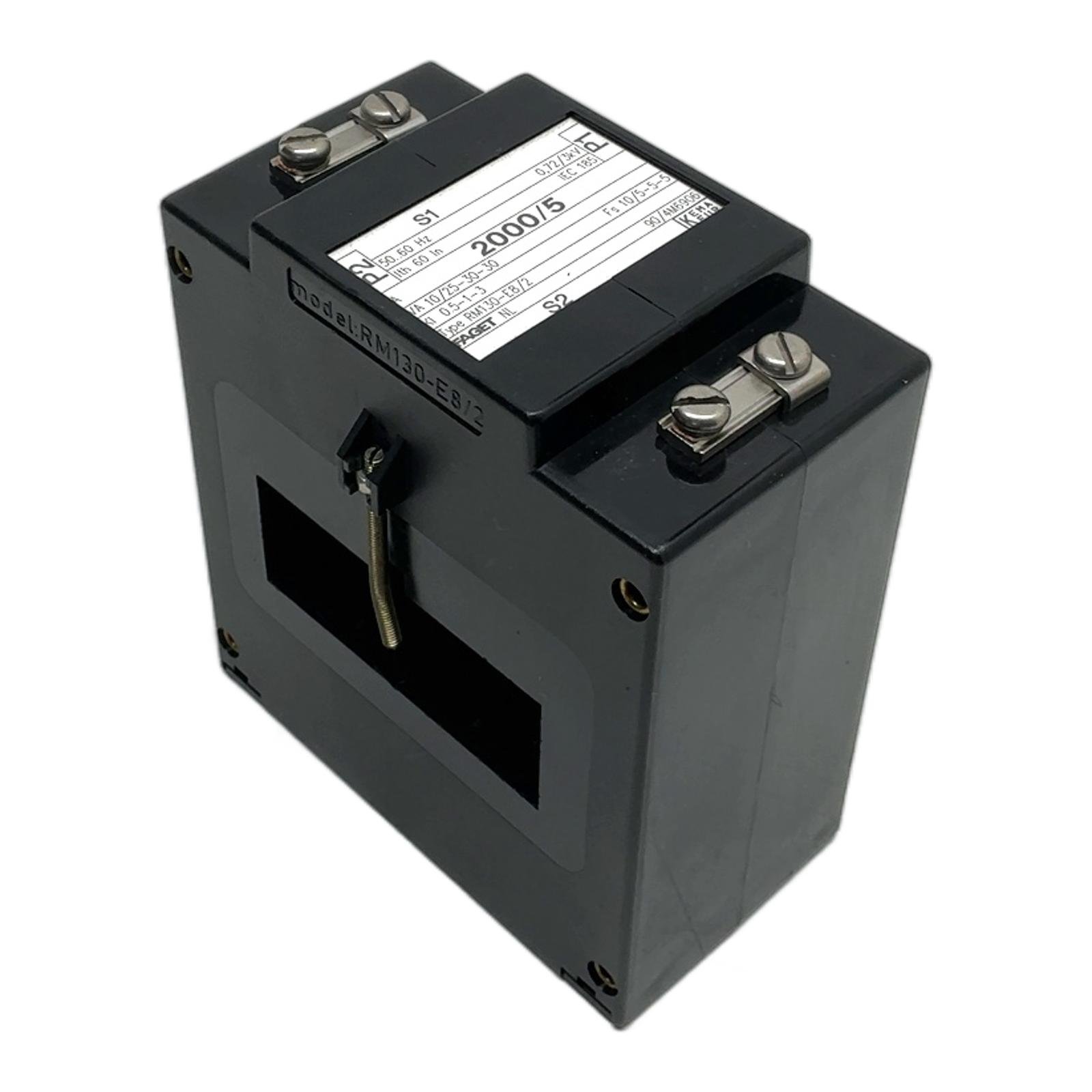

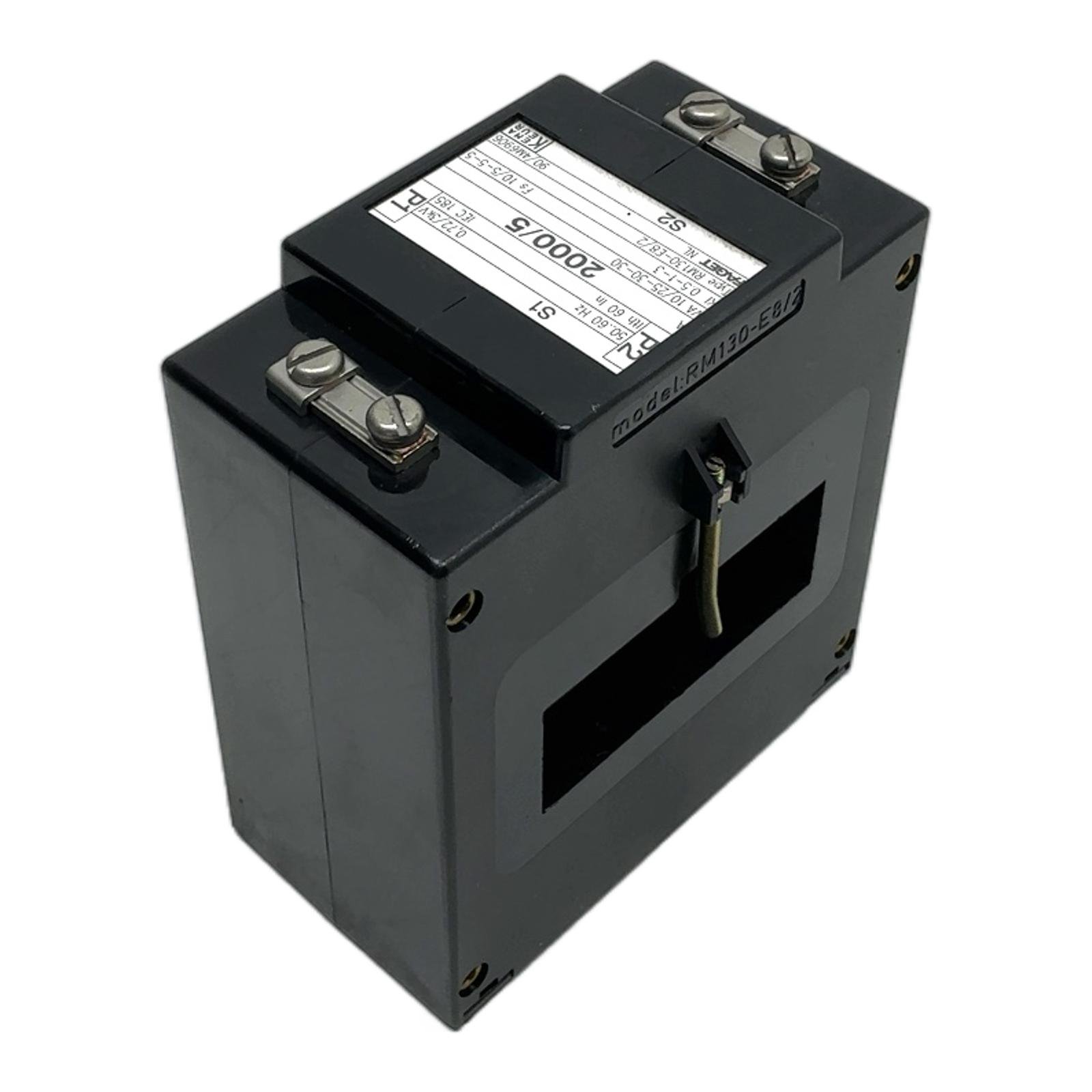

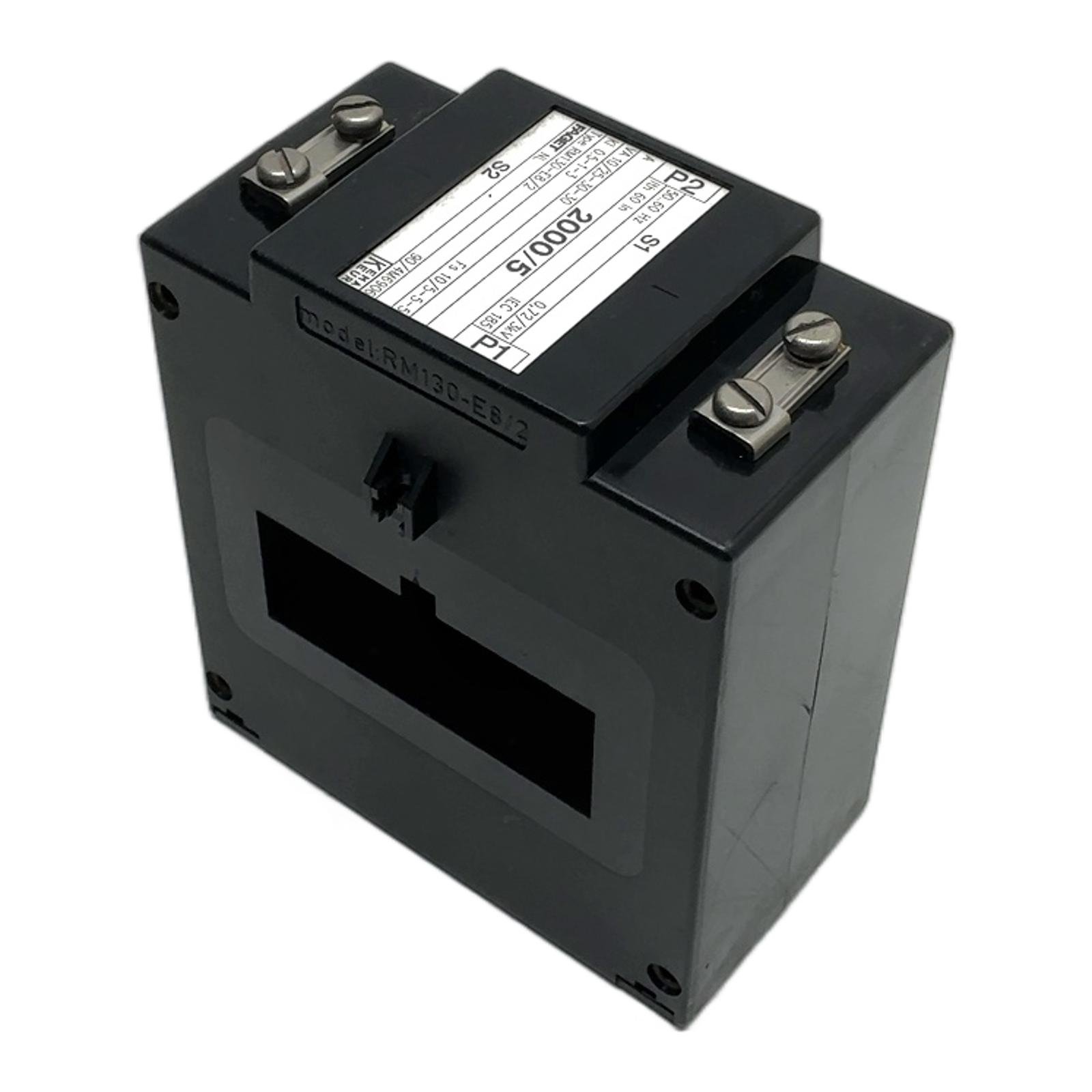

Faget RM130-E8/2 Current Transformer Description The Faget RM130-E8/2 is a high-performance busbar-type current transformer designed for measuring high alternating currents in industrial electrical systems. With a transformation ratio of 2000/5 A, it accurately steps down current for measurement by standard meters and protection relays. This transformer is a reliable choice for energy management, load monitoring, and system protection applications. Specifications Manufacturer: Faget Type: RM130-E8/2 Primary Current: 2000 A Secondary Current: 5 A Frequency: 50-60 Hz Insulation Level: 0.72/3 kV Accuracy Classes: 0.5, 1, 3 Burden Ratings: 10, 25, 30 VA Standard: IEC 185 Label Info Type: RM130-E8/2 Ratio: 2000/5 A Serial Number: 90/4M6906 Certification: KEMA KEUR Application This current transformer is suitable for installation in switchgear, power distribution panels, and large motor control centers. It provides essential input for ammeters, watt-hour meters, power quality monitors, and protective relays. Country of Origin Made in the Netherlands. CO2 Impact By reusing this component, you are actively contributing to a circular economy and saving approximately 160 kg of CO2 emissions compared to the production of a new one. Availability This is an obsolete item, but available from our stock. Limited quantity. Order now from profideals for expert support and fast delivery. FAQ What are the different accuracy classes (0.5-1-3) on this transformer used for?The accuracy classes indicate the transformer’s precision. Class 0.5 is a high-accuracy class suitable for revenue-grade metering. Class 1 is for general industrial metering, and Class 3 is typically used for protection relay applications where high precision is less critical than reliable operation under fault conditions. Can this RM130-E8/2 transformer be used with a 5A digital power meter?Yes, absolutely. This transformer has a standard 5A secondary output, which is compatible with most industrial digital power meters, ammeters, and protection relays. Ensure the meter’s input burden (VA) does not exceed the transformer’s rating for the desired accuracy class (e.g., 10 VA for class 0.5). What are the physical dimensions of the window for the primary conductor?The model number RM130 likely indicates the window dimensions. For this series, it typically refers to a rectangular window where one dimension is approximately 130mm. It is crucial to measure the exact opening before installation to ensure your busbar or cable fits. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
