PROXITRON IKZ 471.38 GHS4 2329H

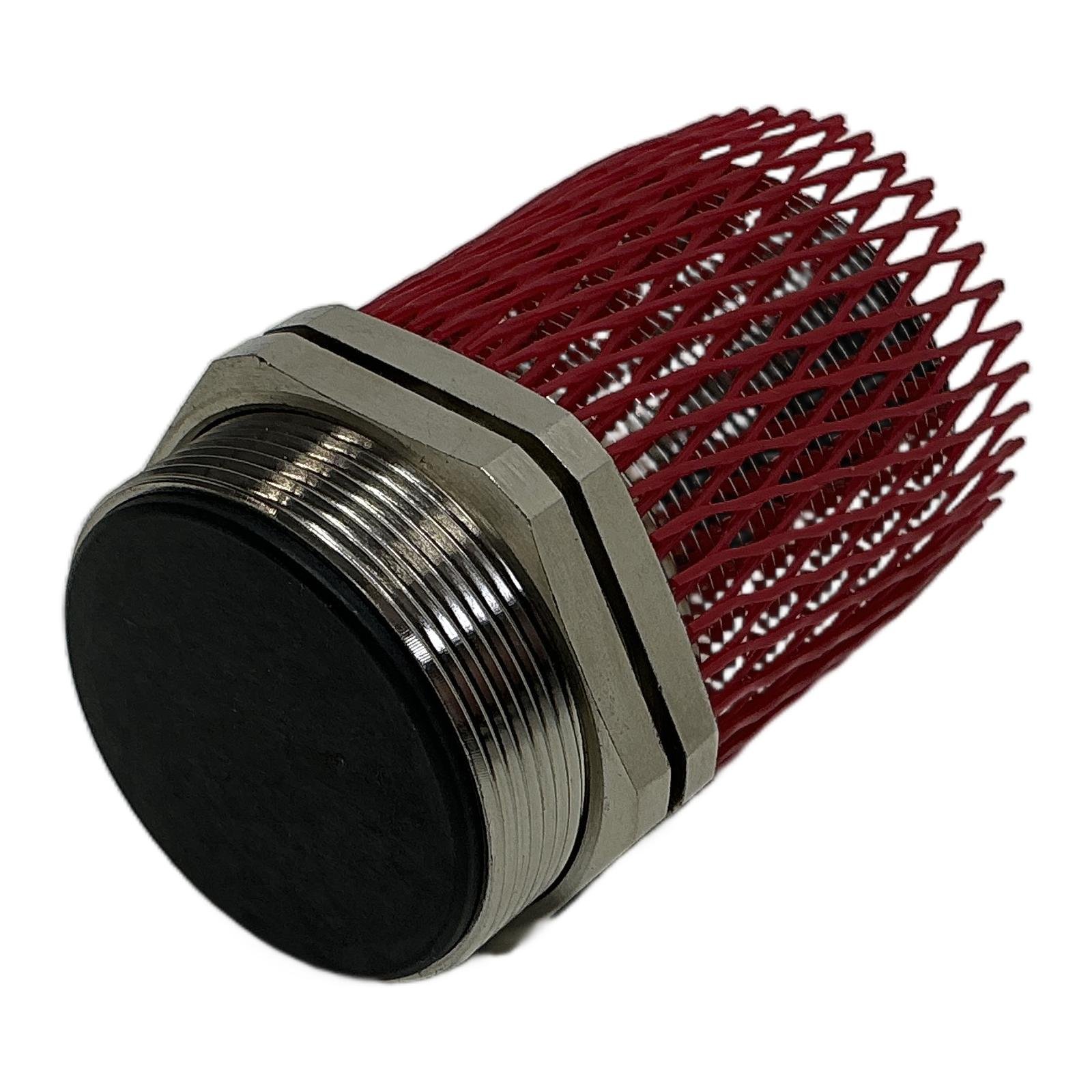

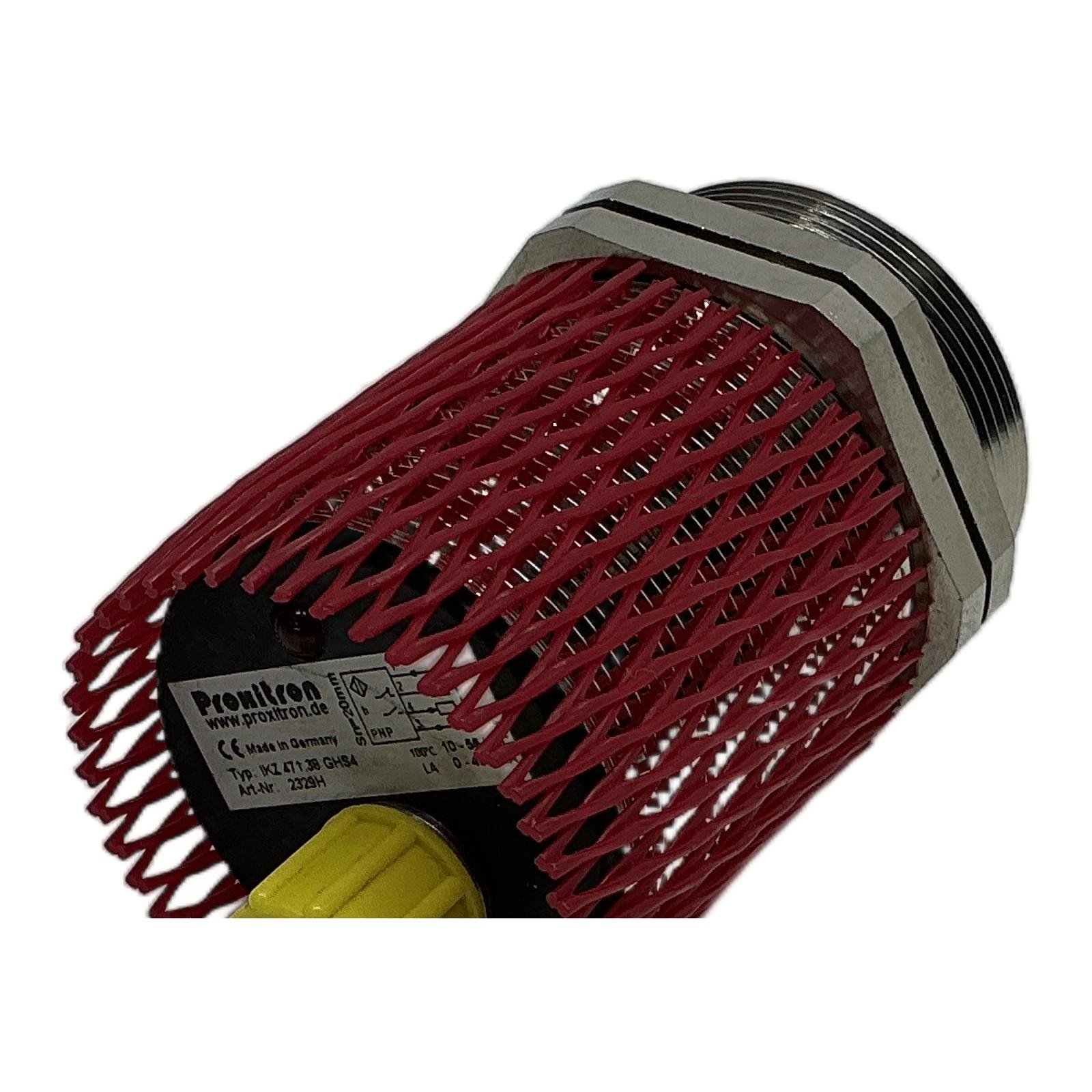

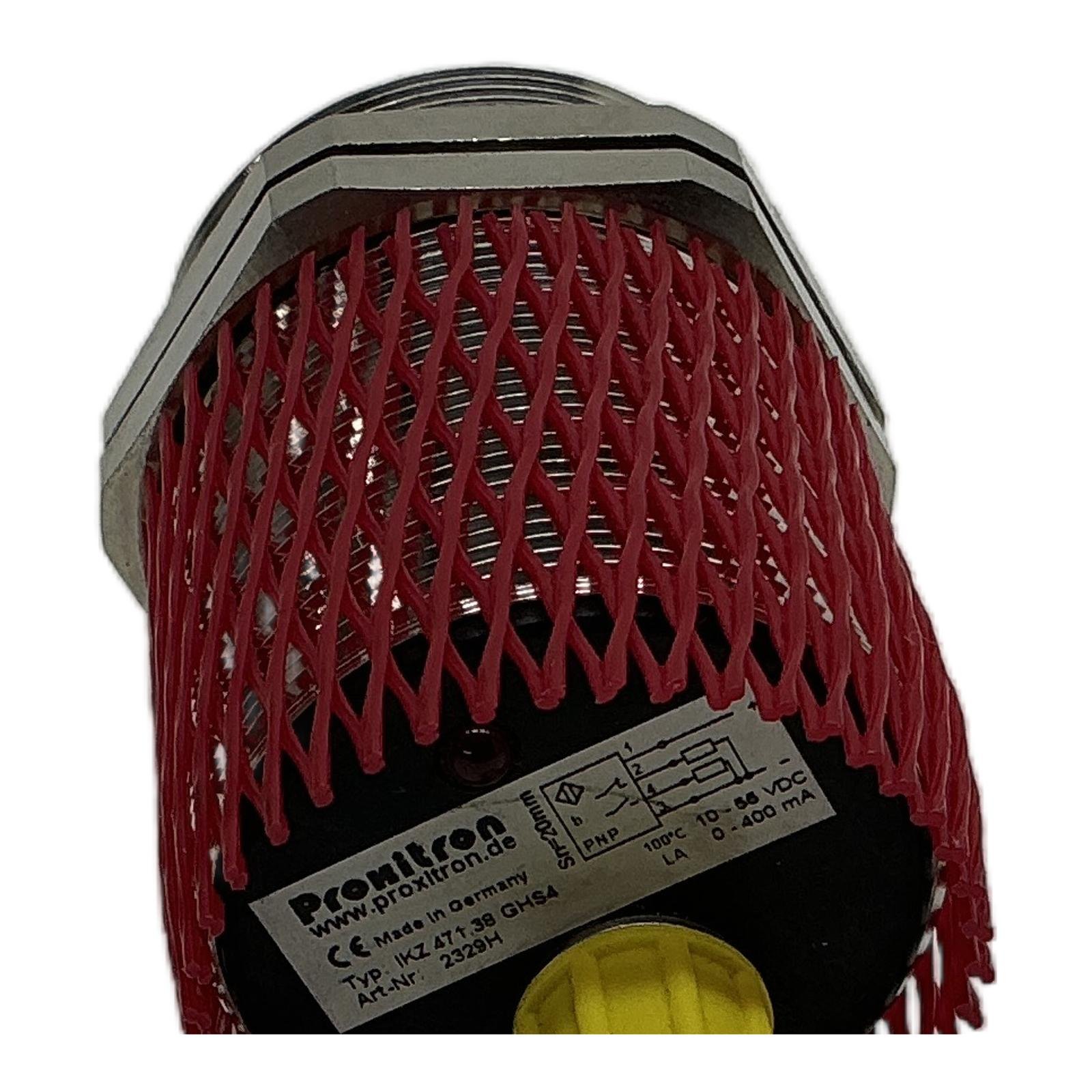

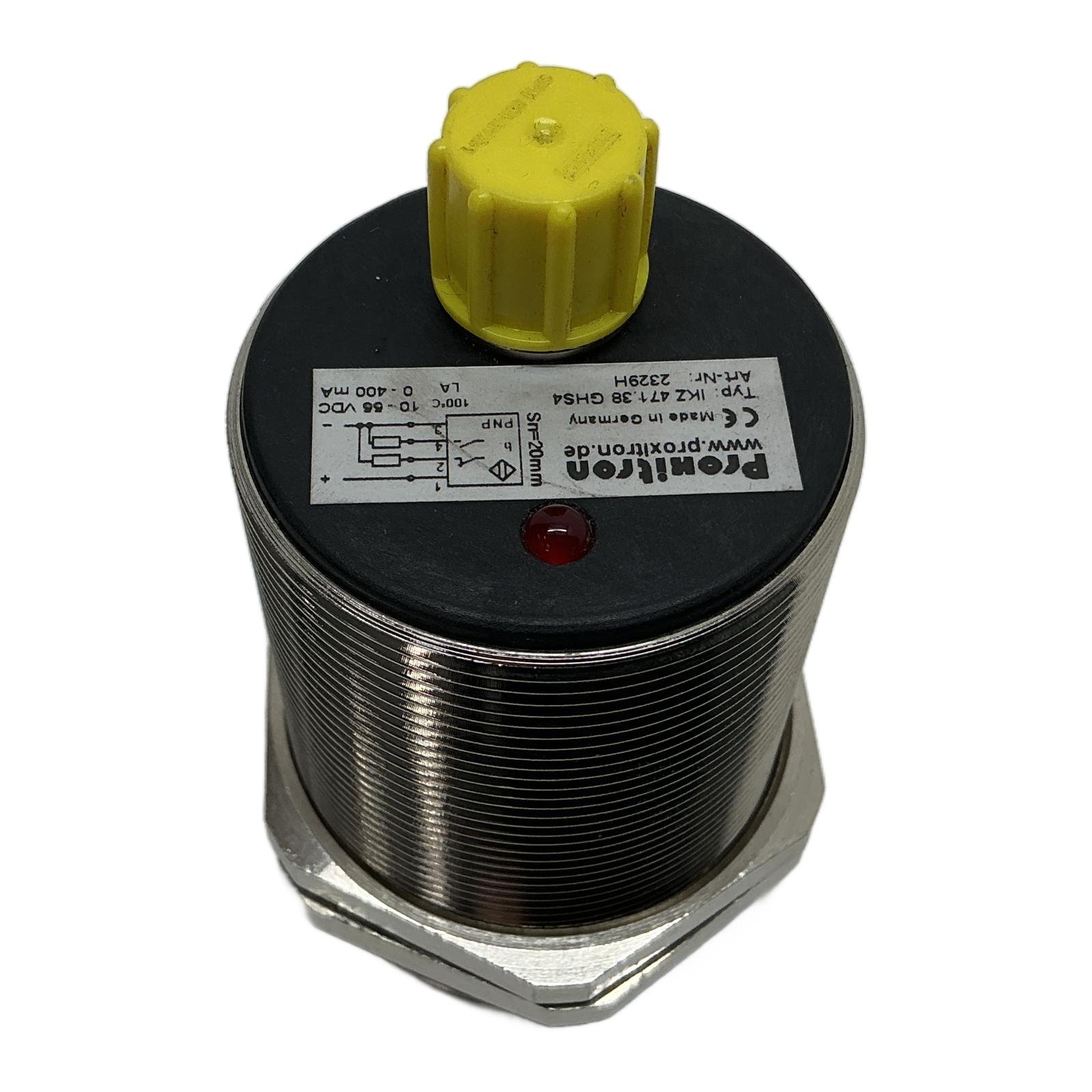

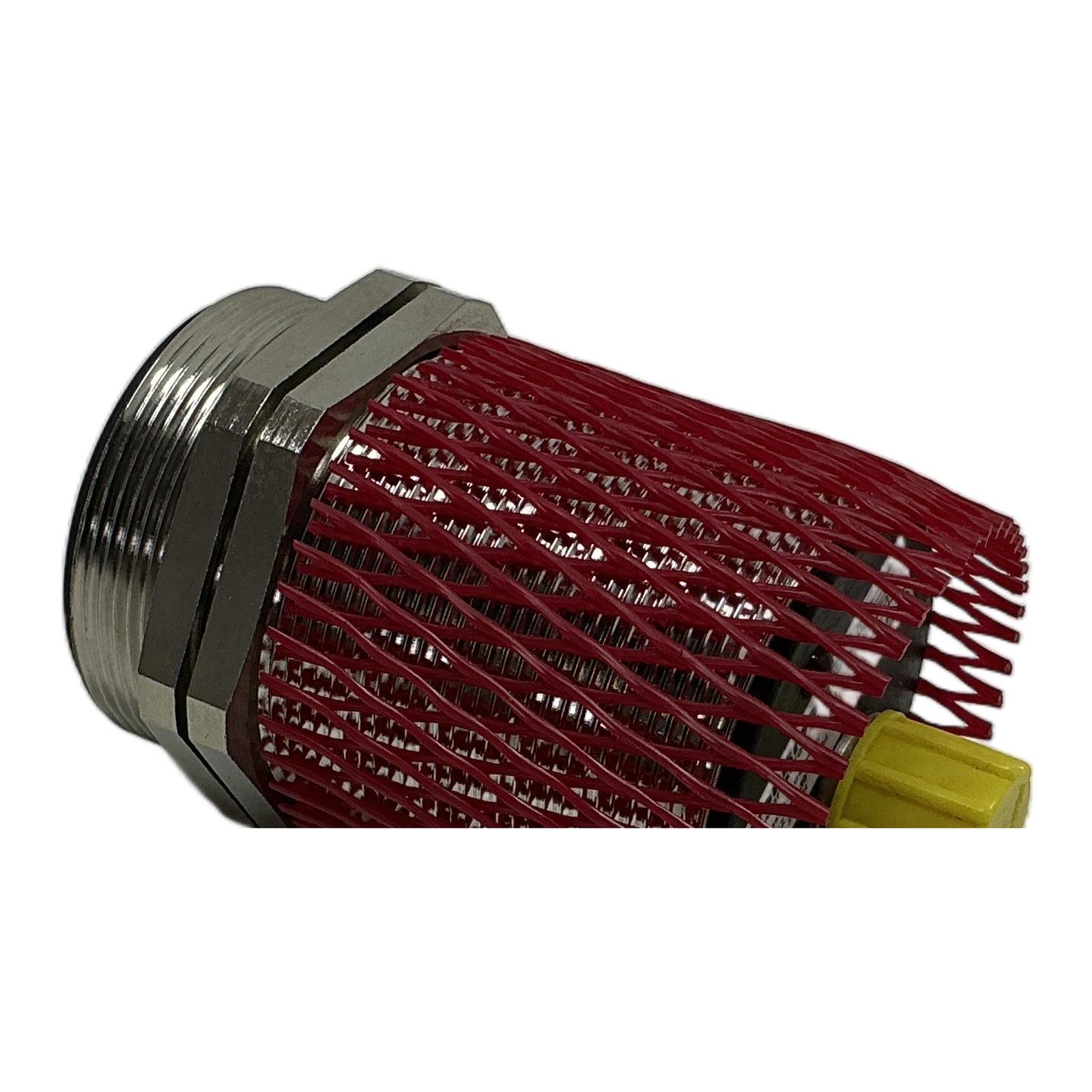

<h2>Proxitron Inductive Proximity Sensor</h2> <h3>Description</h3> <p>The Proxitron IKZ 471.38 GHS4 is a high-performance inductive proximity sensor designed for demanding industrial applications. It is engineered to withstand high temperatures up to 100 deg C, making it an ideal choice for use in steel plants, foundries, and other hot environments. With a reliable sensing distance of 20mm and a robust M47 threaded housing, this sensor provides accurate and repeatable detection of metallic objects.</p> <h3>Specifications</h3> <ul> <li>Manufacturer: Proxitron</li> <li>Type: IKZ 471.38 GHS4</li> <li>Sensing Distance (Sn): 20 mm</li> <li>Operating Voltage: 10 – 66 VDC</li> <li>Output Type: PNP, normally open (NO)</li> <li>Load Current (LA): 0 – 400 mA</li> <li>Max. Ambient Temperature: 100 deg C</li> <li>Housing: M47 x 1.5, Threaded Metal</li> <li>Protection Class: IP67</li> </ul> <h3>Label Info</h3> <ul> <li>Typ: IKZ 471.38 GHS4</li> <li>Art-Nr: 2329H</li> </ul> <h3>Application</h3> <p>This sensor is commonly used for position detection, presence sensing, and process control in heavy industry where high temperatures and harsh conditions are prevalent.</p> <h3>Country of Origin</h3> <p>Made in Germany.</p> <h3>CO2 Impact</h3> <p>By purchasing this pre-owned sensor, you contribute to a circular economy and help avoid approximately 12 kg of CO2 emissions associated with the production of a new unit.</p> <h3>Availability</h3> <p>This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery.</p> <h3>FAQ</h3> <p> <strong>What is the IP rating of the IKZ 471.38 GHS4 sensor?</strong><br> <p>According to the manufacturer datasheet, sensors in this series typically have an IP67 rating, which means they are fully protected against dust ingress and can withstand temporary immersion in water.</p> <strong>Is the sensing distance of 20 mm adjustable?</strong><br> <p>No, the nominal sensing distance (Sn) of 20 mm for this inductive sensor is fixed. It is crucial to mount the sensor correctly according to the installation guidelines to ensure reliable detection of the target object.</p> <strong>What type of connector is required for this sensor?</strong><br> <p>The ‘GHS4’ designation in the model number refers to a specific plug-in connector type. You should consult the Proxitron datasheet to identify the exact mating connector, which is typically a robust industrial standard connector suitable for high-temperature use.</p> </p> <p><em>profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners.</em></p> <p>Last Update: Friday, March 13, 2026</p>
