IPT 2012-19mm

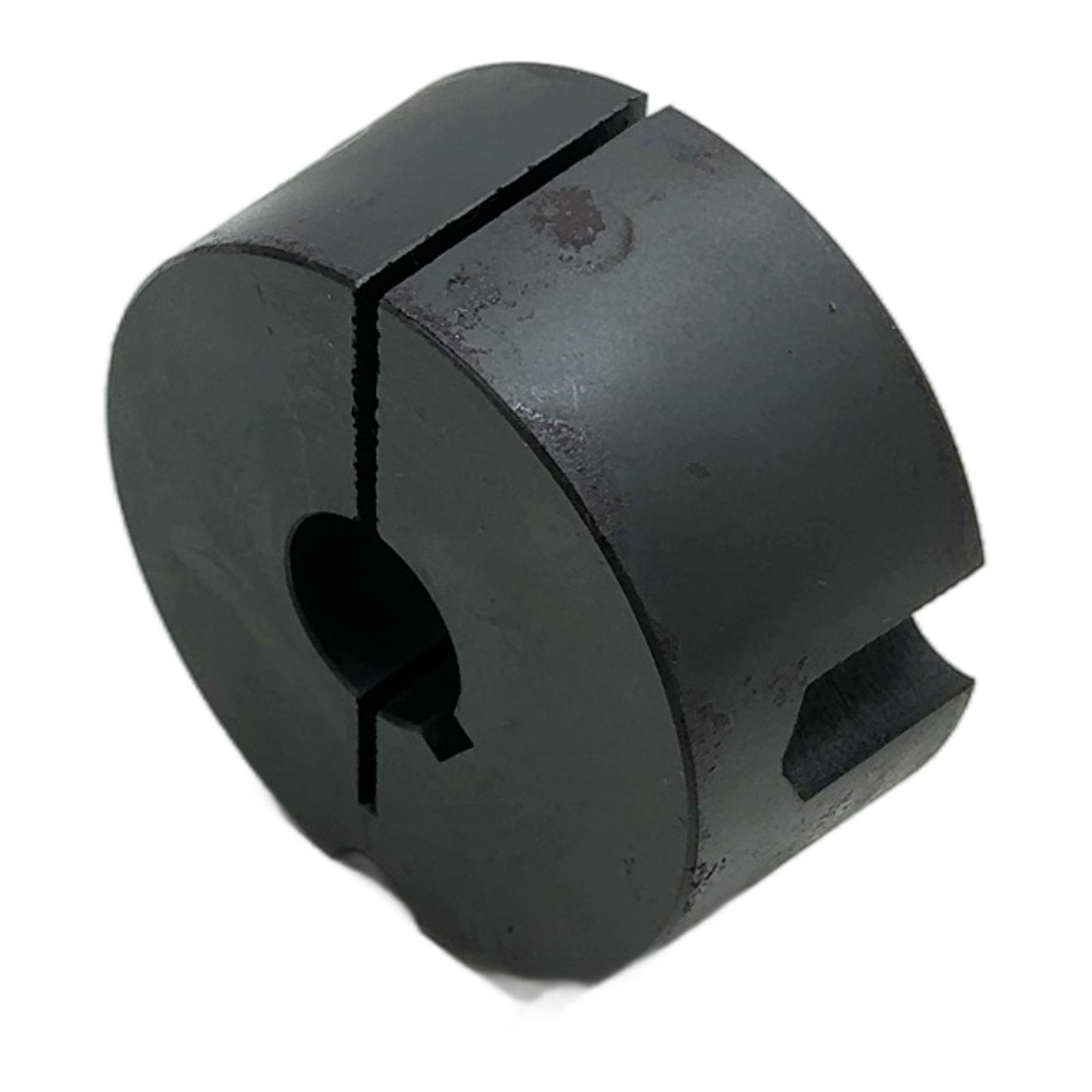

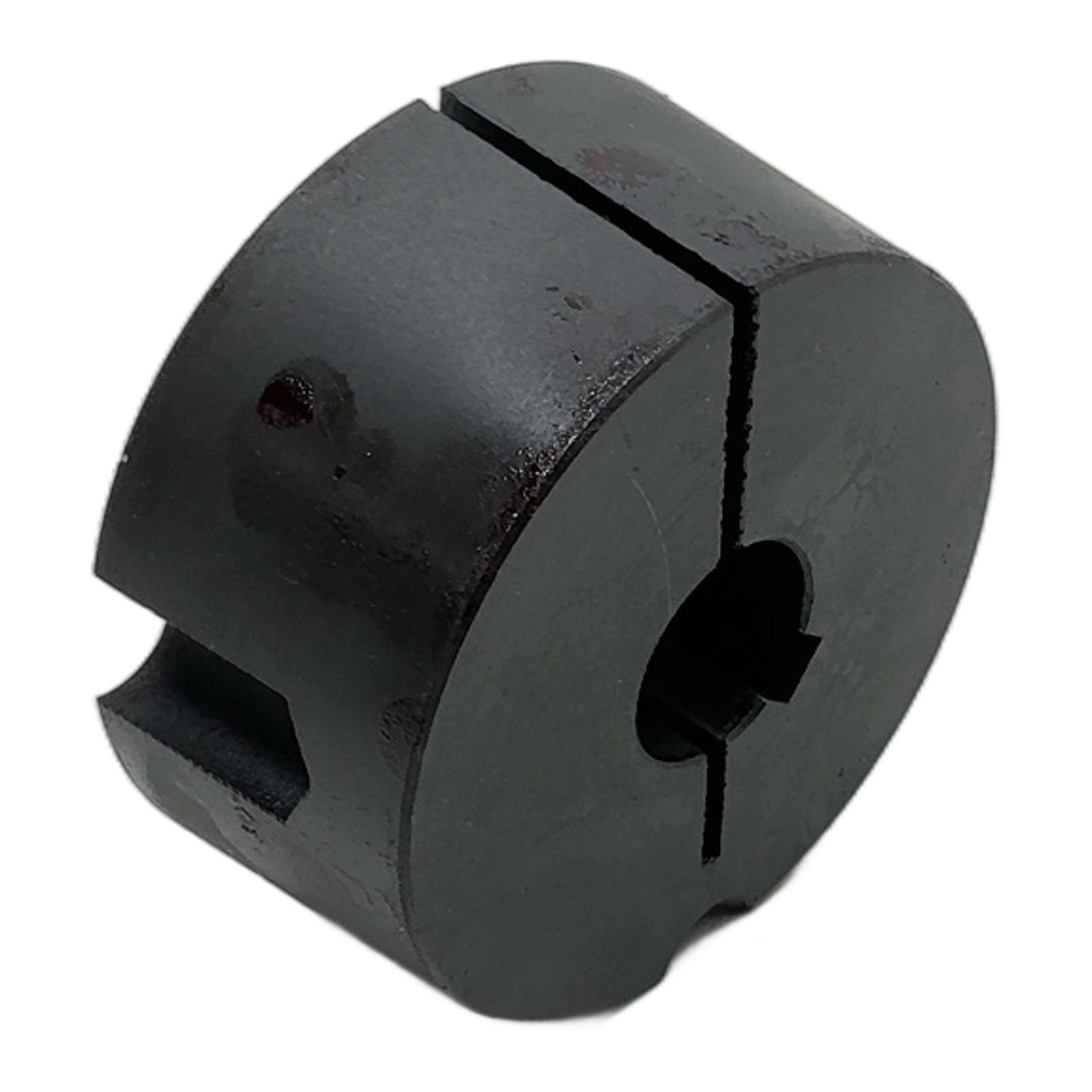

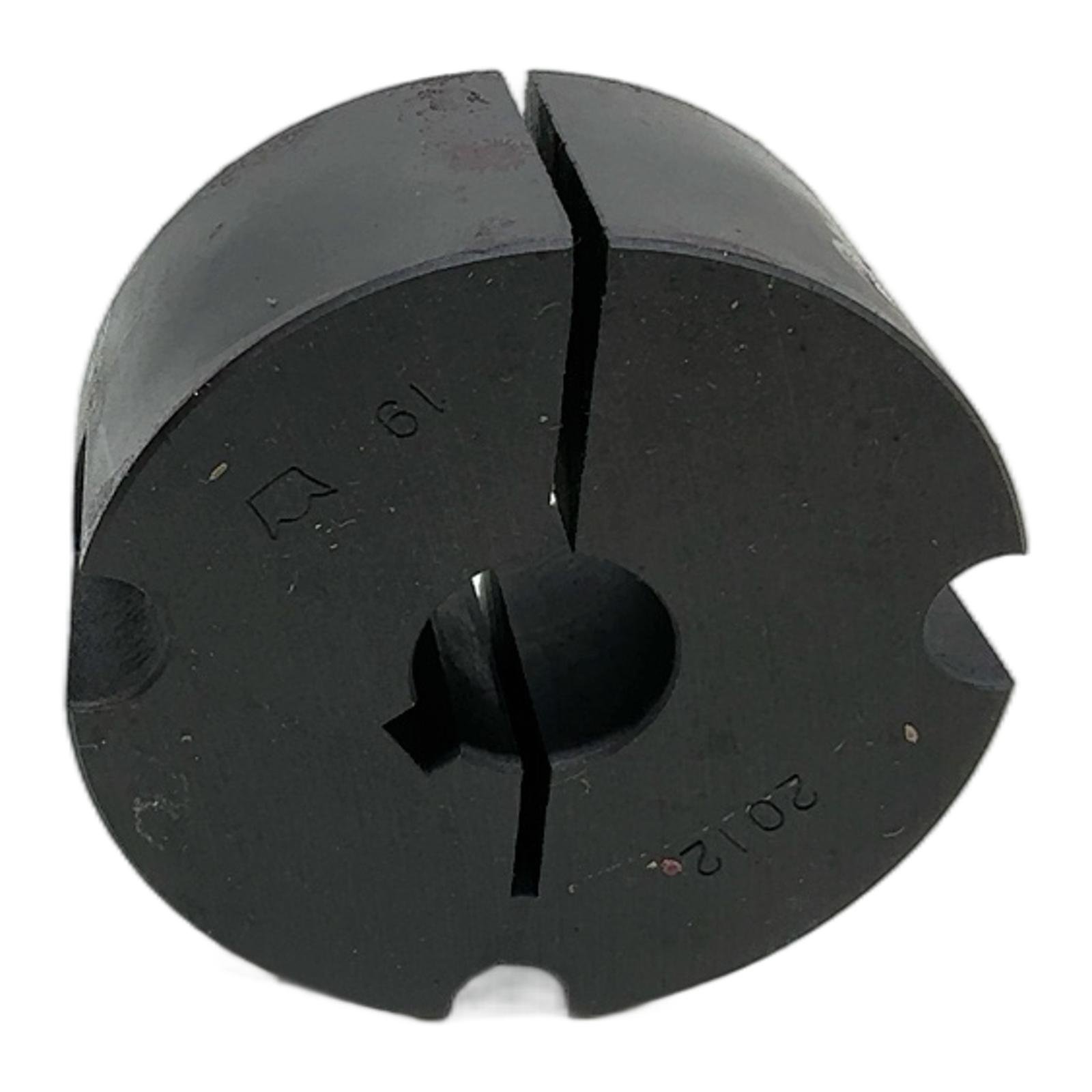

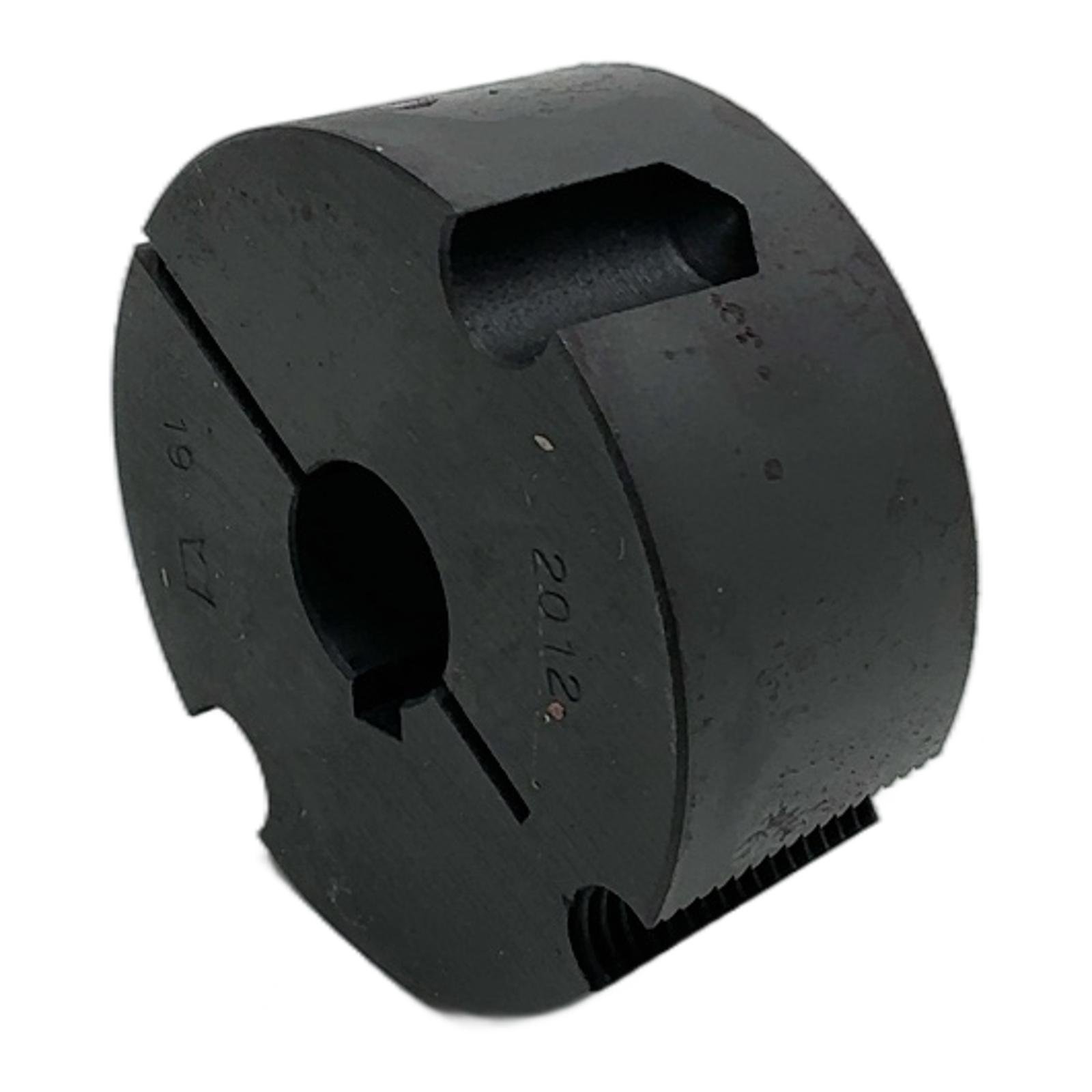

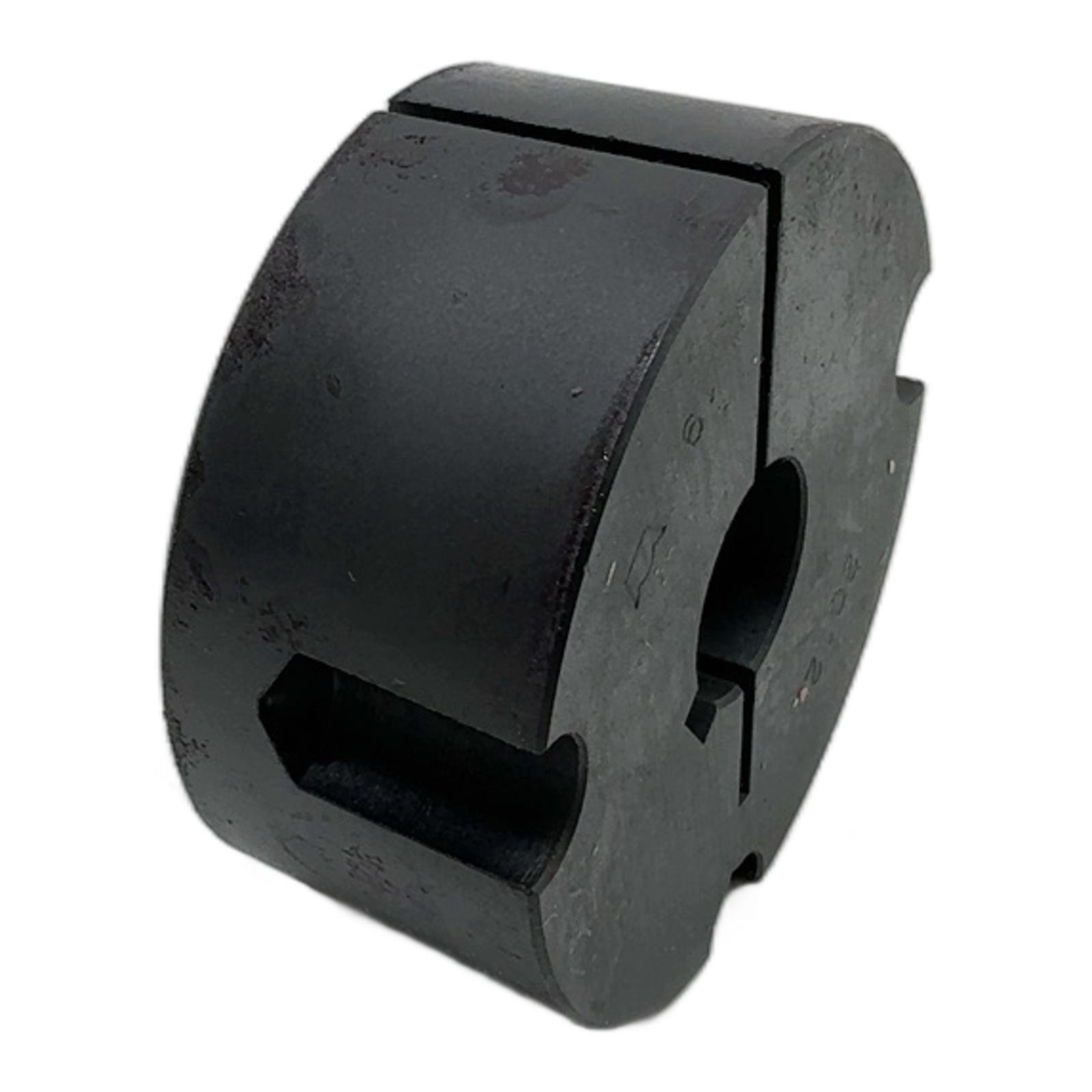

IPT Taper Lock Bush 2012 with 19mm Bore Description This is a high-quality taper lock bush from IPT, model 2012, designed for a 19mm shaft diameter. Taper bushes provide a convenient and secure method for mounting pulleys, sprockets, and other transmission components onto shafts. Made from durable cast iron, this component ensures a reliable, backlash-free connection. It features a standard keyway for positive drive and is easy to install and remove. Specifications Manufacturer: IPT Type: Taper Lock Bush Size: 2012 Bore Diameter: 19 mm Material: High-Grade Cast Iron Includes Keyway: Yes Label Info Model: 2012 Bore Size: 19 Application Used in a wide range of industrial applications, including conveyor systems, agricultural machinery, fans, and mixers, to connect drive components to shafts efficiently. CO2 Impact By choosing this repurposed component, you are contributing to a circular economy and helping to avoid approximately 1.8 kg of CO2 emissions. This is comparable to the savings from driving an average car for 9 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What are the correct installation torque settings for a 2012 taper bush?For a 2012 taper bush, the grub screws should be tightened to approximately 17 Newton-meters (Nm). Always tighten the screws alternately and evenly to ensure the bush is seated correctly in the hub. Is this bush compatible with a pulley from a different manufacturer?Yes, the 2012 size is an industry standard. This IPT bush is interchangeable with any other pulley, sprocket, or coupling hub that is designed to accept a 2012 taper bush, regardless of the brand. Does the 19mm bore account for the keyway depth?No, the 19mm is the nominal bore diameter. The keyway is cut into this bore according to standard dimensions (e.g., BS 4235 or DIN 6885) for a 19mm shaft, providing a secure fit without altering the nominal diameter. Last Update: March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
