GEA TUCHENHAGEN NT-OD3″-SZ-TM1 P2BAM-CD-V0-32N/52

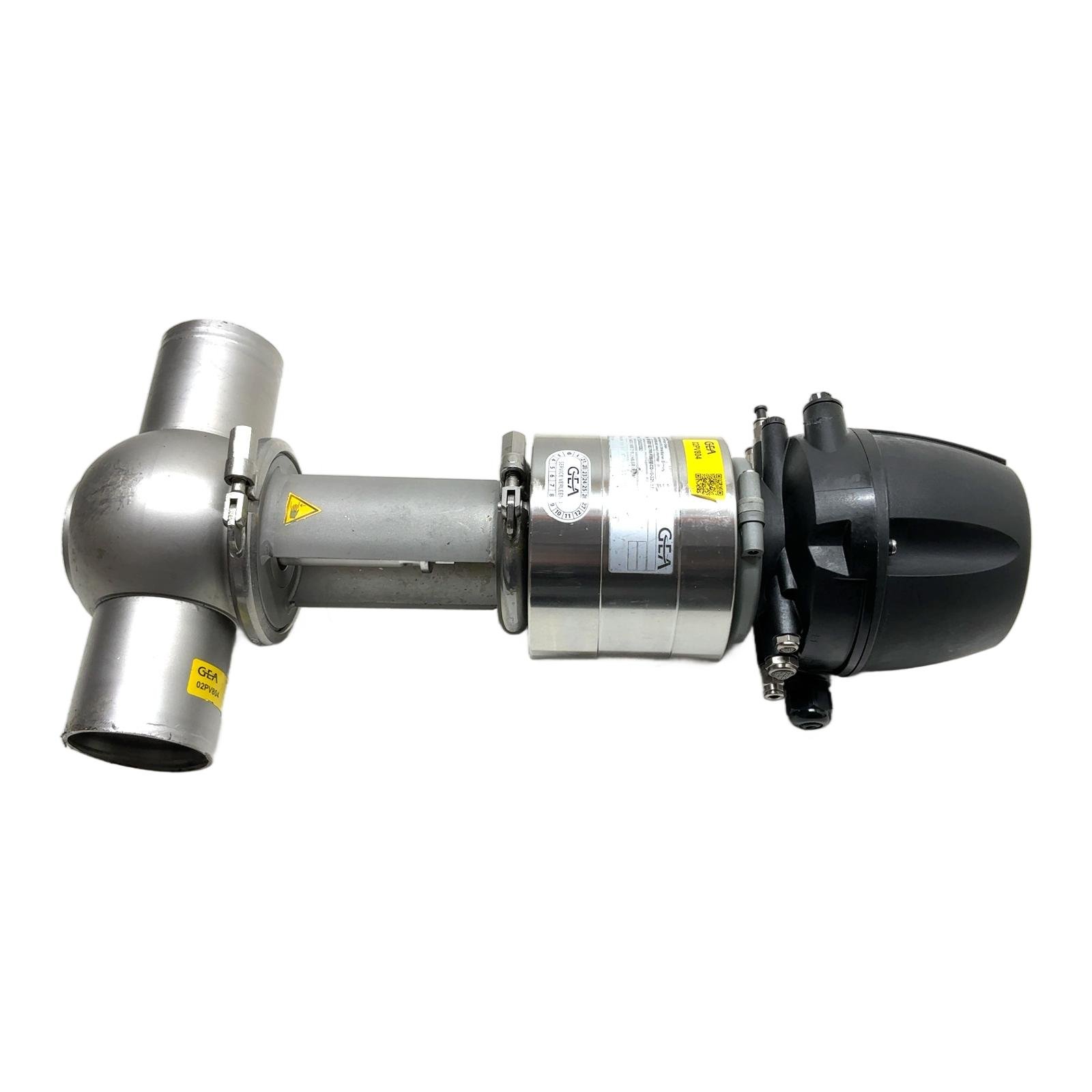

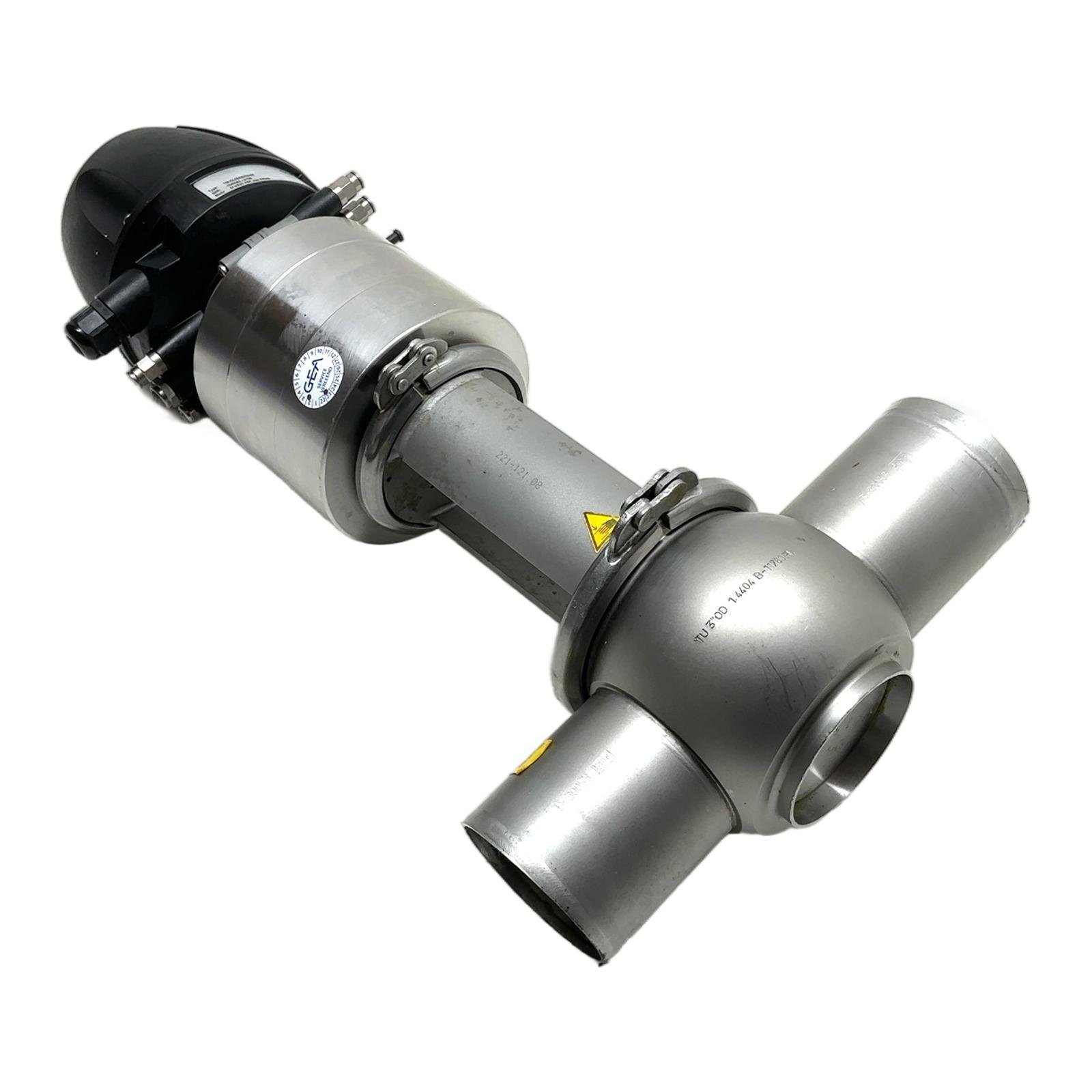

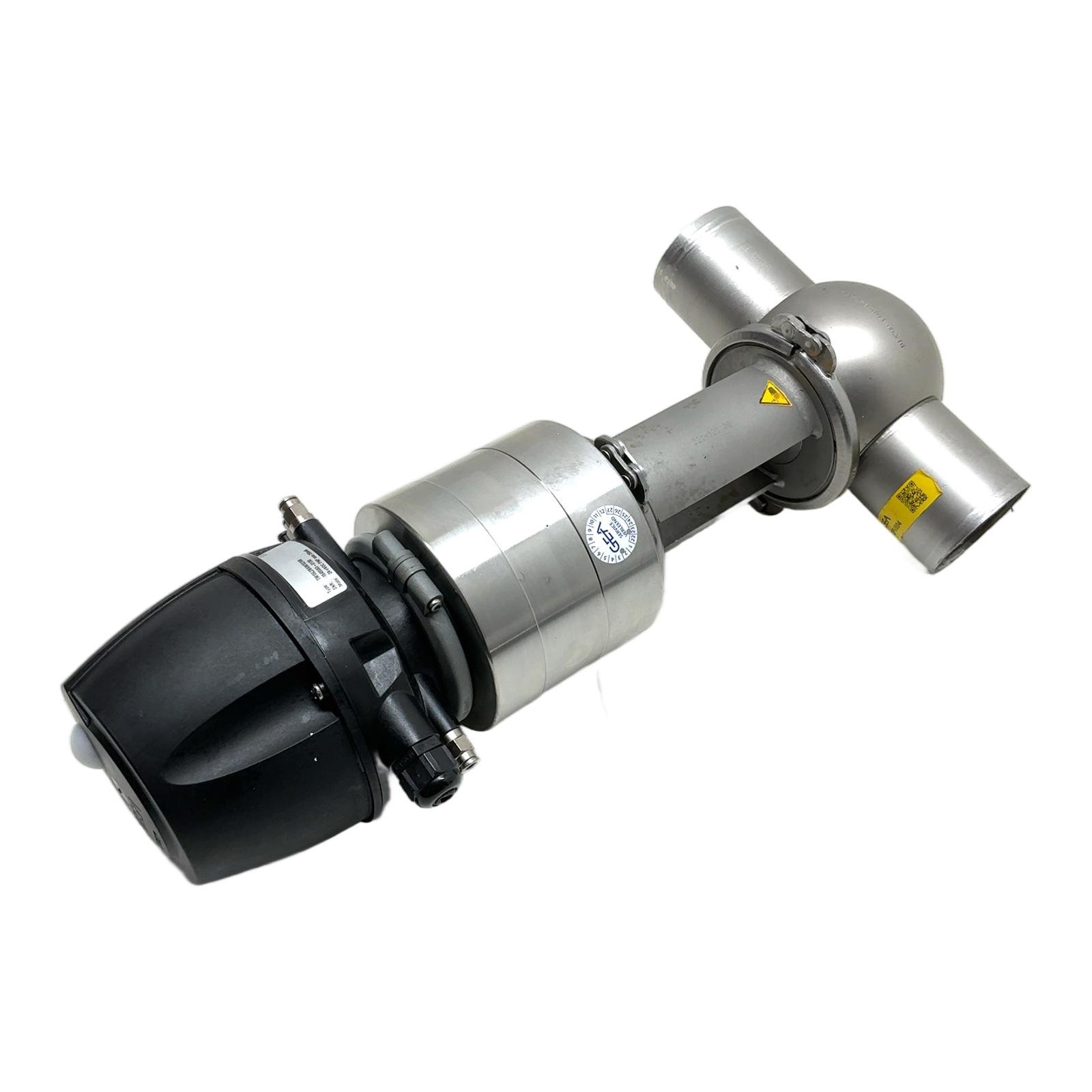

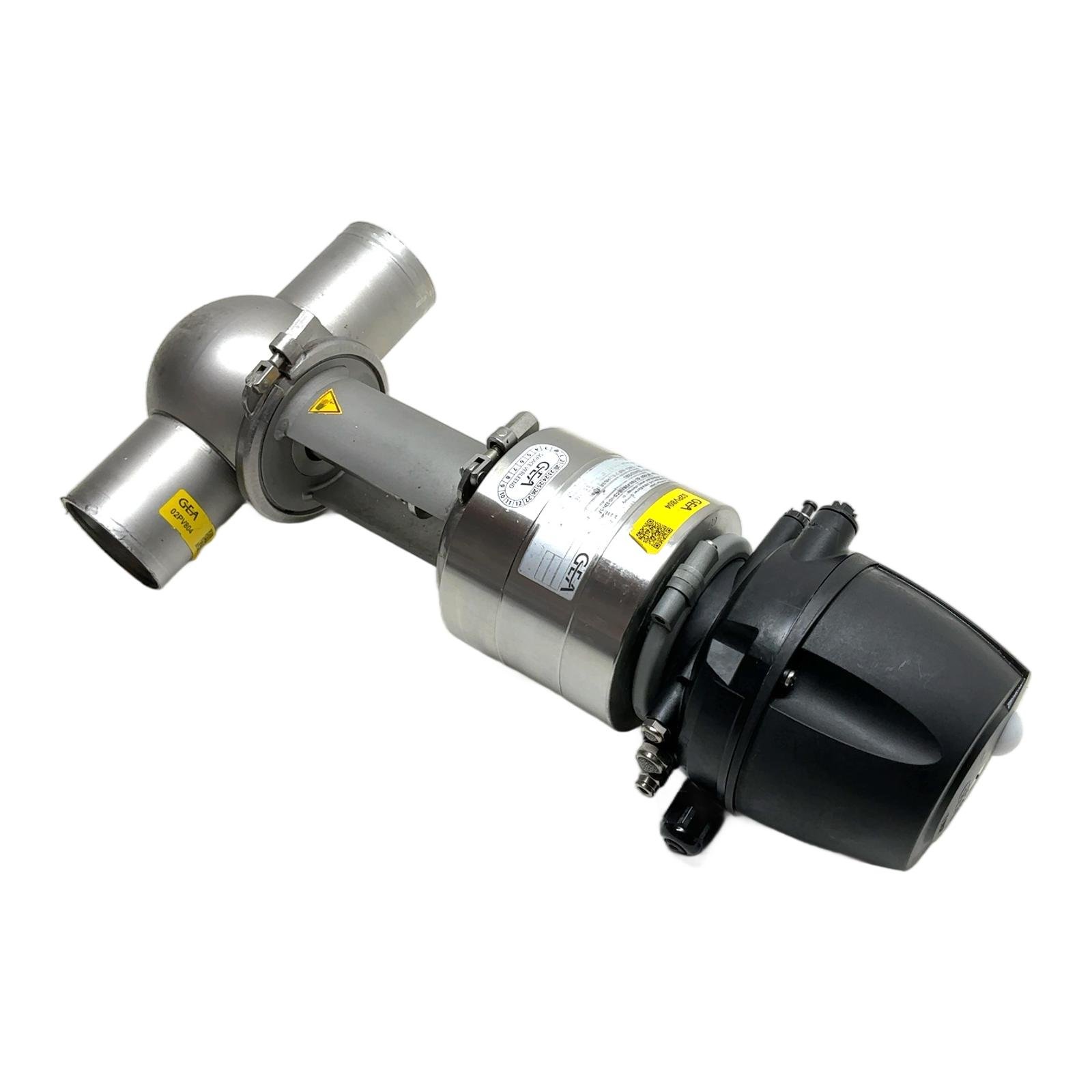

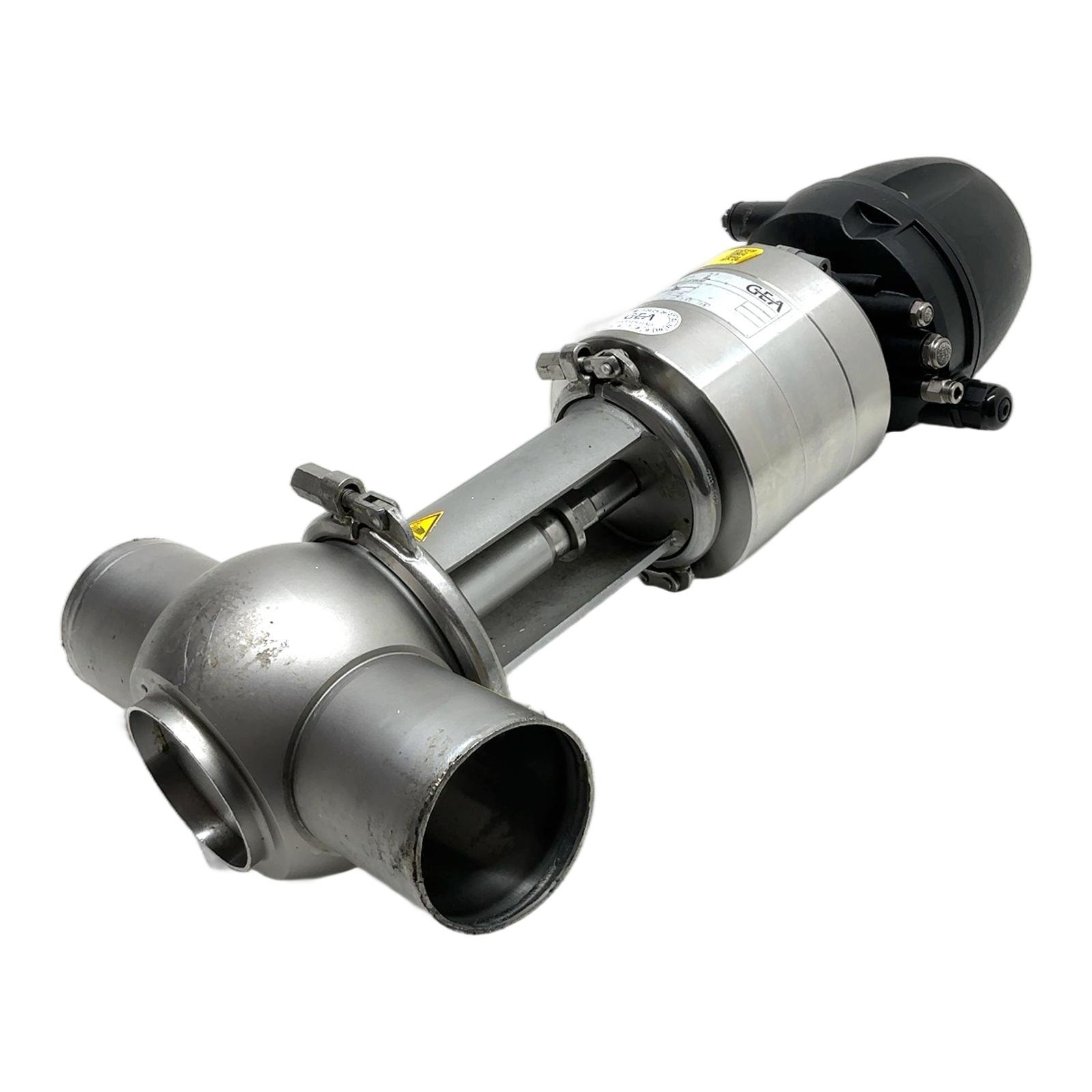

GEA VARIVENT Pneumatic Mixproof Valve Assembly Description This is a complete GEA Tuchenhagen mixproof double-seat valve assembly, type NT-OD3″-SZ-TM1, designed for safe and efficient fluid management in hygienic process industries. The valve body is constructed from high-grade 1.4404 (AISI 316L) stainless steel, ensuring excellent corrosion resistance. It features 3-inch OD connections. This assembly includes a GEA T.VIS A-15 control top (Type TM15L2BAM/52/66) for precise pneumatic actuation and electronic position feedback. Specifications Manufacturer: GEA Tuchenhagen Valve Type: NT-OD3″-SZ-TM1 P2BAM-CD-VO-32N/52 Control Top Type: TM15L2BAM/52/66 Connection Size: 3 inch Outside Diameter (OD) Materials: 1.4404 (AISI 316L) Stainless Steel, HNBR seals Control Voltage: 24 VDC PNP Required Air Pressure: 6.0 to 8.0 bar (87 to 116 psi) Maximum Process Pressure (PS): 5.0 bar (72.5 psi) Year of Manufacture: 2021 Label Info Valve Serial: 1224822/0080 Control Top SNR: 1545583-0130 Valve Body Marking: TU 3″OD 1.4404 B-11760R. Application Ideal for use in the food and beverage, dairy, pharmaceutical, and chemical industries where separation of dissimilar products is critical to prevent cross-contamination. Country of Origin Made in Germany. CO2 Impact Choosing this pre-owned valve assembly over a new one prevents the emission of approximately 68.0 kg of CO2, a significant contribution to sustainable industrial practices. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What are the primary applications for this GEA VARIVENT valve?This valve is designed for hygienic processes where the safe separation of two different fluids is required. Common industries include dairy processing, breweries, beverage production, and pharmaceutical manufacturing. What do the material specifications 1.4404 (AISI 316L) and HNBR mean?1.4404, also known as AISI 316L, is a high-grade, low-carbon stainless steel offering superior corrosion resistance, making it ideal for sanitary applications. HNBR (Hydrogenated Nitrile Butadiene Rubber) is a robust synthetic rubber used for the seals, known for its excellent resistance to heat, oils, and chemicals. What is the function of the T.VIS A-15 control top (TM15L2BAM)?The T.VIS A-15 control top is an intelligent control and feedback unit. It manages the pneumatic actuator that opens and closes the valve, and it provides electrical feedback (24 VDC PNP) to the control system (PLC) to confirm the valve’s exact position (open, closed, or in cleaning cycle). profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
