PILZ PNOZ mi1p 773400

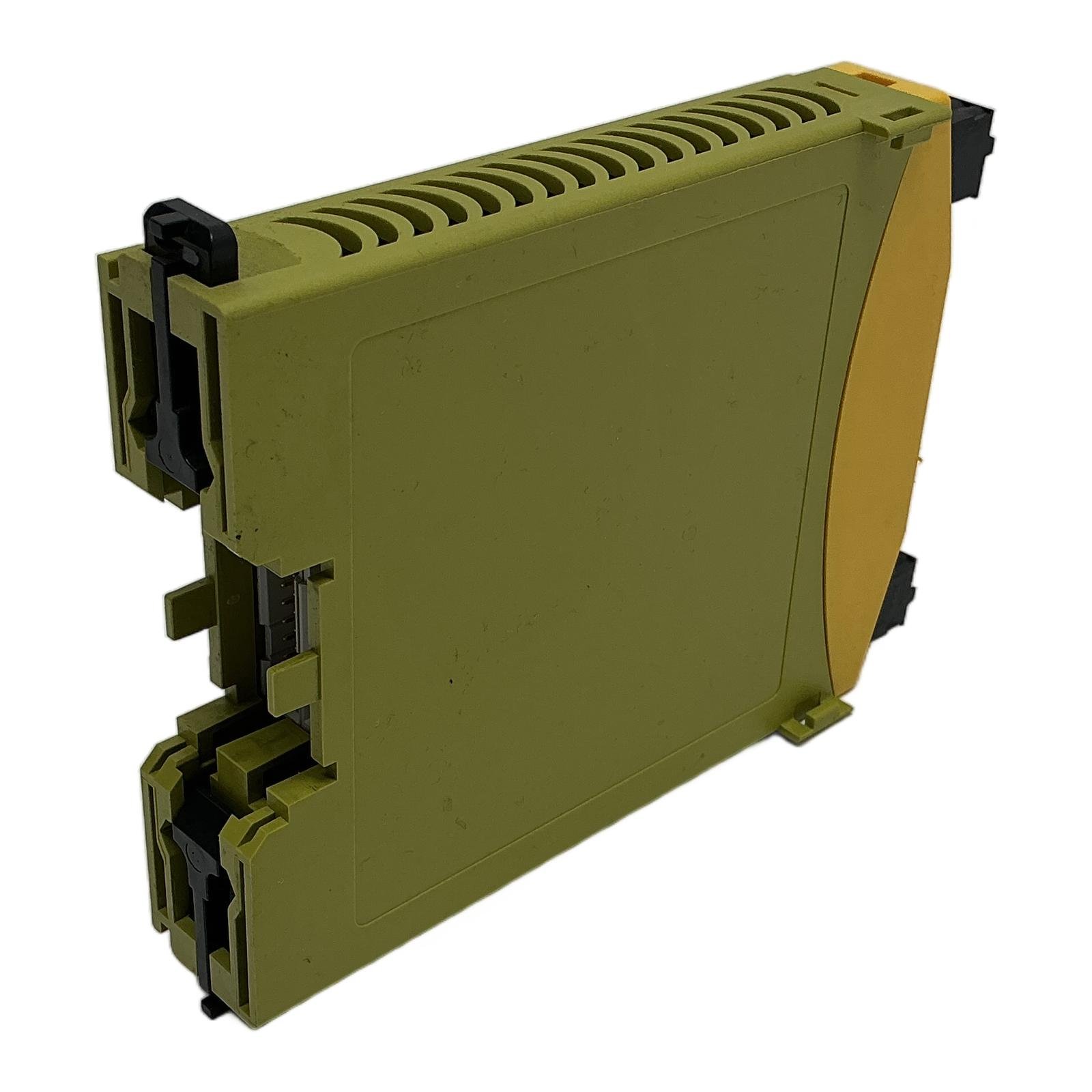

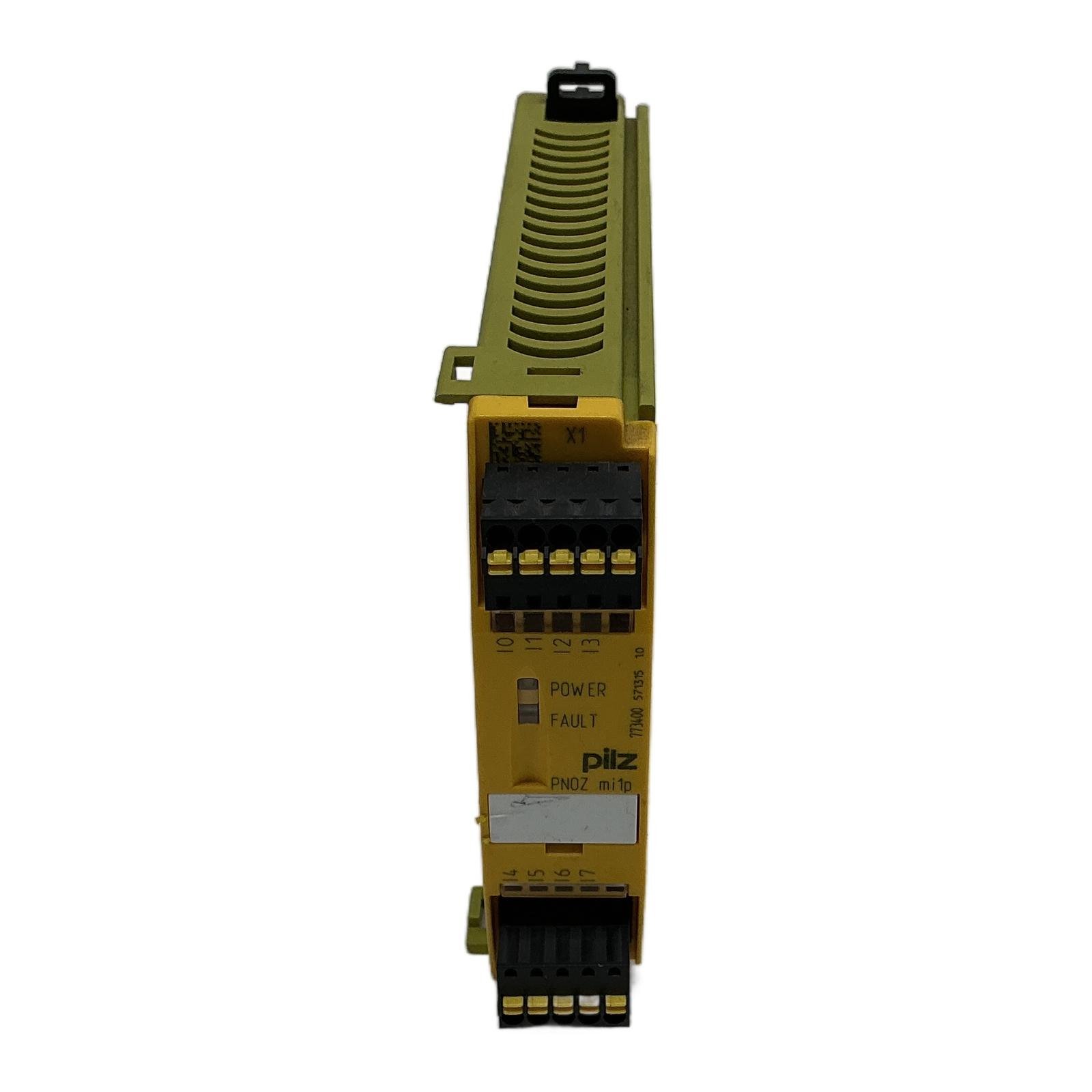

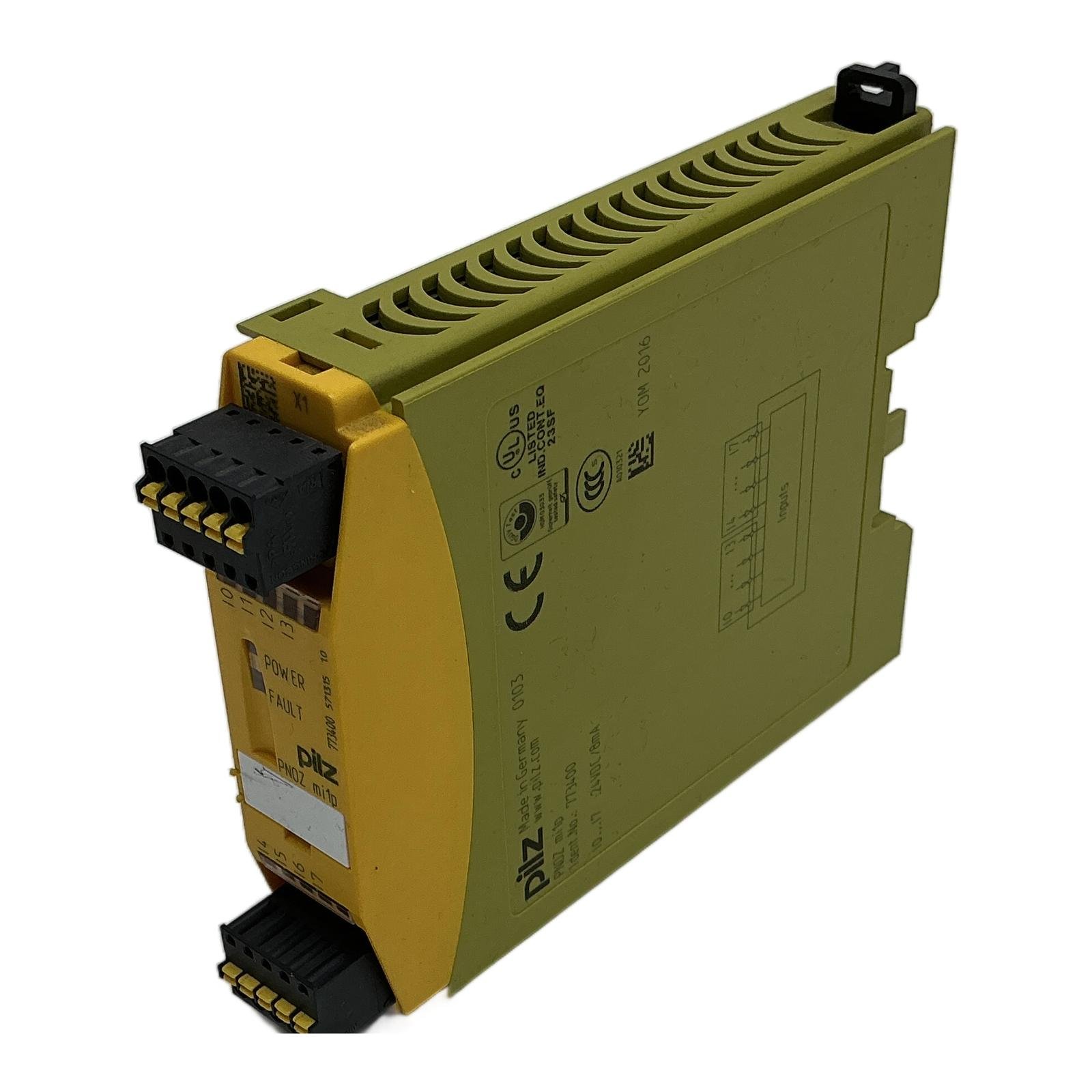

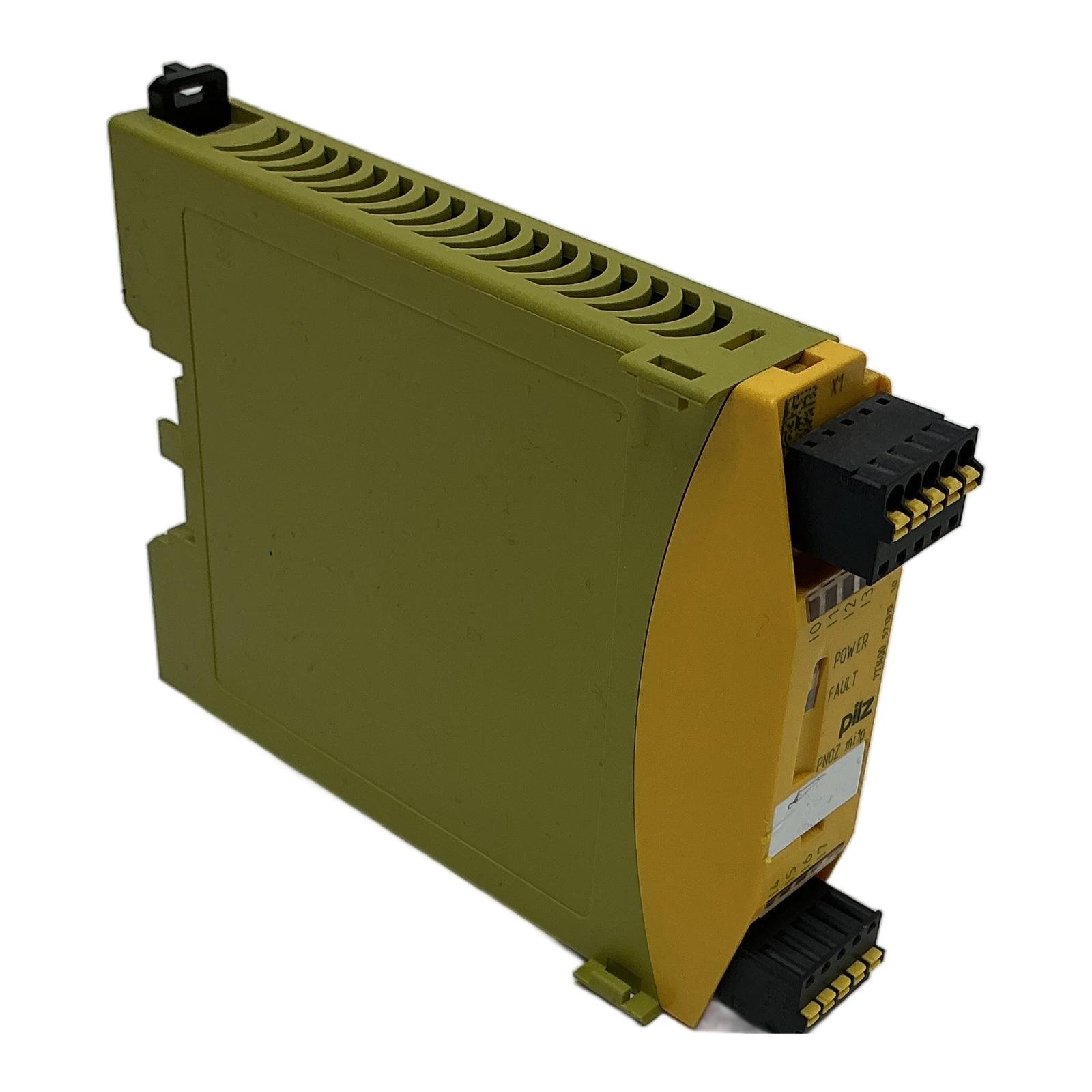

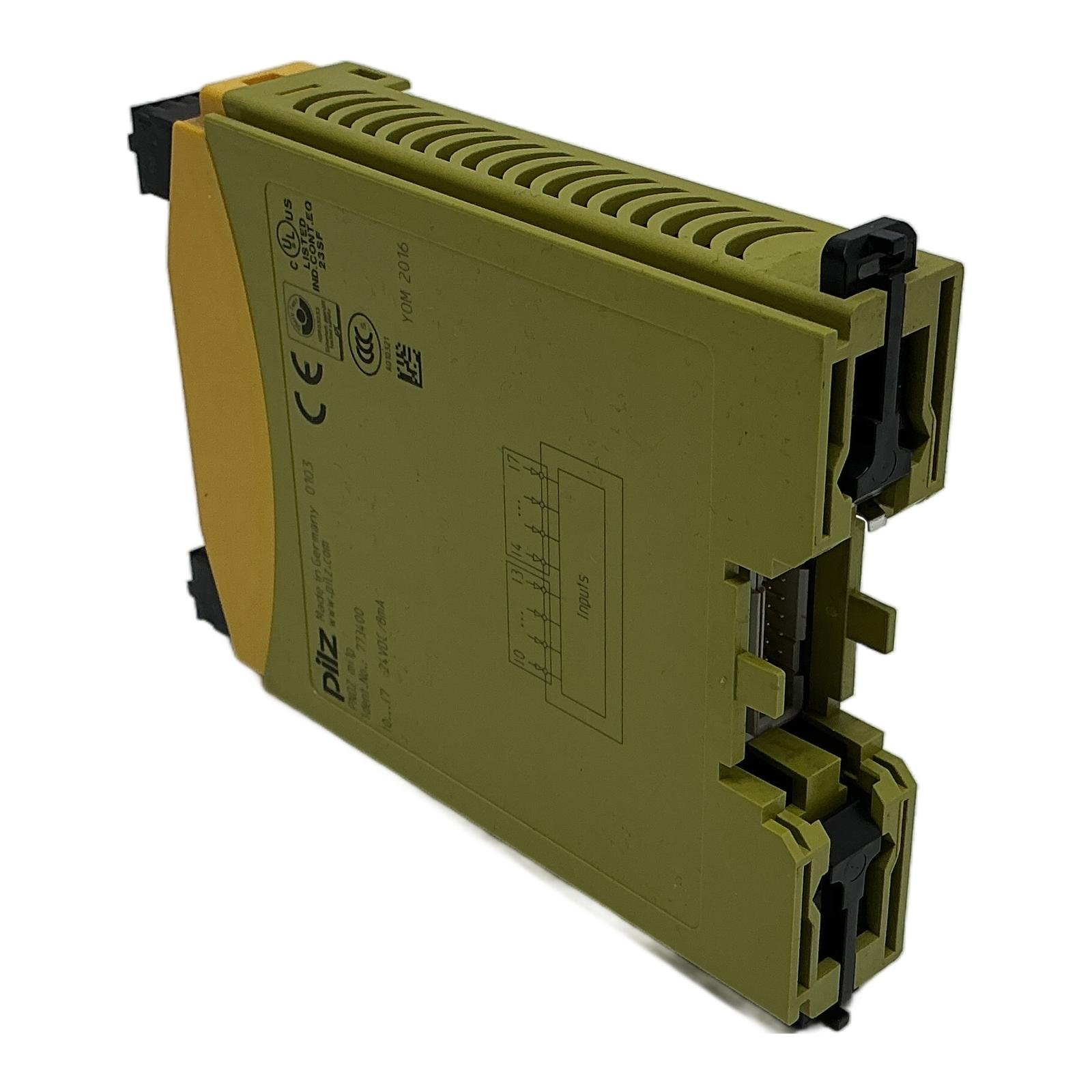

Pilz PNOZ mi1p 773400 Safety Input Module Description The Pilz PNOZ mi1p is a safe input expansion module for the PNOZmulti configurable safety control system. This module provides an additional eight safe digital inputs, allowing for the connection of various safety devices such as emergency stop buttons, two-hand controls, safety gates, and light curtains. It operates on a 24VDC supply and integrates seamlessly with a PNOZmulti base unit, expanding the system’s monitoring capabilities in a compact, DIN-rail mountable form factor. Specifications Manufacturer: Pilz Type: PNOZ mi1p Identification Number: 773400 System: PNOZmulti Number of Inputs: 8 safe digital inputs Input Voltage: 24VDC / 8mA Connection: Pluggable screw terminals Label Info Country of Origin: Germany Year of Manufacture (YOM): 2016 Application The PNOZ mi1p is specifically designed for expanding the number of safety inputs in applications using the Pilz PNOZmulti safety PLC system. It is ideal for industrial machinery requiring multiple safety functions to be monitored simultaneously, such as in packaging lines, robotic cells, and material handling systems. Country of Origin Made in Germany. CO2 Impact Choosing this reused PNOZ mi1p module over a new one saves approximately 6.0 kg of CO2 emissions. This saving is comparable to the emissions from driving a standard car for about 30 kilometers, contributing to a more sustainable industrial environment. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Can I use the PNOZ mi1p as a standalone safety relay? No, the PNOZ mi1p is an expansion input module. It must be connected to a PNOZmulti base unit (e.g., PNOZ mB0) to function. The base unit performs the safety logic processing. What is the maximum number of PNOZ mi1p modules I can connect to a PNOZmulti base unit? The number of connectable expansion modules depends on the specific PNOZmulti base unit. For a PNOZ mB0 base unit, you can connect up to 4 safe input modules like the PNOZ mi1p. Always consult the PNOZmulti Configurator software and system manual for your specific configuration limits. Are the screw terminals included with this module? Yes, based on the product images, this module comes with the plug-in screw terminal blocks pre-installed, ensuring a straightforward installation process. profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
