GEA TUCHENHAGEN QE-OD3-MZ-LAT 0700M-M3-L0
GEA TUCHENHAGEN QE-OD3-MZ-LAT 0700M-M3-L0
€ 621,95
1 op voorraad
1 op voorraad
Betaalmethode:
Specificatie
| Gewicht | 21,00 kg |
|---|---|
| Packing Quantity | 1 Unit(s) |
| Unit of Measure | Unit(s) |
| Brand | GEA TUCHENHAGEN |
| Category | Valves |
| Description | Stainless steel pneumatic valve |
| MPN | QE-OD3-MZ-LAT 0700M-M3-L0 |
| Other Notations | QE-OD3-MZ-LAT 0700M-M3-L0, QE-OD3-MZ-LAT0700M-M3-L0, QEOD3MZLAT 0700MM3L0, QEOD3MZLAT0700MM3L0 |
| Fabr. Art. Nr. | QEOD3MZLAT 0700MM3L0 |
- Ophalen in ons magazijn
Roosendaal
Vandaag
- Standaard levering
Nederland
België
1-2 dagen
1-2 dagen
Omschrijving

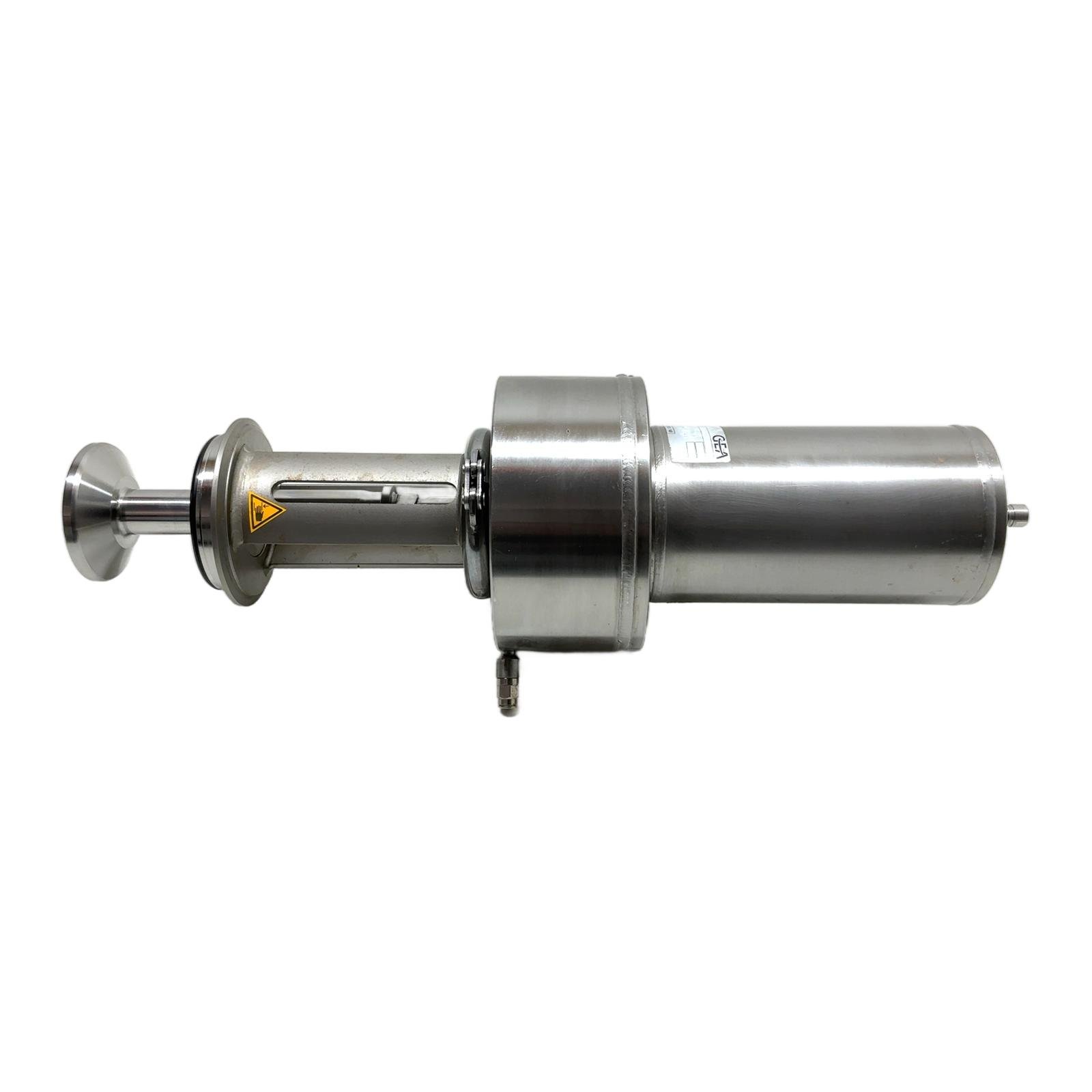

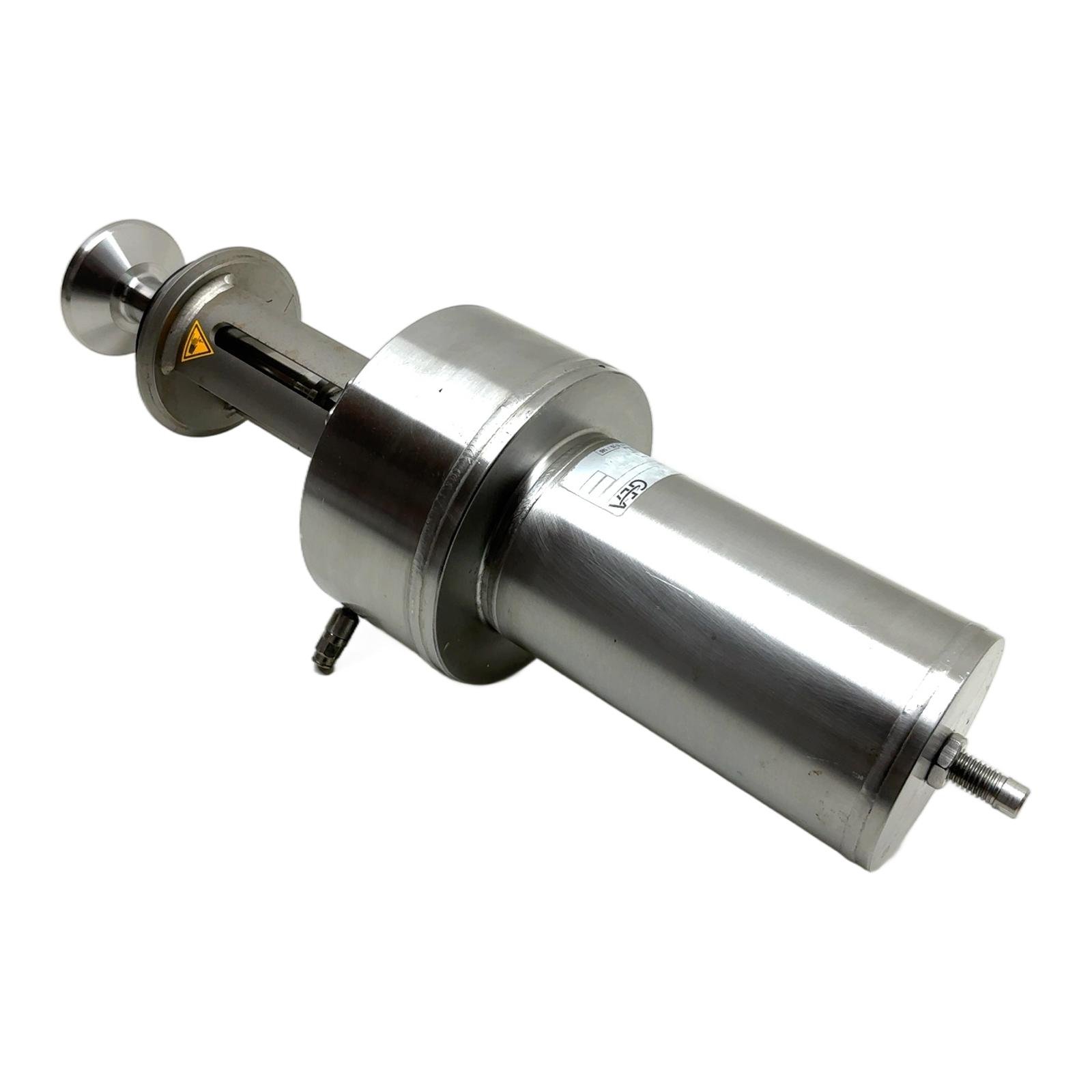

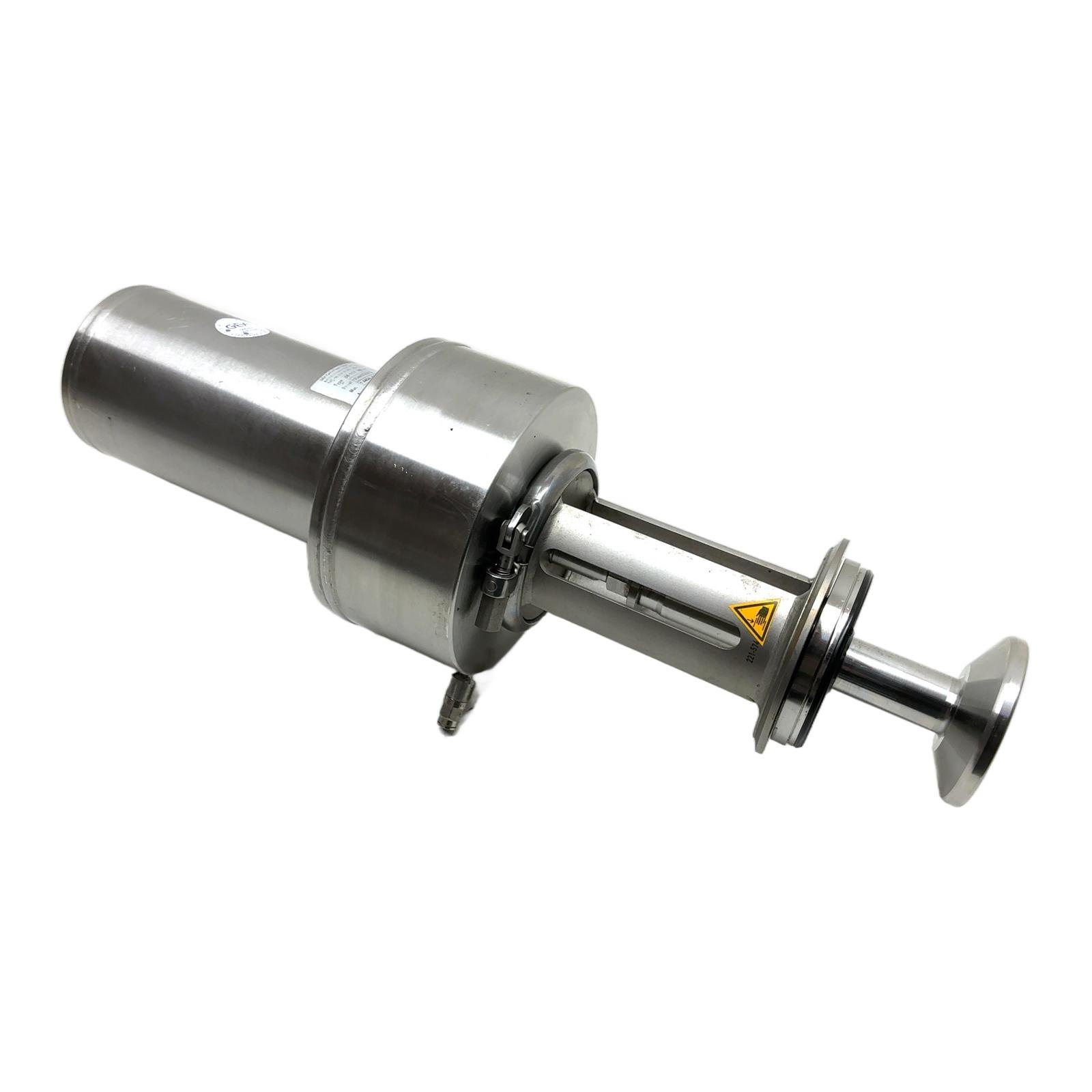

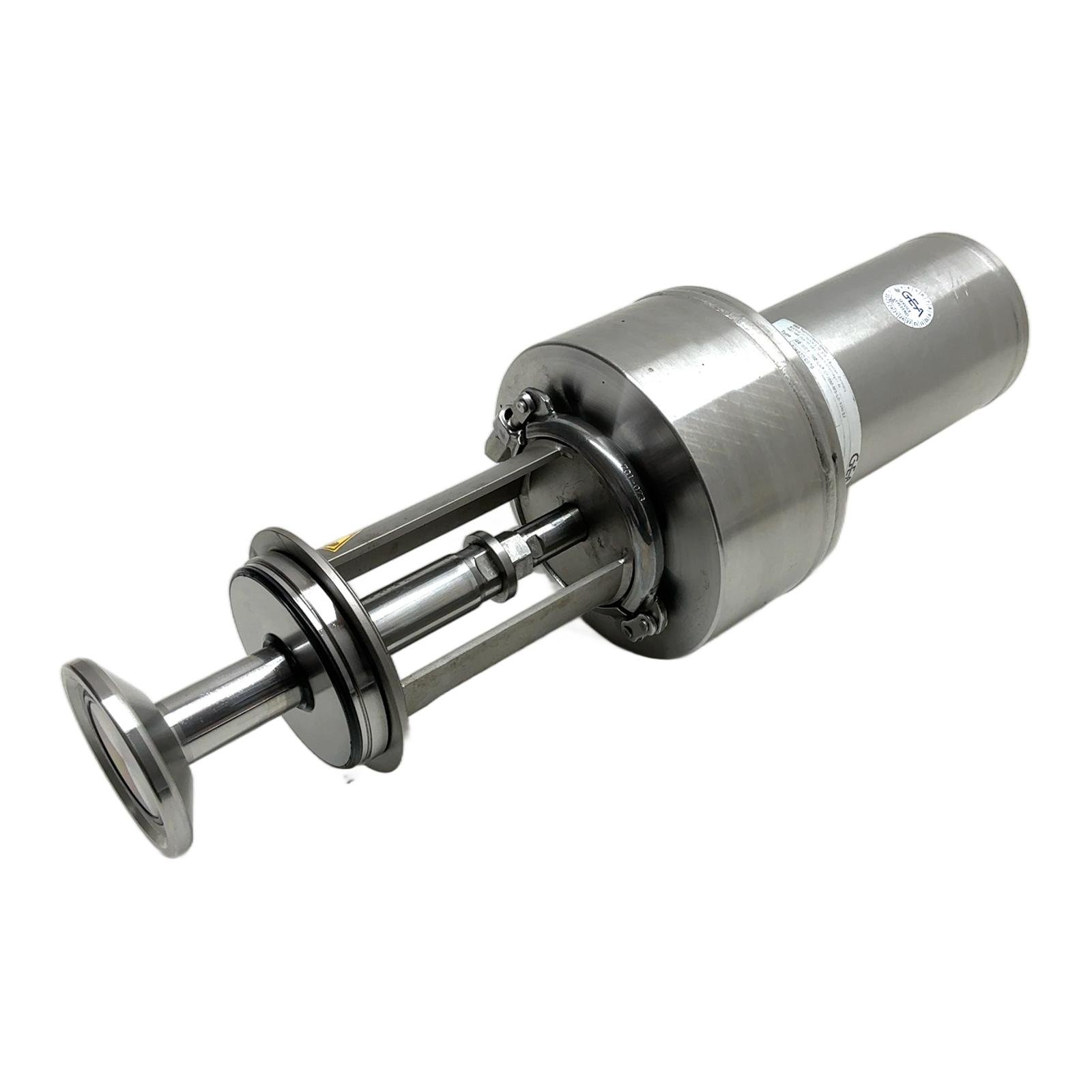

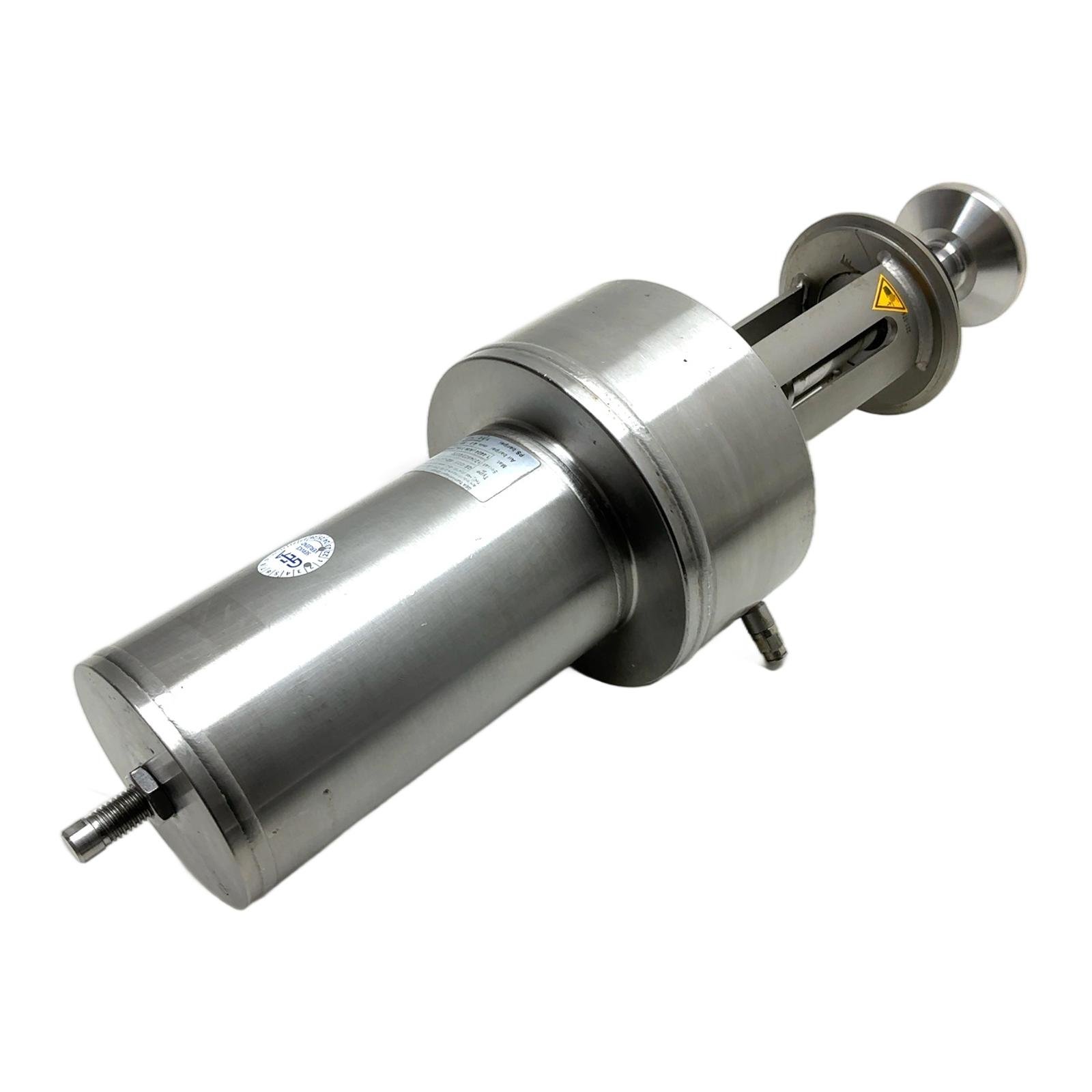

GEA Aseptomag Pneumatic Sampling ValveDescriptionThis is a GEA Tuchenhagen Aseptomag sampling valve, model QE-OD3, designed for sterile and hygienic applications. It features a robust pneumatic actuator and is constructed from high-grade stainless steel, ensuring reliability and process safety in industries such as food and beverage, pharmaceuticals, and biotechnology. The valve’s design allows for representative sampling without process interruption or contamination.SpecificationsManufacturer: GEA Tuchenhagen GmbHType: QE-OD3 -MZ-LAT 0700M-MB-L02N82Actuation: PneumaticAir Pressure: 4.0 to 8.0 bar (58 to 116 psi)Body Material: 1.4404 / AISI 316L Stainless SteelSeal Material: HNBR (FDA Compliant)Connection: Tri-ClampLabel InfoSerial Number: 1224822/0070Stamped Part Number: 701-073ApplicationIdeal for taking sterile samples from closed systems like tanks and pipes in dairies, breweries, pharmaceutical plants, and other processing facilities where hygiene is critical.Country of OriginMade in Germany.CO2 ImpactBy choosing this pre-owned item, you help save approximately 7.0 kg of CO2 emissions compared to manufacturing a new one, contributing to a more sustainable industry.AvailabilityIn stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery.FAQWhat is the benefit of the Aseptomag design for sterile processes?The Aseptomag series uses a high-quality diaphragm or bellows to hermetically seal the valve stem from the product area. This design eliminates potential contamination points found in traditional packed-gland valves, ensuring a truly aseptic sampling process.Can the HNBR seal be replaced with another material like EPDM or Silicone?Yes, GEA typically offers various FDA-compliant seal materials for their valves. While this unit is fitted with HNBR, it is often possible to retrofit it with EPDM, Silicone, or FKM seals, depending on the chemical compatibility and temperature requirements of your specific application. Always consult the manufacturer’s guidelines for compatibility.What is the recommended maintenance schedule for this type of sampling valve?Maintenance frequency depends on usage, process conditions (temperature, pressure, product type), and cleaning cycles (CIP/SIP). As a general rule, seals should be inspected annually and replaced as needed. The pneumatic actuator should also be checked for smooth operation and air leaks.profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.Last Update: Friday, March 13, 2026
FESTO VABV-S2-2S-G12-T1 560842 Manifold sub-base
Op voorraad
| Gewicht | 2,00 kg |
|---|---|
| Packing Quantity | 1 Unit(s) |
| Unit of Measure | Unit(s) |
| Brand | FESTO |
| Category | Valves |
| Description | Pneumatic Valve Sub-Base |
| MPN | VABV-S2-2S-G12-T1 560842 Manifold sub-base |
| Other Notations | VABV-S2-2S-G12-T1 560842 Manifold sub-base, VABV-S2-2S-G12-T1560842Manifoldsub-base, VABVS22SG12T1 56084, VABVS22SG12T1560842Manifoldsubbase |
| Fabr. Art. Nr. | VABVS22SG12T1 560842 Manifold subbase |
PHANTOM 11.500.0100B HSS-E Cobalt Drill Bit 1.0mm – DIN 338N High Performance Metal
Op voorraad
| Gewicht | 2,00 kg |
|---|---|
| Packing Quantity | 2 Unit(s) |
| Unit of Measure | Unit(s) |
| Brand | PHANTOM |
| Category | Abrasive and Cutting Tools |
| Description | HSS-E twist drill bits |
| MPN | 11.500.0100B HSS-E Cobalt Drill Bit 1.0mm – DIN 338N High Performance Metal |
| Other Notations | 11.500.0100B HSS-E Cobalt Drill Bit 1.0mm – DIN 338N High Performance Metal, 11.500.0100B-HSS-E-Cob, 11.500.0100BHSS-ECobaltDrillBit1.0mm–DIN338NHighPerformanceMetal, 11.500.0100BHSSECobaltDrillBit1.0mm–DIN338NHighPerformanceMetal |
| Fabr. Art. Nr. | 115000100B HSSE Cobalt Drill Bit 10mm – DIN 338N High Performance Metal |
REXROTH MSK070D-0450-NN-M1-P1-NSNN R911312980
Op voorraad
| Gewicht | 34,00 kg |
|---|---|
| Packing Quantity | 1 Unit(s) |
| Unit of Measure | Unit(s) |
| Brand | REXROTH |
| Category | Motors and Encoders |
| Description | Industrial Servo Motor |
| MPN | MSK070D-0450-NN-M1-P1-NSNN R911312980 |
| Other Notations | MSK070D-0450-NN-M1-P1-NSNN R911312980, MSK070D-0450-NN-M1-P1-NSNNR911312980, MSK070D0450NNM1P1NSNN R911312980, MSK070D0450NNM1P1NSNNR911312980 |
| Fabr. Art. Nr. | MSK070D0450NNM1P1NSNN R911312980 |
