SCHNEIDER ELECTRIC LC2D80

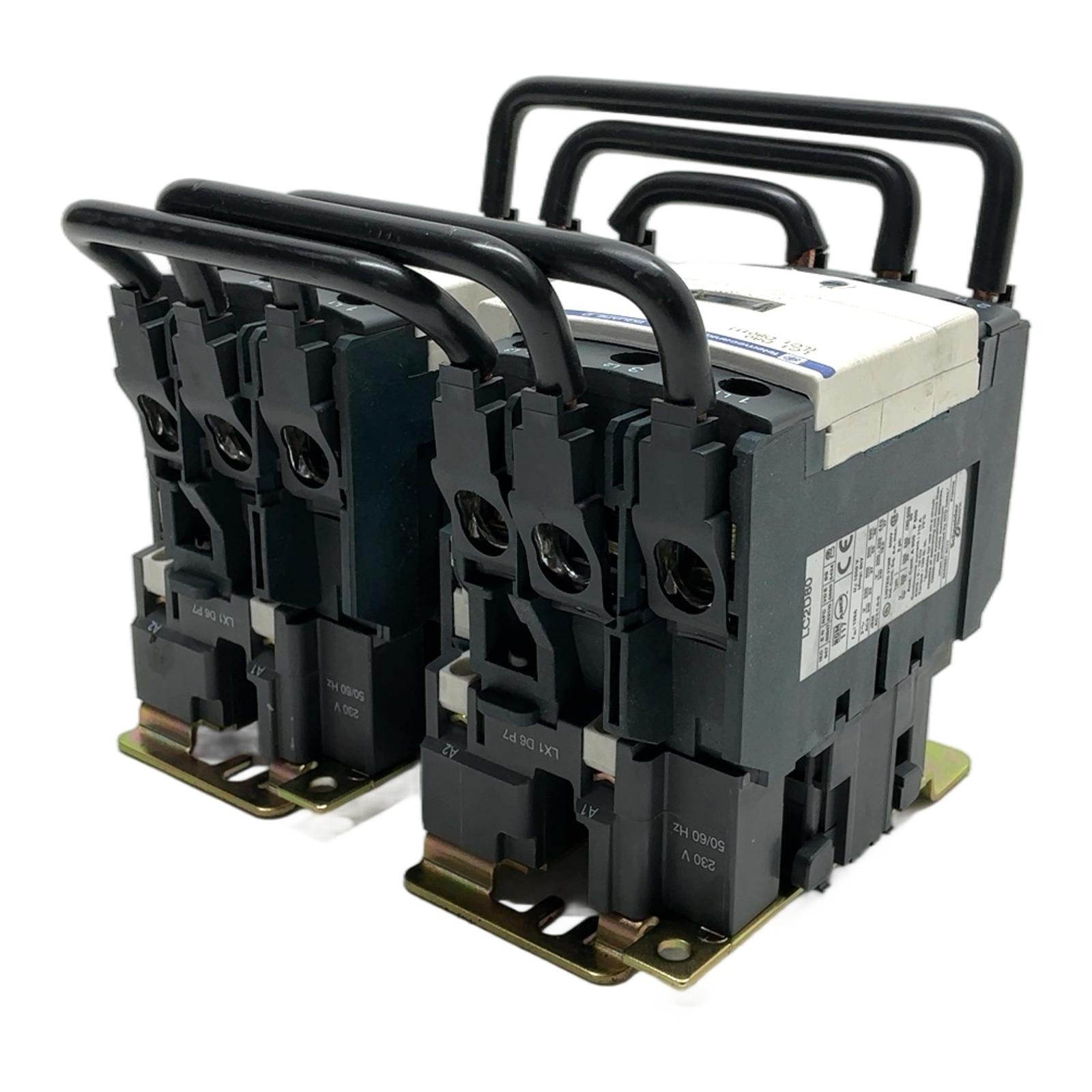

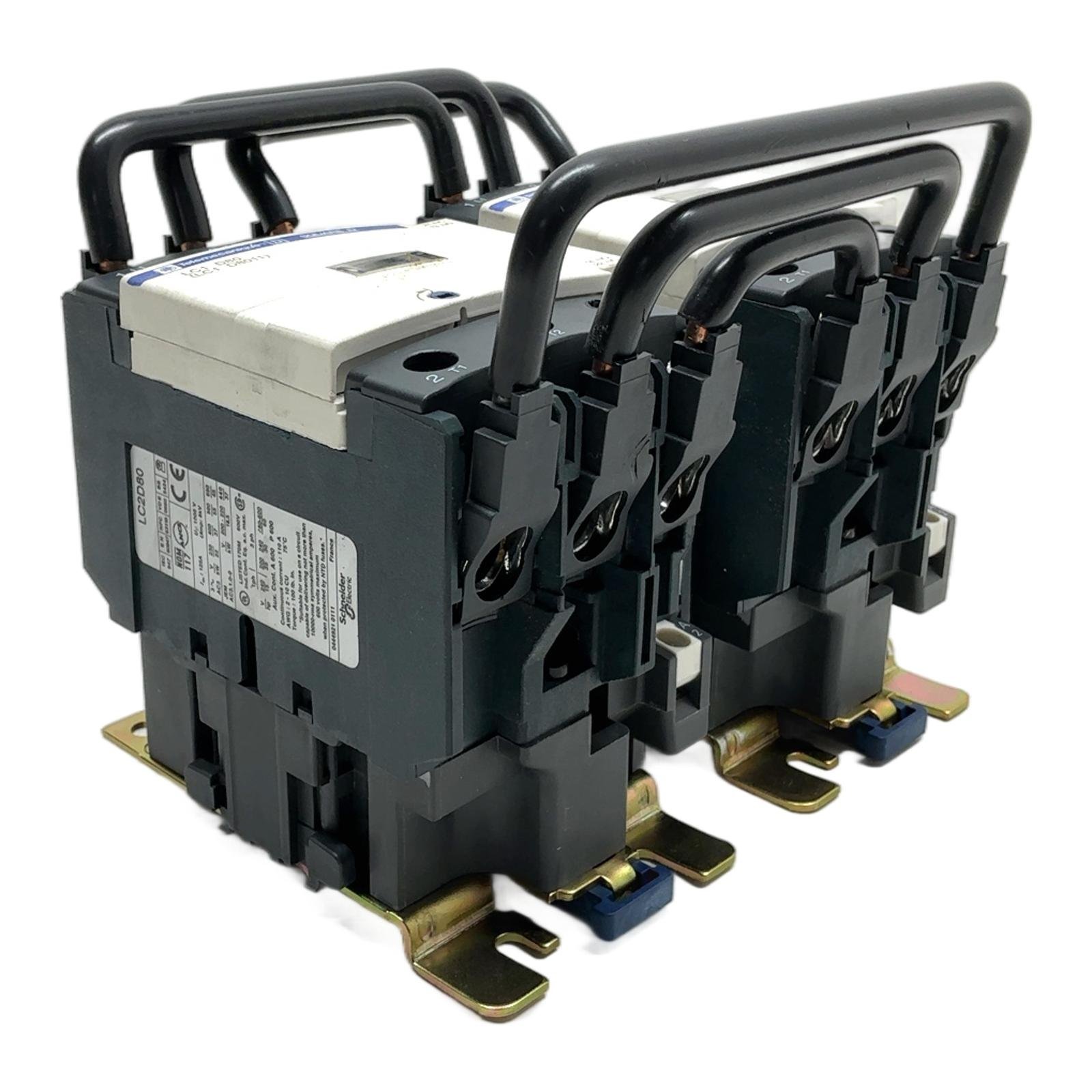

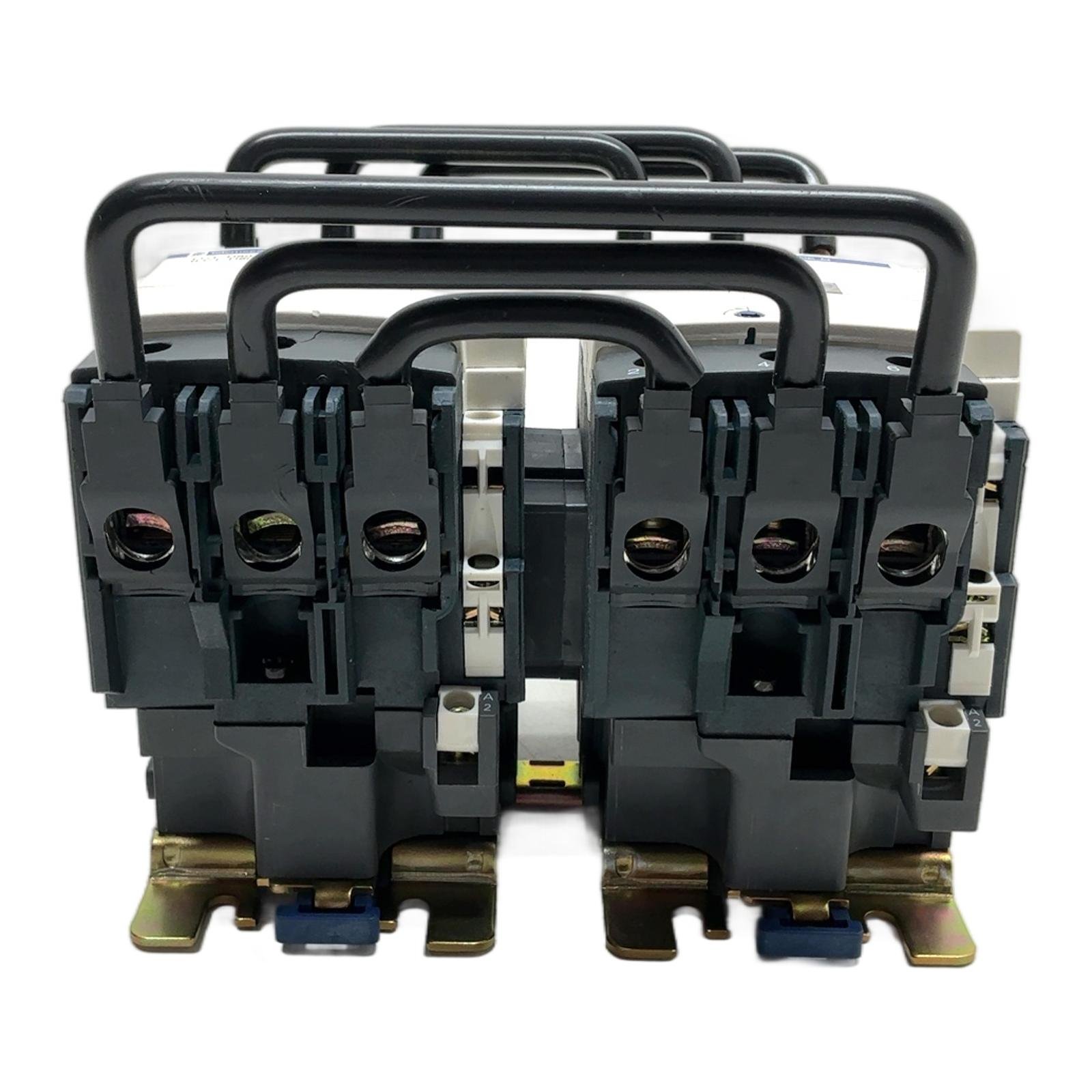

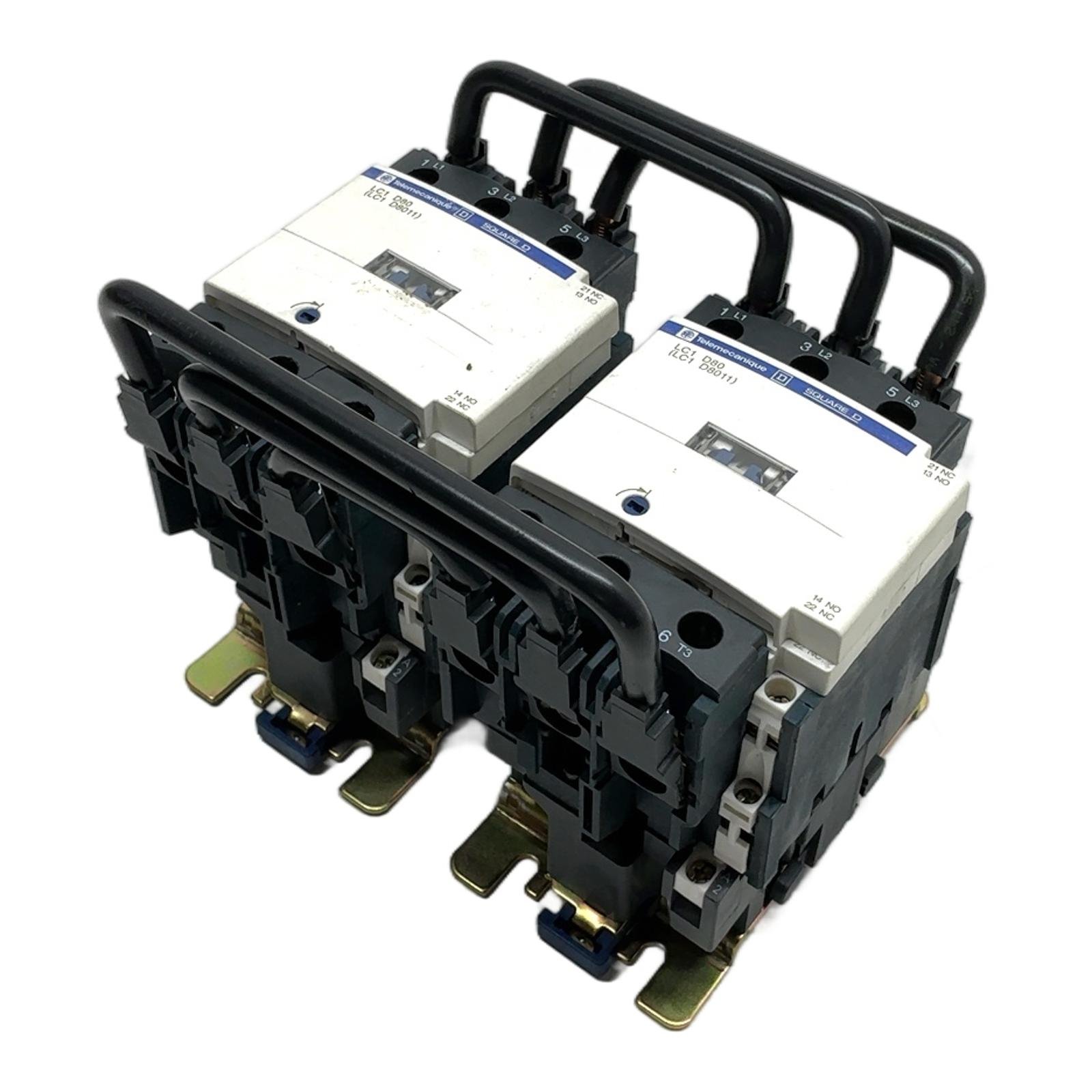

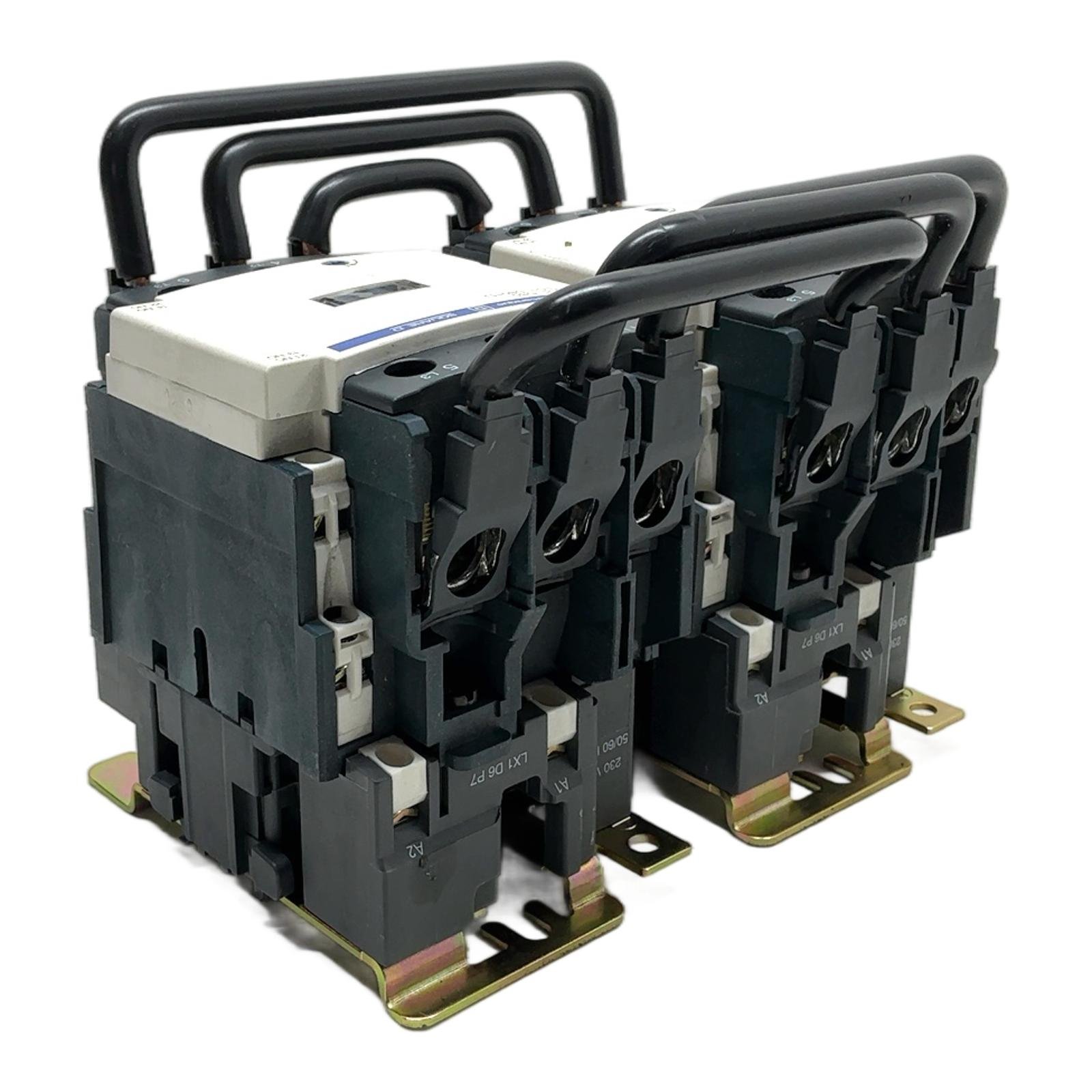

Schneider Electric LC2D80 Reversing Contactor Description The Schneider Electric LC2D80 is a high-performance reversing contactor from the TeSys D series. This assembly is designed for switching the direction of three-phase motors. It comprises two mechanically interlocked LC1D80 contactors, ensuring that forward and reverse commands cannot be active simultaneously, which prevents short circuits and protects the motor. With a thermal current rating of 125A and a capacity to handle motors up to 37kW at 400V, this unit is built for durability and reliability in industrial environments. Specifications Manufacturer: Schneider Electric Brand: Telemecanique Model: LC2D80 Product Type: Reversing Contactor Number of Poles: 3 Thermal Current (Ith): 125 A Rated Power (AC-3 / 400V): 37 kW Rated Power (AC-3 / 230V): 22 kW Rated Insulation Voltage (Ui): 1000V Rated Impulse Withstand Voltage (Uimp): 8kV Auxiliary Contacts (per unit): 1 NO + 1 NC Label Info LC2D80 Ith: 125A AC3 kW at 400V: 37 Application This reversing contactor is ideal for applications requiring motor direction control, such as industrial conveyors, lifting equipment, automatic gates, and various machine tools. Its robust design makes it suitable for heavy-duty start-stop cycles. Country of Origin Made in France. CO2 Impact Choosing this pre-owned Schneider Electric LC2D80 contactor prevents the emission of approximately 220 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the CO2 captured by over 10 trees in a year. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the coil voltage for this specific LC2D80 unit?The coil voltage is not specified on the visible labels of the unit in the photos. Please contact us to verify the coil voltage of the specific unit in stock before purchasing to ensure compatibility with your control system. What is the purpose of the mechanical interlock?The mechanical interlock is a safety feature that physically prevents both contactors from being energized at the same time. This is critical in a reversing application to prevent a direct phase-to-phase short circuit, which would damage the equipment and pose a safety risk. Can I add additional auxiliary contact blocks to this reversing contactor?Yes, the TeSys D series is modular. You can typically mount additional auxiliary contact blocks on the front or side of each individual contactor to expand the number of status and control signals. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
