SCHNEIDER ELECTRIC C60H-DC C15A A9N61511

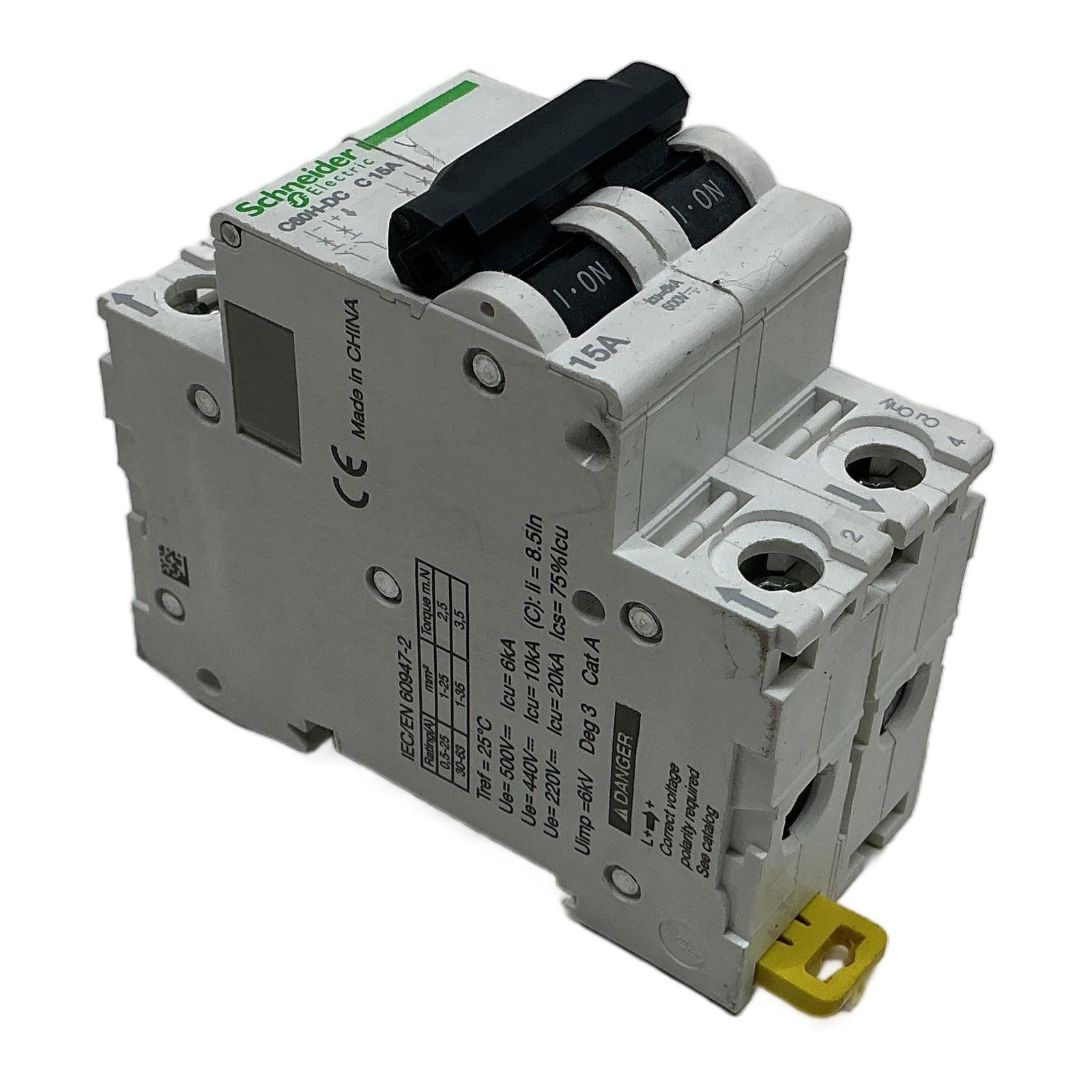

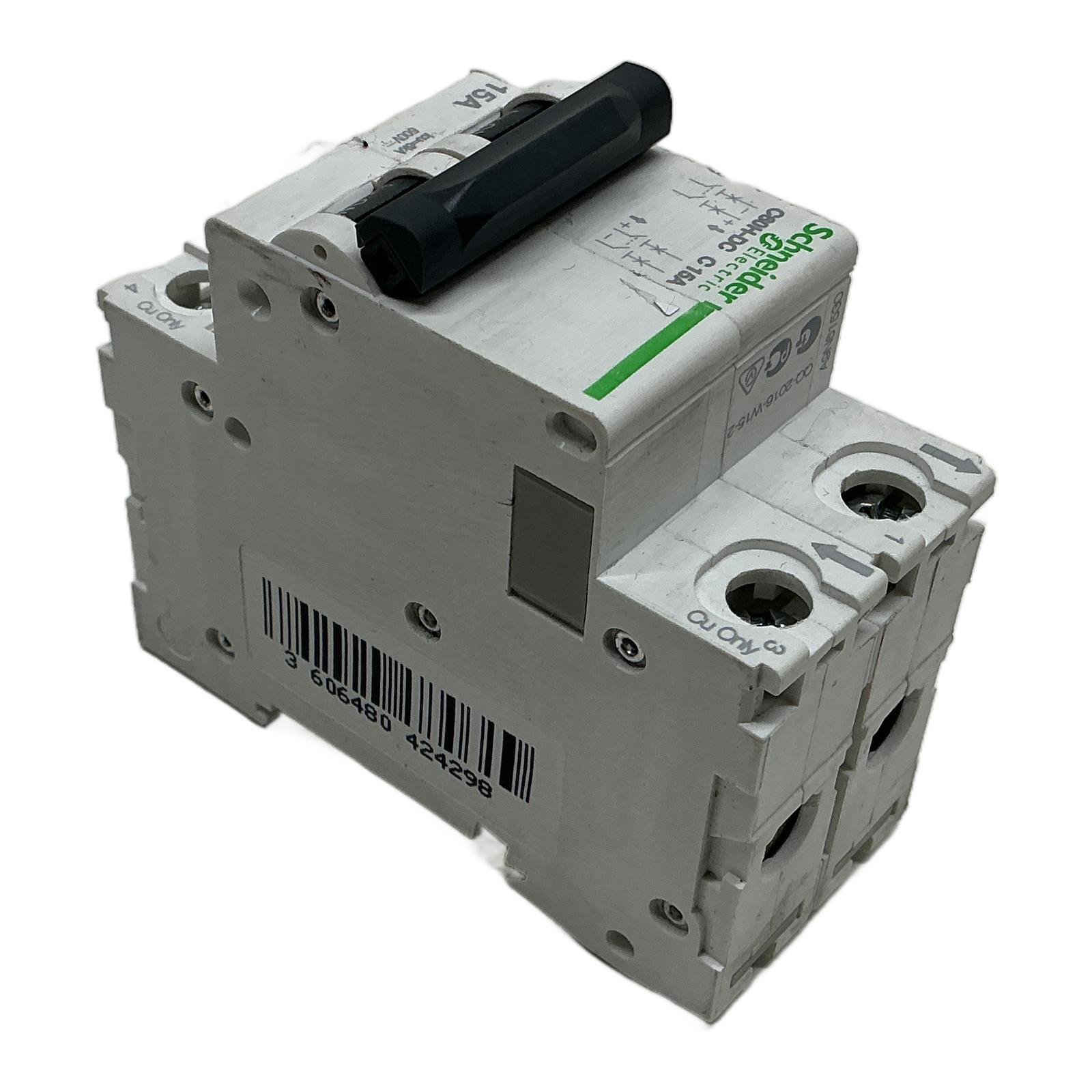

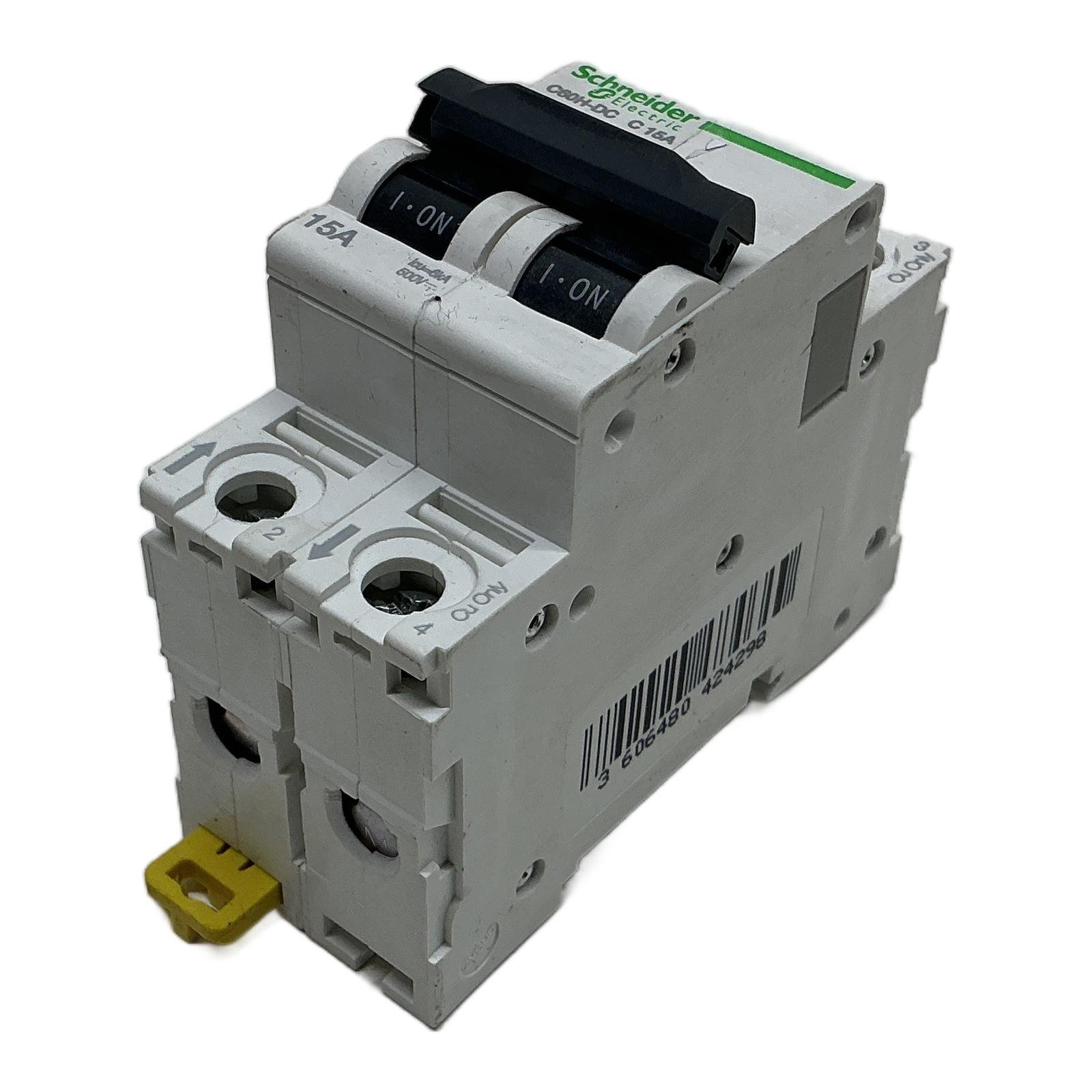

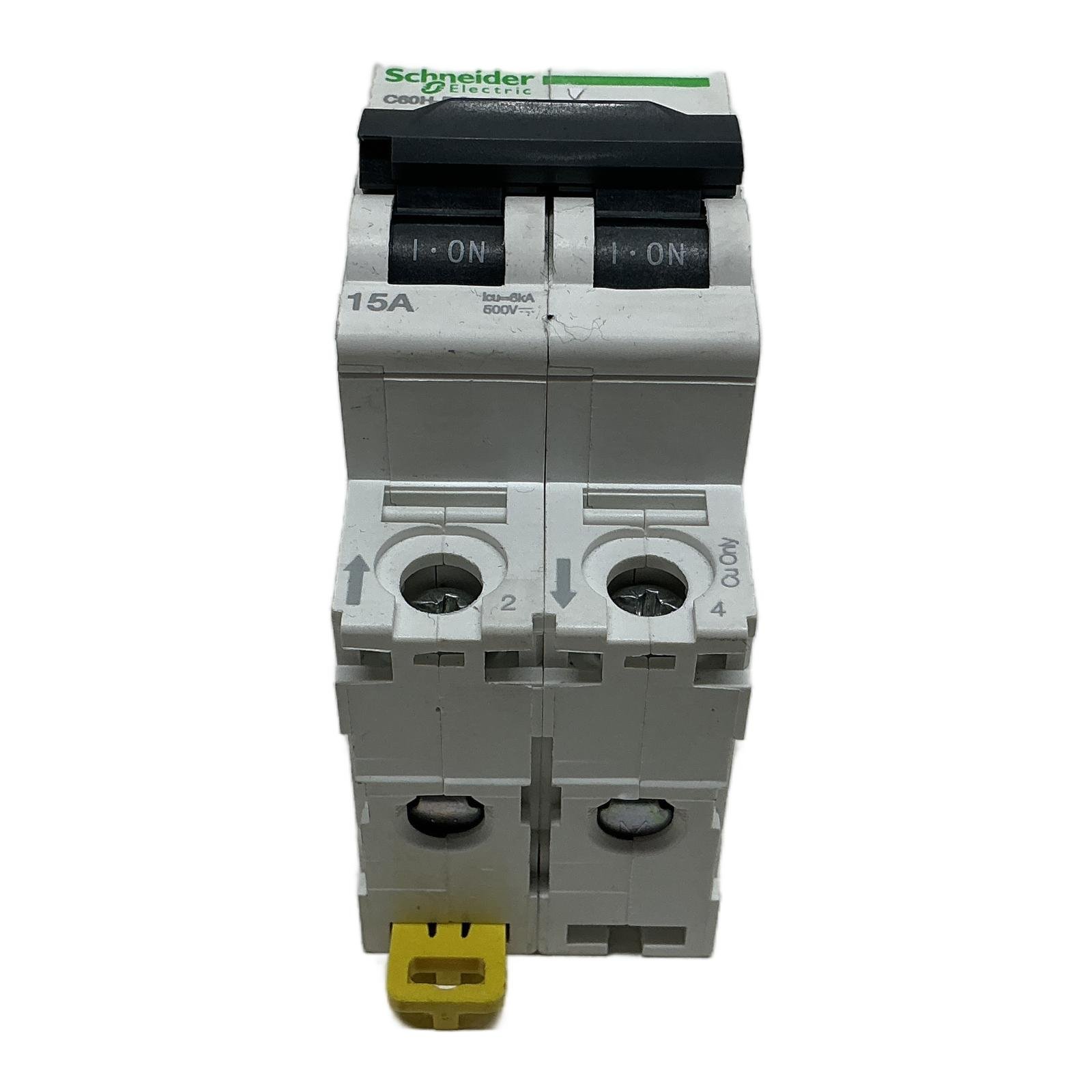

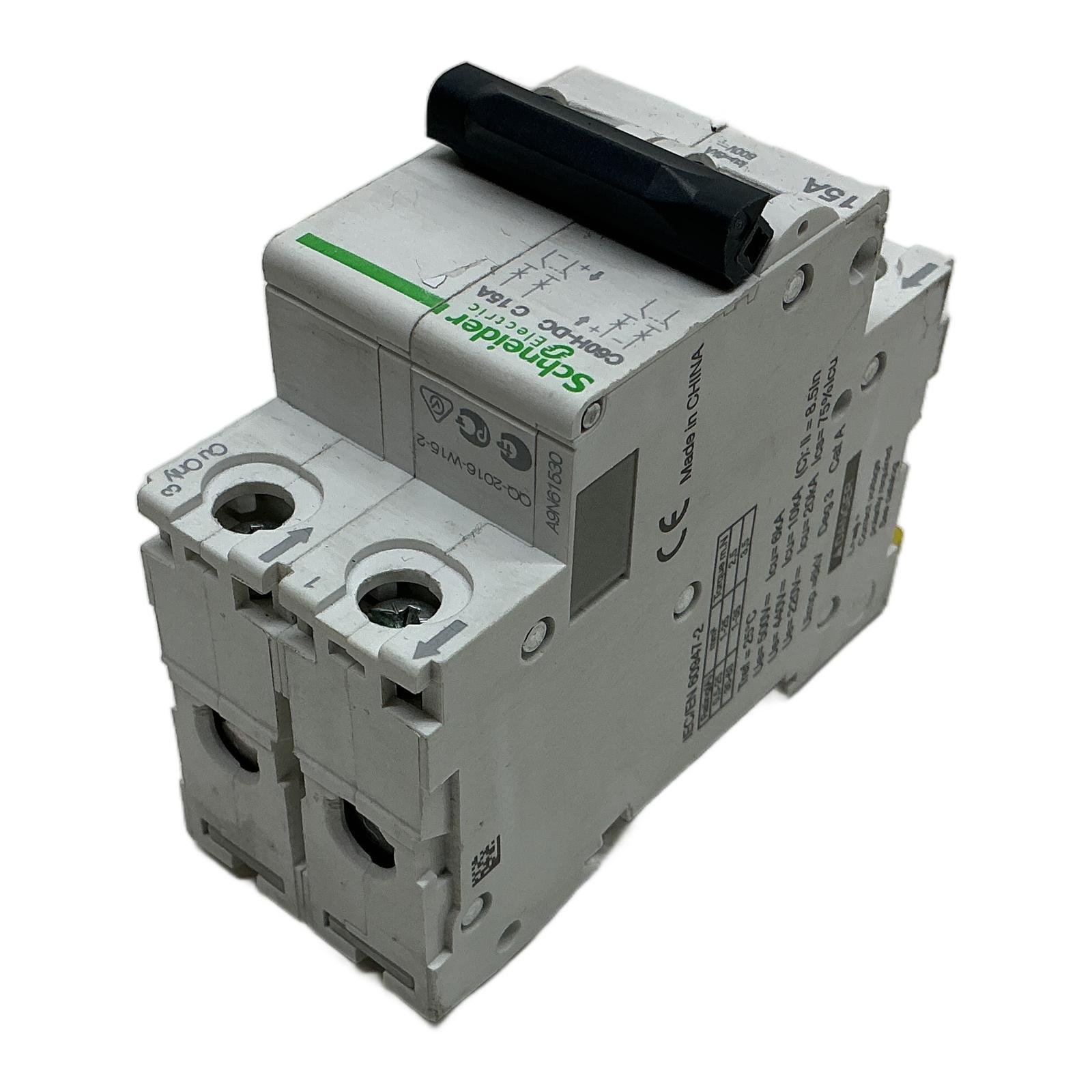

Schneider Electric C60H-DC 15A 2-Pole Circuit Breaker Description This is a C60H-DC series miniature circuit breaker (MCB) from Schneider Electric, part number A9N61511. It is a 2-pole device with a 15A rating and a C tripping curve, specifically designed for use in DC circuits. Part of the trusted Acti 9 range, it offers reliable protection against short circuits and overloads in demanding industrial and commercial environments. Specifications Manufacturer: Schneider Electric Part Number: A9N61511 Model: C60H-DC C15A Series: Acti 9 Rated Current: 15 A Number of Poles: 2-Pole Tripping Curve: C Rated Voltage: Up to 500 V DC Standard: IEC/EN 60947-2 Label Info Breaking Capacity (Icu): 6kA at 500V, 10kA at 440V, 20kA at 220V Impulse Voltage (Uimp): 6kV Recommended Torque: 2.5 N.m for 1-25 mm2 wire Application Ideal for protecting DC circuits in applications such as photovoltaic systems, energy storage, DC motor control, and telecommunications power supplies. Country of Origin Made in China. CO2 Impact By choosing this pre-owned component, you are avoiding the emission of approximately 10.0 kg of CO2 associated with the production of a new one. This saving is comparable to the emissions from driving a car for 50 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Can this C60H-DC breaker be used for AC applications?No, this breaker is specifically designed and certified for Direct Current (DC) applications according to IEC/EN 60947-2. Using it on AC circuits can be unsafe and may not provide proper protection. What is the significance of the ‘C’ curve rating (C15A)?The ‘C’ curve is a tripping characteristic. It means the breaker will trip instantaneously at 5 to 10 times its rated current (15A). This makes it suitable for general applications with moderate inrush currents, like resistive and inductive loads. What wire size and torque should be used for the terminals?According to the label, for a current rating up to 25A, you can use a wire size of 1-25 mm squared. The recommended tightening torque is 2.5 Newton-meters (N.m). profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
