SCHNEIDER ELECTRIC LC1D8011 LX1D6P7

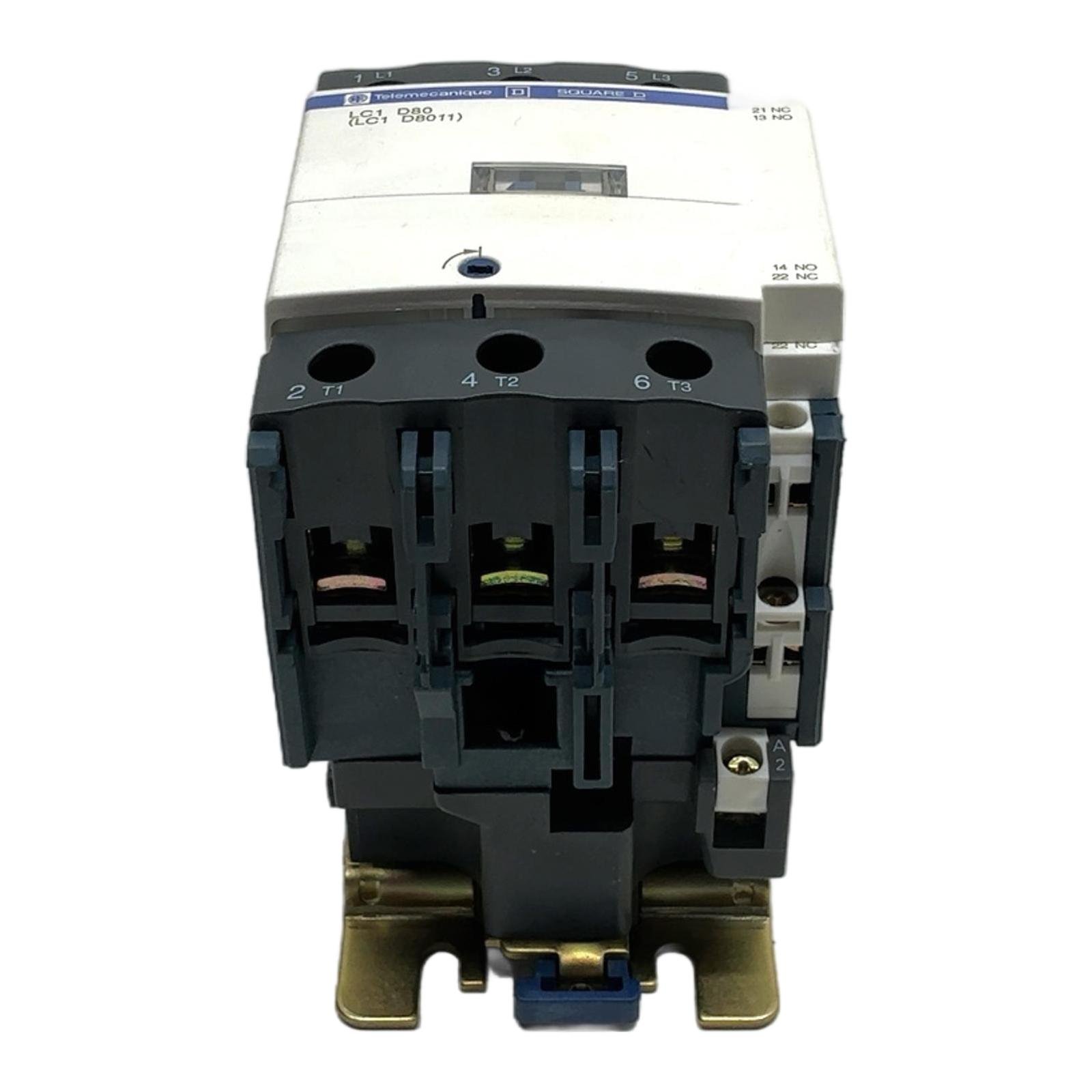

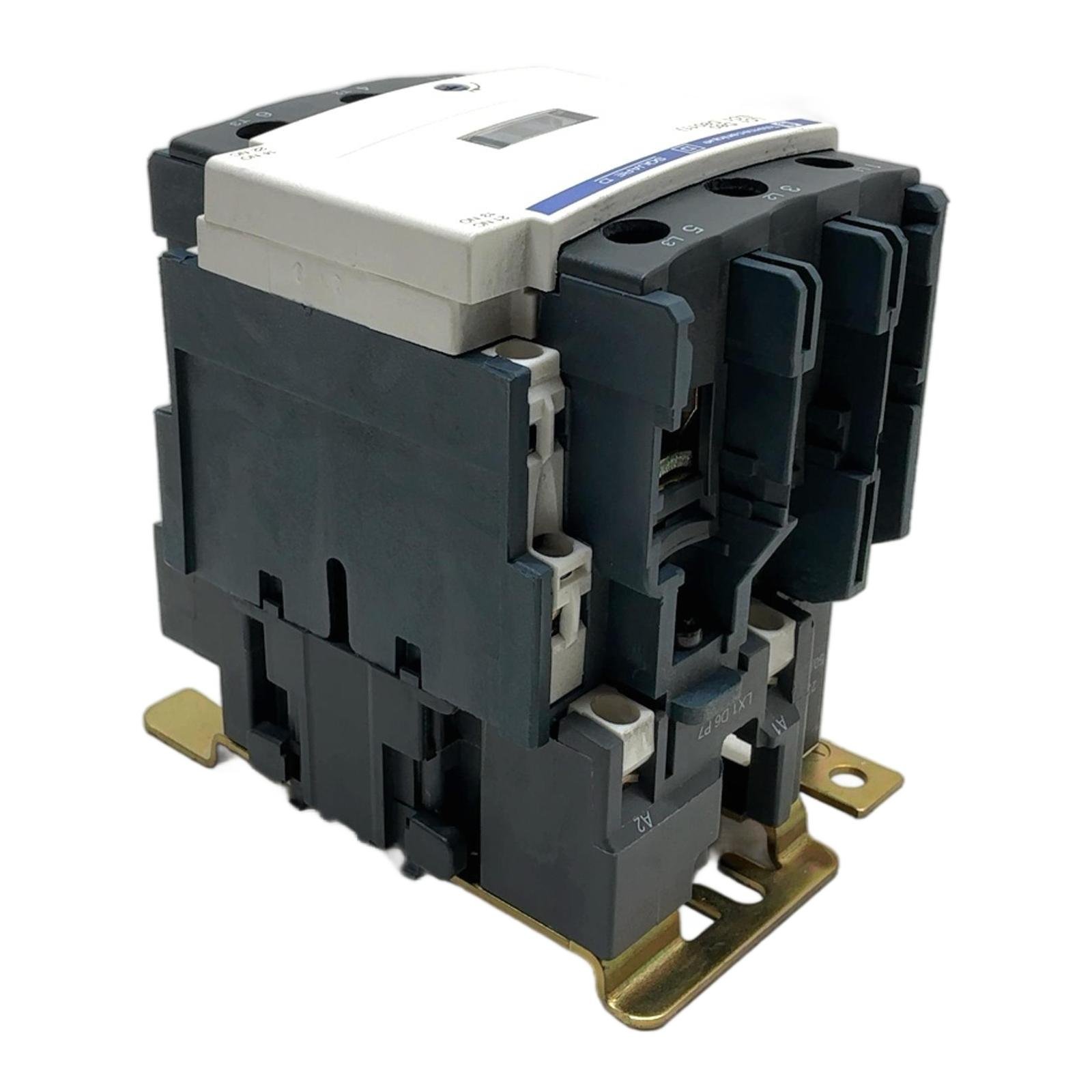

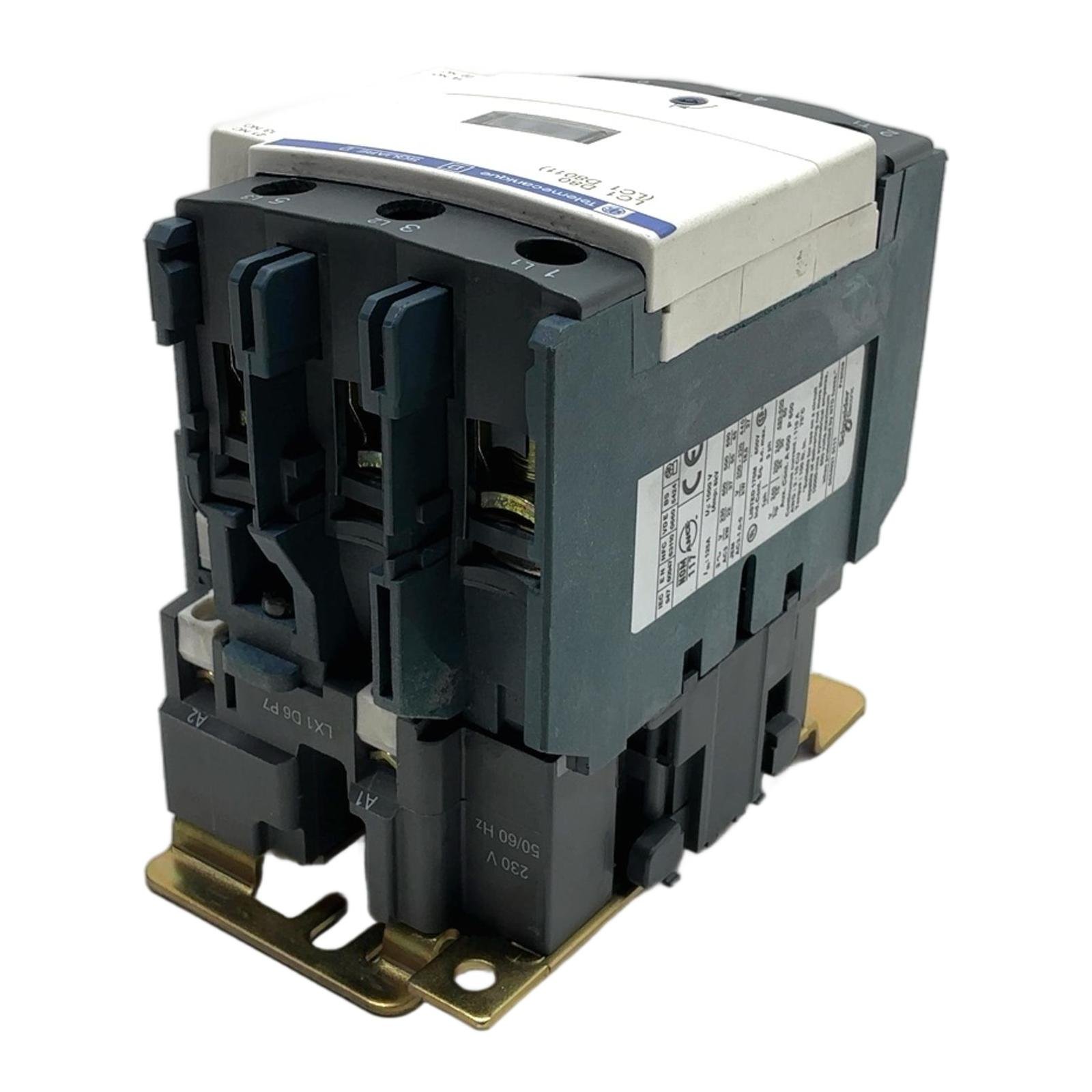

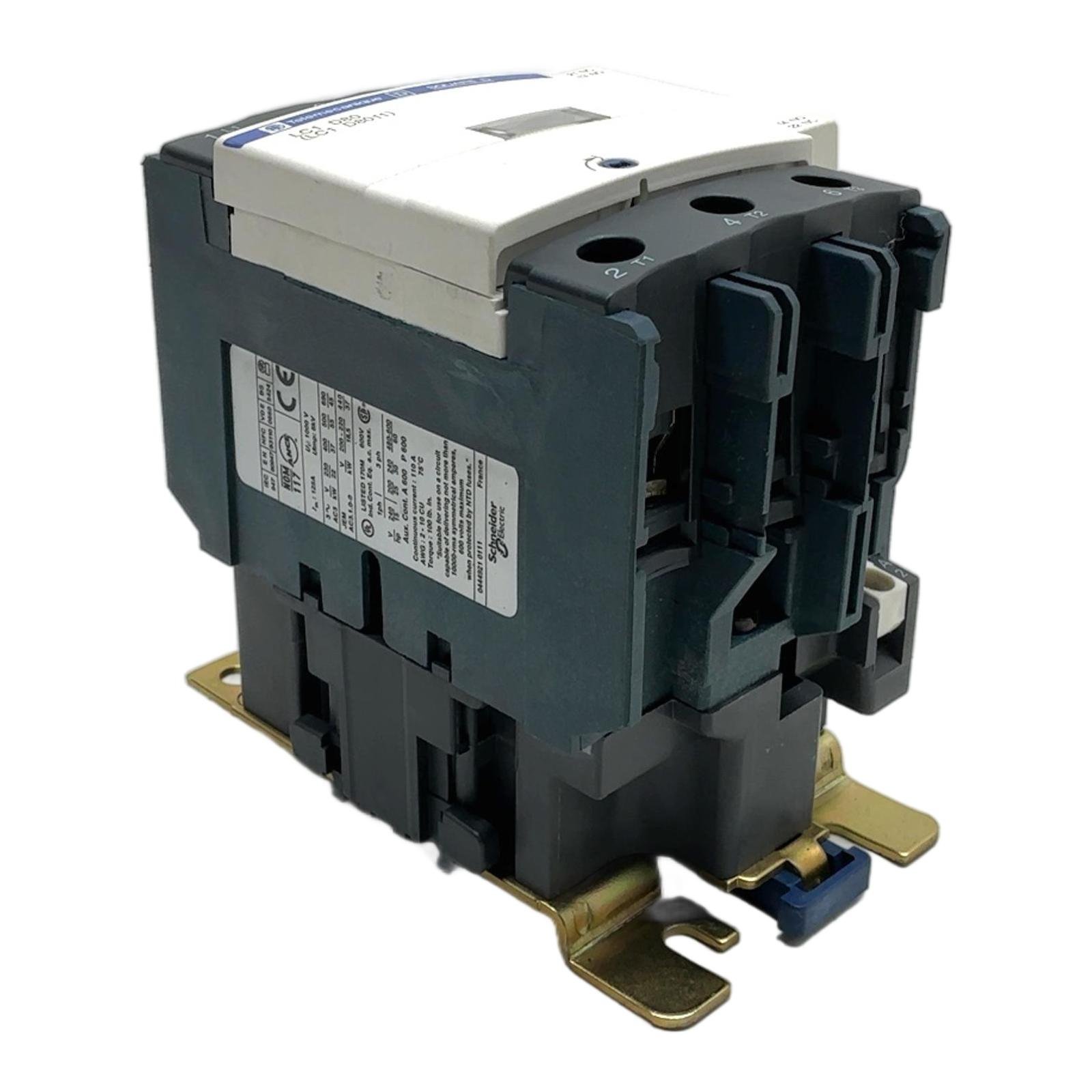

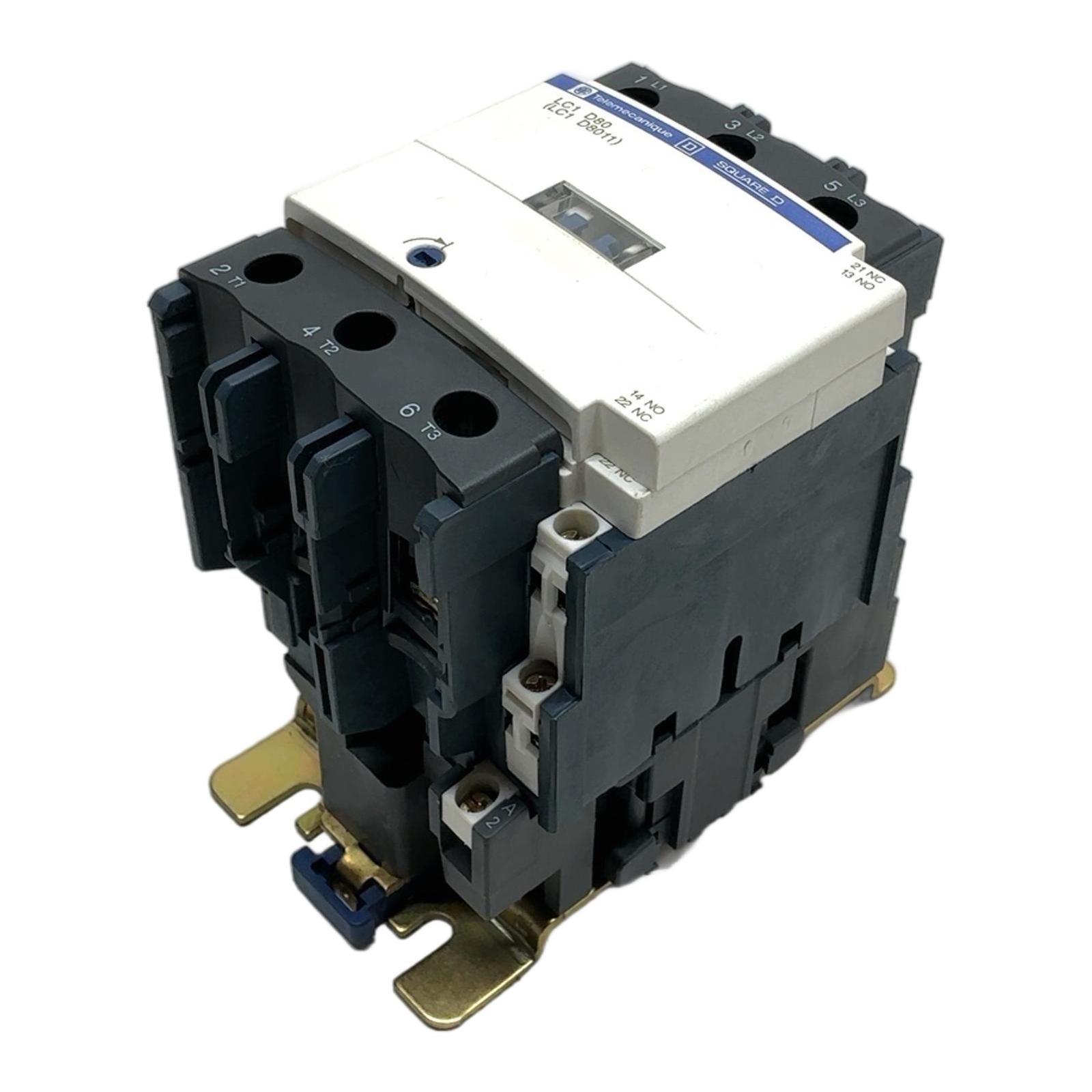

Schneider Electric TeSys D 3-Pole Contactor Description This is a robust 3-pole contactor, model LC1D8011, from the Schneider Electric TeSys D series. It is engineered for high performance in motor control and power switching applications. With a rated operational current of 80A for AC-3 loads and a power rating of 37kW at 400V, it is suitable for a wide range of industrial machinery. This unit comes equipped with a 230V AC 50/60Hz coil and built-in 1NO + 1NC auxiliary contacts. Specifications Manufacturer: Schneider Electric Series: TeSys D Model: LC1D8011 Coil Voltage: 230V AC, 50/60 Hz (Coil type: LX1D6P7) Poles: 3-Pole Rated Current (AC-3 at 440V): 80 A Motor Power (AC-3 at 400V): 37 kW Auxiliary Contacts: 1 Normally Open (NO) + 1 Normally Closed (NC) Rated Insulation Voltage (Ui): 1000 V Conventional Thermal Current (Ith): 125 A Label Info Part Number: 0444921 0111 Standards: IEC/EN 60947, NFC, VDE, BS Certifications: CE, UL, CSA Application Ideal for direct-on-line (DOL) starting of AC motors, as well as for controlling resistive, inductive, and capacitive circuits. Commonly used in HVAC systems, conveyor belts, pumps, and other industrial automation environments. Country of Origin Made in France. CO2 Impact By purchasing this reused contactor, you contribute to saving approximately 62.8 kg of CO2 emissions compared to a new product. This saving is equivalent to the CO2 captured by over 3 mature trees in a year. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question?Can the coil on this LC1D8011 contactor be replaced with a different voltage, for example 24V DC?AnswerYes, the coil on TeSys D contactors is replaceable. You would need to purchase a separate 24V DC coil, such as the Schneider Electric LXD1B7, and exchange it with the currently installed 230V AC coil (LX1D6P7). Question?What is the maximum breaking capacity of this contactor?AnswerThe breaking capacity according to IEC 60947-4-1 is 1100 A at 440 V for power circuits. This high capacity ensures safe operation when switching off motors under load. Question?Are additional auxiliary contact blocks compatible with this model?AnswerYes, this LC1D8011 contactor is compatible with the Schneider Electric LADN and LAD8N series of front and side mounting auxiliary contact blocks. This allows you to easily expand the number of control contacts as needed for your application. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
