SCHNEIDER ELECTRIC LC1D95 LA3DR2

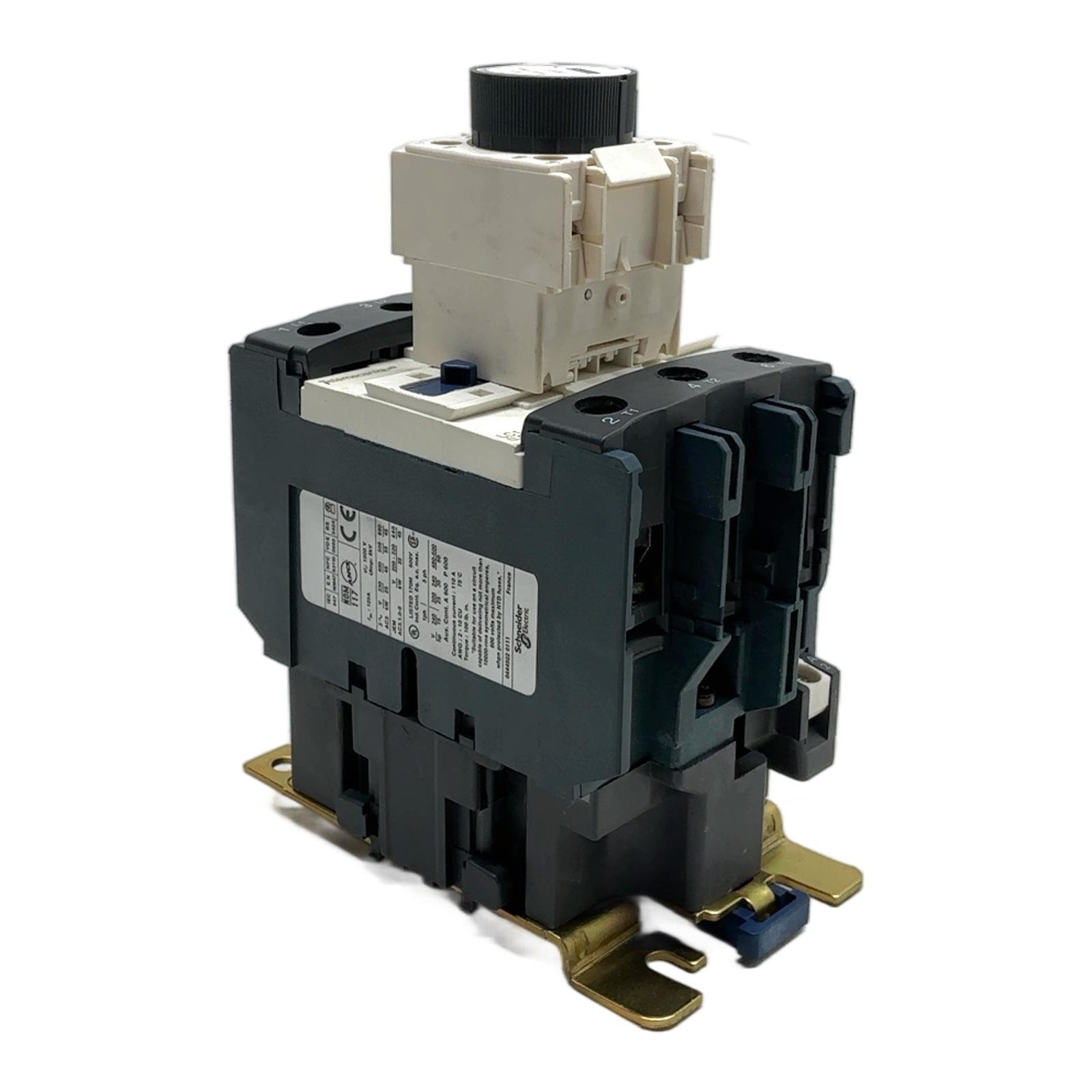

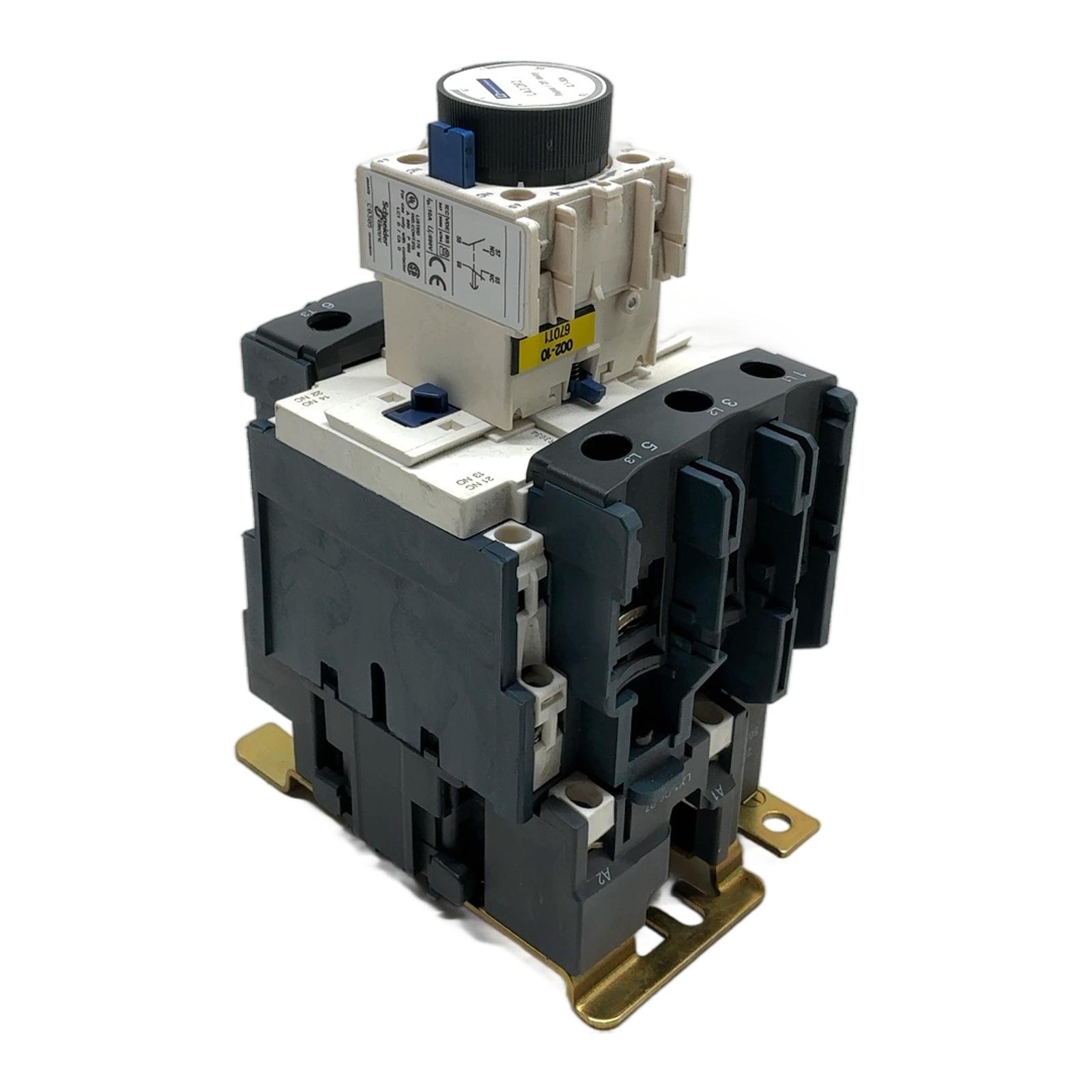

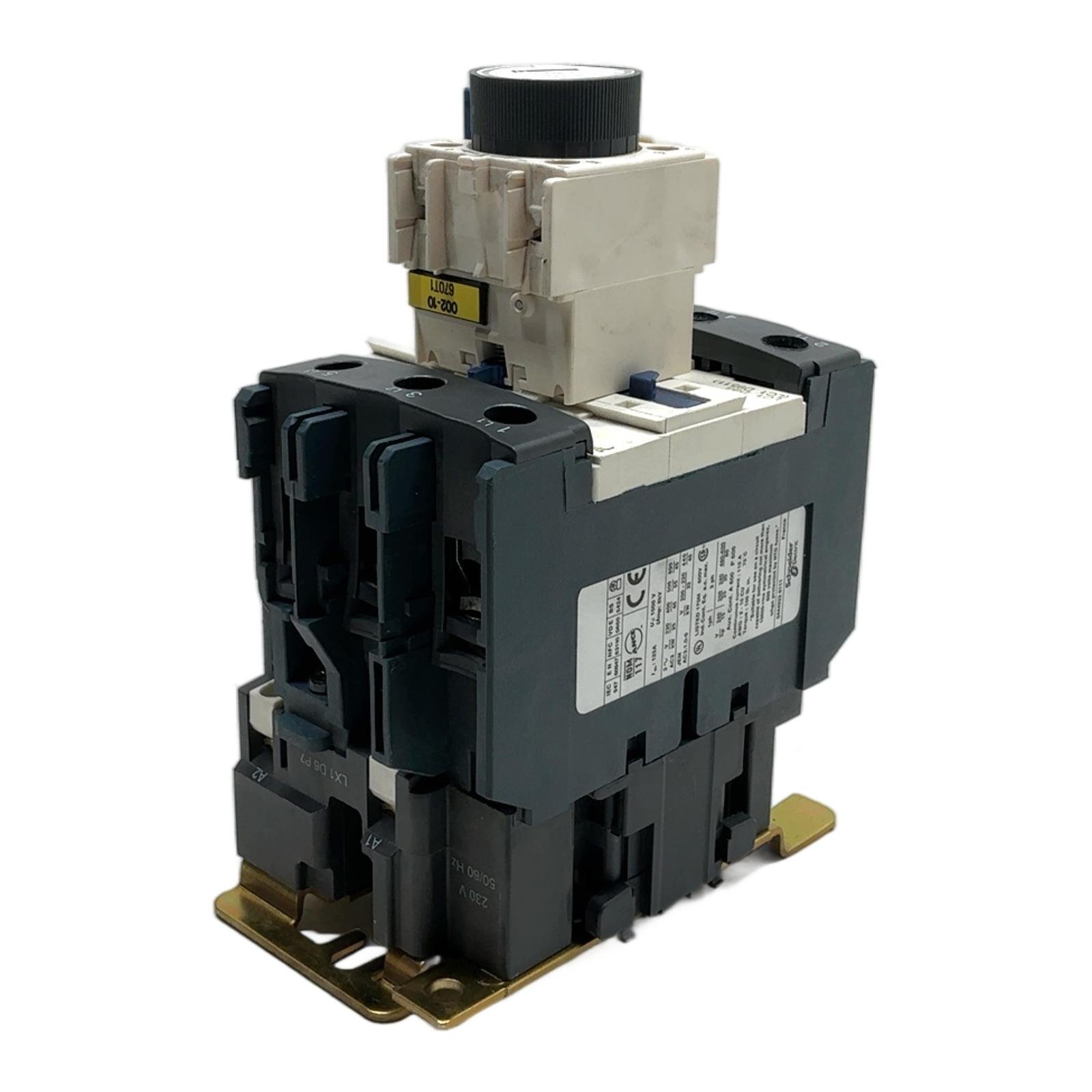

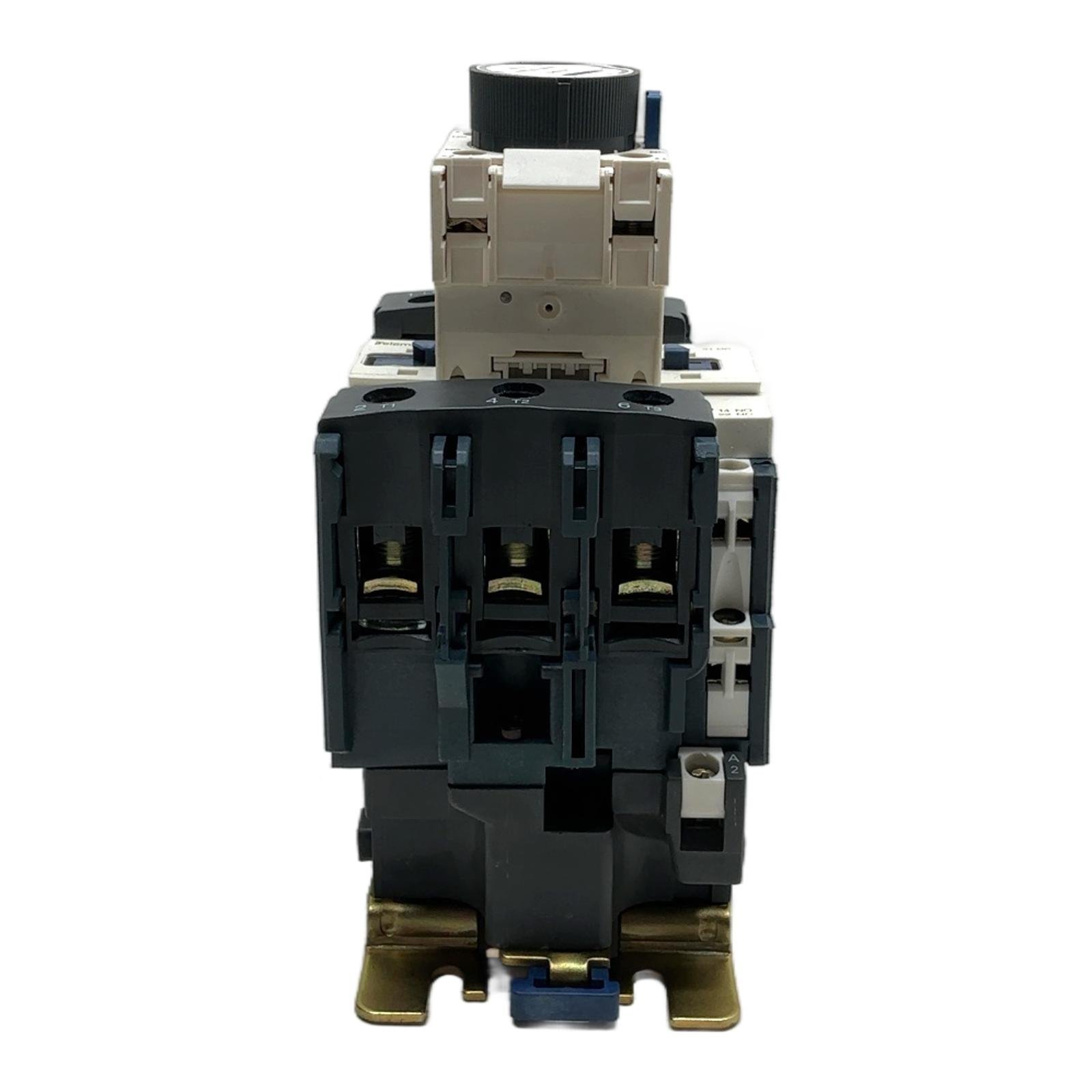

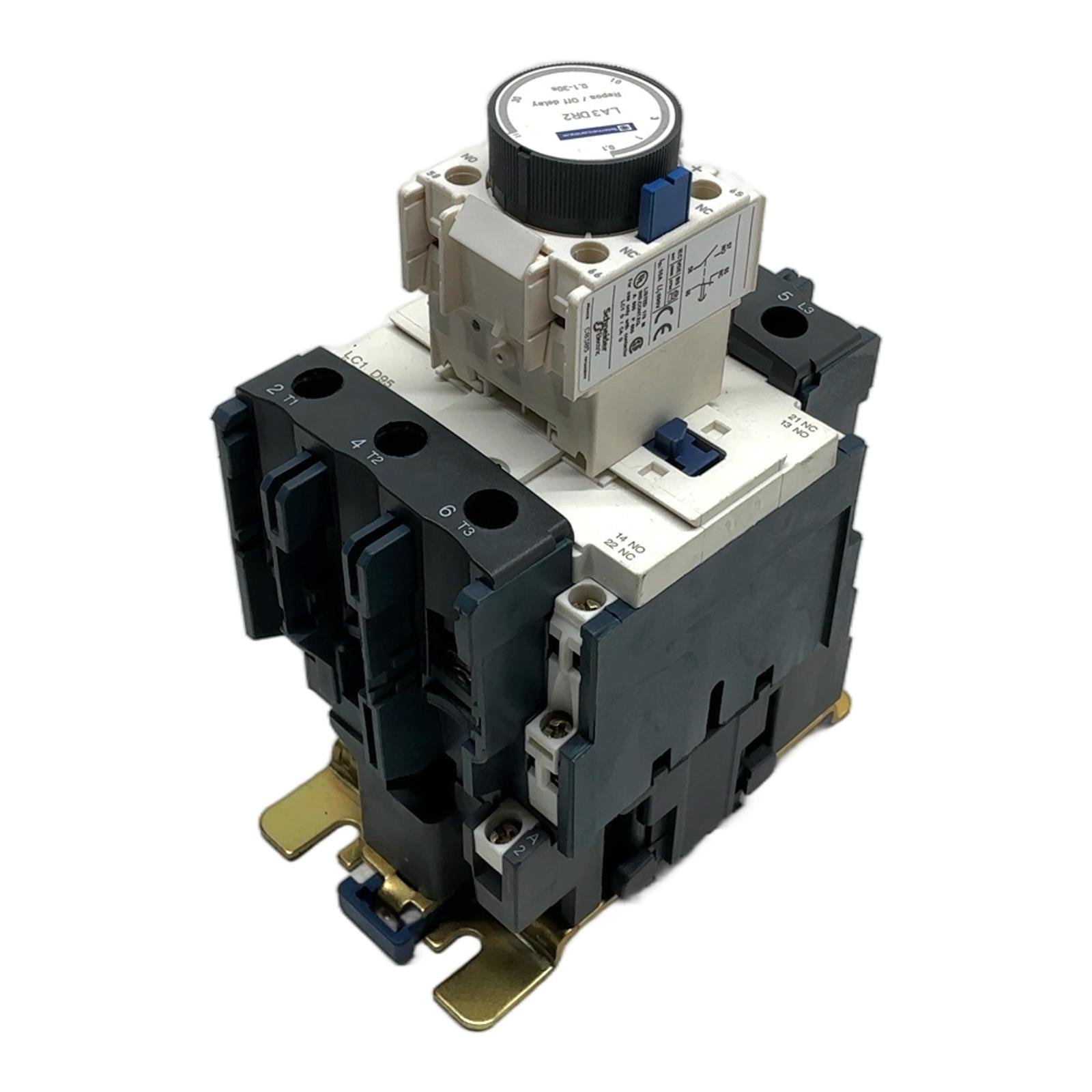

Schneider Electric TeSys D Contactor with Timer Description This is a robust 3-pole contactor from Schneider Electric’s TeSys D series, model LC1D95. It is designed for demanding motor control applications and comes equipped with a Telemecanique LA3 DR2 pneumatic off-delay timer, providing versatile control options. Its proven reliability makes it a staple in industrial automation. Specifications Manufacturer: Schneider Electric Contactor Model: LC1D95 Timer Model: LA3 DR2 Poles: 3 Rated Thermal Current (Ith): 125A AC-3 Power Rating at 400V: 45 kW Maximum Insulation Voltage (Ui): 1000V Timer Type: Off-Delay (Repos) Timer Range: 0.1 – 30 seconds Label Info IEC/EN 60947 UL Listed 170M CE, SP Certified Application Ideal for direct-on-line (DOL) starting of squirrel cage motors, as well as for controlling resistive, inductive, and capacitive circuits. Commonly used in HVAC, pumping, material handling, and manufacturing machinery. Country of Origin Made in France. CO2 Impact Reusing this component saves an estimated 27.0 kg of CO2, contributing to a more sustainable industrial process. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question? What is the coil voltage for this LC1D95 contactor? The coil voltage is not explicitly visible in the provided images. It is typically printed on the coil itself. You must verify the coil voltage (e.g., 24V DC, 230V AC) before installation to ensure compatibility with your control circuit. Question? How do I adjust the time delay on the LA3 DR2 timer? The time delay is adjusted using the large black rotary dial on the top of the timer module. The range is from 0.1 seconds to 30 seconds. Simply turn the dial to the desired off-delay time. Question? Can the LA3 DR2 timer block be removed or replaced? Yes, the LA3 DR2 is a modular pneumatic timer that clips onto the front of the LC1D95 contactor. It can be carefully unclipped and replaced with another compatible TeSys D front-mounting auxiliary block if needed. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
