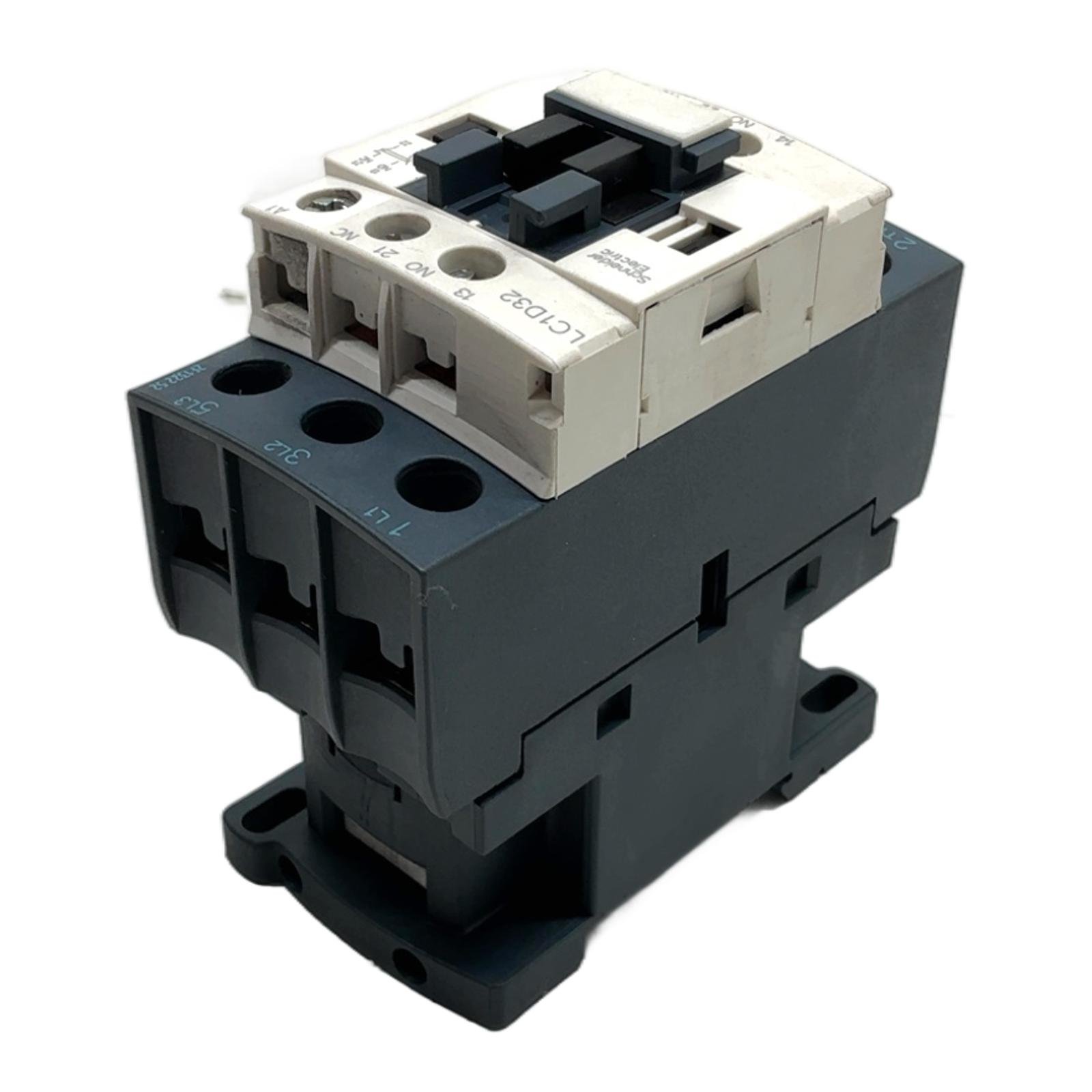

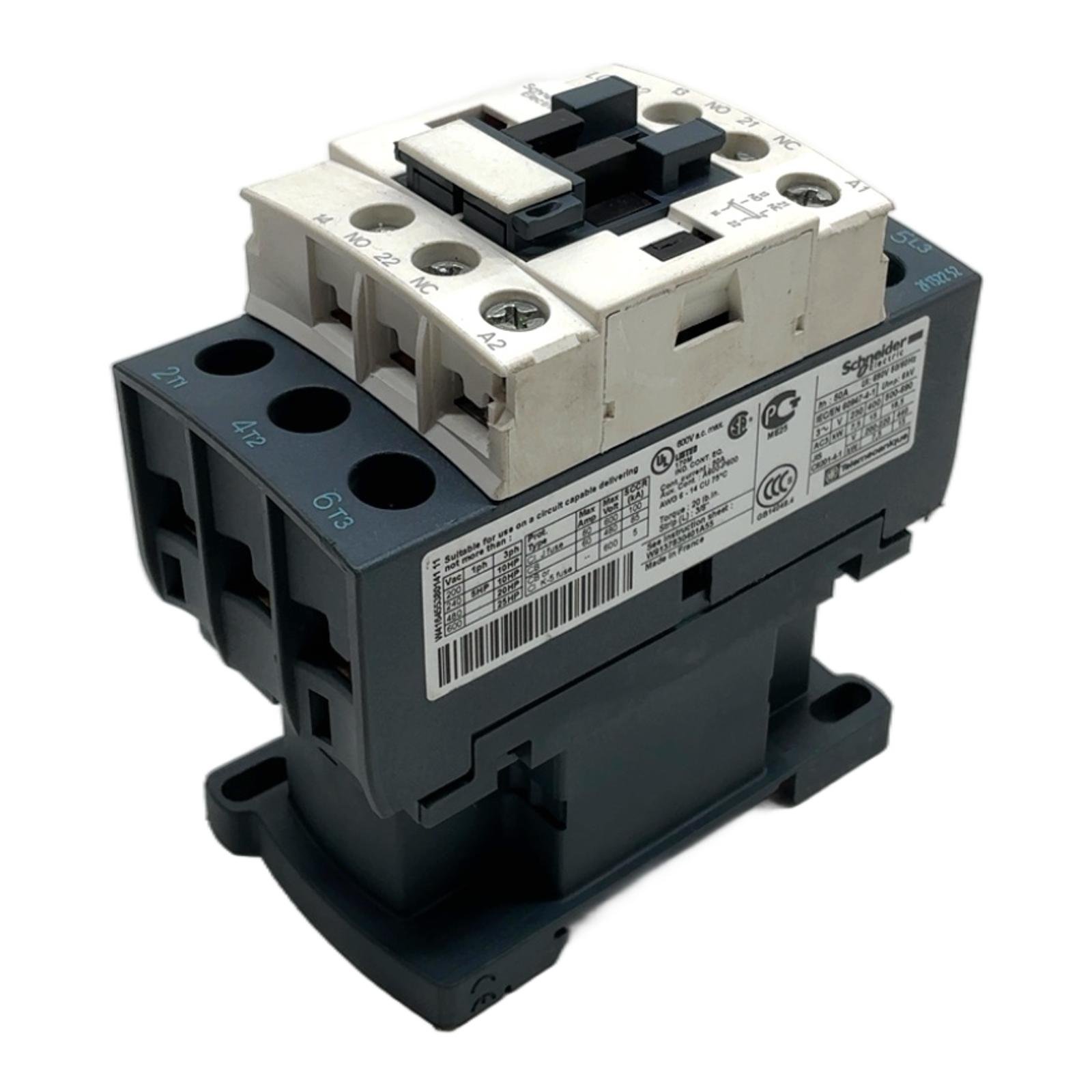

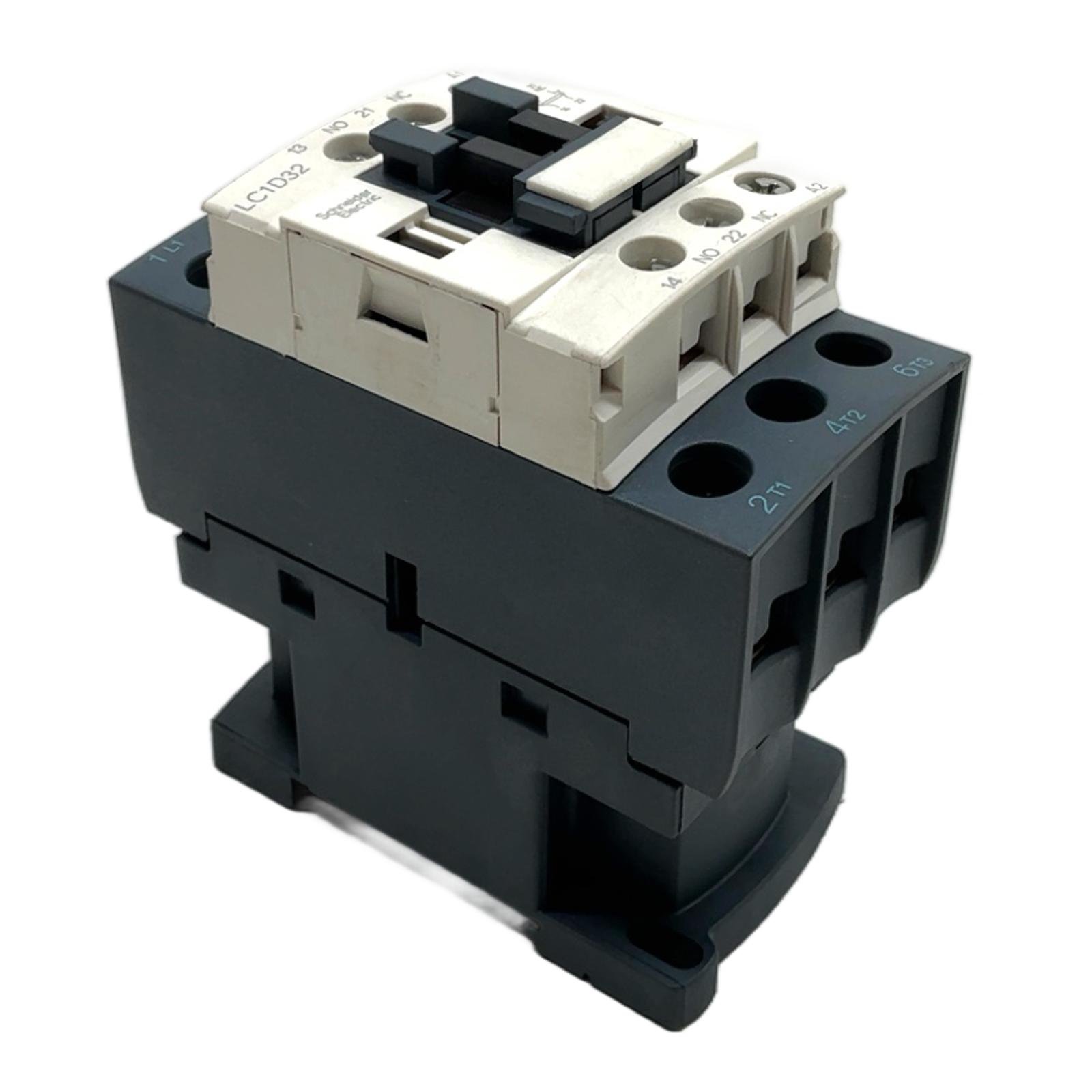

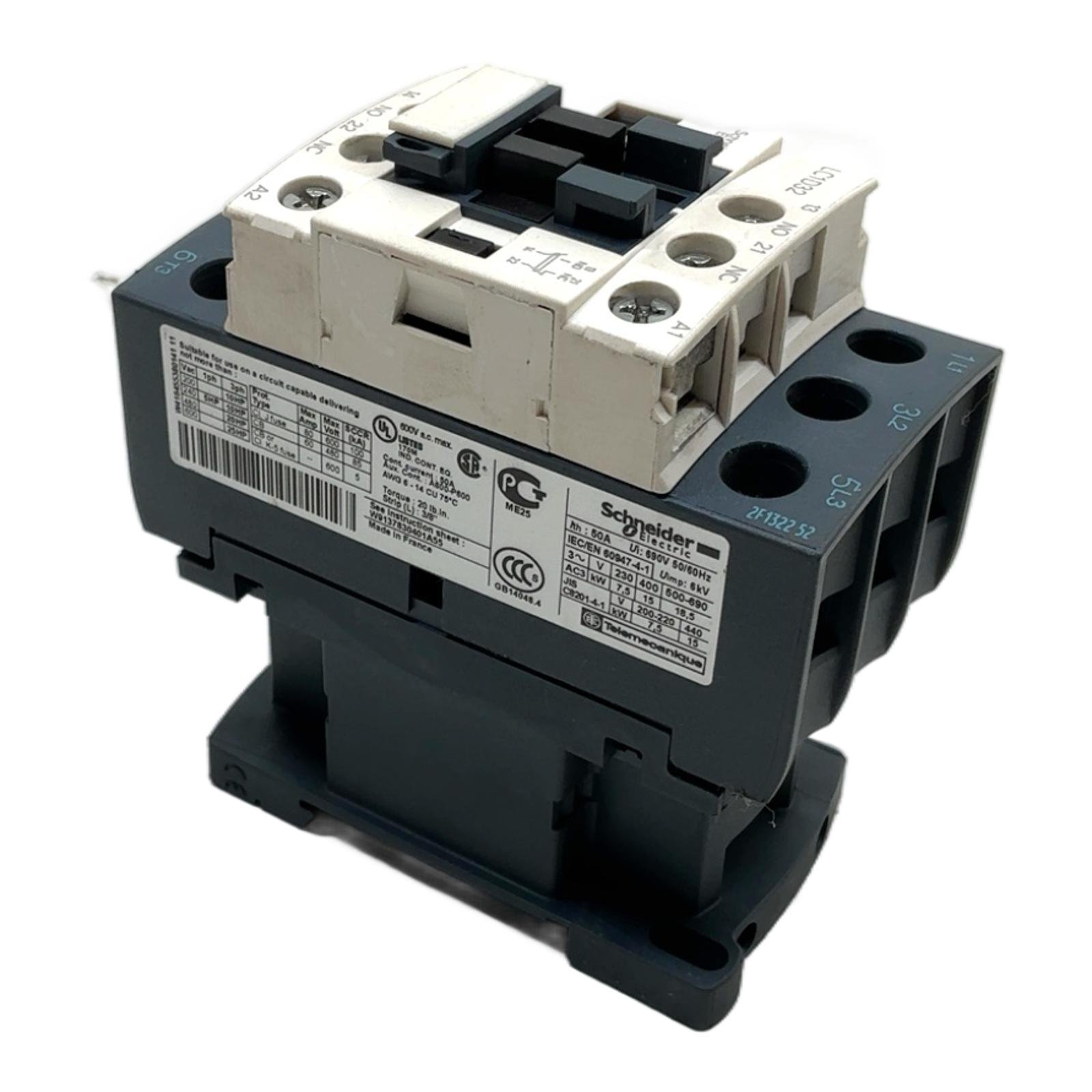

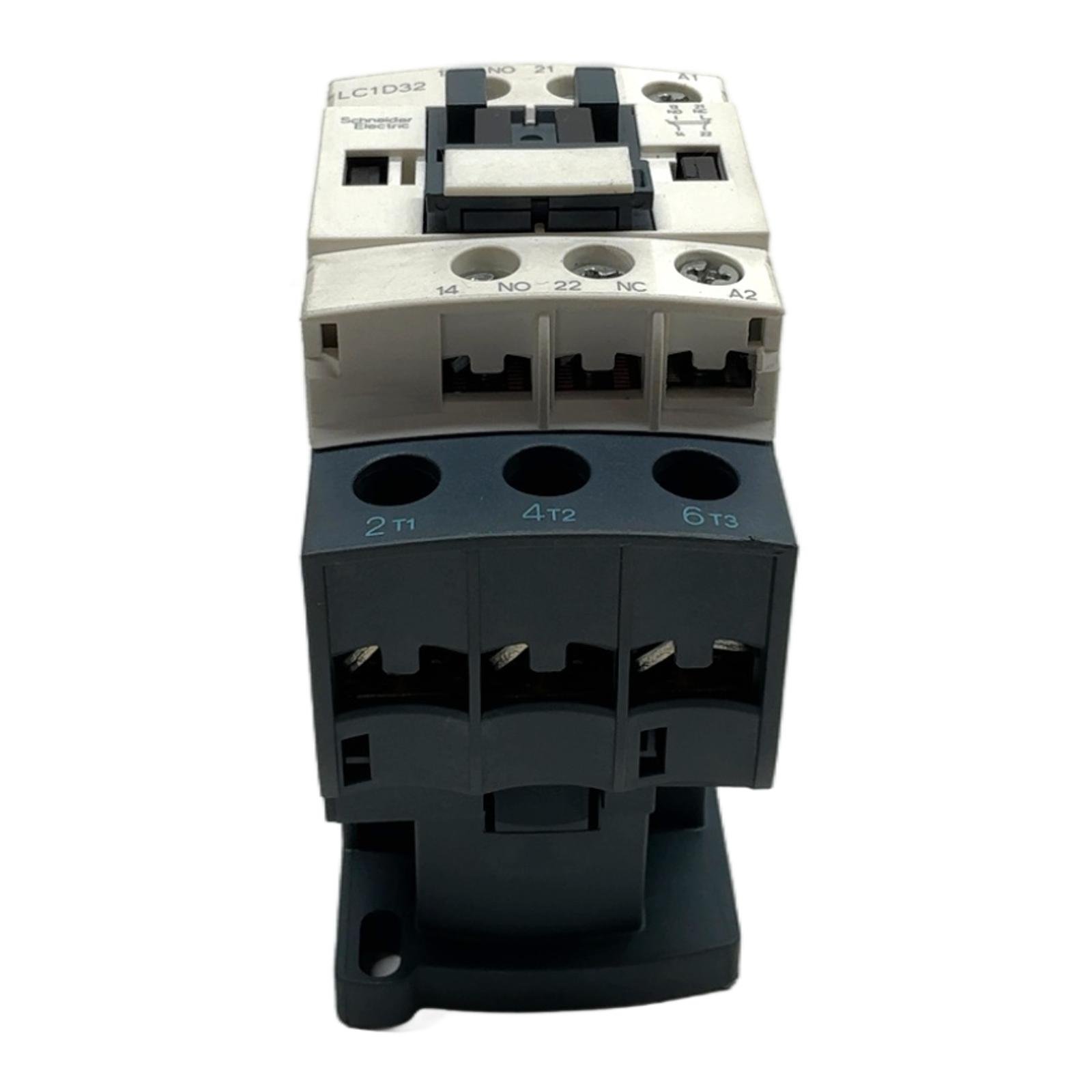

SCHNEIDER ELECTRIC LC1D32

Schneider Electric TeSys D 3-Pole Contactor Description The LC1D32 is a high-performance 3-pole contactor from Schneider Electric’s renowned TeSys D range. It is engineered for controlling motors and other resistive or inductive loads with high reliability. With a rating of 15 kW at 400V (AC-3), this contactor is a standard choice for a wide variety of industrial applications. It comes equipped with one normally open (NO) and one normally closed (NC) auxiliary contact. Order now from profideals for expert support and fast delivery. Specifications Manufacturer: Schneider Electric Type: LC1D32 Series: TeSys D Number of Poles: 3 AC-3 Power Rating at 400V: 15 kW AC-3 Current Rating at 440V: 32 A Conventional Free Air Thermal Current (Ith): 50 A Rated Insulation Voltage (Ui): 690 V Rated Impulse Withstand Voltage (Uimp): 6 kV Integrated Auxiliary Contacts: 1 NO + 1 NC Label Info Standard: IEC/EN 60947-4-1 Certifications: UL, CSA, CCC, GOST Application Ideal for motor control in HVAC systems, pumps, conveyors, and general industrial machinery. Its robust design ensures a long operational life in demanding environments. Country of Origin Made in France. CO2 Impact By purchasing this pre-owned contactor, you help avoid the emission of approximately 20 kg of CO2, which is equivalent to the savings from not driving a car for 100 kilometers. Availability This item is in stock and ready for immediate dispatch. FAQ What is the coil voltage for this specific LC1D32 contactor?The specific coil voltage is determined by a suffix code (e.g., M7 for 220V AC, B7 for 24V DC) which is not visible in the provided images or part number. It is crucial to verify the coil voltage of your existing unit or system requirement before installation. Can I mount additional auxiliary contact blocks on this TeSys D contactor?Yes, the TeSys D series is highly modular. You can easily add front-mounted (LADN) or side-mounted (LAD8N) auxiliary contact blocks to expand its switching capacity for control circuits. What does the AC-3 rating of 32A mean?The AC-3 rating refers to the contactor’s capability for starting and switching squirrel-cage motors during normal operation. The 32A rating indicates the maximum current it can handle under these specific inductive load conditions, which corresponds to its 15kW rating at 400V. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
