SCHNEIDER ELECTRIC LC1D25BD 24VDC

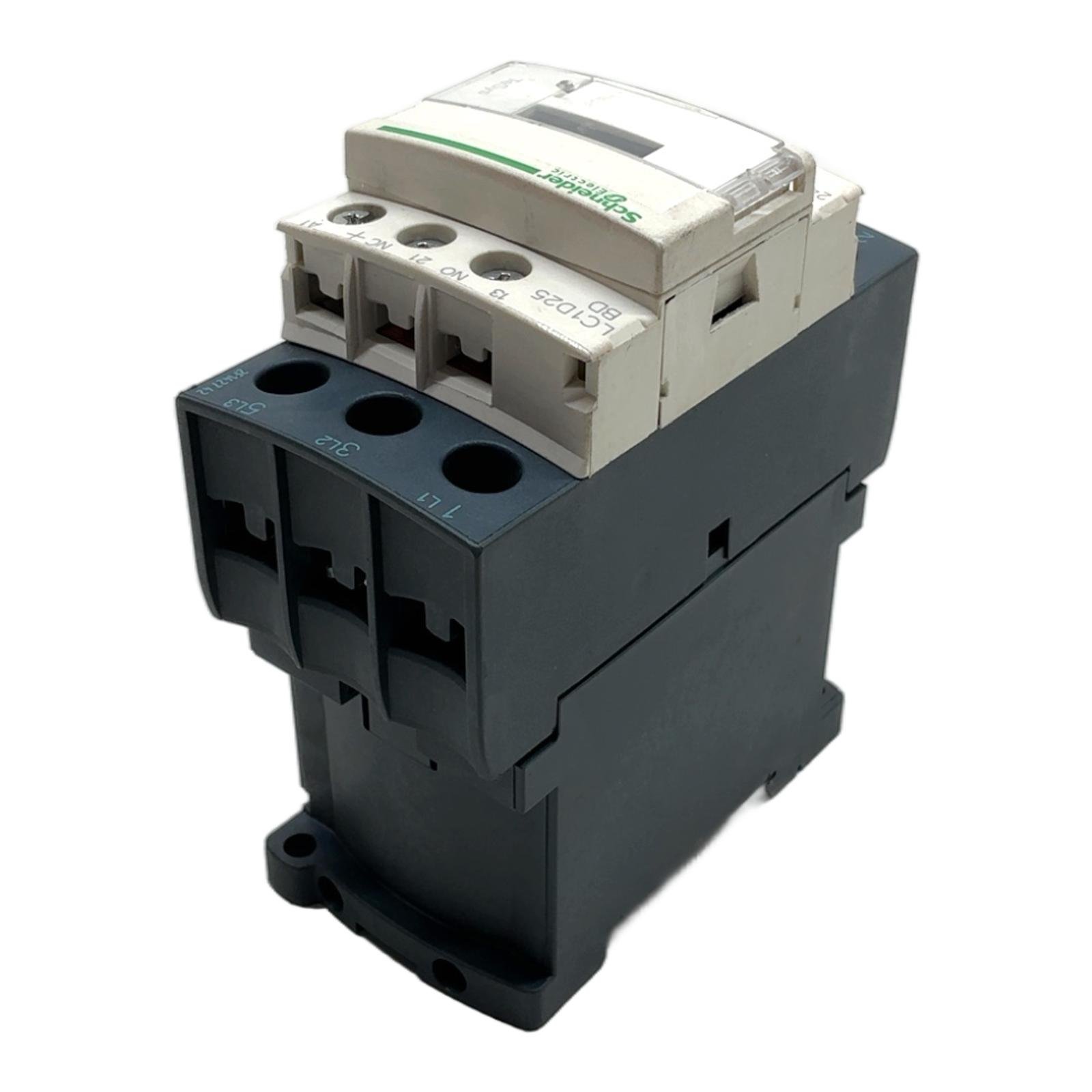

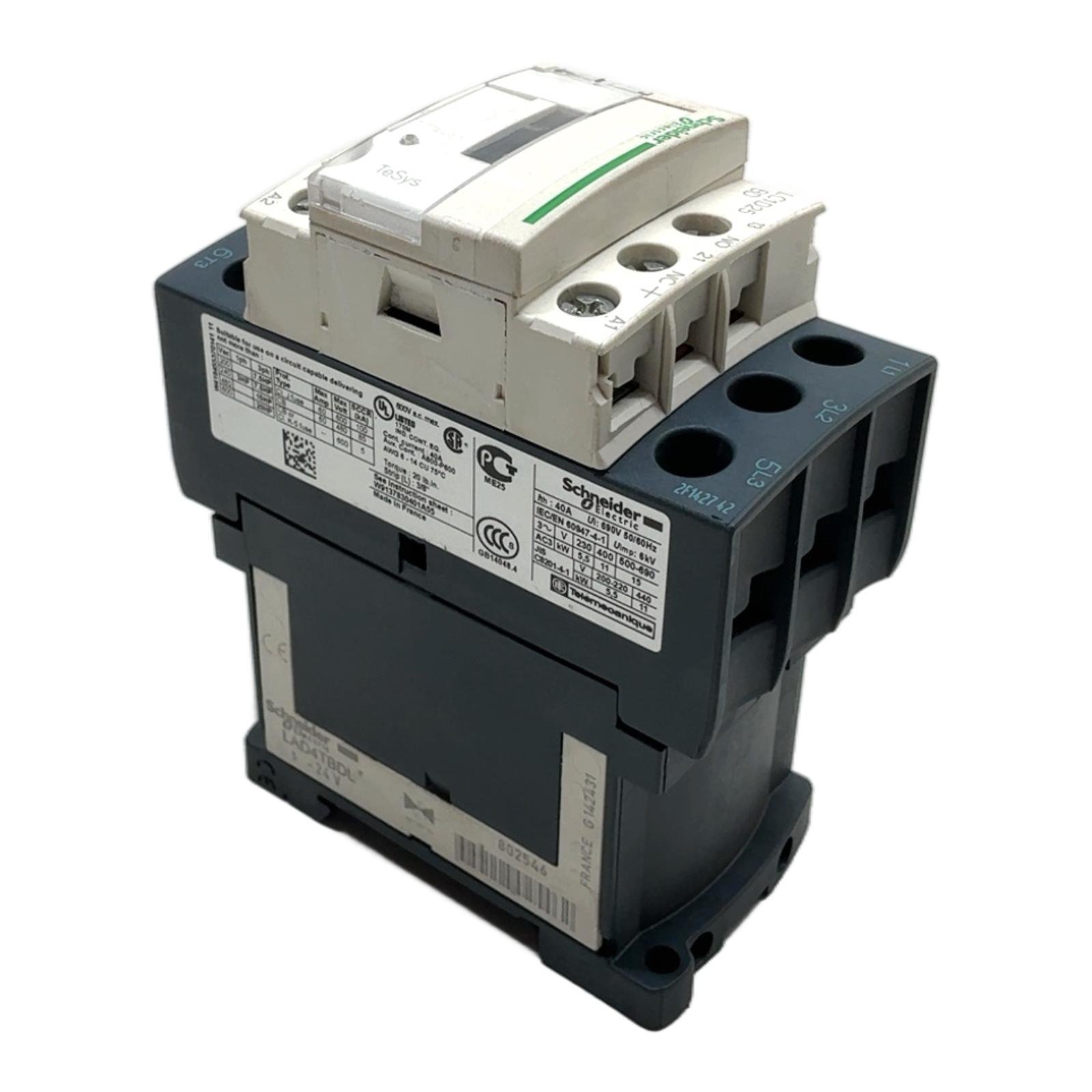

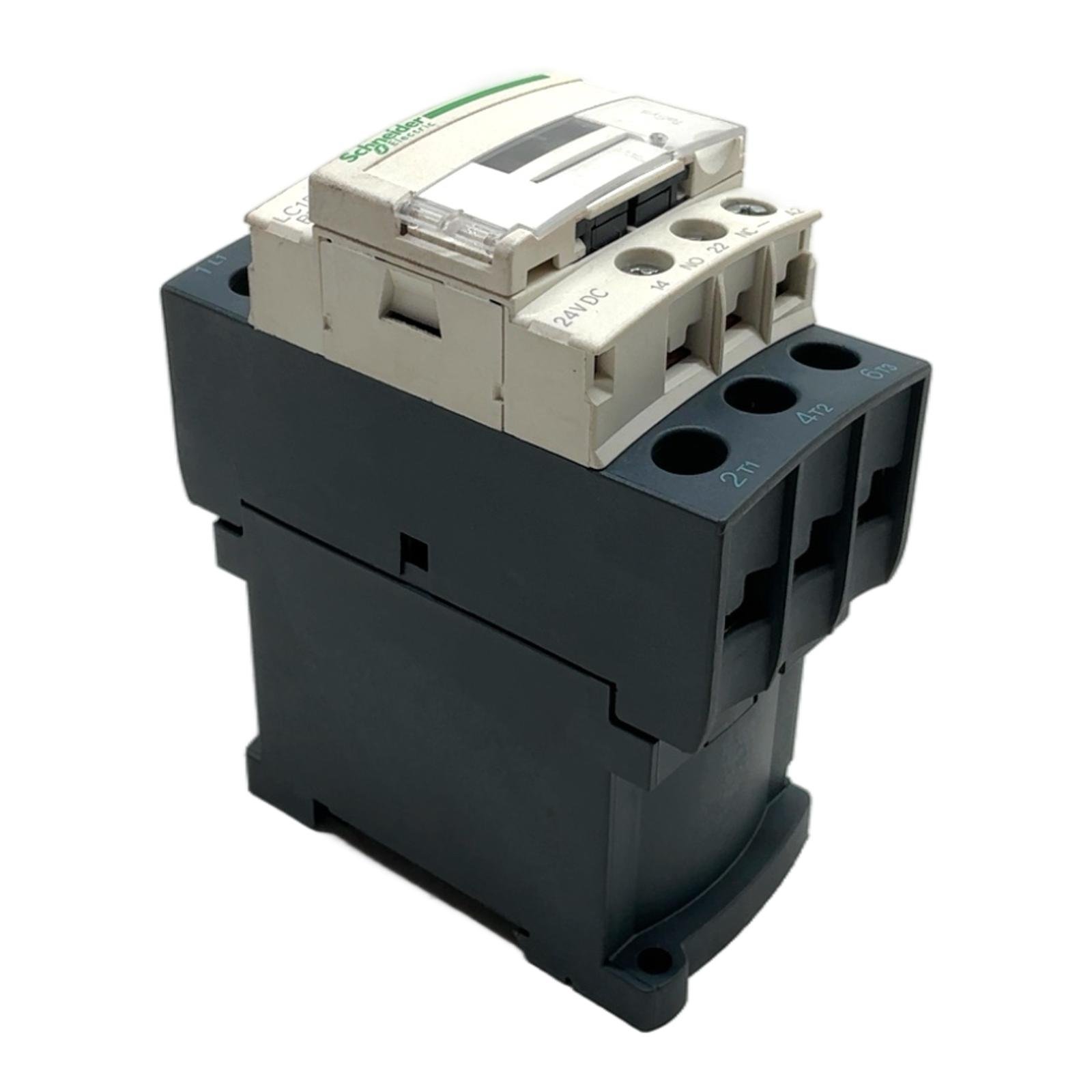

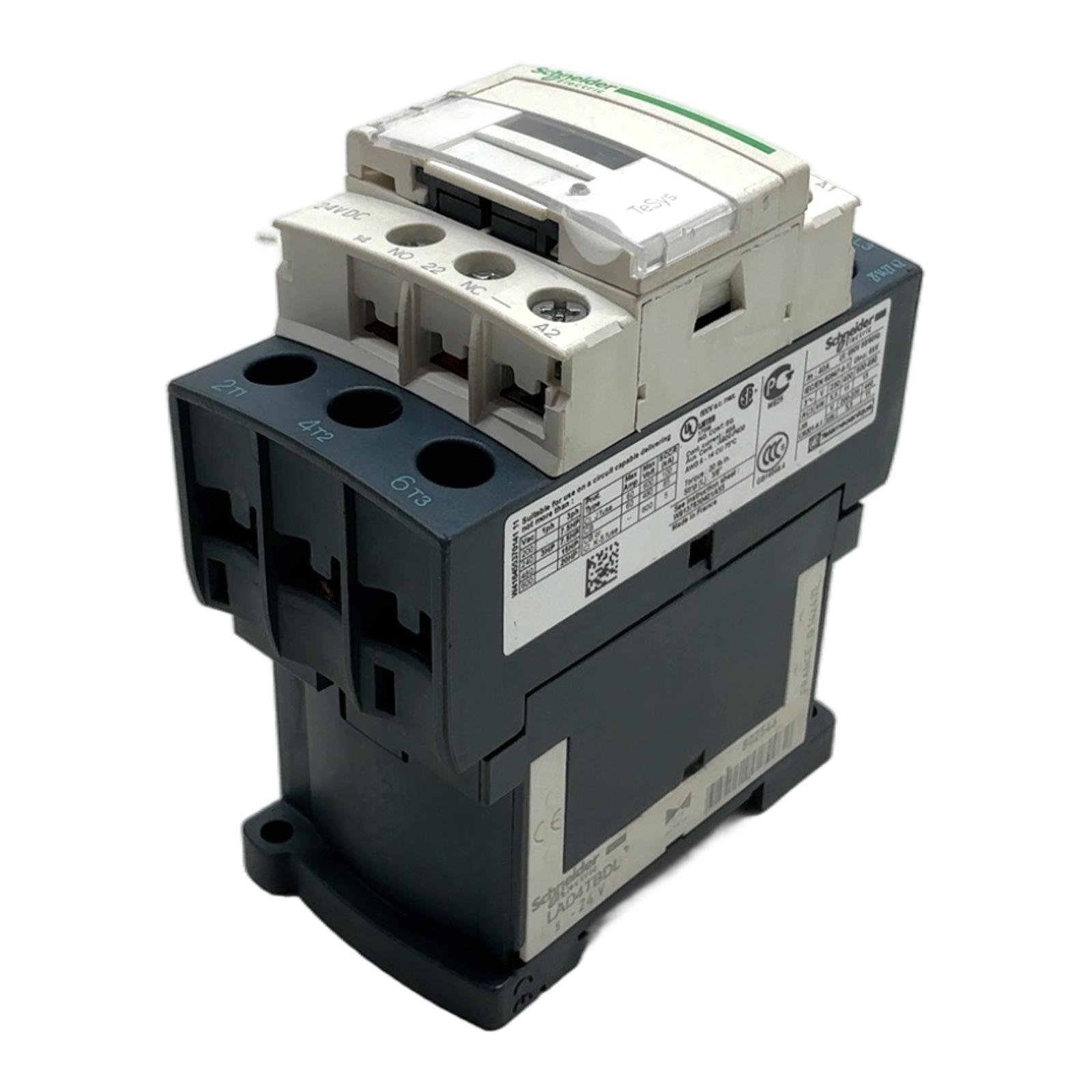

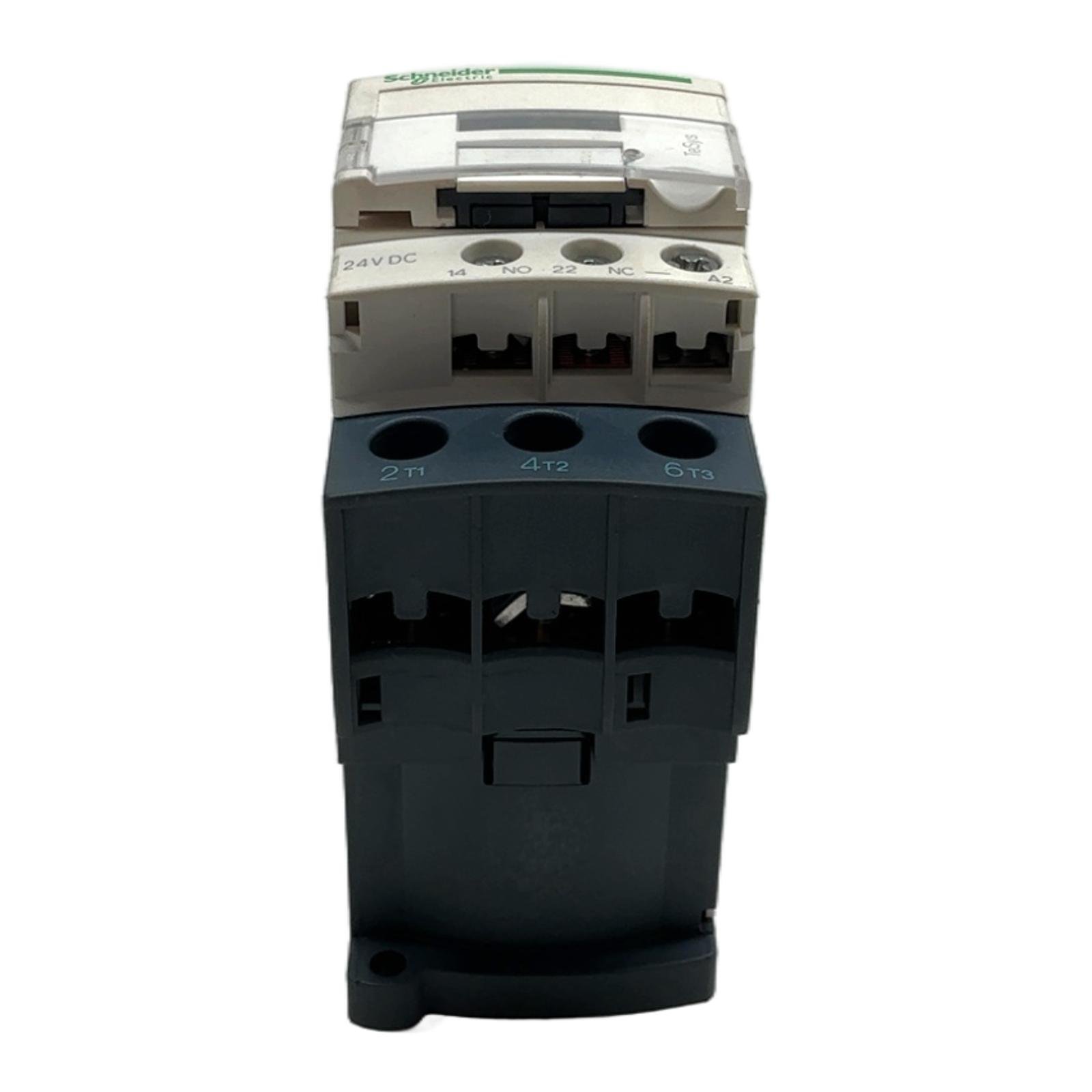

Schneider Electric TeSys D Contactor LC1D25BD Description The Schneider Electric LC1D25BD is a high-performance 3-pole contactor from the renowned TeSys D series. It is designed for controlling motors and other electrical loads in industrial applications. This model features a 24V DC coil, an AC-3 current rating of 25A, and is capable of switching motors up to 11kW at 400V. It includes one normally open (NO) and one normally closed (NC) auxiliary contact. Its robust design ensures a long mechanical and electrical life. This unit also includes an attached LAD4TBDL time delay block. Specifications Manufacturer: Schneider Electric Product Series: TeSys D Model Number: LC1D25BD Poles: 3-Pole Coil Voltage: 24V DC Rated Operational Current (AC-3): 25 A Motor Power (AC-3, 400V): 11 kW Conventional Thermal Current (Ith): 40 A Auxiliary Contacts: 1 NO + 1 NC Label Info Brand: Schneider Electric / Telemecanique Model: LC1D25 BD Coil: 24V DC Standards: IEC/EN 60947-4-1, UL, CSA Application This contactor is ideal for motor starting, isolation, and switching applications in various industries, including manufacturing, HVAC, and material handling. It is suitable for both AC-3 (motor loads) and AC-1 (resistive loads) applications. Country of Origin Made in France. CO2 Impact By purchasing this reused item, you contribute to a circular economy and help avoid approximately 20 kg of CO2 emissions associated with the production of a new unit. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the significance of the “BD” suffix in the model number LC1D25BD?The “BD” suffix in Schneider Electric’s TeSys D series indicates the coil type and voltage. Specifically, it denotes a 24V DC standard coil. Can this TeSys D contactor be used for DC motor switching?While primarily designed for AC motor loads (AC-3), this contactor can be used for switching DC loads (DC-1, DC-3, DC-5). However, significant derating of the current-carrying capacity is required. Always consult the official Schneider Electric datasheet for specific DC application ratings. Is the attached LAD4TBDL timer module removable or interchangeable?Yes, the TeSys D series is highly modular. The LAD4TBDL time delay block can be easily removed or replaced with other front-mounted auxiliary contact blocks or accessories from the same range, offering great flexibility. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners.
