SCHNEIDER ELECTRIC LAD4TBDL CAD32 BD

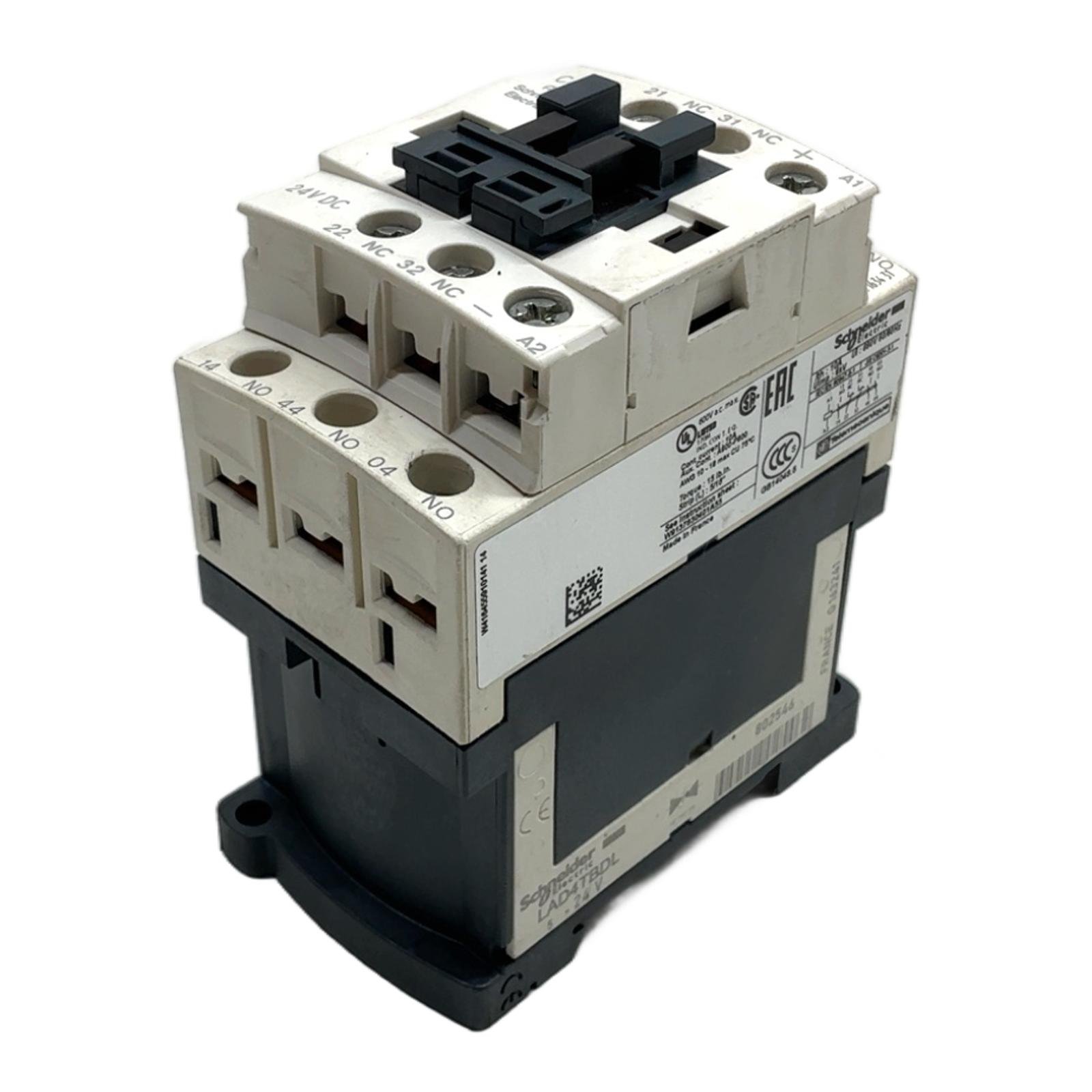

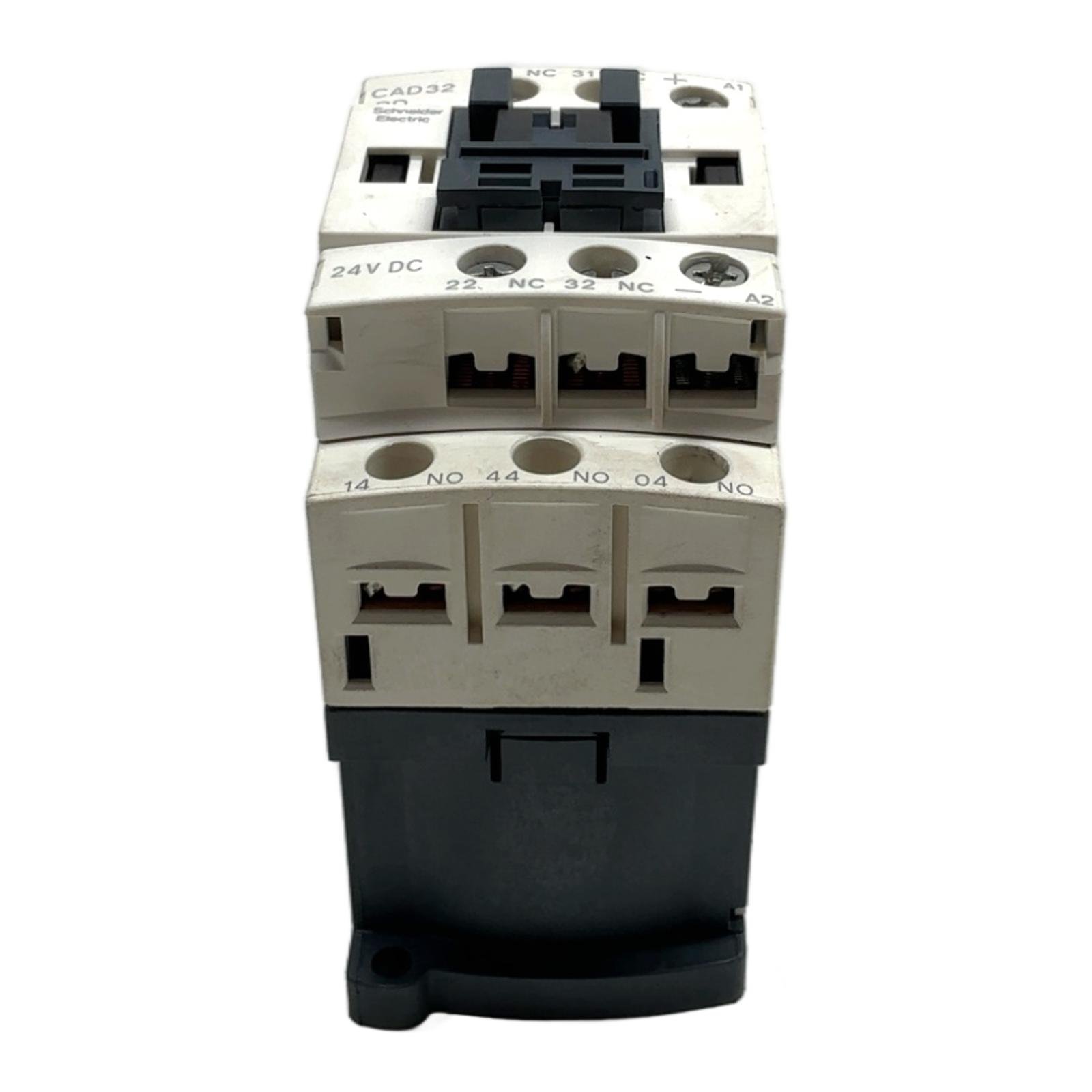

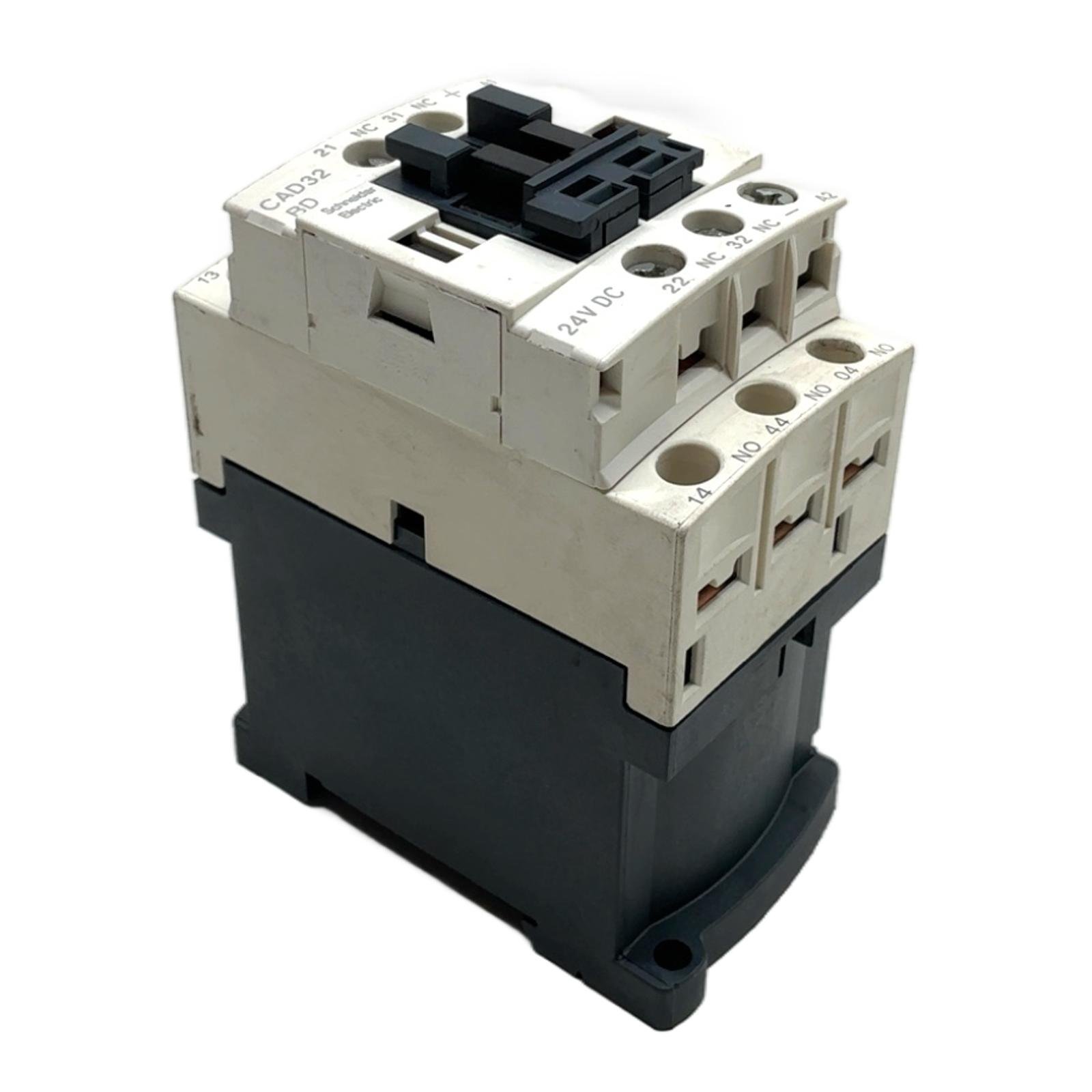

Schneider Electric TeSys D Control Relay CAD32BD Description The Schneider Electric CAD32BD is a high-performance control relay from the TeSys D series, designed for industrial control applications. It features a 24V DC low-consumption coil, making it energy-efficient. With a contact configuration of 3 Normally Open (NO) and 2 Normally Closed (NC), this relay offers flexibility for various logic and switching tasks. It is built to operate reliably in demanding environments, conforming to international standards such as IEC, UL, and CSA. Specifications Manufacturer: Schneider Electric Model: CAD32BD Product Series: TeSys D Coil Voltage: 24V DC Coil Technology: Low Consumption with built-in suppression Contact Configuration: 3 NO + 2 NC Conventional Free Air Thermal Current (Ith): 10 A (at 60 deg C) Rated Insulation Voltage (Ui): 690V Rated Impulse Withstand Voltage (Uimp): 6 kV Mounting: DIN Rail or Screw Mount Label Info Brand: Schneider Electric, Telemecanique Type: CAD32BD Coil Block: LAD4TBDL (5-24V) Certifications: UL, EAC, CCC Application This control relay is ideally suited for use in control circuits for automation, motor control centers, and signaling applications where reliable switching of auxiliary circuits is required. Country of Origin Made in France CO2 Impact Opting for this pre-owned control relay contributes to a circular economy and prevents the emission of approximately 10.0 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the energy used to charge a smartphone 1200 times. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question?What is the main advantage of the ‘BD’ low-consumption coil in this CAD32BD relay?The low-consumption DC coil allows for direct control from a PLC’s digital output without needing an interposing relay, reducing panel space, wiring, and overall cost. It also has built-in bidirectional peak limiting diode suppression. Question?What is the mechanical and electrical durability of this TeSys D control relay?TeSys D control relays are known for their high durability. The CAD32BD typically has a mechanical durability of 30 million cycles and an electrical durability of several million cycles, depending on the load, ensuring a long operational life. Question?Can I add auxiliary contact blocks to this CAD32BD relay?Yes, the TeSys D series is modular. You can add front or side-mounted auxiliary contact blocks to expand the number of NO and NC contacts as needed for your application. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
