SCHNEIDER ELECTRIC RM35UB330

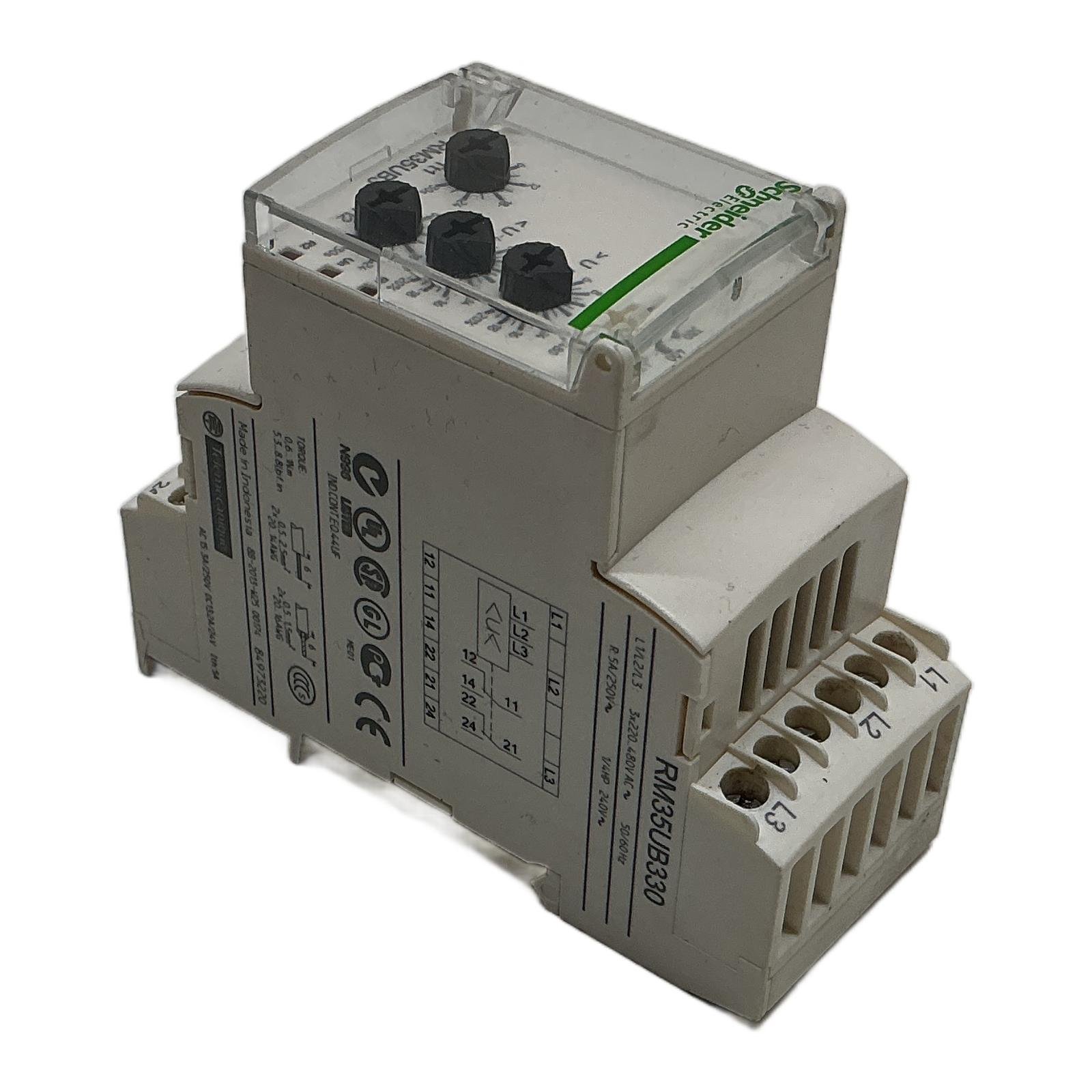

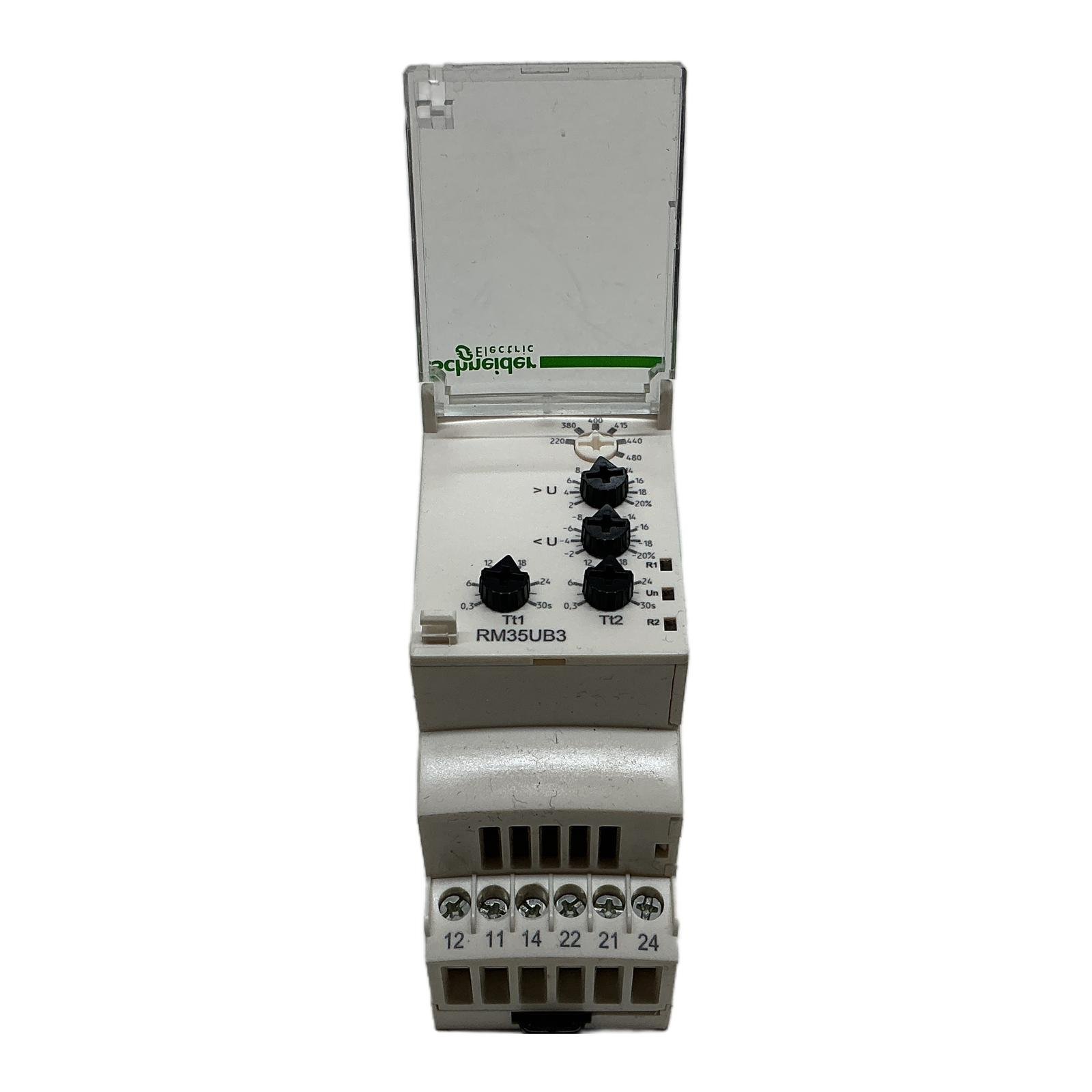

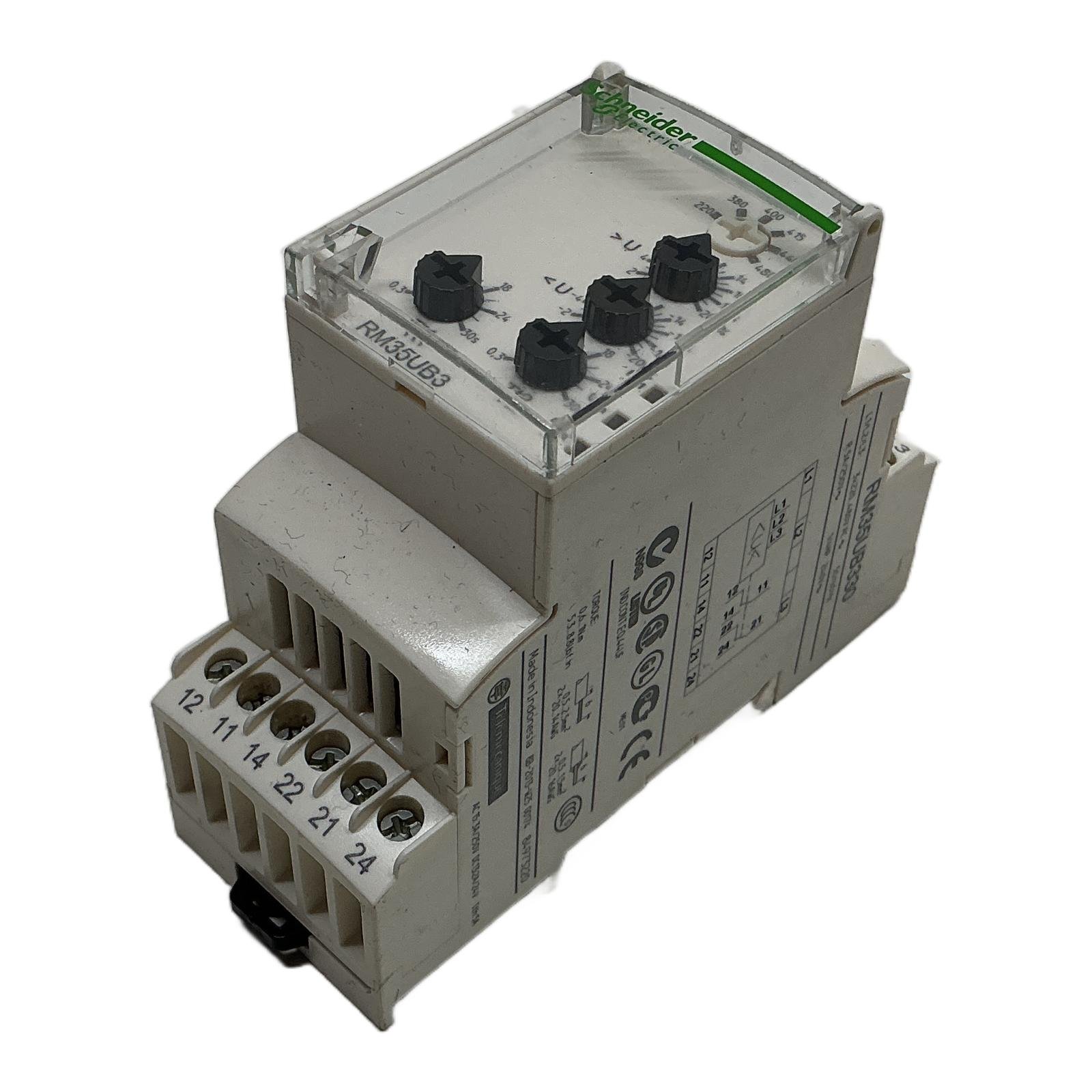

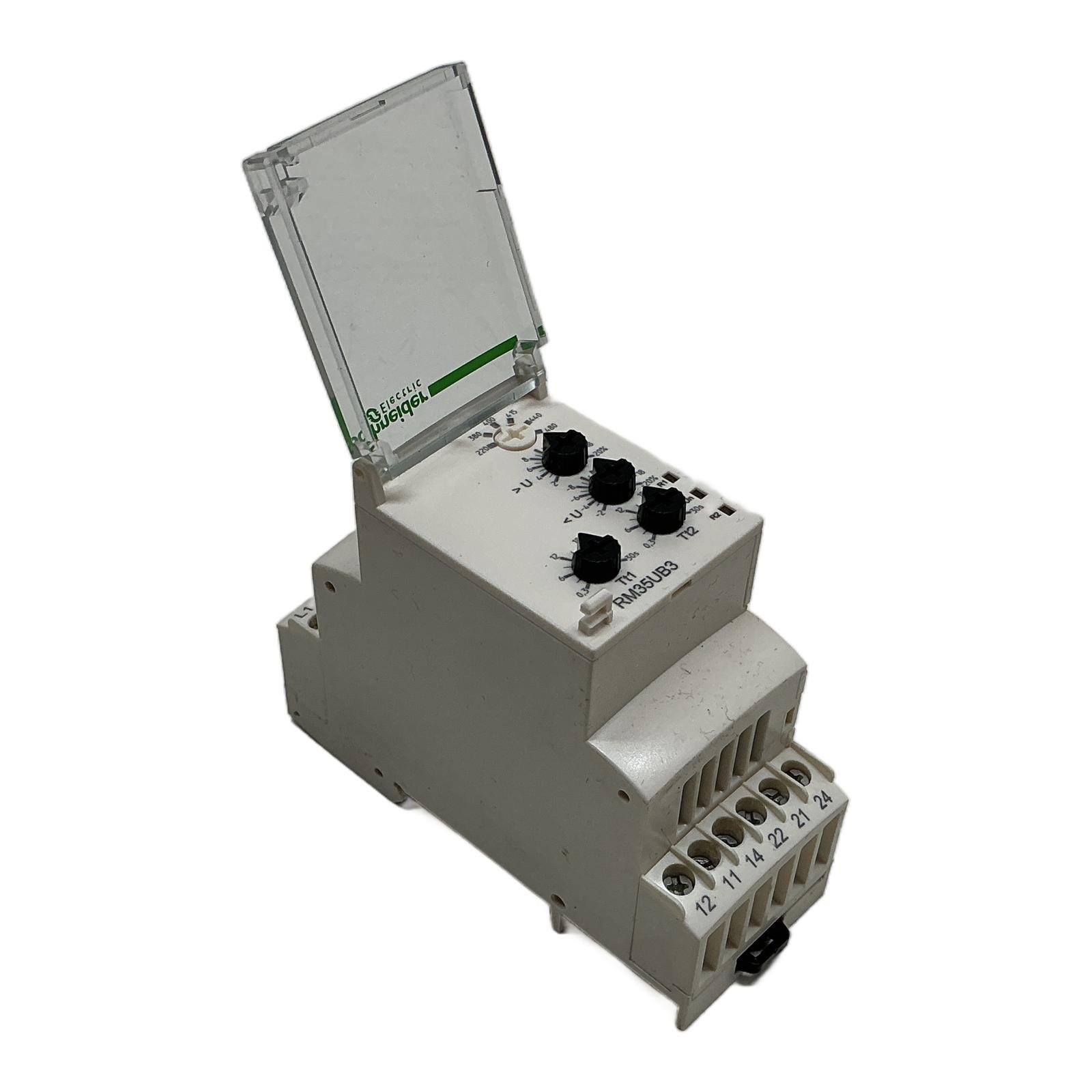

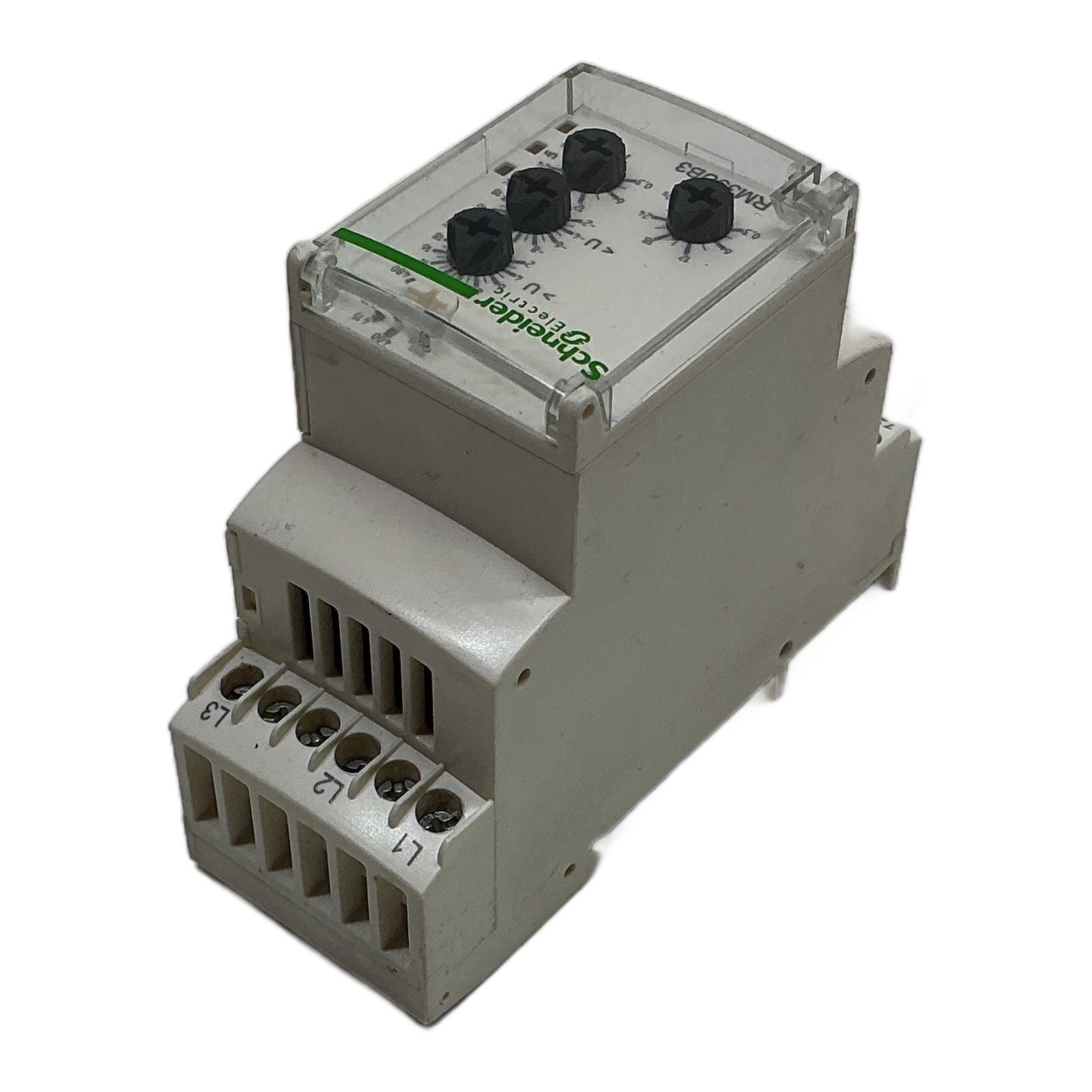

Schneider Electric RM35UB330 Voltage Monitoring Relay Description The Schneider Electric RM35UB330 is a Zelio Control relay designed for precise monitoring of undervoltage conditions in 3-phase electrical systems. This robust device ensures the protection of motors, pumps, and other critical equipment by detecting voltage drops that could lead to damage or operational failure. It features adjustable settings for voltage thresholds and time delays, providing flexibility for various industrial applications. Its compact design allows for easy installation on a standard 35mm DIN rail. Specifications Manufacturer: Schneider Electric Model: RM35UB330 Product Line: Zelio Control Function: 3-Phase Undervoltage Monitoring Supply Voltage Range: 220-480V AC, 50/60 Hz Output Contacts: 2 C/O (Changeover) Switching Capacity: 5A / 250V AC AC-15 Rating: 3A / 250V AC DC-13 Rating: 2A / 24V DC Mounting Type: 35mm DIN Rail Label Info Type: RM35UB330 Input: 3x 220-480V AC, 50/60Hz Output: 5A/250V~ Application Ideal for use in industrial control panels, motor control centers (MCCs), and any application requiring reliable protection against undervoltage conditions in a three-phase power supply. Common applications include HVAC systems, pumping stations, and manufacturing machinery. Country of Origin This product is made in Indonesia. CO2 Impact Opting for this pre-owned unit prevents the emission of approximately 4.8 kg of CO2 compared to manufacturing a new one. This saving is comparable to the carbon sequestered by a young tree over a year. Availability This unit is an obsolete model but is available from our stock. Order now from profideals for expert support and fast delivery. FAQ What is the function of the Tt1 and Tt2 dials on the relay?The Tt1 and Tt2 dials are used to set the time delays for the relay’s operation. This allows you to configure a delay before the relay trips on a fault condition or resets after the voltage returns to normal, preventing nuisance tripping from short voltage fluctuations. Can this relay detect phase loss or incorrect phase sequence?No, the RM35UB330 model is specifically designed for undervoltage detection (
