LEGRAND 47025

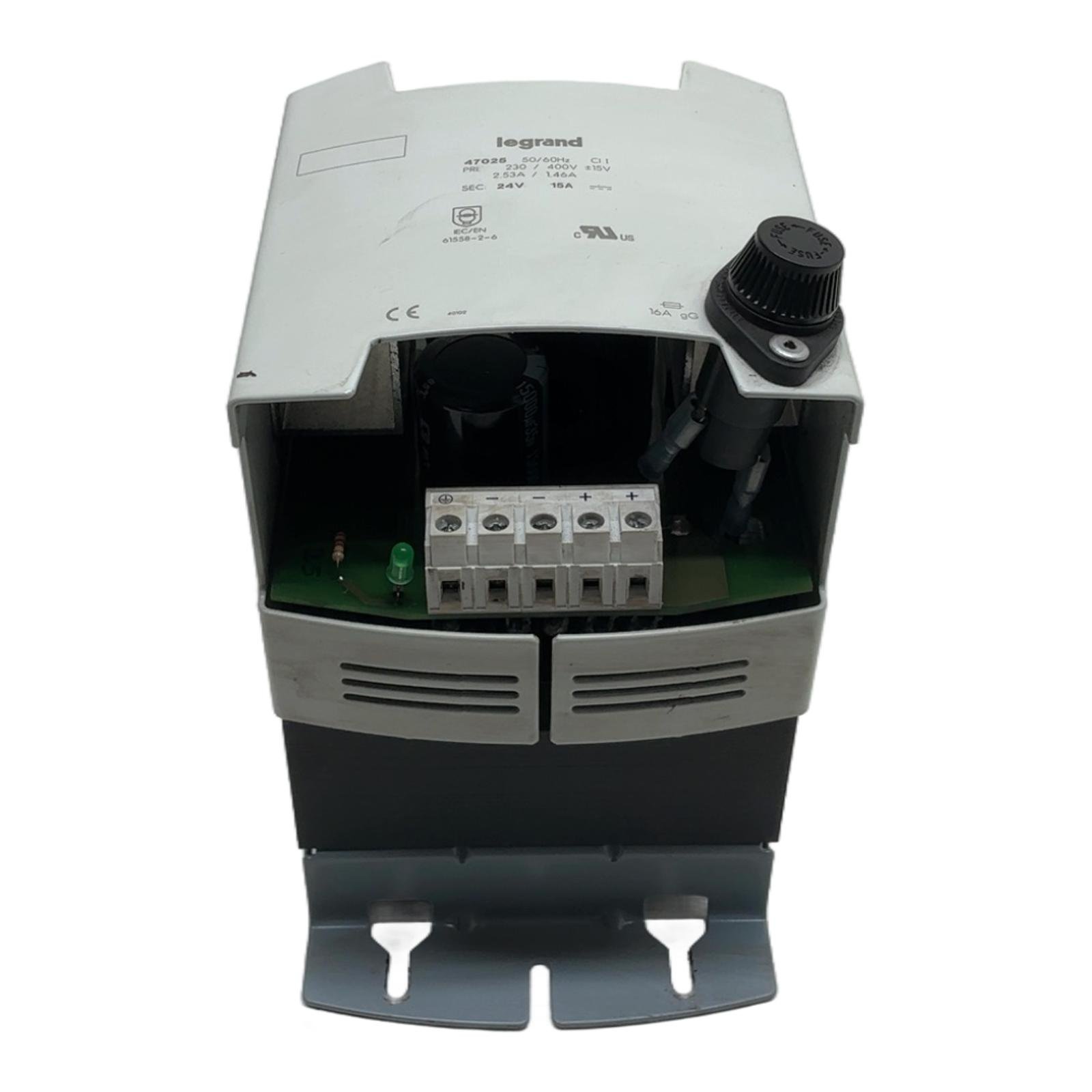

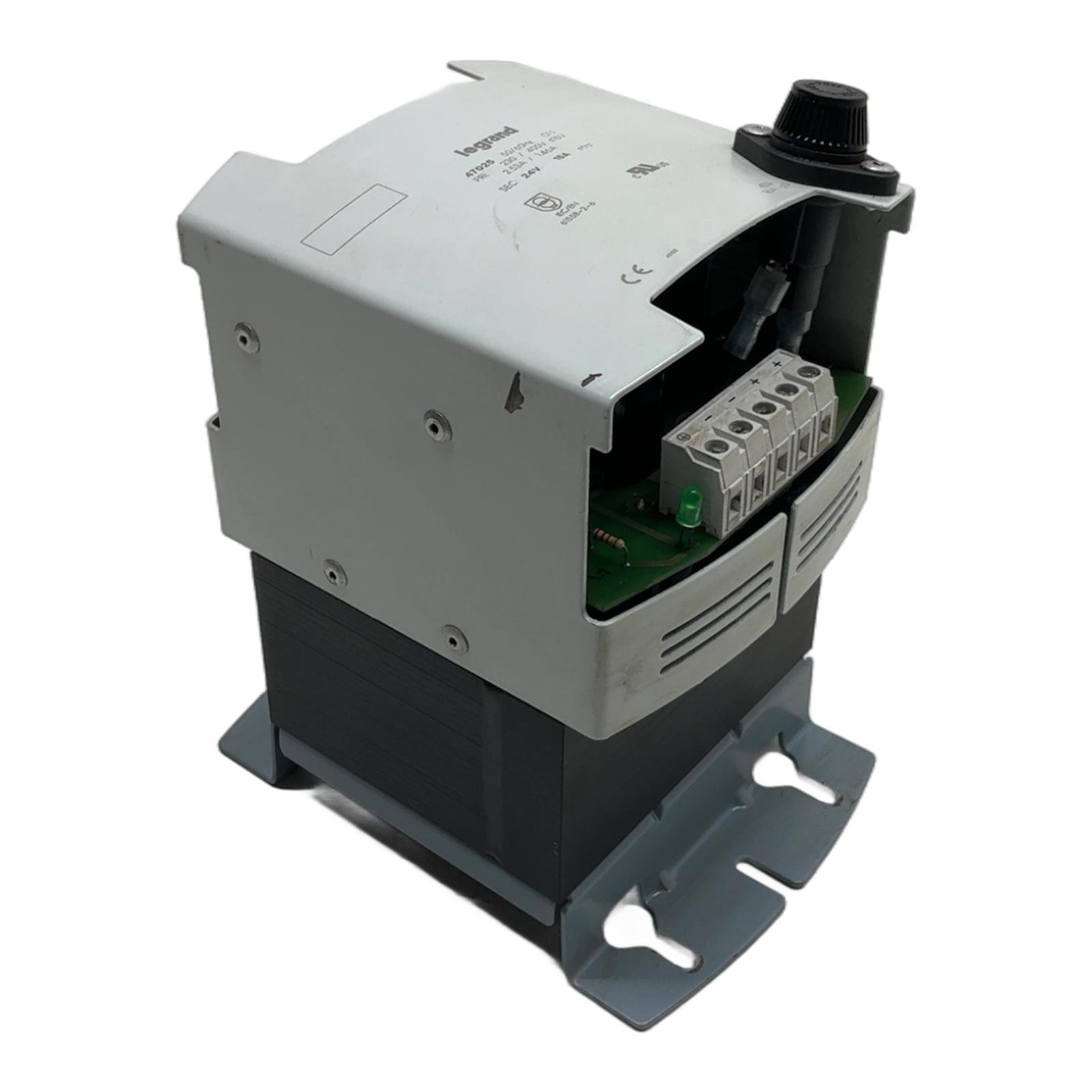

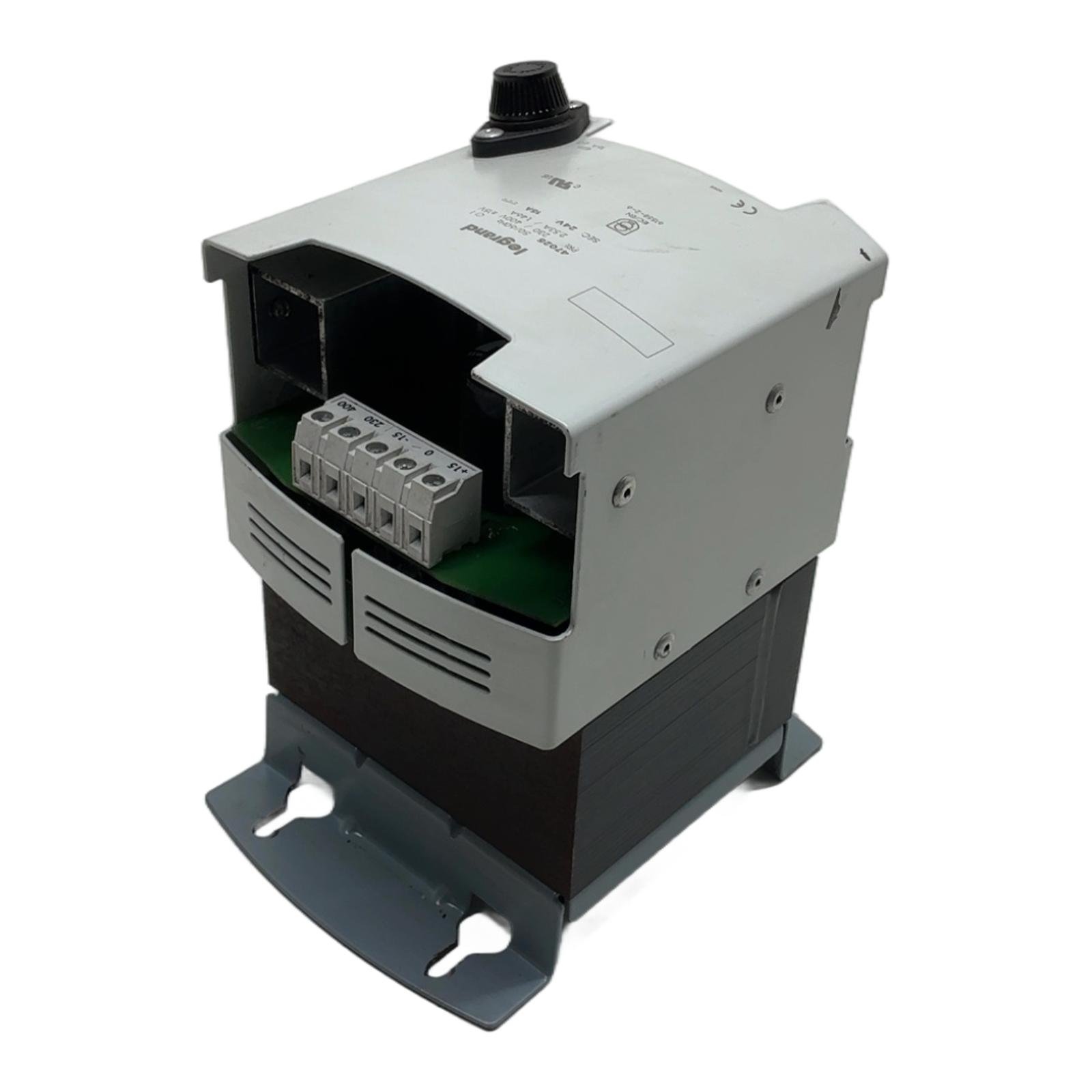

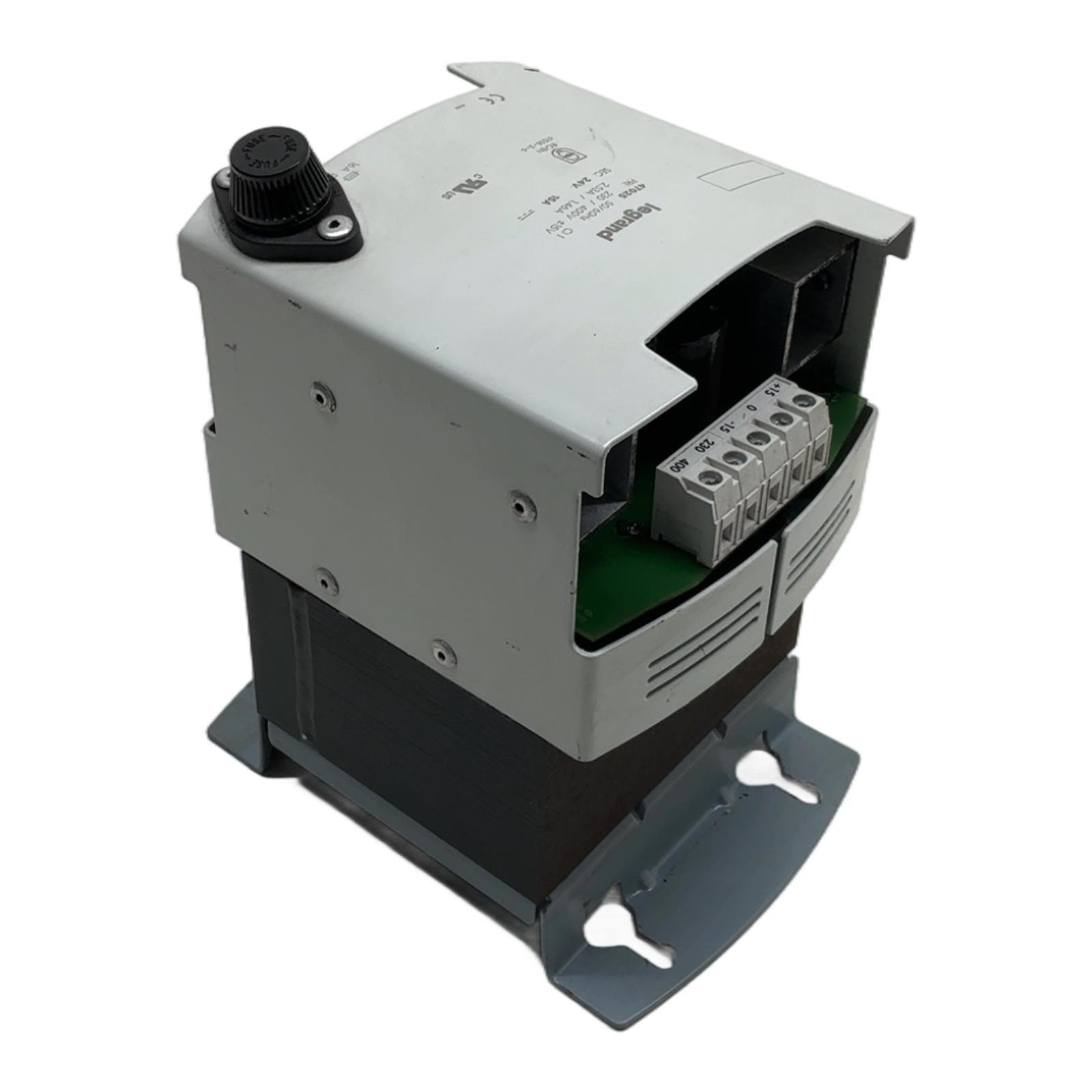

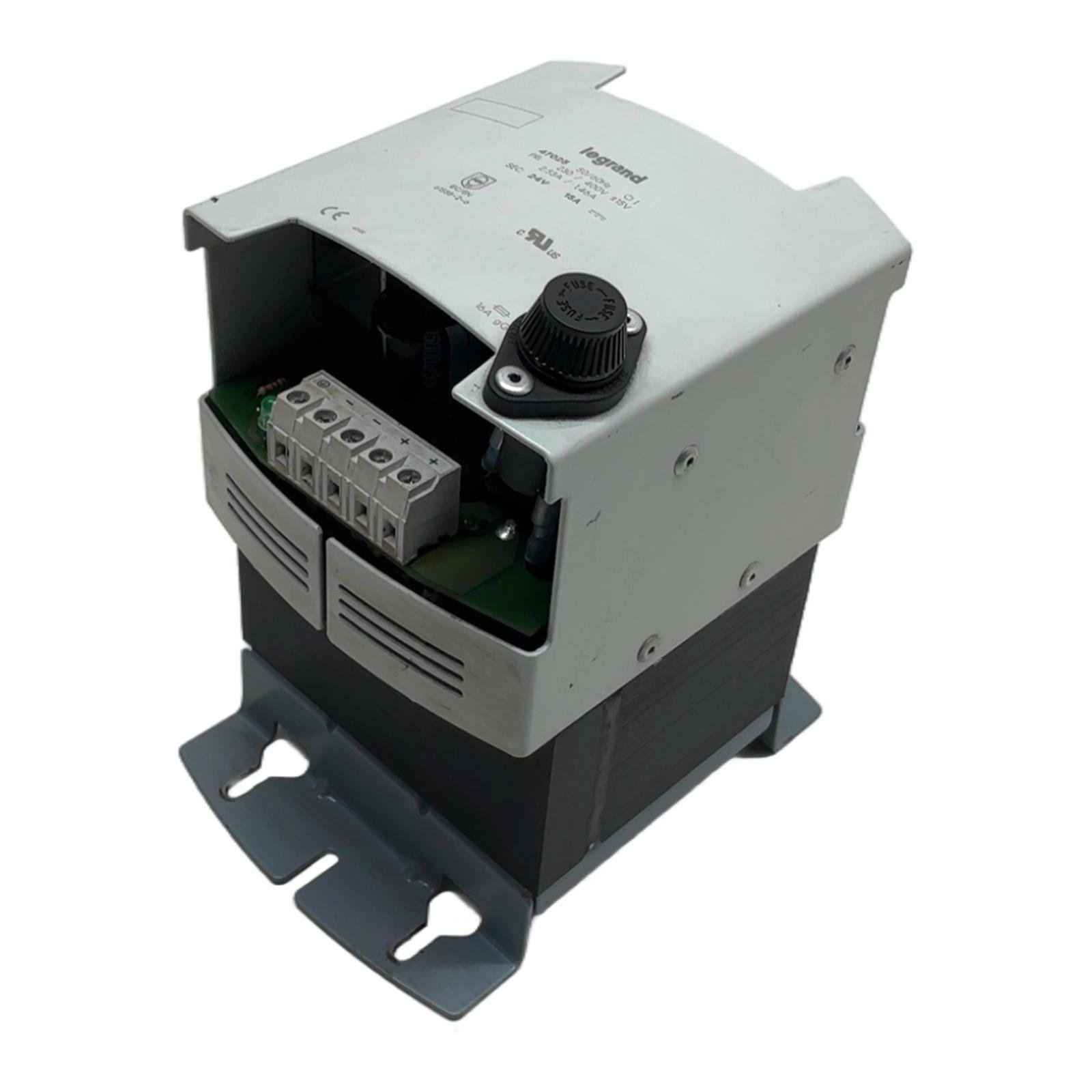

Legrand 47025 Safety Transformer Description The Legrand 47025 is a robust and reliable single-phase safety transformer designed for industrial control applications. It provides a safe, isolated 24V AC output from a flexible 230V or 400V primary input. With a power rating of 400 VA and compliance with IEC/EN 61558-2-6 standards, this transformer is an ideal component for powering control circuits, relays, and other low-voltage automation devices safely and efficiently. Its integrated fuse holder adds an extra layer of protection. Order now from profideals for expert support and fast delivery. Specifications Manufacturer: Legrand Model: 47025 Power Rating: 400 VA Primary Voltage: 230V / 400V AC (+/- 15V) Secondary Voltage: 24V AC Secondary Current: 15A Frequency: 50/60 Hz Phases: 1 Protection Class: Class I Standard: IEC/EN 61558-2-6 Label Info PRI: 230/400V +/-15V, 2.53A/1.46A SEC: 24V, 15A Fuse: 16A gG Application This transformer is perfectly suited for use in industrial machinery, automation control panels, building management systems, and any application requiring a safe, stepped-down AC voltage for control circuitry. CO2 Impact By purchasing this reused part, you are contributing to a circular economy and helping to avoid approximately 68 kg of CO2 emissions that would be generated from the production of a new unit. Availability This is an obsolete item but is available from our stock. We ensure all our used products are tested and functional, offering a reliable alternative to sourcing new parts. FAQ What type of fuse is required for the Legrand 47025 transformer?The unit specifies a 16A gG type fuse. It is crucial to use the correct type and rating to ensure proper protection for the transformer and the downstream circuit. Can this transformer be used with a 240V primary supply?Yes, the primary voltage is rated for 230V +/- 15V, which covers a range from approximately 195V to 265V. A standard 240V supply falls comfortably within this operational range. Is this a safety isolating transformer according to current standards?Yes, this transformer is manufactured according to the IEC/EN 61558-2-6 standard, which specifically covers safety isolating transformers. This ensures reinforced insulation between the primary and secondary windings for enhanced safety. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
