SCHNEIDER ELECTRIC LC1 D8011 LADN40

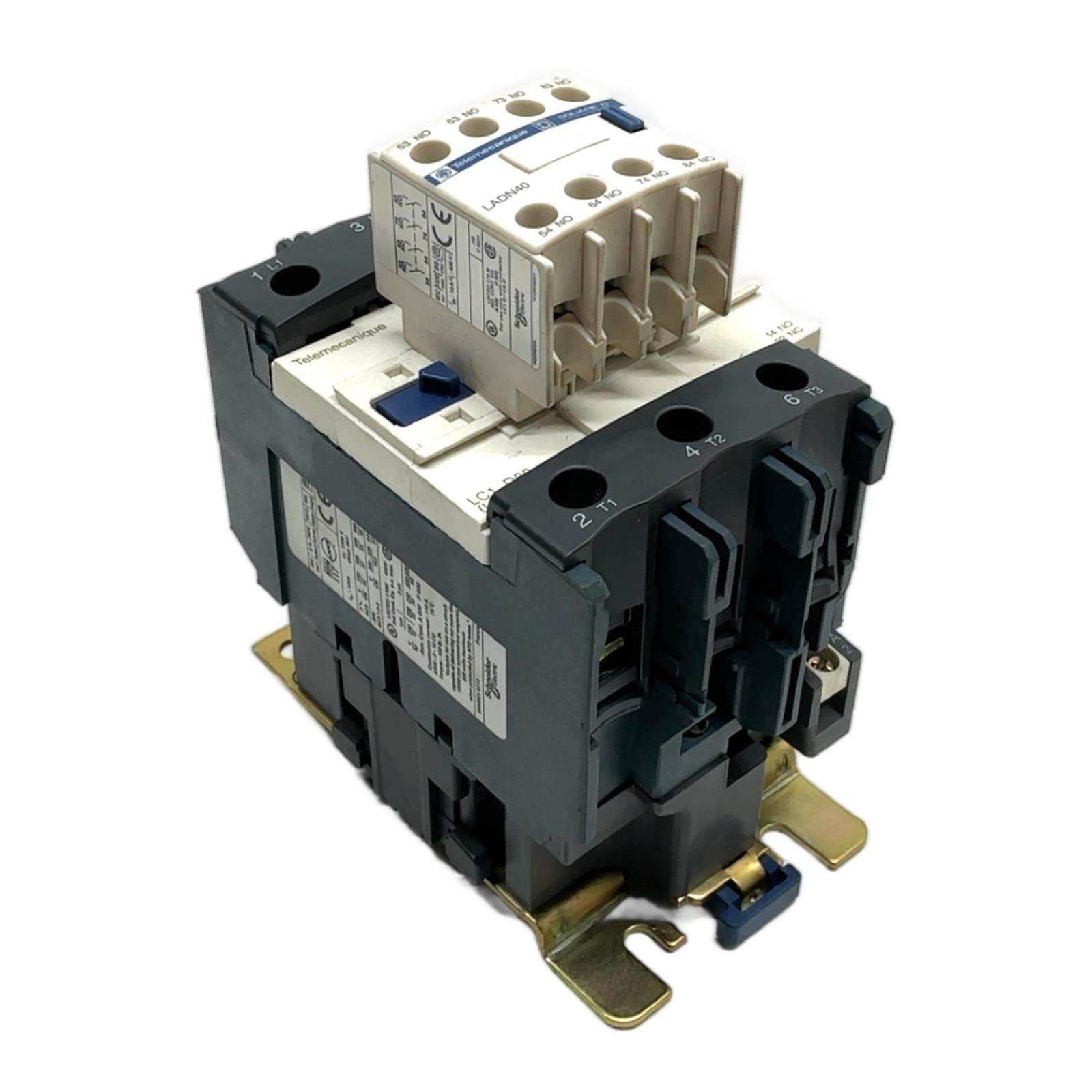

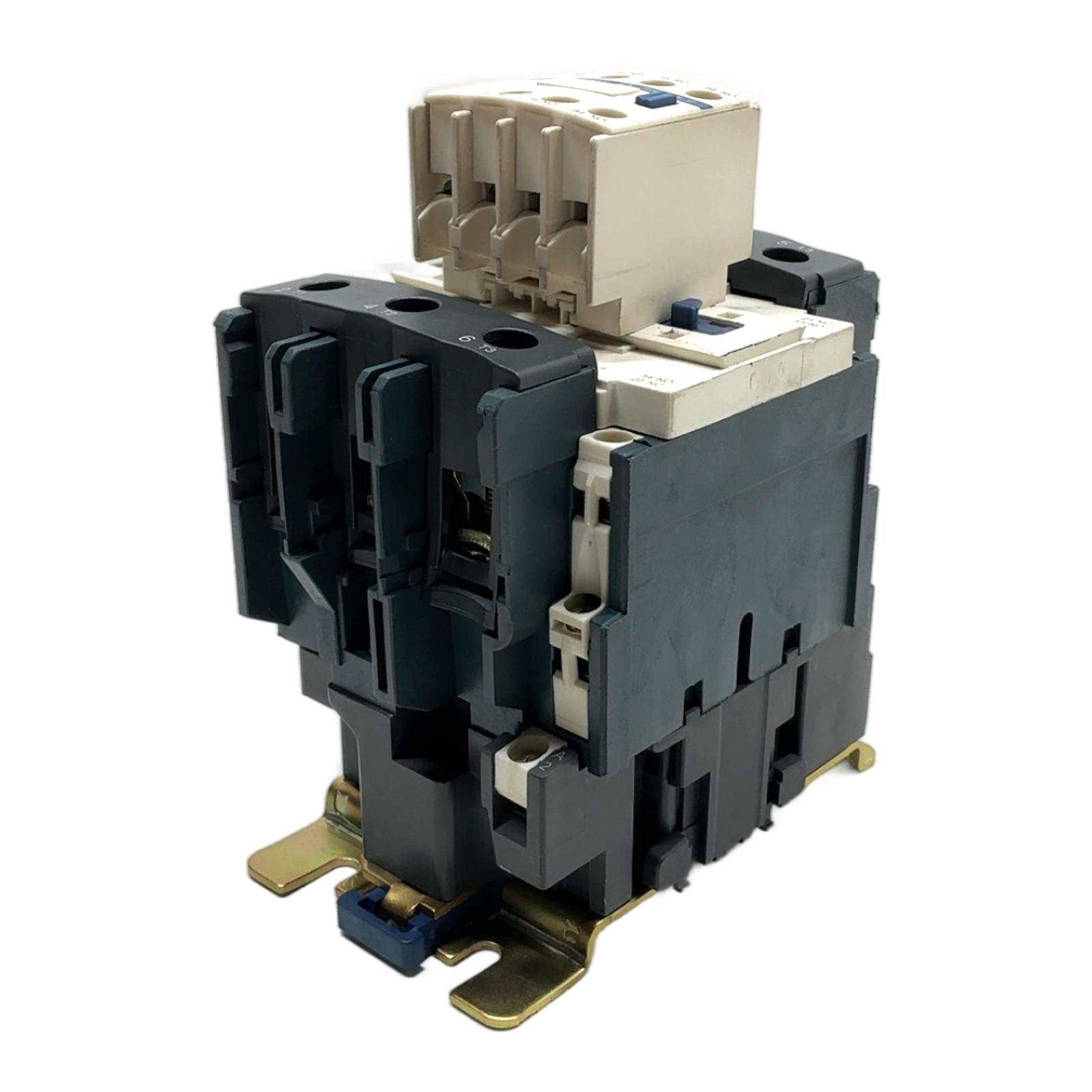

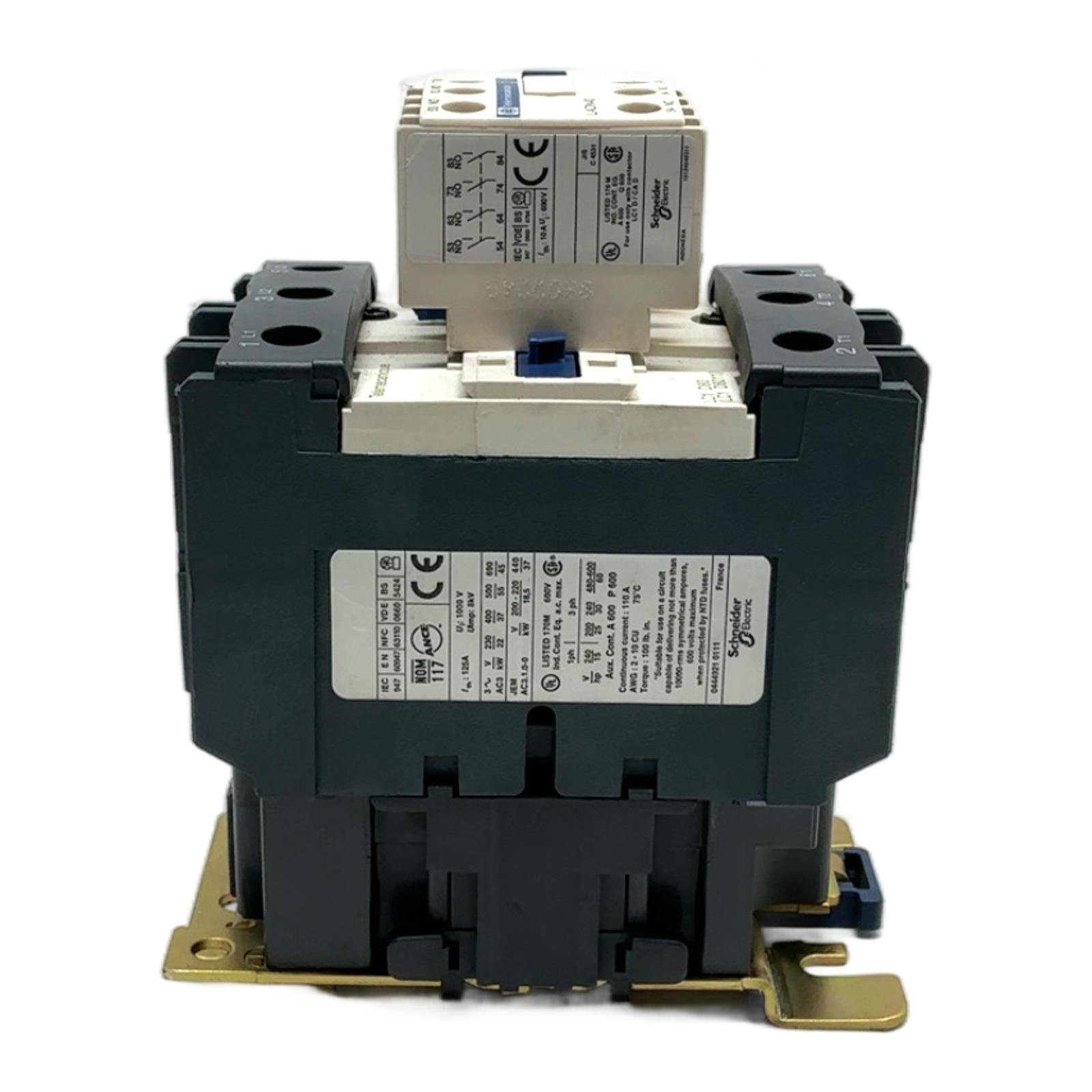

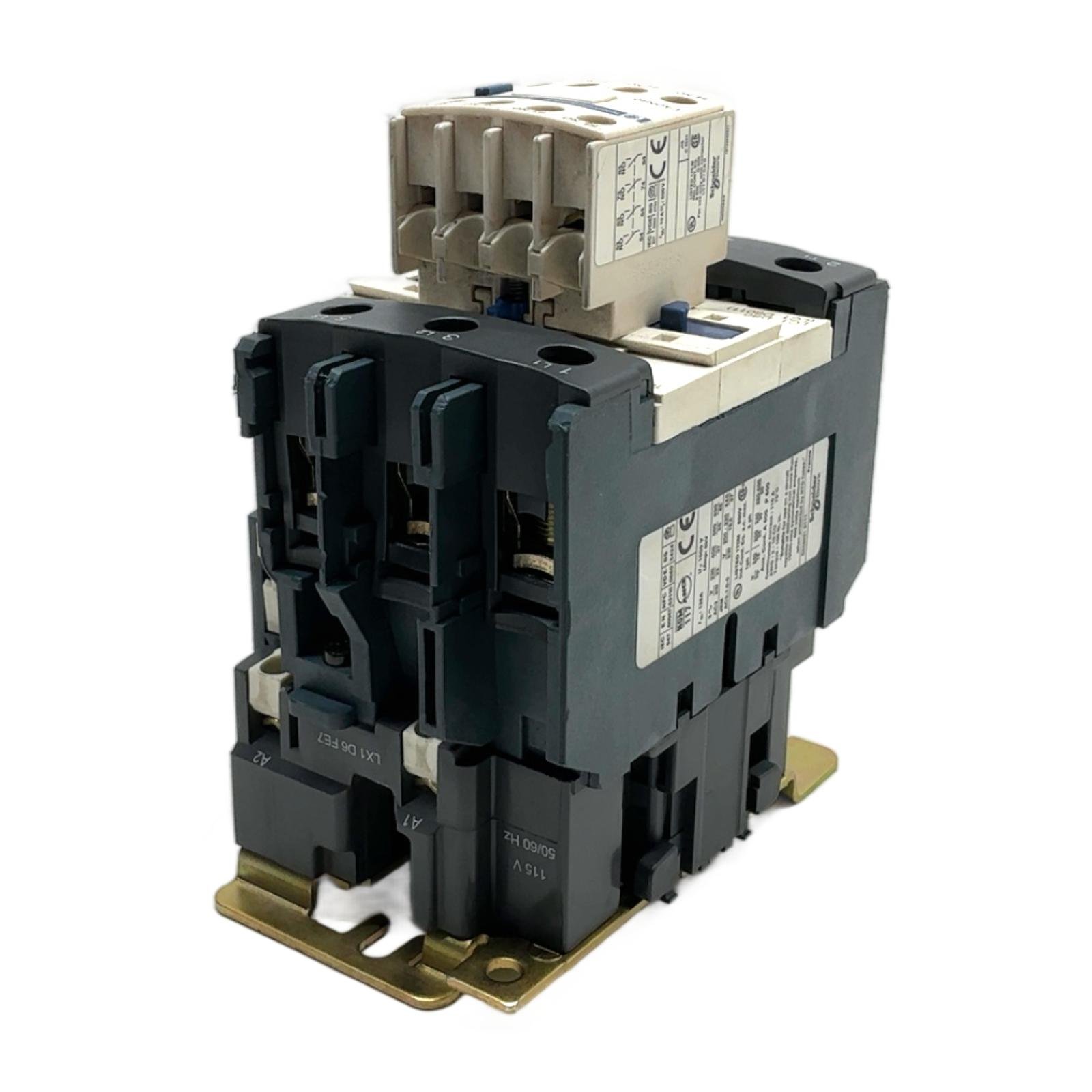

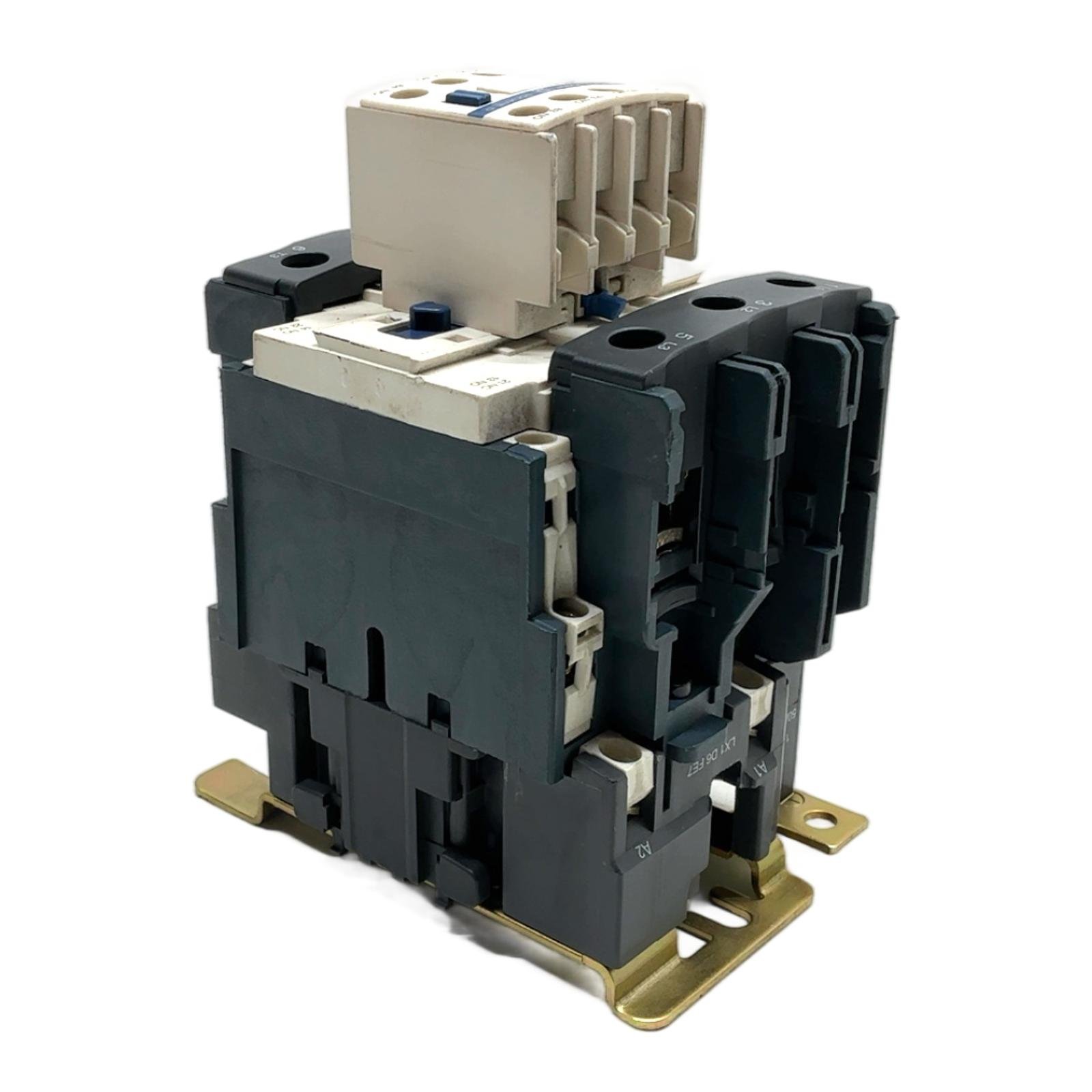

Schneider Electric LC1F115M7 TeSys F Contactor with Auxiliary Block Description This is a Schneider Electric TeSys F 3-pole contactor, model LC1F115M7. It is designed for high-performance motor control and other heavy-duty switching applications. The contactor is rated for 115A (AC-3) and features a control coil voltage of 115V AC. This unit comes pre-fitted with a Schneider Electric LADN40 front-mount auxiliary contact block, adding four normally open (NO) contacts for enhanced control circuit functionality. Specifications Manufacturer: Schneider Electric Series: TeSys F Model: LC1F115M7 Coil Voltage: 115V AC 50/60Hz (Coil model: LX1D6M7) Rated Operational Current (AC-3): 115A Motor Power (AC-3 at 400V): 37 kW Conventional Thermal Current (Ith): 125A Number of Poles: 3 Auxiliary Contacts: LADN40 (4 NO) Label Info Ui: 1000V Uimp: 8kV Standards: IEC/EN 60947, VDE 0660, BS 5424 UL/CSA Rated: 600V, 110A Application Ideal for controlling motors in applications such as pumps, fans, conveyors, compressors, and other industrial machinery. The robust design is suitable for use in automation and distribution panels. Country of Origin Made in France. CO2 Impact Choosing this pre-owned contactor saves an estimated 100 kg of CO2 compared to manufacturing a new one. This is a sustainable choice for your operations. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the AC-3 rating of the LC1F115M7? The AC-3 rating, which is specifically for switching squirrel-cage motors, is 115 Amperes. Can the LX1D6M7 coil be replaced with a different voltage coil? Yes, the coil in TeSys F contactors is modular and can be replaced. You can swap the existing 115V AC coil for another LX1D6 series coil that matches your required control voltage. What is the purpose of the included LADN40 auxiliary contact block? The LADN40 auxiliary block adds four extra Normally Open (NO) contacts to the contactor. These are typically used for signaling, interlocking, and status indication within the control circuit. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
