PEPPERL+FUCHS KFD2-ST2-EX2 181000

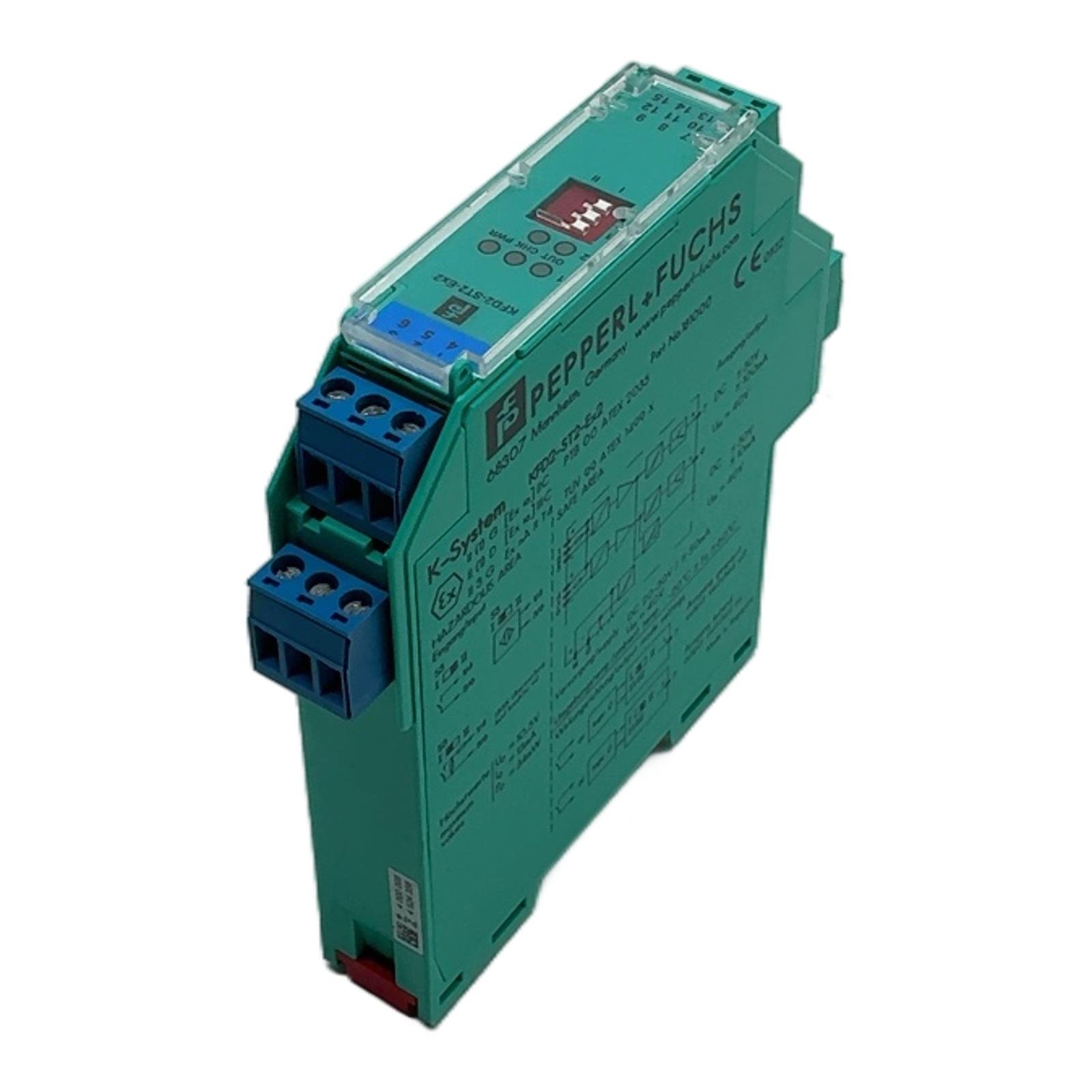

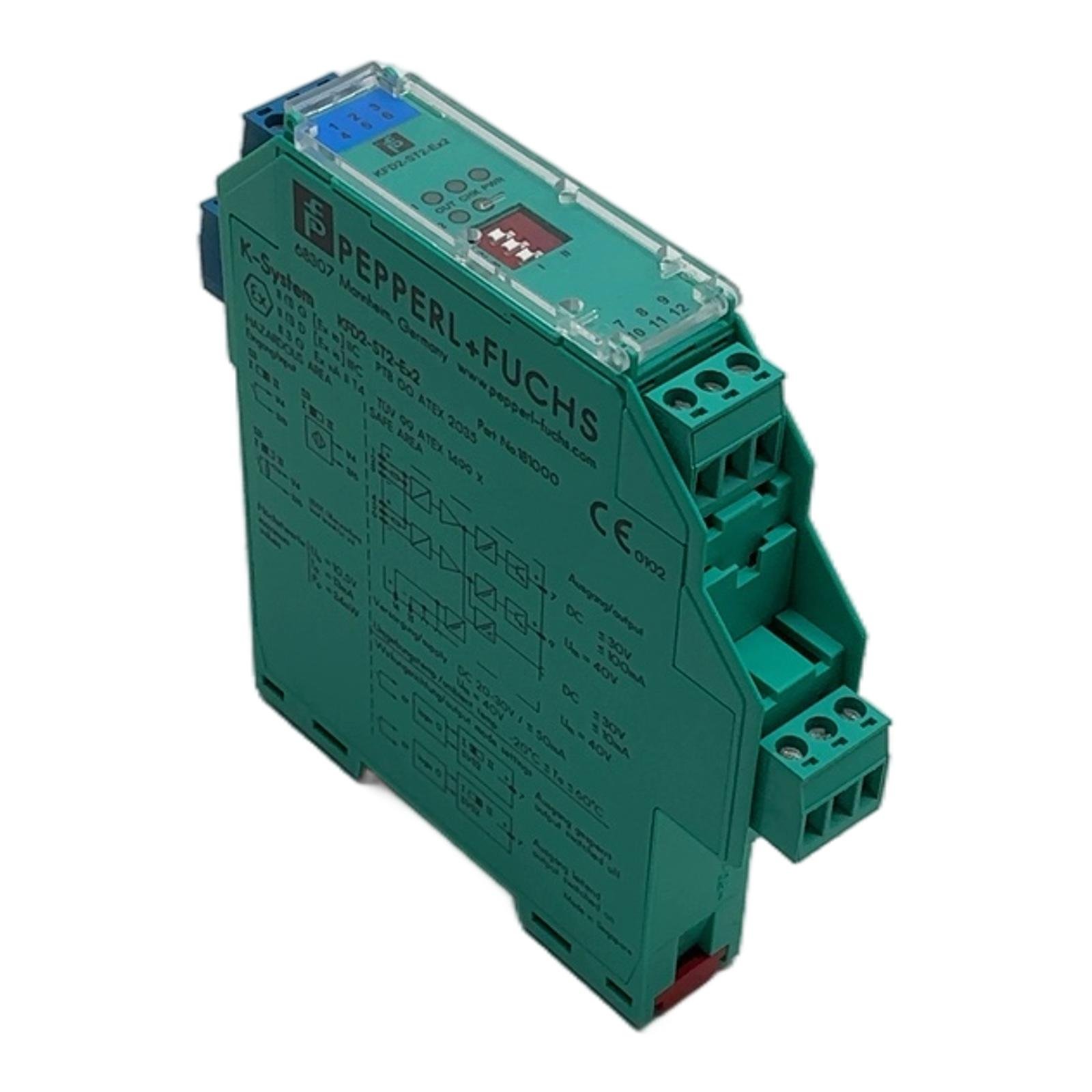

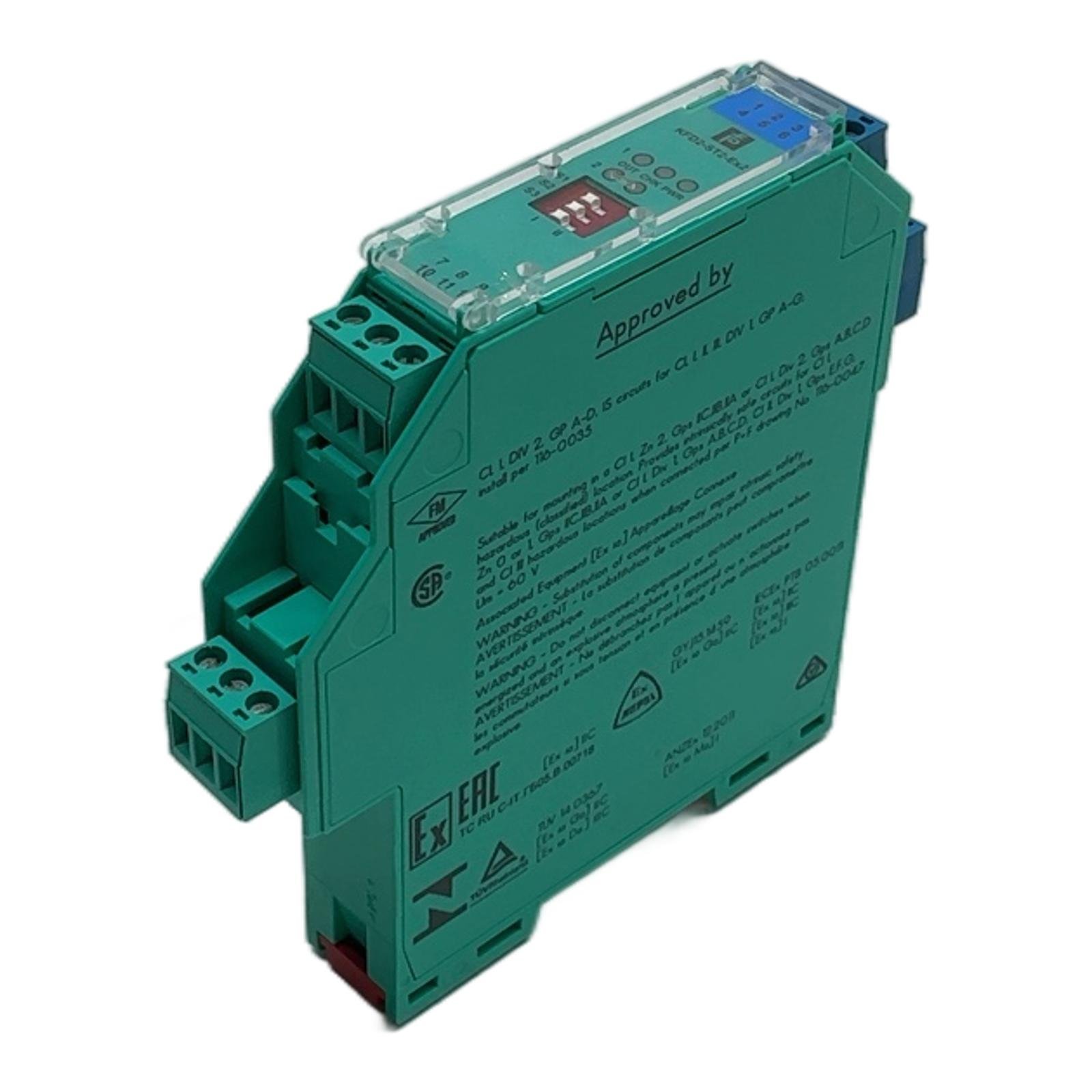

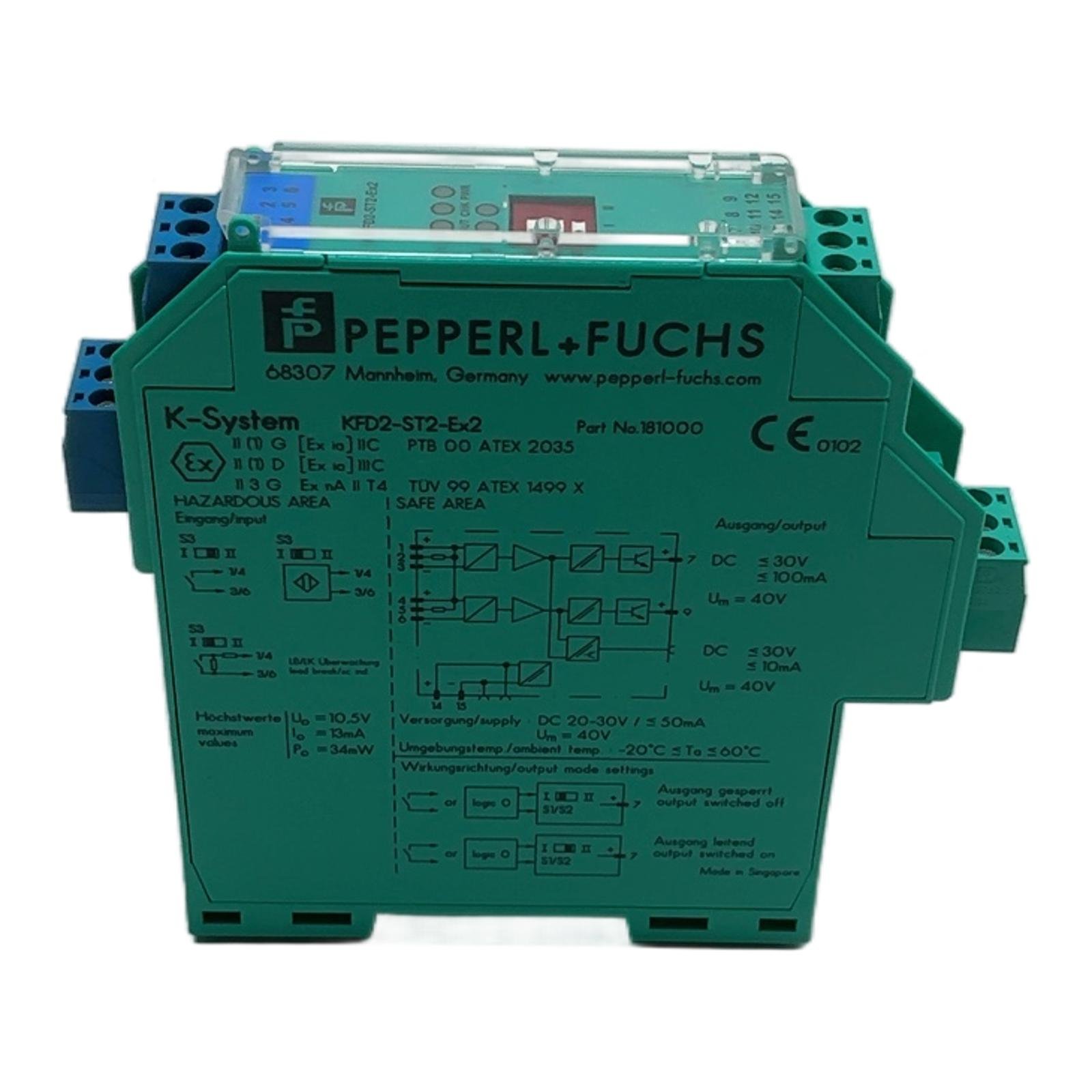

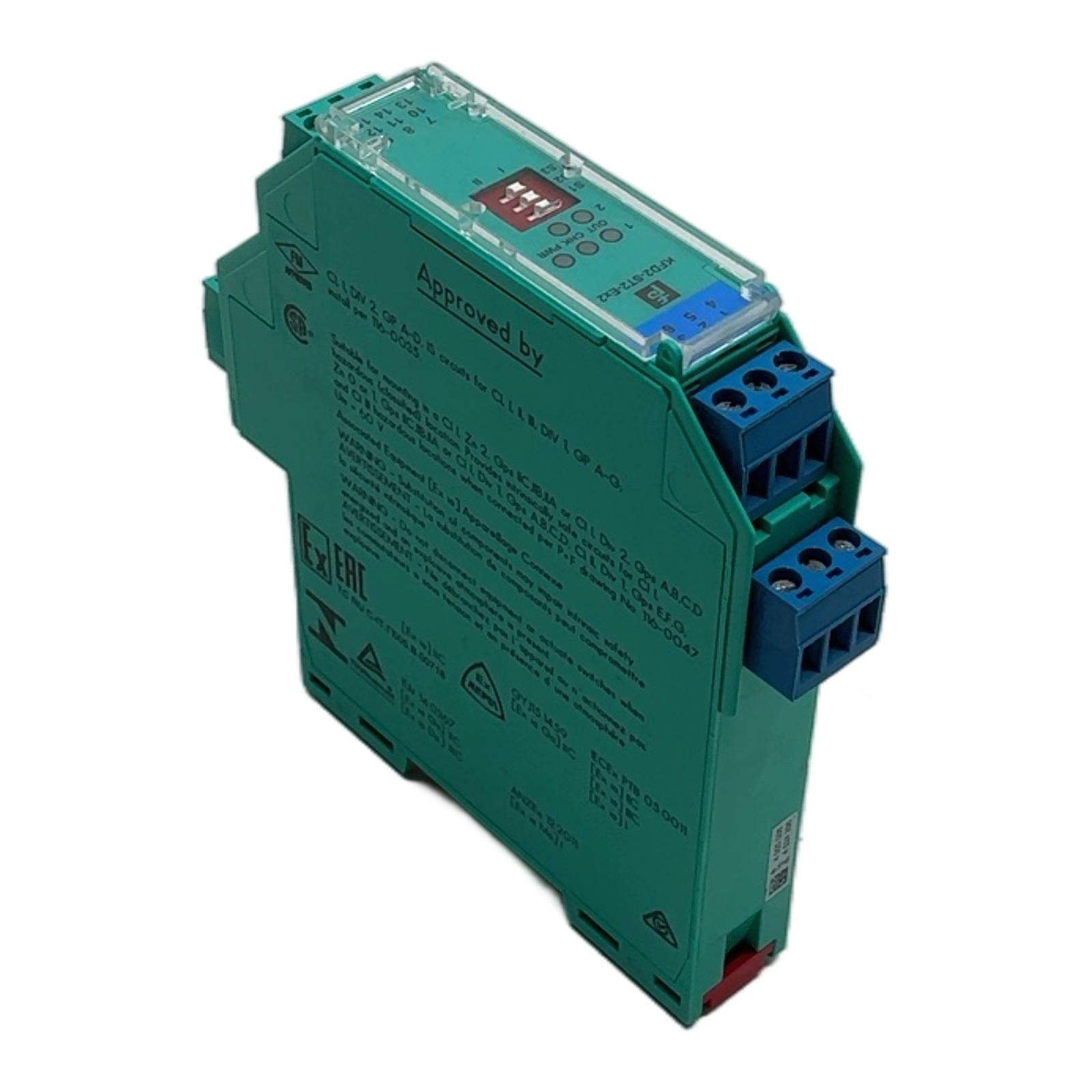

Pepperl+Fuchs KFD2-ST2-EX2 2-Channel SMART Transmitter Power Supply Description The Pepperl+Fuchs KFD2-ST2-EX2 is a high-quality, 2-channel isolated barrier designed for intrinsically safe applications. Part of the reliable K-System, this module supplies power to conventional 2-wire SMART transmitters located in hazardous areas, and allows the transmission of the analog 4-20mA signal to the safe area. It is fully compatible with HART communication protocols, enabling configuration and diagnostics of field devices. Specifications Manufacturer: Pepperl+Fuchs Type: KFD2-ST2-EX2 Part Number: 181000 Number of Channels: 2 Supply Voltage: 20 to 30 V DC Signal Type: 4 to 20 mA (HART transparent) Mounting: 35mm DIN Rail Terminals: Removable, screw-type Label Info Hazardous Area Connection: [Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I Supply: 20 to 30V DC / 1 to 50mA Ambient Temperature: -20 to 60 deg C Application Ideal for use in the chemical, oil and gas, pharmaceutical, and power generation industries where instrumentation is required in potentially explosive atmospheres. It ensures safe and reliable operation of transmitters for pressure, temperature, flow, and level measurement. Country of Origin Made in Singapore. CO2 Impact By purchasing this pre-owned module, you help avoid the 6.0 kg of CO2 emissions associated with manufacturing a new one, contributing to a more sustainable industrial environment. Availability This item is an obsolete model but is available from our stock. Order now from profideals for expert support and fast delivery. FAQ What is the main difference between the KFD2-ST2-Ex2 and its replacement, the KFD2-STC4-Ex2?The newer KFD2-STC4-Ex2 generally offers a more compact design, wider operating temperature range, and enhanced diagnostic features like line fault detection, providing more robust performance and easier troubleshooting. Can this module be used with non-SMART (HART) transmitters?Yes, it functions perfectly as a standard 4-20mA isolated barrier for non-SMART transmitters. The HART pass-through capability is an additional feature that will simply not be used in such a setup. What do the DIP switches on the top of the unit control?The DIP switches are used to configure specific functions of the module. This typically includes enabling or disabling Line Fault Detection (LFD) and selecting the mode for HART communication to prevent interference in multi-drop loops. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
