SCHNEIDER ELECTRIC GV2ME10

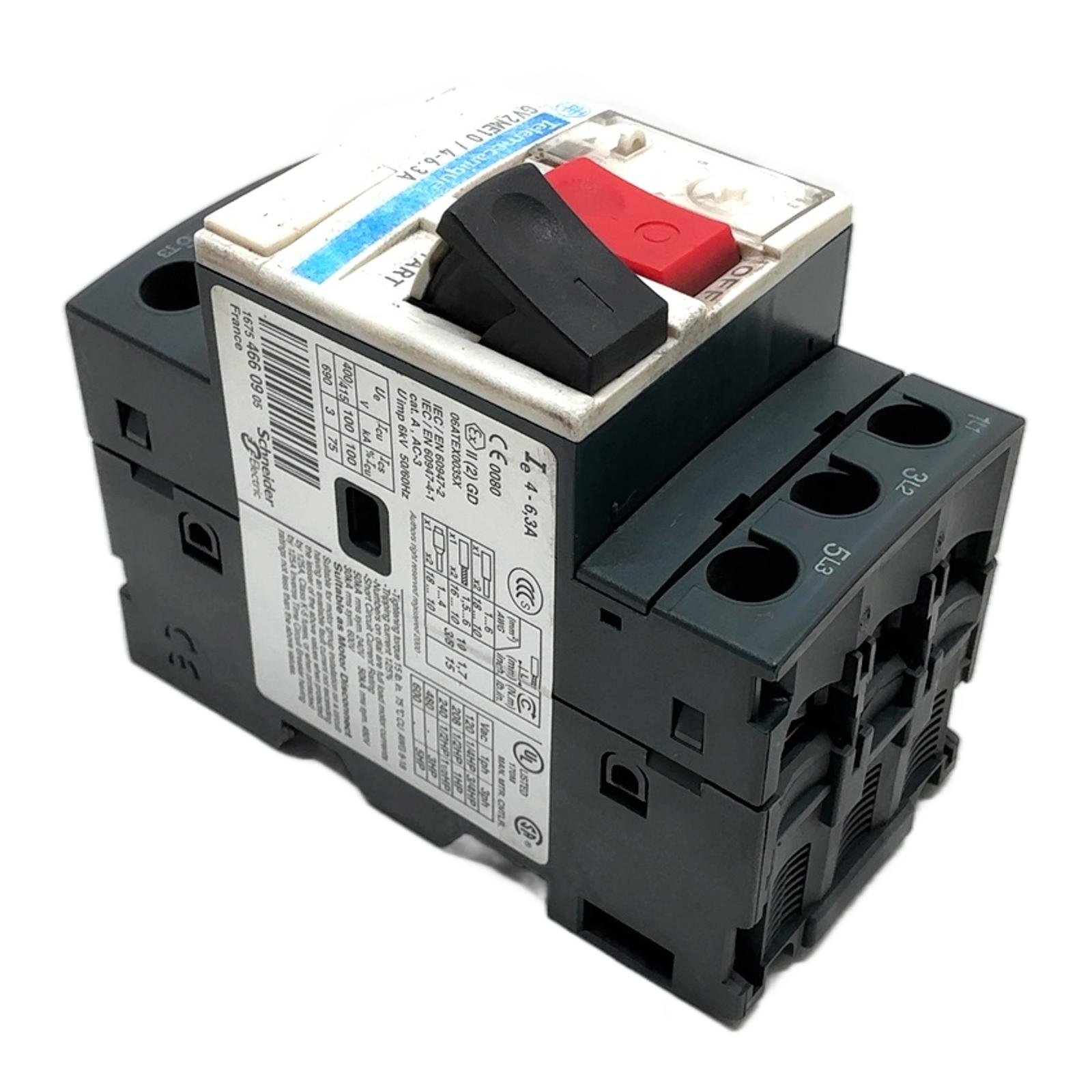

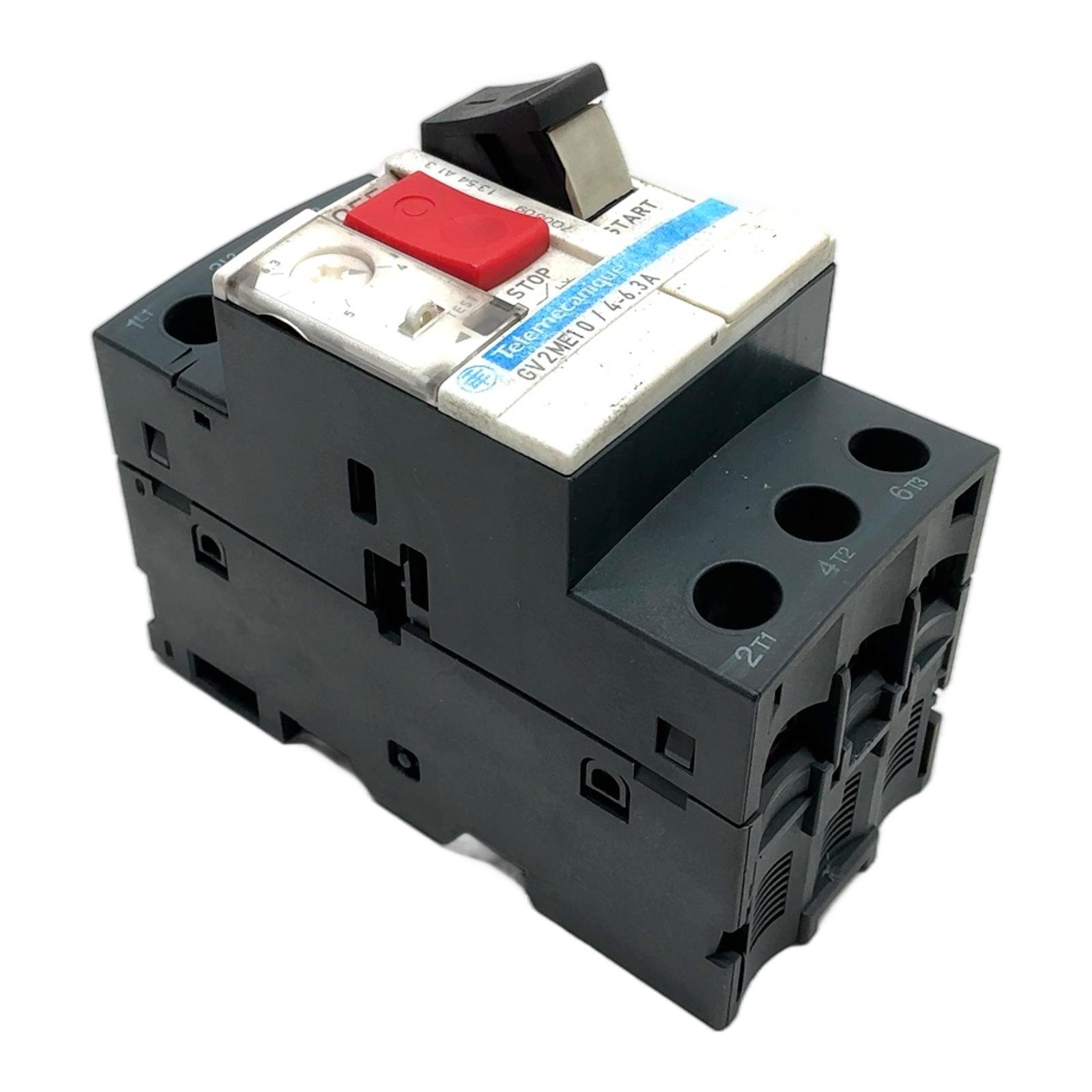

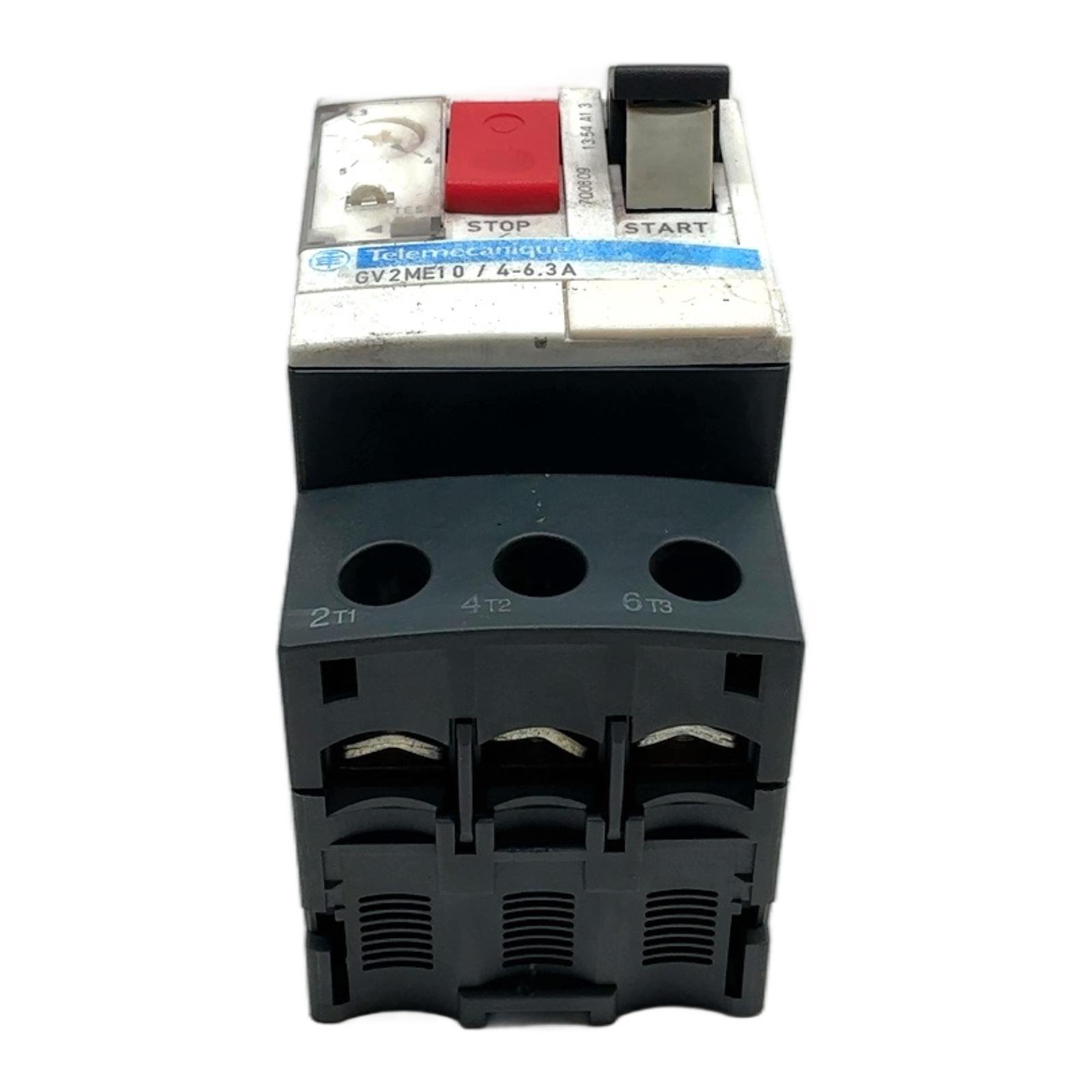

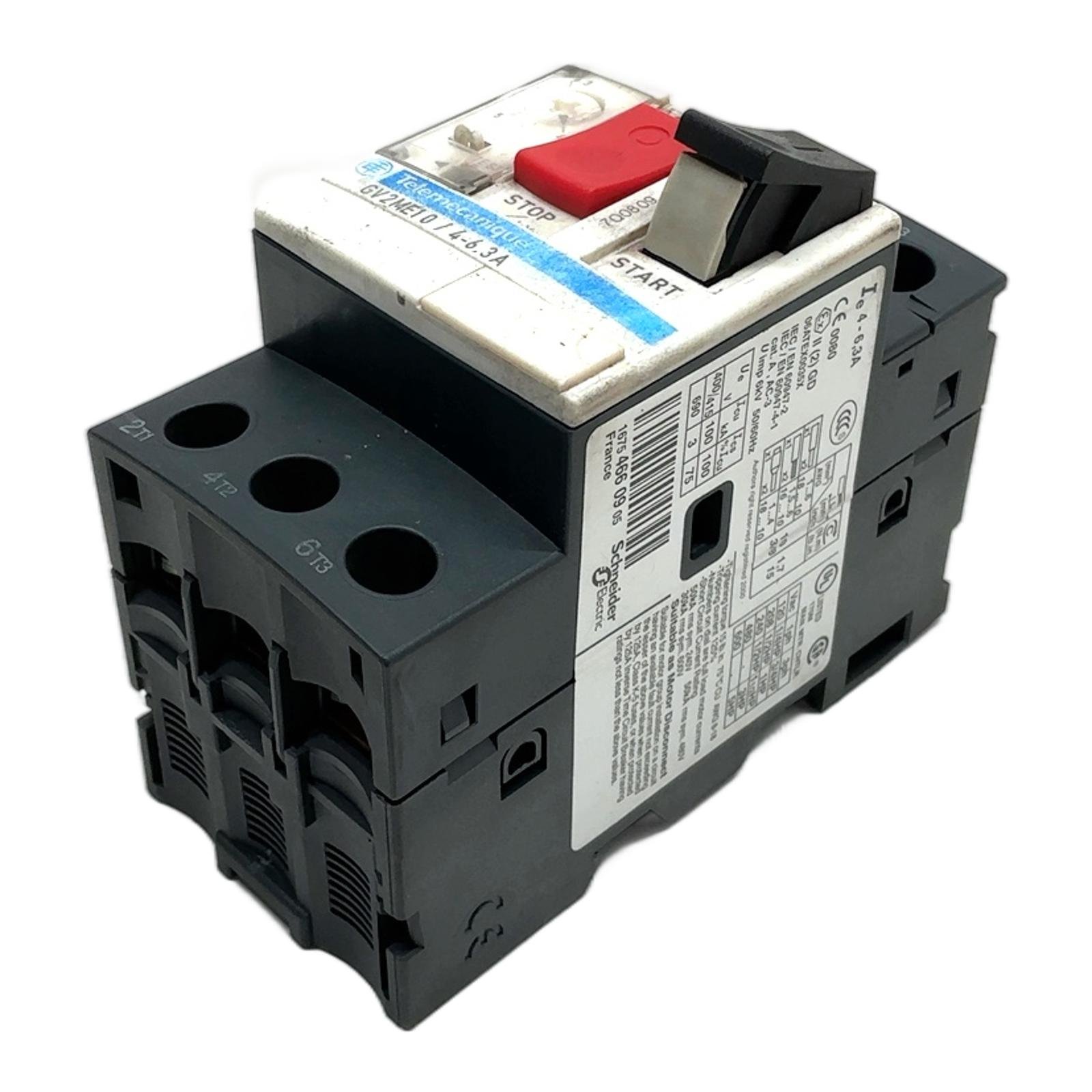

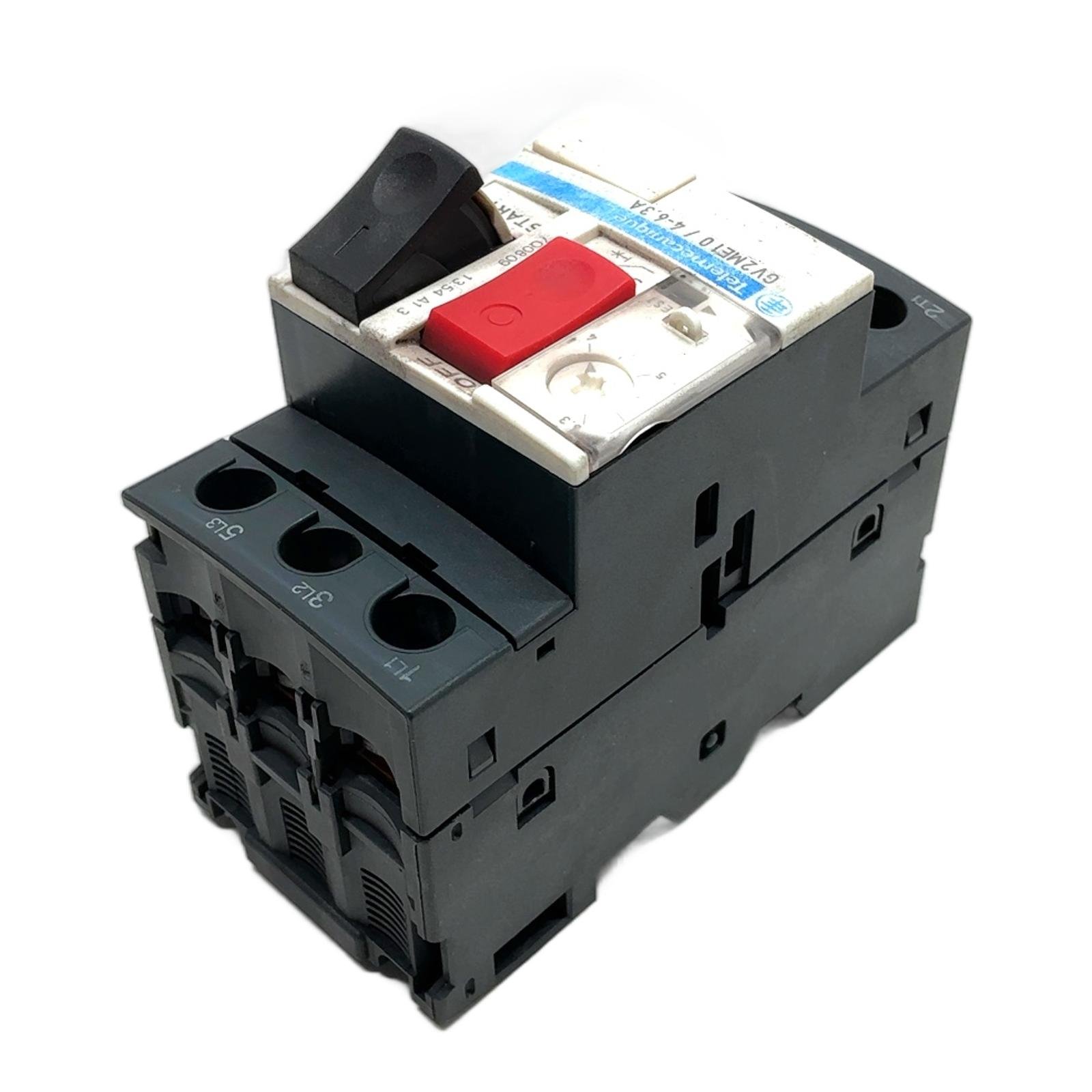

Schneider Electric TeSys GV2 Motor Protection Circuit Breaker Description The Schneider Electric GV2ME10 is a high-performance thermal-magnetic motor circuit breaker from the TeSys GV2 series. It provides essential protection for three-phase motors against short-circuits, overloads, and phase failures. With an adjustable thermal setting range from 4 to 6.3A, it offers precise and reliable protection tailored to your motor’s specific requirements. Its compact design and push-button operation make it an ideal choice for direct manual motor control and protection in various industrial environments. Specifications Manufacturer: Schneider Electric Series: TeSys GV2 Model: GV2ME10 Product Type: Motor Protection Circuit Breaker (MPCB) Poles: 3-Pole Thermal Setting Range: 4 – 6.3 A Rated Operational Voltage: 690V AC, 50/60 Hz Control Type: Push-button (Start/Stop) Breaking Capacity (Icu): 100 kA at 400/415V AC Standards: IEC/EN 60947-2, IEC/EN 60947-4-1 Label Info Model: GV2ME10 Ie: 4-6.3A Uimp: 6kV Approvals: CE, UL, SP, ATEX Application This motor protection circuit breaker is suitable for a wide range of applications including conveyor systems, pumps, fans, and other machinery requiring reliable motor protection and manual control. Country of Origin Made in France. CO2 Impact By purchasing this pre-owned component, you are helping to avoid the emission of 10.4 kg of CO2. This is equivalent to the savings of driving a standard car for approximately 52 kilometers. Availability This unit is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the difference between the GV2ME and GV2P series?The GV2ME series uses screw clamp terminals and is typically operated by pushbuttons, while the GV2P series has a rotary handle for operation and often features higher breaking capacities and different terminal options. Can I add auxiliary contacts to the GV2ME10?Yes, the GV2ME series is designed to be modular. You can add front-mounted (GVAE) or side-mounted (GVAN, GVAED) auxiliary contact blocks for signaling and control purposes. How do I correctly set the thermal overload protection on the GV2ME10?The dial on the front of the breaker should be set to the motor’s full load current (FLA), which is found on the motor’s nameplate. The range for this GV2ME10 is 4 to 6.3 Amperes. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
