KTI NETWORKS KC-300D-C

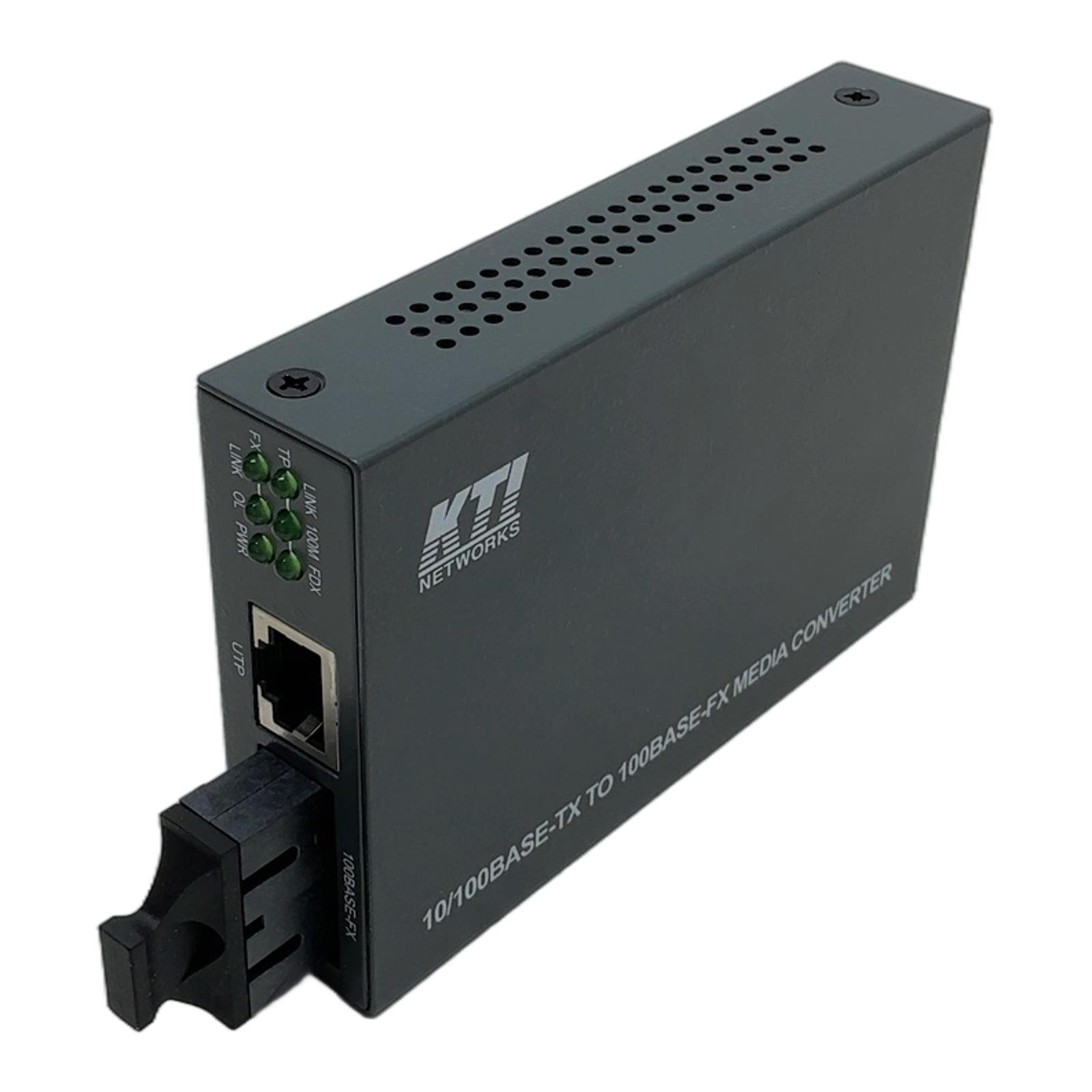

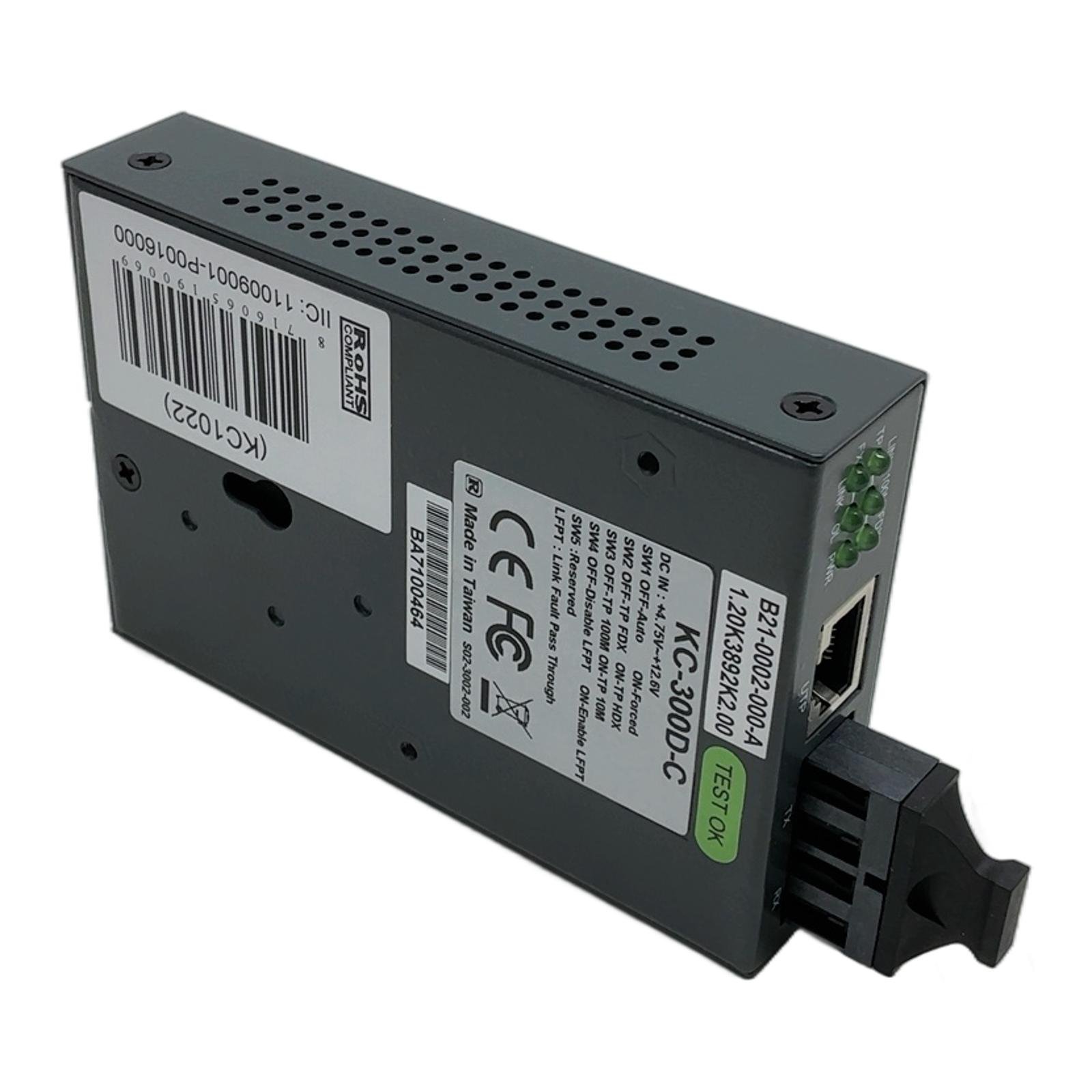

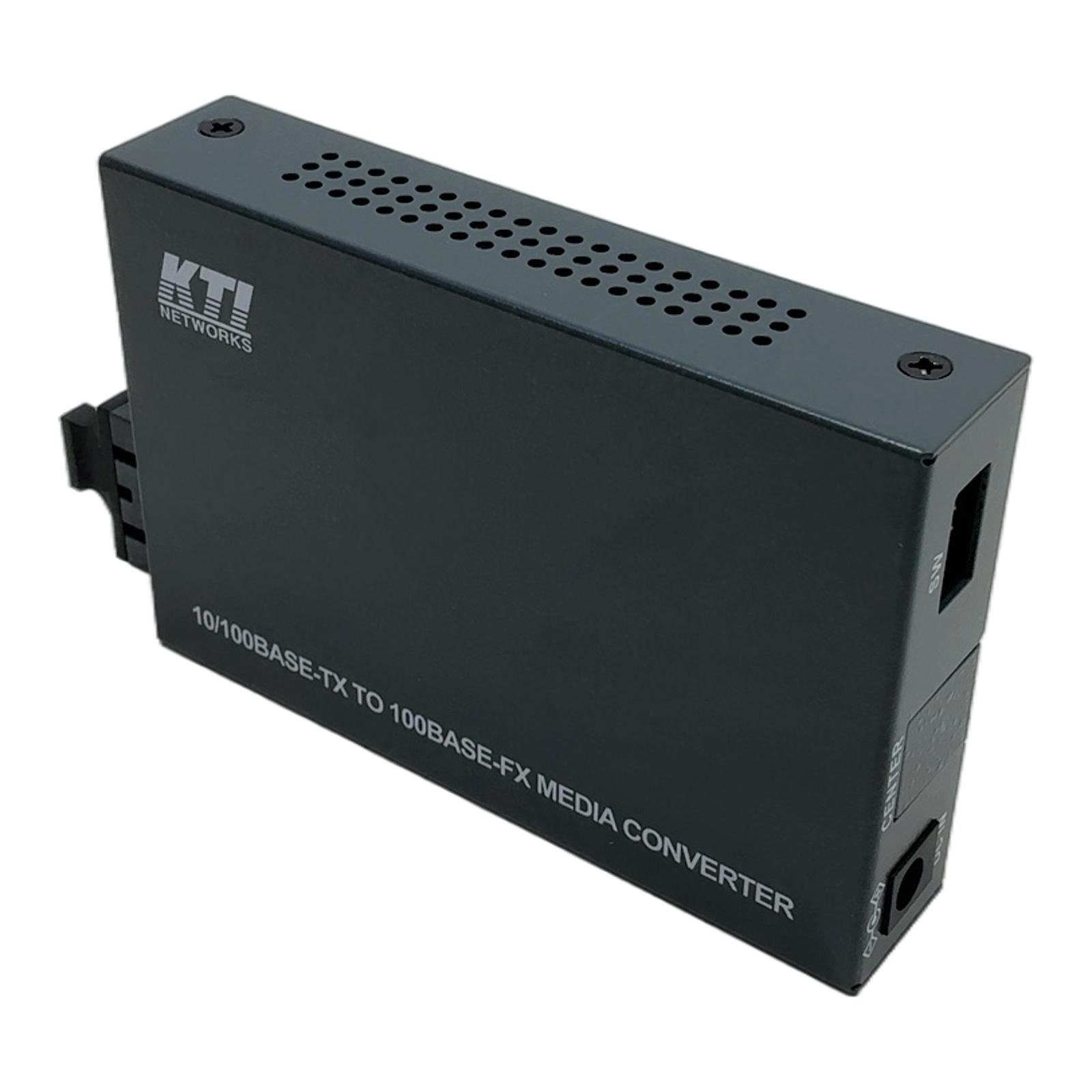

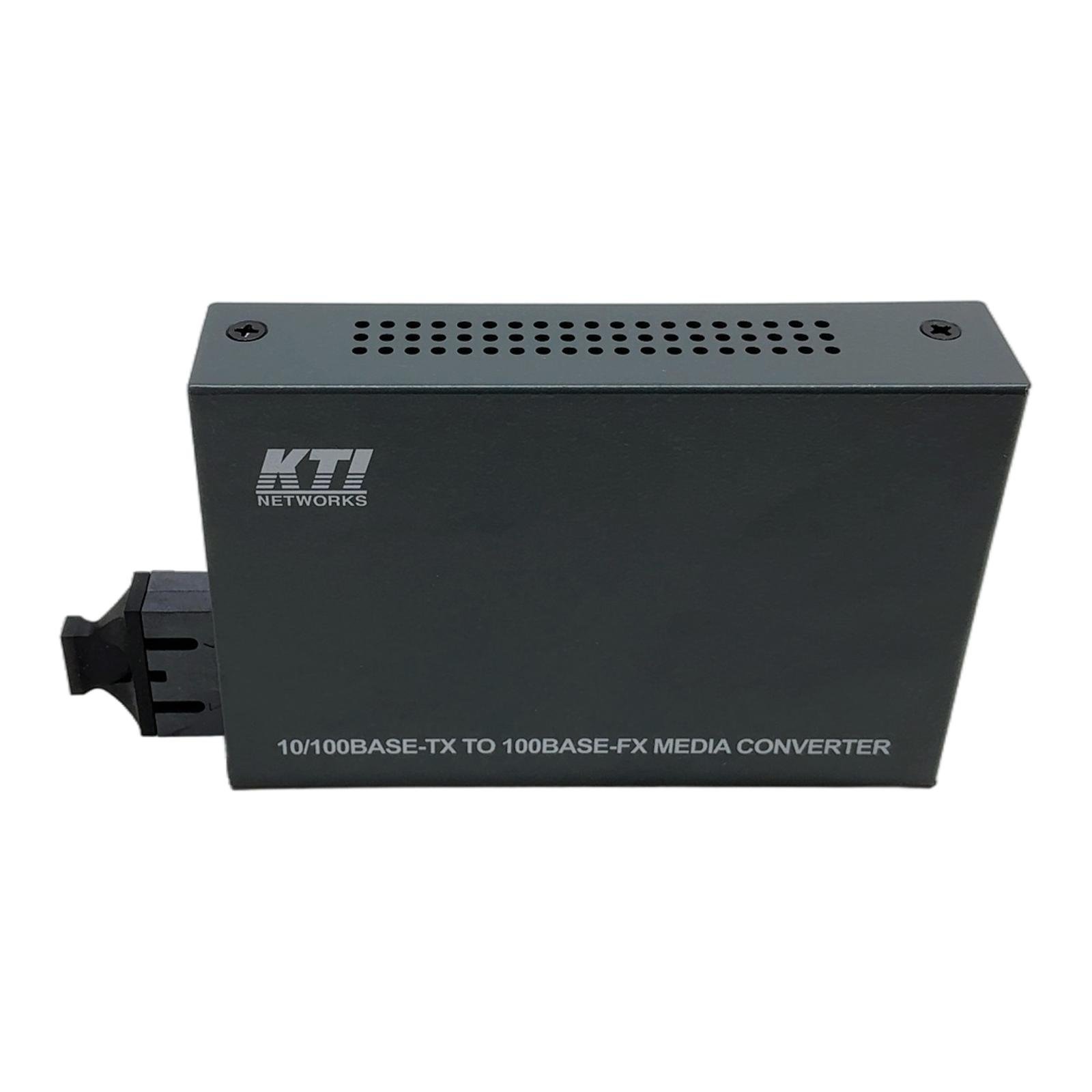

KTI Networks KC-300D-C Media Converter Description The KC-300D-C from KTI Networks is a compact and durable standalone media converter designed to convert signals between 10/100Base-TX (copper) and 100Base-FX (multi-mode fiber). This device is an excellent solution for extending network distances over fiber optic cable in industrial settings, overcoming the distance limitations of traditional copper Ethernet cables. It includes a power adapter and features DIP switches for easy configuration. Specifications Model: KC-300D-C Manufacturer: KTI Networks Input Power: +4.75V to +12.0V DC via barrel jack or terminal block Copper Port: 1 x 10/100Base-TX (RJ-45) Fiber Port: 1 x 100Base-FX (SC Connector, Multi-Mode) Maximum Fiber Distance: 2 km Standards: IEEE 802.3, IEEE 802.3u Features: DIP switch configuration for speed, duplex mode, and Link Fault Pass Through (LFPT) Label Info Model No: KC-300D-C Part No: B21-0002-000-A Serial No: BA7100464 Application Ideal for use in industrial automation, process control, and security systems where network segments need to be connected over long distances or in environments with high electromagnetic interference (EMI). Country of Origin Made in Taiwan. CO2 Impact By purchasing this reconditioned product, you are contributing to a circular economy and helping to avoid approximately 10 kg of CO2 emissions that would be generated from manufacturing a new unit. Availability This unit is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question?What type of fiber optic cable is required for the KC-300D-C? Answer:The KC-300D-C is designed for use with multi-mode fiber (MMF) optic cables. It features an SC connector and supports a maximum distance of 2 kilometers. Question?What is the purpose of the Link Fault Pass Through (LFPT) feature? Answer:LFPT is a troubleshooting feature. If the link on one port (either fiber or copper) fails, the converter will automatically force the link on the other port to go down. This allows the connected network device to ‘see’ the link failure and react accordingly, for instance by switching to a backup path. Question?Can this media converter be powered by a DIN-rail power supply? Answer:Yes. While a wall adapter is included, the KC-300D-C also has a terminal block input that accepts a wide DC voltage range (+4.75V to +12.0V). This makes it easy to integrate with standard 24V DC industrial power supplies, provided a suitable step-down converter or a 5V/12V supply is used on the DIN-rail. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
