BOSCH REXROTH M-3SED 6 CK13/350CG24N9K4/B12 R900200031

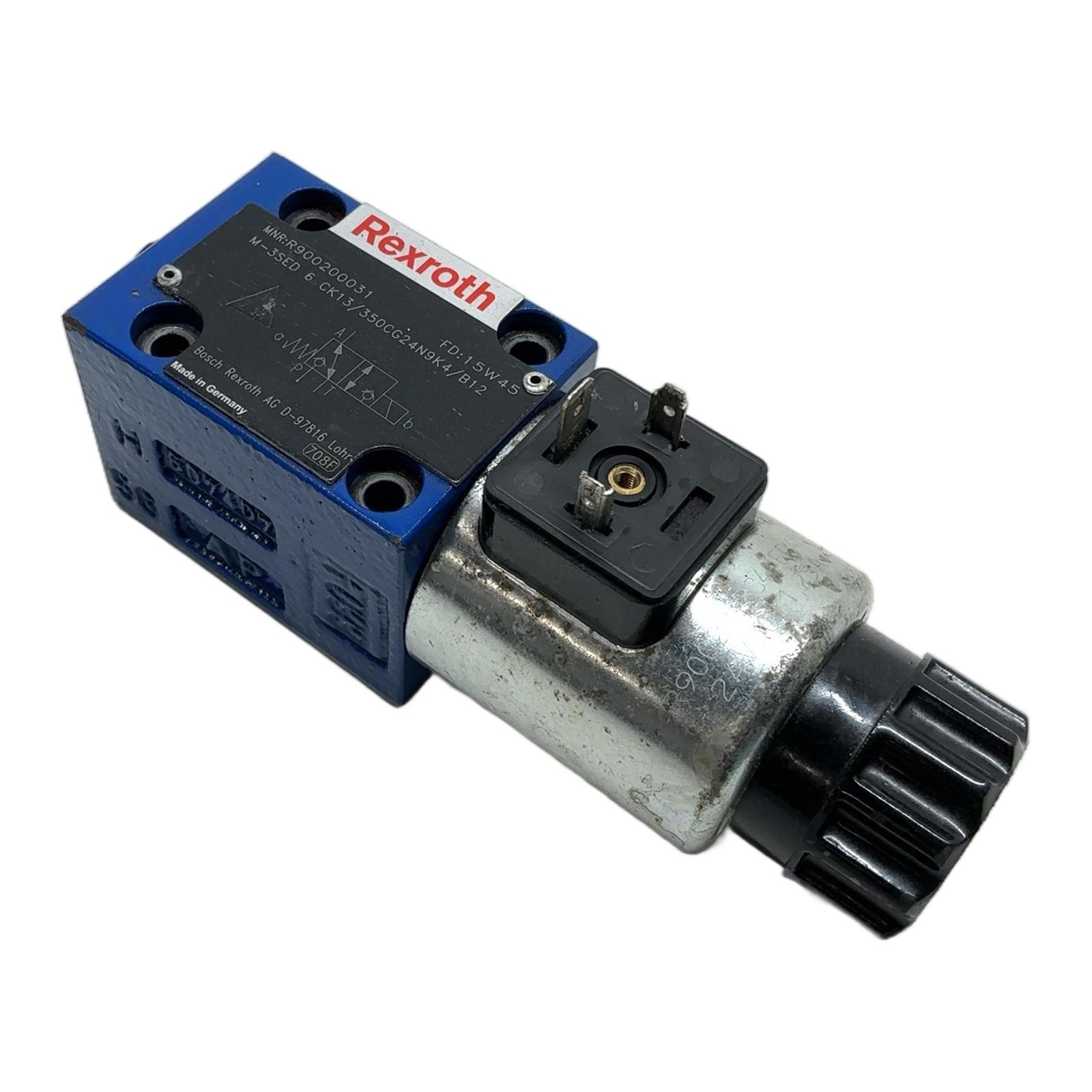

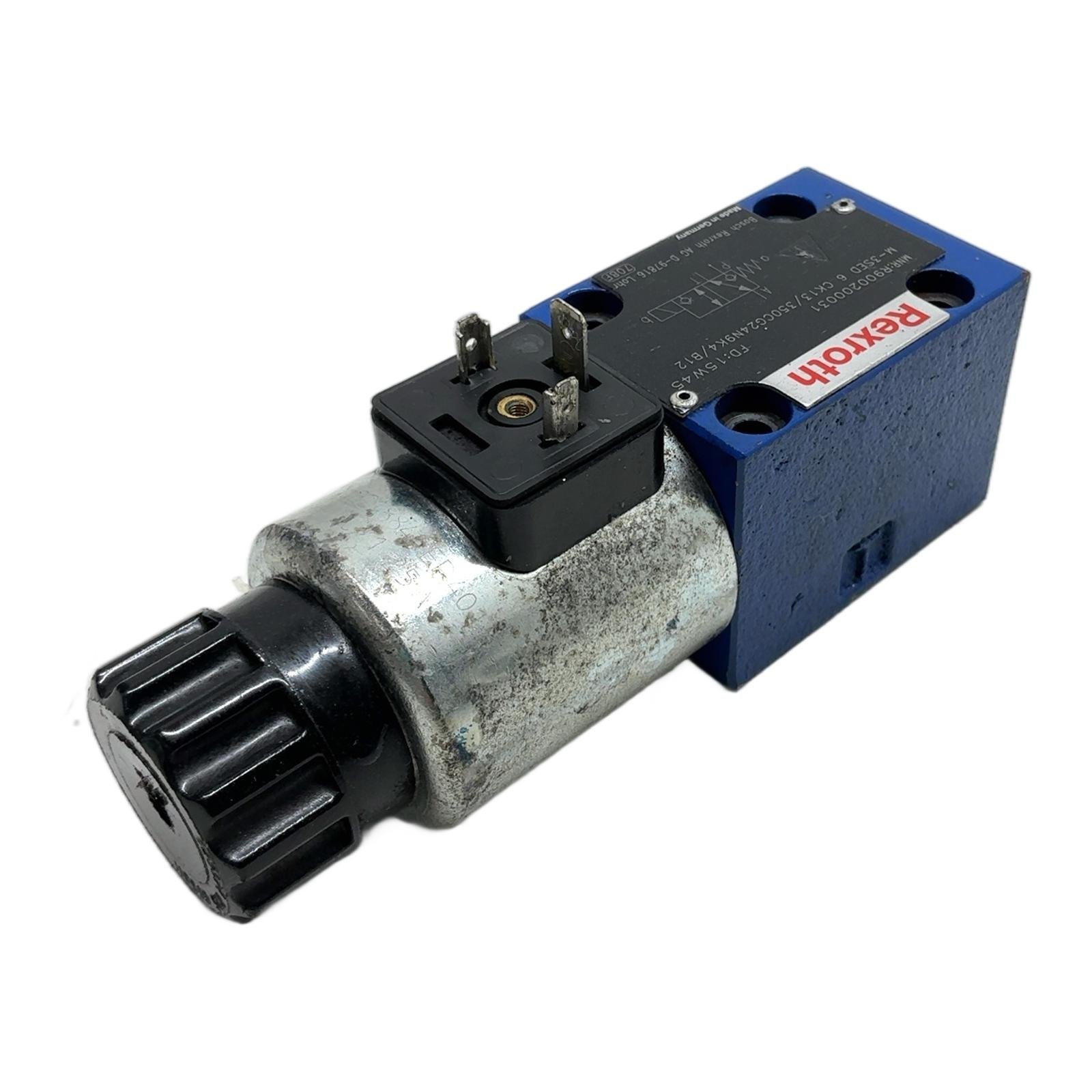

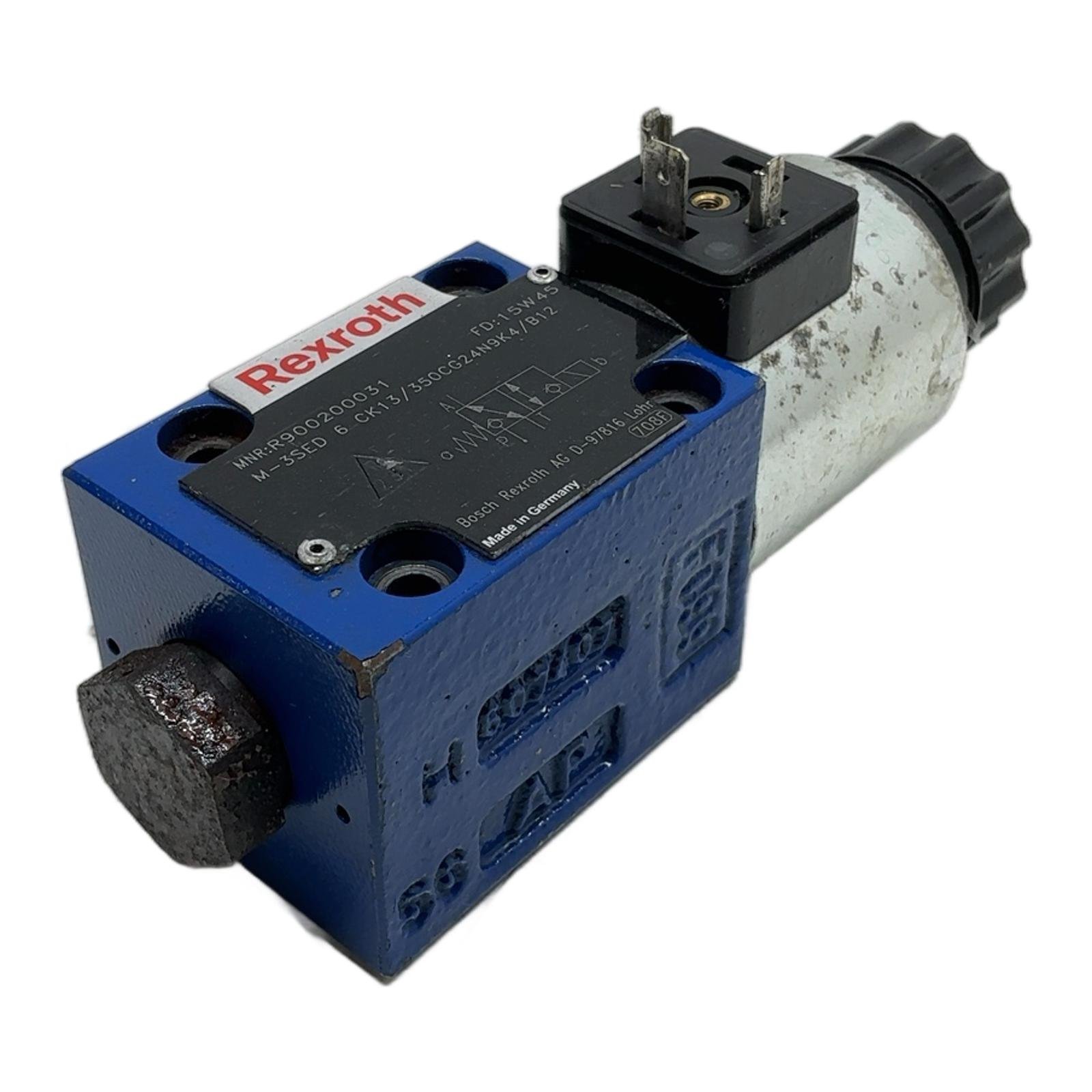

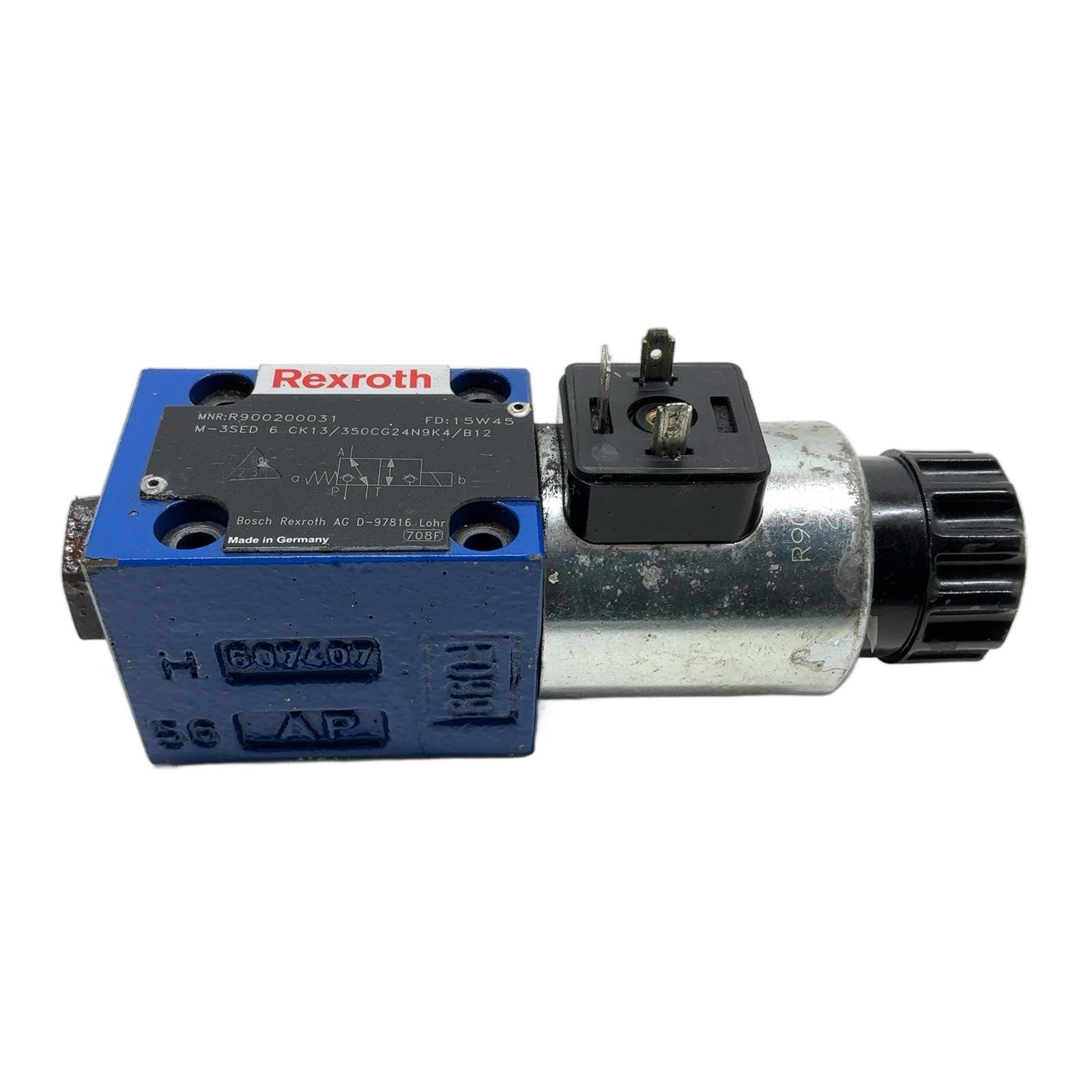

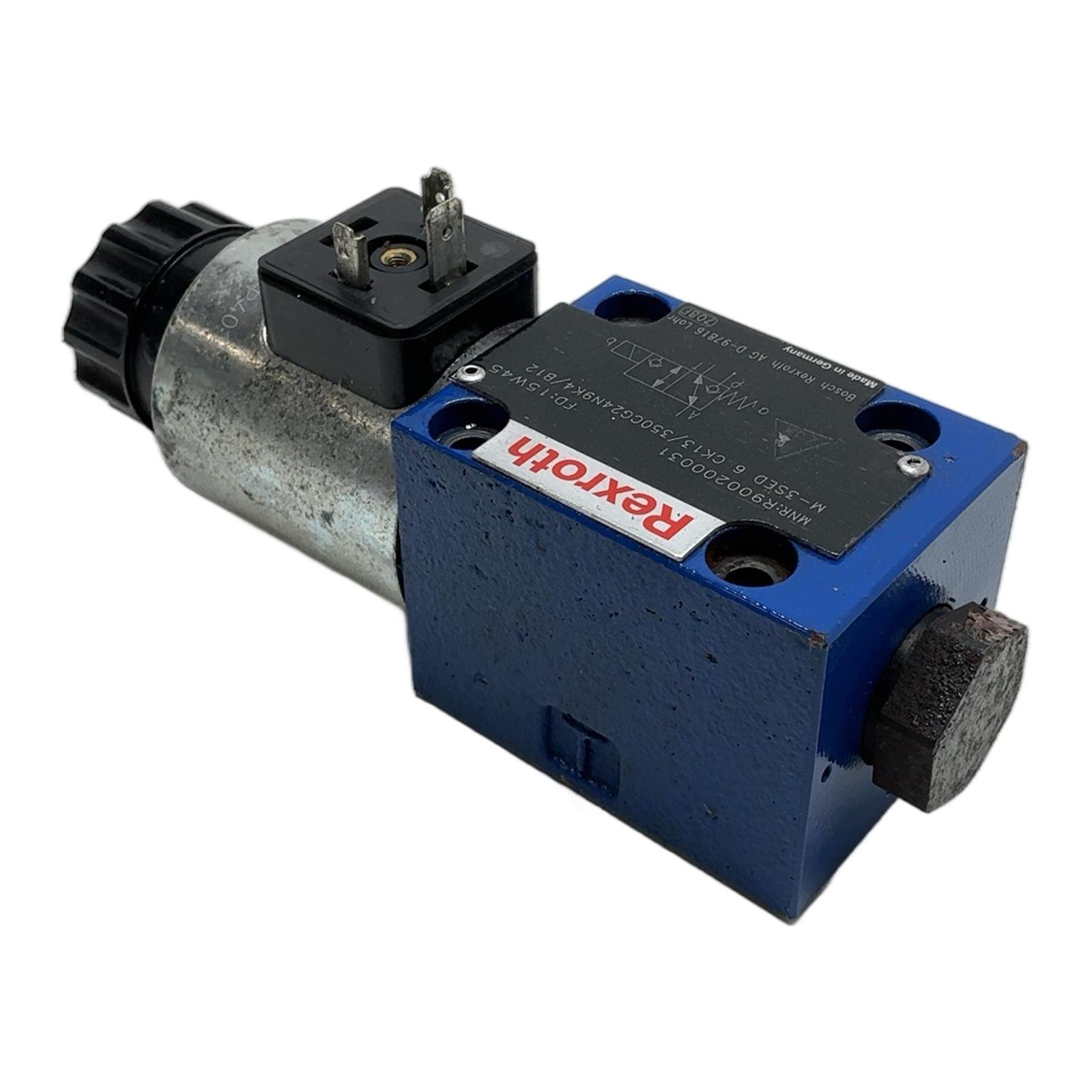

Rexroth M-3SED 6 Hydraulic Directional Valve Description This is a direct-operated directional spool valve, model M-3SED 6 CK13/350CG24N9K4/B12, from Bosch Rexroth. It is a high-performance component designed for controlling the start, stop, and direction of fluid flow in a hydraulic system. With its robust construction and 24V DC solenoid, it is suitable for a wide range of industrial applications requiring precise and reliable control. Specifications Manufacturer: Bosch Rexroth Type: M-3SED 6 CK13/350CG24N9K4/B12 Material Number: R900200031 Valve Type: Directional Spool Valve, Direct Operated Size: 6 (NG6 / CETOP 3 mounting pattern) Actuation: Solenoid Coil Voltage: 24V DC Maximum Operating Pressure: 350 bar Nominal Flow: 12 l/min Spool Symbol: CK13 Electrical Connection: DIN EN 175301-803 connector Manual Override: Yes, concealed Label Info MNR: R900200031 FD: 15W45 Type: M-3SED 6 CK13/350CG24N9K4/B12 Application This valve is commonly used in machine tools, manufacturing equipment, mobile hydraulics, and general industrial machinery where precise fluid direction control is necessary. Country of Origin Made in Germany CO2 Impact Opting for this pre-owned hydraulic valve saves an estimated 10.6 kg of CO2 compared to manufacturing a new one. This demonstrates a commitment to sustainable industrial practices. Availability This item is a used, tested product in excellent working condition. Order now from profideals for expert support and fast delivery. FAQ What does the spool symbol ‘CK13’ signify?The spool symbol ‘CK13′ defines the flow paths in the valve’s different positions. It indicates a 3-position, 4-way valve where the center position blocks all ports (P, T, A, B), and the two actuated positions connect P to A and B to T, or P to B and A to T respectively. What is the maximum operating pressure and flow rate for this valve?This valve is rated for a maximum operating pressure of 350 bar (approximately 5075 PSI) and a nominal flow rate of 12 liters per minute (l/min). Can the 24V DC solenoid be replaced or serviced separately?Yes, the solenoid coil on Rexroth M-3SED valves is a modular component. It can be removed and replaced without opening the hydraulic circuit, which simplifies maintenance and reduces machine downtime. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
