SCHNEIDER ELECTRIC iC60N D2A A9F05202

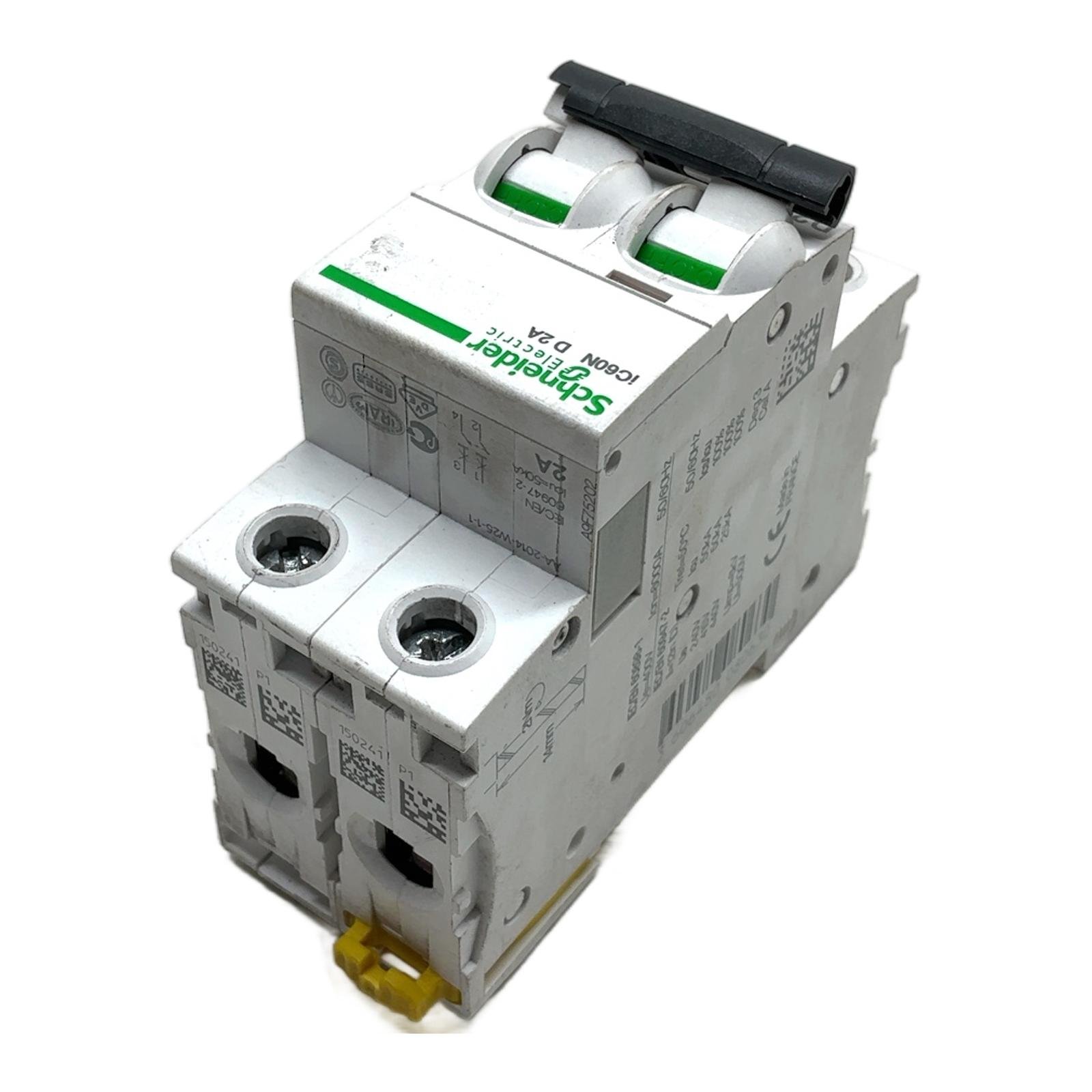

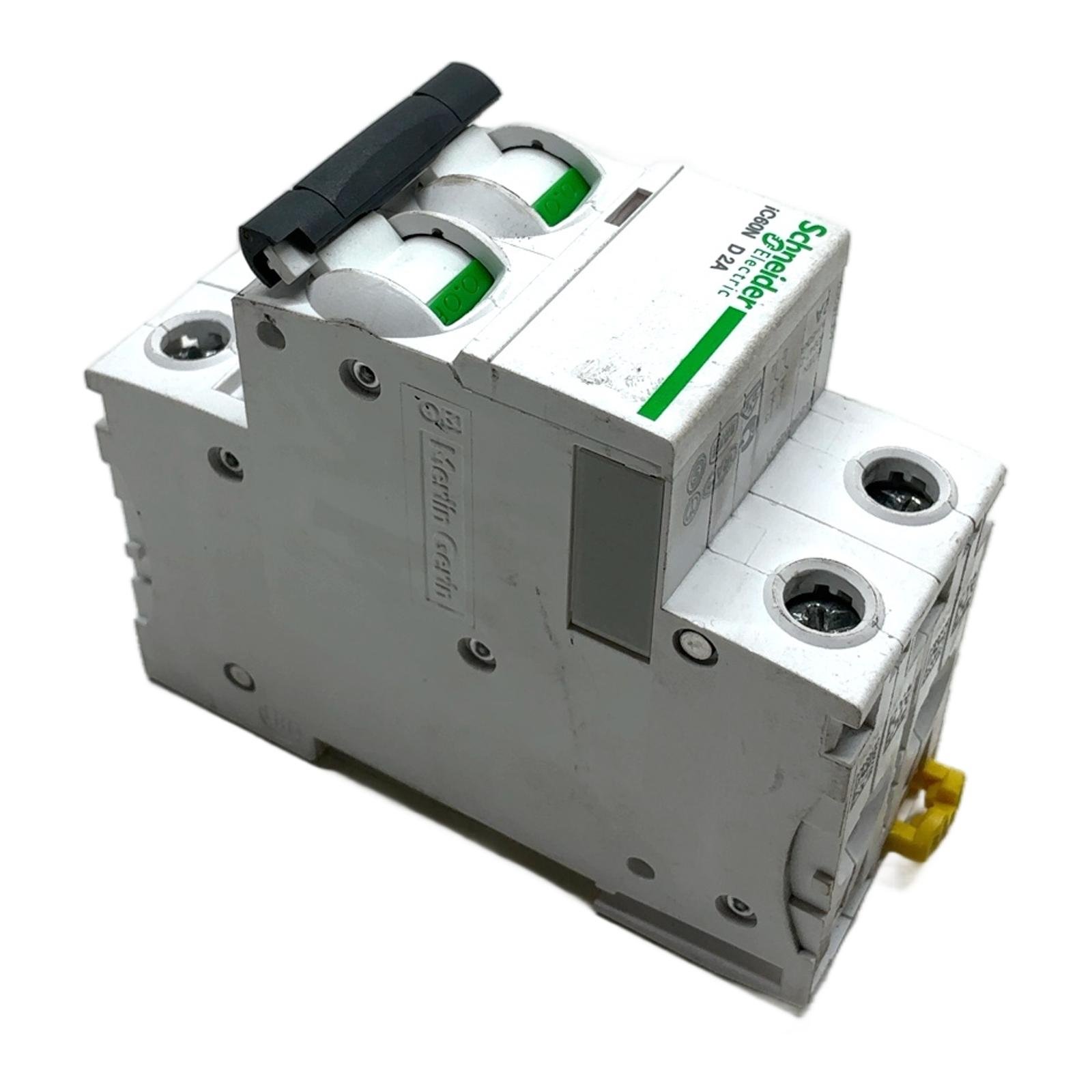

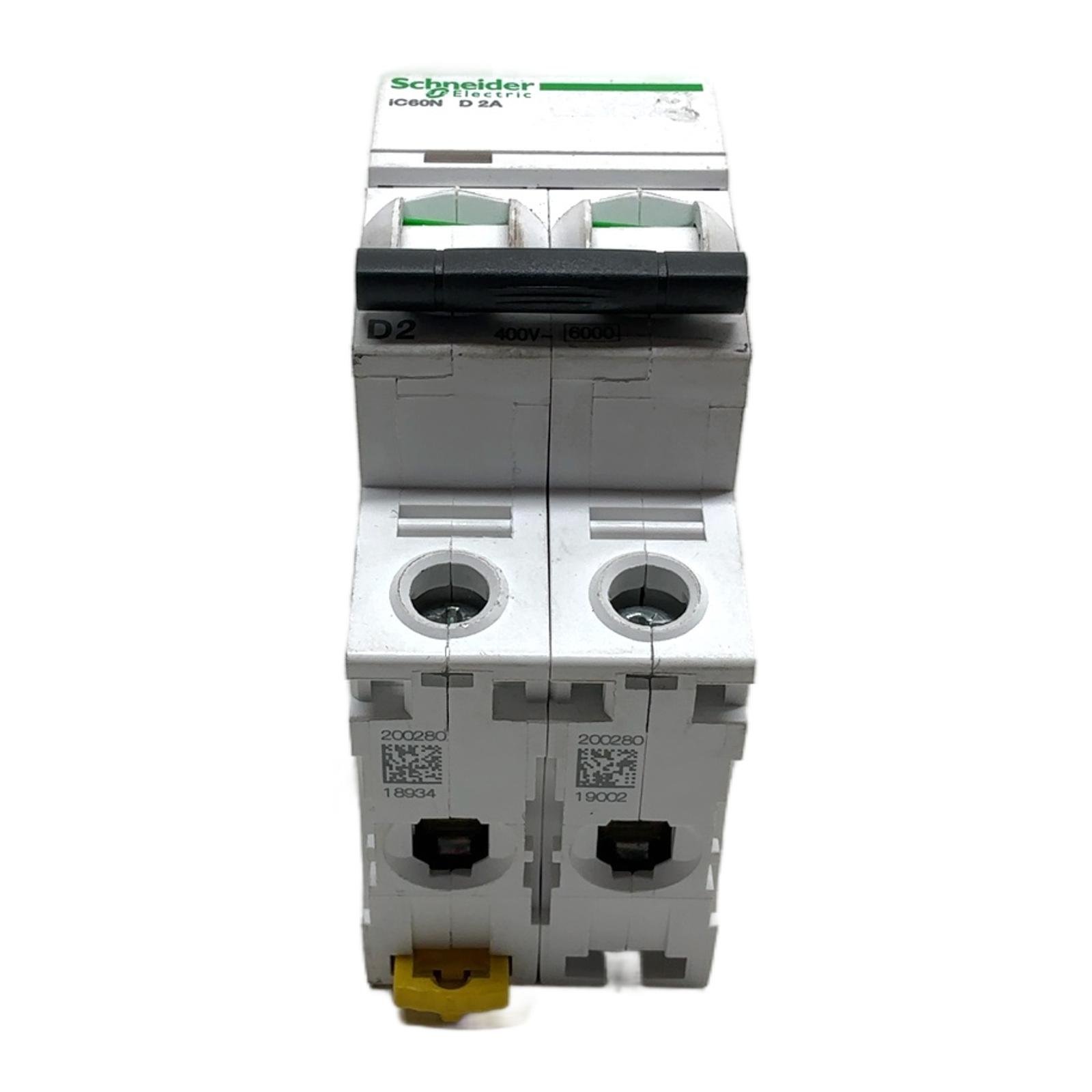

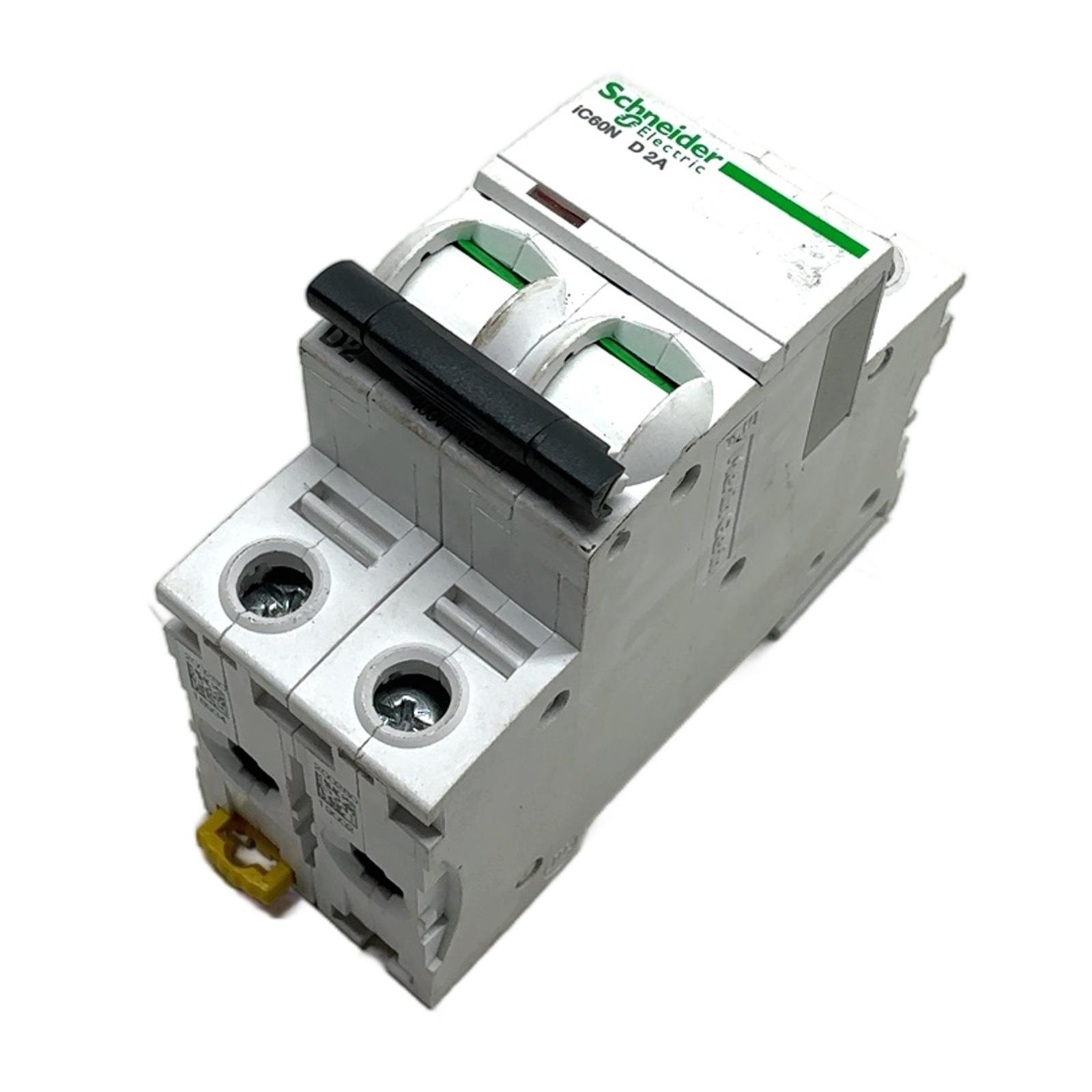

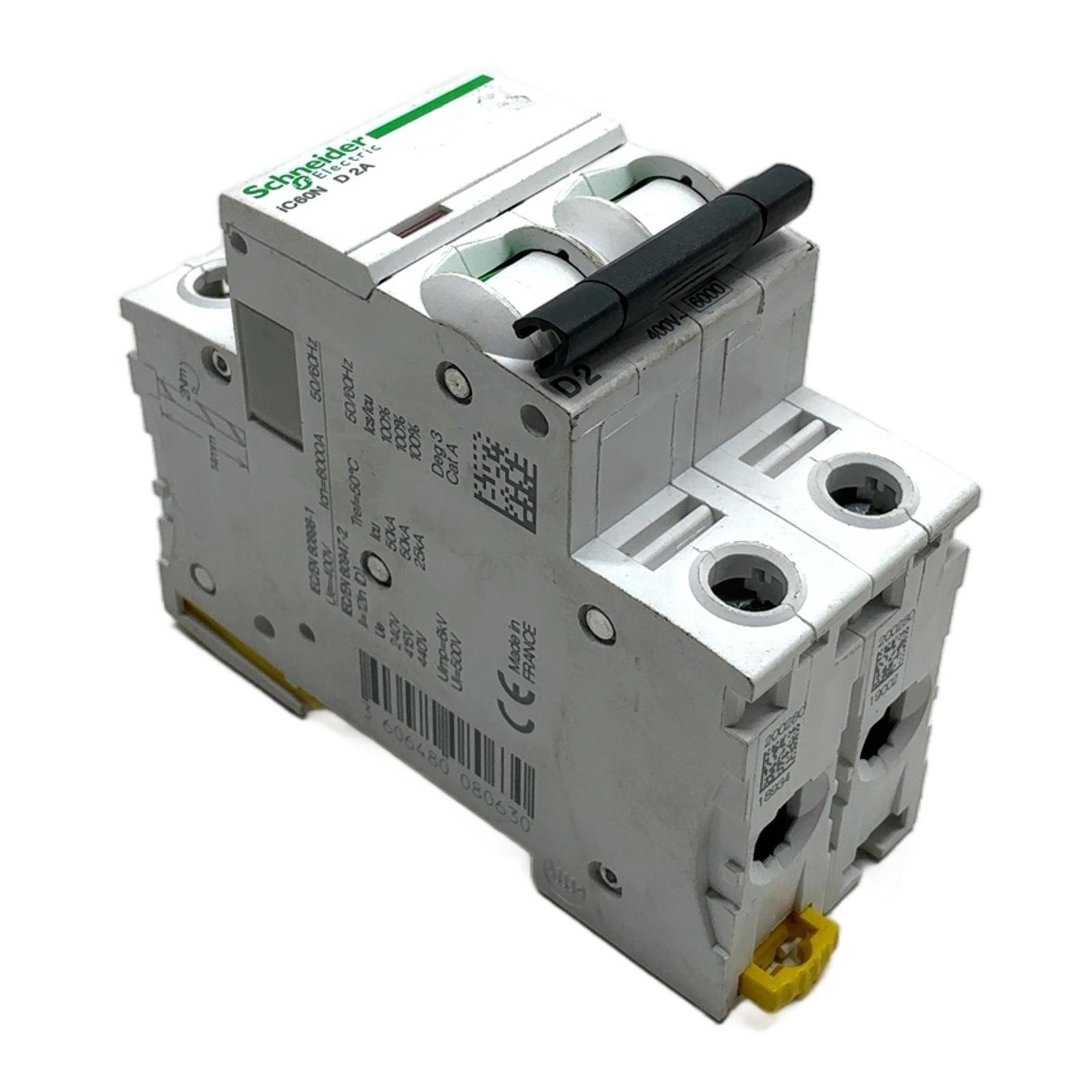

Schneider Electric iC60N D2A Miniature Circuit Breaker Description This is a Schneider Electric iC60N Miniature Circuit Breaker (MCB), part number A9F05202. It is a 2-pole device with a 2 Ampere rating and a D-curve trip characteristic. Designed for DIN rail mounting, this MCB provides reliable protection against overloads and short circuits in demanding electrical installations. It is part of the trusted Acti9 range, known for its high performance and safety features. Specifications Manufacturer: Schneider Electric Part Number: A9F05202 Series: Acti9 iC60N Rated Current: 2 A Number of Poles: 2P Trip Curve: D Rated Voltage (Ue): up to 440V AC Frequency: 50/60 Hz Rated Breaking Capacity (Icn): 6000 A at 400V AC (IEC/EN 60898-1) Rated Breaking Capacity (Icu): 50 kA at 240/415V AC (IEC/EN 60947-2) Rated Impulse Withstand Voltage (Uimp): 6 kV Rated Insulation Voltage (Ui): 500 V Terminal Tightening Torque: 2 Nm Label Info Model: iC60N D 2A EAN: 3606480080630 Application Ideal for use in commercial and industrial electrical distribution boards to protect circuits with high inrush currents, such as those with motors, transformers, and power supplies. Country of Origin Made in France. CO2 Impact Opting for this pre-owned circuit breaker instead of a new one prevents the emission of approximately 10.0 kg of CO2, a significant saving for our environment. Availability This item is a used, tested product in excellent working condition. Order now from profideals for expert support and fast delivery. FAQ What is the significance of the ‘D’ trip curve for this iC60N breaker?The ‘D’ curve indicates a high magnetic trip threshold, typically 10 to 20 times the nominal current (In). It is designed for circuits with very high inrush currents, such as those with transformers, large motors, or welding equipment, preventing nuisance tripping on startup. Is this A9F05202 breaker suitable for use in a DC circuit?While primarily designed for AC systems as per IEC/EN 60898-1 and 60947-2, some iC60N models can be used in DC applications with specific voltage and breaking capacity de-ratings. Always consult the official Schneider Electric technical documentation for the specific DC voltage limits and connection diagrams for this model. What is the correct terminal tightening torque for this circuit breaker?The recommended tightening torque is printed on the side of the device, which is 2 Nm (Newton-meters). Using a calibrated torque screwdriver is essential to ensure a secure and safe connection, preventing overheating and potential hazards. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
