SCHNEIDER ELECTRIC iC60N C10A A9F74210

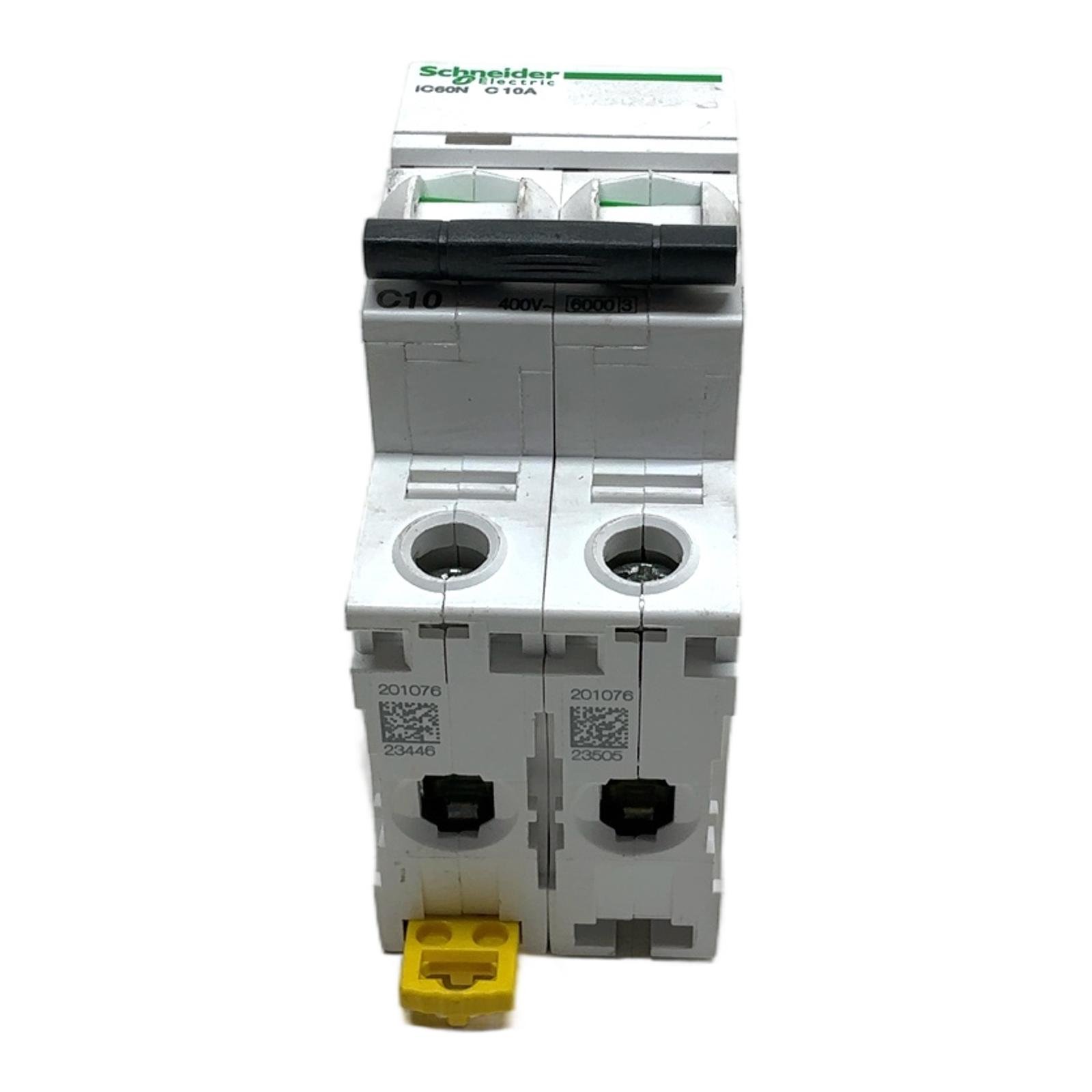

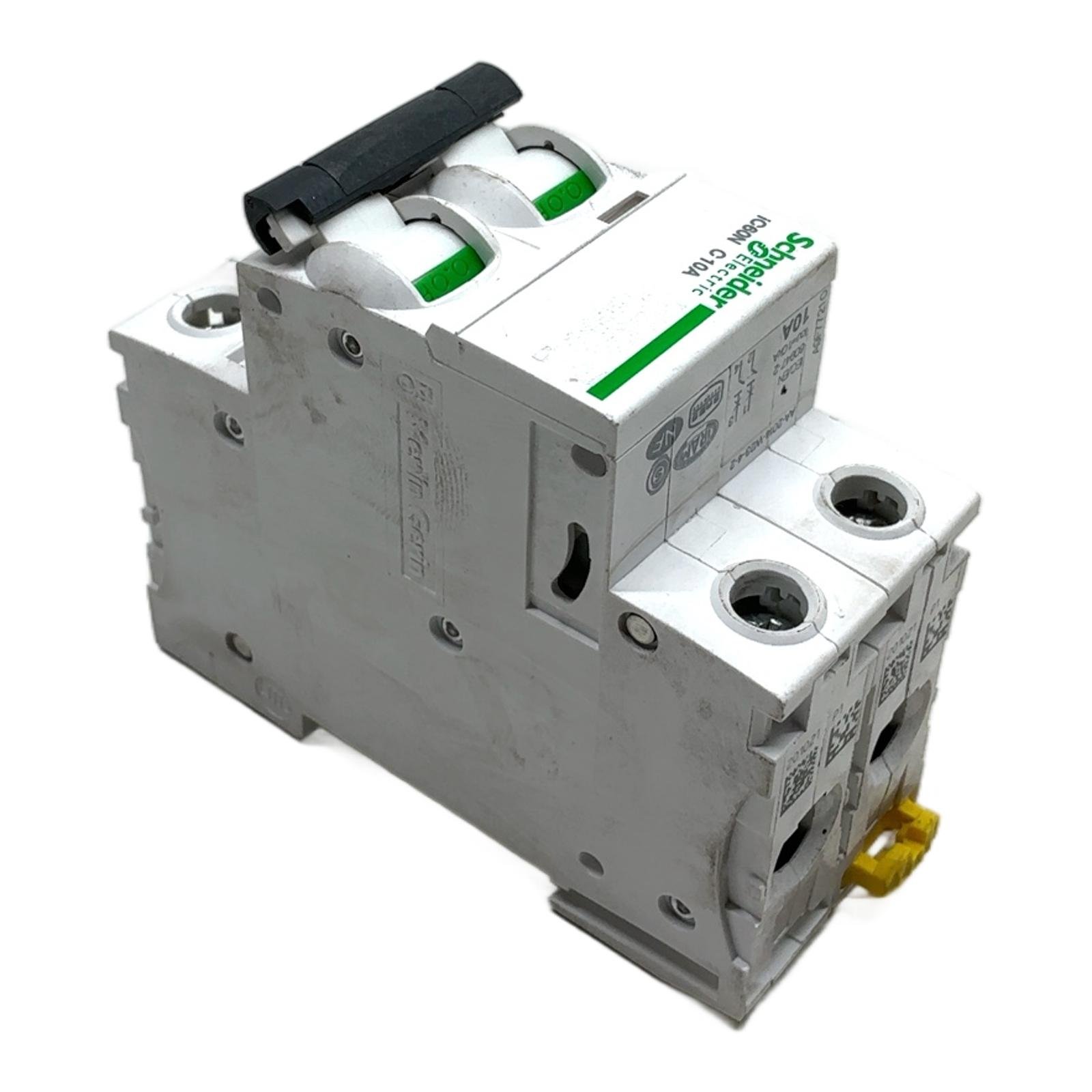

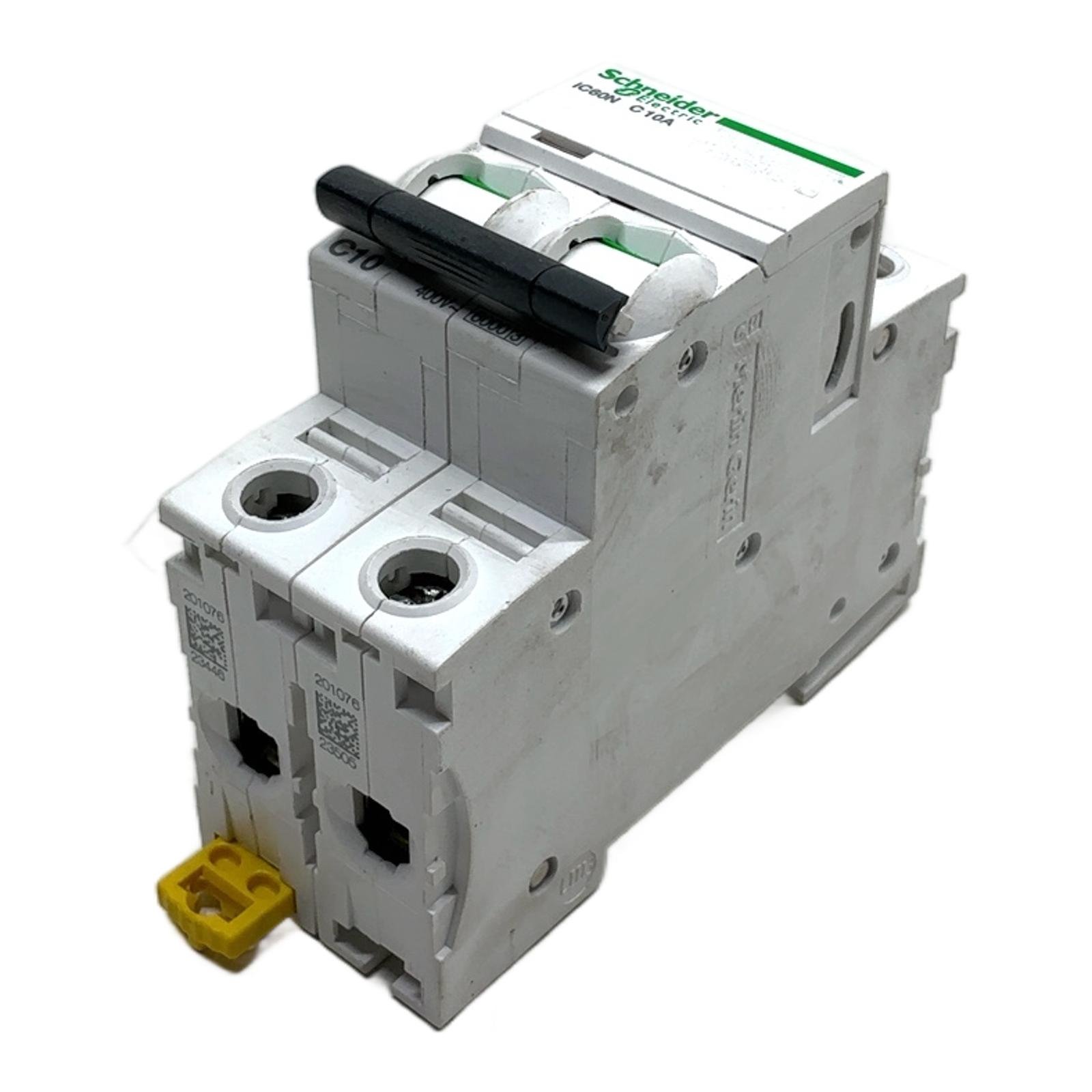

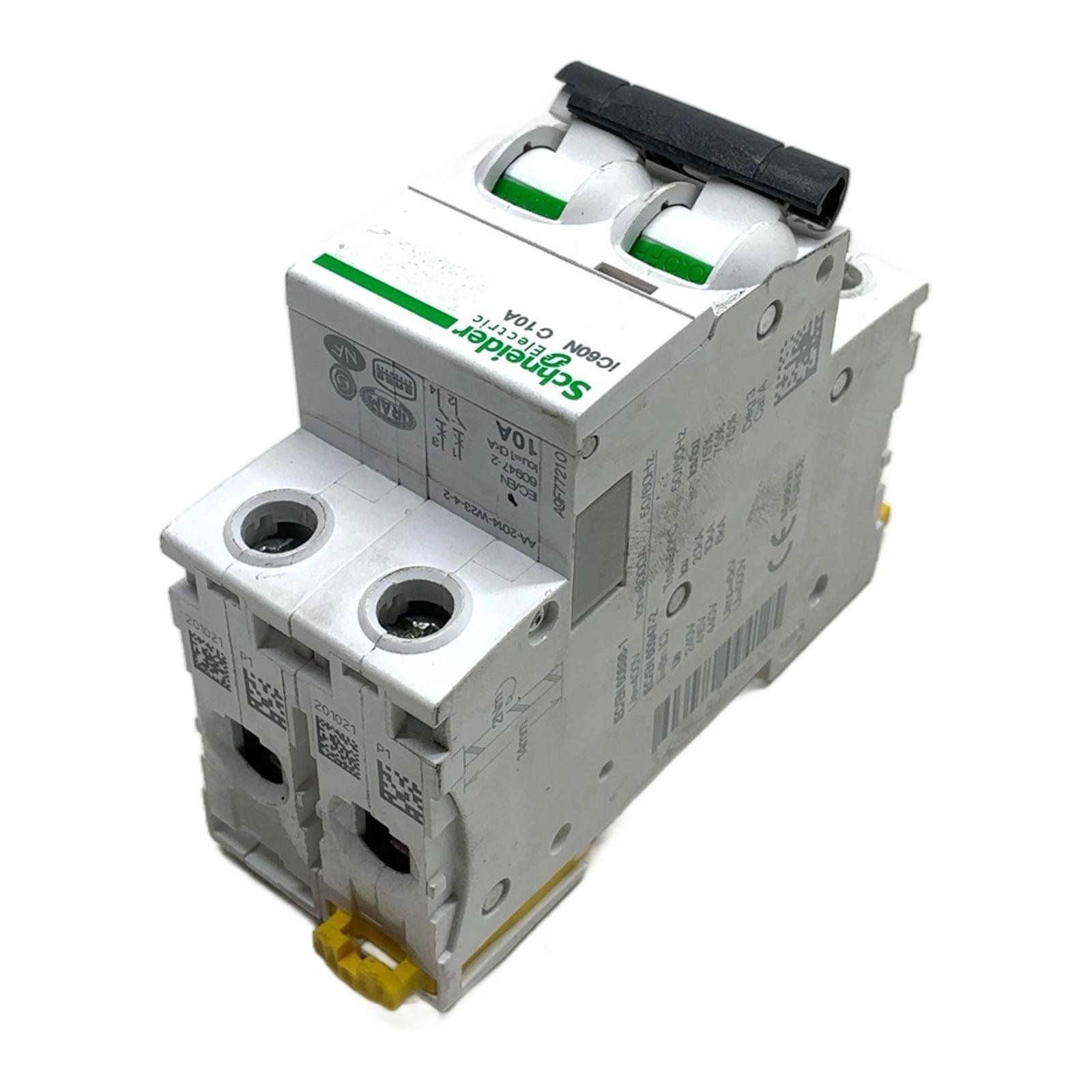

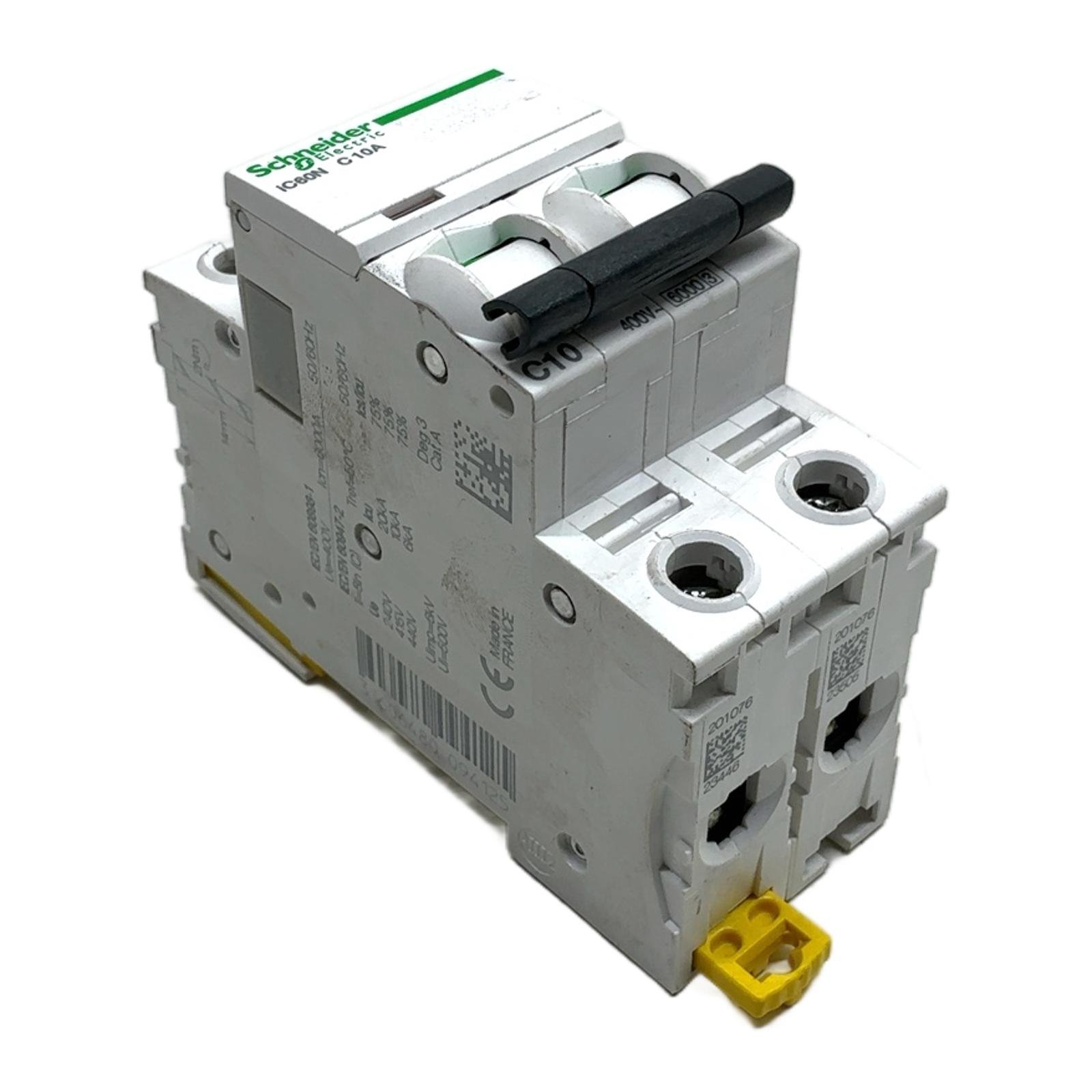

Schneider Electric iC60N C10A 2-Pole Miniature Circuit Breaker Description The Schneider Electric A9F74210 is a high-performance 2-pole miniature circuit breaker (MCB) from the renowned Acti9 iC60N series. It is designed to provide essential protection against overloads and short circuits in a wide range of electrical installations. With a 10A rating and a C-type tripping characteristic, it is perfectly suited for protecting circuits with resistive or inductive loads with low inrush current, such as lighting and general power circuits in commercial and industrial environments. Specifications Manufacturer: Schneider Electric Part Number: A9F74210 Series: Acti9 iC60N Number of Poles: 2P Rated Current: 10 A Tripping Curve: C Rated Voltage (Ue): 400V AC 50/60Hz Breaking Capacity (Icn, IEC 60898-1): 6000 A Breaking Capacity (Icu, IEC 60947-2): 10 kA at 415V AC Mounting: DIN Rail Label Info Model: iC60N C10A Standards: IEC/EN 60898-1, IEC/EN 60947-2 Rated Impulse Voltage (Uimp): 6kV Rated Insulation Voltage (Ui): 500V Application This MCB is ideal for use in distribution boards and consumer units for the protection of final circuits. Common applications include commercial buildings, industrial facilities, and residential complexes where reliable circuit protection is critical for both equipment and personnel safety. Country of Origin Made in France. CO2 Impact By choosing this pre-owned circuit breaker, you are helping to avoid the emission of approximately 10 kg of CO2. This saving is comparable to the emissions from driving a standard car for 50 kilometers. Your sustainable choice supports the circular economy and reduces industrial waste. Availability This item is a used, tested product in excellent working condition. Available for immediate dispatch. Order now from profideals for expert support and fast delivery. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. FAQ What is the difference between the iC60N and the iC60H series?The primary difference is the breaking capacity. The iC60N series typically has a breaking capacity of 6kA (EN/IEC 60898-1), while the iC60H series offers a higher breaking capacity, usually 10kA, making it suitable for applications with higher potential short-circuit currents. Can this 2-pole breaker be used on a single-phase circuit?Yes, a 2-pole (2P) breaker is designed to disconnect both the phase (live) and neutral conductors simultaneously. This is often required or recommended for certain single-phase applications to ensure complete isolation for safety and maintenance. What does the ‘C’ in C10A signify?The ‘C’ refers to the tripping characteristic or curve of the circuit breaker. A C-curve breaker is designed to trip between 5 and 10 times its rated current (10A). This makes it ideal for general-purpose applications with moderate inrush currents, such as lighting systems, standard outlets, and small motors. Last Update: Friday, March 13, 2026
