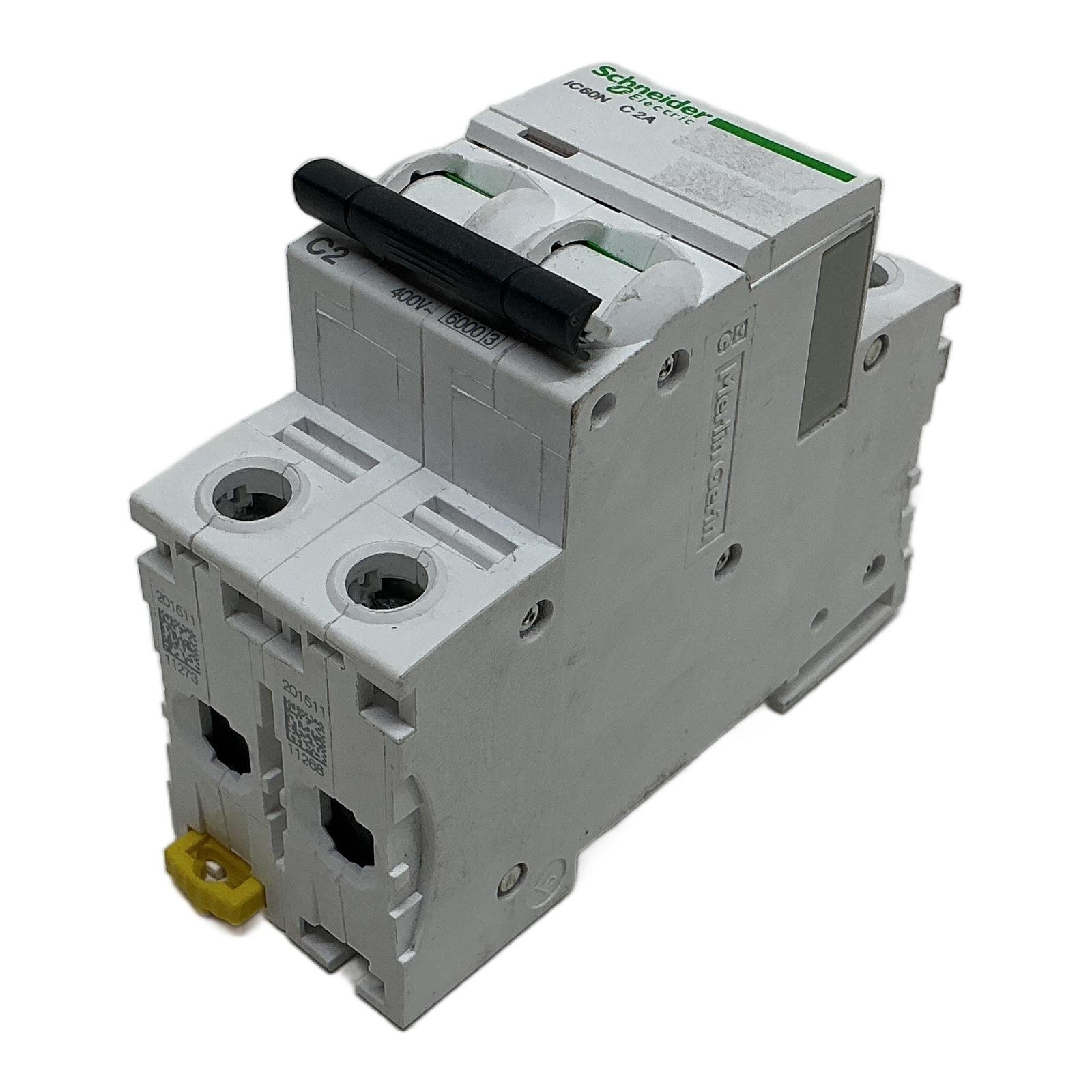

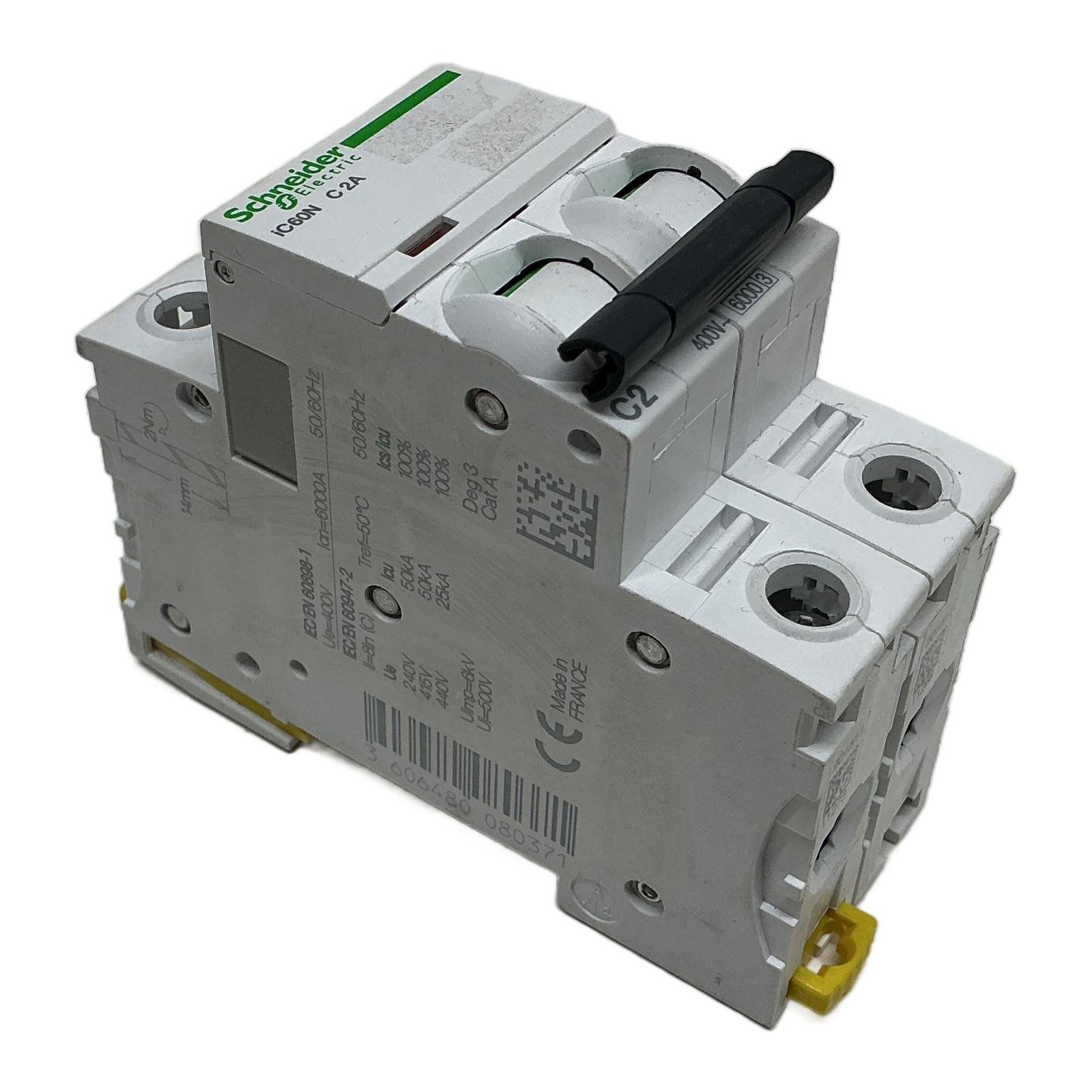

SCHNEIDER ELECTRIC iC60N A9F74202

Schneider Electric iC60N 2P 2A Miniature Circuit Breaker Description The Schneider Electric A9F74202 is a miniature circuit breaker (MCB) from the renowned Acti9 iC60N range. This 2-pole device provides essential protection for electrical installations against both overloads and short circuits. With a C-curve trip characteristic, it is designed for general purpose applications, protecting resistive and inductive loads with low inrush current. This MCB is a reliable choice for commercial and industrial buildings, ensuring safety and continuity of service. Specifications Manufacturer: Schneider Electric Product Range: Acti9 Model: iC60N Part Number: A9F74202 Number of Poles: 2P Rated Current: 2 A Tripping Curve: C Rated Voltage (Ue): up to 400V AC Breaking Capacity (Icn): 6000 A according to IEC/EN 60898-1 Frequency: 50/60 Hz Mounting: DIN Rail Label Info Standards: IEC/EN 60898-1, IEC/EN 60947-2 Rated Insulation Voltage (Ui): 500V Rated Impulse Withstand Voltage (Uimp): 6kV Application Ideal for circuit protection in lighting circuits, socket outlets, and other general electrical loads in both residential and commercial environments. The C-curve characteristic makes it suitable for applications where moderate inrush currents are expected. Country of Origin This product is Made in France. CO2 Impact By purchasing this pre-owned component, you are contributing to a circular economy and helping to avoid 10.0 kg of CO2 emissions associated with the production of a new unit. This is comparable to the emissions from driving an average car for 50 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the difference between a C-curve and a B-curve circuit breaker? A C-curve breaker, like this one, is designed for general applications and trips between 5 to 10 times the rated current. It is suitable for devices with moderate inrush currents, like lighting or small motors. A B-curve breaker is more sensitive, tripping at 3 to 5 times the rated current, and is used for purely resistive loads or circuits with very long cables. Can this iC60N MCB be used in a DC circuit? While primarily designed for AC circuits, some iC60N models are rated for DC use with specific voltage and breaking capacity limitations. It is crucial to consult the official Schneider Electric datasheet for the A9F74202 to verify its DC ratings and connection diagrams before using it in a DC application. What do the VisiTrip and VisiSafe features on the Acti9 iC60N series indicate? VisiSafe provides a green strip on the toggle, which guarantees that the downstream contacts are physically open, ensuring safety during maintenance. VisiTrip is a red mechanical indicator on the front face that appears when the breaker has tripped due to a fault (overload or short-circuit), allowing for quick identification of the faulty circuit without needing to test each breaker. profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
